Information technology — Multimedia framework (MPEG-21) — Part 19: Media Value Chain Ontology — Amendment 1: Extensions on time-segments and multi-track audio

Technologies de l'information — Cadre multimédia (MPEG-21) — Partie 19: Ontologie de chaîne de valeur de média — Amendement 1: Titre manque

General Information

Status
Published
Publication Date
30-May-2018
Current Stage
6060 - International Standard published
Start Date
31-May-2018
Completion Date
31-May-2018
Ref Project

RELATIONS

Buy Standard

Standard
ISO/IEC 21000-19:2010/Amd 1:2018 - Extensions on time-segments and multi-track audio
English language
24 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

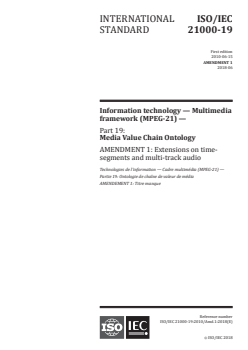

INTERNATIONAL ISO/IEC
STANDARD 21000-19
First edition
2010-06-15
AMENDMENT 1
2018-06
Information technology — Multimedia
framework (MPEG-21) —
Part 19:
Media Value Chain Ontology
AMENDMENT 1: Extensions on time-
segments and multi-track audio
Technologies de l'information — Cadre multimédia (MPEG-21) —
Partie 19: Ontologie de chaîne de valeur de média
AMENDEMENT 1: Titre manque
Reference number
ISO/IEC 21000-19:2010/Amd.1:2018(E)
ISO/IEC 2018
---------------------- Page: 1 ----------------------

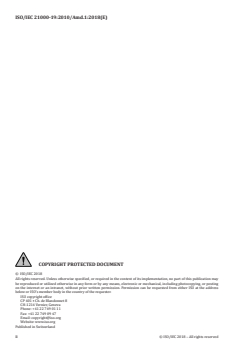

ISO/IEC 21000-19:2010/Amd.1:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved
---------------------- Page: 2 ----------------------

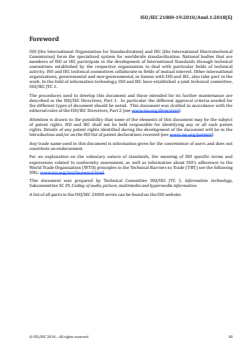

ISO/IEC 21000-19:2010/Amd.1:2018(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical

activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the

work. In the field of information technology, ISO and IEC have established a joint technical committee,

ISO/IEC JTC 1.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: www .iso .org/iso/foreword .html.

This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.

A list of all parts in the ISO/IEC 21000 series can be found on the ISO website.
© ISO/IEC 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
Information technology — Multimedia framework
(MPEG-21) —
Part 19:
Media Value Chain Ontology
AMENDMENT 1: Extensions on time-segments and multi-
track audio
Introduction
Add the following text after the last paragraph:

This document consists of eight Clauses and three Annexes. This technology is described in the

following sections of this document:

Model: The model is described in Clause 6, by way of a narrative description of the Value

Chain, its main elements and relations.

Representation: The MVCO has been formalized as a normative OWL Ontology, the description

of which is given in Clause 7. The description consists of listing the classes, the

object properties, the datatype properties, and the class individuals. Classes are

described by giving the name, an English definition, the class hierarchy, and the

restrictions imposed on the class. Annex B contains the normative OWL (XML/
RDF) comprising the entire semantics of the elements in the model.

Ontology Use: An informative section is provided with non-normative descriptions of use,

extensions and an API (Annex A).

Extension: An extension of the MVCO defining additional concepts for the description of the

value chain of composite IP Entities in the audio domain is described in Clause
8. Annex C contains the corresponding normative OWL (XML/RDF).
Scope
Replace the text with the following:

This document describes MPEG-21 Media Value Chain Ontology (MVCO). The MVCO can be used

to capture knowledge about media value chains and to represent it in a computer readable way, as

well as concepts in the domain and the relationships between those concepts.
© ISO/IEC 2018 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
Clause 3
Replace 3.1.1 to 3.1.61 with:
3.1.1
action
process of performing functions
3.1.2
adaptation
IP Entity that is a Work derived from another Work or Adaptation
3.1.3
AdaptationInstance
IP Entity which is an example of an Identified Adaptation Manifestation
EXAMPLE A file.
3.1.4
AdaptationInstanceCopy
IP Entity that is a copy of an AdaptationInstance
3.1.5
AdaptationManifestation
IP Entity which is an expression of an Adaptation
Note 1 to entry: IP Entity can be an object or an event.
3.1.6
AdaptationManifestationCopy
IP Entity that is a copy of an AdaptationManifestation
3.1.7
adaptor
user who produces an Adaptation and its AdaptationManifestations
3.1.8
anonymous
user whose identity is unknown
2 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
3.1.9
broadcast
action that delivers Content to a Device in a point-to-multipoint modality
3.1.10
collective
set of two or more Users
3.1.11
content
set of one or more Content Elements
EXAMPLE A Digital Item.
3.1.12
content element
type of data

Note 1 to entry: Content elements can be Resources, metadata, nested Contents, licenses, IPMP data,

IPMP tools and Use Data.
3.1.13
ContentHandler

user who is appointed to act on content on behalf of another User and within the scope and responsi-

bility of that second User´s rights
3.1.14
copy

mechanical reproduction of analogue or digital representation of a given IP Entity

Note 1 to entry: In the case of a digital Copy the result is of virtually identical quality while in the case

of an analogue Copy the result can vary considerably in quality.
3.1.15
CopyrightException
permission to invoke a right under exceptional circumstance
EXAMPLE When a particular Fact is true.
3.1.16
CreateWork
action of creating a Work without any previous IP Entity
© ISO/IEC 2018 – All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
3.1.17
creator
author
user who generates a Work and makes its Manifestations
3.1.18
distribute, verb
action of selling, renting or lending
3.1.19
distributor
user who distributes a Product
3.1.20
device

combination of hardware and/or software that allows a User to execute functions over Content and/or

IP Entities
3.1.21
download, verb

action of transferring a file or program from a central computer to a smaller computer or to a comput-

er at a remote location
3.1.22
EndUser
user in a Value Chain who ultimately consumes Content
3.1.23
EndUser Action
action performed by an EndUser
3.1.24
fact
positive proposition
4 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
3.1.25
identify

function of assigning a unique signifier that establishes the identity of entities, Devices, Content and

Content Elements
3.1.26
instance
IP Entity which is an example of an Identified Manifestation
Note 1 to entry: IP Entity can be an object or an event.
EXAMPLE A file.
3.1.27
instantiator
user who produces an Instance
3.1.28
Intellectual Property

any identifiable product of the mind attributable to any person(s) or legal entitie(s) that can be repre-

sented or communicated physically and protectable by copyright or similar laws
3.1.29
interval
temporal entity defined by a start and end point
3.1.30
IP entity

type of IP represented by Content: Work, Adaptation, Manifestation, Instance, Product

3.1.31
MakeAdaptation
action of making an Adaptation
3.1.32
MakeAdaptationManifestationCopy
action of making an AdaptationManifestationCopy
3.1.33
© ISO/IEC 2018 – All rights reserved 5
---------------------- Page: 8 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
MakeAdaptationInstanceCopy
action of making an AdaptationInstanceCopy
3.1.34
MakeAdaptationInstance
action of making an Instance from an AdaptationManifestation
3.1.35
MakeAdaptationManifestation
action of making an AdaptationManifestation
3.1.36
MakeCopy
action of making a copy
3.1.37
MakeInstance
action of making an Instance from a Manifestation
3.1.38
MakeManifestation
action of making a Manifestation
3.1.39
MakeWorkInstanceCopy
action of making a WorkInstanceCopy
3.1.40
MakeWorkManifestationCopy
action of making a WorkManifestationCopy
3.1.41
MakeWorkInstance
action of making an Instance from a WorkManifestation
3.1.42
MakeWorkManifestation
6 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
action of making a Manifestation of a Work
3.1.43
manifestation
IP Entity which is an expression of a Work
Note 1 to entry: IP Entity can be an object or an event.
3.1.44
permission

authorisation from one Rights owner to one or more Users to perform one or more Actions on a given

IP Entity
3.1.45
private copy
action of storing Content and hold it private for non commercial purposes
3.1.46
produce, verb
action of making Products
3.1.47
producer
user that makes Products
3.1.48
product

IP Entity that adds value to IP Entities by including them with an appropriate licence for publishing

3.1.49
public communication
action of publicly displaying/performing

EXAMPLE Live performance, radio, television, internet streaming, multicast of Instances and Man-

ifestations, and download.
3.1.50
render
action of converting a Resource to a human-perceivable form
© ISO/IEC 2018 – All rights reserved 7
---------------------- Page: 10 ----------------------
ISO/IEC 21000-19:2010/Amd.1:2018(E)
3.1.51
represent

express information in a form that can be processed by a digital or analogue Device

3.1.52
resource
Data that can be processed by a Device

Note 1 to entry: This is only applicable to data whose Representation is not specified by ISO/IEC 21000.

EXAMPLE An MP3 file or an executable code.
3.1.53
reuse, verb
action of using an IP Entity for the creation of another IP Entity
3.1.54
right

ability of performing one or more functions over IP Entities as a consequence of ownership or Per-

missions
3.1.55
role

defined set of Actions and corresponding conditions attributed to and required of a User

3.1.56
segment
