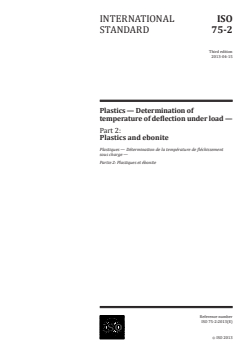

INTERNATIONAL ISO
STANDARD 75-2
Third edition
2013-04-15
Plastics — Determination of
temperature of deflection under load —
Part 2:
Plastics and ebonite

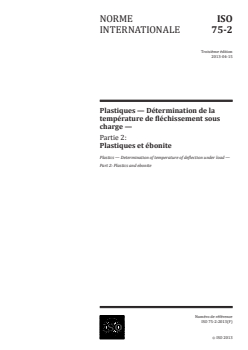

Plastiques — Détermination de la température de fléchissement
sous charge —
Partie 2: Plastiques et ébonite
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

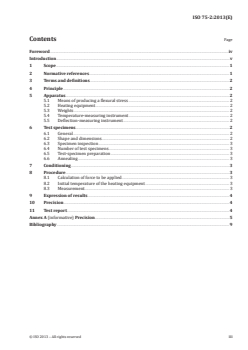

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Principle . 2
5 Apparatus . 2
5.1 Means of producing a flexural stress . 2
5.2 Heating equipment . 2
5.3 Weights . 2
5.4 Temperature-measuring instrument . 2
5.5 Deflection-measuring instrument . 2
6 Test specimens. 2
6.1 General . 2
6.2 Shape and dimensions . 2
6.3 Specimen inspection . 3
6.4 Number of test specimens . 3
6.5 Test-specimen preparation . 3
6.6 Annealing . 3
7 Conditioning . 3
8 Procedure. 3
8.1 Calculation of force to be applied. 3
8.2 Initial temperature of the heating equipment . 3
8.3 Measurement . 3
9 Expression of results . 4
10 Precision . 4
11 Test report . 4
Annex A (informative) Precision . 5
Bibliography . 9

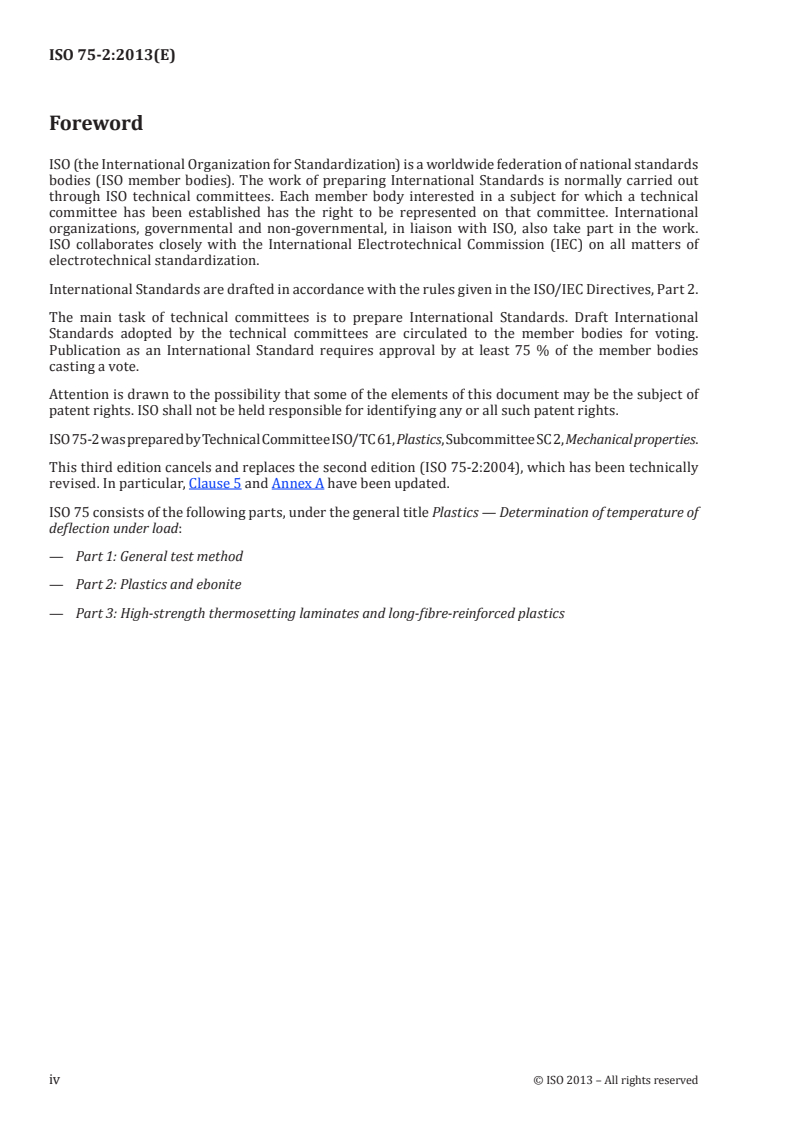

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 75-2 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 2, Mechanical properties.
This third edition cancels and replaces the second edition (ISO 75-2:2004), which has been technically
revised. In particular, Clause 5 and Annex A have been updated.
ISO 75 consists of the following parts, under the general title Plastics — Determination of temperature of
deflection under load:
— Part 1: General test method
— Part 2: Plastics and ebonite
— Part 3: High-strength thermosetting laminates and long-fibre-reinforced plastics
iv © ISO 2013 – All rights reserved
Introduction
The first editions of ISO 75-1 and this part of ISO 75 described three methods (A, B and C) using different
test loads and two specimen positions, edgewise and flatwise. For testing in the flatwise position, test
specimens with dimensions 80 mm × 10 mm × 4 mm were required. These can be moulded directly or
machined from the central section of the multipurpose test specimen (see ISO 20753).
The previous (i.e. second) editions of ISO 75-1 and this part of ISO 75 specified the flatwise test position
as preferred, while still allowing testing in the edgewise position with test conditions given in Annex A
until the next revision of ISO 75-1 and this part of ISO 75, as agreed in ISO/TC 61/SC2/WG 5. Therefore,
with this revision, the edgewise test position will be removed.
Technical development of testing instruments in recent years made instruments based on a fluidized
bed or air ovens available. These are especially advantageous for use at temperatures at which the
common silicone oil-based heat transfer fluids reach their limit of thermal stability. The fluidized bed
and air oven methods of heat transfer are introduced in ISO 75-1.
An additional precision statement covering the new heating methods is introduced in this part of ISO 75.
INTERNATIONAL STANDARD ISO 75-2:2013(E)
Plastics — Determination of temperature of deflection
under load —
Part 2:
Plastics and ebonite
1 Scope
This part of ISO 75 specifies three methods, using different values of constant flexural stress, which can be
used for the determination of the temperature of deflection under load of plastics (including filled plastics
and fibre-reinforced plastics in which the fibre length, prior to processing, is up to 7,5 mm) and ebonite:
— method A, using a flexural stress of 1,80 MPa;
— method B, using a flexural stress of 0,45 MPa;
— method C, using a flexural stress of 8,00 MPa.
The standard deflection, Δs, used to determine the temperature of deflection under load corresponds to
a flexural-strain increase, Δε , defined in this part of ISO 75. The initial flexural strain due to the loading
f
of the specimen at room temperature is neither specified nor measured in this part of ISO 75. The ratio
of this flexural-strain increase to the initial flexural strain depends on the modulus of elasticity, at
room temperature, of the material under test. This method is, therefore, only suitable for comparing the
temperatures of deflection of materials with similar room-temperature elastic properties.
NOTE 1 The methods give better reproducibility with amorphous plastics than with semi-crystalline ones.
With some materials, it can be necessary to anneal the test specimens to obtain reliable results. Annealing
procedures, if used, generally result in an increase in the temperature of deflection under load (see 6.6).
NOTE 2 For additional information, see ISO 75-1:2013, Clause 1.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 75-1, Plastics — Determination of temperature of deflection under load — Part 1: General test method
ISO 293, Plastics — Compression moulding of test specimens of thermoplastic materials
ISO 294-1, Plastics — Injection moulding of test specimens of thermoplastic materials — Part 1: General
principles, and moulding of multipurpose and bar test specimens
ISO 2818, Plastics — Preparation of test specimens by machining
ISO 10724-1, Plastics — Injection moulding of test specimens of thermosetting powder moulding compounds
(PMCs) — Part 1: General principles and moulding of multipurpose test specimens
ISO 20753, Plastics — Test specimens
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 75-1 apply.
NOTE Depending on the selected value of the flexural stress (see Clause 1), the temperature of deflection
under load (see definition 3.7 in ISO 75-1:2013)is designated as T 0,45, T 1,8 or T 8,0.
f f f
4 Principle
The principle is specified in ISO 75-1:2013, Clause 4.
5 Apparatus
5.1 Means of producing a flexural stress
This is specified in ISO 75-1:2013, 5.1.
The span (distance between the lines of contact between specimen and supports) shall be (64 ± 1) mm
for testing.
5.2 Heating equipment
This is specified in ISO 75-1:2013, 5.2.
5.3 Weights
This is specified in ISO 75-1:2013 5.3.
5.4 Temperature-measuring instrument
This is specified in ISO 75-1:2013, 5.4.
5.5 Deflection-measuring instrument
This is specified in ISO 75-1:2013, 5.5.
6 Test specimens
6.1 General
This is specified in ISO 75-1:2013, 6.1.
6.2 Shape and dimensions
See ISO 75-1:2013, 6.2.
The preferred test-specimen dimensions are:
length l: (80 ± 2,0) mm;
width b: (10 ± 0,2) mm;
thickness h: (4 ± 0,2) mm.
2 © ISO 2013 – All rights reserved
6.3 Specimen inspection
This is specified in ISO 75-1:2013, 6.3.
6.4 Number of test specimens
This is specified in ISO 75-1:2013, 6.4.
6.5 Test-specimen preparation
Test specimens shall be produced in accordance with ISO 293 (and ISO 2818, if applicable), or in
accordance with ISO 294-1 or ISO 10724-1, or as agreed by the interested parties. The test results
obtained on moulded test specimens depend on the moulding conditions used in their preparation. The
moulding conditions shall be in accordance with the standard for the ma
...
INTERNATIONAL ISO
STANDARD 75-2
Third edition
2013-04-15
Plastics — Determination of
temperature of deflection under load —
Part 2:
Plastics and ebonite
Plastiques — Détermination de la température de fléchissement
sous charge —
Partie 2: Plastiques et ébonite
Reference number
©
ISO 2013
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Principle . 2
5 Apparatus . 2
5.1 Means of producing a flexural stress . 2
5.2 Heating equipment . 2
5.3 Weights . 2
5.4 Temperature-measuring instrument . 2
5.5 Deflection-measuring instrument . 2
6 Test specimens. 2
6.1 General . 2
6.2 Shape and dimensions . 2
6.3 Specimen inspection . 3
6.4 Number of test specimens . 3
6.5 Test-specimen preparation . 3
6.6 Annealing . 3
7 Conditioning . 3
8 Procedure. 3
8.1 Calculation of force to be applied. 3
8.2 Initial temperature of the heating equipment . 3
8.3 Measurement . 3
9 Expression of results . 4
10 Precision . 4
11 Test report . 4
Annex A (informative) Precision . 5
Bibliography . 9
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 75-2 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 2, Mechanical properties.
This third edition cancels and replaces the second edition (ISO 75-2:2004), which has been technically
revised. In particular, Clause 5 and Annex A have been updated.
ISO 75 consists of the following parts, under the general title Plastics — Determination of temperature of
deflection under load:
— Part 1: General test method
— Part 2: Plastics and ebonite
— Part 3: High-strength thermosetting laminates and long-fibre-reinforced plastics
iv © ISO 2013 – All rights reserved
Introduction
The first editions of ISO 75-1 and this part of ISO 75 described three methods (A, B and C) using different
test loads and two specimen positions, edgewise and flatwise. For testing in the flatwise position, test
specimens with dimensions 80 mm × 10 mm × 4 mm were required. These can be moulded directly or
machined from the central section of the multipurpose test specimen (see ISO 20753).
The previous (i.e. second) editions of ISO 75-1 and this part of ISO 75 specified the flatwise test position
as preferred, while still allowing testing in the edgewise position with test conditions given in Annex A
until the next revision of ISO 75-1 and this part of ISO 75, as agreed in ISO/TC 61/SC2/WG 5. Therefore,
with this revision, the edgewise test position will be removed.
Technical development of testing instruments in recent years made instruments based on a fluidized
bed or air ovens available. These are especially advantageous for use at temperatures at which the
common silicone oil-based heat transfer fluids reach their limit of thermal stability. The fluidized bed
and air oven methods of heat transfer are introduced in ISO 75-1.
An additional precision statement covering the new heating methods is introduced in this part of ISO 75.
INTERNATIONAL STANDARD ISO 75-2:2013(E)
Plastics — Determination of temperature of deflection
under load —
Part 2:
Plastics and ebonite
1 Scope
This part of ISO 75 specifies three methods, using different values of constant flexural stress, which can be
used for the determination of the temperature of deflection under load of plastics (including filled plastics
and fibre-reinforced plastics in which the fibre length, prior to processing, is up to 7,5 mm) and ebonite:
— method A, using a flexural stress of 1,80 MPa;
— method B, using a flexural stress of 0,45 MPa;
— method C, using a flexural stress of 8,00 MPa.
The standard deflection, Δs, used to determine the temperature of deflection under load corresponds to
a flexural-strain increase, Δε , defined in this part of ISO 75. The initial flexural strain due to the loading
f
of the specimen at room temperature is neither specified nor measured in this part of ISO 75. The ratio
of this flexural-strain increase to the initial flexural strain depends on the modulus of elasticity, at
room temperature, of the material under test. This method is, therefore, only suitable for comparing the
temperatures of deflection of materials with similar room-temperature elastic properties.
NOTE 1 The methods give better reproducibility with amorphous plastics than with semi-crystalline ones.
With some materials, it can be necessary to anneal the test specimens to obtain reliable results. Annealing
procedures, if used, generally result in an increase in the temperature of deflection under load (see 6.6).
NOTE 2 For additional information, see ISO 75-1:2013, Clause 1.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 75-1, Plastics — Determination of temperature of deflection under load — Part 1: General test method
ISO 293, Plastics — Compression moulding of test specimens of thermoplastic materials
ISO 294-1, Plastics — Injection moulding of test specimens of thermoplastic materials — Part 1: General
principles, and moulding of multipurpose and bar test specimens
ISO 2818, Plastics — Preparation of test specimens by machining
ISO 10724-1, Plastics — Injection moulding of test specimens of thermosetting powder moulding compounds
(PMCs) — Part 1: General principles and moulding of multipurpose test specimens
ISO 20753, Plastics — Test specimens
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 75-1 apply.
NOTE Depending on the selected value of the flexural stress (see Clause 1), the temperature of deflection
under load (see definition 3.7 in ISO 75-1:2013)is designated as T 0,45, T 1,8 or T 8,0.
f f f
4 Principle
The principle is specified in ISO 75-1:2013, Clause 4.
5 Apparatus
5.1 Means of producing a flexural stress
This is specified in ISO 75-1:2013, 5.1.
The span (distance between the lines of contact between specimen and supports) shall be (64 ± 1) mm
for testing.
5.2 Heating equipment
This is specified in ISO 75-1:2013, 5.2.
5.3 Weights
This is specified in ISO 75-1:2013 5.3.
5.4 Temperature-measuring instrument
This is specified in ISO 75-1:2013, 5.4.
5.5 Deflection-measuring instrument
This is specified in ISO 75-1:2013, 5.5.
6 Test specimens
6.1 General
This is specified in ISO 75-1:2013, 6.1.
6.2 Shape and dimensions
See ISO 75-1:2013, 6.2.
The preferred test-specimen dimensions are:
length l: (80 ± 2,0) mm;
width b: (10 ± 0,2) mm;
thickness h: (4 ± 0,2) mm.
2 © ISO 2013 – All rights reserved
6.3 Specimen inspection
This is specified in ISO 75-1:2013, 6.3.
6.4 Number of test specimens
This is specified in ISO 75-1:2013, 6.4.
6.5 Test-specimen preparation
Test specimens shall be produced in accordance with ISO 293 (and ISO 2818, if applicable), or in
accordance with ISO 294-1 or ISO 10724-1, or as agreed by the interested parties. The test results
obtained on moulded test specimens depend on the moulding conditions used in their preparation. The
moulding conditions shall be in accordance with the standard for the ma
...
NORME ISO
INTERNATIONALE 75-2
Troisième édition
2013-04-15
Plastiques — Détermination de la
température de fléchissement sous
charge —
Partie 2:
Plastiques et ébonite
Plastics — Determination of temperature of deflection under load —
Part 2: Plastics and ebonite
Numéro de référence
©
ISO 2013
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2013
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2013 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 2
4 Principe . 2
5 Appareillage . 2
5.1 Moyens de produire une contrainte de flexion . 2
5.2 Dispositif de chauffage . 2
5.3 Poids . 2
5.4 Instrument de mesure de température . 2
5.5 Instrument de mesure du fléchissement . 2
6 Éprouvettes . 2
6.1 Généralités . 2
6.2 Forme et dimensions . 2
6.3 Vérification des éprouvettes . 3
6.4 Nombres d’éprouvettes . 3
6.5 Préparation des éprouvettes . 3
6.6 Recuit . 3
7 Conditionnement . 3
8 Mode opératoire. 3
8.1 Calcul de la charge à appliquer . 3
8.2 Température initiale du dispositif de chauffage . 4
8.3 Mesurage . 4
9 Expression des résultats. 4
10 Fidélité . 4
11 Rapport d’essai . 4
Annexe A (informative) Fidélité. 5
Bibliographie . 8
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (CEI) en ce qui concerne
la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives
ISO/CEI, Partie 2.
La tâche principale des comités techniques est d’élaborer les Normes internationales. Les projets de
Normes internationales adoptés par les comités techniques sont soumis aux comités membres pour vote.
Leur publication comme Normes internationales requiert l’approbation de 75 % au moins des comités
membres votants.
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable de
ne pas avoir identifié de tels droits de propriété et averti de leur existence.
L’ISO 75-2 a été élaborée par le comité technique ISO/TC 61, Plastiques, sous-comité SC 2, Propriétés
mécaniques.
Cette troisième édition annule et remplace la deuxième édition (ISO 75-2:2004), qui a fait l’objet d’une
révision technique. En particulier, l’Article 5 et l’Annexe A ont été mis à jour.
L’ISO 75 comprend les parties suivantes, présentées sous le titre général Plastiques — Détermination de
la température de fléchissement sous charge:
— Partie 1: Méthode d’essai générale
— Partie 2: Plastiques et ébonite
— Partie 3: Stratifiés thermodurcissables à haute résistance et plastiques renforcés de fibres longues
iv © ISO 2013 – Tous droits réservés
Introduction
Les premières éditions de l’ISO 75-1 et de la présente partie de l’ISO 75 décrivaient trois méthodes (A,
B et C) utilisant différentes charges d’essai et deux positions de l’échantillon, à plat et sur le chant. Pour
l’essai en position à plat, des éprouvettes de dimensions 80 mm × 10 mm × 4 mm étaient exigées, celles-ci
pouvant être moulées directement ou usinées dans la section centrale de l’éprouvette à usages multiples
(voir l’ISO 20753).
Les éditions précédentes (c’est-à-dire deuxièmes éditions) de l’ISO 75-1 et de la présente partie de l’ISO 75
spécifiaient la position d’essai à plat comme préférentielle, tout en autorisant des essais en position sur
le chant dans les conditions d’essai indiquées à l’Annexe A jusqu’à la prochaine révision de l’ISO 75-1 et
de la présente partie de l’ISO 75 comme convenu par l’ISO/TC 61/SC 2/GT 5. Par conséquent, la position
d’essai sur le chant est supprimée avec la présente révision.
L’évolution technique des appareils d’essai au cours des dernières années a permis de disposer
d’appareils à lit fluidisé ou d’étuves à air. Ceux-ci sont particulièrement avantageux pour une utilisation
à des températures auxquelles les fluides caloporteurs à base d’huile de silicone atteignent leur limite
en termes de stabilité thermique. Les méthodes de transfert de chaleur par lit fluidisé et étuve à air sont
introduites dans l’ISO 75-1.
Une déclaration de fidélité supplémentaire couvrant les nouvelles méthodes de chauffage est introduite
dans la présente partie de l’ISO 75.
NORME INTERNATIONALE ISO 75-2:2013(F)
Plastiques — Détermination de la température de
fléchissement sous charge —
Partie 2:
Plastiques et ébonite
1 Domaine d’application
La présente partie de l’ISO 75 spécifie trois méthodes utilisant différentes valeurs de contrainte de
flexion constante qui peuvent être utilisées pour la détermination de la température de fléchissement
sous charge des plastiques (incluant des plastiques chargés et des plastiques renforcés de fibres, dans
lesquels la longueur de fibre avant l’emploi est inférieure ou égale à 7,5 mm) et de l’ébonite:
— méthode A, utilisant une contrainte de flexion de 1,80 MPa;
— méthode B, utilisant une contrainte de flexion de 0,45 MPa;
— méthode C, utilisant une contrainte de flexion de 8,00 MPa.
Le fléchissement normalisé, Δs, utilisé pour déterminer la température de fléchissement sous charge
correspond à un accroissement de la déformation en flexion, Δε , défini dans la présente partie de
f
l’ISO 75. La déformation en flexion initiale due à la charge de l’éprouvette à la température ambiante
n’est ni spécifiée ni mesurée dans la présente partie de l’ISO 75. Le rapport de cet accroissement de la
déformation en flexion à la déformation en flexion initiale dépend du module d’élasticité, à température
ambiante, du matériau soumis à essai. Par conséquent, cette méthode est utilisable uniquement pour
comparer les températures de fléchissement des matériaux ayant des propriétés élastiques semblables
à température ambiante.
NOTE 1 Les méthodes présentent une meilleure reproductibilité avec les plastiques amorphes qu’avec les
plastiques semi-cristallins. Avec certains matériaux, il peut s’avérer nécessaire de procéder au recuit des
éprouvettes pour obtenir des résultats fiables. Dans le cas de leur mise en œuvre, les opérations de recuit
engendrent généralement un accroissement de la température de fléchissement sous charge (voir 6.6).
NOTE 2 Pour des informations supplémentaires, voir l’ISO 75-1:2013, Article 1.
2 Références normatives
Les documents suivants, en tout ou partie, sont référencés de manière normative dans le présent
document et sont indispensables pour son application. Pour les références datées, seule l’édition citée
s’applique. Pour les références non datées, la dernière édition du document de référence s’applique (y
compris les éventuels amendements).
ISO 75-1, Plastiques — Détermination de la température de fléchissement sous charge — Partie 1: Méthode
d’essai générale
ISO 293, Plastiques — Moulage par compression des éprouvettes en matières thermoplastiques
ISO 294-1, Plastiques — Moulage par injection des éprouvettes de matériaux thermoplastiques — Partie 1:
Principes généraux, et moulage des éprouvettes à usages multiples et des barreaux
ISO 2818, Plastiques — Préparation des éprouvettes par usinage
ISO 10724-1, Plastiques — Moulage par injection d’éprouvettes en compositions de poudre à mouler (PMC)
thermodurcissables — Partie 1: Principes généraux et moulage d’éprouvettes à usages multiples
ISO 20753, Plastiques — Éprouvettes
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 75-1 s’appliquent.
NOTE Selon la valeur de la contrainte de flexion choisie (voir Article 1), la température de fléchissement sous
charge (voir définition 3.7 de l’ISO 75-1:2013) est désignée par T 0,45, T 1,8 ou T 8,0.
f f f
4 Principe
Le principe est spécifié dans l’ISO 75-12013, Article 4.
5 Appareillage
5.1 Moyens de produire une contrainte de flexion
Cela est spécifié dans l’ISO 75-1:2013, 5.1.
La portée (distance entre les lignes de contact des supports avec l’éprouvette) doit être de (64 ± 1) mm
pour un essai.
5.2 Dispositif de chauffage
Cela est spécifié dans l’ISO 75-1:2013, 5.2.
5.3 Poids
Cela est spécifié dans l’ISO 75-1:2013, 5.3.
5.4 In
...
NORME ISO
INTERNATIONALE 75-2
Troisième édition
2013-04-15
Plastiques — Détermination de la
température de fléchissement sous
charge —
Partie 2:
Plastiques et ébonite
Plastics — Determination of temperature of deflection under load —
Part 2: Plastics and ebonite
Numéro de référence
©
ISO 2013
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2013
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2013 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 2
4 Principe . 2
5 Appareillage . 2
5.1 Moyens de produire une contrainte de flexion . 2
5.2 Dispositif de chauffage . 2
5.3 Poids . 2
5.4 Instrument de mesure de température . 2
5.5 Instrument de mesure du fléchissement . 2
6 Éprouvettes . 2
6.1 Généralités . 2
6.2 Forme et dimensions . 2
6.3 Vérification des éprouvettes . 3
6.4 Nombres d’éprouvettes . 3
6.5 Préparation des éprouvettes . 3
6.6 Recuit . 3
7 Conditionnement . 3
8 Mode opératoire. 3
8.1 Calcul de la charge à appliquer . 3
8.2 Température initiale du dispositif de chauffage . 4
8.3 Mesurage . 4
9 Expression des résultats. 4
10 Fidélité . 4
11 Rapport d’essai . 4
Annexe A (informative) Fidélité. 5
Bibliographie . 8
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (CEI) en ce qui concerne
la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives
ISO/CEI, Partie 2.
La tâche principale des comités techniques est d’élaborer les Normes internationales. Les projets de
Normes internationales adoptés par les comités techniques sont soumis aux comités membres pour vote.
Leur publication comme Normes internationales requiert l’approbation de 75 % au moins des comités
membres votants.
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable de
ne pas avoir identifié de tels droits de propriété et averti de leur existence.
L’ISO 75-2 a été élaborée par le comité technique ISO/TC 61, Plastiques, sous-comité SC 2, Propriétés
mécaniques.
Cette troisième édition annule et remplace la deuxième édition (ISO 75-2:2004), qui a fait l’objet d’une
révision technique. En particulier, l’Article 5 et l’Annexe A ont été mis à jour.
L’ISO 75 comprend les parties suivantes, présentées sous le titre général Plastiques — Détermination de
la température de fléchissement sous charge:
— Partie 1: Méthode d’essai générale
— Partie 2: Plastiques et ébonite
— Partie 3: Stratifiés thermodurcissables à haute résistance et plastiques renforcés de fibres longues
iv © ISO 2013 – Tous droits réservés
Introduction
Les premières éditions de l’ISO 75-1 et de la présente partie de l’ISO 75 décrivaient trois méthodes (A,
B et C) utilisant différentes charges d’essai et deux positions de l’échantillon, à plat et sur le chant. Pour
l’essai en position à plat, des éprouvettes de dimensions 80 mm × 10 mm × 4 mm étaient exigées, celles-ci
pouvant être moulées directement ou usinées dans la section centrale de l’éprouvette à usages multiples
(voir l’ISO 20753).
Les éditions précédentes (c’est-à-dire deuxièmes éditions) de l’ISO 75-1 et de la présente partie de l’ISO 75
spécifiaient la position d’essai à plat comme préférentielle, tout en autorisant des essais en position sur
le chant dans les conditions d’essai indiquées à l’Annexe A jusqu’à la prochaine révision de l’ISO 75-1 et
de la présente partie de l’ISO 75 comme convenu par l’ISO/TC 61/SC 2/GT 5. Par conséquent, la position
d’essai sur le chant est supprimée avec la présente révision.
L’évolution technique des appareils d’essai au cours des dernières années a permis de disposer
d’appareils à lit fluidisé ou d’étuves à air. Ceux-ci sont particulièrement avantageux pour une utilisation
à des températures auxquelles les fluides caloporteurs à base d’huile de silicone atteignent leur limite
en termes de stabilité thermique. Les méthodes de transfert de chaleur par lit fluidisé et étuve à air sont
introduites dans l’ISO 75-1.
Une déclaration de fidélité supplémentaire couvrant les nouvelles méthodes de chauffage est introduite
dans la présente partie de l’ISO 75.
NORME INTERNATIONALE ISO 75-2:2013(F)
Plastiques — Détermination de la température de
fléchissement sous charge —
Partie 2:
Plastiques et ébonite
1 Domaine d’application
La présente partie de l’ISO 75 spécifie trois méthodes utilisant différentes valeurs de contrainte de
flexion constante qui peuvent être utilisées pour la détermination de la température de fléchissement
sous charge des plastiques (incluant des plastiques chargés et des plastiques renforcés de fibres, dans
lesquels la longueur de fibre avant l’emploi est inférieure ou égale à 7,5 mm) et de l’ébonite:
— méthode A, utilisant une contrainte de flexion de 1,80 MPa;
— méthode B, utilisant une contrainte de flexion de 0,45 MPa;
— méthode C, utilisant une contrainte de flexion de 8,00 MPa.
Le fléchissement normalisé, Δs, utilisé pour déterminer la température de fléchissement sous charge
correspond à un accroissement de la déformation en flexion, Δε , défini dans la présente partie de
f
l’ISO 75. La déformation en flexion initiale due à la charge de l’éprouvette à la température ambiante
n’est ni spécifiée ni mesurée dans la présente partie de l’ISO 75. Le rapport de cet accroissement de la
déformation en flexion à la déformation en flexion initiale dépend du module d’élasticité, à température
ambiante, du matériau soumis à essai. Par conséquent, cette méthode est utilisable uniquement pour
comparer les températures de fléchissement des matériaux ayant des propriétés élastiques semblables
à température ambiante.
NOTE 1 Les méthodes présentent une meilleure reproductibilité avec les plastiques amorphes qu’avec les
plastiques semi-cristallins. Avec certains matériaux, il peut s’avérer nécessaire de procéder au recuit des
éprouvettes pour obtenir des résultats fiables. Dans le cas de leur mise en œuvre, les opérations de recuit
engendrent généralement un accroissement de la température de fléchissement sous charge (voir 6.6).
NOTE 2 Pour des informations supplémentaires, voir l’ISO 75-1:2013, Article 1.
2 Références normatives
Les documents suivants, en tout ou partie, sont référencés de manière normative dans le présent
document et sont indispensables pour son application. Pour les références datées, seule l’édition citée
s’applique. Pour les références non datées, la dernière édition du document de référence s’applique (y
compris les éventuels amendements).
ISO 75-1, Plastiques — Détermination de la température de fléchissement sous charge — Partie 1: Méthode
d’essai générale
ISO 293, Plastiques — Moulage par compression des éprouvettes en matières thermoplastiques
ISO 294-1, Plastiques — Moulage par injection des éprouvettes de matériaux thermoplastiques — Partie 1:
Principes généraux, et moulage des éprouvettes à usages multiples et des barreaux
ISO 2818, Plastiques — Préparation des éprouvettes par usinage
ISO 10724-1, Plastiques — Moulage par injection d’éprouvettes en compositions de poudre à mouler (PMC)
thermodurcissables — Partie 1: Principes généraux et moulage d’éprouvettes à usages multiples
ISO 20753, Plastiques — Éprouvettes
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 75-1 s’appliquent.
NOTE Selon la valeur de la contrainte de flexion choisie (voir Article 1), la température de fléchissement sous
charge (voir définition 3.7 de l’ISO 75-1:2013) est désignée par T 0,45, T 1,8 ou T 8,0.
f f f
4 Principe
Le principe est spécifié dans l’ISO 75-12013, Article 4.
5 Appareillage
5.1 Moyens de produire une contrainte de flexion
Cela est spécifié dans l’ISO 75-1:2013, 5.1.
La portée (distance entre les lignes de contact des supports avec l’éprouvette) doit être de (64 ± 1) mm
pour un essai.
5.2 Dispositif de chauffage
Cela est spécifié dans l’ISO 75-1:2013, 5.2.
5.3 Poids
Cela est spécifié dans l’ISO 75-1:2013, 5.3.
5.4 In
...
МЕЖДУНАРОДНЫЙ ISO
СТАНДАРТ 75-2
Третье издание
2013-04-15
Пластмассы. Определение
температуры прогиба под нагрузкой.
Часть 2.
Пластмассы и эбонит
Plastics — Determination of temperature of deflection under load —
Part 2: Plastics and ebonite
Ответственность за подготовку русской версии несёт GOST R
(Российская Федерация) в соответствии со статьёй 18.1 Устава ISO
Ссылочный номер
©
ISO 2013
ДОКУМЕНТ ЗАЩИЩЕН АВТОРСКИМ ПРАВОМ
© ISO 2013
Все права сохраняются. Если не указано иное, никакую часть настоящей публикации нельзя копировать или использовать в
какой-либо форме или каким-либо электронным или механическим способом, включая фотокопии и микрофильмы, без
предварительного письменного согласия ISO, которое должно быть получено после запроса о разрешении, направленного по
адресу, приведенному ниже, или в комитет-член ISO в стране запрашивающей стороны.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.ch
Опубликовано в Швейцарии
ii © ISO 2013 – Все права сохраняются
Содержание Страница
Предисловие .iv
Введение .v
1 Область применения .1
2 Нормативные ссылки .1
3 Термины и определения .2
4 Сущность метода.2
5 Аппаратура.2
5.1 Средства для приложения изгибающего напряжения.2
5.2 Нагревательное устройство.2
5.3 Грузы .2
5.4 Устройства для измерения температуры .2
5.5 Инструмент для измерения прогиба .2
6 Образцы для испытания.2
6.1 Общие положения.2
6.2 Форма и размеры.2
6.3 Проверка образцов .3
6.4 Число образцов для испытания.3
6.5 Изготовление образцов для испытания.3
6.6 Отжиг.3
7 Кондиционирование .3
8 Проведение испытания.3
8.1 Вычисление прилагаемой силы.3
8.2 Начальная температура нагревательного устройства.4
8.3 Измерение .4
9 Обработка результатов.4
10 Прецизионность.4
11 Протокол испытания.4
Приложение А (информативное) Прецизионность.5
Библиография.9
Предисловие
Международная организация по стандартизации (ISO) является всемирной федерацией национальных
организаций по стандартизации (комитетов-членов ISO). Разработка международных стандартов
обычно осуществляется техническими комитетами ISO. Каждый комитет-член, заинтересованный в
деятельности, для которой был создан технический комитет, имеет право быть представленным в этом
комитете. Международные правительственные и неправительственные организации, имеющие связи с
ISO, также принимают участие в работах. Что касается стандартизации в области электротехники, то
ISO работает в тесном сотрудничестве с Международной электротехнической комиссией (IEC).
Проекты международных стандартов разрабатываются в соответствии с правилами Директив ISO/IEC,
Часть 2.
Основной задачей технических комитетов является подготовка международных стандартов. Проекты
международных стандартов, принятые техническими комитетами, рассылаются комитетам-членам на
голосование. Их опубликование в качестве международных стандартов требует одобрения не менее
75 % комитетов-членов, принимающих участие в голосовании.
Следует иметь в виду, что некоторые элементы настоящего международного стандарта могут быть
объектом патентных прав. Международная организация по стандартизации не может нести
ответственность за идентификацию какого-либо одного или всех патентных прав.
ISO 75-2 был подготовлен Техническим комитетом ISO/TC 61, Пластмассы, Подкомитетом SC 2,
Механические свойства.
Настоящее третье издание отменяет и заменяет второе издание (ISO 75-2:2004), после технического
пересмотра. В частности, Раздел 5 и Приложение A были обновлены.
ISO 75 включает следующие части под общим названием Пластмассы. Определение температуры
прогиба под нагрузкой:
— Часть 1.Общий метод испытания
— Часть 2. Пластмассы и эбонит
— Часть 3. Высокопрочные термореактивные слоистые пластики и упрочненные длинными
волокнами пластмассы
iv
Введение
Первые издания настоящей части ISO 75 и ISO 75-1 описывает три метода (A, B и C), в которых
применяются различные нагрузки и два положения образца при испытании, поставленный на ребро и
плашмя. Для испытаний плашмя требуется образец с размерами 80 мм × 10 мм × 4 мм. Он может быть
изготовлен методом литья под давлением или механическим способом из центральной части
многоцелевого образца для испытания (см. ISO 20753).
Предыдущее (т.е. второе) издание настоящих частей ISO 75 и ISO 75-1 определяло положение
образца плашмя как предпочтительное, в то же время допускались испытания образца в положении на
ребре при условиях, приведенных в Приложение A, до следующего пересмотра этих частей ISO 75 и
ISO 75-1 в соответствии с ISO/TC 61/SC 2/WG 5. В настоящей редакции положение образца при
испытании на ребре исключено.
На момент публикации, промышленностью изготавливаются испытательные приборы на основе
сжиженной среды или печи с нагретым воздухом. Наиболее правильно использовать в качестве
теплопередающей среды силиконовое масло, т.к. оно имеет хорошую термостабильность при высоких
температурах. В ISO 75-1 в качестве теплопередающей среды приведены сжиженная среда и нагретый
воздух.
В этой части ISO 75 дополнительно приведена прецизионность метода, охватывающая новые методы
нагревания.
v
МЕЖДУНАРОДНЫЙ СТАНДАРТ ISO 75-2:2013(R)
Пластмассы. Определение температуры прогиба под
нагрузкой.
Часть 2.
Пластмассы и эбонит
1 Область применения
Эта часть ISO 75 устанавливает три метода определения температуры прогиба под нагрузкой
пластмасс (включая наполненные пластмассы и упрочненные волокнами пластмассы, в которых длина
волокон до переработки не более 7,5 мм) и эбонита с использованием различных значений
изгибающего напряжения:
— метод А при изгибающем напряжении 1,80 МПа;
— метод В при изгибающем напряжении 0,45 MПa;
— метод А при изгибающем напряжении 8,00 MПa.
Заданная величина прогиба, Δs, используемая для определения температуры прогиба под нагрузкой
соответствует увеличению деформации изгиба, Δε , установленному в этой части ISO 75. Начальная
f
деформация изгиба от нагружения образца при комнатной температуре не устанавливается и не
измеряется в этой части ISO-75. Отношение увеличения деформации изгиба к первоначальной
деформации изгиба зависит от модуля упругости испытуемого материала при комнатной температуре.
Поэтому этот метод пригоден только для сравнения температуры прогиба под нагрузкой при
комнатной температуре материалов с близкими упругими свойствами.
ПРИМЕЧАНИЕ 1 Настоящие методы дают лучшую воспроизводимость для аморфных, чем для
полукристаллических пластмасс. Для некоторых материалов может быть необходим отжиг используемых
образцов для получения надежных результатов. Отжиг, если он применяется, обычно увеличивает температуру
прогиба под нагрузкой (см.6.6).
ПРИМЕЧАНИЕ 2 Для дополнительной информации, смотри ISO 75-1:2013, Раздел 1.
2 Нормативные ссылки
Следующие ниже ссылочные документы, целиком или частично, являются обязательными при
применении данного международного стандарта. Для датированных ссылок применяется только
цитируемое здесь издание. Для недатированных ссылок применяется последнее издание ссылочного
документа (включая все изменения).
ISO 75-1, Пластмассы. Определение температуры прогиба под нагрузкой. Часть 1. Общие методы
испытаний
ISO 293, Пластмассы. Образцы для испытаний из термопластичных материалов, изготовленные
методом прямого прессования
ISO 294-1, Пластмассы. Литье под давлением образцов для испытаний термопластичных
материалов. Часть 1. Общие принципы и литье образцов для испытаний многоцелевого назначения
и в виде брусков
ISO 2818, Пластмассы. Приготовление образцов для испытаний с помощью механической обработки
ISO 10724-1, Пластмассы. Литье под давлением испытательных образцов термореактивных
порошкообразных формовочных материалов. Часть 1. Общие принципы и литье под давлением
испытательных образцов многоцелевого назначения
ISO 20753, Пластмассы. Образцы для испытания
3 Термины и определения
В настоящем документе применяются термины и определения, приведенные в ISO 75-1.
ПРИМЕЧАНИЕ В зависимости от выбранного значения изгибающего напряжения (см. Раздел 1), температура
прогиба под нагрузкой (см. определение 3.7 в ISO 75-1:2013) обозначается как T 0,45, T 1,8 или T 8,0.
f f f
4 Сущность метода
Сущность метода в соответствии с ISO 75-1:2013, Раздел 4.
5 Аппаратура
5.1 Средства для приложения изгибающего напряжения
Указаны в ISO 75-1:2013, 5.1.
Расстояние между опорами (расстояние между линиями контакта испытуемого образца и опор) должно
быть (64 ± 1) мм.
5.2 Нагревательное устройство
Указано в ISO 75-1:2013, 5.2.
5.3 Грузы
Указано в ISO 75-1:2013, 5.3.
5.4 Устройства для измерения температуры
Указано в ISO 75-1:2013, 5.4.
5.5 Инструмент для измерения прогиба
Указано в ISO 75-1:2013, 5.5.
6 Образцы для испытания
6.1 Общие положения
Указано в ISO 75-1:2013, 6.1.
6.2 Форма и размеры
Указано в ISO 75-1:2013, 6.2.
Предпочтительные размеры образцов для испытания:
длина l: (80 ± 2,0) мм;
ширина b: (10 ± 0,2) мм;
толщина h: (4 ± 0,2) мм.
6.3 Проверка образцов
Указано в ISO 75-1:2013, 6.3.
6.4 Число образцов для испытания
Указано в ISO 75-1:2013, 6.4.
6.5 Изготовление образцов для испытания
Образцы следует изготавливать в соответствии с ISO 293 (ISO 2818, если применимо), или в
соответствии с ISO 294-1 или ISO 10724-1, или по согласованию заинтересованных сторон.
Результаты, полученные на отформованных образцах, зависят от условий формования. Условия
формования должны соответствовать условиям, указанным в стандарте на испытуемый материал или
установленным по согласованию заинтересованных сторон.
В случае прессования толщина образцов должна быть по направлению усилия прессования.
Для листовых материалов толщина образца (которая обычно равна толщине листа) должна быть в
диапазоне от 3 мм до 13 мм, предпочтительно между 4 мм и 6 мм.
Образец может быть получен из узкой центральной части многоцелевого образца для испытаний,
установленного в ISO 20753 (образец тип А1).
6.6 Отжиг
Разброс результатов испытания из-за различия в условиях формования можно уменьшить путем
отжига образцов перед испытанием. Поскольку для разных материалов требуются разные условия
отжига, процедуру отжига следует использовать только, если это требует стандарт на материал или
это согласовано между заинтересованными сторонами.
7 Кондиционирование
Указано в ISO 75-1:2013, Раздел 7.
8 Проведение испытания
8.1 Вычисление прилагаемой силы
Указано в ISO 75-1:2013, 8.1.
Прилагаемое изгибающее напряжение должно быть одним из следующих:
— 1,80 МПа (предпочтительное значение), в этом случае метод обозначают A;
— 0,45 MПa, в этом случае метод обозначают B;
— 8,00 MПa, в этом случае метод обозначают C.
8.2 Начальная температура нагревательного устройства
Указано в ISO 75-1:2013, 8.2.
8.3 Измерение
Указано в ISO 75-1:2013, 8.3.
Прилагают одно из изгибающих напряжени
...

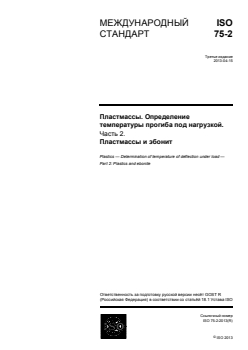

МЕЖДУНАРОДНЫЙ ISO
СТАНДАРТ 75-2
Третье издание
2013-04-15
Пластмассы. Определение
температуры прогиба под нагрузкой.
Часть 2.
Пластмассы и эбонит
Plastics — Determination of temperature of deflection under load —
Part 2: Plastics and ebonite
Ответственность за подготовку русской версии несёт GOST R
(Российская Федерация) в соответствии со статьёй 18.1 Устава ISO
Ссылочный номер
©
ISO 2013

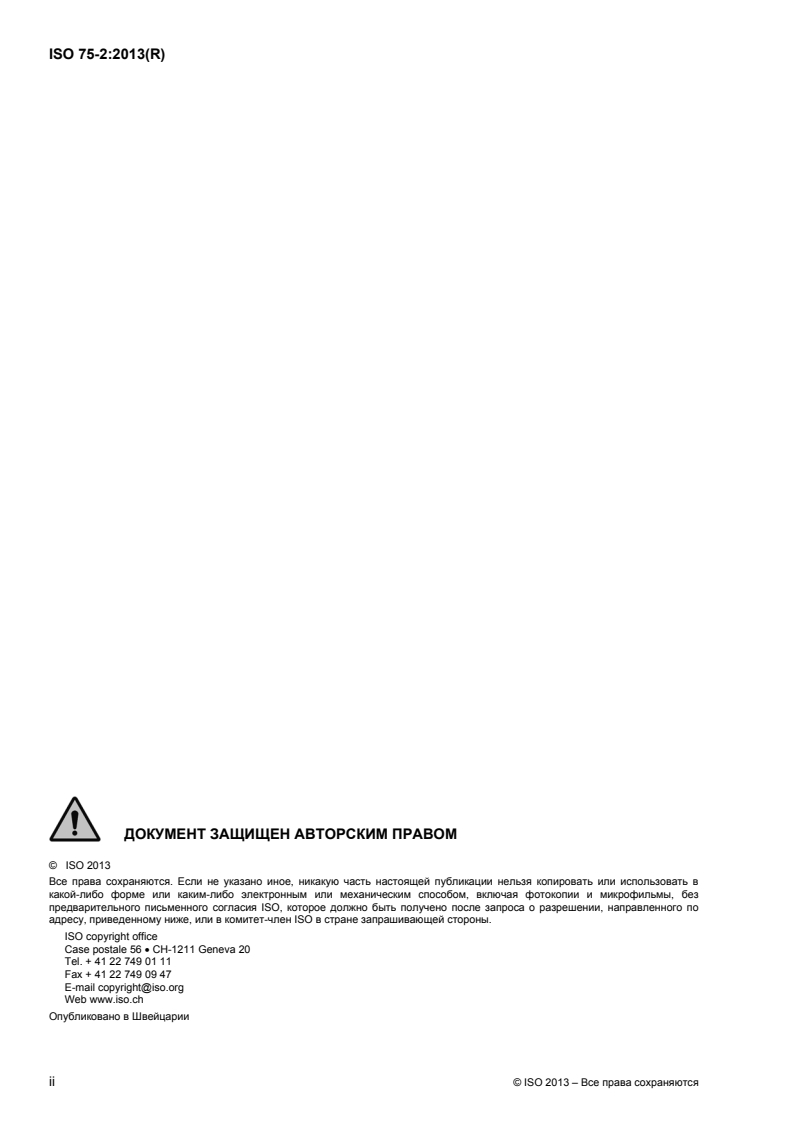

ДОКУМЕНТ ЗАЩИЩЕН АВТОРСКИМ ПРАВОМ
© ISO 2013
Все права сохраняются. Если не указано иное, никакую часть настоящей публикации нельзя копировать или использовать в
какой-либо форме или каким-либо электронным или механическим способом, включая фотокопии и микрофильмы, без
предварительного письменного согласия ISO, которое должно быть получено после запроса о разрешении, направленного по
адресу, приведенному ниже, или в комитет-член ISO в стране запрашивающей стороны.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.ch
Опубликовано в Швейцарии
ii © ISO 2013 – Все права сохраняются

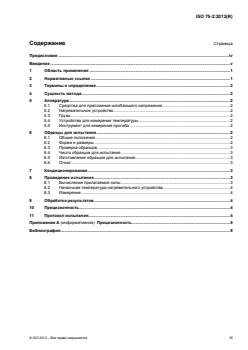

Содержание Страница
Предисловие .iv
Введение .v
1 Область применения .1
2 Нормативные ссылки .1
3 Термины и определения .2
4 Сущность метода.2
5 Аппаратура.2
5.1 Средства для приложения изгибающего напряжения.2
5.2 Нагревательное устройство.2
5.3 Грузы .2
5.4 Устройства для измерения температуры .2
5.5 Инструмент для измерения прогиба .2
6 Образцы для испытания.2
6.1 Общие положения.2
6.2 Форма и размеры.2
6.3 Проверка образцов .3
6.4 Число образцов для испытания.3
6.5 Изготовление образцов для испытания.3
6.6 Отжиг.3
7 Кондиционирование .3
8 Проведение испытания.3
8.1 Вычисление прилагаемой силы.3
8.2 Начальная температура нагревательного устройства.4
8.3 Измерение .4
9 Обработка результатов.4
10 Прецизионность.4
11 Протокол испытания.4
Приложение А (информативное) Прецизионность.5
Библиография.9

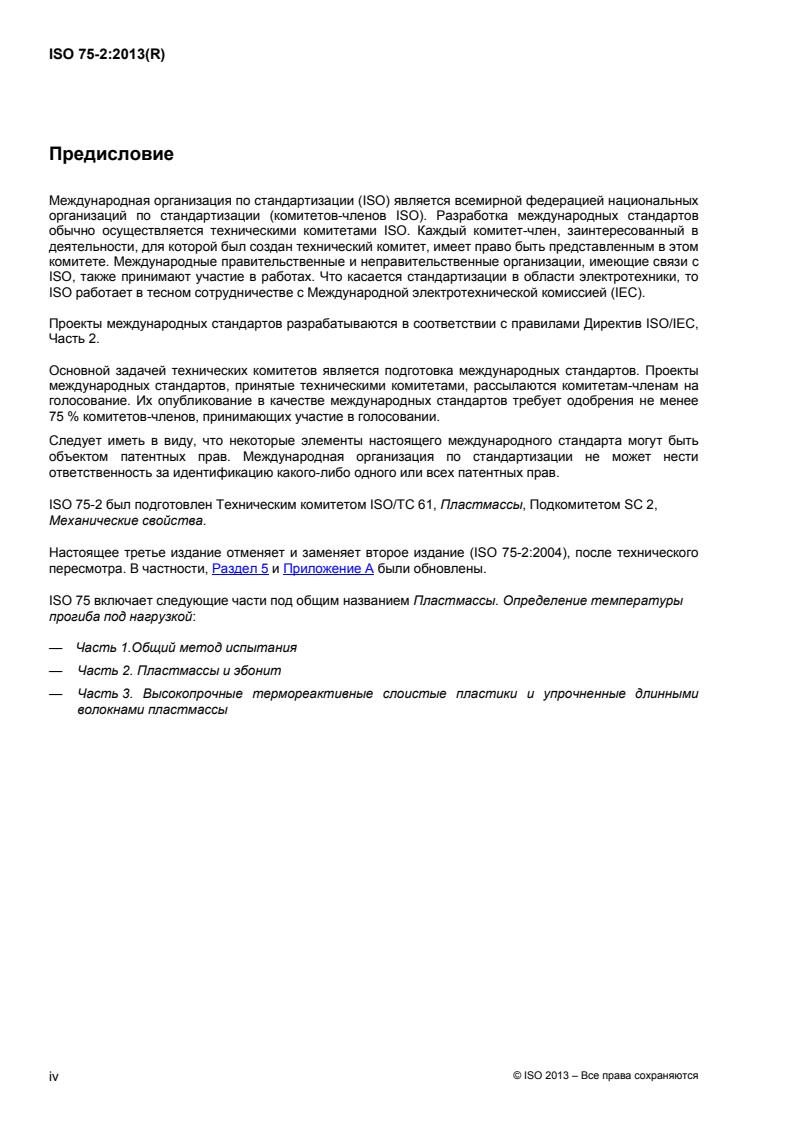

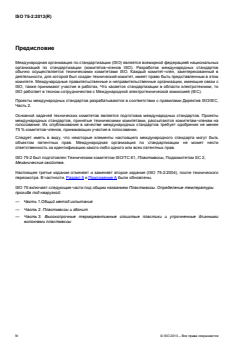

Предисловие
Международная организация по стандартизации (ISO) является всемирной федерацией национальных
организаций по стандартизации (комитетов-членов ISO). Разработка международных стандартов
обычно осуществляется техническими комитетами ISO. Каждый комитет-член, заинтересованный в
деятельности, для которой был создан технический комитет, имеет право быть представленным в этом
комитете. Международные правительственные и неправительственные организации, имеющие связи с
ISO, также принимают участие в работах. Что касается стандартизации в области электротехники, то
ISO работает в тесном сотрудничестве с Международной электротехнической комиссией (IEC).
Проекты международных стандартов разрабатываются в соответствии с правилами Директив ISO/IEC,
Часть 2.
Основной задачей технических комитетов является подготовка международных стандартов. Проекты
международных стандартов, принятые техническими комитетами, рассылаются комитетам-членам на
голосование. Их опубликование в качестве международных стандартов требует одобрения не менее
75 % комитетов-членов, принимающих участие в голосовании.
Следует иметь в виду, что некоторые элементы настоящего международного стандарта могут быть
объектом патентных прав. Международная организация по стандартизации не может нести
ответственность за идентификацию какого-либо одного или всех патентных прав.
ISO 75-2 был подготовлен Техническим комитетом ISO/TC 61, Пластмассы, Подкомитетом SC 2,
Механические свойства.
Настоящее третье издание отменяет и заменяет второе издание (ISO 75-2:2004), после технического
пересмотра. В частности, Раздел 5 и Приложение A были обновлены.
ISO 75 включает следующие части под общим названием Пластмассы. Определение температуры
прогиба под нагрузкой:
— Часть 1.Общий метод испытания
— Часть 2. Пластмассы и эбонит
— Часть 3. Высокопрочные термореактивные слоистые пластики и упрочненные длинными
волокнами пластмассы
iv
Введение
Первые издания настоящей части ISO 75 и ISO 75-1 описывает три метода (A, B и C), в которых
применяются различные нагрузки и два положения образца при испытании, поставленный на ребро и
плашмя. Для испытаний плашмя требуется образец с размерами 80 мм × 10 мм × 4 мм. Он может быть
изготовлен методом литья под давлением или механическим способом из центральной части
многоцелевого образца для испытания (см. ISO 20753).
Предыдущее (т.е. второе) издание настоящих частей ISO 75 и ISO 75-1 определяло положение
образца плашмя как предпочтительное, в то же время допускались испытания образца в положении на
ребре при условиях, приведенных в Приложение A, до следующего пересмотра этих частей ISO 75 и
ISO 75-1 в соответствии с ISO/TC 61/SC 2/WG 5. В настоящей редакции положение образца при
испытании на ребре исключено.
На момент публикации, промышленностью изготавливаются испытательные приборы на основе
сжиженной среды или печи с нагретым воздухом. Наиболее правильно использовать в качестве
теплопередающей среды силиконовое масло, т.к. оно имеет хорошую термостабильность при высоких
температурах. В ISO 75-1 в качестве теплопередающей среды приведены сжиженная среда и нагретый
воздух.
В этой части ISO 75 дополнительно приведена прецизионность метода, охватывающая новые методы
нагревания.
v
МЕЖДУНАРОДНЫЙ СТАНДАРТ ISO 75-2:2013(R)
Пластмассы. Определение температуры прогиба под
нагрузкой.
Часть 2.
Пластмассы и эбонит
1 Область применения
Эта часть ISO 75 устанавливает три метода определения температуры прогиба под нагрузкой
пластмасс (включая наполненные пластмассы и упрочненные волокнами пластмассы, в которых длина
волокон до переработки не более 7,5 мм) и эбонита с использованием различных значений
изгибающего напряжения:
— метод А при изгибающем напряжении 1,80 МПа;
— метод В при изгибающем напряжении 0,45 MПa;
— метод А при изгибающем напряжении 8,00 MПa.
Заданная величина прогиба, Δs, используемая для определения температуры прогиба под нагрузкой
соответствует увеличению деформации изгиба, Δε , установленному в этой части ISO 75. Начальная
f
деформация изгиба от нагружения образца при комнатной температуре не устанавливается и не
измеряется в этой части ISO-75. Отношение увеличения деформации изгиба к первоначальной
деформации изгиба зависит от модуля упругости испытуемого материала при комнатной температуре.
Поэтому этот метод пригоден только для сравнения температуры прогиба под нагрузкой при
комнатной температуре материалов с близкими упругими свойствами.
ПРИМЕЧАНИЕ 1 Настоящие методы дают лучшую воспроизводимость для аморфных, чем для
полукристаллических пластмасс. Для некоторых материалов может быть необходим отжиг используемых
образцов для получения надежных результатов. Отжиг, если он применяется, обычно увеличивает температуру
прогиба под нагрузкой (см.6.6).
ПРИМЕЧАНИЕ 2 Для дополнительной информации, смотри ISO 75-1:2013, Раздел 1.
2 Нормативные ссылки
Следующие ниже ссылочные документы, целиком или частично, являются обязательными при
применении данного международного стандарта. Для датированных ссылок применяется только
цитируемое здесь издание. Для недатированных ссылок применяется последнее издание ссылочного
документа (включая все изменения).
ISO 75-1, Пластмассы. Определение температуры прогиба под нагрузкой. Часть 1. Общие методы
испытаний
ISO 293, Пластмассы. Образцы для испытаний из термопластичных материалов, изготовленные
методом прямого прессования
ISO 294-1, Пластмассы. Литье под давлением образцов для испытаний термопластичных
материалов. Часть 1. Общие принципы и литье образцов для испытаний многоцелевого назначения
и в виде брусков
ISO 2818, Пластмассы. Приготовление образцов для испытаний с помощью механической обработки
ISO 10724-1, Пластмассы. Литье под давлением испытательных образцов термореактивных
порошкообразных формовочных материалов. Часть 1. Общие принципы и литье под давлением
испытательных образцов многоцелевого назначения
ISO 20753, Пластмассы. Образцы для испытания
3 Термины и определения
В настоящем документе применяются термины и определения, приведенные в ISO 75-1.
ПРИМЕЧАНИЕ В зависимости от выбранного значения изгибающего напряжения (см. Раздел 1), температура
прогиба под нагрузкой (см. определение 3.7 в ISO 75-1:2013) обозначается как T 0,45, T 1,8 или T 8,0.
f f f
4 Сущность метода
Сущность метода в соответствии с ISO 75-1:2013, Раздел 4.
5 Аппаратура
5.1 Средства для приложения изгибающего напряжения
Указаны в ISO 75-1:2013, 5.1.
Расстояние между опорами (расстояние между линиями контакта испытуемого образца и опор) должно
быть (64 ± 1) мм.
5.2 Нагревательное устройство
Указано в ISO 75-1:2013, 5.2.
5.3 Грузы
Указано в ISO 75-1:2013, 5.3.
5.4 Устройства для измерения температуры
Указано в ISO 75-1:2013, 5.4.
5.5 Инструмент для измерения прогиба
Указано в ISO 75-1:2013, 5.5.
6 Образцы для испытания
6.1 Общие положения
Указано в ISO 75-1:2013, 6.1.
6.2 Форма и размеры
Указано в ISO 75-1:2013, 6.2.
Предпочтительные размеры образцов для испытания:
длина l: (80 ± 2,0) мм;
ширина b: (10 ± 0,2) мм;
толщина h: (4 ± 0,2) мм.
6.3 Проверка образцов
Указано в ISO 75-1:2013, 6.3.
6.4 Число образцов для испытания
Указано в ISO 75-1:2013, 6.4.
6.5 Изготовление образцов для испытания
Образцы следует изготавливать в соответствии с ISO 293 (ISO 2818, если применимо), или в
соответствии с ISO 294-1 или ISO 10724-1, или по согласованию заинтересованных сторон.
Результаты, полученные на отформованных образцах, зависят от условий формования. Условия
формования должны соответствовать условиям, указанным в стандарте на испытуемый материал или
установленным по согласованию заинтересованных сторон.
В случае прессования толщина образцов должна быть по направлению усилия прессования.
Для листовых материалов толщина образца (которая обычно равна толщине листа) должна быть в
диапазоне от 3 мм до 13 мм, предпочтительно между 4 мм и 6 мм.
Образец может быть получен из узкой центральной части многоцелевого образца для испытаний,
установленного в ISO 20753 (образец тип А1).
6.6 Отжиг
Разброс результатов испытания из-за различия в условиях формования можно уменьшить путем
отжига образцов перед испытанием. Поскольку для разных материалов требуются разные условия
отжига, процедуру отжига следует использовать только, если это требует стандарт на материал или
это согласовано между заинтересованными сторонами.
7 Кондиционирование
Указано в ISO 75-1:2013, Раздел 7.
8 Проведение испытания
8.1 Вычисление прилагаемой силы
Указано в ISO 75-1:2013, 8.1.
Прилагаемое изгибающее напряжение должно быть одним из следующих:
— 1,80 МПа (предпочтительное значение), в этом случае метод обозначают A;
— 0,45 MПa, в этом случае метод обозначают B;
— 8,00 MПa, в этом случае метод обозначают C.
8.2 Начальная температура нагревательного устройства
Указано в ISO 75-1:2013, 8.2.
8.3 Измерение
Указано в ISO 75-1:2013, 8.3.
Прилагают одно из изгибающих напряжени
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
