ISO 15754:2009

Paper and board — Determination of z-directional tensile strength

ISO 15754:2009 specifies a method for the determination of z-directional tensile strength, i.e. the tensile strength in the z-direction. It is applicable to paper and board, but not applicable to corrugated fibreboard.

Papier et carton — Détermination de la force de traction dans la direction z

General Information

• Status: Published
• Publication Date: 10-Mar-2009
• ICS: 85.060 - Paper and board
• Technical Committee: ISO/TC 6/SC 2 - Test methods and quality specifications for paper and board
• Drafting Committee: ISO/TC 6/SC 2 - Test methods and quality specifications for paper and board
• Current Stage: 9093 - International Standard confirmed
• Start Date: 10-Jul-2025
• Completion Date: 12-Feb-2026

Overview

ISO 15754:2009 specifies a laboratory method for determining the z-directional tensile strength of paper and board - the tensile strength perpendicular to the paper plane. The procedure measures the maximum force required to pull a test piece apart in the z-direction using a tensile-testing apparatus and double-sided adhesive tape. The standard is applicable to paper and board (but not to corrugated fibreboard) and includes sampling, conditioning, apparatus, calibration, test procedure and reporting requirements.

Key topics and technical requirements

• Scope and limitations
  • Applies to paper and board; not applicable to corrugated fibreboard.
  • Results for papers with grammage < 60 g/m² should be treated with caution (tape reinforcement effect).
• Principle
  • A specimen is bonded between two platens with double-sided tape, compressed, then strained to failure in the z-direction while recording peak force.
• Apparatus
  • Compression device to apply (1.4 ± 0.1) MPa for (6 ± 1) s.
  • Tensile-testing apparatus with force accuracy ±2% and dynamic performance adequate to capture peak force.
  • Two flat tester platens with test area (645 ± 10) mm² or (1000 ± 10) mm²; platens must be stiff and parallel (parallelism tolerance and vertical alignment specified).
  • Double-sided adhesive tape stronger than the sample (tape quality and ageing affect results).
• Calibration and test speed
  • Stress of 500 kPa must be reached in (200 ± 20) ms - the test speed is set so this condition is met for the platen size used.
• Procedure and data handling
  • Clean platens with solvent; condition specimens per ISO 187; use at least five valid tests.
  • Discard tests where failure occurs between tape and platen or tape and specimen; replace tape if ≥20% invalid results.
• Calculation and precision
  • Mean z-directional tensile strength calculated from the mean maximum force and the platen area (reported in kPa to three significant figures).
  • Interlaboratory CVs reported (example repeatability CVs ≈ 3.7–5.3%); reproducibility limits given for sample types.

Applications

• Quality control and acceptance testing for paper and board materials.
• Evaluation of internal bond strength, ply adhesion and through-thickness strength in product development.
• Comparative testing of different papers, boards and adhesive/tape effects in manufacturing and R&D.

Who uses this standard

• Paper and board manufacturers
• Independent testing and standards laboratories
• Packaging converters and material qualification teams
• R&D engineers developing paper-based products

Related standards

• ISO 186 - Paper and board: Sampling to determine average quality
• ISO 187 - Standard atmosphere for conditioning and testing
• ISO/TR 24498 (referenced for precision guidance)

Keywords: ISO 15754:2009, z-directional tensile strength, paper testing, paper and board, internal bond strength, Scott Bond, tensile-testing apparatus, tester platens, adhesive tape.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 15754
First edition
2009-03-15
Paper and board — Determination of
z-directional tensile strength
Papier et carton — Détermination de la force de traction dans la
direction z
Reference number
©
ISO 2009
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 1
4 Principle. 1
5 Apparatus . 2
6 Calibration . 2
6.1 General. 2
6.2 Checking. 2
6.3 Test speed setting . 3
7 Sampling and preparation of test pieces . 3
7.1 Sampling. 3
7.2 Conditioning. 3
7.3 Preparation of test pieces. 3
8 Procedure . 3
8.1 Mounting a test piece between the tester platens. 3
8.2 Measurements. 4
9 Calculation. 4
10 Precision. 5
10.1 Repeatability. 5
10.2 Reproducibility. 5
11 Test report . 5
Annex A (informative) The influence of the tape quality on the results . 6
Bibliography . 7

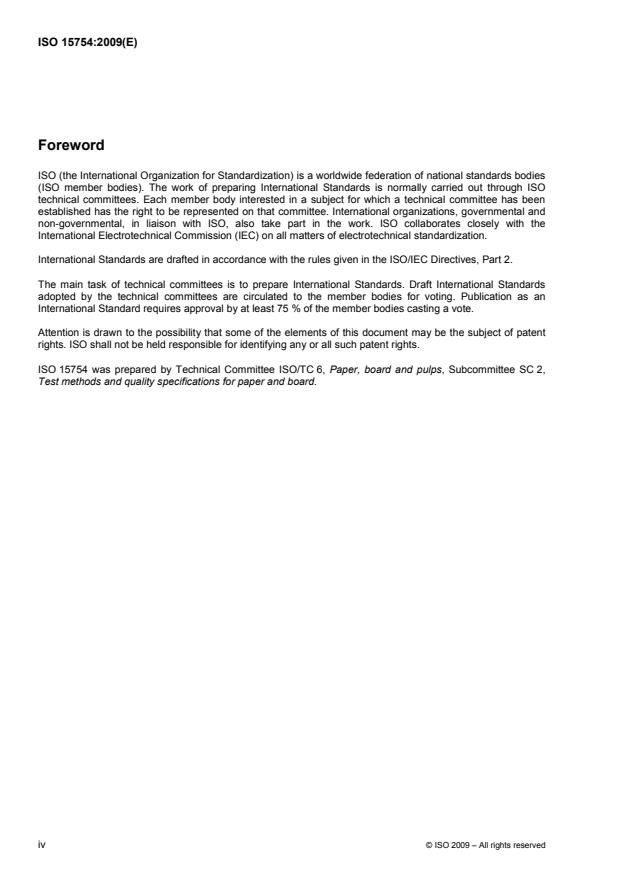

Foreword
