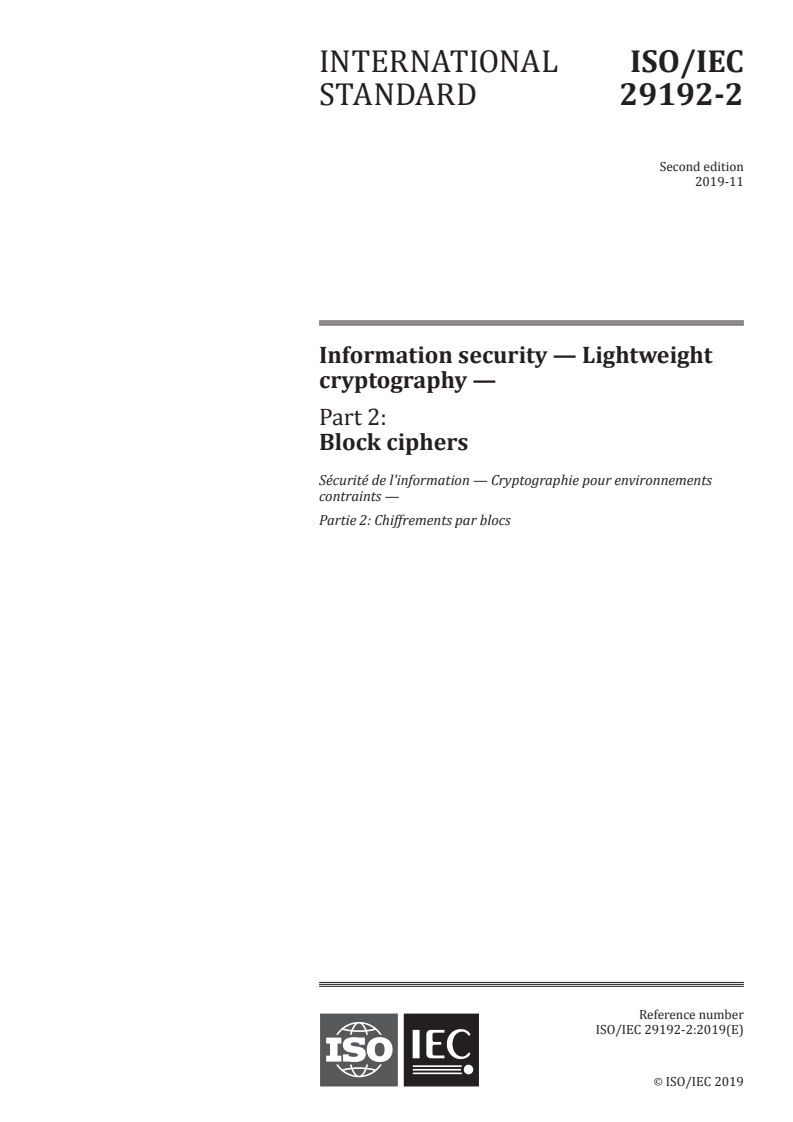

INTERNATIONAL ISO/IEC
STANDARD 29192-2
Second edition
2019-11
Information security — Lightweight
cryptography —
Part 2:
Block ciphers
Sécurité de l'information — Cryptographie pour environnements
contraints —
Partie 2: Chiffrements par blocs
Reference number
ISO/IEC 29192-2:2019(E)
©
ISO/IEC 2019
---------------------- Page: 1 ----------------------
ISO/IEC 29192-2:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 29192-2:2019(E)

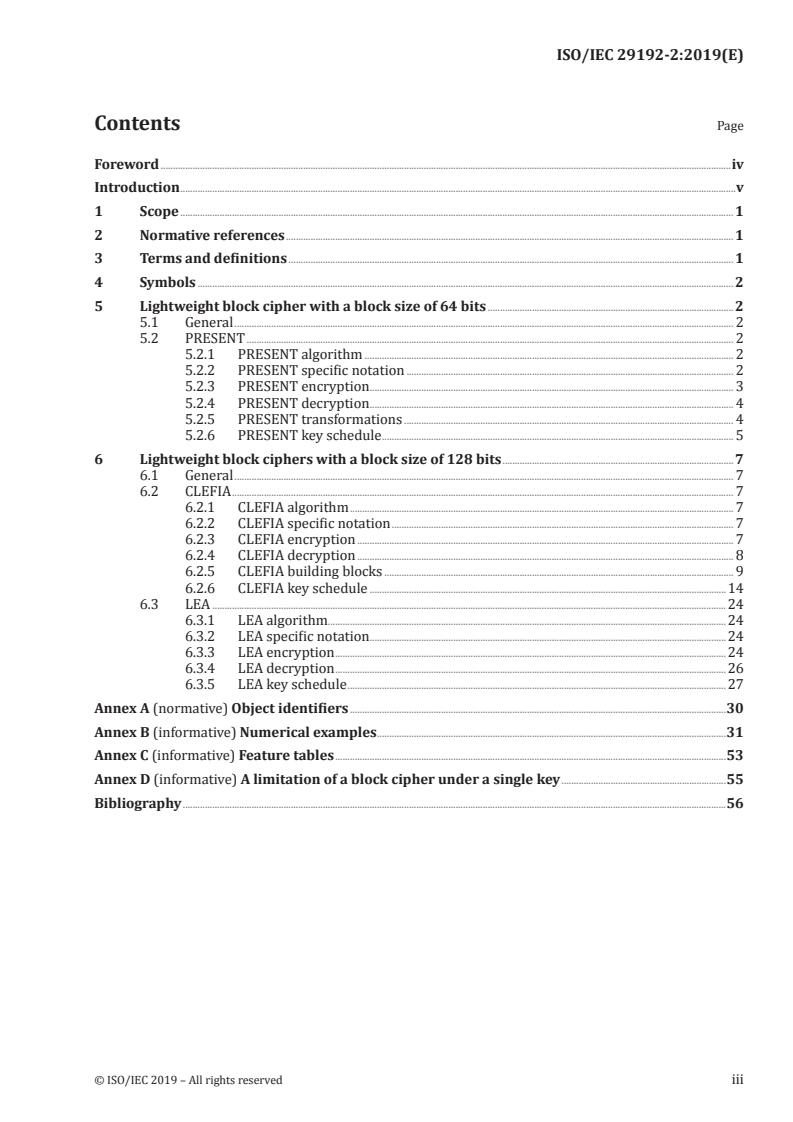

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 2
5 Lightweight block cipher with a block size of 64 bits . 2
5.1 General . 2
5.2 PRESENT . 2
5.2.1 PRESENT algorithm . 2
5.2.2 PRESENT specific notation . 2
5.2.3 PRESENT encryption . . 3
5.2.4 PRESENT decryption . . 4
5.2.5 PRESENT transformations . 4
5.2.6 PRESENT key schedule . 5
6 Lightweight block ciphers with a block size of 128 bits . 7
6.1 General . 7
6.2 CLEFIA . 7
6.2.1 CLEFIA algorithm . 7
6.2.2 CLEFIA specific notation . 7
6.2.3 CLEFIA encryption . 7
6.2.4 CLEFIA decryption . 8
6.2.5 CLEFIA building blocks . 9
6.2.6 CLEFIA key schedule .14
6.3 LEA .24
6.3.1 LEA algorithm . . .24
6.3.2 LEA specific notation.24
6.3.3 LEA encryption .24
6.3.4 LEA decryption .26
6.3.5 LEA key schedule .27
Annex A (normative) Object identifiers .30
Annex B (informative) Numerical examples .31
Annex C (informative) Feature tables .53
Annex D (informative) A limitation of a block cipher under a single key .55
Bibliography .56
© ISO/IEC 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 29192-2:2019(E)

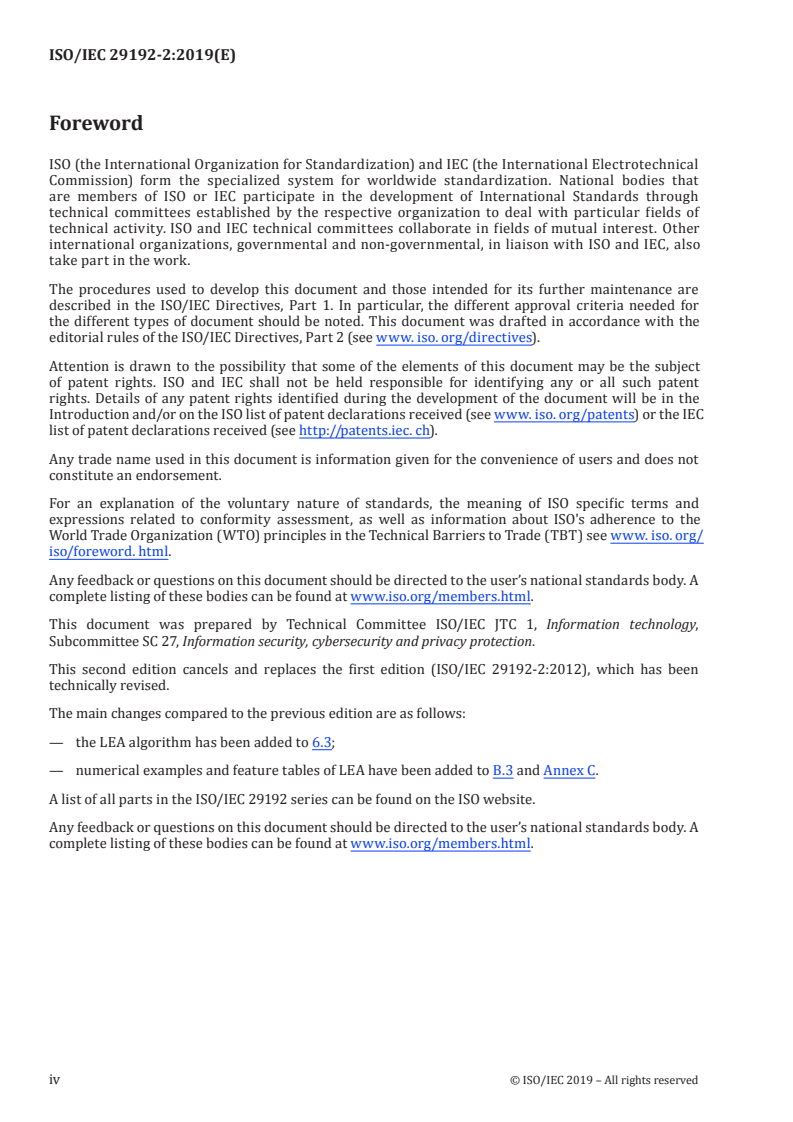

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www. iso. org/d irectives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www. iso. org/p atents) or the IEC
list of patent declarations received (see http://p atents.i ec. ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www. iso. org/
iso/f oreword. html.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www. iso. org/m embers. html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, Information security, cybersecurity and privacy protection.
This second edition cancels and replaces the first edition (ISO/IEC 29192-2:2012), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— the LEA algorithm has been added to 6.3;
— numerical examples and feature tables of LEA have been added to B.3 and Annex C.
A list of all parts in the ISO/IEC 29192 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www. iso. org/m embers. html.
iv © ISO/IEC 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 29192-2:2019(E)
Introduction
ISO/IEC 29192-1 specifies the requirements for lightweight cryptography.
A block cipher maps blocks of n bits to blocks of n bits, under the control of a key of k bits.
The International Organization for Standardization (ISO) and International Electrotechnical
Commission (IEC) draws attention to the fact that it is claimed that compliance with this document may
involve the use of a patent.
ISO and IEC takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured ISO and IEC that he/she is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world. In this
respect, the statement of the holder of this patent right is registered with ISO and IEC. Information may
be obtained from the patent database available at www .iso .org/ patents.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights other than those in the patent database. ISO and IEC shall not be held responsible for
identifying any or all such patent rights.
© ISO/IEC 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 29192-2:2019(E)
Information security — Lightweight cryptography —
Part 2:
Block ciphers
1 Scope
This document specifies three block ciphers suitable for applications requiring lightweight
cryptographic implementations:
— PRESENT: a lightweight block cipher with a block size of 64 bits and a key size of 80 or 128 bits;
— CLEFIA: a lightweight block cipher with a block size of 128 bits and a key size of 128, 192 or 256 bits;
— LEA: a lightweight block cipher with a block size of 128 bits and a key size of 128, 192 or 256 bits.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
block
string of bits of defined length
[SOURCE: ISO/IEC 18033-1:2015, 2.8]
3.2
block cipher
symmetric encipherment system with the property that the encryption algorithm operates on a block
(3.1) of plaintext (3.6), i.e. a string of bits of a defined length, to yield a block of ciphertext (3.3)
[SOURCE: ISO/IEC 18033-1:2015, 2.9]
3.3
ciphertext
data which has been transformed to hide its information content
[SOURCE: ISO/IEC 10116:2017, 3.2]
3.4
key
sequence of symbols that controls the operation of a cryptographic transformation (e.g. encipherment,
decipherment)
[SOURCE: ISO/IEC 18033-1:2015, 2.27]
© ISO/IEC 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 29192-2:2019(E)
3.5
n-bit block cipher
block cipher (3.2) with the property that plaintext (3.6) blocks and ciphertext (3.3) blocks are n bits
in length
[SOURCE: ISO/IEC 18033-1:2015, 2.29]
3.6
plaintext
unenciphered information
[SOURCE: ISO/IEC 9798-1:2010, 3.19]
3.7
round key
sequence of symbols derived from the key (3.4) using the key schedule, and used to control the
transformation in each round of the block cipher (3.2)
4 Symbols
0x
a prefix for a binary string in hexadecimal notation
|| concatenation of bit strings
a ← b updating a value of a by a value of b
⊕ bitwise exclusive-OR operation
5 Lightweight block cipher with a block size of 64 bits
5.1 General
In this clause, a 64-bit lightweight block cipher is specified: PRESENT in 5.2.
Annex A defines the object identifiers which shall be used to identify the algorithm specified in Clause 5.
Annex B provides numerical examples of the block ciphers described in this document. Annex C
summarizes the lightweight properties of the block ciphers described in this document. Annex D gives a
limit on the number of block cipher encryption operations that should be performed using a single key.
5.2 PRESENT
5.2.1 PRESENT algorithm
[10]
The PRESENT algorithm is a symmetric block cipher that can process data blocks of 64 bits, using a
key of length 80 or 128 bits. The cipher is referred to as PRESENT-80 or PRESENT-128 when using an
80-bit or 128-bit key respectively.
5.2.2 PRESENT specific notation
ii
64-bit round key that is used in round i
Kk= .k
i 63 0
i
bit b of round key K
k
i
b
K = k .k 80-bit key register
79 0
k bit b of key register K
b
2 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 29192-2:2019(E)
STATE 64-bit internal state
b bit i of the current STATE
i
w 4-bit word where 0 ≤ i ≤ 15
i
5.2.3 PRESENT encryption
The PRESENT block cipher consists of 31 "rounds", i.e. 31 applications of a sequence of simple
transformations. A pseudocode description of the complete encryption algorithm is provided in
Figure 1, where STATE denotes the internal state. The individual transformations used by the algorithm
are defined in 5.2.5. Each round of the algorithm uses a distinct round key K (1 ≤ i ≤ 31), derived as
i
specified in 5.2.6. Two consecutive rounds of the algorithm are shown for illustrative purposes in
Figure 2.
Figure 1 — The encryption procedure of PRESENT
Figure 2 — Two rounds of PRESENT
© ISO/IEC 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 29192-2:2019(E)
5.2.4 PRESENT decryption
The complete PRESENT decryption algorithm is given in Figure 3. The individual transformations
used by the algorithm are defined in 5.2.5. Each round of the algorithm uses a distinct round key K
i
(1 ≤ i ≤ 31), derived as specified in 5.2.6.
Figure 3 — The decryption procedure of PRESENT
5.2.5 PRESENT transformations
5.2.5.1 addRoundKey
ii
Given round key Kk= k for 1 ≤ i ≤ 32 and current STATE b .b , addRoundKey consists of the
63 0
i 63 0
i
operation for 0 ≤ j ≤ 63, bb←⊕k .
jj j
5.2.5.2 sBoxLayer
The non-linear sBoxLayer of the encryption process of PRESENT uses a single 4-bit to 4-bit S-box S
which is applied 16 times in parallel in each round. The S-box transforms the input x to an output S(x) as
given in hexadecimal notation in Table 1.
Table 1 — PRESENT S-box
0 1 2 3 4 5 6 7 8 9 A B C D E F
x
C 5 6 B 9 0 A D 3 E F 8 4 7 1 2
S(x)
For sBoxLayer the current STATE b .b is considered as sixteen 4-bit words w . w where
63 0 15 0
wb= bb b for 0 ≤ i ≤ 15 and the output nibble S(w ) provides the updated state
i
ii43**++42ii41**+ 4 i
values as a concatenation Sw Sw … Sw .
() () ()
15 14 0
5.2.5.3 invsBoxLayer
The S-box used in the decryption procedure of PRESENT is the inverse of the 4-bit to 4-bit S-box S
−1
that is described in 5.2.5.2. The inverse S-box transforms the input x to an output S (x) as given in
hexadecimal notation in Table 2.
Table 2 — PRESENT inverse S-box
0 1 2 3 4 5 6 7 8 9 A B C D E F
x
−1
5 E F 8 C 1 2 D B 4 6 3 0 7 9 A
S (x)
4 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 29192-2:2019(E)
5.2.5.4 pLayer
The bit permutation pLayer used in the encryption routine of PRESENT is given by Table 3. Bit i of
STATE is moved to bit position P(i).
Table 3 — PRESENT permutation layer pLayer
i 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
P(i) 0 16 32 48 1 17 33 49 2 18 34 50 3 19 35 51
i 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
P(i) 4 20 36 52 5 21 37 53 6 22 38 54 7 23 39 55
i 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
P(i) 8 24 40 56 9 25 41 57 10 26 42 58 11 27 43 59
i 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
P(i) 12 28 44 60 13 29 45 61 14 30 46 62 15 31 47 63
5.2.5.5 invpLayer
The inverse permutation layer invpLayer used in the decryption routine of PRESENT is given by
−1
Table 4. Bit i of STATE is moved to bit position P (i).
Table 4 — PRESENT inverse permutation Layer invpLayer
i 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
−1
P (i) 0 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60
i 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
−1
P (i) 1 5 9 13 17 21 25 29 33 37 41 45 49 53 57 61
i 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
−1
P (i) 2 6 10 14 18 22 26 30 34 38 42 46 50 54 58 62
i 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
−1
P (i) 3 7 11 15 19 23 27 31 35 39 43 47 51 55 59 63
5.2.6 PRESENT key schedule
5.2.6.1 PRESENT-80 and PRESENT-128
PRESENT can take keys of either 80 or 128 bits. In 5.2.6.2, the version with an 80-bit key (PRESENT-80)
and in 5.2.6.3 the 128-bit version (PRESENT-128) is described.
© ISO/IEC 2019 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 29192-2:2019(E)
5.2.6.2 80-bit key for PRESENT-80
The user-supplied key is stored in a key register K and represented as k k .k . At round i the 64-bit
79 78 0
ii i
round key Kk= kk consists of the 64 leftmost bits of the current contents of register K. Thus at
i 63 62 0
round i, K is as follows:
i
ii i
Kk==kkkk k
i 63 62 0797816
After extracting the round key K , the key register K = k k .k is updated as follows.
i 79 78 0
1) k k .k k ← k k .k k
79 78 1 0 18 17 20 19
2) k k k k ← S[k k k k ]
79 78 77 76 79 78 77 76
3) k k k k k ← k k k k k ⊕ round_counter
19 18 17 16 15 19 18 17 16 15
In words, the key register is rotated by 61 bit positions to the left, the left-most four bits are passed
through the PRESENT S-box, and the round_counter value i is exclusive-ORed with bits k k k k k
19 18 17 16 15
of K where the least significant bit of round_counter is on the right. The rounds are numbered from
1 ≤ i ≤ 31 and round_counter = i. Figure 4 depicts the key schedule for PRESENT-80 graphically.
Figure 4 — PRESENT-80 key schedule
5.2.6.3 128-bit key for PRESENT-128
Similar to the 80-bit variant the user-supplied key is stored initially in a key register K and is represented
ii i
as k k .k . At round i the 64-bit round key Kk= kk consists of the 64 leftmost bits of the
127 126 0 i 63 62 0
current contents of register K. Thus at round i, K is as follows:
i
ii i
Kk==kkkk k
i 63 62 0 127 126 64
After extracting the round key K , the key register K = k k .k is updated as follows.
i 127 126 0
1) k k .k k ← k k .k k
127 126 1 0 66 65 68 67
2) k k k k ← S[k k k k ]
127 126 125 124 127 126 125 124
3) k k k k ← S[k k k k ]
123 122 121 120 123 122 121 120
4) k k k k k ← k k k k k ⊕ round_counter
66 65 64 63 62 66 65 64 63 62
In words, the key register is rotated by 61 bit positions to the left, the left-most eight bits are passed
through the PRESENT S-box, and the round_counter value i is exclusive-ORed with bits k k k k k
66 65 64 63 62
6 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 29192-2:2019(E)
of K where the least significant bit of round_counter is on the right. The rounds are numbered from
1 ≤ i ≤ 31 and round_counter = i. Figure 5 depicts the key schedule for PRESENT-128 graphically.
Figure 5 — PRESENT-128 key schedule
6 Lightweight block ciphers with a block size of 128 bits
6.1 General
In this clause, two 128-bit lightweight block ciphers are specified: CLEFIA in 6.2 and LEA in 6.3.
Annex A defines the object identifiers which shall be used to identify the algorithms specified in
Clause 6. Annex B provides numerical examples of the block ciphers described in this document. Annex C
summarizes the lightweight properties of the block ciphers described in this document. Annex D gives a
limit on the number of block cipher encryption operations that should be performed using a single key.
6.2 CLEFIA
6.2.1 CLEFIA algorithm
[15]
The CLEFIA algorithm is a symmetric block cipher that can process data blocks of 128 bits using a
cipher key of length 128, 192, or 256 bits. The number of rounds is 18, 22 and 26 for CLEFIA with 128-
bit, 192-bit and 256-bit keys, respectively. The total number of round keys depends on the key length.
The CLEFIA encryption and decryption functions require 36, 44 and 52 round keys for 128-bit, 192-bit
and 256-bit keys, respectively.
6.2.2 CLEFIA specific notation
a bit string of bit length b
(b)
n
{0,1} a set of n-bit binary strings
n
· multiplication in GF(2 )
<<
~
a bitwise complement of bit string a
n
Σ n times operations of the DoubleSwap function Σ
6.2.3 CLEFIA encryption
The encryption process of CLEFIA is based on the 4-branch r-round generalized Feistel structure GFN .
4,r
128 32
Let P, C∈{}01, be a plaintext and a ciphertext. Let P , C ∈{}01, (0 ≤ i < 4) be divided plaintexts
i
i
© ISO/IEC 2019 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/IEC 29192-2:2019(E)
32
and ciphertexts where P = P || P || P || P and C = C || C || C || C . Let WK , WK , WK , WK ∈{}01,
0 1 2 3 0 1 2 3 0 1 2
3
32
be whitening keys and RK ∈{}01, (0 ≤ i < 2r) be round keys provided by the key schedule. Then,
i
r-round encryption function ENC is defined as follows:
r
ENC :
r
1) T || T || T || T ← P || (P ⊕ WK ) || P || (P ⊕ WK )
0 1 2 3 0 1 0 2 3 1
2) T || T || T || T ← GFN (RK , ., RK , T , T , T , T )
0 1 2 3 4,r 0 2r−1 0 1 2 3
3) C || C || C || C ← T || (T ⊕ WK ) || T || (T ⊕ WK )
0 1 2 3 0 1 2 2 3 3
6.2.4 CLEFIA decryption
The decryption function DEC is defined as follows:
r
DEC :
r
1) T || T || T || T ← C || (C ⊕ WK ) || C || (C ⊕ WK )
0 1 2 3 0 1 2 2 3 3
−1
2) TT TT …←GFNRKR,, KT,, TT,, T
()
01 23 4,rr02 −10 12 3
3) P || P || P || P ← T || (T ⊕ WK ) || T || (T ⊕ WK )
0 1 2 3 0 1 0 2 3 1
Figure 6 illustrates both ENC and DEC .
r r
8 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 29192-2:2019(E)
Figure 6 — The encryption procedure and the decryption procedure of CLEFIA
6.2.5 CLEFIA building blocks
6.2.5.1 GFN
d,r
The fundamental structure of CLEFIA is a generalized Feistel structure. This structure is employed in
both a data processing part and a key schedule part.
CLEFIA uses a 4-branch and an 8-branch generalized Feistel network. The 4-branch generalized Feistel
network is used in the data processing part and the key schedule for a 128-bit key. The 8-branch
generalized Feistel network is applied in the key schedule for a 192-bit/256-bit key. Let GFN denote
d,r
the d-branch r-round generalized Feistel network employed in CLEFIA. GFN uses two different 32-bit
d,r
F-functions F and F .
0 1
For d pairs of 32-bit input X and output Y (0 ≤ i < d), and dr/2 32-bit round keys RK (0 ≤ i < dr/2), GFN
i i i d,r
−1
(d = 4, 8) and the inverse function GFN (d = 4) are defined as follows.
dr,
© ISO/IEC 2019 – All rights reserved 9
---------------------- Page: 14 ----------------------
ISO/IEC 29192-2:2019(E)
GFN :
4,r
1) T || T || T || T ← X || X || X || X
0 1 2 3 0 1 2 3
2) For i = 0 to r − 1 do the following:
2.1) T ← T ⊕ F (RK , T )
1 1 0 2i 0
T ← T ⊕ F (RK , T )
3 3 1 2i+1 2
2.2) T || T || T || T ← T || T || T || T
0 1 2 3 1 2 3 0
3) Y || Y || Y || Y ← T || T || T || T
0 1 2 3 3 0 1 2
GFN :
8,r
1) T || T || . || T ← X || X || . || X
0 1 7 0 1 7
2) For i = 0 to r − 1 do the following:
2.1) T ← T ⊕ F (RK , T )
1 1 0 4i 0
T ← T ⊕ F (RK , T )
3 3 1 4i+1 2
T ← T ⊕ F (RK , T )
5 5 0 4i+2 4
T ← T ⊕ F (RK , T )
7 7 1 4i+3 6
2.2) T || T || . || T || T ← T || T || . || T || T
0 1 6 7 1 2 7 0
3) Y || Y || . || Y || Y ← T || T || . || T || T
0 1 6 7 7 0 5 6
−1
The inverse function GFN is obtained by changing the order of RK and the direction of word rotation
i
4,r
at 2.2) and 3) in GFN .
4,r
−1
GFN :
4,r
1) T || T || T || T ← X || X || X || X
0 1 2 3 0 1 2 3
2) For i = 0 to r - 1 do the following:
2.1) T ← T ⊕ F (RK , T )
1 1 0 2(r−i)−2 0
T ← T ⊕ F (RK , T )
3 3 1 2(r−i)−1 2
2.2) T || T || T || T ← T || T || T || T
0 1 2 3 3 0 1 2
3) Y || Y || Y || Y ← T || T || T || T
0 1 2 3 1 2 3 0
6.2.5.2 F-functions
Two F-functions F and F used in GFN are defined as follows:
0 1 d,r
FR:,()Kx y
03()()232 ()32
1) V ← RK ⊕ x
8
2) Let VV=∈VV VV,,{}01 .
01 23 i
V ← S (V )
0 0 0
V ← S (V )
1 1 1
10 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 15 ----------------------
ISO/IEC 29192-2:2019(E)
V ← S (V )
2 0 2
V ← S (V )
3 1 3
8
3) Let yy=∈yy yy,,{}01 .
01 23 i
y V
0 0
y V
1 1
←M
0
y V
2 2
y V
3 3
FR:,()Kx y
13()()232 32
()
1) V ← RK ⊕ x
8
2) Let VV=∈VV VV,,{}01 .
01 23 i
V ← S (V )
0 1 0
V ← S (V )
1 0 1
V ← S (V )
2 1 2
V ← S (V )
3 0 3
8
3) Let yy=∈yy yy,,01 .
{}
01 23 i
y V
0 0
y V
1 1
←M
1
y V
2 2
y V
3 3
S and S are nonlinear 8-bit S-boxes described in 6.2.5.3, and M and M are 4 × 4 diffusion matrices
0 1 0 1
described in 6.2.5.4. In each F-function two S-boxes and a matrix are used, but the S-boxes are used in
a different order and the matrices differ. Figure 7 shows a graphical representation of the F-functions.
Figure 7 — F-functions
6.2.5.3 S-boxes
CLEFIA employs two different types of 8-bit S-boxes S and S : S is based on four 4-bit random S-boxes,
0 1 0
8
and S is based on the inverse function over GF(2 ).
1
Tables 5 and 6 show the output values of S and S , respectively. In these tables all values are expressed
0 1
in a hexadecimal notation. For an 8-bit input of an S-box, the upper 4 bits indicate a row and the lower
© ISO/IEC 2019 – All rights reserved 11
---------------------- Page: 16 ----------------------
ISO/IEC 29192-2:2019(E)
4 bits indicate a column. For example, if a value 0xab is input, 0x7e is output by S because it is on the
0
cross line of the row indexed by 'a.' and the column indexed by '.b'.
Table 5 — S
0
.0 .1 .2 .3 .4 .5 .6 .7 .8 .9 .a .b .c .d .e .f
0. 57 49 d1 c6 2f 33 74 fb 95 6d 82 ea 0e b0 a8 1c
28 d0 4b 92 5c ee 85 b1 c4 0a 76 3d 63 f9 17 af
1.
2. bf a1 19 65 f7 7a 32 20 06 ce e4 83 9d 5b 4c d8
3. 42 5d 2e e8 d4 9b 0f 13 3c 89 67 c0 71 aa b6 f5
4. a4 be fd 8c 12 00 97 da 78 e1 cf 6b 39 43 55 26
5. 30 98 cc dd eb 54 b3 8f 4e 16 fa 22 a5 77 09 61
6. d6 2a 53 37 45 c1 6c ae ef 70 08 99 8b 1d f2 b4
e9 c7 9f 4a 31 25 fe 7c d3 a2 bd 56 14 88 60 0b
7.
8. cd e2 34 50 9e dc 11 05 2b b7 a9 48 ff 66 8a 73
9. 03 75 86 f1 6a a7 40 c2 b9 2c db 1f 58 94 3e ed
a. fc 1b a0 04 b8 8d e6 59 62 93 35 7e ca 21 df 47
b. 15 f3 ba 7f a6 69 c8 4d 87 3b 9c 01 e0 de 24 52
c. 7b 0c 68 1e 80 b2 5a e7 ad d5 23 f4 46 3f 91 c9
6e 84 72 bb 0d 18 d9 96 f0 5f 41 ac 27 c5 e3 3a
d.
e. 81 6f 07 a3 79 f6 2d 38 1a 44 5e b5 d2 ec cb 90
f. 9a 36 e5 29 c3 4f ab 64 51 f8 10 d7 bc 02 7d 8e
Table 6 — S
1
.0 .1 .2 .3 .4 .5 .6 .7 .8 .9 .a .b .c .d .e .f
0. 6c da c3 e9 4e 9d 0a 3d b8 36 b4 38 13 34 0c d9
1. bf 74 94 8f b7 9c e5 dc 9e 07 49 4f 98 2c b0 93
12 eb cd b3 92 e7 41 60 e3 21 27 3b e6 19 d2 0e
2.
3. 91 11 c7 3f 2a
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
