ISO/TR 11826:2024
(Main)Ophthalmic optics — Spectacle lenses — Aspects of three-dimensional properties and reference markings
Ophthalmic optics — Spectacle lenses — Aspects of three-dimensional properties and reference markings
This document is applicable to the three-dimensional aspects of spectacle lenses and their mounting in frames. It gives possible details of how these aspects can be taken into account, particularly for lenses with their permanent reference engravings (markings) on their back surface.
Optique ophtalmique — Verres de lunettes — Aspects des propriétés tridimensionnelles et marquages de référence
General Information
Standards Content (Sample)

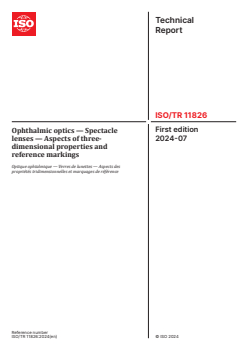

Technical
Report
ISO/TR 11826
First edition
Ophthalmic optics — Spectacle
2024-07
lenses — Aspects of three-
dimensional properties and
reference markings
Optique ophtalmique — Verres de lunettes — Aspects des
propriétés tridimensionnelles et marquages de référence
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

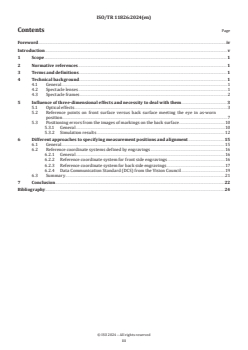

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Technical background. 1
4.1 General .1
4.2 Spectacle lenses .1
4.3 Spectacle frames .2
5 Influence of three-dimensional effects and necessity to deal with them . 3
5.1 Optical effects . . .3
5.2 Reference points on front surface versus back surface meeting the eye in as-worn
position .7
5.3 Positioning errors from the images of markings on the back surface .10
5.3.1 General .10
5.3.2 Simulation results . 12
6 Different approaches to specifying measurement positions and alignment .15
6.1 General . 15
6.2 Reference coordinate systems defined by engravings .16
6.2.1 General .16
6.2.2 Reference coordinate system for front side engravings .16
6.2.3 Reference coordinate system for back side engravings .17
6.2.4 Data Communication Standard (DCS) from the Vision Council .19
6.3 Summary .21
7 Conclusion .22
Bibliography .24
iii

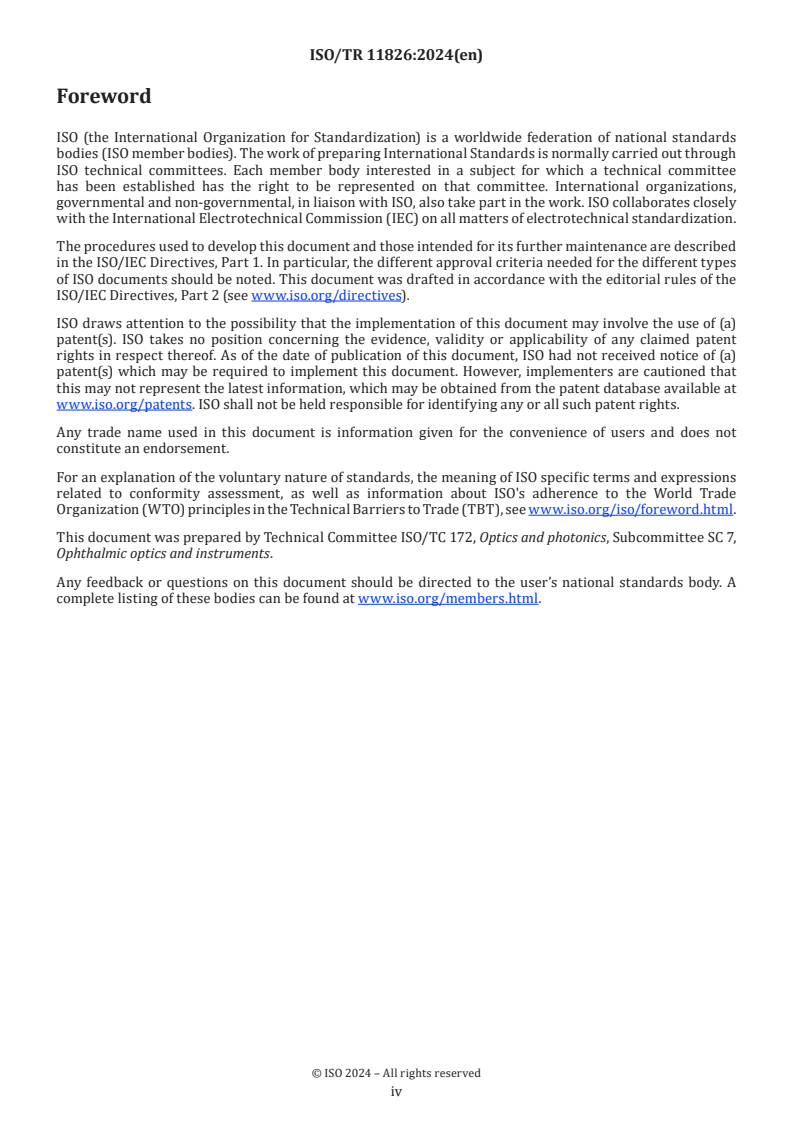

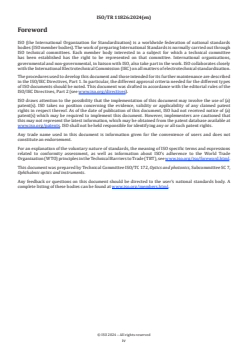

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 172, Optics and photonics, Subcommittee SC 7,
Ophthalmic optics and instruments.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
In current standards, spectacle lenses are mostly treated as two-dimensional objects.
However, knowing their three-dimensional geometrical properties is helpful to fully understand their
optical effects. Therefore, these are already taken into account in the industry in some instances, e.g. to
increase the performance of products and the accuracy of measurements.
The aim of this document is to deliver background information on this topic, to provide helpful terminology
including parameters, and to present some ways of dealing with their impacts. It is intended as a source of
information to the manufacturers of spectacle lenses, measurement systems, and mounting equipment as
well as to the optometric and dispensing professions.
v
Technical Report ISO/TR 11826:2024(en)
Ophthalmic optics — Spectacle lenses — Aspects of three-
dimensional properties and reference markings
1 Scope
This document is applicable to the three-dimensional aspects of spectacle lenses and their mounting in
frames. It gives possible details of how these aspects can be taken into account, particularly for lenses with
their permanent reference engravings (markings) on their back surface.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 13666, Ophthalmic optics — Spectacle lenses — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13666 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Technical background
4.1 General
Changes in the method of manufacture of spectacle lenses and in the styling of some spectacle frames have
th
generated problems of positioning lenses correctly in the frame that did not occur in the 20 century.
Conversely, free form manufacture allows the benefits of individualized computer enhancement and more
sophisticated lens designs but requires an improved, and available, ability to position lenses.
[1]
Many aspects related to the use of free form technology are explained in ISO/TR 18476 , which also covers
optical effects relevant to the topics discussed in this document.
4.2 Spectacle lenses
The reference points and design reference points are specified in ISO 13666 to be on the front surface of the
lens. This is logical, in that the marking device on focimeters dots the front surface of the lens, in particular
the optical centre for single-vision lenses. This dot is used for positioning the uncut lens correctly for edging it
to shape for mounting in the frame. Although errors in prism imbalance (relative prism error) are generated
if lenses are not correctly centred in the frame in front of the eyes, there is no or little effect on the binocular
field of view for single-vision lenses or for the far and near fields of view with multifocal lenses. Position-
specific single-vision lenses and power-variation lenses have, however, to be positioned so that their optical
properties including, where applicable, the (intermediate) corridor and near portion are aligned with the
eyes. The conventional construction of progressive-power and degressive-power lenses was to use a blank
with the power-variation surface moulded (or sagged for glass blanks) on the front surface of the blank, then
surfacing the prescription onto the back surface. The two permanent alignment reference markings were
positioned on the complicated surface, and thus automatically on the front, and were used to generate the
reference point for mounting the lenses.
The ability to combine the prescription and complicated surface of power-variation lenses on the back
[1]
surface and generate this using free form technology – see ISO/TR 18476 – means that the permanent
alignment reference markings are now usually positioned on the back surface of the lens. These markings
are, however, viewed through the front surface when positioning the uncut lens for mounting in the frame.
Prism incorporated in the lens, whether prism thinning or prism required by the lens order, displaces the
apparent position of these markings and hence the midpoint between them, while the convex front surface
will magnify their separation. Position-specific single-vision lenses also have complicated back surfaces
generated with free form technology, and are likely therefore also to be marked on the back surface.
In many respects, it is more logical to have the reference points on the back surface of the lens, since it is rays
leaving the back surface that enter the eye, but this change requires an enormous change to the methods of
working in the lens mounting industry, including non-permanent lens inking and edging block positioning
presently on the front. Moreover, nose pads and spectacle sides are likely to be in the way when measuring
the positioning of mounted lenses. Changing to using the back surface for reference points for lenses is
therefore a “non-starter”.
4.3 Spectacle frames
Until the early 2000's, spectacle frames had fronts which were relatively flat so that the two lenses lay in
the same plane, or nearly so. Since then, a minority of frames have been designed with a significant face
[2]
form or wrap angle (see ISO 8624 ). This can have an effect on the decentration needed – the geometrical
relationship between various distances is given in the notes to entry for the term “centration point” in
ISO 13666.
