Architecture for a distributed real-time access system

This Standard specifies the architecture for a distributed real-time access system. The architecture specifies the function group concept of the system, functionalities of each function group, and interfaces. Communication between function group and functions are not in the scope of this Standard.

Architecture d'un système d'accès temps réel distribué

General Information

Status
Published
Publication Date
22-Nov-2020
Current Stage
6060 - International Standard published
Start Date
23-Nov-2020
Completion Date
23-Nov-2020
Ref Project

Buy Standard

Standard
ISO/IEC 24643:2020 - Architecture for a distributed real-time access system
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/IEC FDIS 24643:Version 13-okt-2020 - Architecture for a distributed real-time access system
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD 24643
First edition
2020-11
Architecture for a distributed real-
time access system
Architecture d'un système d'accès temps réel distribué
Reference number
ISO/IEC 24643:2020(E)
ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC 24643:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 24643:2020(E)
Page
Contents

Foreword ........................................................................................................................................................................ .iv

Introduction ................................................................................................................................................................... .v

1  Scope .................................................................................................................................................................... 1

2  Normative references .................................................................................................................................... 1

3  Terms and definitions .................................................................................................................................... 1

4  Overview ............................................................................................................................................................. 1

5  Functional architecture of an access system ......................................................................................... 3

Physical function group ......................................................................................................................................... 3

5.1

Components ............................................................................................................................................. 3

5.1.1

Access object............................................................................................................................................ 4

5.1.2

Access point ............................................................................................................................................. 4

5.1.3

Network layer ............................................................................................................................................................ 5

5.2

5.2.1 Components ............................................................................................................................................. 5

5.2.2 Edge ... ........................................................................................................................................................ 5

5.2.3 Telecommunication network ........................................................................................................... 5

Service function group ........................................................................................................................................... 5

5.3
5.3.1

Components ............................................................................................................................................. 5

5.3.2

Processing f unctions............................................................................................................................. 6

5.3.3

Transaction data .................................................................................................................................... 6

5.4 Platform function group ........................................................................................................................................ 6

Components ............................................................................................................................................. 6

5.4.1

Policy function ........................................................................................................................................ 7

5.4.2

Authentication and access object data ......................................................................................... 7

5.4.3

System data .............................................................................................................................................. 7

5.4.4

Inter applications................................................................................................................................... 7

5.4.5

6  Interfaces ........................................................................................................................................................... 8

Physical function group and network function group ........................................................................... 8

6.1

6.2 Network function group and service function group ............................................................................. 8

6.3 Service function group and application function group ........................................................................ 8

6.4 Inter applications .................................................................................................................................................... 8

Annex A (informative) Example of the data format............................................................................................. 9

A.1  Transaction data .............................................................................................................................................. 9

A.2  Authentication and access object data ..................................................................................................... 9

A.3  System data ..................................................................................................................................................... 10

Annex B (informative) Example of complicated authentication ................................................................. 11

B.1  Enter an important facility ........................................................................................................................ 11

B.2  Electronic voting system for election .................................................................................................... 11

B.3  Authentication process ............................................................................................................................... 12

Bibliography ................................................................................................................................................................. 13

© ISO/IEC 2020 – All rights reserved
iii
---------------------- Page: 3 ----------------------
ISO/IEC 24643:2020(E)

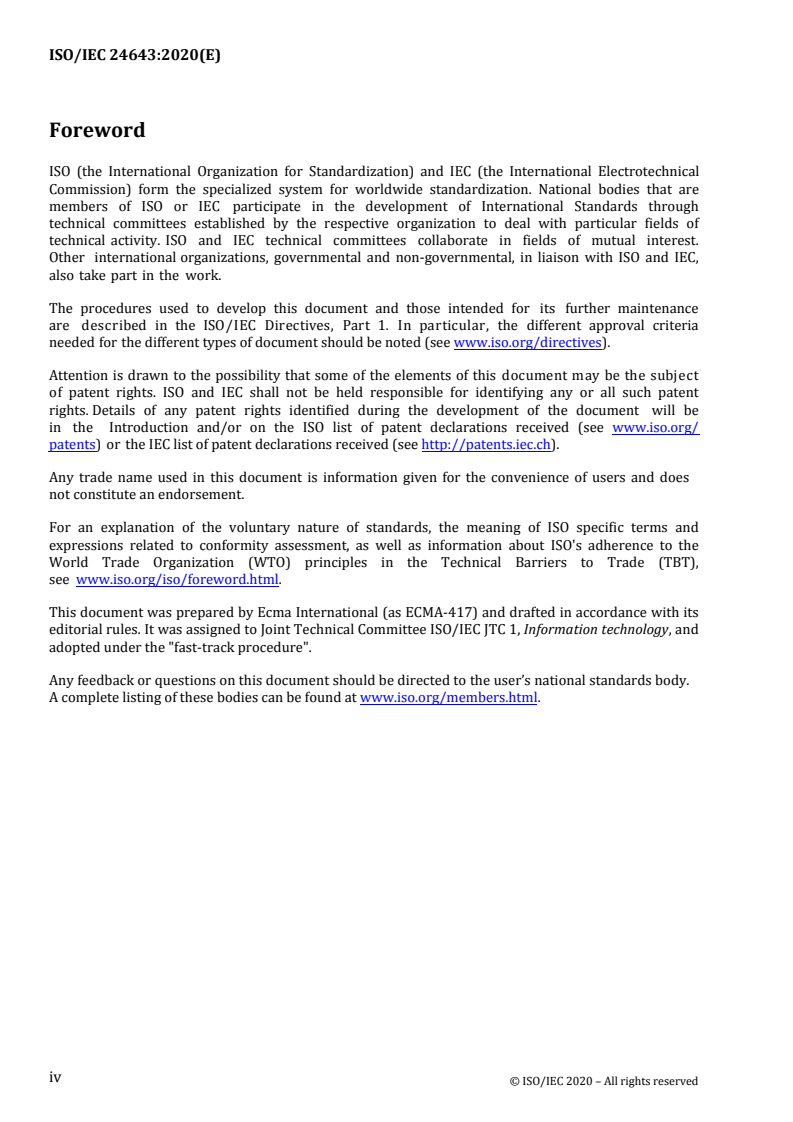

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through

technical committees established by the respective organization to deal with particular fields of

technical activity. ISO and IEC technical committees collaborate in fields of mutual interest.

Other international organizations, governmental and non‐governmental, in liaison with ISO and IEC,

also take part in the work.

The procedures used to develop this document and those intended for its further maintenance

are described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria

needed for the different types of document should be noted (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be

in the Introduction and/or on the ISO list of patent declarations received (see www.iso.org/

patents) or the IEC list of patent declarations received (see http://patents.iec.ch).

Any trade name used in this document is information given for the convenience of users and does

not constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),

see www.iso.org/iso/foreword.html.

This document was prepared by Ecma International (as ECMA-417) and drafted in accordance with its

editorial rules. It was assigned to Joint Technical Committee ISO/IEC JTC 1, Information technology, and

adopted under the "fast-track procedure".

Any feedback or questions on this document should be directed to the user’s national standards body.

A complete listing of these bodies can be found at www.iso.org/members.html.
© ISO/IEC 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 24643:2020(E)
Introduction

Technology for real‐time access control is widely used in many situations such as facility entrance

systems in a building, payments at a hotel, ATM operations or e‐voting in an election, etc. These services

benefit from real‐time access control systems connected via networks and using database information.

Sophisticated cloud, virtualization, database, networking technology and services and the evolution of

authentication technology such as biometrics, NFC, QR codes used in distributed and modular access

control systems enable previously underserved users and operators to innovate around new use cases.

For realizing such real‐time access system, an Ecma standard ECMA‐412 (also published as

International Standard ISO/IEC 20933) “Framework for distributed real‐time access systems” was first

introduced in 2016 with a 2 edition following in 2018. That standard specifies the reference model

and common control functions. It gives direction for ongoing innovation and development of technology

and the system integration of distributed real‐time access control systems.

This Standard specifies the architecture for a distributed real‐time access system taking into account

the many technologies and the framework of ECMA‐412. The architecture specifies the function group

concept of the system, the functionalities of each function group and the interfaces. Protocols between

function group and functions are out of the scope of this Standard.

This 2 edition introduces some clarifications and editorial improvements to the text.

This Ecma Standard was developed by Technical Committee 51 and was adopted by the General

Assembly of June 2019.
© ISO/IEC 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 24643:2020(E)
Architecture for a distributed real-time access system
1 Scope

This Standard specifies the architecture for a distributed real‐time access system. The architecture

specifies the function group concept of the system, functionalities of each function group, and interfaces.

Communication between function group and functions are not in the scope of this Standard.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ECMA‐412, Framework for distributed real-time Access systems

ISO/IEC 20933, Information technology — Distributed application platforms and services (DAPS) —

Framework for distributed real-time access systems
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
access ID
identifier of an access request
3.2
access object
physical entity which access the access system
3.3
access object ID
identifier of an access object
3.4
access point

object ID receiver from access object for starting access system activities and an access system activity

final result receiver for completion of the activities
© ISO/IEC 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 24643:2020(E)
3.5
access point ID
identifier of an access point
3.6
edge

boundary between pertinent digital and physical entities, delineated by networked access points

Note: see ISO/IEC TR 23188
3.7
edge node ID
identifier of an edge
3.8
transaction

suite of functions and message exchanges to generate a final result and sent to a receiver (Source:

ISO/IEC 20933)
4 Overview

A distributed real‐time access system, as described in ECMA‐412 and ISO/IEC 20933, (hereafter;

access system) is a system which decides in a timely manner to permit or deny access from an

access object and proceed with an access system service after access is granted. The access points of

the system are spatially distributed. An access system will be activated by the access of an access

object at the access point. After its validity confirmation, authentication, some services of the access

system will proceed serially and/or parallelly. When the processing of all the services is completed,

the service result is sent back to the access point. During such transaction, the series of action

should be authenticated through an authentication process, logically and physically as illustrated in

Figure 1.

Figure 1 shows an access system activity flow for an access system which is activated by the access

object access at the access point to the end of the series of actions of the system. In Figure 1, the

blue arrow shows the message(s) flow from the access object to the access point, access point

to the processor and any processor to any other processors. Those object ID messages from the access

object to the access point are used to process results messages to Process 1 and so on. At any

process functions, based on the received messages, each process function performs various

processing. The message results of each process, are accepted or denied, (process complete or

incomplete), and the result related ID(s) are sent to the next processing function.

All of the processing result messages from Process 1 to process N‐1 are sent to Process N function,

final judgement process, which decides of the final result, accept or deny. Then, the final result is

sent to the access point as a receiver of the result and completes a transaction and access system

activity. If the result of any processing function is ”deny” at any steps of an access system activity, such

messages are sent to the final judgement process. Then, the final result is judged as “deny” by the final

judge process function. The “deny” message is sent to the receiver and completes the transaction and

access system activity.
2 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 24643:2020(E)
Process 3
Access
Final
point
Access result
Process N
Process 1
Process 2
object
(final judge)
(authentication)
Access
point
Process N-1
Authenticated Area
Figure 1 — Access System Behaviour

The rules of message management and procedures of the system activities are provided by policy in the

policy function (Figure 3) of the platform function group. Those rules vary and depend on the services

and applications of each access system. Furthermore, the direction management rules of the messages

from each process are also provided by policy function and based on the rules., The message from the

access point sent to an appropriate process function is managed by an edge node. Access point result

messages will send through edge node to authentication process in the service function group. (Figure

Activities of each process functions are out of the scope of this standard.

Figure 2 shows an example, a hotel‐check in process. There are many rooms in a hotel and each room

entrance access point is locked. An access object is a human in this case, who has a key card with an

object ID. When the person inserts or touches the key card at the entrance door, the access point

receives an object ID from key card then an access system, which includes an authentication process

starts. If the key card was authenticated at the hotel front desk, the authentication result, final result,

requesting access is accepted and an open the door message, final result, goes to the access point, then,

the door will open. If the key card is not authenticated, access request denied through the

authentication process and the door
...

FINAL
INTERNATIONAL ISO/IEC
DRAFT
STANDARD FDIS
24643
ISO/IEC JTC 1
Architecture for a distributed real-
Secretariat: ANSI
time access system
Voting begins on:
2020­08­18
Voting terminates on:
2020­10­14
This document is circulated as received from the committee secretariat.
FAST TRACK PROCEDURE
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/IEC FDIS 24643:2020(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN­
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC FDIS 24643:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH­1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC FDIS 24643:2020(E)
Contents Page

1 Scope .................................................................................................................................................................... 1

2 Normative references .................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................... 1

4 Overview ............................................................................................................................................................. 1

5 Functional architecture of an access system ......................................................................................... 3

5.1 Physical function group ................................................................................................................................. 3

5.1.1 Components ....................................................................................................................................................... 3

5.1.2 Access object...................................................................................................................................................... 4

5.1.3 Access point ....................................................................................................................................................... 4

5.2 Network layer ................................................................................................................................................... 5

5.2.1 Components ....................................................................................................................................................... 5

5.2.2 Edge ...................................................................................................................................................................... 5

5.2.3 Telecommunication network ...................................................................................................................... 5

5.3 Service function group ................................................................................................................................... 5

5.3.1 Components ....................................................................................................................................................... 5

5.3.2 Processing functions....................................................................................................................................... 6

5.3.3 Transaction data .............................................................................................................................................. 6

5.4 Platform function group ................................................................................................................................ 6

5.4.1 Components ....................................................................................................................................................... 6

5.4.2 Policy function .................................................................................................................................................. 7

5.4.3 Authentication and access object data ..................................................................................................... 7

5.4.4 System data ........................................................................................................................................................ 7

5.4.5 Inter applications ............................................................................................................................................ 7

6 Interfaces ............................................................................................................................................................ 8

6.1 Physical function group and network function group ....................................................................... 8

6.2 Network function group and service function group ......................................................................... 8

6.3 Service function group and application function group .................................................................... 8

6.4 Inter applications ............................................................................................................................................ 8

Annex A (informative) Example of the data format ............................................................................................. 9

A.1 Transaction data .............................................................................................................................................. 9

A.2 Authentication and access object data ..................................................................................................... 9

A.3 System data ..................................................................................................................................................... 10

Annex B (informative) Example of complicated authentication ................................................................. 11

B.1 Enter an important facility ........................................................................................................................ 11

B.2 Electronic voting system for election .................................................................................................... 11

B.3 Authentication process ............................................................................................................................... 12

Bibliography ................................................................................................................................................................. 13

© ISO/IEC 2020 – All rights reserved
iii
---------------------- Page: 3 ----------------------
ISO/IEC FDIS 24643:2020(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical activity.

ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the

work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of document should be noted (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents) or the

IEC list of patent declarations received (see http://patents.iec.ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),

see www.iso.org/iso/foreword.html.

This document was prepared by Ecma International (as ECMA-417) and drafted in accordance with its

editorial rules. It was assigned to Joint Technical Committee ISO/IEC JTC 1, Information technology, and

adopted under the “fast-track procedure”.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
iv © ISO/IEC 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC FDIS 24643:2020(E)
Introduction

Technology for real-time access control is widely used in many situations such as facility entrance

systems in a building, payments at a hotel, ATM operations or e-voting in an election, etc. These services

benefit from real-time access control systems connected via networks and using database information.

Sophisticated cloud, virtualization, database, networking technology and services and the evolution of

authentication technology such as biometrics, NFC, QR codes used in distributed and modular access

control systems enable previously underserved users and operators to innovate around new use cases.

For realizing such real-time access system, an Ecma standard ECMA-412 (also published as

International Standard ISO/IEC 20933) “Framework for distributed real-time access systems” was first

introduced in 2016 with a 2 edition following in 2018. That standard specifies the reference model

and common control functions. It gives direction for ongoing innovation and development of technology

and the system integration of distributed real-time access control systems.

This Standard specifies the architecture for a distributed real-time access system taking into account

the many technologies and the framework of ECMA-412. The architecture specifies the function group

concept of the system, the functionalities of each function group and the interfaces. Protocols between

function group and functions are out of the scope of this Standard.

This 2 edition introduces some clarifications and editorial improvements to the text.

This Ecma Standard was developed by Technical Committee 51 and was adopted by the General

Assembly of June 2019.
© ISO/IEC 2020 – All rights reserved
---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD
ISO/IEC FDIS 24643:2020(E)
Architecture for a distributed real-time access system
1 Scope

This Standard specifies the architecture for a distributed real-time access system. The architecture

specifies the function group concept of the system, functionalities of each function group, and interfaces.

Communication between function group and functions are not in the scope of this Standard.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ECMA-412, Framework for distributed real-time Access systems

ISO/IEC 20933, Information technology — Distributed application platforms and services (DAPS) —

Framework for distributed real-time access systems
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
access ID
identifier of an access request
3.2
access object
physical entity which access the access system
3.3
access object ID
identifier of an access object
3.4
access point

object ID receiver from access object for starting access system activities and an access system activity

final result receiver for completion of the activities
© ISO/IEC 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC FDIS 24643:2020(E)
3.5
access point ID
identifier of an access point
3.6
edge

boundary between pertinent digital and physical entities, delineated by networked access points

Note: see ISO/IEC TR 23188
3.7
edge node ID
identifier of an edge
3.8
transaction

suite of functions and message exchanges to generate a final result and sent to a receiver

(Source: ISO/IEC 20933)
4 Overview

A distributed real-time access system, as described in ECMA-412 and ISO/IEC 20933, (hereafter;

access system) is a system which decides in a timely manner to permit or deny access from an

access object and proceed with an access system service after access is granted. The access points of

the system are spatially distributed. An access system will be activated by the access of an access

object at the access point. After its validity confirmation, authentication, some services of the access

system will proceed serially and/or parallelly. When the processing of all the services is completed,

the service result is sent back to the access point. During such transaction, the series of action should

be authenticated through an authentication process, logically and physically as illustrated in Figure 1.

Figure 1 shows an access system activity flow for an access system which is activated by the

access object access at the access point to the end of the series of actions of the system. In Figure 1,

the blue arrow shows the message(s) flow from the access object to the access point, access

point to the processor and any processor to any other processors. Those object ID messages from the

access object to the access point are used to process results messages to Process 1 and so on.

At any process functions, based on the received messages, each process function performs

various processing. The message results of each process, are accepted or denied, (process

complete or incomplete), and the result related ID(s) are sent to the next processing function.

All of the processing result messages from Process 1 to process N-1 are sent to Process N function,

final judgement process, which decides of the final result, accept or deny. Then, the final result is sent

to the access point as a receiver of the result and completes a transaction and access system

activity. If the result of any processing function is ”deny” at any steps of an access system activity,

such messages are sent to the final judgement process. Then, the final result is judged as “deny” by the

final judge process function. The “deny” message is sent to the receiver and completes the

transaction and access system activity.
2 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC FDIS 24643:2020(E)
Process 3
Access
Final
point
Access result
Process N
Process 1
Process 2
object
(final judge)
(authentication)
Access
point
Process N-1
Authenticated Area
Figure 1 — Access System Behaviour

The rules of message management and procedures of the system activities are provided by policy in the

policy function (Figure 3) of the platform function group. Those rules vary and depend on the services

and applications of each access system. Furthermore, the direction management rules of the messages

from each process are also provided by policy function and based on the rules., The message from the

access point sent to an appropriate process function is managed by an edge node. Access point result

messages will send through edge node to authentication process in the service function group. (Figure

Activities of each process functions are out of the scope of this standard.

Figure 2 shows an example, a hotel-check in process. There are many rooms in a hotel and each room

entrance access point is locked. An access object is a human in this case, who has a key card with an

object ID. When the person inserts or touches the key card at the entrance door, the access point

receives an object ID from key card then an access system, which includes an authentication process

starts. If the key card was authenticated at the hotel front desk, the authentication result, final result,

requesting access is accepted and an open the door message, final result, goes to the access point, then,

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
