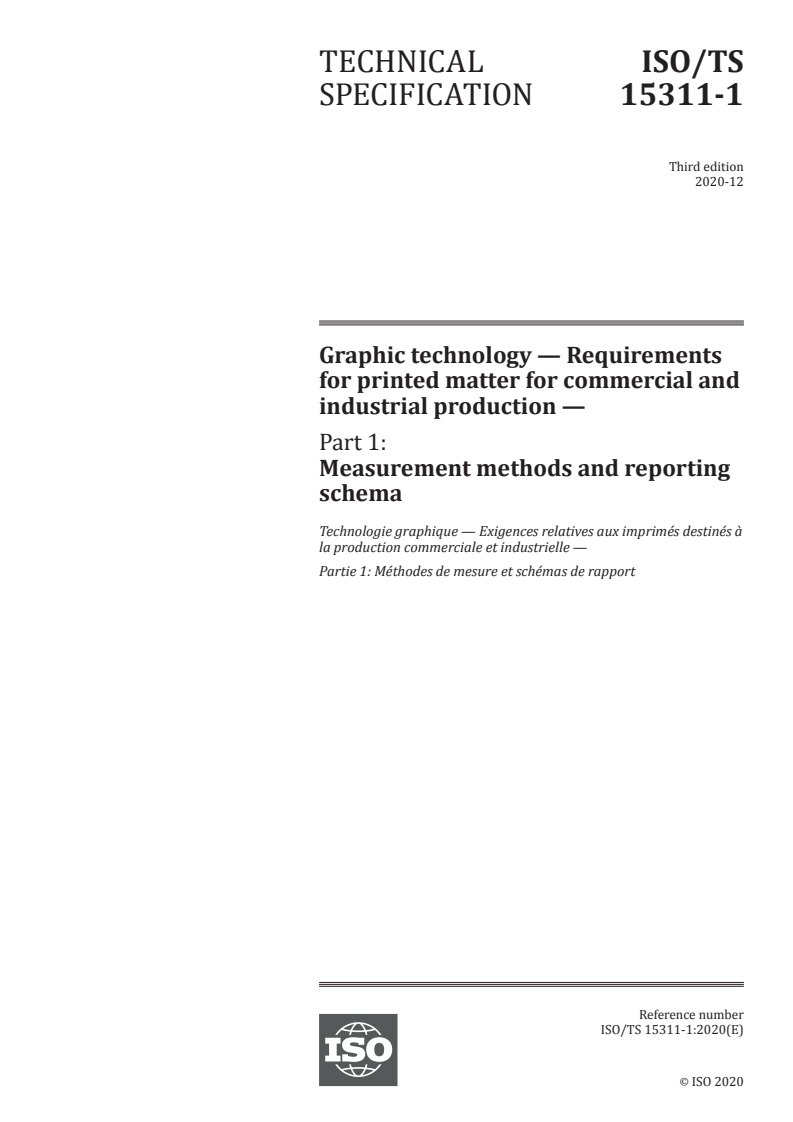

TECHNICAL ISO/TS
SPECIFICATION 15311-1
Third edition
2020-12
Graphic technology — Requirements
for printed matter for commercial and
industrial production —
Part 1:
Measurement methods and reporting
schema
Technologie graphique — Exigences relatives aux imprimés destinés à
la production commerciale et industrielle —
Partie 1: Méthodes de mesure et schémas de rapport
Reference number
ISO/TS 15311-1:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO/TS 15311-1:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 15311-1:2020(E)

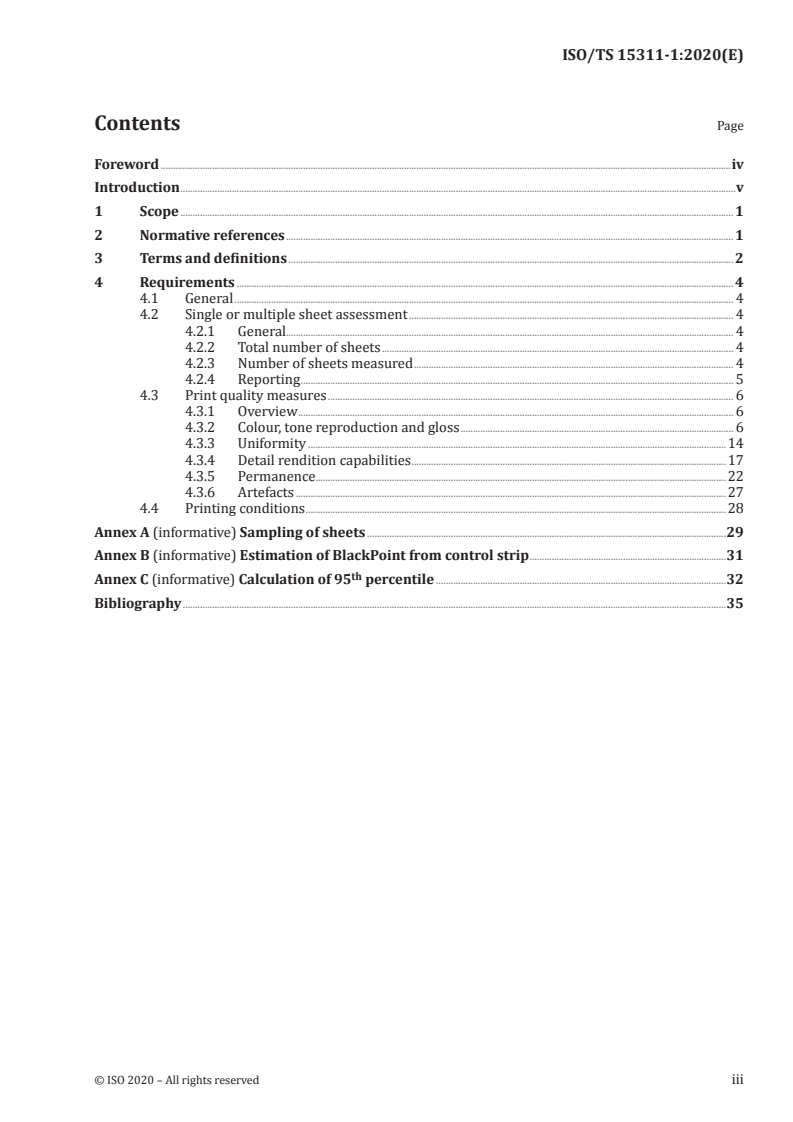

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Requirements .......................................................................................................................................................................................................... 4

4.1 General ........................................................................................................................................................................................................... 4

4.2 Single or multiple sheet assessment .................................................................................................................................... 4

4.2.1 General...................................................................................................................................................................................... 4

4.2.2 Total number of sheets ............................................................................................................................................... 4

4.2.3 Number of sheets measured .................................................................................................................................. 4

4.2.4 Reporting ................................................................................................................................................................................ 5

4.3 Print quality measures ..................................................................................................................................................................... 6

4.3.1 Overview ................................................................................................................................................................................. 6

4.3.2 Colour, tone reproduction and gloss ............................................................................................................... 6

4.3.3 Uniformity ..........................................................................................................................................................................14

4.3.4 Detail rendition capabilities ................................................................................................................................17

4.3.5 Permanence ...................................................................... .................................................................................................22

4.3.6 Artefacts ...............................................................................................................................................................................27

4.4 Printing conditions ...........................................................................................................................................................................28

Annex A (informative) Sampling of sheets ..................................................................................................................................................29

Annex B (informative) Estimation of BlackPoint from control strip ................................................................................31

Annex C (informative) Calculation of 95 percentile ......................................................................................................................32

Bibliography .............................................................................................................................................................................................................................35

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TS 15311-1:2020(E)

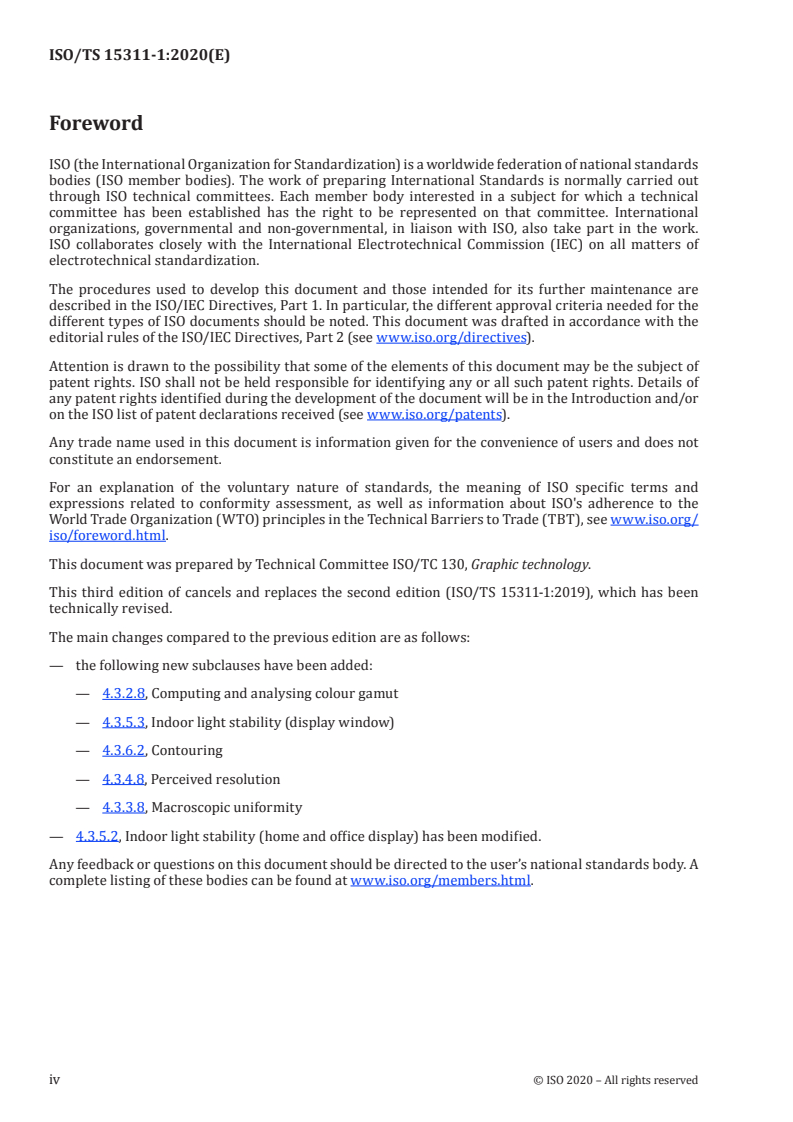

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 130, Graphic technology.

This third edition of cancels and replaces the second edition (ISO/TS 15311-1:2019), which has been

technically revised.
The main changes compared to the previous edition are as follows:
— the following new subclauses have been added:
— 4.3.2.8, Computing and analysing colour gamut
— 4.3.5.3, Indoor light stability (display window)
— 4.3.6.2, Contouring
— 4.3.4.8, Perceived resolution
— 4.3.3.8, Macroscopic uniformity
— 4.3.5.2, Indoor light stability (home and office display) has been modified.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 15311-1:2020(E)
Introduction

When producing a colour reproduction, it is important that the persons responsible for data creation,

colour separation, proofing and printing operations have previously agreed a minimum set of

parameters that define the visual characteristics and other technical properties of the planned print

product. This document identifies a number of metrics that can be applied to printed sheets and that

can be used as the basis for such communication. The range of metrics is large, and it is not intended

that all of these metrics are to be applied to any given printed product and for any given application.

The range of metrics is to be carefully selected, for example based on subsequent parts of ISO/TS 15311.

The metrics described by this document can be applied to any type of print. They are likely most often

to be applied to digitally printed prints.

When selecting the set of metrics, only those metrics that have a clear specification and that correlate

well with human perception are included in this document. Since this is an area of significant research

activity, new metrics are expected to emerge and existing metrics to be revised in the next few years.

For this reason, we anticipate the need to revise this document within a very short time scale as new

metrics are tested and found to be reliable.

Additional tests to those specified in this document, for example visual assessment of smoothness,

images and other elements may be required when assessing print quality.

As with any parameter that is used as part of a product specification, it is important for readers to

understand clearly what the metric means. For this reason, a reporting schema is to be followed when

reporting measurements in conformance with this document.
© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
TECHNICAL SPECIFICATION ISO/TS 15311-1:2020(E)
Graphic technology — Requirements for printed matter for
commercial and industrial production —
Part 1:
Measurement methods and reporting schema
1 Scope

This document defines print quality metrics, measurement methods and reporting requirements for

printed sheets that are suitable for all classes of printed products.

Guidance as to which of these metrics to apply to any given product category along with acceptable

conformance criteria is provided in subsequent parts of ISO/TS 15311.

Although this document is expected to be used primarily to measure prints from digital printing

systems, the metrics are general and can be applied to other kinds of print.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 2813, Paints and varnishes — Determination of gloss value at 20°, 60° and 85°

ISO 8254-1, Paper and board — Measurement of specular gloss — Part 1: 75 degree gloss with a converging

beam, TAPPI method

ISO 12642-2, Graphic technology — Input data for characterization of 4-colour process printing — Part 2:

Expanded data set

ISO 12647-8, Graphic technology — Process control for the production of half-tone colour separations,

proof and production prints — Part 8: Validation print processes working directly from digital data

ISO 13655, Graphic technology — Spectral measurement and colorimetric computation for graphic

arts images
ISO 15184, Paints and varnishes — Determination of film hardness by pencil test
ISO 18619, Image technology colour management — Black point compensation

ISO/TS 18621-11, Image quality evaluation methods for printed matter — Part 11: Colour gamut analysis

ISO/TS 18621-21, Graphic technology — Image quality evaluation methods for printed matter — Part 21:

Measurement of 1D distortions of macroscopic uniformity utilizing scanning spectrophotometers

ISO/TS 18621-31, Graphic technology — Image quality evaluation methods for printed matter — Part 31:

Evaluation of the perceived resolution of printing systems with the contrast–resolution chart

ISO 18924, Imaging materials — Test method for Arrhenius-type predictions

ISO 18930, Imaging materials — Pictorial colour reflection prints — Methods for evaluating image stability

under outdoor conditions

ISO 18935, Imaging materials — Colour images — Determination of water resistance of printed colour images

© ISO 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/TS 15311-1:2020(E)

ISO 18936, Imaging materials — Processed colour photographs — Methods for measuring thermal stability

ISO 18937, Imaging materials — Photographic reflection prints — Methods for measuring indoor light

stability

ISO 18947, Imaging materials — Photographic reflection prints — Determination of abrasion resistance of

photographic images

ISO/TS 21139-21, Permanence and durability of commercial prints — Part 21: In-window display — Light

and ozone stability

ISO/IEC 24790, Information technology — Office equipment — Measurement of image quality attributes

for hardcopy output — Monochrome text and graphic images

ISO/IEC 29112, Information technology — Office equipment — Test pages and methods for measuring

monochrome printer resolution
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
banding

appearance of one dimensional variation within an area that should be homogeneous

3.2
CIEDE2000 colour difference
method of/formula for calculating colour difference, ΔE /CIEDE00
Note 1 to entry: See ISO/CIE 11664-6 for details.
3.3
colour deviation

colour difference between the colour aim value and a colour measurement or the mean of a set of colour

measurements
* * * * *

Note 1 to entry: In addition to the ΔE the ΔL with Δa and Δb and/or with ΔC and ΔH may be reported.

3.4
colour variation

colour difference between the mean of a set of colour measurements and each sample

Note 1 to entry: Colour variation is also known as colour fluctuation and may be reported as the mean or

95 percentile.
3.5
digital printing

process for text and image reproduction with a colour marker on a medium using a marking device, on

which the marking information is generated from digital data directly to the medium

Note 1 to entry: Digital printing differs from traditional ink-based printing on which the marking information is

generated from a form produced offline prior to imaging on the medium.
2 © ISO 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/TS 15311-1:2020(E)
3.6
permanence
ability to remain chemically and physically stable over long periods of time
[SOURCE: ISO 18913:2012, 3.134]
3.7
image quality

impression of the overall merit or excellence of an image, as perceived by an observer

Note 1 to entry: For a meaningful technical evaluation of image quality, the evaluation should be based on a

third-party assessment, i.e. by an observer neither associated with the artistic creation of the image, nor closely

or emotionally involved with the subject matter being depicted. This restriction is designed to eliminate sources

of variability that arise from more idiosyncratic aspects of image perception that are outside control of imaging

system designers.
[SOURCE: Handbook of Image Quality: Characterization and prediction]
3.8
printing condition

set of primary process parameters which describe the conditions associated with a specific printed

output, associated with spectral, colorimetric and/or densitometric aim values

Note 1 to entry: Such parameters usually include (as a minimum) printing process, paper category, printing ink,

screening and printing sequence. The aim values typically comprise the colorant description and tone value

increase aims.

Note 2 to entry: For the purposes of colour management, a printing condition is fully characterized by giving the

relationship between the digital input values (for example as stipulated in ISO 12642-2) and the corresponding

measured colorimetric values.

Note 3 to entry: Based on a given set of characterization data according to 3.9, Note 2 to entry and a definition of

achromatic perception, a grey printing condition might be extracted.
3.9
tone value

proportional printing value encoded in a data file and interpreted as defined in the file format

specification
VV−
 
p 0
A=×100 %
 
 
VV−
 100 0 
where
V is the integer value of the pixel;
V is the integer value corresponding to a tone value of 0 %;
V is the integer value corresponding to a tone value of 100 %.
100
Note 1 to entry: Tone value is expressed in units of percent.

Note 2 to entry: Most files store these data as 8-bit integer values, i.e. 0 to 255. The tone value of a pixel is typically

computed from the formula.
3.10
URI
Uniform Resource Identifier
compact sequence of characters that identifies an abstract or physical resource
Note 1 to entry: See IETF RFC 3986 for details.
© ISO 2020 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/TS 15311-1:2020(E)
3.11
CIELAB chromaticness difference

difference between two colours of approximately the same lightness projected onto a constant lightness

plane in the CIELAB colour space
2 2
** **
Note 1 to entry: This is calculated as Δ Cb=−CIECααIE +−CIECIE b
() ()
h 12 12
Note 2 to entry: [SOURCE: ISO 13655:2017, 3.5]
4 Requirements
4.1 General

The following subclauses provide a number of metrics that define attributes of printed sheets and

requirements for reporting them.

In many cases, the existing standards use CIE ΔE* rather than CIEDE2000. Although these are not

interchangeable quantities, ΔE* has been superseded by CIEDE2000 in ISO/TC 130 standards. For

this reason, CIEDE2000 shall be used to report colour difference metrics in this document.

Similarly, printing density is seldom used to measure colour and where the referenced standards

specify printing density, approximately equivalent CIELAB colour measurements shall be used.

4.2 Single or multiple sheet assessment
4.2.1 General

Unless otherwise specified, metrics shall be assumed to apply to the assessment of a single sheet.

In many cases, it is useful to be able to report metrics for a set of sheets. For example, the set of sheets

produced in a single print run or the set of sheets to be delivered as part of an order for print. In these

cases, it is important to be able to indicate the likely variation across the entire set of sheets.

Sheets should be selected randomly with no replacement.

NOTE Best practice sampling is time-stamped to demonstrate what time and date the sample was taken.

Samples should be selected with the following provisos:
a) sheets should be selected throughout the entire press run;
b) sheets should not be selected synchronous to any press event.

In cases where metrics are reported for a set of sheets, the report shall indicate the following: the total

number of sheets in the set to be assessed, the number of sheets measured and, unless random selection

with no replacement is used, the sampling method used to select the sheets shall be indicated.

4.2.2 Total number of sheets

The total number of sheets in the set of sheets assessed shall be reported. Details of the printing system

used to create the sheets should also be reported.
4.2.3 Number of sheets measured

Conformance with this document requires only that values measured for the sampled set of sheets are

reported. As a general rule, the higher the number of sheets measured from the set, the closer this value

will be to that of the entire set of sheets. Where there are a large number of sheets in the set, it may be

4 © ISO 2020 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TS 15311-1:2020(E)

impractical to measure a high percentage of these sheets and so the likely spread of values may be high.

Table 1 provides guidelines for the suggested number of sheets to be assessed for different numbers of

sheets in the set.
Table 1 — Guidelines for the number of sheets to be assessed
Total number of Suggested number of
sheets in set sheets to be measured
50 12
100 13
1 000 and greater 15

Table 1 provides typical sampling strategies used in the industry today. Users should be aware that

where these values are used, the average value (and the 95 percentile) for the total set of sheets may

vary substantially from the average measured for the sample set. Annex A provides details of how

the likely difference between these two values varies with the sample size and provides a method for

finding the sampling rate needed to increase the confidence in the metric to a required level.

NOTE ISO 186 suggests increasing the number of samples to 20 for run lengths greater than 5 000.

In order to verify whether the difference between the two values is statistically significant, the

variable E of Annex A can be used as a point of reference. The number of samples may be chosen to

avoid overlapping error bars by selecting an appropriate value for E.
4.2.4 Reporting

When multiple sheets are assessed, the total number of sheets and the number of sheets assessed shall

be reported as shown in the example below.
EXAMPLE 1 Sheets assessed: 15 (500).

When multiple sheets are assessed, the mean and standard deviation for each metric shall be reported

as shown below except when reporting colour difference metrics.

EXAMPLE 2 Estimated line width: sample mean = 0,12 mm, sample standard deviation = 0,01 mm.

When reporting colour difference metrics for a single colour measured on multiple sheets, both the

colour deviation and colour variation should be reported.

The colour deviation shall be calculated as follows: calculate the mean CIELAB value of the samples.

The colour deviation is given by the CIEDE2000 colour difference between the CIELAB colour aim value

* * *

and the mean CIELAB value. In addition to the ΔE value the ΔL , Δa and Δb values (Mean - Reference)

should be reported.
* * *
EXAMPLE 3 Colour deviation 3,2 ΔE , ΔL = 2,8, Δa = 0,3, Δb = 1,4.

The colour variation shall be calculated as follows: calculate the mean CIELAB value of the samples.

Calculate the CIEDE2000 colour differences between this mean and the CIELAB of each sample. The

colour variation is given by the mean value of these CIEDE2000 colour differences or the corresponding

th th

95 percentile. Refer to Annex C for details on the calculation of the 95 percentile.

EXAMPLE 4 Colour variation 0,8 DE .

Where the spread of colour variation is reported, the mean colour difference and the 95 percentile

(and not the standard deviation) should be used.
EXAMPLE 5 Colour variation 0,8 DE , 95 percentile 1,2 DE .
00 00

NOTE Standard deviation is not an appropriate measure for colour difference as this assumes a normal

distribution, whereas colour differences are not normally distributed. The 95 percentile provides a more reliable

estimate of the spread of values.
© ISO 2020 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/TS 15311-1:2020(E)

The parameters of arithmetic average (mean from a small sample set) and 95th percentile are well

known and easy to compute. However, neither parameter is insensitive to the changes in the underlying

distribution of readings or the presence of erroneous or outlier readings (statistical robustness). With

the small numbers of readings being collected, a single bad read can move either the mean or the 95th

percentile several points further away from their ideal values. When reporting these parameters, if

the results are much larger than expected, then the data should be examined for values that are much

larger than the rest of the sample. If this is the case, then that reading should be examined to determine

if there is a cause for this difference and this may provide justification to leave that outlier out of the

analysis.

Colour errors across multiple sheets shall be calculated and reported as follows. For all patches on all

sheets, calculate the colour error between the patch and the corresponding reference colour. This results

in a total of n × m colour errors where n is the number of colour patches on each sheet and m is the

number of sheets. Calculate and report the mean and 95 percentile of this entire set of colour errors.

4.3 Print quality measures
4.3.1 Overview

Image quality metrics or attributes are aspects, dimensions or components of overall perceived print

image quality.

The visual attributes specified in this document, to be used by the remaining parts of ISO/TS 15311, are

defined in the following subclauses.
4.3.2 Colour, tone reproduction and gloss
4.3.2.1 General

Colour accuracy describes the visual closeness between a defined reference and a reproduction. It is

important to distinguish two concepts: absolute and media relative colour accuracy.

Absolute colour accuracy is usually required for side-by-side viewing, whereas media relative colour

accuracy is usually more desirable for sequential viewing where the prints being compared are never

viewed together.

When selecting a suitable metric, it is important to know which kind of comparison is expected and

when reporting colour metrics, the colour accuracy method and the intended evaluation method should

be indicated.
4.3.2.2 Print substrate

In some cases, it may be desirable to indicate the substrate that is used when reporting other attributes.

For example, the colour accuracy achieved for a particular reference printing condition usually depends

on the substrate. This is only likely to be useful for cases where isotropic (paper-like) substrates are used.

When such substrate attributes are included, they shall be reported as shown in Table 2.

6 © ISO 2020 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/TS 15311-1:2020(E)
Table 2 — Substrate reporting requirements
Print substrate attribute Description Example

Substrate name (Required) A text string that Substrate name: StoraEnso NovaPress

provides details of the substrate
used. This should include
sufficient detail to enable
purchase of similar substrate.

Substrate colour (Required) CIELAB D50/2° M1 Substrate colour: (95, 0,5, −2) CIELAB

colour value of the substrate
measured as specified in
ISO 13655
Other metrics from (Optional) Report metric as indicated in ISO 15397
ISO 15397 may be reported
4.3.2.3 Colour accuracy (absolute colour reproduction, process colours)

In some cases, particularly when proofing, it is useful to be able to estimate the accuracy to which the

print simulates a reference printing condition and this attribute is called “absolute colour accuracy”.

When reported, assessment of absolute colour accuracy shall be performed by printing and measuring

an ISO 12642-2 characterization data chart or where appropriate a subset of these patches (control

strip patches) according to ISO 12647-8 (Validation print control strip).

NOTE Where the option to preserve 100 % K elements is used, the 100 % K patch on the control strip is

likely to include an unexpected error.

The values shown in Table 3 shall be reported using the measurement units shown and values shall be

reported to two significant figures.
Table 3 — Reporting absolute colour reproduction parameters
Description Full label Abbreviated label Units
Colour difference for substrate Substrate Sub ΔE
Maximum colour difference for all control Control strip maximum CSMax ΔE
strip patches
th th
The 95 percentile for the control strip Control strip 95 percentile CS95 % ΔE
patches
Average colour difference for control Control strip average CSAve ΔE
strip patches

Maximum chromaticness difference for Control strip neutrals maximum CSMaxNeutral ΔC

CMY neutral control strip patches

Average chromaticness difference for CMY Control strip neutrals average CSAveNeutral ΔC

neutral control strip patches

Average colour difference for selected Characterization chart surface CCAveSurface ΔE

surface gamut patches patches average
The average colour difference for the Characterization chart average CCAve ΔE
characterization chart
The 95th percentile for the Characterization chart 95th CC95 % ΔE
characterization chart percentile

NOTE Technically speaking the "unit" in this table represents the method by which the value is calculated.

EXAMPLE 1 Absolute colour accuracy: Sub (1,2 ΔE ), CSMax (8,0 ΔE ), CS95 % (6,0 ΔE ), CSAve (3,0 ΔE ),

00 00 00 00

CSMaxNeutral (3,2 ΔC ), CSAveNeutral (2,5 ΔC ), CCAveSurface (4,0 ΔE ), CCAve (3,0 ΔE ), CC95 % (6,0 ΔE ).

h h 00 00 00
© ISO 2020 – All rights reserved 7
---------------------- Page: 12 ----
...

TECHNICAL ISO/TS
SPECIFICATION 15311-1
Third edition
Graphic technology — Requirements
for printed matter for commercial and
industrial production —
Part 1:
Measurement methods and reporting
schema
Technologie graphique — Exigences relatives aux imprimés destinés à
la production commerciale et industrielle —
Partie 1: Méthodes de mesure et schémas de rapport
PROOF/ÉPREUVE
Reference number
ISO/TS 15311-1:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO/TS 15311-1:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 15311-1:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Requirements .......................................................................................................................................................................................................... 4

4.1 General ........................................................................................................................................................................................................... 4

4.2 Single or multiple sheet assessment .................................................................................................................................... 4

4.2.1 General...................................................................................................................................................................................... 4

4.2.2 Total number of sheets ............................................................................................................................................... 4

4.2.3 Number of sheets measured .................................................................................................................................. 4

4.2.4 Reporting ................................................................................................................................................................................ 5

4.3 Print quality measures ..................................................................................................................................................................... 6

4.3.1 Overview ................................................................................................................................................................................. 6

4.3.2 Colour, tone reproduction and gloss ............................................................................................................... 6

4.3.3 Uniformity ..........................................................................................................................................................................14

4.3.4 Detail rendition capabilities ................................................................................................................................17

4.3.5 Permanence ...................................................................... .................................................................................................21

4.3.6 Artefacts ...............................................................................................................................................................................27

4.4 Printing conditions ...........................................................................................................................................................................28

Annex A (informative) Sampling of sheets ..................................................................................................................................................29

Annex B (informative) Estimation of BlackPoint from control strip ................................................................................31

Annex C (informative) Calculation of 95 percentile ......................................................................................................................32

Bibliography .............................................................................................................................................................................................................................35

© ISO 2020 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO/TS 15311-1:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 130, Graphic technology.

This third edition of cancels and replaces the second edition (ISO/TS 15311-1:2019), which has been

technically revised.
The main changes compared to the previous edition are as follows:
— the following new subclauses have been added:
— 4.3.2.8, Computing and analysing colour gamut
— 4.3.5.3, Indoor light stability (display window)
— 4.3.6.2, Contouring
— 4.3.4.8, Perceived resolution
— 4.3.3.8, Macroscopic uniformity
— 4.3.5.2 has been modified:

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 15311-1:2020(E)
Introduction

When producing a colour reproduction, it is important that the persons responsible for data creation,

colour separation, proofing and printing operations have previously agreed a minimum set of

parameters that define the visual characteristics and other technical properties of the planned print

product. This document identifies a number of metrics that can be applied to printed sheets and that

can be used as the basis for such communication. The range of metrics is large, and it is not intended

that all of these metrics are to be applied to any given printed product and for any given application.

The range of metrics is to be carefully selected, for example based on subsequent parts of ISO/TS 15311.

The metrics described by this document can be applied to any type of print. They are likely most often

to be applied to digitally printed prints.

When selecting the set of metrics, only those metrics that have a clear specification and that correlate

well with human perception are included in this document. Since this is an area of significant research

activity, new metrics are expected to emerge and existing metrics to be revised in the next few years.

For this reason, we anticipate the need to revise this document within a very short time scale as new

metrics are tested and found to be reliable.

Additional tests to those specified in this document, for example visual assessment of smoothness,

images and other elements may be required when assessing print quality.

As with any parameter that is used as part of a product specification, it is important for readers to

understand clearly what the metric means. For this reason, a reporting schema is to be followed when

reporting measurements in conformance with this document.
© ISO 2020 – All rights reserved PROOF/ÉPREUVE v
---------------------- Page: 5 ----------------------
TECHNICAL SPECIFICATION ISO/TS 15311-1:2020(E)
Graphic technology — Requirements for printed matter for
commercial and industrial production —
Part 1:
Measurement methods and reporting schema
1 Scope

This document defines print quality metrics, measurement methods and reporting requirements for

printed sheets that are suitable for all classes of printed products.

Guidance as to which of these metrics to apply to any given product category along with acceptable

conformance criteria is provided in subsequent parts of ISO/TS 15311.

Although this document is expected to be used primarily to measure prints from digital printing

systems, the metrics are general and can be applied to other kinds of print.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 2813, Paints and varnishes — Determination of gloss value at 20°, 60° and 85°

ISO 8254-1, Paper and board — Measurement of specular gloss — Part 1: 75 degree gloss with a converging

beam, TAPPI method

ISO 12642-2, Graphic technology — Input data for characterization of 4-colour process printing — Part 2:

Expanded data set

ISO 12647-8, Graphic technology — Process control for the production of half-tone colour separations,

proof and production prints — Part 8: Validation print processes working directly from digital data

ISO 13655, Graphic technology — Spectral measurement and colorimetric computation for graphic

arts images
ISO 15184, Paints and varnishes — Determination of film hardness by pencil test
ISO 18619, Image technology colour management — Black point compensation

ISO/TS 18621-11, Image quality evaluation methods for printed matter — Part 11: Colour gamut analysis

ISO/TS 18621-21, Graphic technology — Image quality evaluation methods for printed matter — Part 21:

Measurement of 1D distortions of macroscopic uniformity utilizing scanning spectrophotometers

ISO/TS 18621-31, Graphic technology — Image quality evaluation methods for printed matter — Part 31:

Evaluation of the perceived resolution of printing systems with the contrast–resolution chart

ISO 18924, Imaging materials — Test method for Arrhenius-type predictions

ISO 18930, Imaging materials — Pictorial colour reflection prints — Methods for evaluating image stability

under outdoor conditions

ISO 18935, Imaging materials — Colour images — Determination of water resistance of printed colour images

© ISO 2020 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 6 ----------------------
ISO/TS 15311-1:2020(E)

ISO 18936, Imaging materials — Processed colour photographs — Methods for measuring thermal stability

ISO 18937, Imaging materials — Photographic reflection prints — Methods for measuring indoor light

stability

ISO 18947, Imaging materials — Photographic reflection prints — Determination of abrasion resistance of

photographic images

ISO/TS 21139-21, Permanence and durability of commercial prints — Part 21: In-window display — Light

and ozone stability

ISO/IEC 24790, Information technology — Office equipment — Measurement of image quality attributes

for hardcopy output — Monochrome text and graphic images

ISO/IEC 29112, Information technology — Office equipment — Test pages and methods for measuring

monochrome printer resolution
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
banding

appearance of one dimensional variation within an area that should be homogeneous

3.2
CIEDE2000 colour difference
method of/formula for calculating colour difference, ΔE /CIEDE00
Note 1 to entry: See ISO/CIE 11664-6 for details.
3.3
colour deviation

colour difference between the colour aim value and a colour measurement or the mean of a set of colour

measurements
* * * * *

Note 1 to entry: In addition to the ΔE the ΔL with Δa and Δb and/or with ΔC and ΔH may be reported.

3.4
colour variation

colour difference between the mean of a set of colour measurements and each sample

Note 1 to entry: Colour variation is also known as colour fluctuation and may be reported as the mean or

95 percentile.
3.5
digital printing

process for text and image reproduction with a colour marker on a medium using a marking device, on

which the marking information is generated from digital data directly to the medium

Note 1 to entry: Digital printing differs from traditional ink-based printing on which the marking information is

generated from a form produced offline prior to imaging on the medium.
2 PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/TS 15311-1:2020(E)
3.6
permanence
ability to remain chemically and physically stable over long periods of time
[SOURCE: ISO 18913:2012, 3.134]
3.7
image quality

impression of the overall merit or excellence of an image, as perceived by an observer

Note 1 to entry: For a meaningful technical evaluation of image quality, the evaluation should be based on a

third-party assessment, i.e. by an observer neither associated with the artistic creation of the image, nor closely

or emotionally involved with the subject matter being depicted. This restriction is designed to eliminate sources

of variability that arise from more idiosyncratic aspects of image perception that are outside control of imaging

system designers.
[SOURCE: Handbook of Image Quality: Characterization and prediction]
3.8
printing condition

set of primary process parameters which describe the conditions associated with a specific printed

output, associated with spectral, colorimetric and/or densitometric aim values

Note 1 to entry: Such parameters usually include (as a minimum) printing process, paper category, printing ink,

screening and printing sequence. The aim values typically comprise the colorant description and tone value

increase aims.

Note 2 to entry: For the purposes of colour management, a printing condition is fully characterized by giving the

relationship between the digital input values (for example as stipulated in ISO 12642-2) and the corresponding

measured colorimetric values.

Note 3 to entry: Based on a given set of characterization data according to 3.9, Note 2 to entry and a definition of

achromatic perception, a grey printing condition might be extracted.
3.9
tone value

proportional printing value encoded in a data file and interpreted as defined in the file format

specification
VV−
 
p 0
A=×100 %
 
 
VV−
 100 0 
where
V is the integer value of the pixel;
V is the integer value corresponding to a tone value of 0 %;
V is the integer value corresponding to a tone value of 100 %.
100
Note 1 to entry: Tone value is expressed in units of percent.

Note 2 to entry: Most files store these data as 8-bit integer values, i.e. 0 to 255. The tone value of a pixel is typically

computed from the formula.
3.10
URI
Uniform Resource Identifier
compact sequence of characters that identifies an abstract or physical resource
Note 1 to entry: See IETF RFC 3986 for details.
© ISO 2020 – All rights reserved PROOF/ÉPREUVE 3
---------------------- Page: 8 ----------------------
ISO/TS 15311-1:2020(E)
3.11
CIELAB chromaticness difference

difference between two colours of approximately the same lightness projected onto a constant lightness

plane in the CIELAB colour space
2 2
** **
Note 1 to entry: This is calculated as Δ Cb=−CIECααIE +−CIECIE b
() ()
h 12 12
4 Requirements
4.1 General

The following subclauses provide a number of metrics that define attributes of printed sheets and

requirements for reporting them.

In many cases, the existing standards use CIE ΔE* rather than CIEDE2000. Although these are not

interchangeable quantities, ΔE* has been superseded by CIEDE2000 in ISO/TC 130 standards. For

this reason, CIEDE2000 shall be used to report colour difference metrics in this document.

Similarly, printing density is seldom used to measure colour and where the referenced standards

specify printing density, approximately equivalent CIELAB colour measurements shall be used.

4.2 Single or multiple sheet assessment
4.2.1 General

Unless otherwise specified, metrics shall be assumed to apply to the assessment of a single sheet.

In many cases, it is useful to be able to report metrics for a set of sheets. For example, the set of sheets

produced in a single print run or the set of sheets to be delivered as part of an order for print. In these

cases, it is important to be able to indicate the likely variation across the entire set of sheets.

Sheets should be selected randomly with no replacement.

NOTE Best practice sampling is time-stamped to demonstrate what time and date the sample was taken.

Samples should be selected with the following provisos:
a) sheets should be selected throughout the entire press run;
b) sheets should not be selected synchronous to any press event.

In cases where metrics are reported for a set of sheets, the report shall indicate the following: the total

number of sheets in the set to be assessed, the number of sheets measured and, unless random selection

with no replacement is used, the sampling method used to select the sheets shall be indicated.

4.2.2 Total number of sheets

The total number of sheets in the set of sheets assessed shall be reported. Details of the printing system

used to create the sheets should also be reported.
4.2.3 Number of sheets measured

Conformance with this document requires only that values measured for the sampled set of sheets are

reported. As a general rule, the higher the number of sheets measured from the set, the closer this value

will be to that of the entire set of sheets. Where there are a large number of sheets in the set, it may be

impractical to measure a high percentage of these sheets and so the likely spread of values may be high.

4 PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TS 15311-1:2020(E)

Table 1 provides guidelines for the suggested number of sheets to be assessed for different numbers of

sheets in the set.
Table 1 — Guidelines for the number of sheets to be assessed
Total number of Suggested number of
sheets in set sheets to be measured
50 12
100 13
1 000 and greater 15

Table 1 provides typical sampling strategies used in the industry today. Users should be aware that

where these values are used, the average value (and the 95 percentile) for the total set of sheets may

vary substantially from the average measured for the sample set. Annex A provides details of how

the likely difference between these two values varies with the sample size and provides a method for

finding the sampling rate needed to increase the confidence in the metric to a required level.

NOTE ISO 186 suggests increasing the number of samples to 20 for run lengths greater than 5 000.

In order to verify whether the difference between the two values is statistically significant, the

variable E of Annex A can be used as a point of reference. The number of samples may be chosen to

avoid overlapping error bars by selecting an appropriate value for E.
4.2.4 Reporting

When multiple sheets are assessed, the total number of sheets and the number of sheets assessed shall

be reported as shown in the example below.
EXAMPLE 1 Sheets assessed: 15 (500).

When multiple sheets are assessed, the mean and standard deviation for each metric shall be reported

as shown below except when reporting colour difference metrics.

EXAMPLE 2 Estimated line width: sample mean = 0,12 mm, sample standard deviation = 0,01 mm.

When reporting colour difference metrics for a single colour measured on multiple sheets, both the

colour deviation and colour variation should be reported.

The colour deviation shall be calculated as follows: calculate the mean CIELAB value of the samples.

The colour deviation is given by the CIEDE2000 colour difference between the CIELAB colour aim value

* * *

and the mean CIELAB value. In addition to the ΔE value the ΔL , Δa and Δb values (Mean - Reference)

should be reported.
* * *
EXAMPLE 3 Colour deviation 3,2 ΔE , ΔL = 2,8, Δa = 0,3, Δb = 1,4.

The colour variation shall be calculated as follows: calculate the mean CIELAB value of the samples.

Calculate the CIEDE2000 colour differences between this mean and the CIELAB of each sample. The

colour variation is given by the mean value of these CIEDE2000 colour differences or the corresponding

th th

95 percentile. Refer to Annex C for details on the calculation of the 95 percentile.

EXAMPLE 4 Colour variation 0,8 DE .

Where the spread of colour variation is reported, the mean colour difference and the 95 percentile

(and not the standard deviation) should be used.
EXAMPLE 5 Colour variation 0,8 DE , 95 percentile 1,2 DE .
00 00

NOTE Standard deviation is not an appropriate measure for colour difference as this assumes a normal

distribution, whereas colour differences are not normally distributed. The 95 percentile provides a more reliable

estimate of the spread of values.
© ISO 2020 – All rights reserved PROOF/ÉPREUVE 5
---------------------- Page: 10 ----------------------
ISO/TS 15311-1:2020(E)

The parameters of arithmetic average (mean from a small sample set) and 95th percentile are well

known and easy to compute. However, neither parameter is insensitive to the changes in the underlying

distribution of readings or the presence of erroneous or outlier readings (statistical robustness). With

the small numbers of readings being collected, a single bad read can move either the mean or the 95th

percentile several points further away from their ideal values. When reporting these parameters, if

the results are much larger than expected, then the data should be examined for values that are much

larger than the rest of the sample. If this is the case, then that reading should be examined to determine

if there is a cause for this difference and this may provide justification to leave that outlier out of the

analysis.

Colour errors across multiple sheets shall be calculated and reported as follows. For all patches on all

sheets, calculate the colour error between the patch and the corresponding reference colour. This results

in a total of n × m colour errors where n is the number of colour patches on each sheet and m is the

number of sheets. Calculate and report the mean and 95 percentile of this entire set of colour errors.

4.3 Print quality measures
4.3.1 Overview

Image quality metrics or attributes are aspects, dimensions or components of overall perceived print

image quality.

The visual attributes specified in this document, to be used by the remaining parts of ISO/TS 15311, are

defined in the following subclauses.
4.3.2 Colour, tone reproduction and gloss
4.3.2.1 General

Colour accuracy describes the visual closeness between a defined reference and a reproduction. It is

important to distinguish two concepts: absolute and media relative colour accuracy.

Absolute colour accuracy is usually required for side-by-side viewing, whereas media relative colour

accuracy is usually more desirable for sequential viewing where the prints being compared are never

viewed together.

When selecting a suitable metric, it is important to know which kind of comparison is expected and

when reporting colour metrics, the colour accuracy method and the intended evaluation method should

be indicated.
4.3.2.2 Print substrate

In some cases, it may be desirable to indicate the substrate that is used when reporting other attributes.

For example, the colour accuracy achieved for a particular reference printing condition usually depends

on the substrate. This is only likely to be useful for cases where isotropic (paper-like) substrates are used.

When such substrate attributes are included, they shall be reported as shown in Table 2.

6 PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/TS 15311-1:2020(E)
Table 2 — Substrate reporting requirements
Print substrate attribute Description Example

Substrate name (Required) A text string that Substrate name: StoraEnso NovaPress

provides details of the substrate
used. This should include
sufficient detail to enable
purchase of similar substrate.

Substrate colour (Required) CIELAB D50/2° M1 Substrate colour: (95, 0,5, −2) CIELAB

colour value of the substrate
measured as specified in
ISO 13655
Other metrics from (Optional) Report metric as indicated in ISO 15397
ISO 15397 may be reported
4.3.2.3 Colour accuracy (absolute colour reproduction, process colours)

In some cases, particularly when proofing, it is useful to be able to estimate the accuracy to which the

print simulates a reference printing condition and this attribute is called “absolute colour accuracy”.

When reported, assessment of absolute colour accuracy shall be performed by printing and measuring

an ISO 12642-2 characterization data chart or where appropriate a subset of these patches (control

strip patches) according to ISO 12647-8 (Validation print control strip).

NOTE Where the option to preserve 100 % K elements is used, the 100 % K patch on the control strip is

likely to include an unexpected error.

The values shown in Table 3 shall be reported using the measurement units shown and values shall be

reported to two significant figures.
Table 3 — Reporting absolute colour reproduction parameters
Description Full label Abbreviated label Units
Colour difference for substrate Substrate Sub ΔE
Maximum colour difference for all control Control strip maximum CSMax ΔE
strip patches
th th
The 95 percentile for the control strip Control strip 95 percentile CS95 % ΔE
patches
Average colour difference for control Control strip average CSAve ΔE
strip patches

Maximum chromaticness difference for Control strip neutrals maximum CSMaxNeutral ΔC

CMY neutral control strip patches

Average chromaticness difference for CMY Control strip neutrals average CSAveNeutral ΔC

neutral control strip patches

Average colour difference for selected Characterization chart surface CCAveSurface ΔE

surface gamut patches patches average
The average colour difference for the Characterization chart average CCAve ΔE
characterization chart
The 95th percentile for the Characterization chart 95th CC95 % ΔE
characterization chart percentile

NOTE Technically speaking the "unit" in this table represents the method by which the value is calculated.

EXAMPLE 1 Absolute colour accuracy: Sub (1,2 ΔE ), CSMax (8,0 ΔE ), CS95 % (6,0 ΔE ), CSAve (3,0 ΔE ),

00 00 00 00

CSMaxNeutral (3,2 ΔC ), CSAveNeutral (2,5 ΔC ), CCAveSurface (4,0 ΔE ), CCAve (3,0 ΔE ), CC95 % (6,0 ΔE ).

h h 00 00 00
EXAMPLE 2 Absolute colour accuracy:
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
