Road vehicles -- Information for remote diagnostic support -- General requirements, definitions and use cases

This document specifies general requirements and constraints applicable to a remote diagnostic process, the use cases and scenarios to support the implementation of a remote diagnostic process using a standardized interface of the ExVe. It concerns: — the road vehicles with four or more wheels designed and constructed primarily for the carriage of persons that are defined as Category 1 vehicles in the United Nations Special Resolution No.1 in TRANS/WP.29/1045, as last amended on 19 June 2012, and — the road vehicle with four or more wheels designed and constructed primarily for the carriage of goods that are defined as Category 2 vehicles in the United Nations Special Resolution No.1 in TRANS/WP.29/1045, as last amended on 19 June 2012, where these road vehicles are still in accordance with the specifications of the vehicle manufacturer. This document does not define the interfaces provided by the ExVe nor the internal implementation inside the ExVe. Processes like repair, prognostics, monitoring, configuration, re-programming and variant coding are not part of this document. The prerequisites (e.g. authentication and authorization) for all use cases are not covered within this document. A possible specification of the required content for the implementation of a remote diagnostic application using the web interface of the ExVe according to ISO 20078 is given in Annex A.

Véhicules routiers -- Information pour support de diagnostic à distance -- Exigences générales, définitions et cas d'utilisation

General Information

Status
Published
Publication Date
21-Mar-2019
Current Stage
6060 - International Standard published
Start Date
23-Jan-2019
Completion Date
22-Mar-2019
Ref Project

Buy Standard

Standard
ISO 20080:2019 - Road vehicles -- Information for remote diagnostic support -- General requirements, definitions and use cases
English language
61 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

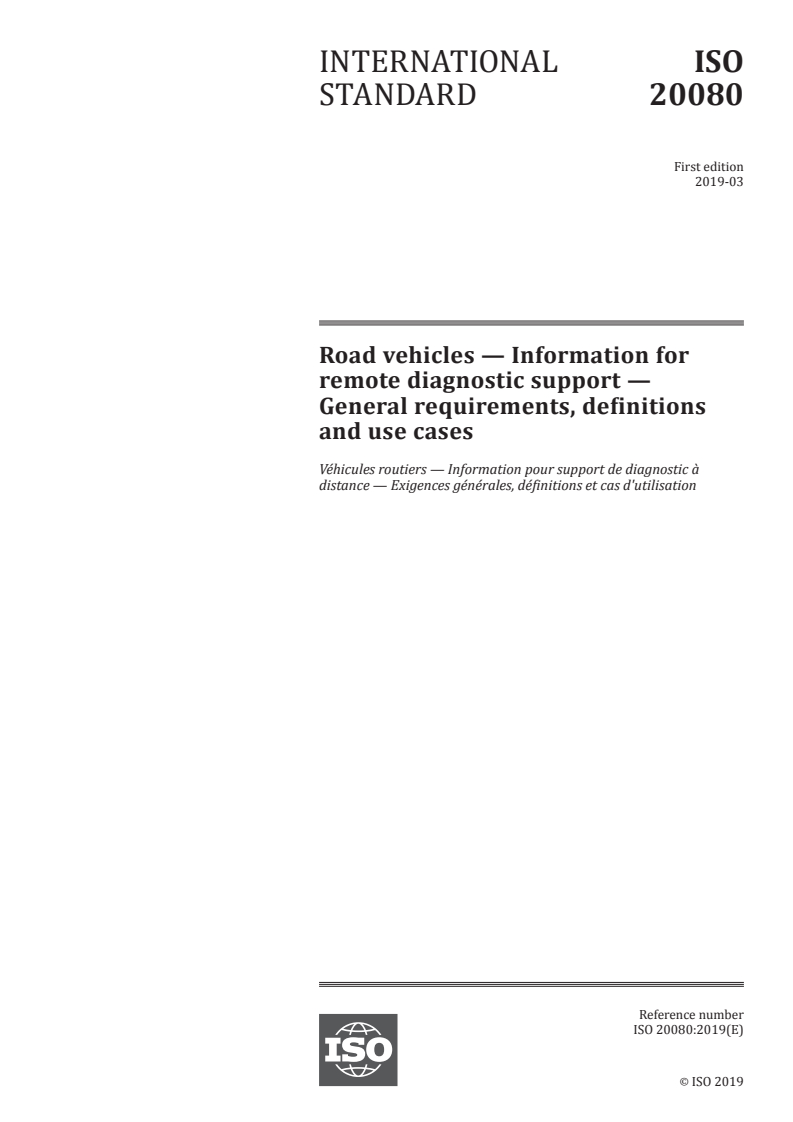

INTERNATIONAL ISO
STANDARD 20080
First edition
2019-03
Road vehicles — Information for
remote diagnostic support —
General requirements, definitions
and use cases
Véhicules routiers — Information pour support de diagnostic à
distance — Exigences générales, définitions et cas d'utilisation
Reference number
ISO 20080:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO 20080:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 20080:2019(E)

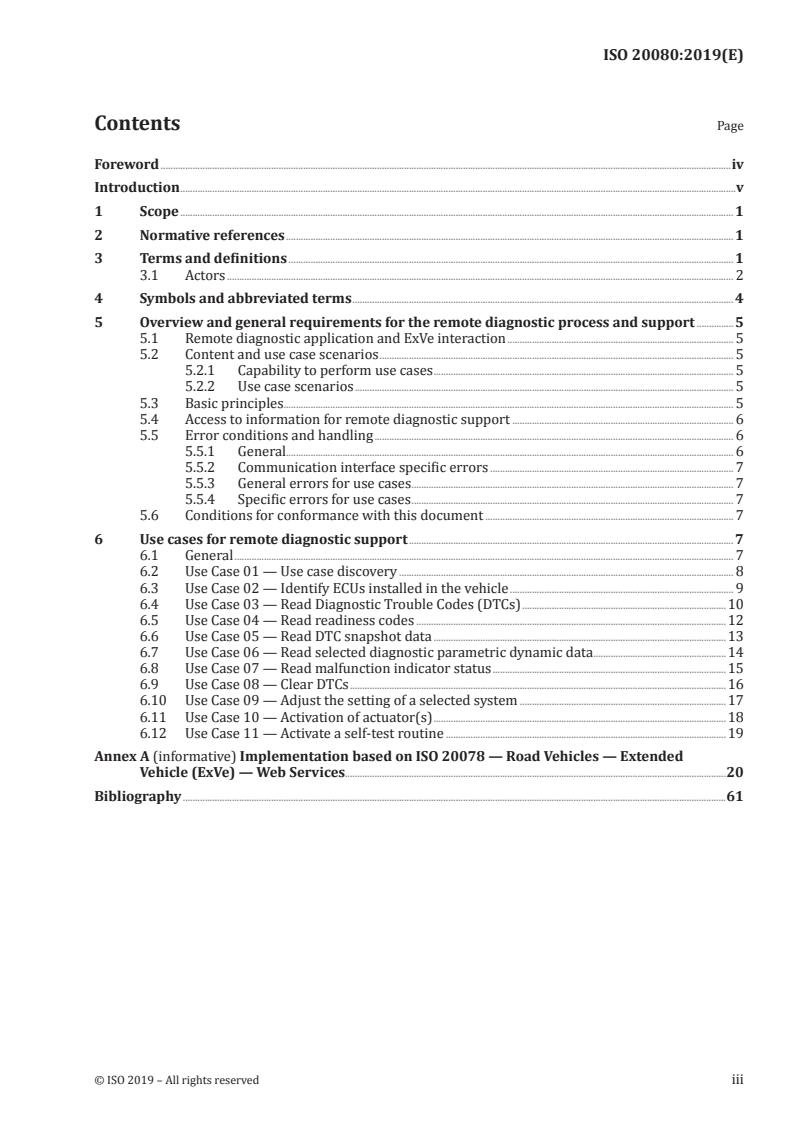

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

3.1 Actors .............................................................................................................................................................................................................. 2

4 Symbols and abbreviated terms ........................................................................................................................................................... 4

5 Overview and general requirements for the remote diagnostic process and support ...............5

5.1 Remote diagnostic application and ExVe interaction ............................................................................................ 5

5.2 Content and use case scenarios ................................................................................................................................................ 5

5.2.1 Capability to perform use cases .......................................................................................................................... 5

5.2.2 Use case scenarios .......................................................................................................................................................... 5

5.3 Basic principles....................................................................................................................................................................................... 5

5.4 Access to information for remote diagnostic support .......................................................................................... 6

5.5 Error conditions and handling .................................................................................................................................................. 6

5.5.1 General...................................................................................................................................................................................... 6

5.5.2 Communication interface specific errors ................................................................................................... 7

5.5.3 General errors for use cases ................................................................................................................................... 7

5.5.4 Specific errors for use cases ................................................................................................................................... 7

5.6 Conditions for conformance with this document ..................................................................................................... 7

6 Use cases for remote diagnostic support .................................................................................................................................... 7

6.1 General ........................................................................................................................................................................................................... 7

6.2 Use Case 01 — Use case discovery ........................................................................................................................................ 8

6.3 Use Case 02 — Identify ECUs installed in the vehicle ........................................................................................... 9

6.4 Use Case 03 — Read Diagnostic Trouble Codes (DTCs) ...................................................................................10

6.5 Use Case 04 — Read readiness codes ..............................................................................................................................12

6.6 Use Case 05 — Read DTC snapshot data .......................................................................................................................13

6.7 Use Case 06 — Read selected diagnostic parametric dynamic data ......................................................14

6.8 Use Case 07 — Read malfunction indicator status ...............................................................................................15

6.9 Use Case 08 — Clear DTCs .........................................................................................................................................................16

6.10 Use Case 09 — Adjust the setting of a selected system ....................................................................................17

6.11 Use Case 10 — Activation of actuator(s) .......................................................................................................................18

6.12 Use Case 11 — Activate a self-test routine ..................................................................................................................19

Annex A (informative) Implementation based on ISO 20078 — Road Vehicles — Extended

Vehicle (ExVe) — Web Services...........................................................................................................................................................20

Bibliography .............................................................................................................................................................................................................................61

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 20080:2019(E)

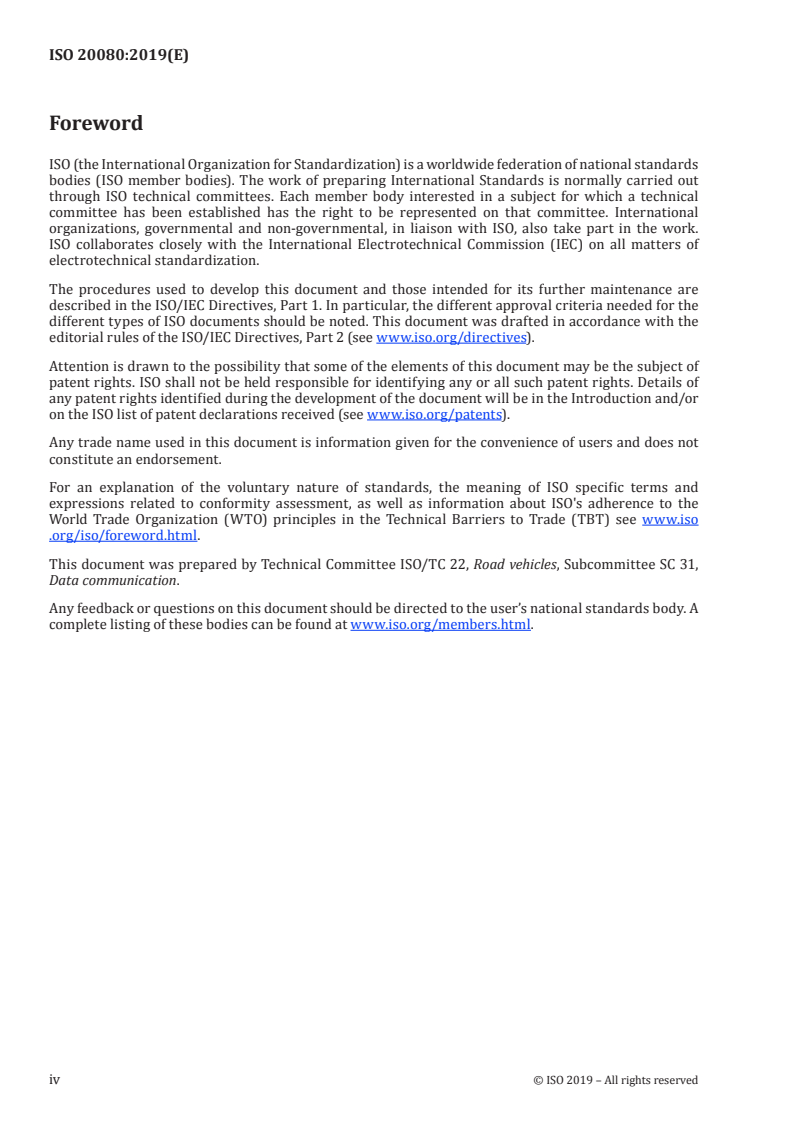

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 31,

Data communication.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 20080:2019(E)
Introduction

Remote diagnostic support is used for diagnosing vehicles at a distance prior to repair work, thereby

minimizing the time spent in workshops, reducing disturbances on the road network, reducing

inconvenience for the vehicle users and reducing cost for vehicle owners.

This document defines remote diagnostic support and the constraints that need to be respected. This

document may also serve as a reference for other standards that relate to remote diagnostic support.

This document will facilitate exchange of information for remote diagnostic support between the

different stakeholders (including vehicle manufacturers and independent operators) of the vehicle

repair industry.
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 20080:2019(E)
Road vehicles — Information for remote diagnostic
support — General requirements, definitions and use cases
1 Scope

This document specifies general requirements and constraints applicable to a remote diagnostic

process, the use cases and scenarios to support the implementation of a remote diagnostic process

using a standardized interface of the ExVe.
It concerns:

— the road vehicles with four or more wheels designed and constructed primarily for the carriage

of persons that are defined as Category 1 vehicles in the United Nations Special Resolution No.1 in

TRANS/WP.29/1045, as last amended on 19 June 2012, and

— the road vehicle with four or more wheels designed and constructed primarily for the carriage

of goods that are defined as Category 2 vehicles in the United Nations Special Resolution No.1 in

TRANS/WP.29/1045, as last amended on 19 June 2012,

where these road vehicles are still in accordance with the specifications of the vehicle manufacturer.

This document does not define the interfaces provided by the ExVe nor the internal implementation

inside the ExVe.

Processes like repair, prognostics, monitoring, configuration, re-programming and variant coding are

not part of this document.

The prerequisites (e.g. authentication and authorization) for all use cases are not covered within

this document. A possible specification of the required content for the implementation of a remote

diagnostic application using the web interface of the ExVe according to ISO 20078 is given in Annex A.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 20077-1:2017, Road Vehicles — Extended vehicle (ExVe) methodology — Part 1: General information

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
© ISO 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 20080:2019(E)
3.1 Actors
3.1.1
local diagnostic facilitator

person at the vehicle that is in communication with the remote diagnostician (3.1.2) and facilitates

the diagnostics (3.2) by that person’s capacity to act as requested by the remote diagnostician and to

answer the remote diagnostician’s questions

Note 1 to entry: A local diagnostic facilitator is normally able to understand or describe the indications of the on-

board instruments and tell-tales.

Note 2 to entry: The local diagnostics facilitator will normally have the necessary consent to operate the

concerned device, system, or vehicle.
3.1.2
remote diagnostician

physical person, who may be assisted by technology, to perform a remote diagnostic process (3.2)

3.2
diagnostics
diagnostic process

process including the detection process of possible malfunctions (3.8), the identification of the likely

root cause of these malfunctions and the appraisal of its relevance for the operation of the vehicle

[SOURCE: ISO 20077-1:2017]
3.3
diagnostics step 1
detection process of possible vehicle malfunctions (3.8)

Note 1 to entry: The detection process of possible vehicle malfunctions (diagnostics step 1) may lead to the

conclusion of an absence of malfunction.
[SOURCE: ISO 20077-1:2017]
3.4
diagnostics step 2
identification of the likely root cause of malfunctions (3.8)

Note 1 to entry: Root cause analysis (diagnostics step 2) is only performed in presence of a malfunction. Root

cause analysis is performed if diagnostics step 1 has been performed.
[SOURCE: ISO 20077-1:2017]
3.5
extended vehicle

entity, still in accordance with the specifications of the vehicle manufacturer (3.7), that extends beyond

the physical boundaries of the road vehicle and consists of the road vehicle, off-board systems, external

interfaces and the data communication between the road vehicle and the off-board systems

Note 1 to entry: Road vehicles without off-board systems and road vehicles equipped with telematics units are

extended vehicles.
[SOURCE: ISO 20077-1:2017]
3.6
ExVe manufacturer
vehicle manufacturer (3.7) responsible for the extended vehicle
[SOURCE: ISO 20077-1:2017]
2 © ISO 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 20080:2019(E)
3.7
vehicle manufacturer

person or body who is responsible to the approval authority for all aspects of the type approval or

authorization process and for ensuring conformity of production of a vehicle

Note 1 to entry: It is not essential that the person or body be directly involved in all stages of the construction of

the vehicle, system, component or separate technical unit which is the subject of the approval process.

3.8
malfunction

state of a system or component that deviates from the specifications of the vehicle manufacturer (3.7)

Note 1 to entry: A malfunction may be the object of an alert on board the vehicle and possibly lead to a DTC, but a

malfunction does not necessarily preclude a DTC.

Note 2 to entry: A slight deterioration of a system, such as the normal wear of that system, is not a malfunction

as long as it does not impair the performance of that system against the design specifications of the vehicle

manufacturer.
[SOURCE: ISO 20077-1:2017]
3.9
remote, adjective

performed on a vehicle from a distance where the operator responsible for the concerned operation is

not co-located with the vehicle and where the vehicle is connected via an external network

EXAMPLE Remote diagnostics, remote access

Note 1 to entry: The operator responsible for the concerned operation is a specific actor in terms of use case.

[SOURCE: ISO 20077-1:2017]
3.10
remote diagnostic process

process including the detection of possible vehicle malfunctions (3.8), the identification of the likely

root-cause of these malfunctions, and the assessment of its relevance for the operation of the vehicle,

which is performed on a vehicle from a distance where the remote diagnostician responsible for the

concerned operation is not co-located with the vehicle and where the vehicle is connected via an

external network
3.11
remote diagnostic support

information provided to a remote diagnostician (3.1.2) to assist in the performance of the remote

diagnostic process (3.10) of a vehicle
Note 1 to entry: Typical examples of remote diagnostics support are:

— information for performing a remote diagnostic process on a vehicle (for example instructions,

training material, etc.),
— information specified for remote diagnostics use-cases, and
— information used by the after-sales remote diagnostics tool equipment systems.

Note 2 to entry: Diagnostic support that is provided for performing conventional diagnostics is the foundation for

remote diagnostic support (the access to that information in the case of conventional diagnostics is standardised

in ISO 18541-1).
[SOURCE: ISO 20077-1:2017]
3.12 Vehicle states
© ISO 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 20080:2019(E)
3.12.1
vehicle state
condition of the vehicle at a point in time with regard to motion and operation
EXAMPLE Stationary, moving, normally operating, non-operating vehicle.
3.12.2
moving vehicle
vehicle which is not stationary
3.12.3
stationary vehicle
vehicle which had a speed of 0 km/h for at least 1 minute

Note 1 to entry: The engagement of any measure such as a parking brake, a trailer-brake, or a hand-brake is not

necessary for being stationary.
3.12.4
non-operating vehicle
stationary vehicle with propulsion system OFF and power-take-off systems off

Note 1 to entry: The engagement of any measure such as a parking brake, a trailer-brake, or a handbrake may be

necessary for being non-operating vehicle.
3.12.5
normally operating vehicle
vehicle operating within its design criteria under normal duty operation

Note 1 to entry: A vehicle with a power take off engaged shall be considered as normally operating even if it is a

stationary vehicle.

Note 2 to entry: A vehicle in a repair, maintenance, or inspection process shall not be considered as a normally

operating vehicle.
3.13
prognostics
prognostic process

process of forecasting the possible occurrence of vehicle malfunctions (3.8) and

appraising the likely remaining operation time of the vehicle until these malfunctions occur

Note 1 to entry: A prognostic process cannot be performed without having performed the detection process for

possible malfunctions of the same functionally related system [diagnostics step 1 (3.3)].

Note 2 to entry: A diagnostic process (3.2) may be performed without performing a prognostic process for

example, in the case of the presence of a malfunction, when diagnostics step 2 (3.4) is performed.

[SOURCE: ISO 20077-1:2017]
3.14
snapshot data

specific data records associated with a DTC which are generated and stored at the time the DTC was

detected
4 Symbols and abbreviated terms
API Application program interface
ECU Electronic control unit
ExVe Extended vehicle
4 © ISO 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 20080:2019(E)
DTC Diagnostic trouble code
ID Identifier
VIN Vehicle identification number
VM Vehicle manufacturer
5 Overview and general requirements for the remote diagnostic process and
support
5.1 Remote diagnostic application and ExVe interaction

This document focuses on the interaction between a remote diagnostic client application and the ExVe

as defined in ISO 20077-1 (see Figure 1).

For the use cases detailed, this document specify the communication established between the remote

diagnostic application or server of the service provider and the ExVe (“machine-to-machine”). The

output of the use-cases presented in this document is information that constitutes a major part of

remote diagnostic support. This information may be used as well by the remote diagnostician when

remotely diagnosing a vehicle or by the designer of a remote diagnostic application.

NOTE Such an application can be used at a later stage by the remote diagnostician.

Figure 1 — Remote diagnostic client application and ExVe server to server communication

5.2 Content and use case scenarios
5.2.1 Capability to perform use cases

The capability to perform the different use cases can depend on the authorization, on the diagnosis

tasks (e.g., remote activation of actuators), technical parameters (e.g. stability of connection, battery

capability, vehicle status) and e.g. the brand and model of the vehicle.
5.2.2 Use case scenarios

There are two major scenarios: stationary vehicle and moving vehicle. In both situations, a remote

diagnostician is responsible for the diagnostic procedure and a local diagnostic facilitator is in place

and responsible for the vehicle.
5.3 Basic principles
Basic principle 1:

— All use cases are based on the condition that the diagnostician in charge for the remote diagnostic

process is remote from the vehicle.
© ISO 2019 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 20080:2019(E)
Basic principle 2:

— Some use cases require that a local diagnostic facilitator shall be present for necessary interactions

within the remote diagnostic process. The use case description describes when this is required.

Basic principle 3:

— In the case of concurrent requests from service providers to the ExVe, the ExVe shall react to

concurrent requests in a safe way. This reaction may for example be to respond that the requested

functionality is currently not available, or to put the latter request in the queue.

Basic principle 4:

— The ExVe manufacturer is responsible for ensuring that the designed ExVe functionality respects

that the correlation between the vehicle owner and the performed functions is not monitored for

competition purposes.
Basic principle 5:

— The ExVe manufacturer is responsible for ensuring that the designed ExVe functionality respects

that the correlation between the after-sales service provider and the performed functions is not

monitored for competition purposes.
5.4 Access to information for remote diagnostic support

There are several alternatives for the vehicle manufacturer to provide remote diagnostic support:

— According to Annex A

— The vehicle manufacturer shall supply supplementary vehicle manufacturer specific

information.
— Vehicle manufacturer specific solution

— Vehicle manufacturer shall supply specifications describing the solution to the service provider.

— Other standardised solution

Constraints such as vehicle state, compatibility with manufacturer specific functions, accessibility of

data, freight and transport security and safety, etc. shall be considered.
5.5 Error conditions and handling
5.5.1 General

This clause describes the different error conditions that the ExVe interface may return to the service

provider during a remote diagnostic process. Even if the service provider has access to a remote

diagnostic functionality an error might be returned when the function is accessed. The error might be

due to different reasons, e.g. wrong vehicle state, no connectivity or vehicle specification not supporting

the requested remote diagnostic function.

Internal errors inside the ExVe itself (i.e.: errors between the ExVe backend server and the physical

vehicle) are not relevant here.
6 © ISO 2019 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 20080:2019(E)
5.5.2 Communication interface specific errors
— ExVe interface not responding

— No communication between the remote diagnostic support application and the ExVe.

— Vehicle identifier not recognised

— Either the vehicle identifier has been entered incorrectly or the system does not recognize the

entered vehicle identifier as a vehicle with remote diagnostic capability.
— Request currently not possible to perform by the ExVe.
5.5.3 General errors for use cases
— Incompatible vehicle state.
5.5.4 Specific errors for use cases
— These are handled in the individual use cases:
— Actuator identification not valid;
— Actuation parameters not valid;
— ECU ID not valid;
— DTC status not valid;
— DTC ID not valid;
— Number of parameters exceeded;
— Parameter ID not valid;
— Routine ID not valid;
— Parameters not valid;
— Setting ID not valid;
— Value not valid.
5.6 Conditions for conformance with this document
Compliance with this document means that the following conditions are met:

— The vehicle manufacturer implements the use case “use case discovery” specified in 6.2, in a web

accessible manner, and the service provider will apply the “use case discovery”.

— The vehicle manufacturer, when acting as a service provider, and the service provider implement

the use cases they support according to the relevant clauses as specified in this document.

6 Use cases for remote diagnostic support
6.1 General

A precondition is that the service provider has access to VM specific information about identifiers

(including vehicle identifier), parameters, units, conversions and the definition of the DTC statuses (e.g.

ACTIVE, PENDING and PREVIOUSLY_ACTIVE) used in the use cases.
© ISO 2019 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO 20080:2019(E)
For all supported use-cases, the ExVe shall provide an answer.
The actor in each use case is the remote diagnostic application.

The timestamp included in the use cases describes the point in time the data was received by the ExVe

back-end server from the vehicle.

The vehicle identifier can be the VIN or similar unique identification of the vehicle. If VIN is not used,

this unique vehicle identifier shall also be used consistently by the vehicle manufacturer for remote

diagnostic support.
6.2 Use Case 01 — Use case discovery
See Table 1 for Use Case 01 - Use case discovery.
Table 1 — Use Case 01 — Use case discovery

Goal Provide information about which remote diagnostic functionality that is available

for the current vehicle through the ExVe interface.
Input Command for supported diagnostic functionality.
Interface input:
— Vehicle identifier
Description The command is received by the ExVe interface.
If the discovery command is executed, the ExVe checks that this command can be
carried out with respect to applicable constraints.

The ExVe compiles the accessible diagnostic functionality in a format depending on

the implementation.

Output The supported diagnostic use cases, with respect to applicable constraints, are

returned.
Interface output:
— Accessible use cases (remote diagnostic functions)
Example Interface input:
— Vehicle identifier: 12345678909876543
Interface output:
— Use case 02,
— Use case 03,
— Use case 05,
— Use case 06,
— Use case 07
Error conditions No use case specific errors
8 © ISO 2019 – All rights reserved
---------------------- Page: 13 ----------------------
ISO 20080:2019(E)
6.3 Use Case 02 — Identify ECUs installed in the vehicle
See Table 2 for Use Case 02 - Identify ECUs installed in the vehicle.
Table 2 — Use Case 02 — Identify ECUs installed in the vehicle
Goal Provide all VM ECU IDs and corresponding vehicle manufacturer software and
hardware part numbers which are installed in the chosen vehicle through the ExVe
interface.

Input Command to identify VM ECU ID, software and hardware for all ECU fitted to the

vehicle.
Interface input:
— Vehicle identifier
Description The command is received by the ExVe interface.
If the command is executed in the vehicle, the ExVe checks that this command can
be carried out with respect to applicable constraints, such as vehicle state.
The ExVe reads the current VM ECU ID, software and hardware for all ECUs fitted
to the vehicle.

Output The current VM ECU ID, software and hardware for all ECUs on the vehicle is

returned according to the command or the command is denied due to safety or
security restrictions applied to the vehicle state.
Interface output:
— Timestamp (received at ExVe back-end server)
— List of ECUs
— For each ECU
— ECU ID
— HW part number(s)
— SW part number(s)
Example Interface input:
— Vehicle identifier: 12345678909876543
Interface output:
— Timestamp: 2016-02-24 09:23,
— ECU ID: ABC,
— HW part number: 1234567,
— SW part number: 9876543;
— ECU ID: DEF,
— HW part number: 2345678,
— SW part number: 8976543;
— ECU ID: GHI,
— HW part number: 3456789,
— SW part number: 7896543, SW part number: 7896555
Error conditions No use case specific errors
© ISO 2019 – All rights reserved 9
---------------------- Page: 14 ----------------------
ISO 20080:2019(E)
6.4 Use Case 03 — Read Diagnostic Trouble Codes (DTCs)
See Table 3 for Use Case 03 - Read Diagnostic Trouble Codes (DTCs).
Table 3 — Use Case 03 — Read Diagnostic Trouble Codes (DTCs)
Goal Provide diagnostic trouble codes, depending on status th
...
