Rubber hoses and hose assemblies — Wire- or textile-reinforced single-pressure types for hydraulic applications — Specification

This document specifies requirements for ten classes, four grades and seven types of wire- or textile-reinforced hydraulic hoses and hose assemblies, of nominal sizes ranging from 5 to 102. Each class has a single maximum working pressure for all sizes. They are suitable for use with: — oil-based hydraulic fluids HH, HL, HM, HR and HV, as defined in ISO 6743-4, at temperatures ranging from −40 °C to +100 °C for types AS, AC, BS and BC hoses and from −40 °C to +120 °C for types CS, CC and DC hoses; — water-based fluids HFC, HFAE, HFAS and HFB, as defined in ISO 6743-4, at temperatures ranging from −40 °C to +70 °C; — water at temperatures ranging from 0 °C to +70 °C. This document does not specify requirements for the connection ends. It is limited to the performance of hoses and hose assemblies. The hose assembly maximum working pressure is governed by the lowest maximum working pressure of the components. NOTE It is the responsibility of the user, in consultation with the hose manufacturer, to establish the compatibility of the hose with the fluid to be used.

Tuyaux et flexibles en caoutchouc — Types hydrauliques à pression unique, avec armature de fils métalliques ou textiles tressés — Spécifications

Le présent document spécifie des exigences pour dix classes, quatre grades et sept types de tuyaux et flexibles hydrauliques avec armature de fils métalliques tressés, de dimensions nominales comprises entre 5 et 102. Chaque classe a une pression maximale de service unique pour toutes les dimensions. Ils sont adaptés pour une utilisation avec: — des fluides hydrauliques HH, HL, HM, HR et HV, tels que définis dans l’ISO 6743-4 pour une plage de températures de –40 °C à +100 °C pour les tuyaux de types AS, AC, BS et BC et de –40 °C à +120 °C pour les tuyaux de types CS, CC et DC; — des fluides hydrauliques à base d’eau HFC, HFAE, HFAS et HFB, tels que définis dans l’ISO 6743-4 pour une plage de températures de −40 °C à +70 °C; — de l’eau pour une plage de températures de 0 °C à +70 °C. Le présent document ne spécifie pas d'exigences relatives aux extrémités de raccordement. Il se limite aux performances des tuyaux et flexibles. La pression maximale de service du flexible. La pression maximale de service du flexible est régie par la plus faible pression maximale de service des composants. NOTE Il est de la responsabilité de l'utilisateur, en concertation avec le fabricant de tuyaux, d'établir la compatibilité du tuyau avec le fluide destiné à être utilisé.

General Information

Status
Published
Publication Date
29-Jun-2025
Current Stage
6060 - International Standard published
Start Date
30-Jun-2025
Due Date
10-Apr-2026
Completion Date
30-Jun-2025
Ref Project

Relations

Buy Standard

Standard
ISO 18752:2025 - Rubber hoses and hose assemblies — Wire- or textile-reinforced single-pressure types for hydraulic applications — Specification Released:30. 06. 2025
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 18752:2025 - Tuyaux et flexibles en caoutchouc — Types hydrauliques à pression unique, avec armature de fils métalliques ou textiles tressés — Spécifications Released:30. 06. 2025
French language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/FDIS 18752 - Rubber hoses and hose assemblies — Wire- or textile-reinforced single-pressure types for hydraulic applications — Specification Released:20. 03. 2025
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
REDLINE ISO/FDIS 18752 - Rubber hoses and hose assemblies — Wire- or textile-reinforced single-pressure types for hydraulic applications — Specification Released:20. 03. 2025
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/FDIS 18752 - Tuyaux et flexibles en caoutchouc — Types hydrauliques à pression unique, avec armature de fils métalliques ou textiles tressés — Spécifications Released:15. 04. 2025
French language
18 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

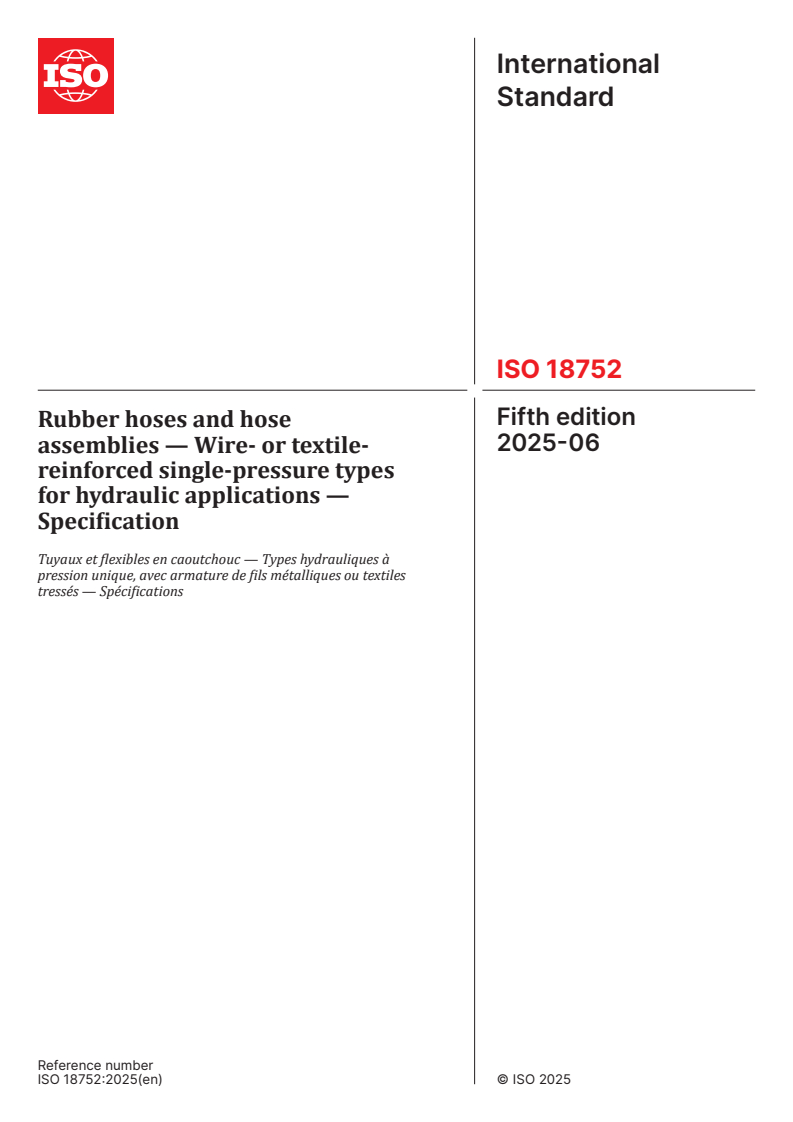

International
Standard
ISO 18752
Fifth edition
Rubber hoses and hose
2025-06
assemblies — Wire- or textile-
reinforced single-pressure types
for hydraulic applications —
Specification
Tuyaux et flexibles en caoutchouc — Types hydrauliques à
pression unique, avec armature de fils métalliques ou textiles
tressés — Spécifications
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

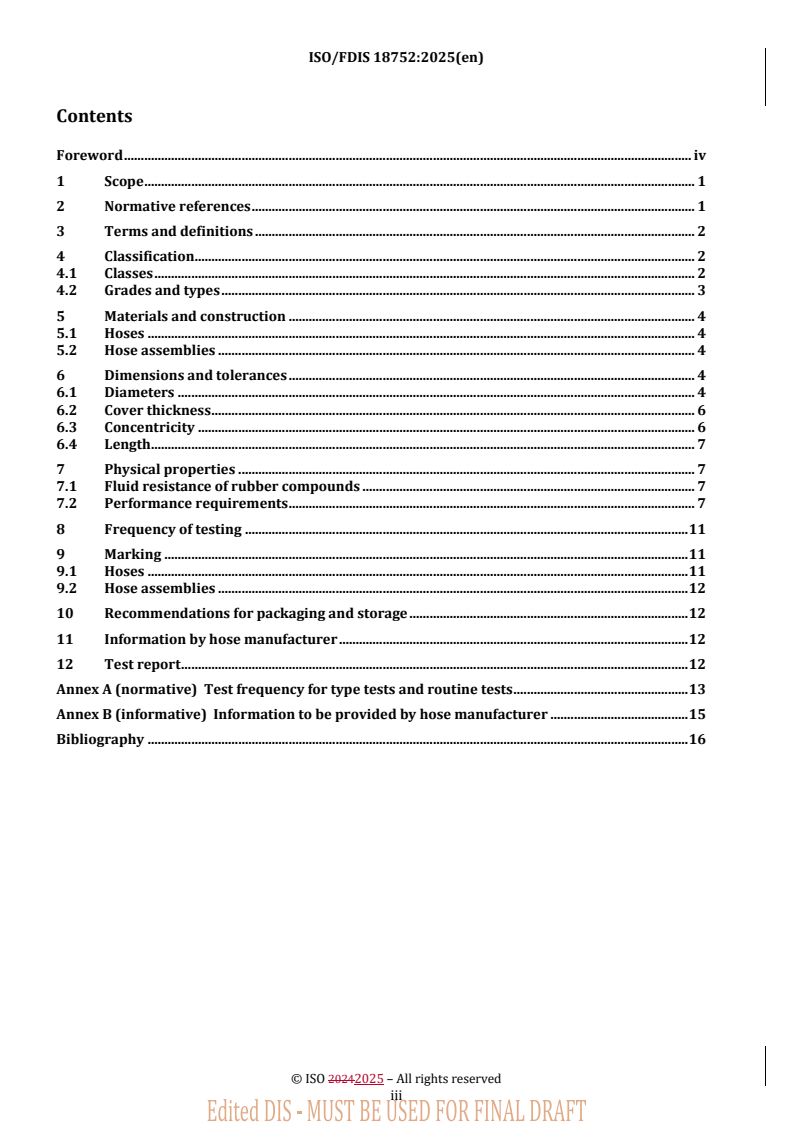

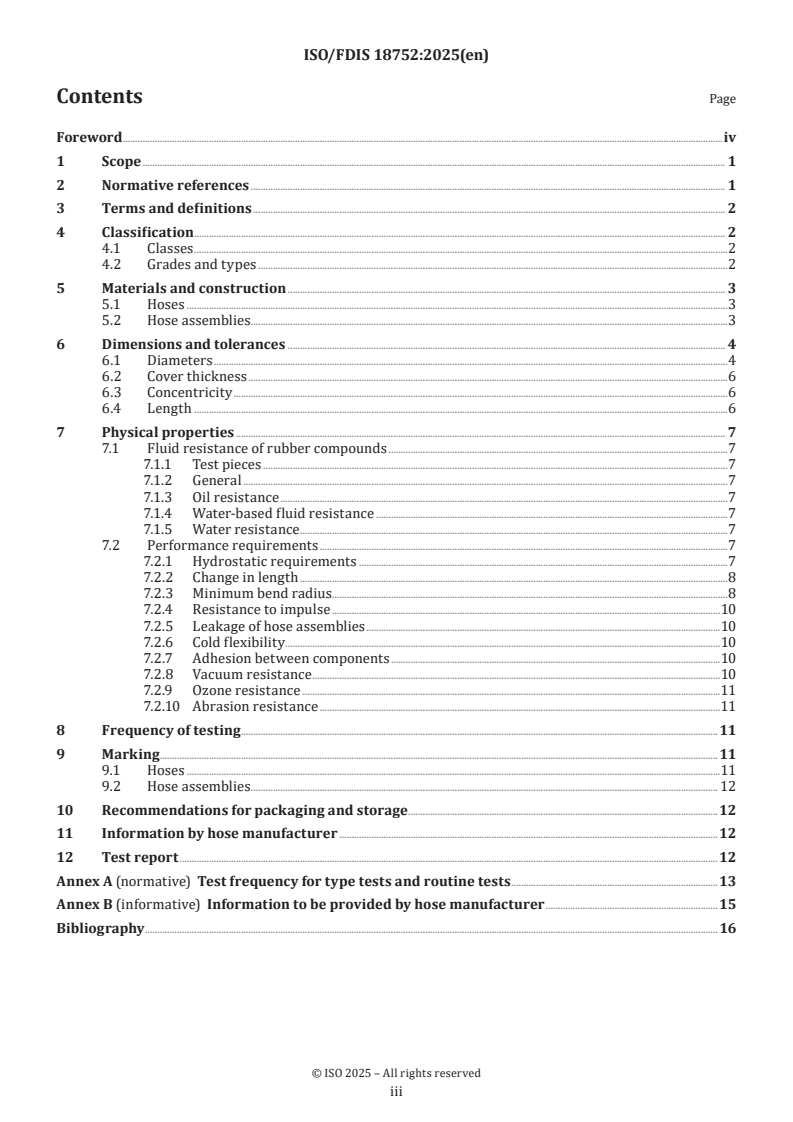

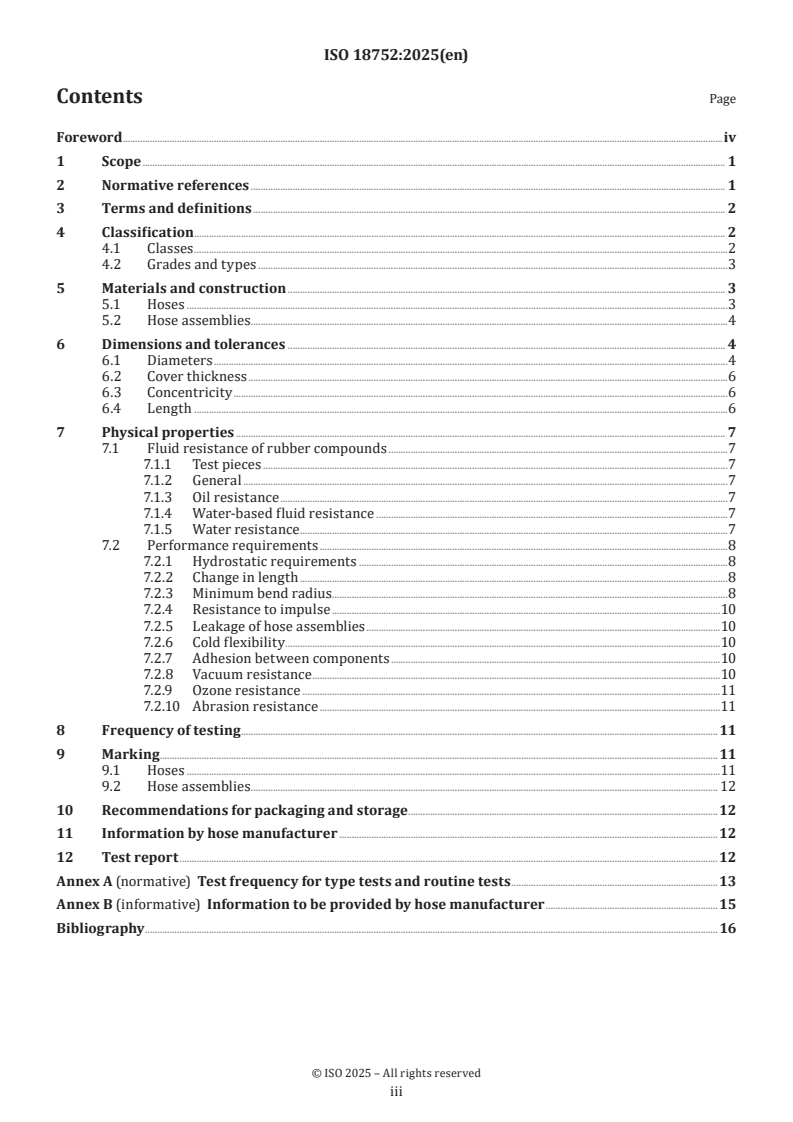

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Classification . 2
4.1 Classes .2
4.2 Grades and types .3
5 Materials and construction . 3
5.1 Hoses .3
5.2 Hose assemblies .4
6 Dimensions and tolerances . 4
6.1 Diameters .4
6.2 Cover thickness .6
6.3 Concentricity .6
6.4 Length .6
7 Physical properties . 7
7.1 Fluid resistance of rubber compounds .7
7.1.1 Test pieces .7
7.1.2 General .7
7.1.3 Oil resistance .7
7.1.4 Water-based fluid resistance .7
7.1.5 Water resistance .7
7.2 Performance requirements .8
7.2.1 Hydrostatic requirements .8
7.2.2 Change in length .8
7.2.3 Minimum bend radius.8
7.2.4 Resistance to impulse .10
7.2.5 Leakage of hose assemblies .10
7.2.6 Cold flexibility .10
7.2.7 Adhesion between components .10
7.2.8 Vacuum resistance .10
7.2.9 Ozone resistance .11
7.2.10 Abrasion resistance .11
8 Frequency of testing . .11
9 Marking . .11
9.1 Hoses .11
9.2 Hose assemblies . 12
10 Recommendations for packaging and storage .12
11 Information by hose manufacturer .12
12 Test report .12
Annex A (normative) Test frequency for type tests and routine tests .13
Annex B (informative) Information to be provided by hose manufacturer .15
Bibliography .16

iii

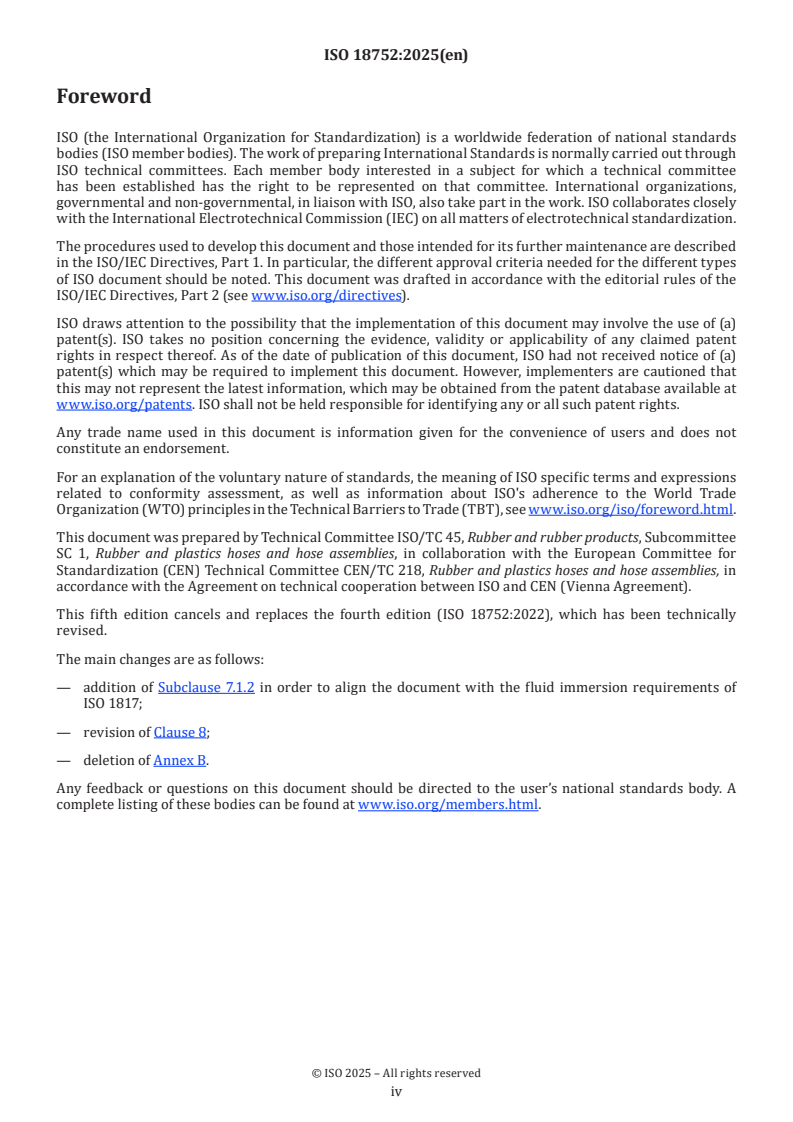

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies, in collaboration with the European Committee for
Standardization (CEN) Technical Committee CEN/TC 218, Rubber and plastics hoses and hose assemblies, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This fifth edition cancels and replaces the fourth edition (ISO 18752:2022), which has been technically
revised.
The main changes are as follows:
— addition of Subclause 7.1.2 in order to align the document with the fluid immersion requirements of
ISO 1817;
— revision of Clause 8;
— deletion of Annex B.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 18752:2025(en)
Rubber hoses and hose assemblies — Wire- or textile-
reinforced single-pressure types for hydraulic applications —
Specification
1 Scope
This document specifies requirements for ten classes, four grades and seven types of wire- or textile-
reinforced hydraulic hoses and hose assemblies, of nominal sizes ranging from 5 to 102. Each class has a
single maximum working pressure for all sizes.
They are suitable for use with:
— oil-based hydraulic fluids HH, HL, HM, HR and HV, as defined in ISO 6743-4, at temperatures ranging
from −40 °C to +100 °C for types AS, AC, BS and BC hoses and from −40 °C to +120 °C for types CS, CC
and DC hoses;
— water-based fluids HFC, HFAE, HFAS and HFB, as defined in ISO 6743-4, at temperatures ranging from
−40 °C to +70 °C;
— water at temperatures ranging from 0 °C to +70 °C.
This document does not specify requirements for the connection ends. It is limited to the performance
of hoses and hose assemblies. The hose assembly maximum working pressure is governed by the lowest
maximum working pressure of the components.
NOTE It is the responsibility of the user, in consultation with the hose manufacturer, to establish the compatibility
of the hose with the fluid to be used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
I
...

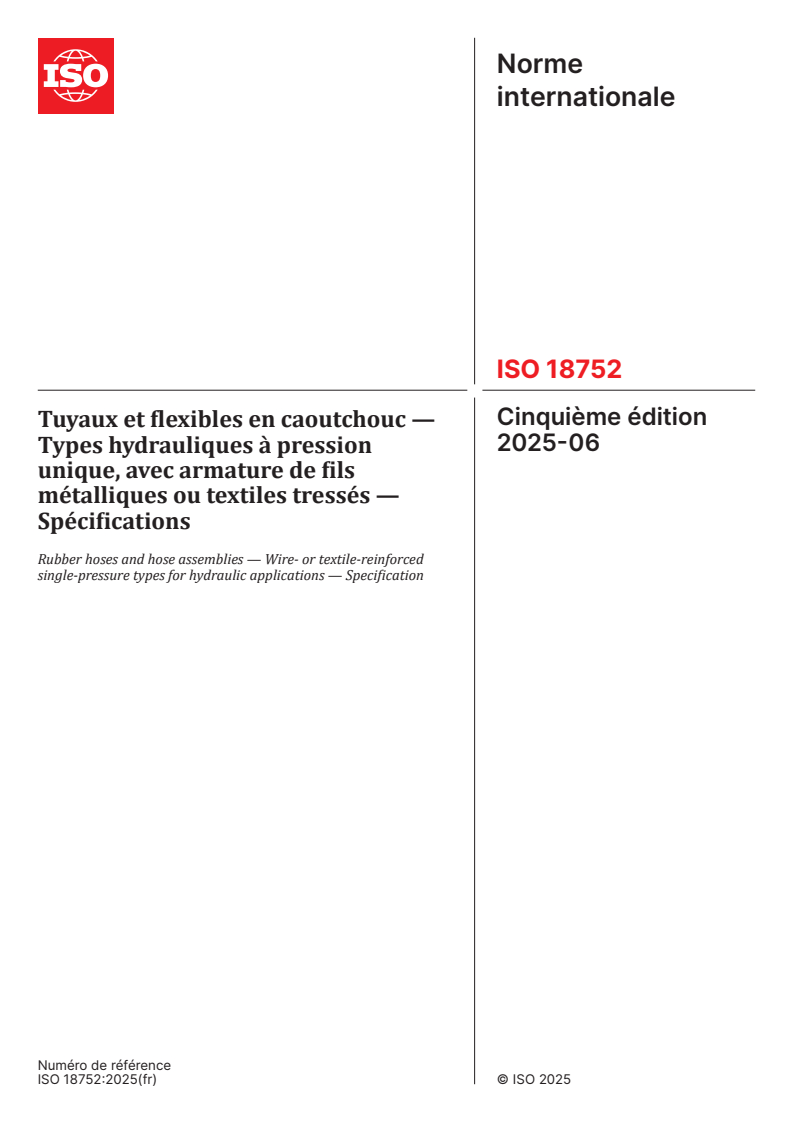

Norme
internationale
ISO 18752
Cinquième édition
Tuyaux et flexibles en caoutchouc —
2025-06
Types hydrauliques à pression
unique, avec armature de fils
métalliques ou textiles tressés —
Spécifications
Rubber hoses and hose assemblies — Wire- or textile-reinforced
single-pressure types for hydraulic applications — Specification
Numéro de référence
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2025
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii

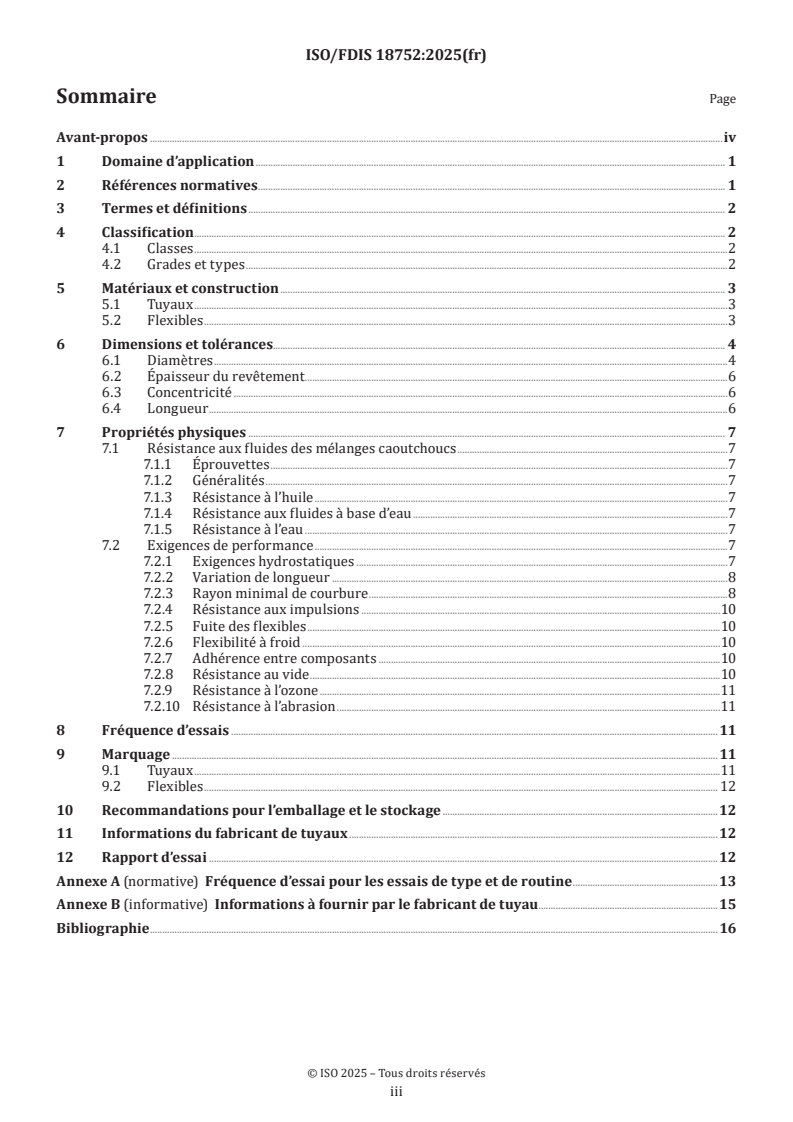

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 2
4 Classification . 2
4.1 Classes .2
4.2 Grades et types .3
5 Matériaux et construction . 3
5.1 Tuyaux .3
5.2 Flexibles .4
6 Dimensions et tolérances. 4
6.1 Diamètres .4
6.2 Épaisseur du revêtement .6
6.3 Concentricité .6
6.4 Longueur .6
7 Propriétés physiques . 7
7.1 Résistance aux fluides des mélanges caoutchoucs .7
7.1.1 Éprouvettes .7
7.1.2 Généralités .7
7.1.3 Résistance à l’huile .7
7.1.4 Résistance aux fluides à base d’eau .7
7.1.5 Résistance à l’eau .7
7.2 Exigences de performance .7
7.2.1 Exigences hydrostatiques .7
7.2.2 Variation de longueur .8
7.2.3 Rayon minimal de courbure .8
7.2.4 Résistance aux impulsions .10
7.2.5 Fuite des flexibles .10
7.2.6 Flexibilité à froid .10
7.2.7 Adhérence entre composants .10
7.2.8 Résistance au vide .11
7.2.9 Résistance à l’ozone .11
7.2.10 Résistance à l’abrasion .11
8 Fréquence d’essais .11
9 Marquage .11
9.1 Tuyaux .11
9.2 Flexibles . 12
10 Recommandations pour l’emballage et le stockage .12
11 Informations du fabricant de tuyaux .12
12 Rapport d’essai .12
Annexe A (normative) Fréquence d’essai pour les essais de type et de routine .13
Annexe B (informative) Informations à fournir par le fabricant de tuyau .15
Bibliographie .16

iii

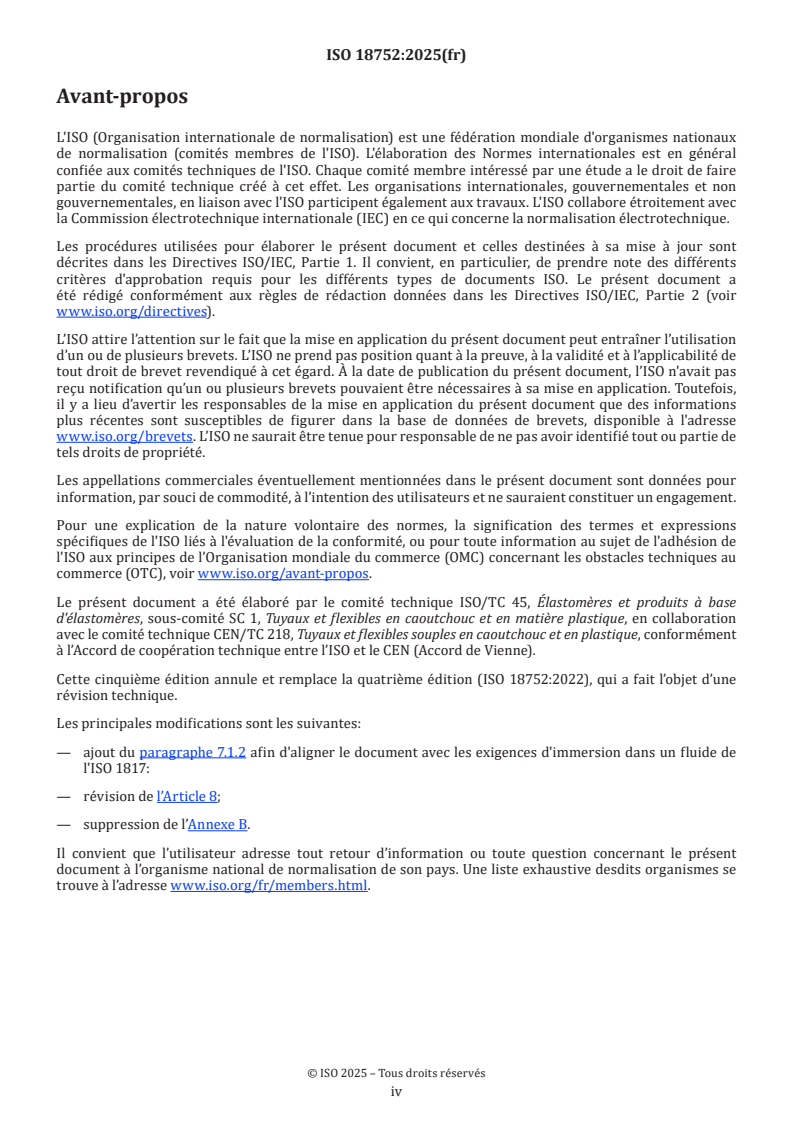

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de brevet revendiqué à cet égard. À la date de publication du présent document, l’ISO n'avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de propriété.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 45, Élastomères et produits à base
d'élastomères, sous-comité SC 1, Tuyaux et flexibles en caoutchouc et en matière plastique, en collaboration
avec le comité technique CEN/TC 218, Tuyaux et flexibles souples en caoutchouc et en plastique, conformément
à l’Accord de coopération technique entre l’ISO et le CEN (Accord de Vienne).
Cette cinquième édition annule et remplace la quatrième édition (ISO 18752:2022), qui a fait l’objet d’une
révision technique.
Les principales modifications sont les suivantes:
— ajout du paragraphe 7.1.2 afin d'aligner le document avec les exigences d'immersion dans un fluide de
l'ISO 1817:
— révision de l’Article 8;
— suppression de l’Annexe B.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/fr/members.html.

iv
Norme internationale ISO 18752:2025(fr)
Tuyaux et flexibles en caoutchouc — Types hydrauliques à
pression unique, avec armature de fils métalliques ou textiles
tressés — Spécifications
1 Domaine d’application
Le présent document spécifie des exigences pour dix classes, quatre grades et sept types de tuyaux et
flexibles hydrauliques avec armature de fils métalliques tressés, de dimensions nominales comprises entre
5 et 102. Chaque classe a une pression maximale de service unique pour toutes les dimensions.
Ils sont adaptés pour une utilisation avec:
— des fluides hydrauliques HH, HL, HM, HR et HV, tels que définis dans l’ISO 6743-4 pour une plage de
températures de –40 °C à +100 °C pour les tuyaux de types AS, AC, BS et BC et de –40 °C à +120 °C pour
les tuyaux de types CS, CC et DC;
— des fluides hydrauliques à base d’eau HFC, HFAE, HFAS et HFB, tels que définis dans l’ISO 6743-4 pour
une plage de températures de −40 °C à +70 °C;
— de l’eau pour une plage de températures de 0 °C à +70 °C.
Le présent document ne spécifie pas d'exigences relatives aux extrémités de raccordement. Il se limite aux
performances des tuyaux et flexibles. La pression maximale de service du f
...


FINAL DRAFT
International
Standard
ISO/FDIS 18752
ISO/TC 45/SC 1
Rubber hoses and hose
Secretariat: DIN
assemblies — Wire- or textile-
Voting begins on:
reinforced single-pressure types
2025-04-03
for hydraulic applications —
Voting terminates on:
Specification
2025-05-29
Tuyaux et flexibles en caoutchouc — Types hydrauliques à
pression unique, avec armature de fils métalliques ou textiles
tressés — Spécifications
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/FDIS 18752:2025(en) © ISO 2025

FINAL DRAFT
ISO/FDIS 18752:2025(en)
International
Standard
ISO/FDIS 18752
ISO/TC 45/SC 1
Rubber hoses and hose
Secretariat: DIN
assemblies — Wire- or textile-
Voting begins on:
reinforced single-pressure types
for hydraulic applications —
Voting terminates on:
Specification
Tuyaux et flexibles en caoutchouc — Types hydrauliques à
pression unique, avec armature de fils métalliques ou textiles
tressés — Spécifications
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/FDIS 18752:2025(en) © ISO 2025

ii
ISO/FDIS 18752:2025(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Classification . 2
4.1 Classes .2
4.2 Grades and types .2
5 Materials and construction . 3
5.1 Hoses .3
5.2 Hose assemblies .3
6 Dimensions and tolerances . 4
6.1 Diameters .4
6.2 Cover thickness .6
6.3 Concentricity .6
6.4 Length .6
7 Physical properties . 7
7.1 Fluid resistance of rubber compounds .7
7.1.1 Test pieces .7
7.1.2 General .7
7.1.3 Oil resistance .7
7.1.4 Water-based fluid resistance .7
7.1.5 Water resistance .7
7.2 Performance requirements .7
7.2.1 Hydrostatic requirements .7
7.2.2 Change in length .8
7.2.3 Minimum bend radius.8
7.2.4 Resistance to impulse .10
7.2.5 Leakage of hose assemblies .10
7.2.6 Cold flexibility .10
7.2.7 Adhesion between components .10
7.2.8 Vacuum resistance .10
7.2.9 Ozone resistance .11
7.2.10 Abrasion resistance .11
8 Frequency of testing . .11
9 Marking . .11
9.1 Hoses .11
9.2 Hose assemblies . 12
10 Recommendations for packaging and storage .12
11 Information by hose manufacturer .12
12 Test report .12
Annex A (normative) Test frequency for type tests and routine tests .13
Annex B (informative) Information to be provided by hose manufacturer .15
Bibliography .16

iii
ISO/FDIS 18752:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies, in collaboration with the European Committee for
Standardization (CEN) Technical Committee CEN/TC 218, Rubber and plastics hoses and hose assemblies, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This fifth edition cancels and replaces the fourth edition (ISO 18752:2022), which has been technically
revised.
The main changes are as follows:
— addition of Subclause 7.1.2 in order to align the document with the fluid immersion requirements of
ISO 1817;
— revision of Clause 8;
— deletion of Annex B.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
FINAL DRA
...


ISO/FDIS 18752:2025(en)
ISO/TC 45/SC 1/WG 3
Secretariat: DIN
Date: 2025-01-2903-20
Rubber hoses and hose assemblies — Wire- or textile-reinforced
single-pressure types for hydraulic applications — Specification
Tuyaux et flexibles en caoutchouc — Types hydrauliques à pression unique, avec armature de fils métalliques ou
textiles tressés — Spécifications
FDIS stage
ISO/FDIS 18752:2025(en)
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO #### 2025 – All rights reserved
ii
ISO/FDIS 18752:2025(en)
Contents
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Classification. 2
4.1 Classes . 2
4.2 Grades and types . 3
5 Materials and construction . 4
5.1 Hoses . 4
5.2 Hose assemblies . 4
6 Dimensions and tolerances . 4
6.1 Diameters . 4
6.2 Cover thickness . 6
6.3 Concentricity . 6
6.4 Length. 7
7 Physical properties . 7
7.1 Fluid resistance of rubber compounds . 7
7.2 Performance requirements . 7
8 Frequency of testing . 11
9 Marking . 11
9.1 Hoses . 11
9.2 Hose assemblies . 12
10 Recommendations for packaging and storage . 12
11 Information by hose manufacturer . 12
12 Test report . 12
Annex A (normative) Test frequency for type tests and routine tests . 13
Annex B (informative) Information to be provided by hose manufacturer . 15
Bibliography . 16

iii
ISO/FDIS 18752:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 1, Rubber and plastics hoses and hose assemblies, in collaboration with the European Committee for
Standardization (CEN) Technical Committee CEN/TC 218, Rubber and plastics hoses and hose assemblies, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This fifth edition cancels and replaces the fourth edition (ISO 18752:2022), which has been technically revised.
The main changes are as follows:
— addition of Subclause 7.1.2— Subclause 7.1.2 has been added in order to align the document with ISO
1817the fluid immersion requirements of ISO 1817;
— — revision of Clause 8Clause 8;;
— — deletion of Annex Bprevious Annex B.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
© ISO #### 2025 – All rights reserved
iv
DRAFT International Standard ISO/FDIS 18752:2025(en)

Rubber hoses and hose assemblies — Wire- or textile-reinforced
single-pressure types for hydraulic applications — Specification
1 Scope
This document specifies requirements for ten classes, four grades and seven types of wire- or textile-
reinforced hydraulic hoses and hose assemblies, of nominal sizes ranging from 5 to 102. Each class has a single
maximum working pressure for all sizes.
They are suitable for use with:
— — oil-based hydraulic fluids HH, HL, HM, HR and HV, as defined in ISO 6743--4, at temperatures ranging
from −40 °C to +100 °C for types AS, AC, BS and BC hoses and from −40 °C to +120 °C for types CS, CC
and DC hoses;
— — water-based fluids HFC, HFAE, HFAS and HFB, as defined in ISO 6743--4, at temperatures ranging from
−40 °C to +70 °C;
— — water at temperatures ranging from 0 °C to +70 °C.
This document does not specify requirements for the connection ends. It is limited to the performance of hoses
and hose assemblies. The hose assembly maximum working pressure is governed by the lowest maximum
working pressure of the components.
NOTE It is the responsibility of the user, in consultation with the hose manufacturer, to establish the compatibility
of the hose with the fluid to be used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 1402, Rubber and plastics hoses and hose assemblies — Hydrostatic testing
ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 4671, Rubber and plastics hoses and hose assemblies — Methods of measurement of the dimensions of hoses
and the lengths of hose assemblies
ISO 6803, Rubber or plastics hoses and hose assemblies — Hydraulic-pressure impulse test without flexing
ISO 7233, Rubber and plastics hoses and hose assemblies — Determination of resistance to vacuum
ISO 7326, Rubber and plastics hoses — Assessment of ozone resistance under static conditions
ISO 8033:2016, Rubber and plastics hoses — Determination of adhesion between components
ISO 8330, Rubber and plastics hoses and hose assemblies — Vocabulary
ISO/FDIS 18752:2025(en)
ISO 10619--1:2017, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness — Part 1:
Bending tests at ambient temperature
ISO 10619--2, Rubber and plastics hoses and tubing — Measurement of flexibility and stiffness — Part 2: Bending
tests at sub-ambient temperatures
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8330 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— — ISO Online browsing platform: available at https://www.iso.org/obp
— — IEC Electropedia: available at https://www.electropedia.org/
4 Classification
4.1 Classes
Ten classes of hose are specified, distinguished by their maximum working pressure, as shown in
Table 1Table 1. Each class may be manufactured in up to 14 nominal sizes.
Table 1 — Classes and nominal sizes
Class 35 70 140 210 250 280 350 420 490 560
a
MWP (MPa) 3,5 7 14 21 25 28 35 42 49 56
a
MWP (bar) 35 70 140 210 250 280 350 420 490 560
Nominal size
5 X X X X X X X X N/A N/A
6,3 X X X X X X X X N/A N/A
8 X X X X X X X X N/A N/A
10 X X X X X X X X N/A N/A
12,5 X X X X X X X X N/A N/A
16 X X X X X X X X X X
19 X X X X X X X X X X
25 X X X X X X X X X X
31,5 X X X X X X X X X X
38 X X X X X X X X N/A N/A
51 X X X X X X X X N/A N/A
63 X X X X X X X N/A N/A N/A
76 X X X N/A N/A N/A N/A N/A N/A N/A
102 X N/A N/A N/A N/A N/A N/A N/A N/A N/A
X = Applicable;
N/A = Not applicable.
a
Maximum working pressure.
© ISO #### 2025 – All rights reserved
ISO/FDIS 18752:2025(en)
4.2 Grades and types
Hoses are classified into four grades according to their resistance to impulse: A, B, C and D. Each grade is
classified by outside diameter into standard types (AS, BS and CS) and compact types (AC, BC, CC and DC), as
shown in Table 2Table 2.
Table 2 — Grades and types
Resistance to impulse
a
Grade Type
Temperature Impulse pressure
Minimum number of cycles
b
°C (% of MWP )
AS
A 100 133 % 200 000
AC
BS
B 100 133 % 500 000
BC
CS
c
C 120 133 % and 120 % 500 000
CC
D DC 120 133 % 1 000 000
a
Standard or compact, e.g. CS is grade C and standard type. As shown in Table 4Table 4 and Table 8Table 8,, standard types have
larger outside diameters and larger bend radii, whereas compact types have smaller outside diameters and smaller bend radii.
b
Maximum working pressure.
c
120 % of the MWP shall be used for classes 350, 420, 490 and 560 instead of 133 %.
Each class includes one of each type or both as shown in Table 3Table 3.
Table 3 — Type and maximum working pressure
Class 35 70 140 210 250 280 350 420 490 560
a
MWP (MPa) 3,5 7 14 21 25 28 35 42 49 56
a
MWP (bar) 35 70 140 210 250 280 350 420 490 560
Grade Type
AS X X X X X X X X N/A N/A
A
AC X X X X X X X X N/A N/A
BS X X X X X X X X N/A N/A
B
BC X X X X X X X X N/A N/A
CS N/A N/A N/A X X X X X N/A N/A
C
CC N/A N/A N/A X X X X X X X
D DC N/A N/A N/A X X X X X N/A N/A
X = Applicable;
N/A = Not applicable.
a
Maximum working pressure.
ISO/FDIS 18752:2025(en)
5 Materials and construction
5.1 Hoses
Hoses shall consist of a hydraulic-fluid-resistant rubber lining, one or multiple layers of steel wire or textile
and an oil-, a
...


PROJET FINAL
Norme
internationale
ISO/FDIS 18752
ISO/TC 45/SC 1
Tuyaux et flexibles en caoutchouc —
Secrétariat: DIN
Types hydrauliques à pression
Début de vote:
unique, avec armature de fils
2025-04-03
métalliques ou textiles tressés —
Vote clos le:
Spécifications
2025-05-29
Rubber hoses and hose assemblies — Wire- or textile-reinforced
single-pressure types for hydraulic applications — Specification
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
PROJETS DE NORMES
TRAITEMENT PARALLÈLE ISO/CEN
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
NORMES POUVANT
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
Numéro de référence
ISO/FDIS 18752:2025(fr) © ISO 2025

PROJET FINAL
ISO/FDIS 18752:2025(fr)
Norme
internationale
ISO/FDIS 18752
ISO/TC 45/SC 1
Tuyaux et flexibles en caoutchouc —
Secrétariat: DIN
Types hydrauliques à pression
Début de vote:
unique, avec armature de fils
2025-04-03
métalliques ou textiles tressés —
Vote clos le:
Spécifications
2025-05-29
Rubber hoses and hose assemblies — Wire- or textile-reinforced
single-pressure types for hydraulic applications — Specification
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
DOCUMENT PROTÉGÉ PAR COPYRIGHT
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
© ISO 2025 INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
PROJETS DE NORMES
TRAITEMENT PARALLÈLE ISO/CEN
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
NORMES POUVANT
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse Numéro de référence
ISO/FDIS 18752:2025(fr) © ISO 2025

ii
ISO/FDIS 18752:2025(fr)
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 2
4 Classification . 2
4.1 Classes .2
4.2 Grades et types .2
5 Matériaux et construction . 3
5.1 Tuyaux .3
5.2 Flexibles .3
6 Dimensions et tolérances. 4
6.1 Diamètres .4
6.2 Épaisseur du revêtement .6
6.3 Concentricité .6
6.4 Longueur .6
7 Propriétés physiques . 7
7.1 Résistance aux fluides des mélanges caoutchoucs .7
7.1.1 Éprouvettes .7
7.1.2 Généralités .7
7.1.3 Résistance à l’huile .7
7.1.4 Résistance aux fluides à base d’eau .7
7.1.5 Résistance à l’eau .7
7.2 Exigences de performance .7
7.2.1 Exigences hydrostatiques .7
7.2.2 Variation de longueur .8
7.2.3 Rayon minimal de courbure .8
7.2.4 Résistance aux impulsions .10
7.2.5 Fuite des flexibles .10
7.2.6 Flexibilité à froid .10
7.2.7 Adhérence entre composants .10
7.2.8 Résistance au vide .10
7.2.9 Résistance à l’ozone .11
7.2.10 Résistance à l’abrasion .11
8 Fréquence d’essais .11
9 Marquage .11
9.1 Tuyaux .11
9.2 Flexibles . 12
10 Recommandations pour l’emballage et le stockage .12
11 Informations du fabricant de tuyaux .12
12 Rapport d’essai .12
Annexe A (normative) Fréquence d’essai pour les essais de type et de routine .13
Annexe B (informative) Informations à fournir par le fabricant de tuyau .15
Bibliographie .16

iii
ISO/FDIS 18752:2025(fr)
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de brevet revendiqué à cet égard. À la date de publication du présent document, l’ISO n'avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de propriété.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 45, Élastomères et produits à base
d'élastomères, sous-comité SC 1, Tuyaux et flexibles en caoutchouc et en matière plastique, en collaboration
avec le comité technique CEN/TC 218, Tuyaux et flexibles en caoutchouc et en matière plastique, conformément
à l’Accord de coopération technique entre l’ISO et le CEN (Accord de Vienne).
Cette cinquième édition annule et remplace la quatrième édition (ISO 18752:2022), qui a fait
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
