ISO 4987:2020

Steel and iron castings - Liquid penetrant testing

This document specifies a method for the liquid penetrant testing of steel castings.

Pièces moulées en acier et en fer — Contrôle par ressuage

General Information

• Status: Published
• Publication Date: 30-Jan-2020
• ICS: 77.040.20 - Non-destructive testing of metals
• ICS: 77.140.80 - Iron and steel castings
• Technical Committee: ISO/TC 17/SC 11 - Steel castings
• Drafting Committee: ISO/TC 17/SC 11 - Steel castings
• Current Stage: 9060 - Close of review
• Completion Date: 02-Sep-2030

Relations

• Revises: ISO 4987:2010 - Steel castings - Liquid penetrant inspection
• Effective Date: 14-Jan-2017

Overview

ISO 4987:2020 - Steel and iron castings - Liquid penetrant testing - specifies a penetrant testing method tailored to the steel and iron foundry industry. It complements the general principles in ISO 3452-1 and provides foundry-specific requirements for performing, interpreting and reporting liquid penetrant (LP) inspections on castings. The standard defines acceptance criteria, severity levels, operator qualifications, surface preparation and test conditions to ensure consistent non-destructive testing (NDT) of cast components.

Key topics and technical requirements

• Scope: Method for liquid penetrant testing of steel and iron castings (third edition, 2020).
• Normative references: ISO 3452-1 (general penetrant testing), ISO 3059 (viewing conditions), ISO 9712 (NDT personnel qualification), ISO 4990 (steel castings delivery requirements).
• Ordering information: Purchaser/manufacturer agreements should specify test area, operator qualification, sampling frequency, manufacturing stage for testing, required surface finish, discontinuity type and severity level.
• Testing procedure: Conduct testing in accordance with ISO 3452-1; viewing unaided or up to 3× magnification under ISO 3059 lighting conditions.
• Operator qualification: Personnel shall be qualified per ISO 9712 (or equivalent) for both testing and interpretation.
• Surface preparation: Surfaces must be clean and free of oil, grease, moulding or coating residues. Cleaning methods that can seal or close discontinuities are prohibited. Annex A provides recommended surface finishes.
• Indication classification:
  • Non-linear indications (SP): length L < 3 × width W. Alignments (<2 mm apart and ≥3 indications) treated as a single SP.
  • Linear indications (LP): length L ≥ 3 × width W. Individual and total lengths are assessed within a 105 × 148 mm frame.
• Severity levels and acceptance: Tables 1 and 2 define severity levels for SP and LP indications, including smallest considered indication, maximum individual length and total length allowances. LP criteria vary by section thickness type (t ≤16 mm, 16 < t ≤50 mm, t >50 mm).
• Supporting material: Annexes B–D provide reference figures and a model test report; retesting, classification and post-examination cleaning procedures are covered.

Practical applications and users

• Who uses it: Foundry quality managers, NDT technicians and supervisors, purchasing/specification engineers, inspectors, and end‑users of steel and iron castings.
• Applications:
  • Incoming inspection of cast parts
  • Production process control and final acceptance testing
  • Supply‑chain specification and contract acceptance criteria
  • Fracture-relevant screening using section-thickness based LP criteria
• Value: Ensures reproducible, industry‑specific acceptance criteria and reporting for reliable detection of surface-breaking defects in castings.

Related standards

• ISO 3452-1 - Penetrant testing: general principles
• ISO 3059 - Viewing conditions for penetrant/magnetic particle testing
• ISO 9712 - Qualification and certification of NDT personnel
• ISO 4990 - General technical delivery requirements for steel castings

Keywords: ISO 4987:2020, liquid penetrant testing, steel and iron castings, NDT, penetrant indications, severity levels, surface preparation, ISO 3452-1, ISO 9712.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 4987
Third edition
2020-01
Corrected version
2020-03
Steel and iron castings — Liquid
penetrant testing
Pièces moulées en acier et en fer — Contrôle par ressuage
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Ordering information . 1
5 Testing . 2
5.1 Operating mode . 2
5.2 Qualification of the operators . 2
5.3 Surface preparation . 2
5.4 Conditions of testing . 2
6 Acceptance criteria . 2
6.1 Definition of liquid penetrant indications . 2
6.1.1 General. 2
6.1.2 Non-linear indications (SP) . 2
6.1.3 Linear indication (LP) . 3
6.2 Severity levels . 4
6.2.1 General. 4
6.2.2 Non-linear indications . 4
6.2.3 Linear indications . 4
6.2.4 Selection of the severity level . 4
6.2.5 Designation of severity levels . 5
7 Classification of the indications and interpretation of results . 5
7.1 Classification of the indications using Tables 1 and 2 . 5
7.1.1 General. 5
7.1.2 Non-linear indications . 5
7.1.3 Linear indications . 5
7.2 Interpretation of results . 5
8 Retesting . 5
9 Post-examination cleaning procedures . 6
10 Test report . 6
Annex A (informative) Recommended surface finish for liquid penetrant testing .7
Annex B (informative) Reference figures — Non-linear isolated indications (SP).8
Annex C (informative) Reference figures — Linear indications (LP).13
Annex D (informative) Model of a liquid penetrant test report .28
Bibliography .30

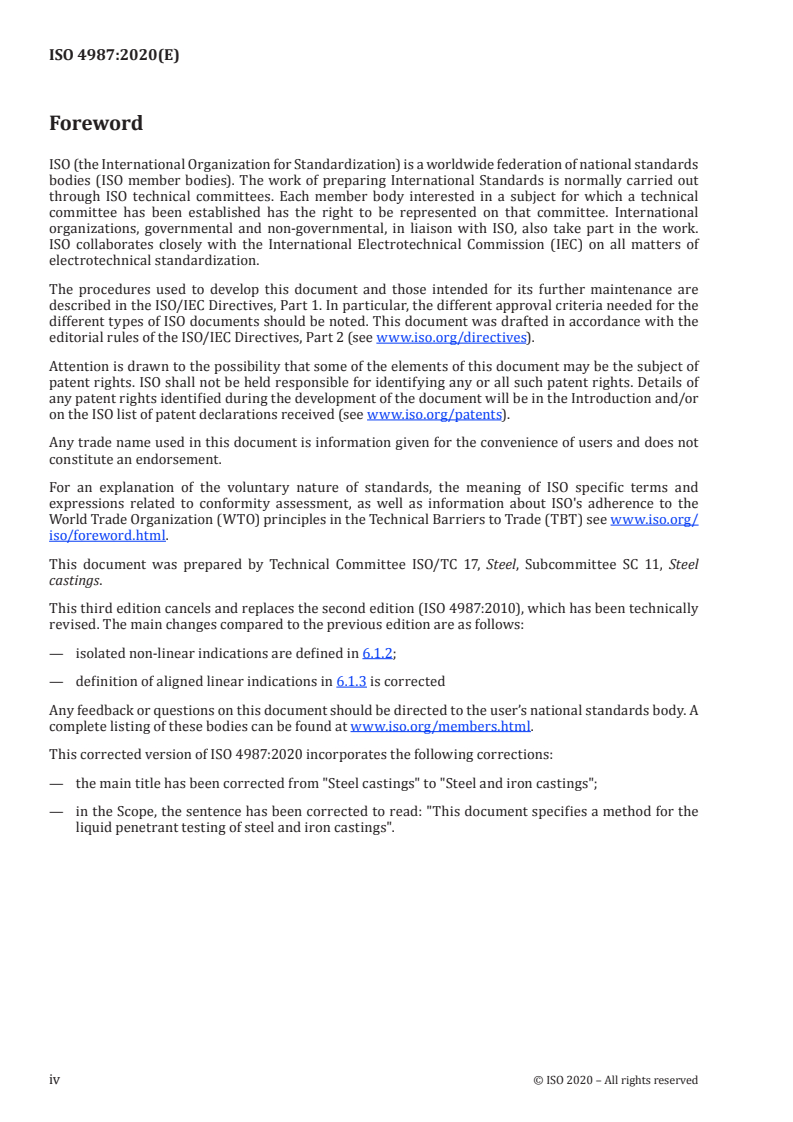

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 11, Steel
castings.
This third edition cancels and replaces the second edition (ISO 4987:2010), which has been technically
revised. The main changes compared to the previous edition are as follows:
— isolated non-linear indications are defined in 6.1.2;
— definition of aligned linear indications in 6.1.3 is corrected
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
This corrected version of ISO 4987:2020 incorporates the following corrections:
— the main title has been corrected from "Steel castings" to "Steel and iron castings";
— in the Scope, the sentence has been corrected to read: "This document specifies a method for the
liquid penetrant testing of steel and iron castings".
iv © ISO 2020 – All rights reserved

Introduction
This document complements the general principles of liquid penetrant testing described in ISO 3452-1
with additional requirements of the steel foundry industry.
Liquid penetrant testing, as well as any other non-destructive testing, is part of a general or specific
assessment of the quality of a casting to be agreed between the purchaser and the manufacturer at the
time of acceptance of the order.
INTERNATIONAL STANDARD ISO 4987:2020(E)
Steel and iron castings — Liquid penetrant testing
1 Scope
This document specifies a method for the liquid penetrant testing of steel and iron castings.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3059, Non-destructive testing — Penetrant testing and magnetic particle testing — Viewing conditions
ISO 3452-1, Non-destructive testing — Penetrant testing — Part 1: General principles
ISO 4990, Steel castings — General technical delivery requirements
ISO 9712, Non-destructive testing — Qualification and certification of NDT personnel
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Ordering information
Subject to agreement between the manufacturer and the purchaser, enquiries and purchase orders for
castings requiring liquid penetrant testing should include the following information:
a) the area of the casting to be tested;
b) the qualification of the operators who will carry out the testing (see 5.2) or interpretation (see 7.2);
c) the frequency/number of castings to be tested;
d) the manufacturing stage, when liquid penetrant testing is to be performed;
e) the required surface finish of the areas to be tested;
f) the type of discontinuity;
g) the severity level.
The sensitivity can differ depending on the method of liquid penetrant testing selected. Therefore, the
severity levels required shall be selected as a function of the liquid penetrants used and the method
agreed between the manufacturer and the purchaser.
The severity level can vary depending on the area of the casting tested (see Tables 1 and 2).
5 Testing
5.1 Operating mode
Testing shall be carried out as specified in ISO 3452-1.
5.2 Qualification of the operators
Testing shall be performed by personnel qualified in accordance with ISO 9712 or equivalent recognised
standards. The qualification level of the personnel shall be agreed between the manufacturer and
purchaser by the time of the acceptance of the order.
5.3 Surface preparation
The surface to be tested shall be clean and free from oil, grease, moulding and coating residues, or
any other contaminant which could interfere with the correct implementation and interpretation of the
penetrant testing results. For small indications, it may be necessary to improve the surface condition.
Annex A provides guidance on recommended surface finish for testing based on indication allowed.
Surface treatment or cleaning techniques which may seal or close discontinuities are not allowed.
5.4 Conditions of testing
The testing shall be carried out unaided or at a maximum magnification of 3× under viewing conditions
in accordance with ISO 3059.
6 Acceptance criteria
6.1 Definition of liquid penetrant indications
6.1.1 General
Indications revealed by the liquid penetrant testing can have different shapes and sizes. The distinction
between the indications is made depending on the ratio of the length L of the indication to its width W,
in the manner described in 6.1.2 and 6.1.3.
6.1.2 Non-linear indications (SP)
Indications are considered to be non-linear when the length L is smaller than three times the width
W. Indications are considered to be aligned when the distance between non-linear indications is less
than 2 mm and at least three indications are aligned. An alignment of indications is considered to be a
unique non-linear indication and its length is equal to the overall length L of the alignment specified in
Table 1. Non-linear indications that are not aligned are considered to be isolated.
NOTE The symbol for non-linear indications is SP (S for surface and P for liquid penetrant).
2 © ISO 2020 – All rights reserved

Table 1 — Severity levels for liquid penetrant testing — Non-linear (SP) indications (isolated)
Severity levels
Characteristic
SP 001 SP 01 SP 1 SP 2 SP 3 SP 4 SP 5
Testing means Magnifying glass
Eye
or eye
Magnification for observation of penetrant
≤3 1
indication
Length L of the smallest indication to be
0,3 0,5 1,5 2 3 5 5
considered, in millimetres
Maximum number of non-linear indica-
5 6 8 8 12 20 32
tions allowed
Maximum individual length L allowed, in
2 a a a a a
1 2 3 6 9 14 21
millimetres
a
A maximum number of two indications of the designated dimension are permitted.
6.1.3 Linear indication (LP)
The indications are considered to be linear when the length L is greater than or equal to three times the
width W.
The lengths of the linear indications greater than the minimum length shall be added together and the
result shall be compared to the total (T) length specified in Table 2.
Table 2 — Severity level
...
