Information technology -- Streaming Lossless Data Compression algorithm (SLDC)

ISO/IEC 22091:2002 specifies a lossless compression algorithm to reduce the number of 8-bit bytes required to represent data records and File Marks. The algorithm is known as Streaming Lossless Data Compression algorithm (SLDC). ISO/IEC 22091:2002 is based on ISO/IEC 15220. It extends that algorithm with the addition of control symbols that allow records of different sizes and compressibility, along with File Marks, to be efficiently encoded into an output stream which requires little or no additional control information for later decoding. The numerical identifier according to ISO/IEC 11576 allocated to this algorithm is 6.

Technologies de l'information -- Algorithme de compression sans perte de données en mode continu (SLDC)

General Information

Status
Published
Publication Date
02-Oct-2002
Current Stage
9093 - International Standard confirmed
Start Date
21-Aug-2020
Ref Project

Buy Standard

Standard
ISO/IEC 22091:2002 - Information technology -- Streaming Lossless Data Compression algorithm (SLDC)
English language
8 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD 22091
First edition
2002-09-15
Information technology — Streaming
Lossless Data Compression algorithm
(SLDC)
Technologies de l’information — Algorithme de compression sans perte de
données en mode continu (SDLC)
Reference number
ISO/IEC 22091:2002(E)
ISO/IEC 2002
---------------------- Page: 1 ----------------------

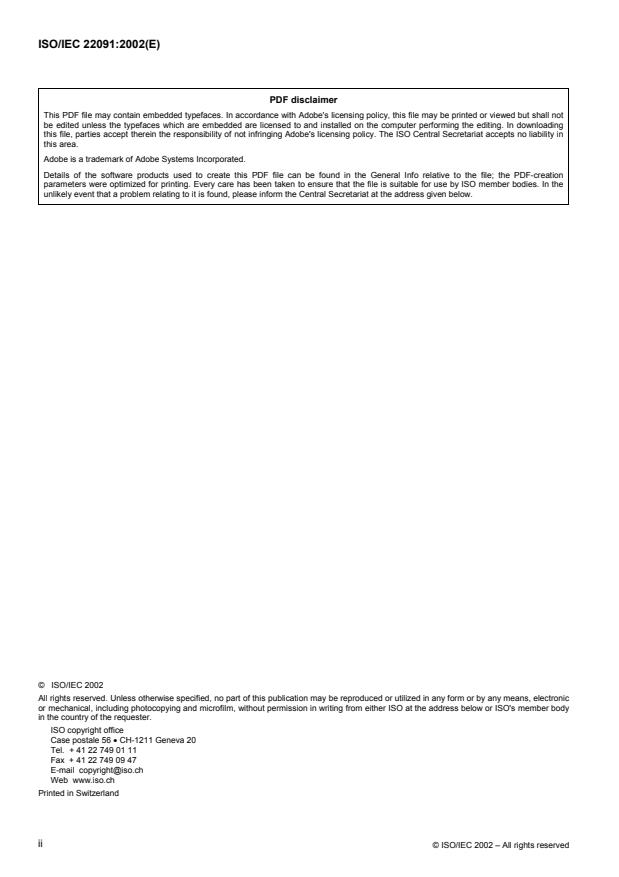

ISO/IEC 22091:2002(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not

be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading

this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in

this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the

unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO/IEC 2002

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body

in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO/IEC 2002 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 22091:2002(E)
Contents
1 Scope 1
2 Conformance 1
3 Normative reference 1
4 Terms and definitions 1
4.1 Access Point 1
4.2 Control Symbol 1
4.3 Copy Pointer 1
4.4 data byte 1
4.5 Data Symbol 1
4.6 Displacement Field 1
4.7 Encoded Data Stream 1
4.8 Encoded Record 1
4.9 End Marker 2
4.10 End Of Record Symbol (EOR Symbol) 2
4.11 File Mark 2
4.12 File Mark Symbol 2
4.13 Flush Symbol 2
4.14 History Buffer 2
4.15 Literal 1 2
4.16 Literal 2 2
4.17 Matching String 2
4.18 Match Count 2
4.19 Match Count Field 2
4.20 Pad 2
4.21 Record 2
4.22 Record Segment 2
4.23 Reset X Symbol 2
4.24 Reset 1 Symbol 2
4.25 Reset 2 Symbol 2
4.26 scheme 1 2
4.27 Scheme 1 Symbol 2
4.28 scheme 2 3
4.29 Scheme 2 Symbol 3
4.30 user data 3
5 Conventions and Notations 3
5.1 Representation of numbers 3
5.2 Names 3
6 Acronyms 3
7 Algorithm Overview 3
7.1 Scheme 1 Encoding 3
7.2 Scheme 2 Encoding 3
7.3 History Buffer 4
8 Encoding Specification 4
8.1 User Data 4
8.2 History Buffer 4
8.3 Encoded Data Stream 4
© ISO/IEC 2002 – All rights reserved iii
---------------------- Page: 3 ----------------------

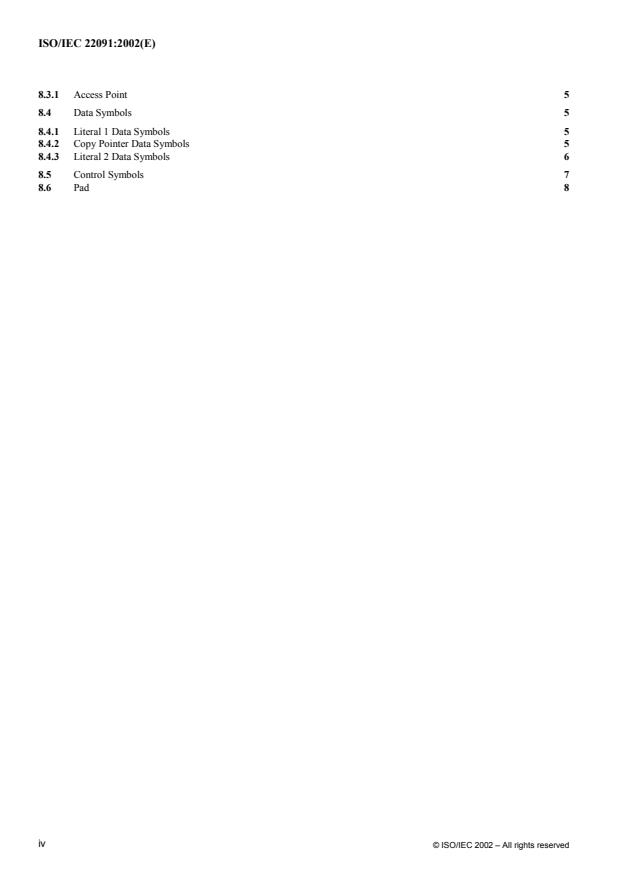

ISO/IEC 22091:2002(E)
8.3.1 Access Point 5
8.4 Data Symbols 5
8.4.1 Literal 1 Data Symbols 5
8.4.2 Copy Pointer Data Symbols 5
8.4.3 Literal 2 Data Symbols 6
8.5 Control Symbols 7
8.6 Pad 8
iv © ISO/IEC 2002 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 22091:2002(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission) form the

specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the

development of International Standards through technical committees established by the respective organization to deal with

particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work. In the

field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

The main task of the joint technical committee is to prepare International Standards. Draft International Standards adopted by

the joint technical committee are circulated to national bodies for voting. Publication as an International Standard requires

approval by at least 75 % of the national bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of patent rights.

ISO and IEC shall not be held responsible for identifying any or all such patent rights.

ISO/IEC 22091 was prepared by ECMA (as ECMA-321) and was adopted, under a special “fast-track procedure”, by Joint

Technical Committee ISO/IEC JTC 1, Information Technology, in parallel with its approval by national bodies of ISO and IEC.

© ISO/IEC 2002 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 22091:2002(E)
Information technology — Streaming Lossless Data Compression algorithm (SLDC)
1 Scope

This International Standard specifies a lossless compression algorithm to reduce the number of 8-bit bytes required to represent

data records and File Marks. The algorithm is known as Streaming Lossless Data Compression algorithm (SLDC).

One buffer size (1 024 bytes) is specified.

The numerical identifier according to ISO/IEC 11576 allocated to this algorithm is 6.

2 Conformance

A compression algorithm shall be in conformance with this International Standard if its Encoded Data Stream satisfies the

requirements of this International Standard.
3 Normative reference

The following normative document contains provisions which, through reference in this text, constitute provisions of this

International Standard. For dated references, subsequent amendments to, or revisions of, any of these publications do not apply.

However, parties to agreements based on this International Standard are encouraged to investigate the possibility of applying

the most recent editions of the normative document indicated below. For undated references, the latest edition of the normative

document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards.

ISO/IEC 11576:1994 Information technology — Procedure for the registration of algorithms for the lossless compression

of data
4 Terms and definitions

For the purpose of this International Standard the following terms and definitions apply.

4.1 Access Point
A location in the Encoded Data Stream at which data may be decoded.
4.2 Control Symbol

A Control Symbol may change the compression scheme, reset the History Buffer, mark the end of a Record, indicate a File

Mark, or indicate the termination of an Encoded Data Stream.
4.3 Copy Pointer

A part of the Encoded Data Stream output in scheme 1 that replaces a string of data bytes with a specification of a Matching

String.
4.4 data byte
An element of user data that is to be encoded.
4.5 Data Symbol
An element of an Encoded Record that represents one or more data bytes.
4.6 Displacement Field

A field in the Copy Pointer that specifies the location within the History Buffer of the first byte of a Matching String.

4.7 Encoded Data Stream
The output stream after encoding User Data.
4.8 Encoded Record
The output stream after encoding one Record of user data.
© ISO/IEC 2002 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 22091:2002(E)
4.9 End Marker
A Control Symbol that denotes termination of an Encoded Data Stream.
4.10 End Of Record Symbol (EOR Symbol)
A Control Symbol that denotes the end of a Record in the Encoded Data Stream.
4.11 File Mark

A recorded element used to mark organisational boundaries (e.g. directory boundaries) in user data.

4.12 File Mark Symbol
A Control Symbol in Encoded Data Stream that denotes a File Mark in user data.
4.13 Flush Symbol

A Control Symbol that, if required, is followed by Pad to make the size of the Encoded Data Stream an integer multiple of

32 bits.
4.14 History Buffer

A data structure where incoming data bytes are stored for use by scheme 1 compression and decompression.

4.15 Literal 1

A part of the Encoded Data Stream, output in scheme 1, that represents a single data byte not encoded into any Copy Pointer.

4.16 Literal 2

A part of the Encoded Data Stream, output in scheme 2, that represents a single data byte.

4.17 Matching String

A sequence of two or more bytes in the History Buffer that is identical with a sequence of bytes in the user data.

4.18 Match Count
The length, in bytes, of a Matching String.
4.19 Match Count Field
That part of a Copy Pointer that specifies the Match Count.
4.20 Pad

A number of bits inserted into the Encoded Data Stream so that the size of Encoded Data Stream is an integer multiple of

32 bits.
4.21 Record
An element of user data that contains at least one data byte.
4.22 Record Segment
A section of a Record encoded in a given scheme.
4.23 Reset X Symbol
A generic reference to either the Reset 1 Symbol or the Reset 2 Symbol.
4.24 Reset 1 Symbol

A Control Symbol that indicates History Buffer reset, and that subsequent symbols are encoded in scheme 1.

4.25 Reset 2 Symbol

A Control Symbol that indicates History Buffer reset, and that subsequent symbols are encoded in scheme 2.

4.26 scheme 1
A compression scheme that uses a History Buffer to achieve data compression.
4.27 Scheme 1 Symbol

A Control Symbol that indicates subsequent Data Symbols are either Copy Pointers or Literal 1s.

© ISO/IEC 2002 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 22091:2002(E)
4.28 scheme 2
A packing scheme designed to encode uncompressible data with minimal expansion.
4.29 Scheme 2 Symbol
A Control Symbol that indicates subsequent Data Symbols are encoded in scheme 2.
4.30 user data
Information that is to be encoded, according to this compression algorithm.
5 Conventions and Notations
5.1 Representation of numbers

The following conventions and notations apply in this document unless otherwise stated.

− The setting of bits is denoted by ZERO or ONE.

− Numbers in binary notation and bit combinations are strings of digits represented by ZEROs and ONEs with the most

significant bit to the left.
− Letters and digits in parentheses represent numbers in hexadecimal notation.
− All other numbers are in decimal form.
5.2 Names

The names of basic elements, e.g. specific fields, are written with a capital initial letter.

6 Acronyms
EOR End Of Record
lsb least significant bit
msb most significant bit
7 Algorithm Overview

User data that is to be compressed according to this International Standard consists of Records and File Marks. Records consist

of 8-bit data bytes, and may be of any non-zero length.
Data bytes may be encoded in either scheme 1 or scheme 2.
7.1 Scheme 1 Encoding

There may exist within Records repeating strings of two or more data bytes such that information about the length and position

of one string may be substituted in place of a subsequent copy or copies of that same string. This information is known as a

Copy Pointer. This International Standard allows Copy Pointer substitution when corresponding bytes of the two strings are

offset by 1 to 1 023 data bytes within user data. Where string matches occur, data compression is possible, and the number of

bits of encoded data can be less than the number of bits of user data, and data compression is possible. Any data bytes that are

part of a repeated string may be encoded as a Copy Pointer. Any data byte that is not encoded as a Copy Pointer is encoded as a

Literal 1, in which a leading bit set to ZERO is added to the data byte, thereby indicating that this is a Literal 1. Regions over

which Copy Pointers and literal values are encoded are defined as being encoded according to scheme 1. Scheme 1 encoding is

identical with that of ISO/IEC 15200, except for the addition of Control Symbols.

...
