ISO 8878:1987/Cor 4:1991

Information processing systems — Data communications — Use of X.25 to provide the OSI connection-mode network service — Technical Corrigendum 4

Systèmes de traitement de l'information — Communication de données — Utilisation du protocole X.25 pour fournir le service de réseau OSI en mode connexion — Rectificatif technique 4

General Information

• Status: Withdrawn
• Publication Date: 24-Apr-1991
• Withdrawal Date: 24-Apr-1991
• ICS: 35.100.30 - Network layer
• Technical Committee: ISO/IEC JTC 1/SC 6 - Telecommunications and information exchange between systems
• Drafting Committee: ISO/IEC JTC 1/SC 6 - Telecommunications and information exchange between systems
• Current Stage: 9599 - Withdrawal of International Standard
• Completion Date: 30-Dec-1992

Relations

• Revised: ISO/IEC 8878:1992 - Information technology — Telecommunications and information exchange between systems — Use of X.25 to provide the OSI Connection-mode Network Service
• Effective Date: 15-Apr-2008
• Corrects: ISO 8878:1987 - Information processing systems — Data communications — Use of X.25 to provide the OSI connection-mode network service
• Effective Date: 06-Jun-2022
• Child: ISO 8878:1987 - Information processing systems — Data communications — Use of X.25 to provide the OSI connection-mode network service
• Effective Date: 15-Apr-2008

Standards Content (Sample)

INTERNATIONAL STANDARD IS0 8878 : 1987
TECHNICAL CORRIGENDUM 4
-
__ -- -
Published 1991 -04- 15
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION. MEXAYHAPOAHAR OPrAHM3AL@R no CTAHflAPTM3AUMM ORGANISATION INTERNATIONALE DE NORMALISATION
INTERNATIONAL ELECTROTECHNICAL COMMISSION * M&KAYHAPOAHAR 3flEKTPOTEXHMqECKAR KOMMCCMR * COMMISSION ELECTROTECHNIQUE INTERNATIONALE
Information processing systems - Data communications
- Use of X.25 to provide the OS1 connection-mode
network service
TECHNICAL CORRIGENDUM 4
Systèmes de traitement de l’information - Communication de données - Utilisation du protocole X.25pour fournir le service de
réseau OS1 en mode connexion
RECTIFICA TIF TECHNIQUE 4
Technical corrigendum 4 to International Standard IS0 8878 : 1987 was prepared by ISO/IEC JTC 1, Information technology.
Page 20
Clause 12
Insert clause 12 as follows:
”12 Response to protocol violations
An NL entity may receive a packet that is valid in accordance with IS0 8208 but is not valid when considered as part of the mapping
specified in clauses 6 to 11. In such cases it follows the actions given below:
a) Error conditions:
-
INCOMING CALL packet without Fast Select Facility;
-
INCOMING CALL packet without a TCN Facility;
-
CALL CONNECTED packet without EETDN Facility; and
-
CALL CONNECTED packet with a Selected QOS value, when present, that is not valid with respect to the CALL REQUEST
packet (i.e., the Selected value is greater than the Target value or less than the Lowest Quality Acceptable value).
Actions :
The NL entity shall transmit a CLEAR REQUEST packet across the DTE/DXE interface with a Clearing Cause field of “DTE
Originated.” It is recommended that the diagnostic code be set to 228 (or 224). The NL entity shall not signal any primitive to
the NS User.
UDC 681.327.8.01 Ref. No. IS0 8878 : 1987/Cor.4 : 1991 (E)
Descriptors: data processing, information interchange, network interconnection, open systems interconnection, communication procedure,
control procedures.”
O ISO/IEC 1991
Printed in Switzerland

---------------------- Page: 1 ----------------------

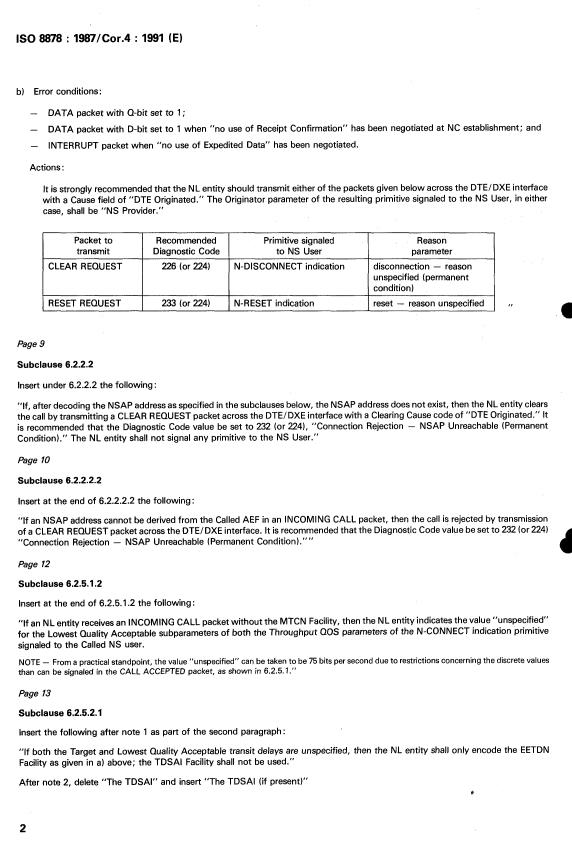

IS0 8878 : 19871Cor.4 : 1991 (E)
b) Error conditions:
-
DATA packet with Q-bit set to 1 ;
-
DATA packet with D-bit set to 1 when "no use of Receipt Confirmation" has been negotiated at NC establishment; and
-
INTERRUPT packet when "no use of Expedited Data" has been negotiated.
Actions :
It is strongly recommended that the NL entity should transmit either of the packets given below across the DTE/DXE interface
with a Cause field of "DTE Originated." The Originator parameter of the resulting primitive signaled to the NS User, in either
case, shall be "NS Provider."
Recommended Primitive signaled Reason
I Packet transmit to I Diagnostic Co
...
