ISO 1012:1998
(Main)Photography — Films in sheets and rolls for general use — Dimensions
Photography — Films in sheets and rolls for general use — Dimensions
This International Standard specifies the nominal sizes and aim dimensions, with their cutting tolerances, of photographic films in rolls and sheets for use in general photographic applications. It also specifies perforating dimensions and selected core dimensions and includes a section on package marking. NOTE Films used for specific photographic applications, such as radiography, graphic arts, micrography, aerial photography, documentary reproduction and on recording instruments, are specified in other International Standards.
Photographie — Films en feuilles et pellicules à usage général —Dimensions
Fotografija - Filmi v polah in zvitkih za splošno uporabo - Dimenzije
Ta mednarodni standard določa nazivne velikosti in ciljne dimenzije skupaj s tolerancami za rezanje fotografskih filmov v zvitkih in polah za splošno fotografsko uporabo. Določa tudi dimenzije za perforiranje, izbrane osnovne dimenzije in vključuje razdelek o označevanju embalaže. OPOMBA: Filme, ki se uporabljajo pri posebnih fotografskih aplikacijah, kot so radiografija, grafična umetnost, mikrografija, zračna fotografija, dokumentarna reprodukcija in aplikacije na snemalnih instrumentih, določajo drugi mednarodni standardi.
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 1012
Third edition
1998-11-15
Photography — Films in sheets and rolls
for general use — Dimensions
Photographie — Films en feuilles et pellicules à usage général —
Dimensions
A
Reference number
ISO 1012:1998(E)
---------------------- Page: 1 ----------------------
ISO 1012:1998(E)

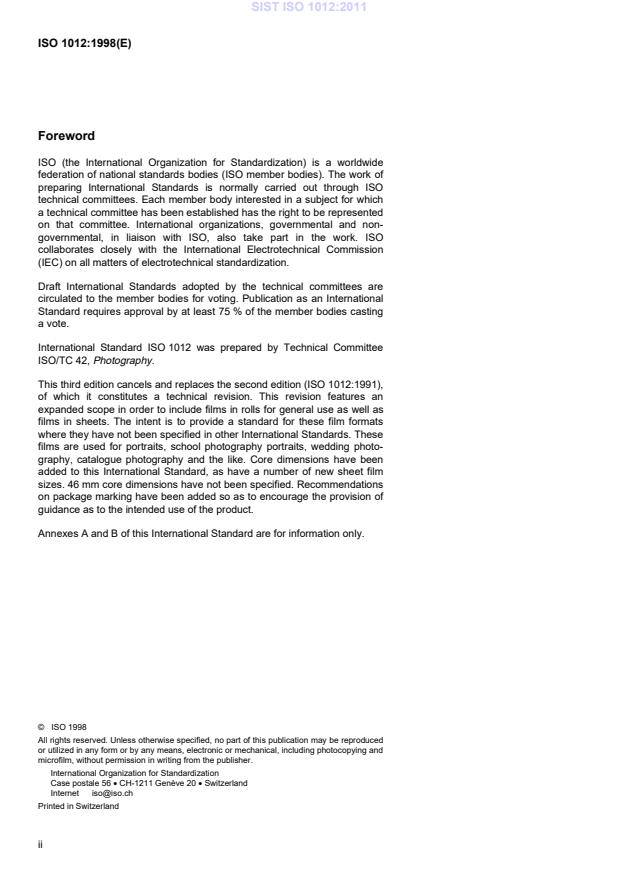

Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national standards bodies (ISO member bodies). The work of
preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 1012 was prepared by Technical Committee
ISO/TC 42, Photography.
This third edition cancels and replaces the second edition (ISO 1012:1991),
of which it constitutes a technical revision. This revision features an
expanded scope in order to include films in rolls for general use as well as
films in sheets. The intent is to provide a standard for these film formats
where they have not been specified in other International Standards. These
films are used for portraits, school photography portraits, wedding photo-
graphy, catalogue photography and the like. Core dimensions have been
added to this International Standard, as have a number of new sheet film
sizes. 46 mm core dimensions have not been specified. Recommendations
on package marking have been added so as to encourage the provision of
guidance as to the intended use of the product.
Annexes A and B of this International Standard are for information only.
© ISO 1998
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet iso@iso.ch
Printed in Switzerland
ii
---------------------- Page: 2 ----------------------
©
ISO ISO 1012:1998(E)
Introduction
Attention is drawn to the possibility that some of the elements of this
International Standard may be the subject of patent rights. ISO shall not be
held responsible for identifying any or all such patent rights.
iii
---------------------- Page: 3 ----------------------
©
INTERNATIONAL STANDARD ISO ISO 1012:1998(E)
Photography — Films in sheets and rolls for general use —
Dimensions
1 Scope
This International Standard specifies the nominal sizes and aim dimensions, with their cutting tolerances, of
photographic films in rolls and sheets for use in general photographic applications. It also specifies perforating
dimensions and selected core dimensions and includes a section on package marking.
NOTE Films used for specific photographic applications, such as radiography, graphic arts, micrography, aerial
photography, documentary reproduction and on recording instruments, are specified in other International Standards.
2 Normative references
The following International Standards contain provisions which, through reference in this text, constitute provisions
of this International Standard. At the time of publication, the editions indicated were valid. All standards are subject
to revision and parties to agreements based on this International Standard are encouraged to investigate the
possibility of applying the most recent editions of the standards indicated below. Members of IEC and ISO maintain
registers of currently valid International Standards.
ISO 1:1975, Standard reference temperature for industrial length measurements.
ISO 554:1976, Standard atmospheres for conditioning and/or testing — Specifications.
3 Conditions for measurement of dimensions
3.1 Dimensions
The dimensions and tolerances specified in this International Standard shall apply at the time of manufacture
(except where specifically stated otherwise), when measured under atmospheric conditions of (23 – 2) �C and
(50 – 5) % relative humidity, as specified in ISO 554.
3.2 Calibration of measuring instruments
All measuring instrument calibrations shall be conducted at a temperature of 20 �C (as specified in ISO 1) and a
relative humidity of 50 %.
4 Film in rolls
4.1 Film dimensions
Preferred roll widths for 35 mm, 46 mm and 70 mm films, along with their cutting tolerances, shall conform to the
values given in table 1. New film sizes shall conform to the cutting rules given in table 2.
1
---------------------- Page: 4 ----------------------
©
ISO 1012:1998(E) ISO
NOTE For 35 mm films, the width and perforating dimensions are intended to be the same as those given in
1)
ISO 1007:— , Photography — 135-size film and magazine — Specifications.
The preferred nominal film lengths shall conform to the values given in table 3. The actual film length shall be not
less than that given, but additional length is left to the discretion of the manufacturer.
4.2 Perforating dimensions
Perforated roll films shall conform to the dimensions shown in figure 1 and given in table 4.
4.3 Winding configuration
Film shall be wound with the sensitized side inwards.
It is recognized that some traditional applications utilize rolls with the sensitized side wound outwards.
4.4 Splices
Film in rolls shall comprise a single, unspliced, length.
4.5 Cores
Core dimensions shall conform to those shown in figure 2 and given in table 5. Slots in cores may be provided for
use in attaching the film being wound. One or both ends of the core may be rounded slightly to facilitate inserting
the core in a wound roll of film.
Dimensions of cores for 46 mm films have not been specified.
5 Film in sheets
5.1 Preferred sizes
Nominal and aim dimensions, together with their tolerances, for preferred sheet film sizes shall conform to the
values given in table 6.
5.2 Recognized sizes
Nominal and aim dimensions, together with their tolerances, for recognized sheet film sizes shall conform to the
values given in table 7.
5.3 Cutting and tolerance rules
The cutting and tolerance rules for any new sizes shall conform to the values given in table 8.
5.4 Squareness and edge straightness
Squareness, edge straightness, shape and complianc
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fotografija - Filmi v polah in zvitkih za splošno uporabo - DimenzijePhotographie - Films en feuilles et pellicules à usage général - DimensionsPhotography - Films in sheets and rolls for general use - Dimensions37.040.20]YLWNLPhotographic paper, films and cartridgesICS:Ta slovenski standard je istoveten z:ISO 1012:1998SIST ISO 1012:2011en01-julij-2011SIST ISO 1012:2011SLOVENSKI
STANDARD
SIST ISO 1012:2011
AReference numberISO 1012:1998(E)INTERNATIONALSTANDARDISO1012Third edition1998-11-15Photography — Films in sheets and rollsfor general use — DimensionsPhotographie — Films en feuilles et pellicules à usage général —DimensionsSIST ISO 1012:2011
ISO 1012:1998(E)©
ISO 1998All rights reserved. Unless otherwise specified, no part of this publication may be reproducedor utilized in any form or by any means, electronic or mechanical, including photocopying andmicrofilm, without permission in writing from the publisher.International Organization for StandardizationCase postale 56 · CH-1211 Genève 20 · SwitzerlandInternetiso@iso.chPrinted in SwitzerlandiiForewordISO (the International Organization for Standardization) is a worldwidefederation of national standards bodies (ISO member bodies). The work ofpreparing International Standards is normally carried out through ISOtechnical committees. Each member body interested in a subject for whicha technical committee has been established has the right to be representedon that committee. International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISOcollaborates closely with the International Electrotechnical Commission(IEC) on all matters of electrotechnical standardization.Draft International Standards adopted by the technical committees arecirculated to the member bodies for voting. Publication as an InternationalStandard requires approval by at least 75 % of the member bodies castinga vote.International Standard ISO 1012 was prepared by Technical CommitteeISO/TC 42, Photography.This third edition cancels and replaces the second edition (ISO 1012:1991),of which it constitutes a technical revision. This revision features anexpanded scope in order to include films in rolls for general use as well asfilms in sheets. The intent is to provide a standard for these film formatswhere they have not been specified in other International Standards. Thesefilms are used for portraits, school photography portraits, wedding photo-graphy, catalogue photography and the like. Core dimensions have beenadded to this International Standard, as have a number of new sheet filmsizes. 46 mm core dimensions have not been specified. Recommendationson package marking have been added so as to encourage the provision ofguidance as to the intended use of the product.Annexes A and B of this International Standard are for information only.SIST ISO 1012:2011
© ISOISO 1012:1998(E)iiiIntroductionAttention is drawn to the possibility that some of the elements of thisInternational Standard may be the subject of patent rights. ISO shall not beheld responsible for identifying any or all such patent rights.SIST ISO 1012:2011
SIST ISO 1012:2011
INTERNATIONAL STANDARD
© ISOISO 1012:1998(E)1Photography — Films in sheets and rolls for general use —Dimensions1ScopeThis International Standard specifies the nominal sizes and aim dimensions, with their cutting tolerances, ofphotographic films in rolls and sheets for use in
general photographic applications. It also specifies perforatingdimensions and selected core dimensions and includes a section on package marking.NOTE
Films used for specific photographic applications, such as radiography, graphic arts, micrography, aerialphotography, documentary reproduction and on recording instruments, are specified in other International Standards.2Normative referencesThe following International Standards contain provisions which, through reference in this text, constitute provisionsof this International Standard.
At the time of publication, the editions indicated were valid.
All standards are subjectto revision and parties to agreements based on this International Standard are encouraged to investigate thepossibility of applying the most recent editions of the standards indicated below.
Members of IEC and ISO maintainregisters of currently valid International Standards.ISO 1:1975, Standard reference temperature for industrial length measurements.ISO 554:1976, Standard atmospheres for conditioning and/or testing — Specifications.3Conditions for measurement of dimensions3.1DimensionsThe dimensions and tolerances specified in this International Standard shall apply at the time of manufacture(except where specifically stated otherwise), when measured under atmospheric conditions of (23 ± 2) °C and(50 ± 5) % relative humidity, as specified in ISO 554.3.2Calibration of measuring instrumentsAll measuring instrument calibrations shall be conducted at a temperature of 20 °C
(as specified in ISO 1) and arelative humidity of 50 %.4Film in rolls4.1Film dimensionsPreferred roll widths for 35 mm, 46 mm and 70 mm films, along with their cutting tolerances, shall conform to thevalues given in table 1.
New film sizes shall conform to the cutting rules given in table 2.SIST ISO 1012:2011
ISO 1012:1998(E)© ISO2NOTE
For 35 mm films, the width and perforating dimensions are intended to be the same as those given inISO 1007:— 1), Photography — 135-size film and magazine — Specifications.The preferred nominal film lengths shall conform to the values given in table 3.
The actual film length shall be notless than that given, but additional length is left to the discretion of the manufacturer.4.2Perforating dimensionsPerforated roll films shall conform to the dimensions shown in figure 1 and given in table 4.4.3Winding configurationFilm shall be wound with the sensitized side inwards.It is recognized that some traditional applications utilize rolls with the sensitized side wound outwards.4.4SplicesFilm in rolls shall comprise a single, unspliced, length.4.5CoresCore dimensions shall conform to those shown in figure 2 and given in table 5. Slots in cores may be provided foruse in attaching the film being wound.
One or both ends of the core may be rounded slightly to f
...
