ISO 24316:2022
(Main)Ships and marine technology — Design and test requirements for steel doors using electrical trace heating
Ships and marine technology — Design and test requirements for steel doors using electrical trace heating
This document specifies the design, materials, quality of manufacture, test and designation of electrical trace heating for steel doors onboard vessels sailing in a low temperature environment (below −10 °C).
Titre manque
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 24316
First edition
2022-07
Ships and marine technology —
Design and test requirements for steel
doors using electrical trace heating
Reference number
ISO 24316:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO 24316:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 24316:2022(E)

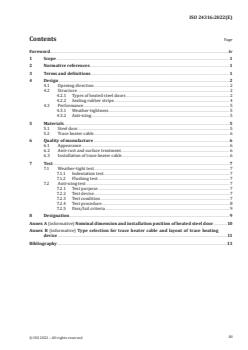

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Design . 2
4.1 Opening direction . 2
4.2 Structure . 2
4.2.1 Types of heated steel doors . 2
4.2.2 Sealing rubber stripe . 4
4.3 Performance . 5
4.3.1 Weather-tightness . 5
4.3.2 Anti-icing . 5
5 Materials . 5
5.1 Steel door . 5
5.2 Trace heater cable . 6
6 Quality of manufacture .6
6.1 Appearance . 6
6.2 Anti-rust and surface treatment . . 6
6.3 Installation of trace heater cable. 6
7 Test . 7
7.1 Weather-tight test . 7
7.1.1 Indentation test . 7
7.1.2 Flushing test . 7
7.2 Anti-icing test . 7
7.2.1 Test purpose . 7
7.2.2 Test device . 7
7.2.3 Test condition . 7
7.2.4 Test procedure. 8
7.2.5 Pass/fail criteria . 9
8 Designation . 9
Annex A (informative) Nominal dimension and installation position of heated steel door .10
Annex B (informative) Type selection for trace heater cable and layout of trace heating
device .11
Bibliography .13
iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 24316:2022(E)

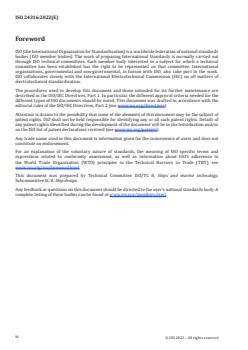

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology,
Subcommittee SC 8, Ship design.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 24316:2022(E)
Ships and marine technology — Design and test
requirements for steel doors using electrical trace heating
1 Scope
This document specifies the design, materials, quality of manufacture, test and designation of electrical
trace heating for steel doors onboard vessels sailing in a low temperature environment (below −10 °C).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 8501-1, Preparation of steel substrates before application of paints and related products — Visual
assessment of surface cleanliness — Part 1: Rust grades and preparation grades of uncoated steel substrates
and of steel substrates after overall removal of previous coatings
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
heated steel door
door made of steel installed onboard vessels sailing in a low temperature environment (3.4) enabling
people to open normally by adding heat through the trace heater cable (3.3)
3.2
trace heater
device designed for the purpose of producing heat on the principle of electrical resistance and typically
composed of one or more metallic conductors or an electrically conductive material, suitably electrically
insulated and protected
Note 1 to entry: This can be in the form of a trace heater cable (3.3), heater panel or heated pad.
[SOURCE: IEC 60519-10:2013, 3.115]
3.3
trace heater cable
circular to flattened cable shaped construction with one or more discrete or continuous electrically
insulated heating elements
Note 1 to entry: This cable is able to self-regulate its heating output power due to ambient temperature.
[SOURCE: IEC 60519-10:2013, 3.116]
1
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
ISO 24316:2022(E)
3.4
low temperature environment
water with the lowest mean daily low temperature below −10 °C, such as the Arctic Ocean, St. Francis
Bay, North Baltic, Okhotsk, Bohai and North Yellow Sea
Note 1 to entry: In general, these waters are covered by regional sea ice during winter.
[SOURCE: IMO MSC.385 (94), 1.2.12, modified]
4 Design
4.1 Opening direction
[1]
Depending on the opening direction , heated steel doors shall be classified into the following two
types (see Figure 1):
a) Type L: left-hand heated steel door (the hinge stays left when the door opens towards the observer);
b) Type R: right-hand heated steel door (the hinge stays right when the door opens towards the
observer).
Type L Type R
Key
1 hinge
L left-hand
R right-hand
Figure 1 — Opening direction
4.2 Structure
4.2.1 Types of heated steel doors
The heated steel doors are classified into three types, as shown in Table 1, Figure 2 and Figure 3.
Table 1 — Types of heated steel doors
Type Definition
M heated steel door whose locking mode is multi-buckle open
H heated steel door whose locking mode is single handle linkage open
W heated steel door whose locking mode is hand wheel linkage open
2
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 24316:2022(E)
Key
1 door plate 6 sleeve
2 sealing rubber stripe 7 thermal insulation
...
