ISO 9635-3:2014

Agricultural irrigation equipment - Irrigation valves - Part 3: Check valves

ISO 9635-3:2014 specifies construction and performance requirements and test methods for check valves, intended for operation in irrigation systems with water at temperatures not exceeding 60 °C, which can contain fertilizers and other chemicals of the types and concentrations used in agriculture. It is applicable to hydraulically operated check irrigation valves of DN 15 diameter or greater, designed to operate in the fully open and fully closed positions, but which can also operate for extended time periods in any intermediate position.

Matériel agricole d'irrigation — Vannes d'irrigation — Partie 3: Clapets antiretour

General Information

• Status: Published
• Publication Date: 13-Nov-2014
• ICS: 65.060.35 - Irrigation and drainage equipment
• Technical Committee: ISO/TC 23/SC 18 - Irrigation and drainage equipment and systems
• Drafting Committee: ISO/TC 23/SC 18 - Irrigation and drainage equipment and systems
• Current Stage: 9093 - International Standard confirmed
• Start Date: 04-Sep-2025
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 9635-3:2006 - Agricultural irrigation equipment - Irrigation valves - Part 3: Check valves
• Effective Date: 24-Dec-2011

Overview

ISO 9635-3:2014 - Agricultural irrigation equipment - Irrigation valves - Part 3: Check valves - specifies construction, performance requirements and test methods for hydraulically operated check valves used in agricultural irrigation systems. The standard applies to valves of DN 15 and larger, designed to operate fully open and fully closed (and capable of remaining in intermediate positions), with water temperatures up to 60 °C and exposure to fertilizers and agricultural chemicals.

Key topics and technical requirements

• Scope and definitions: clear definitions for check valves and flow-coefficient (Kv) used for performance claims.
• Design requirements: compliance with ISO 9635-1 general requirements (orientation, maintainability, marking of flow direction).
• Mechanical strength: tests for shell and pressure-containing parts and for obturator resistance to differential pressure; post-test function must not degrade by more than 10% versus manufacturer-declared values.
• Resistance to bending: bending moment tests defined as a function of DN to simulate in-line loads.
• Watertightness and seat tightness: internal and external pressure leak tests and seat tightness tests at high and low differential pressures.
• Hydraulic characteristics: head-loss or Kv must match manufacturer data; when measured per ISO 9644:2008, head loss shall not exceed 1.1× the declared value.
• Chemical resistance: materials and lubricants in contact with water must resist fertilizers/chemicals used in agriculture.
• Endurance: valves must withstand 2 500 opening/closing cycles (Annex A procedure) at approximately 1 m/s flow velocity and still pass leak tests; endurance testing not required for DN > 300.
• Conformity assessment: type tests, production control and quality-system requirements referenced to ISO 9635-1.

Practical applications

• Use ISO 9635-3:2014 to develop technical specifications for manufacturing, type-testing, and quality control of irrigation check valves.
• Aid procurement teams and irrigation system designers to select valves verified for chemical resistance, hydraulic performance and durability.
• Provide acceptance criteria for independent test laboratories and certification bodies performing leak, strength and endurance tests.
• Support maintenance teams by clarifying expected performance limits and required markings (e.g., flow direction) and recommending valve designs that permit in-line repair.

Who should use this standard

• Valve manufacturers and product engineers
• Irrigation system designers and agricultural engineers
• Test laboratories and conformity assessment bodies
• Procurement/specification writers for agricultural and landscape irrigation projects
• Maintenance and asset managers of irrigation networks

Related standards

• ISO 9635-1:2014 (General requirements for irrigation valves)
• ISO 9635 (Parts 1–5 covers isolating, check, air and control valves)
• ISO 9644:2008 (Pressure losses in irrigation valves - test method)

Keywords: ISO 9635-3:2014, check valves, irrigation valves, agricultural irrigation equipment, DN 15, endurance test, Kv, seat tightness, chemical resistance.

Standards Content (Sample)

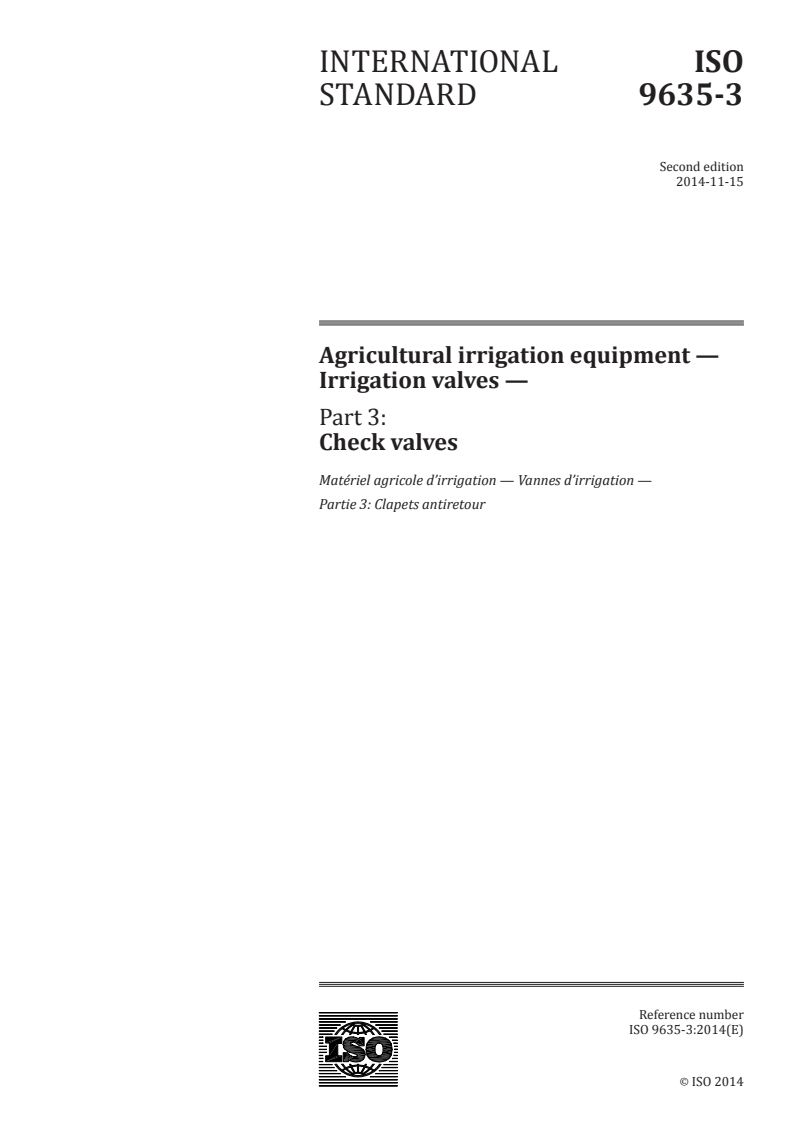

INTERNATIONAL ISO
STANDARD 9635-3
Second edition
2014-11-15
Agricultural irrigation equipment —
Irrigation valves —
Part 3:
Check valves
Matériel agricole d’irrigation — Vannes d’irrigation —
Partie 3: Clapets antiretour
Reference number
©
ISO 2014
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

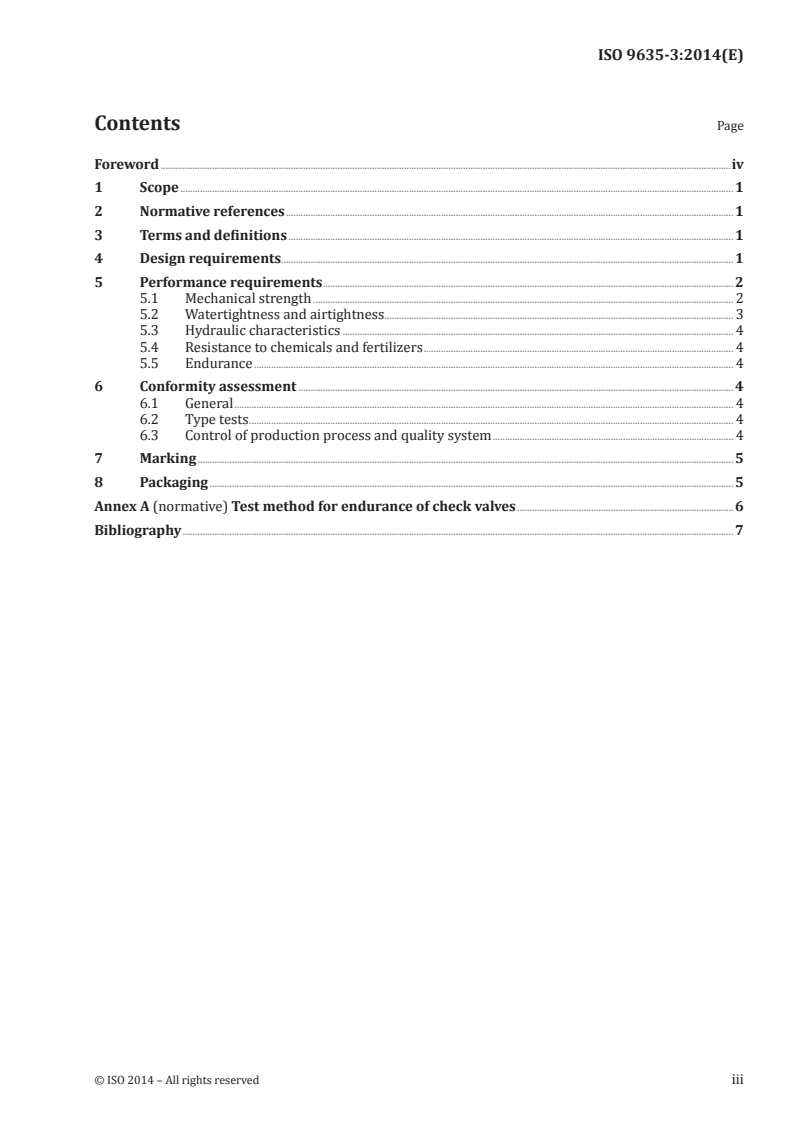

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Design requirements . 1
5 Performance requirements . 2
5.1 Mechanical strength . 2
5.2 Watertightness and airtightness. 3
5.3 Hydraulic characteristics . 4
5.4 Resistance to chemicals and fertilizers . 4
5.5 Endurance . 4
6 Conformity assessment . 4
6.1 General . 4
6.2 Type tests . 4
6.3 Control of production process and quality system . 4
7 Marking . 5
8 Packaging . 5
Annex A (normative) Test method for endurance of check valves . 6
Bibliography . 7

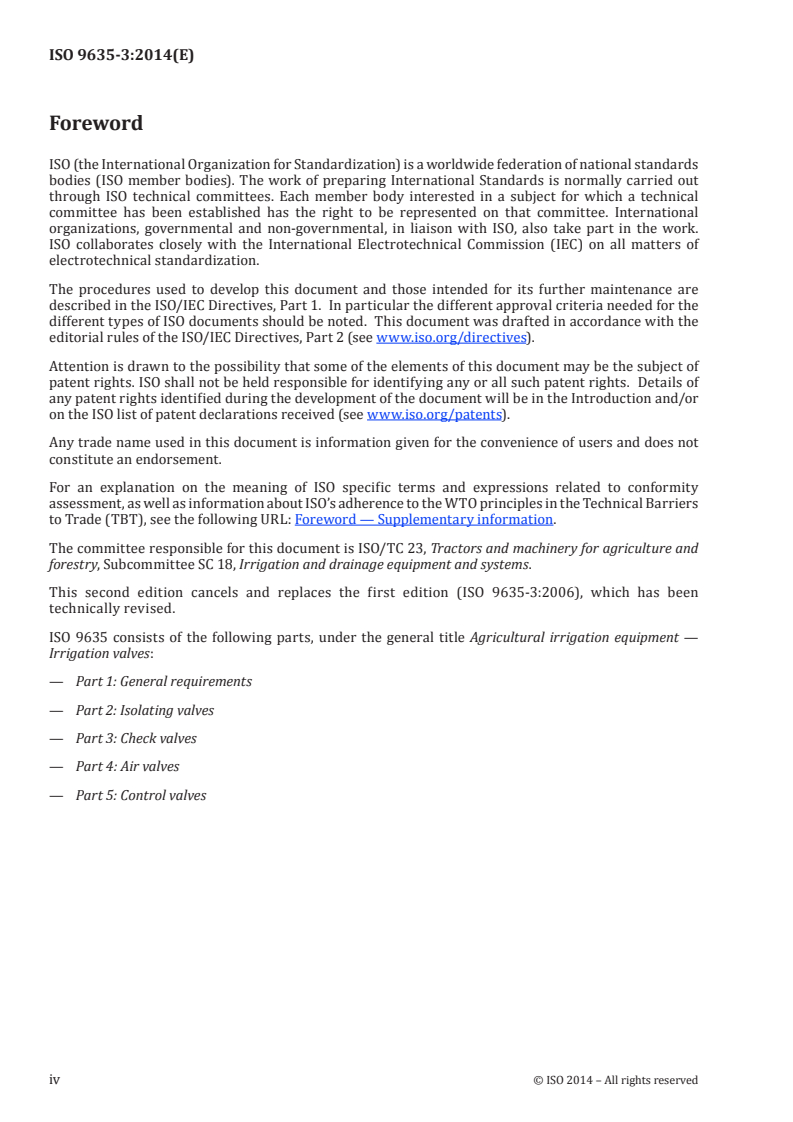

Foreword
