INTERNATIONAL ISO
STANDARD 11119-4
First edition
2016-02-15
Gas cylinders — Refillable composite
gas cylinders — Design, construction
and testing —
Part 4:
Fully wrapped fibre reinforced
composite gas cylinders up to 150 l
with load-sharing welded metallic
liners
Bouteilles à gaz — Bouteilles à gaz rechargeables en matériau
composite et tubes — Conception, construction et essais —
Partie 4: Bouteilles à gaz composites entièrement bobinées renforcées
par des fibres et tubes d’une contenance allant jusqu’à 150 l avec
liners métalliques transmettant la charge
Reference number
ISO 11119-4:2016(E)
©
ISO 2016
---------------------- Page: 1 ----------------------
ISO 11119-4:2016(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 11119-4:2016(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols . 4
5 Inspection and testing . 4
6 Materials . 5
6.1 Liner materials . 5
6.2 Composite materials . 5
7 Design and manufacture . 6
7.1 General . 6
7.2 Design submission . 6
7.3 Manufacturing . 7
8 Type approval procedure . 9
8.1 General requirements . 9
8.2 Prototype tests . 9
8.3 New design .10
8.4 Design variants .11
8.5 Type approval test procedures and criteria .14
8.5.1 Proof pressure test .14
8.5.2 Hydraulic volumetric expansion test .14
8.5.3 Liner burst test .15
8.5.4 Liner integrity test .15
8.5.5 Cylinder burst test .16
8.5.6 Ambient cycle test .16
8.5.7 Environmental cycle test.18
8.5.8 Flaw test .20
8.5.9 Drop test .22
8.5.10 High velocity impact (gunfire) test .23
8.5.11 Fire resistance test .24
8.5.12 Salt water immersion test .25
8.5.13 Torque test .26
8.5.14 Environmentally assisted stress rupture test .26
8.5.15 Leak test .27
8.5.16 Composite material mechanical properties tests .27
8.5.17 Failure of type approval tests .27
9 Batch inspection and testing .28
9.1 General .28
9.2 Liner .28
9.3 Failure of liner batch tests .29
9.4 Overwrap materials .29
9.5 Composite cylinder.29
9.6 Cylinder failure during type approval or batch testing .31
10 Cylinder marking .31
10.1 General .31
10.2 Additional marking .31
Annex A (informative) Examples of design approval certificate .33
Annex B (informative) Specimen test reports .35
© ISO 2016 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 11119-4:2016(E)

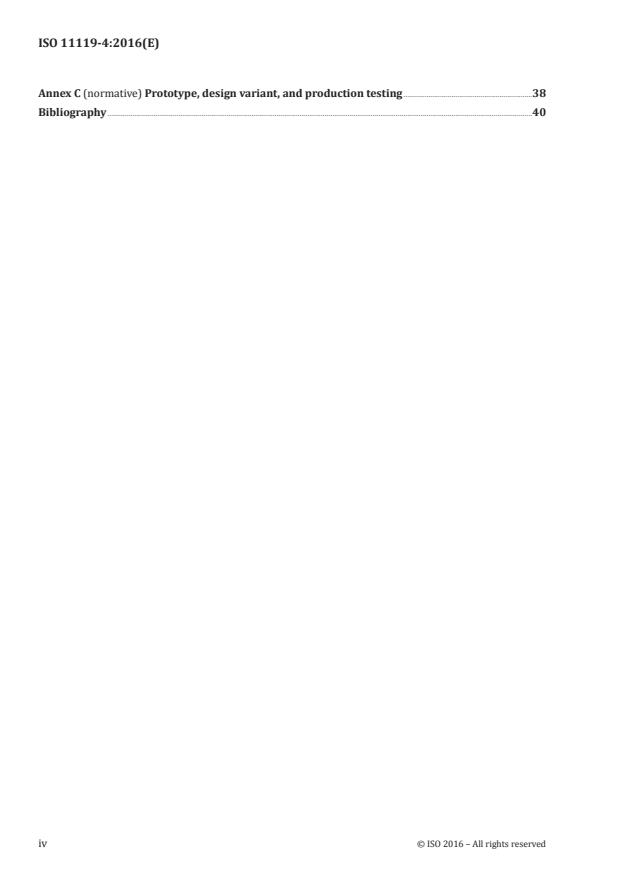

Annex C (normative) Prototype, design variant, and production testing .38
Bibliography .40
iv © ISO 2016 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 11119-4:2016(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 58, Gas cylinders, Subcommittee SC 3,
Cylinder design.
ISO 11119 consists of the following parts, under the general title Gas cylinders — Refillable composite
gas cylinders and tubes — Design, construction and testing:
— Part 1: Hoop wrapped fibre reinforced composite gas cylinders and tubes up to 450 l
— Part 2: Fully wrapped fibre reinforced composite gas cylinders and tubes up to 450 l with load-
sharing metal liners
— Part 3: Fully wrapped fibre reinforced composite gas cylinders and tubes up to 450L with non-load-
sharing metallic or non-metallic liners
— Part 4: Fully wrapped fibre reinforced composite gas cylinders up to 150 l with load-sharing welded
metallic liners
© ISO 2016 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO 11119-4:2016(E)
Introduction
The purpose of this part of ISO 11119 is to provide a specification for the design, manufacture,
inspection, and testing of a cylinder for worldwide usage. The objective is to balance design and
economic efficiency against international acceptance and universal utility.
This part of ISO 11119 aims to eliminate the concern about climate, duplicate inspection, and restrictions
currently existing because of a lack of definitive International Standards and is not to be construed as
reflecting on the suitability of the practice of any nation or region.
It is possible that some procedures and tests will require precautions to be taken for the health and/or
safety of the operator(s). Safety, health, and environmental concerns are not addressed and is to be
addressed by those who wish to implement this International Standard.
This part of ISO 11119 is intended to be used under a variety of national and international regulatory
regimes. Where there is any conflict between this part of ISO 11119 and any applicable regulation, the
regulation always takes precedence.
This part of ISO 11119 has been written so that it is suitable to be referenced in the UN Model
[1]
Regulations.
Annexes A and B of this part of ISO 11119 are for information only.
Annex C of this part of ISO 11119 is normative.
vi © ISO 2016 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 11119-4:2016(E)
Gas cylinders — Refillable composite gas cylinders —
Design, construction and testing —
Part 4:
Fully wrapped fibre reinforced composite gas cylinders up
to 150 l with load-sharing welded metallic liners
1 Scope
This part of ISO 11119 specifies requirements for composite gas cylinders with load-sharing welded
liners between 0,5 l and 150 l water capacity and a maximum test pressure of 450 bar for the storage
and conveyance of compressed or liquefied gases.
5 5 2
NOTE 1 1 bar = 10 Pa = 10 N/m .
The cylinders are constructed in the form of a welded stainless steel liner or welded ferritic steel liner
or welded aluminium alloy liner and overwrapped with carbon fibre or aramid fibre or glass fibre (or a
mixture thereof) in a matrix to provide longitudinal and circumferential reinforcement.
The cylinders in this part of ISO 11119 are type 3 fully wrapped cylinders with a load-sharing metal
liner and composite reinforcement on both the cylindrical portion and the dome ends.
Cylinders produced in accordance with this part of ISO 11119 have a minimum design life of 15 years.
Cylinders with test pressure of up to 60 bar have an unlimited design life.
This part of ISO 11119 does not address the design, fitting, and performance of removable protective
sleeves.
This part of ISO 11119 does not apply to cylinders with seamless liners. For seamless liners,
ISO 11119-2 applies.
NOTE 2 ISO 11623 covers periodic inspection and re-testing of composite cylinders.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3341, Textile glass — Yarns — Determination of breaking force and breaking elongation
ISO 4706:2008, Gas cylinders — Refillable welded steel cylinders — Test pressure 60 bar and below
ISO 5817:2014, Welding — Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding
excluded) — Quality levels for imperfections
ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method
ISO 6508-1, Metallic materials — Rockwell hardness test — Part 1: Test method
ISO 8521, Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Test methods
for the determination of the apparent initial circumferential tensile strength
ISO 10042:2005, Welding — Arc-welded joints in aluminium and its alloys — Quality levels for imperfections
© ISO 2016 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO 11119-4:2016(E)
ISO 10618, Carbon fibre — Determination of tensile properties of resin-impregnated yarn
ISO 11114-1, Gas cylinders — Compatibility of cylinder and valve materials with gas contents — Part 1:
Metallic materials
ISO 13341, Gas cylinders — Fitting of valves to gas cylinders
ISO 13769, Gas cylinders — Stamp marking
ISO 13919-1:1996, Welding — Electron and laser-beam welded joints — Guidance on quality levels for
imperfections — Part 1: Steel
ISO 13919-2:2001, Welding — Electron and laser beam welded joints — Guidance on quality levels for
imperfections — Part 2: Aluminium and its weldable alloys
ISO 14130, Fibre-reinforced plastic composites — Determination of apparent interlaminar shear strength
by short-beam method
ISO 18172-2:2007, Gas cylinders — Refillable welded stainless steel cylinders — Part 2: Test pressure
greater than 6 MPa
ISO 20703:2006, Gas cylinders — Refillable welded aluminium-alloy cylinders — Design, construction and
testing
ASTM D2290-12,Standard test method for apparent hoop tensile strength of plastic or reinforced plastic pipe
ASTM D2291-09, Standard practice for fabrication of ring test specimens for glass-resin composites
ASTM D2343-09, Standard test method for tensile properties of glass fiber strands, yarns, and rovings used
in reinforced plastics
ASTM D2344/D2344M-13, Standard test method for short-beam strength of polymer matrix composite
materials and their laminates
ASTM D4018-11, Standard test methods for properties of continuous filament carbon and graphite fiber tows
EN 14638-3:2010, Transportable gas cylinders. Refillable welded receptacles of a capacity not exceeding
150 litres. Welded carbon steel cylinders made to a design justified by experimental methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
fibre
continuous filaments laid up in tow form
3.2
autofrettage
pressure application procedure that strains the metal liner past its yield point sufficient to cause
permanent plastic deformation and results in the liner having compressive stresses and the fibres
having tensile stresses when at zero internal gauge pressure
3.3
batch of liners
production quantity of up to 200 finished liners successively produced, plus units required for
destructive testing of the same nominal diameter, length, thickness welding procedure, and design
from the same material cast and heat treated (if applicable) at the same temperature and for the same
period of time
2 © ISO 2016 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 11119-4:2016(E)
3.4
batch of finished cylinders
production quantity of up to 200 finished cylinders successively produced by the same manufacturing
process, plus finished cylinders required for destructive testing of the same nominal diameter, length,
thickness, and design
3.5
burst pressure
highest pressure reached in a cylinder, p , or liner, p , during a burst test
b bl
3.6
calculated liner proof pressure
pressure derived from the test pressure of the relevant liner design standard
Note 1 to entry: The liner design standards are given in Table 1. The calculated liner proof pressure is used for
the liner integrity test.
3.7
composite overwrap
combination of fibres and matrix
3.8
dedicated gas service
service in which a cylinder is to be used only with a specified gas or group of gases
3.9
equivalent fibre
fibre manufactured from the same nominal raw materials, using the same process of manufacture and
having the same physical structure and the same nominal physical properties, and where the average
tensile strength and modulus is within ±5 % of the fibre properties in an approved cylinder design
3.10
equivalent liner
liner that is manufactured from the same nominal raw materials, using the same process(es) of
manufacture and having the same physical structure and the same nominal physical properties as in an
approved cylinder design
3.11
exterior coating
layers of material applied to the cylinder as protection or for cosmetic purposes
Note 1 to entry: The coating can be clear or pigmented.
3.12
liner
inner portion of the composite cylinder comprising a metallic vessel, whose purpose is both to contain
the gas and transmit the gas pressure to the fibres
3.13
load-sharing liner
liner that has a burst pressure greater than or equal to 5 % of the nominal burst pressure of the finished
composite cylinder
3.14
thermoplastic material
plastics capable of being repeatedly softened by increase of temperature and hardened by decrease
of temperature
© ISO 2016 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO 11119-4:2016(E)
3.15
thermosetting material
plastics that hardens permanently into a substantially infusible and insoluble product when cured by
the application of heat or chemical means
3.16
working pressure
settled pressure of a compressed gas at a reference temperature of 15 °C in a full gas cylinder
3.17
nominal outside diameter
diameter of the cylinder specified by the manufacturer for the type approval including tolerances
EXAMPLE Tolerances could be ±1 %.
3.18
type 3 cylinder
fully wrapped cylinder with a load-sharing metal liner and composite reinforcement on both cylindrical
and dome ends
3.19
test pressure
p
h
required pressure applied during the pressure test of the composite cylinder
4 Symbols
Symbols and their designations
Symbol Designation Unit
p burst pressure of finished cylinder bar
b
p test pressure bar
h
p maximum developed pressure at 65 °C bar
max
p working pressure bar
w
P burst pressure of the liner bar
bl
P calculated liner proof pressure for liner integrity test bar
l
N number of cycles with pressurization to test pressure units
N number of cycles with a pressurization to maximum developed pressure units
d
Y number of years of design life units
B width of weld reinforcement mm
h height or width of imperfection mm
t wall or plate thickness (nominal size) mm
5 Inspection and testing
Evaluation of conformity shall be carried out in accordance with the applicable regulations of the
countries of use.
4 © ISO 2016 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 11119-4:2016(E)
To ensure that the cylinders conform to this part of ISO 11119, they shall be subject to inspection and
testing in accordance with Clauses 6, 7, 8, and 9 by an inspection body, hereafter referred to as the
“inspector”, authorized to do so.
Equipment used for measurement, testing, and examination during production shall be maintained and
calibrated within a documented quality management system.
6 Materials
6.1 Liner materials
6.1.1 The liner requirements are given in Table 1.
Table 1 — Liner requirements
Type of liner Liner material Liner heat treatment Applicable standard Relevant sections
of the applicable
standard
Welded steel liner Carbon steel Yes ISO 4706:2008 5, 6.3, 8, 9
No EN 14638-3:2010 4, 5.4, 6, 8
Stainless steel As defined in the ISO 18172-2:2007 4, 5.6, 6, 8
standard
Welded aluminium Aluminium alloy As defined in the ISO 20703:2006 4, 5.4, 6, 7
Alloy liner standard
Design requirements are excluded as these are specified by the manufacturer for the design of the
composite cylinder (7.2.4).
6.1.2 The composite cylinder manufacturer shall verify that each new batch of materials has the correct
properties and is of satisfactory quality and records shall be maintained so that the cast of material and
the heat treatment batch (where applicable) used for the manufacture of each cylinder can be identified.
6.1.3 The liner shall be manufactured from a metal or alloy suitable for the gas to be contained in
accordance with ISO 11114-1.
6.1.4 When a neck ring is provided, it shall be of a material compatible with that of the cylinder and
shall be securely attached by a method appropriate to the liner material.
6.2 Composite materials
6.2.1 The overwrap materials shall be carbon fibre or aramid fibre or glass fibre or any mixture thereof.
6.2.2 The matrix shall be a polymer suited to the application, environment, and intended life of the
product.
6.2.3 The filament material and the matrix system component materials shall be accompanied with
sufficient documentation to be able to fully identify the batch of materials used in the manufacture of
each cylinder.
6.2.4 The composite cylinder manufacturer shall verify that each new batch of materials has the correct
properties and is of satisfactory quality, and shall maintain records from which the batch of materials
used for the manufacture of each cylinder can be identified. A certificate of conformity from the material
manufacturer is considered acceptable for the purposes of verification.
© ISO 2016 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO 11119-4:2016(E)
6.2.5 Batches of materials shall be identified and documented.
7 Design and manufacture
7.1 General
7.1.1 A type 3 fully wrapped composite gas cylinder with load-sharing welded liner shall comprise of
the following:
a) an internal metal liner which carries part of the longitudinal and circumferential load. For
cylinders with test pressure above 60 bar, the maximum permissible load share by the liner shall
be 30 %, which results in a maximum liner burst pressure of 30 % of minimum burst pressure of
the finished cylinder;
b) a composite overwrap formed by layers of continuous fibres in a matrix;
c) an optional external protection system.
There shall be no adverse reaction or interaction (e.g. epoxy coating with epoxy matrix) between the
liner and the reinforcing fibre by the application of a suitable protective coating to the liner prior to the
wrapping process.
Cylinders shall be designed with one or two openings along the central axis only. Threads shall
extend completely through the neck or have sufficient threads to allow full engagement of the valve.
Construction and workmanship requirements shall be in accordance with those in the standards listed
in Table 1. If the cylinder includes permanently attached components (e.g. neck rings), they shall be
considered as an integral part of the cylinder and form part of the qualified design.
NOTE Examples of certificates are shown in Annexes A and B.
7.1.2 Cylinders with a test pressure less than 60 bar shall have a non-limited design life
7.2 Design submission
7.2.1 The design submission for each new design of cylinder shall include a detailed drawing, along
with documentation of the design including manufacturing and inspection particulars as specified in
7.2.2, 7.2.3, and 7.2.4.
7.2.2 Documentation for the liner shall include (but not be limited to) the following:
a) the material, including limits of chemical analysis;
b) the dimensions, minimum wall thickness, straightness, and out-of-roundness with tolerances;
c) the process and specification of manufacture;
d) the weld profile including the manufacturing procedure, dimensions and tolerances, and the
maximum limits for excess weld metal as specified in 7.3.1 a);
e) the heat treatment, temperatures, duration, and tolerances, if applicable;
f) the inspection procedures (in addition to those specified on the referred liner standard in
accordance with Table 1);
g) the material properties including minimum mechanical properties and hardness ranges, where
applicable;
h) the calculated proof pressure of the liner for liner integrity test, P (in accordance with 8.5.4);
l
6 © ISO 2016 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 11119-4:2016(E)
i) the minimum
...
DRAFT INTERNATIONAL STANDARD
ISO/DIS 11119-4
ISO/TC 58/SC 3 Secretariat: BSI
Voting begins on: Voting terminates on:
2013-10-15 2014-01-15
Gas cylinders — Refillable composite gas cylinders and
tubes — Design, construction and testing —
Part 4:
Fully wrapped fibre reinforced composite gas cylinders
and tubes up to 450 L with load-sharing welded metallic
liners
Bouteilles à gaz composites — Spécifications et méthodes d’essai
ICS: 23.020.30
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 11119-4:2013(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2013
---------------------- Page: 1 ----------------------
ISO/DIS 11119-4:2013(E)
Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as
permitted under the applicable laws of the user’s country, neither this ISO draft nor any extract
from it may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, photocopying, recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2013 – All rights reserved
---------------------- Page: 2 ----------------------
Contents Page
Foreword . v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 3
4 Symbols . 5
5 Inspection and testing . 5
6 Materials . 5
6.1 General . 5
6.2 Composite materials . 7
7 Design and manufacture . 7
7.1 General . 7
7.2 Design submission . 7
7.3 Manufacturing . 9
8 Type approval procedure. 10
8.1 General requirements . 10
8.2 Prototype tests . 10
8.3 New design . 11
8.4 Design variants . 12
8.5 Type approval test procedures and criteria . 16
8.5.1 Proof pressure test . 16
8.5.2 Hydraulic volumetric expansion test . 16
8.5.3 it shows a permanent expansion (i.e. volumetric expansion after the pressure has been
released) in excess of 5 % of the total expansion.Liner Burst test . 17
8.5.4 Liner Integrity test . 17
8.5.5 Cylinder burst test . 18
8.5.6 Ambient cycle test . 18
8.5.7 Environmental cycle test . 20
8.5.8 Flaw test . 21
8.5.9 Drop test . 24
8.5.10 High velocity impact (Gunfire) test . 25
8.5.11 Fire resistance test . 26
8.5.12 Salt water immersion test . 27
8.5.13 Torque test . 28
8.5.14 Environmentally assisted stress rupture test . 28
8.5.15 Failure of type approval tests . 29
9 Batch inspection and testing . 29
9.1 Liner . 30
9.1.1 Each batch of liners shall be examined and dimensionally checked to ensure compliance
with the design specification. The following inspections shall be conducted: . 30
9.2 Failure of liner batch tests . 31
9.3 Overwrap materials . 31
9.4 Composite cylinder . 31
9.5 Cylinder failure during type approval or batch testing . 32
10 Cylinder marking . 33
10.1 General . 33
10.2 Additional marking . 33
© ISO 2013 – All rights reserved iii
---------------------- Page: 3 ----------------------

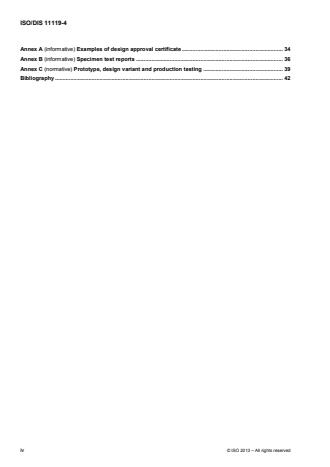

ISO/DIS 11119-4
Annex A (informative) Examples of design approval certificate . 34
Annex B (informative) Specimen test reports . 36
Annex C (normative) Prototype, design variant and production testing . 39
Bibliography . 42
iv © ISO 2013 – All rights reserved
---------------------- Page: 4 ----------------------
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11119-4 was prepared by Technical Committee ISO/TC 58, Gas cylinders, Subcommittee SC 3, Cylinder
design.
This is a first edition.
ISO 11119 consists of the following parts, under the general title Gas cylinders – Refillable composite gas
cylinders and tubes — Design, construction and testing:
Part 1: Hoop-wrapped composite gas cylinders and tubes up to 450L
Part 2: Fully-wrapped fibre reinforced composite gas cylinders and tubes up to 450L with load-sharing metal
liners
Part 3: Fully-wrapped fibre reinforced composite gas cylinders and tubes up to 450L with non-load-sharing
metallic or non-metallic liners
Part 4: Fully-wrapped fibre reinforced composite gas cylinders and tubes up to 450L with load-sharing welded
metallic liners
© ISO 2013 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/DIS 11119-4
Introduction
The purpose of this part of ISO 11119 is to provide a specification for the design, manufacture, inspection and
testing of a cylinder for world-wide usage. The objective is to balance design and economic efficiency against
international acceptance and universal utility.
ISO 11119 aims to eliminate the concern about climate, duplicate inspection and restrictions currently existing
because of lack of definitive International Standards and is not to be construed as reflecting on the suitability
of the practice of any nation or region.
Some procedures and tests may require that precautions be taken for the health and/or safety of operator(s).
Safety, health and environmental concerns are not addressed and should be addressed by those who wish to
implement this standard.
ISO 11119-4 is intended to be used under a variety of national regulatory regimes but has been written so that
it is suitable for use with the conformity assessment system of the UN Model Regulations for the
Transportation of Dangerous Goods. Attention is drawn to requirements in specified relevant national
regulations of the country (countries) where the cylinders are intended to be used that might override the
requirements given in this International Standard
Annexes A and B of this part of ISO 11119 are for information only.
Annex C of this part of ISO 11119 is normative.
vi © ISO 2013 – All rights reserved
---------------------- Page: 6 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 11119-4
Gas cylinders – Refillable composite gas cylinders and tubes —
Design, construction and testing — Part 4: Fully wrapped fibre
reinforced composite gas cylinders and tubes up to 450L with
load-sharing welded metallic liners
1. Scope
This part of ISO 11119 specifies requirements for composite gas cylinders and tubes with load sharing welded
liners between 0.5 l and 450 l water capacity and a maximum test pressure of 450 bar, for the storage and
conveyance of compressed or liquefied gases.
The cylinders are constructed in the form of a welded stainless steel liner or welded ferritic steel liner or
welded aluminum alloy liner and- over-wrapped with carbon fibre or aramid fibre or glass fibre (or a mixture
thereof) in a matrix to provide longitudinal and circumferential reinforcement.
The cylinders and tubes in this standard are Type 3 Fully Wrapped Cylinders or Tubes with a load sharing metal
liner and composite reinforcement on both the cylindrical portion and the dome ends.
Cylinders produced in accordance with the standard have a minimum design life of 15 years. Cylinders with
test pressure up to 60 bar have an unlimited design life.
This part of ISO 11119 does not address the design, fitting and performance of removable protective sleeves.
This part of ISO 11119 does not apply to cylinders with seamless liners. For seamless liners ISO11119-2
applies
NOTE ISO 11623 covers periodic inspection and re-testing of composite cylinders.
2. Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 75.3; Plastics -- Determination of temperature of deflection under load -- Part 3: High-strength
thermosetting laminates and long-fibre-reinforced plastics
ISO 3341, Textile glass – Yarns – Determination of breaking force and breaking elongation
ISO 4706, Gas cylinders -- Refillable welded steel cylinders -- Test pressure 60 bar and below ISO 6506-1,
Metallic materials — Brinell hardness test — Part 1: Test method
ISO 5817; Welding — Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding excluded)
— Quality levels for imperfections
ISO 6506-1; Metallic materials - Brinell hardness test -- Part 1: Test method
ISO 6508-1; Metallic materials -- Rockwell hardness test -- Part 1: Test method (scales A, B, C, D, E, F, G, H,
K, N, T)
© ISO 2013 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/DIS 11119-4
ISO 8521; Plastics piping systems -- Glass-reinforced thermosetting plastics (GRP) pipes -- Test methods for
the determination of the apparent initial circumferential tensile strength
ISO 10042; Welding -- Arc-welded joints in aluminium and its alloys -- Quality levels for imperfections
ISO 10618: Carbon Fibre – Determination of tensile properties of resin impregnated yarn
ISO 10460; Gas cylinders -- Welded carbon-steel gas cylinders -- Periodic inspection and testing
ISO 10464; Gas cylinders -- Refillable welded steel cylinders for liquefied petroleum gas (LPG) -- Periodic
inspection and testing
ISO 11114-1, Transportable gas cylinders — Compatibility of cylinder and valve materials with gas contents
— Part 1: Metallic materials
ISO 13341, Transportable gas cylinders — Fitting of valves to gas cylinders
ISO 13769, Gas cylinders — Stampmarking
ISO 13919-1; Welding - Electron and laser-beam welded joints - Guidance on quality levels for imperfections -
Part 1: Steel
ISO 13919-2; Welding - Electron and laser-beam welded joints - Guidance on quality levels for imperfections -
Part 2: Aluminium and its weldable alloys
ISO 14130 – Fibre-reinforced plastic composites -- Determination of apparent interlaminar shear strength by
short-beam method
ISO 18172-2, Gas cylinders -- Refillable welded stainless steel cylinders -- Part 2: Test pressure greater than
6 MPa
ISO 20703, Gas cylinders -- Refillable welded aluminium-alloy cylinders -- Design, construction and testing
ISO/CD 21172-1 – Gas cylinders – Welded steel pressure drums for the transport of gases. Design and
construction. Part 1: Capacities up to 1000 litres
ASTM D2290, Standard Test Method for Apparent Hoop Tensile Strength of Plastic or Reinforced Plastic Pipe
ASTM D2291; Standard Practice for Fabrication of Ring Test Specimens for Glass-Resin Composites
ASTM D2343; Standard Test Method for Tensile Properties of Glass Fiber Strands, Yarns, and Rovings Used
in Reinforced Plastics
ASTM D2344; Standard Test Method for Short-Beam Strength of Polymer Matrix Composite Materials and
Their Laminates
ASTM D4018; Standard Test Methods for Properties of Continuous Filament Carbon and Graphite Fiber Tows
ASTM D3418; Standard Test Method for Transition Temperatures and Enthalpies of Fusion and
Crystallization of Polymers by Differential Scanning Calorimetry
ASTM D2196; Standard Test Methods for Rheological Properties of Non-Newtonian Materials by Rotational
(Brookfield type) Viscometer
EN14638-3, Transportable gas cylinders. Refillable welded receptacles of a capacity not exceeding 150 litres.
Welded carbon steel cylinders made to a design justified by experimental methods
2 © ISO 2013 – All rights reserved
---------------------- Page: 8 ----------------------
3. Terms and definitions
For the purposes of this document the following terms and definitions apply. References to cylinders are to
include composite tubes as appropriate
3.1
aramid fibre
continuous filaments of aramid laid up in tow form
3.2
autofrettage
pressure application procedure which strains the metal liner past its yield point sufficient to cause permanent
plastic deformation, and results in the liner having compressive stresses and the fibres having tensile stresses
when at zero internal gauge pressure
3.3
batch
set of homogeneous items or material
NOTE The number of items in a batch can vary according to the context in which the term is used.
3.4
batch of liners
production quantity of up to 200 finished liners successively produced (plus units required for destructive
testing) of the same nominal diameter, length, thickness and design, from the same material cast and heat
treated (if applicable) to the same conditions of temperature and time
3.5
batch of finished cylinders
production quantity of up to 200 finished cylinders successively produced by the same manufacturing process,
plus finished cylinders required for destructive testing, of the same nominal diameter, length, thickness and
design
3.6
burst pressure
highest pressure reached in a cylinder (pb) or liner (pb ) during a burst test
l
3.7
calculated linerproof pressure
pressure used for the liner integrity test and derived from the test pressure of the relevant liner design
standard
NOTE The liner design standards are given in table 1.
3.8
carbon fibre
continuous filaments of carbon laid up in tow form
3.9
composite overwrap
combination of fibres and matrix
3.10
dedicated gas service
service in which a cylinder is to be used only with a specified gas or group of gases
3.11
equivalent fibre
fibre equivalent to a fibre used in a previously prototype tested cylinder
© ISO 2013 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/DIS 11119-4
3.12
equivalent liner
-equivalent liners are manufactured from raw materials with the same specification, using the same process of
manufacture and having the same physical structure and where the average tensile strength and modulus is
within ± 5 % of the approved cylinder design
3.13
exterior coating
layers of material applied to the cylinder as protection or for cosmetic purposes
NOTE The coating can be clear or pigmented.
3.14
glass fibre
continuous filaments of glass laid up in tow form
3.15
liner
inner portion of the composite cylinder, comprising a metallic vessel, whose purpose is both to contain the gas
and transmit the gas pressure to the fibres
3.16
matrix
material that is used to bind and hold the fibres in place
3.17
load-sharing liner
liner which has a burst pressure greater than or equal to 5 % of the nominal burst pressure of the finished
composite cylinder.
3.18
thermoplastic material
plastics capable of being repeatedly softened by increase of temperature and hardened by decrease of
temperature
3.19
thermosetting material
plastics that, when cured by the application of heat or chemical means, harden permanently into a
substantially infusible and insoluble product
3.20
working pressure
settled pressure of a compressed gas at a reference temperature of 15°C in a full gas cylinder
3.21
nominal outside diameter
Diameter of the cylinder specified by the manufacturer for the type approval including tolerances (e.g. +/- 1%)
3.22
type 3 cylinder
fully wrapped cylinder with a load sharing metal liner and composite reinforcement on both cylindrical and
dome ends.
3.23
test pressure (ph)
required pressure applied during the pressure test of the composite cylinder
4 © ISO 2013 – All rights reserved
---------------------- Page: 10 ----------------------
4. Symbols
Symbols and their designations
Symbol Designation Unit
p Burst pressure of finished cylinder bar
b
p Test pressure bar
h
p Maximum developed pressure at 65 °C bar
max
p Working pressure bar
W
pbl Burst pressure of the liner
N Number of cycles with pressurization to test pressure
Nd Number of cycles with a pressurization to maximum developed pressure
Y Number of years of design life
pl Calculated liner proof pressure for liner integrity test
5. Inspection and testing
To ensure that the cylinders conform to this part of ISO 11119, they shall be subject to the requirements,
inspection and testing in accordance with clauses 6, 7, 8 and 9 by an inspection body (hereafter referred to as
"the inspector") authorized to do so. Example forms of certificates that can be used are shown in annexes A
and B.
Equipment used for measurement, testing and examination during production shall be maintained and
calibrated within a documented quality management system.
6. Materials
6.1 Liner Materials
6.1.1 The liner materials shall conform in all relevant aspects to the appropriate standards (as per table 1).
6.1.2 Relevant sections are those covering materials, thermal treatments, neck design, construction and
workmanship and, mechanical tests. Design requirements are excluded since these are specified by the
manufacturer for the design of the composite cylinder (7.2. 4). The materials used shall be of uniform and
consistent quality. The composite cylinder manufacturer shall verify that each new batch of materials has the
correct properties and is of satisfactory quality, and shall maintain records so that the cast of material and the
heat treatment batch (where applicable) used for the manufacture of each cylinder can be identified.
6.1.3 The liner shall be required to be manufactured from a metal or alloy suitable for the gas to be
contained as required by ISO 11114-1.
6.1.4 When a neck ring is provided, it shall be of a material compatible with that of the cylinder and shall be
securely attached by a method appropriate to the liner material.
© ISO 2013 – All rights reserved 5
---------------------- Page: 11 ----------------------
Table 1 — Liner material requirements
Type Type of liner Liner material Liner heat treatment Applicable standard Relevant sections of Capacity
the applicable
standard
Cylinders Welded steel liner Carbon steel Yes ISO 4706:2008 5, 6.3, 8, 9 Up to 150L
No EN 14638-3:2010 4, 5.4,6,8 Up to 150L
Stainless steel As defined in the ISO 18172-2:2007 4,5.6,6,8 Up to 150L
standard (yes or no)
Welded Aluminium Aluminium alloy ISO 20703:2006 4,5.4,6,7 Up to 150L
Alloy liner
Drums Welded steel drums Carbon steel, [ISO/CD 21172-1] ? 150 up to 450L
austenitic stainless
steel
© ISO 2013 – All rights reserved 6
---------------------- Page: 12 ----------------------
6.2 - Composite materials
6.2.1 The overwrap materials shall be carbon fibre or aramid fibre or glass fibre, or any mixture thereof.
6.2.2 The matrix shall be a polymer suited to the application, environment and intended life of the product
6.2.3 The supplier of the filament material and the matrix system component materials shall provide
sufficient documentation for the composite cylinder manufacturer to be able to identify fully the batch of
materials used in the manufacture of each cylinder.
6.2.4 The materials used shall be of uniform and consistent quality. The composite cylinder manufacturer
shall verify that each new batch of materials has the correct properties and is of satisfactory quality, and
maintain records from which the batch of materials used for the manufacture of each cylinder can be
identified. A certificate of conformance from the material manufacturer is considered acceptable for the
purposes of verification.
6.2.5 Batches of materials shall be identified and documented to the satisfaction of the inspector.
7. . Design and manufacture
7.1 General
7.1.1 A Type 3 fully-wrapped composite gas cylinder with load sharing welded liner shall comprise of:
a) an internal metal liner which carries part of the longitudinal and circumferential load
b) a composite overwrap formed by layers of continuous fibres in a matrix;
c) an optional external protection system.
Where necessary, care shall be taken to ensure that there is no adversive reaction or interaction (e.g. epoxy
coating with epoxy matrix) between the liner and the reinforcing fibre by the application of a suitable protective
coating to the liner prior to the wrapping process.
Cylinders shall be designed with one or two openings along the central axis only. Threads shall extend
completely through the neck or have sufficient threads to allow full engagement of the valve or have sufficient
threads to allow proper engagement of the valve. Only manufacturing processes covered by the standards
listed in table 1 are permissible.The cylinder may also include additional parts such as neck rings, bases,
etc…
7.1.2 Examples of certificates are shown in informative Annexes A and B.
7.2 Design submission
7.2.1 The design submission for each new design of cylinder shall include a detailed drawing, along with
documentation of the design including manufacturing and inspection particulars as detailed in 7.2.2, 7.2.3, and
7.2.4.
7.2.2 Documentation for the liner shall include (but not be limited to):
a) material, including limits of chemical analysis;
b) dimensions, minimum thickness, straightness and out-of-roundness with tolerances;
c) process and specification of manufacture;
© ISO 2013 – All rights reserved 7
---------------------- Page: 13 ----------------------
ISO/DIS 11119-4
d) the weld profile including the manufacturing procedure, dimensions and tolerances and the maximum
limits for excess weld metal as described in ISO 5817, table 1, §1.9; or ISO 10042, table 1, §1.11; or ISO
13919-1, table 2, §11 or ISO 13919-2, table 2 §12.
Table 2 — Excess weld metal limits
Standard Figure Limits for imperfections for quality
level
ISO 5817, table 1, §1.9 • h ≤ 1 mm + 0,1 b,
but max. 5 mm
h ≤ 1,5 mm + 0,1 b,
ISO 10042, table 1, §1.11
but max. 6 mm
ISO 13919-1, table 2, §11 • h ≤ 0.2 mm + 0,15
t, or 5 mm,
whichever is the
smaller
• h ≤ 0.2 mm + 0,15
ISO 13919-2, table 2 §12
t, maximum 5 mm
e) heat-treatment, temperatures, duration and tolerances, if applicable;
f) inspection procedures (in addition to those specified on the referred liner standard as per table 1);
g) material properties including minimum mechanical properties and hardness ranges, where applicable;
h) calculated proof pressure of the liner for liner integrity test (p ) (as per 8.5.4)
l
i) minimum design burst pressure (pb ) ;
l
j) dimensional details of valve threads and any other permanent features.
8 © ISO 2013 – All rights reserved
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
