SLOVENSKI STANDARD
01-december-2019
Kakovost vode - Določevanje perfluoroalkil in polifluoroalkil spojin (PFAS) v vodi -
Metoda z ekstrakcijo na trdni fazi in s tekočinsko kromatografijo-tandemsko
masno spektrometrijo (LC-MS/MS)
Water quality - Determination of perfluoroalkyl and polyfluoroalkyl substances (PFAS) in
water - Method using solid phase extraction and liquid chromatography-tandem mass
spectrometry (LC-MS/MS)
Qualité de l'eau - Détermination des substances d'alkyle perfluorés et polyfluorés (SPFA)
dans l'eau - Méthode par extraction en phase solide et chromatographie liquide et
spectrométrie de masse en tandem (CL-SM/SM)
Ta slovenski standard je istoveten z: ISO 21675:2019
ICS:
13.060.50 Preiskava vode na kemične Examination of water for
snovi chemical substances
71.040.50 Fizikalnokemijske analitske Physicochemical methods of
metode analysis
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

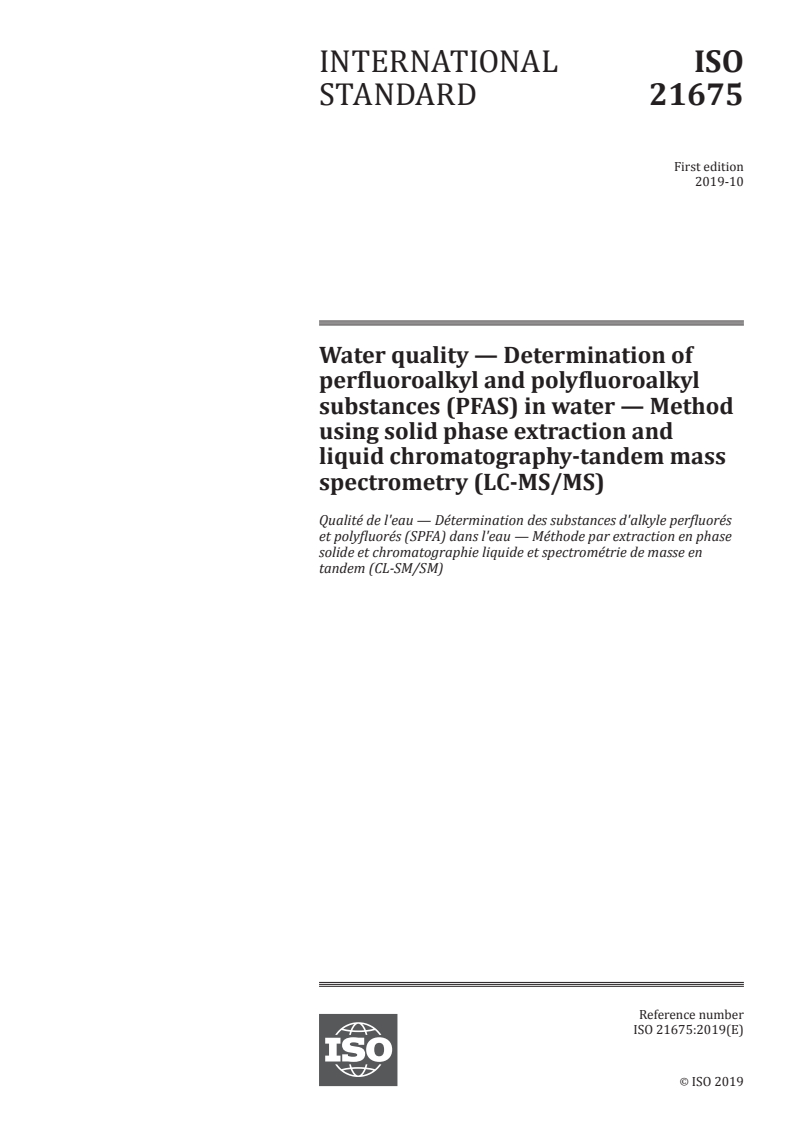

INTERNATIONAL ISO
STANDARD 21675
First edition
2019-10
Water quality — Determination of
perfluoroalkyl and polyfluoroalkyl
substances (PFAS) in water — Method
using solid phase extraction and
liquid chromatography-tandem mass
spectrometry (LC-MS/MS)
Qualité de l'eau — Détermination des substances d'alkyle perfluorés
et polyfluorés (SPFA) dans l'eau — Méthode par extraction en phase
solide et chromatographie liquide et spectrométrie de masse en
tandem (CL-SM/SM)
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

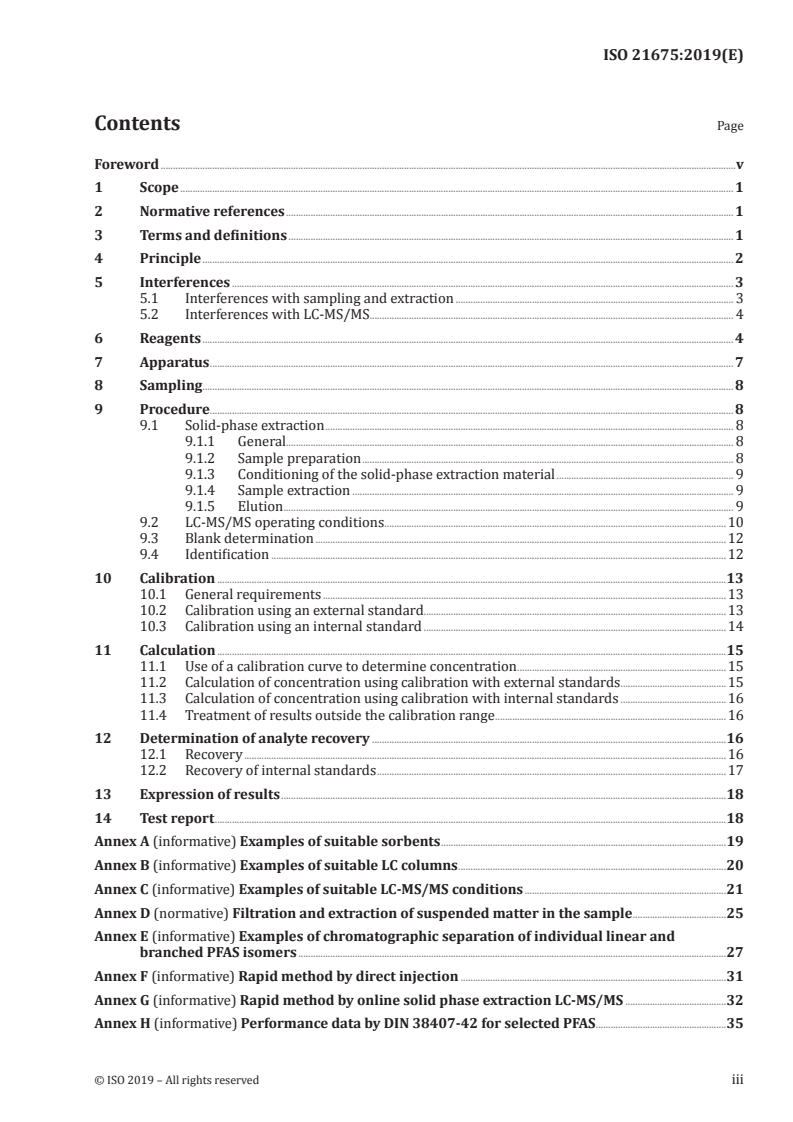

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Interferences . 3
5.1 Interferences with sampling and extraction . 3
5.2 Interferences with LC-MS/MS. 4
6 Reagents . 4
7 Apparatus . 7
8 Sampling . 8
9 Procedure. 8
9.1 Solid-phase extraction . 8
9.1.1 General. 8
9.1.2 Sample preparation . 8
9.1.3 Conditioning of the solid-phase extraction material . 9
9.1.4 Sample extraction . 9
9.1.5 Elution . 9
9.2 LC-MS/MS operating conditions .10
9.3 Blank determination .12
9.4 Identification .12
10 Calibration .13
10.1 General requirements .13
10.2 Calibration using an external standard .13
10.3 Calibration using an internal standard .14
11 Calculation .15
11.1 Use of a calibration curve to determine concentration .15
11.2 Calculation of concentration using calibration with external standards .15
11.3 Calculation of concentration using calibration with internal standards .16
11.4 Treatment of results outside the calibration range .16
12 Determination of analyte recovery .16
12.1 Recovery .16
12.2 Recovery of internal standards .17
13 Expression of results .18
14 Test report .18
Annex A (informative) Examples of suitable sorbents .19
Annex B (informative) Examples of suitable LC columns .20
Annex C (informative) Examples of suitable LC-MS/MS conditions .21
Annex D (normative) Filtration and extraction of suspended matter in the sample .25
Annex E (informative) Examples of chromatographic separation of individual linear and
branched PFAS isomers .27
Annex F (informative) Rapid method by direct injection .31
Annex G (informative) Rapid method by online solid phase extraction LC-MS/MS .32
Annex H (informative) Performance data by DIN 38407-42 for selected PFAS .35

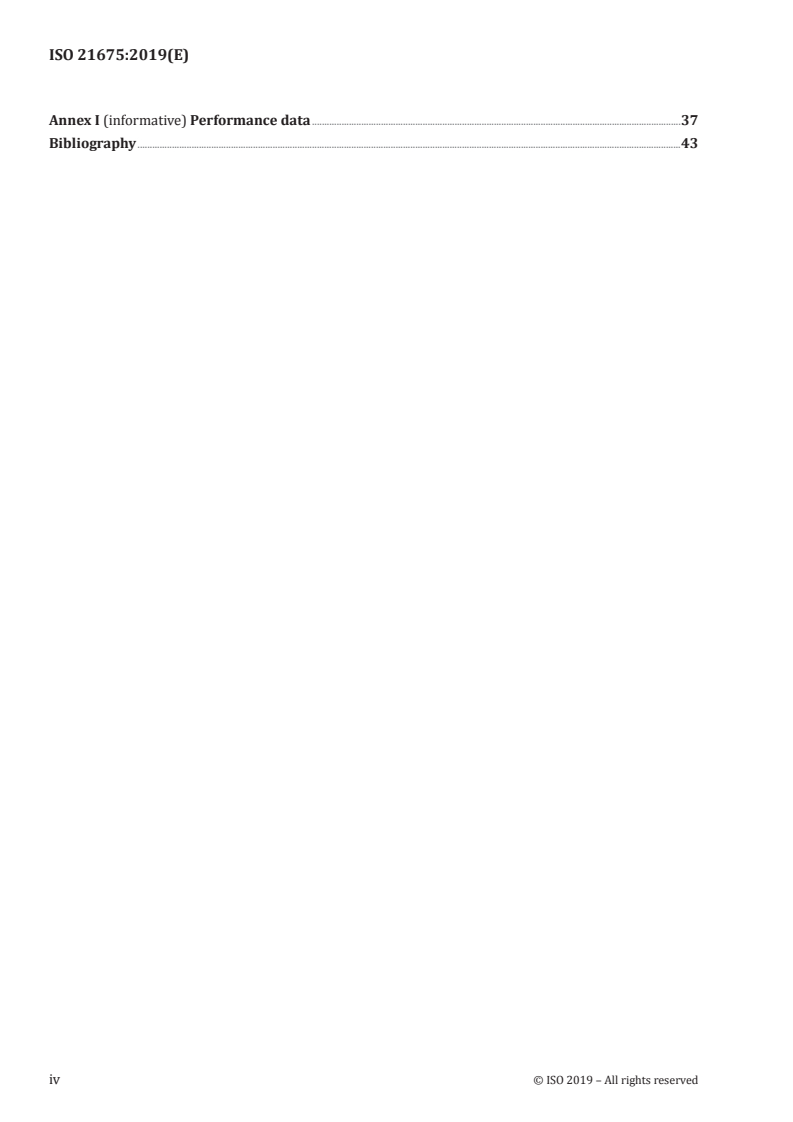

Annex I (informative) Performance data .37
Bibliography .43
iv © ISO 2019 – All rights reserved
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2,
Physical, chemical and biochemical methods.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
INTERNATIONAL STANDARD ISO 21675:2019(E)
Water quality — Determination of perfluoroalkyl and
polyfluoroalkyl substances (PFAS) in water — Method
using solid phase extraction and liquid chromatography-
tandem mass spectrometry (LC-MS/MS)
WARNING — Persons using this document should be familiar with normal laboratory practice.
This document does not purport to address all of the safety problems, if any, associated with its
use. It is the responsibility of the user to establish appropriate safety and health practices.
IMPORTANT — It is absolutely essential that tests conducted in accordance with this document
be carried out by suitably qualified staff.
1 Scope
This document specifies a method for the determination of selected perfluoroalkyl and polyfluoroalkyl
substances (PFAS) in non-filtrated waters, for example drinking water, natural water (fresh water and
sea water) and waste water containing less than 2 g/l solid particulate material (SPM) using liquid
chromatography-tandem mass spectrometry (LC-MS/MS). The compounds monitored by this method
are typically the linear isomers. The group of compounds determined by this method are representative
of a wide variety of PFAS. The analytes specified in Table 1 can be determined by this method. The list
can be modified depending on the purpose for which the method is intended. The lower application
range of this method can vary depending on the sensitivity of the equipment used and the matrix of the
sample. For most compounds to which this document applies ≥0,2 ng/l as limit of quantification can be
achieved. Actual levels can depend on the blank levels realized by individual laboratory.
The applicability of the method to further substances, not listed in Table 1, or to further types of water
is not excluded, but is intended to be validated separately for each individual case.
NOTE 1 PFAS is used in this document to describe the analytes monitored. Many of the compounds in Table 1
are perfluoroalkyl and are also considered polyfluoroalkyl substances.
NOTE 2 The linear PFAS isomers are specified in this document. The branched isomers can be present in
environmental samples, especially for PFOS. Annex E provides an example of an analytical approach to the
chromatographic and spectroscopic separation of individual isomers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 5667-1, Water quality — Sampling — Part 1: Guidance on the design of sampling programmes and
sampling techniques
ISO 5667-3, Water quality — Sampling — Part 3: Preservation and handling of water samples
ISO 21253-1, Water quality — Multi-compound class methods — Part 1: Criteria for the identification of
target compounds by gas and liquid chromatography and mass spectrometry
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org ./ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
perfluoroalkyl and polyfluoroalkyl substances
PFAS
commonly used international abbreviation for organic compounds with replacement of most or all
hydrogen atoms by fluorine in the aliphatic chain structure
Note 1 to entry: The term is used in the broader sense for per- and polyfluoroalkyl substances (PFAS), and per-
and polyfluorinated compounds (PFC) as well.
4 Principle
The analytes listed in Table 1 are extracted from the water sample by solid-phase extraction
using a weak anion exchange sorbent followed by solvent elution and determination by liquid
chromatography-tandem mass-spectrometry.
The user should be aware that each analyte has its own specific optimum conditions and therefore
modification of the analyte list could require the specification of additional conditions for each
additional parameter.
Table 1 — Analytes determinable by this method
a b
Analyte IUPAC name Formula Abbreviation CAS-RN
Perfluoro-n- 1,1,2,2,3,3,4,4,4-Nonafluorobutane-1-sul- C HF O S PFBS 375-73-5
4 9 3
butanesulfonic acid fonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,6-Tridecafluorohex- C HF O S PFHxS 355-46-4
6 13 3
hexanesulfonic acid ane-1-sulfonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,7-Pentade- C HF O S PFHpS 375-92-8
7 15 3
heptanesulfonic acid cafluoroheptane-1-sulfonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Heptade- C HF O S PFOS 1763-23-1
8 17 3
octanesulfonic acid cafluorooctane-1-sulfonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Hen- C HF O S PFDS 335-77-3
10 21 3
decanesulfonic acid icosafluorodecane-1-sulfonic acid
Perfluorooctanesulfo- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Heptade- C H F NO S FOSA 754-91-6
8 2 17 2
namide cafluoro-1-octanesulfonamide
N-methyl 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Heptade- C H F NO S N-MeFOSA 31506-32-8
9 4 17 2
perfluorooctanesulfo- cafluoro-N-methyl-1-octanesulfonamide
namide
N-ethyl N-Ethyl-1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-he C H F NO S N-EtFOSA 4151-50-2
10 6 17 2
perfluorooctanesulfo- ptadecafluorooctane-1-sulfonamide
namide
N-methyl 2-[1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Hepta- C H F NO S N-MeFOSAA 2355-31-9
11 6 17 4
perfluorooctanesulfon- decafluorooctylsulfonyl(methyl)amino]
amidoacetic acid acetic acid
N-ethyl 2-[Ethyl(1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8 C H F NO S N-EtFOSAA 2991-50-6
12 8 17 4
perfluorooctanesulfon- -heptadecafluorooctylsulfonyl)amino]
amidoacetic acid acetic acid
6:2 Fluorotelomer sul- 3,3,4,4,5,5,6,6,7,7,8,8,8-Tridecafluorooc- C H F O S 6:2 FTSA 27619-97-2
8 5 13 3
fonic acid tane-1-sulfonic acid
8:2 Fluorotelomer sul- 3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Heptade- C H F O S 8:2 FTSA 39108-34-4
10 5 17 3
fonic acid cafluorodecane-1-sulfonic acid
a
IUPAC: International Union of Pure and Applied Chemistry.
b
CAS-RN: Chemical Abstract Services Registry Number.
2 © ISO 2019 – All rights reserved
Table 1 (continued)
a b
Analyte IUPAC name Formula Abbreviation CAS-RN
9-Chlorohexade- 2-(6-Chloro-1,1,2,2,3,3,4,4,5,5,6,6-do- C HClF O S 9Cl-PF3ONS 73606-19-6
8 16 4
cafluoro-3-oxanon- decafluorohexoxy)-1,1,2,2-tetrafluo-
ane-1-sulfonic acid roethanesulfonic acid
Perfluoro-n-butanoic 2,2,3,3,4,4,4-Heptafluorobutanoic acid C HF O PFBA 375-22-4
4 7 2
acid
Perfluoro-n- 2,2,3,3,4,4,5,5,5-Nonafluoropentanoic acid C HF O PFPeA 2706-90-3
5 9 2
pentanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,6-Undecafluorohexa- C HF O PFHxA 307-24-4
6 11 2
hexanoic acid noic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,7-Tridecafluorohep- C HF O PFHpA 375-85-9
7 13 2
heptanoic acid tanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Pentadecafluo- C HF O PFOA 335-67-1
8 15 2
octanoic acid rooctanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,9-Heptade- C HF O PFNA 375-95-1
9 17 2
nonanoic acid cafluorononanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Non- C HF O PFDA 335-76-2
10 19 2
decanoic acid adecafluorodecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFUnDA 2058-94-8
11 21 2
undecanoic acid 11,11,11-Henicosafluoroundecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFDoDA 307-55-1
12 23 2
dodecanoic acid 11,11,12,12,12-Tricosafluorododecanoic
acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFTrDA 72629-94-8
13 25 2
tridecanoic acid 11,11,12,12,13,13,13-Pentacosafluorotri-
decanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFTeDA 376-06-7
14 27 2
tetradecanoic acid 11,11,12,12,13,13,14,14,14-Hepta-
cosafluorotetradecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFHxDA 67905-19-5
16 31 2
hexadecanoic acid 11,11,12,12,13,13,14,14,15,15,16,16,
16-Hentriacontafluorohexadecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFOcDA 16517-11-6
18 35 2
octadecanoic acid 11,11,12,12,13,13,14,14,15,15,16,16,
17,17,18,18,18-Pentatriacontafluoroocta-
decanoic acid
8:2 Fluorotelomer 3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Hexade- C H F O 8:2 FTUCA 70887-84-2
10 2 16 2
unsaturated carboxylic cafluorodec-2-enoic acid
acid
8:2 Polyfluoroalkyl Bis(3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-he C H F O P 8:2 diPAP 678-41-1
20 9 34 4
phosphate diester ptadecafluorodecyl) hydrogen phosphate
Hexafluoropropylene 2,3,3,3-Tetrafluoro-2-(1,1,2,2,3,3,3- C HF O HFPO-DA 13252-13-6
6 11 3
oxide dimer acid heptafluoropropoxy)propanoic acid
4,8-Dioxa-3H-perfluor- 2,2,3-Trifluoro-3-[1,1,2,2,3,3-hex- C H F O DONA 919005-14-4
7 2 12 4
ononanoic acid afluoro-3-(trifluoromethoxy)propoxy]
propanoic acid
a
IUPAC: International Union of Pure and Applied Chemistry.
b
CAS-RN: Chemical Abstract Services Registry Number.
5 Interferences
5.1 Interferences with sampling and extraction
Sample bottles (7.1) shall consist of materials that do not contaminate or change the composition of the
sample during sample storage. All types of fluoropolymer plastics, including polytetrafluoroethylene
(PTFE) and fluoroelastomer materials, shall be avoided during sampling, sample storage and extraction.
Sample bottles (7.1) shall be checked for possible background contamination before use. If background
contamination is suspected or detected in sample bottles (7.1), then wash sample bottles (7.1) with
water (6.1) and methanol (6.6) prior to use. To avoid cross contamination, the sample bottles (7.1) should
only be used once. The use of intermediate sample tubes (7.6) and vials (7.10) should be limited in the
overall process to avoid contamination of loss by sorption. To avoid losses resulting from adsorption of
target analytes to the wall of sample bottle (7.1) and reservoir column (7.4), extract all of the sample
from the sample bottle (7.1) and rinse the wall of sample bottle (7.1) and reservoir column (7.4) with
methanol (6.6).
Commercially available adsorbent materials often vary in quality or activity. Considerable batch-
to-batch differences in quality and selectivity of these materials are possible. The recovery of a
single substance may also vary with respect to its concentration. Therefore, check analyte recovery
periodically at different concentrations and whenever new batches/lots of reagents or labware are
used (12.1).
5.2 Interferences with LC-MS/MS
Substances with similar retention times that can produce ions with similar mass to charge ratios (m/z)
to those produced by the analytes of interest may interfere with the determination.
These interferences may lead to incompletely resolved signals and/or additional signals in the mass
chromatograms of target substances. Depending on their levels in the sample, such substances may
affect the accuracy and precision of the results. The chromatographic separation is different with the
LC column (see Annex C for examples). As long as the peak of interest can be separately integrated from
interferences, it may be used.
Matrix interferences may be caused by contaminants that are co-extracted from the samples. The extent
of matrix interferences varies considerably, depending on the nature of the samples. In drinking water
and ground water, matrix interferences are usually negligible, whereas waste water and sea water
matrices can be affected by matrix interferences that lead to ionization suppression or enhancement
resulting in bias or reduced sensitivity of the method. As long as the required limits of quantification
can be achieved in samples, samples can be diluted to minimize matrix effects.
Interferences arising directly from analytical instruments can be significant for unmodified commercial
LC systems because many parts are made of PTFE and other fluoropolymers. It is necessary to check
for possible blank contamination from the individual parts, such as tubing, solvent inlet filters, valve
seals and the degassing equipment, and replace these with materials such as stainless steel and
polyetheretherketone (PEEK), where possible.
NOTE Background contamination can arise from within the instrument. A delay column can be attached
between the solvent mixer and injection valve to chromatographically resolve these background contaminants
from the instrument and/or mobile phases from the target analytes.
The LC-vial caps shall be free of fluoropolymer material. Efforts should be taken to minimize background
levels in procedural blank materials such that the procedural blank, including the instrumental blank,
is at least 10-fold below the reporting limit.
6 Reagents
Whenever possible, use certified or analytical-grade reagents or residue free-analytical grade
reagents stored in glass or polypropylene containers with metal or polypropylene lined caps. Avoid
using reagents with fluoropolymer lined caps and check contamination levels of target substances
using repeated blank determinations. Carry out additional cleaning or conditioning steps to ensure
background levels are minimized, if necessary.
6.1 Water, blank-value free, e.g. complying with grade 1 as specified in ISO 3696.
Purified laboratory water can be used, but should be confirmed to be free of PFAS. The quality of water
is checked by the same procedure given in 9.3.
4 © ISO 2019 – All rights reserved
6.2 Acetic acid, w(CH COOH) = 99,9 % mass fraction (999 g/kg).
6.3 Acetonitrile, CH CN.
6.4 Ammonia solution, w(NH ) = 25 % mass fraction (250 g/kg).
6.5 Ammonium acetate, w(CH COONH ) = 97 % mass fraction (970 g/kg).
3 4
6.6 Methanol, CH OH, blank-value free.
NOTE The quality of methanol is checked by evaporating 10 ml of methanol with a gentle stream of nitrogen
gas (6.13) to 0,5 ml and determining levels according to this document.
6.7 Reference substances, see Table 1.
Reference substances are analytical standards used for quantitative determination of the method
analytes. Use only reference substances or solutions, where the content of linear isomers is at least
95 %. Make sure that the individual reference substances do not contain detectable concentrations of
other target analytes to be determined by analysing alternate lots or second sources.
NOTE Solutions of reference substances are commercially available.
6.8 Internal standard substances, see Table 3.
Internal standard substances are labelled forms of the reference substances to be used in the analytical
procedure to correct for recovery due to losses of analyte or changes in analytical conditions that could
result in bias. Make sure that the internal standard substances do not contain detectable concentrations
of the analytes to be determined by analysing new lots using this document.
NOTE Solutions of internal standard substances are commercially available.
6.9 Preparation of the solutions
Calculate the concentration of all reference substances and internal standard solutions with regard to
the anion content.
Store the solutions at (5 ± 3) °C in the dark, protected against evaporation. Bring them to room
temperature prior to use (i.e. before dilution or spiking or injection).
6.9.1 Individual stock solutions of the reference substances
Stock solutions of the individual reference substances (6.7) in methanol (6.6) or acetonitrile (6.3) should
be of mass concentration to enable dilution to the desired range, e.g. 50 μg/ml each.
6.9.2 Individual stock solutions of internal standard substances
Stock solutions of the individual internal standard substances (6.8) in methanol (6.6) or acetonitrile (6.3)
should be of mass concentration to enable dilution to the desired range, e.g. 50 μg/ml each.
6.9.3 Native stock solution (reference substances)
Prepare a solution of the reference substances with a mass concentration of, for example, 0,1 μg/ml each.
Fill, for example, 1 ml of each solution of the individual reference substances, for example 50 μg/ml
(6.9.1), into a 500 ml volumetric flask (7.7) and make the solution up to the mark with methanol (6.6).
6.9.4 Labelled stock solution (internal standard substances)
Prepare a solution of the labelled internal standard substances with a mass concentration of, for
example, 0,1 μg/ml each.
Fill, for example, 1 ml of each solution of the individual internal standard substances, e.g. 50 μg/ml
(6.9.2), into a 500 ml volumetric flask (7.7) and make the solution up to the mark with methanol (6.6).
6.9.5 Spiking solution (reference substances)
Prepare a solution of the reference substances with a mass concentration of, for example, 10 ng/ml each.
Fill, for example, 1 ml of the native stock solution e.g. 0,1 μg/ml (6.9.3) into a 10 ml volumetric flask (7.7)
and make the solution up to the mark with methanol (6.6).
This solution is used for recovery samples (see 12.1).
6.9.6 Spiking solution (internal standard substances)
Prepare a solution of the labelled internal standard substances with a mass concentration of, for
example, 10 ng/ml each.
Fill, for example, 1 ml of the labelled stock solution e.g. 0,1 μg/ml (6.9.4) into a 10 ml volumetric
flask (7.7) and make the solution up to the mark with methanol (6.6).
This solution is used for water samples (see 9.1.2) and spiking recovery samples (see 12.1).
6.9.7 Reference solution
Prepare the reference solutions by setting up dilutions of the stock solutions (6.9.3, 6.9.4). Add the same
amount of internal standards to each reference solution.
Prepare the reference solution, for example a solution with a mass concentration of the substances to
be determined and of the internal standard substances e.g. 1 ng/ml each.
Fill, for example, 0,1 ml of native stock solution (reference substances) e.g. 0,1 μg/ml (6.9.3) and 0,1 ml
of labelled stock solution (internal standard substances) e.g. 0,1 μg/ml (6.9.4) into a 10 ml volumetric
flask (7.7) and make the solution up to the mark with methanol (6.6).
6.10 Acetate buffer, for solid-phase extraction, 0,025 mol/l, pH 4.
Mix, for example, 0,5 ml of acetic acid (6.2) with e.g. 349,5 ml of water (6.1). Dissolve e.g. 0,116 g of
ammonium acetate (6.5) in e.g. 60 ml of water (6.1). Mix e.g. 200 ml of the diluted acetic acid with e.g.
50 ml of the ammonium acetate solution.
6.11 Ammonia/methanol solution, for solid-phase extraction, with a mass fraction of
approximately 0,1 %.
Mix, for example, 0,4 ml of ammonia solution (6.4) with e.g. 99,6 ml of methanol (6.6), with a volume of
(NH ) of e.g. 0,1 %.
6.12 Solid-phase extraction material, weak anion exchanger on a copolymer-based. Suitable materials
are available commercially (see Annex A).
6.13 Nitrogen, N , purity >99,9 %.
6 © ISO 2019 – All rights reserved
7 Apparatus
Equipment of which any part may come into contact with the water sample or the extract shall be free
from interfering compounds.
The blank determination shall be conducted before the sampling. Clean labware and apparatus for
solid-phase extraction by washing with water (6.1) and methanol (6.6) if background contamination is
detected in labware and apparatus.
Equipment in contact with sample or reference solutions should be made of polypropylene or
polyethylene. It was not tested except for compounds listed in Annex H for sampling whether the use of
glassware may lead to adsorption of some of the analytes within the scope of the method.
7.1 Sample bottles
Narrow-neck flat-bottomed polypropylene or polyethylene bottles, normal volume 50 ml, 100 ml,
250 ml, 500 ml and 1 000 ml, with conical shoulders and screw caps.
NOTE Glass bottles can be used for compounds listed in Annex H. Glass bottles can be used for sampling
provided that storage conditions of samples have been validated in each case. See Annex H for examples.
The entire sample shall be extracted and the appropriate-sized sample bottle should be used to collect
the sample.
Sample bottles shall be checked for possible background contamination before use. The bottles and
screw caps are washed with methanol (6.6) and dried before use in order to minimize contamination, if
background contamination is detected in sample bottles.
7.2 Pipettes, with polypropylene tips.
7.3 Solid-phase extraction medias (cartridges or disks), made of inert non-leaching plastic, e.g.
polypropylene or polyethylene frits.
The cartridges shall be packed with 50 mg to 1 000 mg of solid-phase extraction material (6.12) as
sorbent. In general, 150 mg to 250 mg of sorbent (see Annex A) in a single cartridge is sufficient for up
to 500 ml of water.
NOTE 1 The 500 mg of sorbent (see Annex A) in a single cartridge is sufficient for 1 000 ml of sea water.
NOTE 2 The stationary phase can be modified if analytes are not recovered quantitatively (for example
neutral substances such as FOSA, N-MeFOSA and N-EtFOSA) using solid-phase extraction material (6.12) for
example strongly hydrophilic reversed -phase copolymer or silica-based.
7.4 Reservoir column, normal volume 60 ml, with adaptor for cartridges (7.3), made of polypropylene
or polyethylene.
7.5 Vacuum or pressure assembly, for the extraction step.
7.6 Sample tubes, made of, for example, polypropylene or polyethylene, for collecting and
concentrating the eluate, e.g. test tube, nominal volume of 15 ml.
7.7 Volumetric flasks, with inert stoppers, made of polypropylene or polyethylene not containing
fluoropolymer materials, normal volume 10 ml, 50 ml, 100 ml and 500 ml.
7.8 Graduated cylinder, normal volume 50 ml, 100 ml and 500 ml.
7.9 Evaporation assembly, using a nitrogen (6.13) stream passing through a stainless-steel needle.
7.10 Vials, made of polypropylene or polyethylene not containing fluoropolymer materials, capacity e.g.
1,5 ml, depending on the auto-sampler, with e.g. polyethylene snap-on caps.
7.11 Liquid chromatograph, temperature-controlled and with all necessary accessories, including
gases, LC columns (see Annex B), injector and tandem mass spectrometer (7.12).
7.12 Tandem mass spectrometer, with an ion source capable of generating ions for the analytes
of interests [e.g. electrospray ionization (ESI)] and capable of determining the m/z values of selected
precursor ions and product ions of the target substances listed in Table 2 and Table 3.
7.13 Analytical balance, capable of weighting to the nearest 0,1 g.
7.14 Centrifuge, capable of 3 000 rpm.
7.15 pH indicator paper.
8 Sampling
Take, preserve and handle samples as specified in ISO 5667-1 and ISO 5667-3.
For sampling, use thoroughly cleaned sample bottles (7.1). Fill the bottle with the water to be sampled.
Store samples in a refrigerator at (5 ± 3) °C and analyse within four weeks.
PFAS compounds with 11 or more carbon atoms may fall out of solution during storage. 8:2 FTUCA in
sea water samples is not stable for four weeks. Sample storage conditions should be checked to confirm
maximum sample storage times. A storage study should be conducted during the method validation
stage for all analytes routinely determined. The entire sample shall be extracted. If the entire sample
is analysed and the sample bottle is rinsed with solvent, the longer chain compounds should be
quantitatively recovered.
9 Procedure
9.1 Solid-phase extraction
9.1.1 General
In general, in this procedure, samples are analysed without pre-treatment. Before starting the analysis,
the sample and internal standard substances (6.9.6) shall have time to equilibrate to room temperature
before analysis.
NOTE Annex F and Annex G provide examples of sample preparation for rapid methods without sample
extraction by solid-phase extraction in 9.1, but these procedures do not have sufficient data for method validation.
9.1.2 Sample preparation
Weigh the sample bottle with its original cap and water sample, to the nearest 1 g or mark the line on
the sample bottle (7.1) with the sample volume.
The entire sample shall be extracted. The water sample which is collected into the sample bottle (7.1)
shall not be separated into new sample bottles to avoid losses of target analytes due to sorption to the
sample bottle (7.1).
8 © ISO 2019 – All rights reserved
The pH value of the sample shall be adjusted to the pH value of 3 with acetic acid (6.2) or ammonia
solution (6.4) by pH indicator paper (7.15), if necessary.
NOTE Low recoveries of internal standard substances (6.9.6) can be improved by adjusting the pH value
to 3, especially for short chain PFAS such as PFBA in a sea water sample.
Add the spiking solution containing the internal standard substances (6.9.6) to the water sample in
the sample bottle (adding e.g. 100 μl of each, actual amount can be adjusted depending on the sample
matrix) and mix thoroughly by shaking.
If the solid-phase extraction cartridge becomes clogged due to large amounts of suspended particulate
in the sample, it may be possible to carry out the operation in Annex D or to divide the sample between
two cartridges and pool the extracts. There may be a risk of increased blank level, which shall be
checked for.
9.1.3 Conditioning of the solid-phase extraction material
The following procedure describes that used for commercially available 6 ml copolymer cartridges
packed with 150 mg of sorbent sandwiched between two polyethylene frits.
Wash the cartridge in the following sequence with 4 ml of ammonia/methanol solution (6.11), 4 ml
of methanol (6.6) and lastly 4 ml of water (6.1) prior to use. Make sure that the sorbent packing in
the cartridge does not run dry. Retain the water in the cartridge (with the water level just above the
packing) to keep the sorbent activated.
NOTE The solvent and water volumes used for conditioning depend on the amount the solid phase material
used (for examples see Annex A).
9.1.4 Sample extraction
Start the extraction immediately after conditioning the sorbent packing. Make sure that no air bubbles
are trapped in the sorbent bed when changing from conditioning to extraction. Do not let the sorbent
material in the cartridge go dry and ensure it is immersed in water at all times.
Let sample (see 9.1.2) run through the cartridge, conditioned as specified in 9.1.3, at a rate of one drop
per second (3 ml/min to 6 ml/min). Regulate the flow rate by changing the vacuum or the pressure
(7.5), respectively.
Collect the sample, using a reservoir column (7.4) connected to the cartridge (7.3) with an adaptor.
Extract the entire sample in the sample bottle (7.1), to avoid losses resulting from adsorption to the
wall of sample bottle (7.1).
Rinse the wall of sample bottle (7.1) and reservoir column (7.4) with a volume of methanol (6.6) which
corresponds to at least 0,5 % of original sample volume. This aliquot of methanol is collected and used
as elution solvent for sample extraction (see 9.1.5).
NOTE In the case of the longer chain PFAS such as PFUnDA, PFDoDA, PFTrDA, PFTeDA, PFHxDA and PFOcDA,
loss can result from adsorption to the sample bottle (7.1) and reservoir column (7.4). Losses due to sorption to
the sample bottle can be reduced by rinsing the sample bottle with methanol.
Measure the volume (in millilitres) of the water used in the extraction by reweighting the empty sample
bottle with its original cap and calculate the net mass of sample, to the nearest 1 g, from the difference
in weight (see 9.1.2). Assuming a density of 1 g/ml, the value of the net mass (in grams) is equivalent
to the volume (in millilitres) of the water used in the extraction. Alternatively, add water (6.1) to the
empty sample bottle up to the mark (see 9.1.2), and measure the water volume using a graduated
cylinder (7.8). This volume is equivalent to the volume (in millilitres) of the original water sample.
9.1.5 Elution
Add 4 ml of water (6.1) and 4 ml of acetate buffer solution (6.10) to the cartridge and discard the eluate.
The water (6.1) volume may be increased to remove interferences in the cartridge, if necessary. Low
recoveries of internal standard substances (see 12.2) can be improved by increasing the amount of
water (6.1), especially for short chain PFAS such as PFBA in sea water samples.
Centrifuge (7.14) the cartridge at 1 500 g for about 2 min or apply a vacuum to completely remove
the residual solution from the cartridge. Then elute the target substances with 4 ml of methanol (6.6),
followed by 4 ml of 0,1 % ammonia/methanol (6.11) at a rate of one drop per second and collect into the
sample tube (7.6), separately.
NOTE 1 The solvent and water volumes used for washing and for the elution of the analytes depend on the
used mass of the solid phase material (for examples see Annex A).
NOTE 2 Methanol which is used to rinse the walls of sample bottle (7.1) and reservoir column (7.4) (see 9.1.4)
is used as the elution solution.
NOTE 3 Neutral substances such as FOSA, N-MeFOSA and N-EtFOSA elute with methanol (6.6). Anionic
substances such as PFOS and PFOA elute with ammonia/methanol (6.11).
Evaporate the eluate with a gentle stream of nitrogen gas (6.13) to a final volume of e.g. 1 ml. The
extract is now ready for LC-MS/MS analysis. The final extract volume may be adjusted by dilution
with methanol, depending on the expected concentrations of the target substances in the sample. The
concentration of the sample should be adjusted (by dilution or concentration) so that the concentrations
of the target substances lie within the calibration range of the instrument. Store the extract at (5 ± 3) °C
in the dark until analysis.
9.2 LC-MS/MS operating conditions
Optimize the operating conditions of the LC-MS/MS system in the electrospray ionization (ESI) negative
mode in accordance with the manufacturer’s instructions. The appropriate LC gradient programme
for the mobile phase is determined experimentally during method development and validation. For
optimum sensitivity, selected ions for MS/MS transitions are listed in Table 2 and Table 3. An example
of typical operating conditions is given in Annex C.
NOTE Us
...
INTERNATIONAL ISO
STANDARD 21675
First edition
2019-10
Water quality — Determination of
perfluoroalkyl and polyfluoroalkyl
substances (PFAS) in water — Method
using solid phase extraction and
liquid chromatography-tandem mass
spectrometry (LC-MS/MS)
Qualité de l'eau — Détermination des substances d'alkyle perfluorés
et polyfluorés (SPFA) dans l'eau — Méthode par extraction en phase
solide et chromatographie liquide et spectrométrie de masse en
tandem (CL-SM/SM)
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Interferences . 3
5.1 Interferences with sampling and extraction . 3
5.2 Interferences with LC-MS/MS. 4
6 Reagents . 4
7 Apparatus . 7
8 Sampling . 8
9 Procedure. 8
9.1 Solid-phase extraction . 8
9.1.1 General. 8
9.1.2 Sample preparation . 8
9.1.3 Conditioning of the solid-phase extraction material . 9
9.1.4 Sample extraction . 9
9.1.5 Elution . 9
9.2 LC-MS/MS operating conditions .10
9.3 Blank determination .12
9.4 Identification .12
10 Calibration .13
10.1 General requirements .13
10.2 Calibration using an external standard .13
10.3 Calibration using an internal standard .14
11 Calculation .15
11.1 Use of a calibration curve to determine concentration .15
11.2 Calculation of concentration using calibration with external standards .15
11.3 Calculation of concentration using calibration with internal standards .16
11.4 Treatment of results outside the calibration range .16
12 Determination of analyte recovery .16
12.1 Recovery .16
12.2 Recovery of internal standards .17
13 Expression of results .18
14 Test report .18
Annex A (informative) Examples of suitable sorbents .19
Annex B (informative) Examples of suitable LC columns .20
Annex C (informative) Examples of suitable LC-MS/MS conditions .21
Annex D (normative) Filtration and extraction of suspended matter in the sample .25
Annex E (informative) Examples of chromatographic separation of individual linear and
branched PFAS isomers .27
Annex F (informative) Rapid method by direct injection .31
Annex G (informative) Rapid method by online solid phase extraction LC-MS/MS .32
Annex H (informative) Performance data by DIN 38407-42 for selected PFAS .35
Annex I (informative) Performance data .37
Bibliography .43
iv © ISO 2019 – All rights reserved
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2,
Physical, chemical and biochemical methods.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
INTERNATIONAL STANDARD ISO 21675:2019(E)
Water quality — Determination of perfluoroalkyl and
polyfluoroalkyl substances (PFAS) in water — Method
using solid phase extraction and liquid chromatography-
tandem mass spectrometry (LC-MS/MS)
WARNING — Persons using this document should be familiar with normal laboratory practice.
This document does not purport to address all of the safety problems, if any, associated with its
use. It is the responsibility of the user to establish appropriate safety and health practices.
IMPORTANT — It is absolutely essential that tests conducted in accordance with this document
be carried out by suitably qualified staff.
1 Scope
This document specifies a method for the determination of selected perfluoroalkyl and polyfluoroalkyl
substances (PFAS) in non-filtrated waters, for example drinking water, natural water (fresh water and
sea water) and waste water containing less than 2 g/l solid particulate material (SPM) using liquid
chromatography-tandem mass spectrometry (LC-MS/MS). The compounds monitored by this method
are typically the linear isomers. The group of compounds determined by this method are representative
of a wide variety of PFAS. The analytes specified in Table 1 can be determined by this method. The list
can be modified depending on the purpose for which the method is intended. The lower application
range of this method can vary depending on the sensitivity of the equipment used and the matrix of the
sample. For most compounds to which this document applies ≥0,2 ng/l as limit of quantification can be
achieved. Actual levels can depend on the blank levels realized by individual laboratory.
The applicability of the method to further substances, not listed in Table 1, or to further types of water
is not excluded, but is intended to be validated separately for each individual case.
NOTE 1 PFAS is used in this document to describe the analytes monitored. Many of the compounds in Table 1
are perfluoroalkyl and are also considered polyfluoroalkyl substances.
NOTE 2 The linear PFAS isomers are specified in this document. The branched isomers can be present in
environmental samples, especially for PFOS. Annex E provides an example of an analytical approach to the
chromatographic and spectroscopic separation of individual isomers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 5667-1, Water quality — Sampling — Part 1: Guidance on the design of sampling programmes and
sampling techniques
ISO 5667-3, Water quality — Sampling — Part 3: Preservation and handling of water samples
ISO 21253-1, Water quality — Multi-compound class methods — Part 1: Criteria for the identification of
target compounds by gas and liquid chromatography and mass spectrometry
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org ./ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
perfluoroalkyl and polyfluoroalkyl substances
PFAS
commonly used international abbreviation for organic compounds with replacement of most or all
hydrogen atoms by fluorine in the aliphatic chain structure
Note 1 to entry: The term is used in the broader sense for per- and polyfluoroalkyl substances (PFAS), and per-
and polyfluorinated compounds (PFC) as well.
4 Principle
The analytes listed in Table 1 are extracted from the water sample by solid-phase extraction
using a weak anion exchange sorbent followed by solvent elution and determination by liquid
chromatography-tandem mass-spectrometry.
The user should be aware that each analyte has its own specific optimum conditions and therefore
modification of the analyte list could require the specification of additional conditions for each
additional parameter.
Table 1 — Analytes determinable by this method
a b
Analyte IUPAC name Formula Abbreviation CAS-RN
Perfluoro-n- 1,1,2,2,3,3,4,4,4-Nonafluorobutane-1-sul- C HF O S PFBS 375-73-5
4 9 3
butanesulfonic acid fonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,6-Tridecafluorohex- C HF O S PFHxS 355-46-4
6 13 3
hexanesulfonic acid ane-1-sulfonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,7-Pentade- C HF O S PFHpS 375-92-8
7 15 3
heptanesulfonic acid cafluoroheptane-1-sulfonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Heptade- C HF O S PFOS 1763-23-1
8 17 3
octanesulfonic acid cafluorooctane-1-sulfonic acid
Perfluoro-n- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Hen- C HF O S PFDS 335-77-3
10 21 3
decanesulfonic acid icosafluorodecane-1-sulfonic acid
Perfluorooctanesulfo- 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Heptade- C H F NO S FOSA 754-91-6
8 2 17 2
namide cafluoro-1-octanesulfonamide
N-methyl 1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Heptade- C H F NO S N-MeFOSA 31506-32-8
9 4 17 2
perfluorooctanesulfo- cafluoro-N-methyl-1-octanesulfonamide
namide
N-ethyl N-Ethyl-1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-he C H F NO S N-EtFOSA 4151-50-2
10 6 17 2
perfluorooctanesulfo- ptadecafluorooctane-1-sulfonamide
namide
N-methyl 2-[1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Hepta- C H F NO S N-MeFOSAA 2355-31-9
11 6 17 4
perfluorooctanesulfon- decafluorooctylsulfonyl(methyl)amino]
amidoacetic acid acetic acid
N-ethyl 2-[Ethyl(1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,8 C H F NO S N-EtFOSAA 2991-50-6
12 8 17 4
perfluorooctanesulfon- -heptadecafluorooctylsulfonyl)amino]
amidoacetic acid acetic acid
6:2 Fluorotelomer sul- 3,3,4,4,5,5,6,6,7,7,8,8,8-Tridecafluorooc- C H F O S 6:2 FTSA 27619-97-2
8 5 13 3
fonic acid tane-1-sulfonic acid
8:2 Fluorotelomer sul- 3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Heptade- C H F O S 8:2 FTSA 39108-34-4
10 5 17 3
fonic acid cafluorodecane-1-sulfonic acid
a
IUPAC: International Union of Pure and Applied Chemistry.
b
CAS-RN: Chemical Abstract Services Registry Number.
2 © ISO 2019 – All rights reserved
Table 1 (continued)
a b
Analyte IUPAC name Formula Abbreviation CAS-RN
9-Chlorohexade- 2-(6-Chloro-1,1,2,2,3,3,4,4,5,5,6,6-do- C HClF O S 9Cl-PF3ONS 73606-19-6
8 16 4
cafluoro-3-oxanon- decafluorohexoxy)-1,1,2,2-tetrafluo-
ane-1-sulfonic acid roethanesulfonic acid
Perfluoro-n-butanoic 2,2,3,3,4,4,4-Heptafluorobutanoic acid C HF O PFBA 375-22-4
4 7 2
acid
Perfluoro-n- 2,2,3,3,4,4,5,5,5-Nonafluoropentanoic acid C HF O PFPeA 2706-90-3
5 9 2
pentanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,6-Undecafluorohexa- C HF O PFHxA 307-24-4
6 11 2
hexanoic acid noic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,7-Tridecafluorohep- C HF O PFHpA 375-85-9
7 13 2
heptanoic acid tanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,8-Pentadecafluo- C HF O PFOA 335-67-1
8 15 2
octanoic acid rooctanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,9-Heptade- C HF O PFNA 375-95-1
9 17 2
nonanoic acid cafluorononanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Non- C HF O PFDA 335-76-2
10 19 2
decanoic acid adecafluorodecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFUnDA 2058-94-8
11 21 2
undecanoic acid 11,11,11-Henicosafluoroundecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFDoDA 307-55-1
12 23 2
dodecanoic acid 11,11,12,12,12-Tricosafluorododecanoic
acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFTrDA 72629-94-8
13 25 2
tridecanoic acid 11,11,12,12,13,13,13-Pentacosafluorotri-
decanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFTeDA 376-06-7
14 27 2
tetradecanoic acid 11,11,12,12,13,13,14,14,14-Hepta-
cosafluorotetradecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFHxDA 67905-19-5
16 31 2
hexadecanoic acid 11,11,12,12,13,13,14,14,15,15,16,16,
16-Hentriacontafluorohexadecanoic acid
Perfluoro-n- 2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10, C HF O PFOcDA 16517-11-6
18 35 2
octadecanoic acid 11,11,12,12,13,13,14,14,15,15,16,16,
17,17,18,18,18-Pentatriacontafluoroocta-
decanoic acid
8:2 Fluorotelomer 3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-Hexade- C H F O 8:2 FTUCA 70887-84-2
10 2 16 2
unsaturated carboxylic cafluorodec-2-enoic acid
acid
8:2 Polyfluoroalkyl Bis(3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,10-he C H F O P 8:2 diPAP 678-41-1
20 9 34 4
phosphate diester ptadecafluorodecyl) hydrogen phosphate
Hexafluoropropylene 2,3,3,3-Tetrafluoro-2-(1,1,2,2,3,3,3- C HF O HFPO-DA 13252-13-6
6 11 3
oxide dimer acid heptafluoropropoxy)propanoic acid
4,8-Dioxa-3H-perfluor- 2,2,3-Trifluoro-3-[1,1,2,2,3,3-hex- C H F O DONA 919005-14-4
7 2 12 4
ononanoic acid afluoro-3-(trifluoromethoxy)propoxy]
propanoic acid
a
IUPAC: International Union of Pure and Applied Chemistry.
b
CAS-RN: Chemical Abstract Services Registry Number.
5 Interferences
5.1 Interferences with sampling and extraction
Sample bottles (7.1) shall consist of materials that do not contaminate or change the composition of the
sample during sample storage. All types of fluoropolymer plastics, including polytetrafluoroethylene
(PTFE) and fluoroelastomer materials, shall be avoided during sampling, sample storage and extraction.
Sample bottles (7.1) shall be checked for possible background contamination before use. If background
contamination is suspected or detected in sample bottles (7.1), then wash sample bottles (7.1) with
water (6.1) and methanol (6.6) prior to use. To avoid cross contamination, the sample bottles (7.1) should
only be used once. The use of intermediate sample tubes (7.6) and vials (7.10) should be limited in the
overall process to avoid contamination of loss by sorption. To avoid losses resulting from adsorption of
target analytes to the wall of sample bottle (7.1) and reservoir column (7.4), extract all of the sample
from the sample bottle (7.1) and rinse the wall of sample bottle (7.1) and reservoir column (7.4) with
methanol (6.6).
Commercially available adsorbent materials often vary in quality or activity. Considerable batch-
to-batch differences in quality and selectivity of these materials are possible. The recovery of a
single substance may also vary with respect to its concentration. Therefore, check analyte recovery
periodically at different concentrations and whenever new batches/lots of reagents or labware are
used (12.1).
5.2 Interferences with LC-MS/MS
Substances with similar retention times that can produce ions with similar mass to charge ratios (m/z)
to those produced by the analytes of interest may interfere with the determination.
These interferences may lead to incompletely resolved signals and/or additional signals in the mass
chromatograms of target substances. Depending on their levels in the sample, such substances may
affect the accuracy and precision of the results. The chromatographic separation is different with the
LC column (see Annex C for examples). As long as the peak of interest can be separately integrated from
interferences, it may be used.
Matrix interferences may be caused by contaminants that are co-extracted from the samples. The extent
of matrix interferences varies considerably, depending on the nature of the samples. In drinking water
and ground water, matrix interferences are usually negligible, whereas waste water and sea water
matrices can be affected by matrix interferences that lead to ionization suppression or enhancement
resulting in bias or reduced sensitivity of the method. As long as the required limits of quantification
can be achieved in samples, samples can be diluted to minimize matrix effects.
Interferences arising directly from analytical instruments can be significant for unmodified commercial
LC systems because many parts are made of PTFE and other fluoropolymers. It is necessary to check
for possible blank contamination from the individual parts, such as tubing, solvent inlet filters, valve
seals and the degassing equipment, and replace these with materials such as stainless steel and
polyetheretherketone (PEEK), where possible.
NOTE Background contamination can arise from within the instrument. A delay column can be attached
between the solvent mixer and injection valve to chromatographically resolve these background contaminants
from the instrument and/or mobile phases from the target analytes.
The LC-vial caps shall be free of fluoropolymer material. Efforts should be taken to minimize background
levels in procedural blank materials such that the procedural blank, including the instrumental blank,
is at least 10-fold below the reporting limit.
6 Reagents
Whenever possible, use certified or analytical-grade reagents or residue free-analytical grade
reagents stored in glass or polypropylene containers with metal or polypropylene lined caps. Avoid
using reagents with fluoropolymer lined caps and check contamination levels of target substances
using repeated blank determinations. Carry out additional cleaning or conditioning steps to ensure
background levels are minimized, if necessary.
6.1 Water, blank-value free, e.g. complying with grade 1 as specified in ISO 3696.
Purified laboratory water can be used, but should be confirmed to be free of PFAS. The quality of water
is checked by the same procedure given in 9.3.
4 © ISO 2019 – All rights reserved
6.2 Acetic acid, w(CH COOH) = 99,9 % mass fraction (999 g/kg).
6.3 Acetonitrile, CH CN.
6.4 Ammonia solution, w(NH ) = 25 % mass fraction (250 g/kg).
6.5 Ammonium acetate, w(CH COONH ) = 97 % mass fraction (970 g/kg).
3 4
6.6 Methanol, CH OH, blank-value free.
NOTE The quality of methanol is checked by evaporating 10 ml of methanol with a gentle stream of nitrogen
gas (6.13) to 0,5 ml and determining levels according to this document.
6.7 Reference substances, see Table 1.
Reference substances are analytical standards used for quantitative determination of the method
analytes. Use only reference substances or solutions, where the content of linear isomers is at least
95 %. Make sure that the individual reference substances do not contain detectable concentrations of
other target analytes to be determined by analysing alternate lots or second sources.
NOTE Solutions of reference substances are commercially available.
6.8 Internal standard substances, see Table 3.
Internal standard substances are labelled forms of the reference substances to be used in the analytical
procedure to correct for recovery due to losses of analyte or changes in analytical conditions that could
result in bias. Make sure that the internal standard substances do not contain detectable concentrations
of the analytes to be determined by analysing new lots using this document.
NOTE Solutions of internal standard substances are commercially available.
6.9 Preparation of the solutions
Calculate the concentration of all reference substances and internal standard solutions with regard to
the anion content.
Store the solutions at (5 ± 3) °C in the dark, protected against evaporation. Bring them to room
temperature prior to use (i.e. before dilution or spiking or injection).
6.9.1 Individual stock solutions of the reference substances
Stock solutions of the individual reference substances (6.7) in methanol (6.6) or acetonitrile (6.3) should
be of mass concentration to enable dilution to the desired range, e.g. 50 μg/ml each.
6.9.2 Individual stock solutions of internal standard substances
Stock solutions of the individual internal standard substances (6.8) in methanol (6.6) or acetonitrile (6.3)
should be of mass concentration to enable dilution to the desired range, e.g. 50 μg/ml each.
6.9.3 Native stock solution (reference substances)
Prepare a solution of the reference substances with a mass concentration of, for example, 0,1 μg/ml each.
Fill, for example, 1 ml of each solution of the individual reference substances, for example 50 μg/ml
(6.9.1), into a 500 ml volumetric flask (7.7) and make the solution up to the mark with methanol (6.6).
6.9.4 Labelled stock solution (internal standard substances)
Prepare a solution of the labelled internal standard substances with a mass concentration of, for
example, 0,1 μg/ml each.
Fill, for example, 1 ml of each solution of the individual internal standard substances, e.g. 50 μg/ml
(6.9.2), into a 500 ml volumetric flask (7.7) and make the solution up to the mark with methanol (6.6).
6.9.5 Spiking solution (reference substances)
Prepare a solution of the reference substances with a mass concentration of, for example, 10 ng/ml each.
Fill, for example, 1 ml of the native stock solution e.g. 0,1 μg/ml (6.9.3) into a 10 ml volumetric flask (7.7)
and make the solution up to the mark with methanol (6.6).
This solution is used for recovery samples (see 12.1).
6.9.6 Spiking solution (internal standard substances)
Prepare a solution of the labelled internal standard substances with a mass concentration of, for
example, 10 ng/ml each.
Fill, for example, 1 ml of the labelled stock solution e.g. 0,1 μg/ml (6.9.4) into a 10 ml volumetric
flask (7.7) and make the solution up to the mark with methanol (6.6).
This solution is used for water samples (see 9.1.2) and spiking recovery samples (see 12.1).
6.9.7 Reference solution
Prepare the reference solutions by setting up dilutions of the stock solutions (6.9.3, 6.9.4). Add the same
amount of internal standards to each reference solution.
Prepare the reference solution, for example a solution with a mass concentration of the substances to
be determined and of the internal standard substances e.g. 1 ng/ml each.
Fill, for example, 0,1 ml of native stock solution (reference substances) e.g. 0,1 μg/ml (6.9.3) and 0,1 ml
of labelled stock solution (internal standard substances) e.g. 0,1 μg/ml (6.9.4) into a 10 ml volumetric
flask (7.7) and make the solution up to the mark with methanol (6.6).
6.10 Acetate buffer, for solid-phase extraction, 0,025 mol/l, pH 4.
Mix, for example, 0,5 ml of acetic acid (6.2) with e.g. 349,5 ml of water (6.1). Dissolve e.g. 0,116 g of
ammonium acetate (6.5) in e.g. 60 ml of water (6.1). Mix e.g. 200 ml of the diluted acetic acid with e.g.
50 ml of the ammonium acetate solution.
6.11 Ammonia/methanol solution, for solid-phase extraction, with a mass fraction of
approximately 0,1 %.
Mix, for example, 0,4 ml of ammonia solution (6.4) with e.g. 99,6 ml of methanol (6.6), with a volume of
(NH ) of e.g. 0,1 %.
6.12 Solid-phase extraction material, weak anion exchanger on a copolymer-based. Suitable materials
are available commercially (see Annex A).
6.13 Nitrogen, N , purity >99,9 %.
6 © ISO 2019 – All rights reserved
7 Apparatus
Equipment of which any part may come into contact with the water sample or the extract shall be free
from interfering compounds.
The blank determination shall be conducted before the sampling. Clean labware and apparatus for
solid-phase extraction by washing with water (6.1) and methanol (6.6) if background contamination is
detected in labware and apparatus.
Equipment in contact with sample or reference solutions should be made of polypropylene or
polyethylene. It was not tested except for compounds listed in Annex H for sampling whether the use of
glassware may lead to adsorption of some of the analytes within the scope of the method.
7.1 Sample bottles
Narrow-neck flat-bottomed polypropylene or polyethylene bottles, normal volume 50 ml, 100 ml,
250 ml, 500 ml and 1 000 ml, with conical shoulders and screw caps.
NOTE Glass bottles can be used for compounds listed in Annex H. Glass bottles can be used for sampling
provided that storage conditions of samples have been validated in each case. See Annex H for examples.
The entire sample shall be extracted and the appropriate-sized sample bottle should be used to collect
the sample.
Sample bottles shall be checked for possible background contamination before use. The bottles and
screw caps are washed with methanol (6.6) and dried before use in order to minimize contamination, if
background contamination is detected in sample bottles.
7.2 Pipettes, with polypropylene tips.
7.3 Solid-phase extraction medias (cartridges or disks), made of inert non-leaching plastic, e.g.
polypropylene or polyethylene frits.
The cartridges shall be packed with 50 mg to 1 000 mg of solid-phase extraction material (6.12) as
sorbent. In general, 150 mg to 250 mg of sorbent (see Annex A) in a single cartridge is sufficient for up
to 500 ml of water.
NOTE 1 The 500 mg of sorbent (see Annex A) in a single cartridge is sufficient for 1 000 ml of sea water.
NOTE 2 The stationary phase can be modified if analytes are not recovered quantitatively (for example
neutral substances such as FOSA, N-MeFOSA and N-EtFOSA) using solid-phase extraction material (6.12) for
example strongly hydrophilic reversed -phase copolymer or silica-based.
7.4 Reservoir column, normal volume 60 ml, with adaptor for cartridges (7.3), made of polypropylene
or polyethylene.
7.5 Vacuum or pressure assembly, for the extraction step.
7.6 Sample tubes, made of, for example, polypropylene or polyethylene, for collecting and
concentrating the eluate, e.g. test tube, nominal volume of 15 ml.
7.7 Volumetric flasks, with inert stoppers, made of polypropylene or polyethylene not containing
fluoropolymer materials, normal volume 10 ml, 50 ml, 100 ml and 500 ml.
7.8 Graduated cylinder, normal volume 50 ml, 100 ml and 500 ml.
7.9 Evaporation assembly, using a nitrogen (6.13) stream passing through a stainless-steel needle.
7.10 Vials, made of polypropylene or polyethylene not containing fluoropolymer materials, capacity e.g.
1,5 ml, depending on the auto-sampler, with e.g. polyethylene snap-on caps.
7.11 Liquid chromatograph, temperature-controlled and with all necessary accessories, including
gases, LC columns (see Annex B), injector and tandem mass spectrometer (7.12).
7.12 Tandem mass spectrometer, with an ion source capable of generating ions for the analytes
of interests [e.g. electrospray ionization (ESI)] and capable of determining the m/z values of selected
precursor ions and product ions of the target substances listed in Table 2 and Table 3.
7.13 Analytical balance, capable of weighting to the nearest 0,1 g.
7.14 Centrifuge, capable of 3 000 rpm.
7.15 pH indicator paper.
8 Sampling
Take, preserve and handle samples as specified in ISO 5667-1 and ISO 5667-3.
For sampling, use thoroughly cleaned sample bottles (7.1). Fill the bottle with the water to be sampled.
Store samples in a refrigerator at (5 ± 3) °C and analyse within four weeks.
PFAS compounds with 11 or more carbon atoms may fall out of solution during storage. 8:2 FTUCA in
sea water samples is not stable for four weeks. Sample storage conditions should be checked to confirm
maximum sample storage times. A storage study should be conducted during the method validation
stage for all analytes routinely determined. The entire sample shall be extracted. If the entire sample
is analysed and the sample bottle is rinsed with solvent, the longer chain compounds should be
quantitatively recovered.
9 Procedure
9.1 Solid-phase extraction
9.1.1 General
In general, in this procedure, samples are analysed without pre-treatment. Before starting the analysis,
the sample and internal standard substances (6.9.6) shall have time to equilibrate to room temperature
before analysis.
NOTE Annex F and Annex G provide examples of sample preparation for rapid methods without sample
extraction by solid-phase extraction in 9.1, but these procedures do not have sufficient data for method validation.
9.1.2 Sample preparation
Weigh the sample bottle with its original cap and water sample, to the nearest 1 g or mark the line on
the sample bottle (7.1) with the sample volume.
The entire sample shall be extracted. The water sample which is collected into the sample bottle (7.1)
shall not be separated into new sample bottles to avoid losses of target analytes due to sorption to the
sample bottle (7.1).
8 © ISO 2019 – All rights reserved
The pH value of the sample shall be adjusted to the pH value of 3 with acetic acid (6.2) or ammonia
solution (6.4) by pH indicator paper (7.15), if necessary.
NOTE Low recoveries of internal standard substances (6.9.6) can be improved by adjusting the pH value
to 3, especially for short chain PFAS such as PFBA in a sea water sample.
Add the spiking solution containing the internal standard substances (6.9.6) to the water sample in
the sample bottle (adding e.g. 100 μl of each, actual amount can be adjusted depending on the sample
matrix) and mix thoroughly by shaking.
If the solid-phase extraction cartridge becomes clogged due to large amounts of suspended particulate
in the sample, it may be possible to carry out the operation in Annex D or to divide the sample between
two cartridges and pool the extracts. There may be a risk of increased blank level, which shall be
checked for.
9.1.3 Conditioning of the solid-phase extraction material
The following procedure describes that used for commercially available 6 ml copolymer cartridges
packed with 150 mg of sorbent sandwiched between two polyethylene frits.
Wash the cartridge in the following sequence with 4 ml of ammonia/methanol solution (6.11), 4 ml
of methanol (6.6) and lastly 4 ml of water (6.1) prior to use. Make sure that the sorbent packing in
the cartridge does not run dry. Retain the water in the cartridge (with the water level just above the
packing) to keep the sorbent activated.
NOTE The solvent and water volumes used for conditioning depend on the amount the solid phase material
used (for examples see Annex A).
9.1.4 Sample extraction
Start the extraction immediately after conditioning the sorbent packing. Make sure that no air bubbles
are trapped in the sorbent bed when changing from conditioning to extraction. Do not let the sorbent
material in the cartridge go dry and ensure it is immersed in water at all times.
Let sample (see 9.1.2) run through the cartridge, conditioned as specified in 9.1.3, at a rate of one drop
per second (3 ml/min to 6 ml/min). Regulate the flow rate by changing the vacuum or the pressure
(7.5), respectively.
Collect the sample, using a reservoir column (7.4) connected to the cartridge (7.3) with an adaptor.
Extract the entire sample in the sample bottle (7.1), to avoid losses resulting from adsorption to the
wall of sample bottle (7.1).
Rinse the wall of sample bottle (7.1) and reservoir column (7.4) with a volume of methanol (6.6) which
corresponds to at least 0,5 % of original sample volume. This aliquot of methanol is collected and used
as elution solvent for sample extraction (see 9.1.5).
NOTE In the case of the longer chain PFAS such as PFUnDA, PFDoDA, PFTrDA, PFTeDA, PFHxDA and PFOcDA,
loss can result from adsorption to the sample bottle (7.1) and reservoir column (7.4). Losses due to sorption to
the sample bottle can be reduced by rinsing the sample bottle with methanol.
Measure the volume (in millilitres) of the water used in the extraction by reweighting the empty sample
bottle with its original cap and calculate the net mass of sample, to the nearest 1 g, from the difference
in weight (see 9.1.2). Assuming a density of 1 g/ml, the value of the net mass (in grams) is equivalent
to the volume (in millilitres) of the water used in the extraction. Alternatively, add water (6.1) to the
empty sample bottle up to the mark (see 9.1.2), and measure the water volume using a graduated
cylinder (7.8). This volume is equivalent to the volume (in millilitres) of the original water sample.
9.1.5 Elution
Add 4 ml of water (6.1) and 4 ml of acetate buffer solution (6.10) to the cartridge and discard the eluate.
The water (6.1) volume may be increased to remove interferences in the cartridge, if necessary. Low
recoveries of internal standard substances (see 12.2) can be improved by increasing the amount of
water (6.1), especially for short chain PFAS such as PFBA in sea water samples.
Centrifuge (7.14) the cartridge at 1 500 g for about 2 min or apply a vacuum to completely remove
the residual solution from the cartridge. Then elute the target substances with 4 ml of methanol (6.6),
followed by 4 ml of 0,1 % ammonia/methanol (6.11) at a rate of one drop per second and collect into the
sample tube (7.6), separately.
NOTE 1 The solvent and water volumes used for washing and for the elution of the analytes depend on the
used mass of the solid phase material (for examples see Annex A).
NOTE 2 Methanol which is used to rinse the walls of sample bottle (7.1) and reservoir column (7.4) (see 9.1.4)
is used as the elution solution.
NOTE 3 Neutral substances such as FOSA, N-MeFOSA and N-EtFOSA elute with methanol (6.6). Anionic
substances such as PFOS and PFOA elute with ammonia/methanol (6.11).
Evaporate the eluate with a gentle stream of nitrogen gas (6.13) to a final volume of e.g. 1 ml. The
extract is now ready for LC-MS/MS analysis. The final extract volume may be adjusted by dilution
with methanol, depending on the expected concentrations of the target substances in the sample. The
concentration of the sample should be adjusted (by dilution or concentration) so that the concentrations
of the target substances lie within the calibration range of the instrument. Store the extract at (5 ± 3) °C
in the dark until analysis.
9.2 LC-MS/MS operating conditions
Optimize the operating conditions of the LC-MS/MS system in the electrospray ionization (ESI) negative
mode in accordance with the manufacturer’s instructions. The appropriate LC gradient programme
for the mobile phase is determined experimentally during method development and validation. For
optimum sensitivity, selected ions for MS/MS transitions are listed in Table 2 and Table 3. An example
of typical operating conditions is given in Annex C.
NOTE Usually, optimum conditions for chromatography and detection are achieved with water (6.1) and
methanol (6.6) in the presence of ammonium acetate (6.5) and, if appropriate, acetonitrile (6.3).
Table 2 — Selected diagnostic ions used in the determination (target substance)
Analyte Selected diagnostic ions m/z
a a a
Precursor M Quantifier M Qualifier M
1 2 3
PFBS 299 80 99
PFHxS 399 80 99
PFHpS 449 80 99
PFOS 499 80 99
PFDS 599 80 99
FOSA 498 78 169
N-MeFOSA 512 169 219
N-EtFOSA 526 169 219
N-MeFOSAA 570 419 512
N-EtFOSAA 584 419 526
6:2 FTSA 427 407 81
8:2 FTSA 527 507 81
9Cl-PF3ONS 531 351 83
PFBA 213 169
a
M is the precursor ion used to obtain the product ion. M is used as the product ion for the quantitation. M can be
1 2 3
used for confirmation.
10 © ISO 2019 – All rights reserved
Table 2 (continued)
Analyte Selected diagnostic ions m/z
a a a
Precursor M Quantifier M Qualifier M
1 2 3
PFPeA 263 219 69
PFHxA 313 269 119
PFHpA 363 319 169
PFOA 413 369 169
PFNA 463 419 219
PFDA 513 469 219
PFUnDA 563 519 269
PFDoDA 613 569 269
PFTrDA 663 619 269
PFTeDA 713 669 369
PFHxDA 813 769 369
PFOcDA 913 869 369
8:2 FTUCA 457 393 343
8:2 diPAP 989 97 543
HFPO-DA 329 169 285
DONA 377 251 85
a
M is the precursor ion used to obtain the product ion. M is used as the product ion for the quantitation. M can be
1 2 3
used for confirmation.
Table 3 — Selected diagnostic ions used in the determination (internal standard) and
corresponding analyte
Analyte
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
