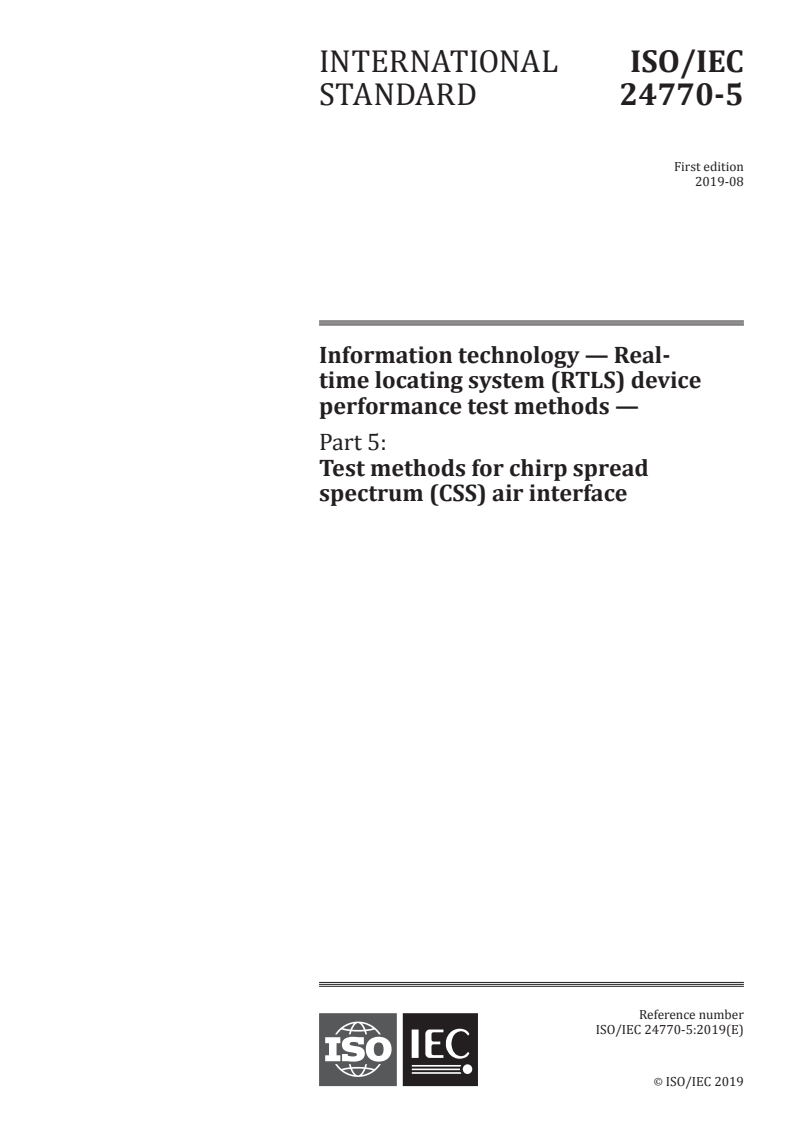

INTERNATIONAL ISO/IEC
STANDARD 24770-5
First edition
2019-08
Information technology — Real-
time locating system (RTLS) device
performance test methods —
Part 5:
Test methods for chirp spread
spectrum (CSS) air interface
Reference number
ISO/IEC 24770-5:2019(E)
ISO/IEC 2019
---------------------- Page: 1 ----------------------
ISO/IEC 24770-5:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 24770-5:2019(E)

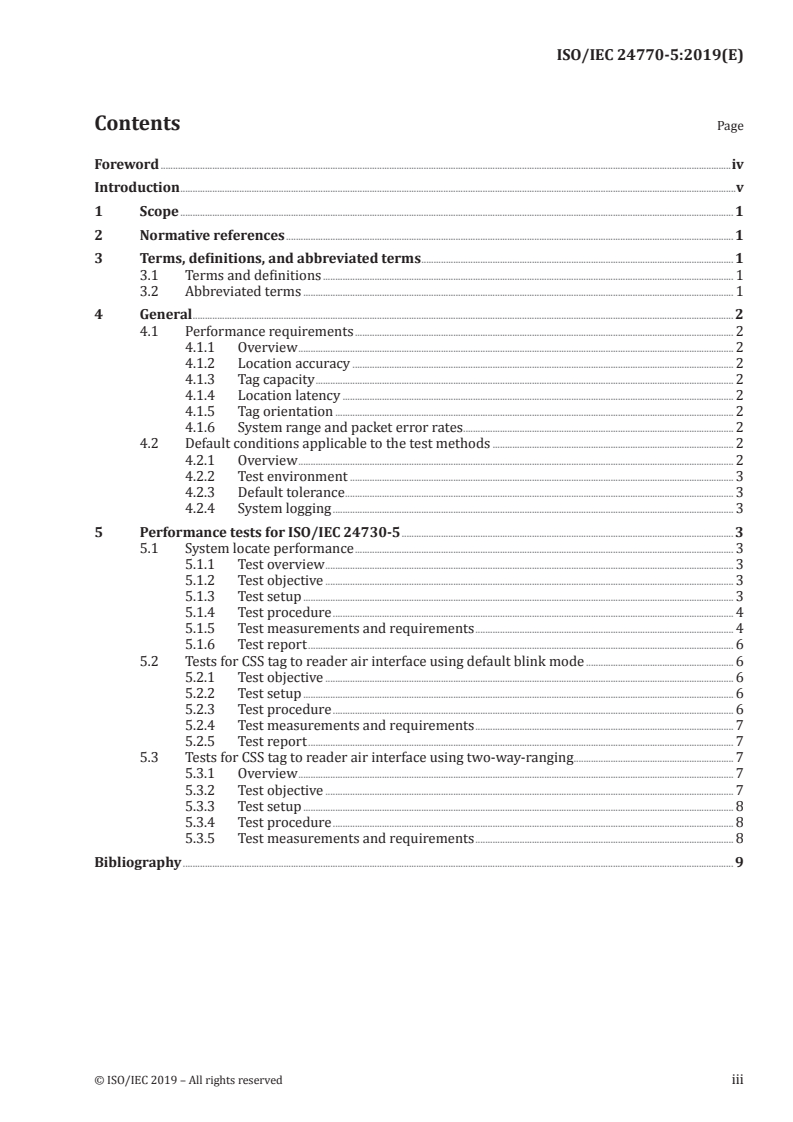

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms, definitions, and abbreviated terms ............................................................................................................................... 1

3.1 Terms and definitions ....................................................................................................................................................................... 1

3.2 Abbreviated terms ............................................................................................................................................................................... 1

4 General ............................................................................................................................................................................................................................ 2

4.1 Performance requirements .......................................................................................................................................................... 2

4.1.1 Overview ................................................................................................................................................................................. 2

4.1.2 Location accuracy ........................................................................................................................................................... 2

4.1.3 Tag capacity .......................................................................................................................................................................... 2

4.1.4 Location latency ............................................................................................................................................................... 2

4.1.5 Tag orientation .................................................................................................................................................................. 2

4.1.6 System range and packet error rates .............................................................................................................. 2

4.2 Default conditions applicable to the test methods .................................................................................................. 2

4.2.1 Overview ................................................................................................................................................................................. 2

4.2.2 Test environment ............................................................................................................................................................ 3

4.2.3 Default tolerance .............................................................................................................................................................. 3

4.2.4 System logging ................................................................................................................................................................... 3

5 Performance tests for ISO/IEC 24730-5 ....................................................................................................................................... 3

5.1 System locate performance .......................................................................................................................................................... 3

5.1.1 Test overview ...................................................................................................................................................................... 3

5.1.2 Test objective ...................................................................................................................................................................... 3

5.1.3 Test setup ............................................................................................................................................................................... 3

5.1.4 Test procedure ................................................................................................................................................................... 4

5.1.5 Test measurements and requirements ......................................................................................................... 4

5.1.6 Test report ............................................................................................................................................................................. 6

5.2 Tests for CSS tag to reader air interface using default blink mode ............................................................ 6

5.2.1 Test objective ...................................................................................................................................................................... 6

5.2.2 Test setup ............................................................................................................................................................................... 6

5.2.3 Test procedure ................................................................................................................................................................... 6

5.2.4 Test measurements and requirements ......................................................................................................... 7

5.2.5 Test report ............................................................................................................................................................................. 7

5.3 Tests for CSS tag to reader air interface using two-way-ranging ................................................................. 7

5.3.1 Overview ................................................................................................................................................................................. 7

5.3.2 Test objective ...................................................................................................................................................................... 7

5.3.3 Test setup ............................................................................................................................................................................... 8

5.3.4 Test procedure ................................................................................................................................................................... 8

5.3.5 Test measurements and requirements ......................................................................................................... 8

Bibliography ................................................................................................................................................................................................................................ 9

© ISO/IEC 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 24770-5:2019(E)

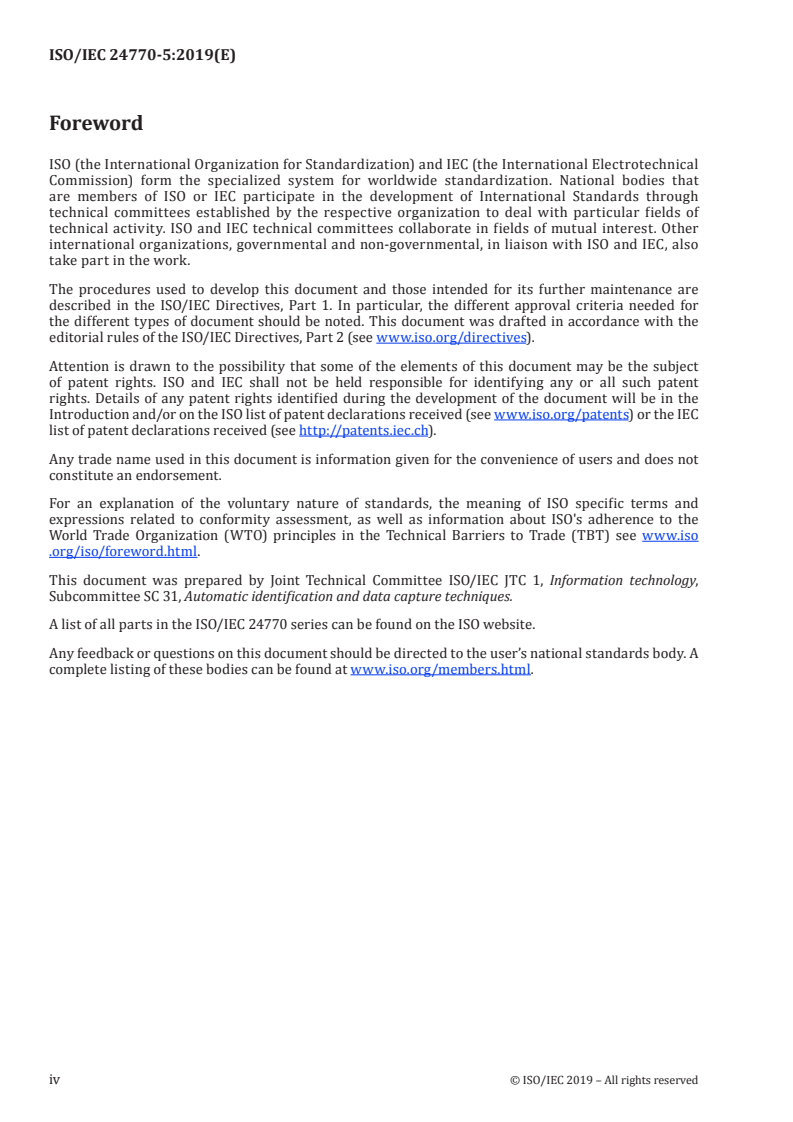

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that

are members of ISO or IEC participate in the development of International Standards through

technical committees established by the respective organization to deal with particular fields of

technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also

take part in the work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC

list of patent declarations received (see http: //patents .iec .ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 31, Automatic identification and data capture techniques.
A list of all parts in the ISO/IEC 24770 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 24770-5:2019(E)
Introduction

ISO/IEC 24730-5 defines an air interface for real time locating systems (RTLS) devices used in asset

management applications.

This document provides test methods for measuring the performance of equipment compliant with

ISO/IEC 24730-5.

ISO/IEC 24769-5 contains all measurements required to be made on a product in order to establish

whether it conforms to ISO/IEC 24730-5.
© ISO/IEC 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 24770-5:2019(E)
Information technology — Real-time locating system
(RTLS) device performance test methods —
Part 5:
Test methods for chirp spread spectrum (CSS) air interface
1 Scope

This document defines the test methods for determining the performance characteristics of chirp

spread spectrum (CSS) real time locating system (RTLS) equipment including tags and readers which

are applicable to the selection of equipment that conforms to ISO/IEC 24730-5 for specific applications.

This document does not apply to the testing in relation to regulatory or similar requirements.

The RTLS equipment performance parameters included in this document only include the chirp spread

spectrum (CSS) radio frequencies link between tags and readers. Unlike ISO/IEC 18305, the tests in this

document apply exclusively to RTLS equipment defined in ISO/IEC 24730-5 unless specified otherwise.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 19762, Information technology — Automatic identification and data capture (AIDC) techniques —

Harmonized vocabulary

ISO/IEC 24730-5, Information technology — Real-time locating systems (RTLS) — Part 5: Chirp spread

spectrum (CSS) at 2,4 GHz air interface
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO/IEC 19762 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.2 Abbreviated terms
CSS chirp spread spectrum
RF radio frequency
RTLS real time locating system
© ISO/IEC 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 24770-5:2019(E)
TDOA time difference of arrival
TOA time of arrival
TOF time of flight
4 General
4.1 Performance requirements
4.1.1 Overview

This document specifies a series of tests to determine the performance characteristics of RTLS

equipment relative to the ISO/IEC 24730-5 air interfaces. The results of these tests can be used to

determine the suitability of RTLS equipment for applications.
4.1.2 Location accuracy

The primary function of RTLS equipment is to locate tags within the area determined by the readers.

Location accuracy determines the primary performance criteria of an RTLS. Location accuracy can be

characterized by comparing the system's calculated location for a given set of tags to the actual location

of the tags. The system shall be able to locate tags to within the applications allowable error. In many,

but not necessarily in all applications, the Euclidean distance between the calculated location of a tag

and the actual location of a tag can be used as an error criterion. The location tests specified in this

document are confined to line-of-sight situations. Although this is not be applicable to all applications,

the complexity of all the variations of blockage and partial blockage are beyond the scope of this test.

4.1.3 Tag capacity

An RTLS shall typically locate a large number of tags. The number of tag blinks per second that can

be processed and located through the readers can be used to determine a system’s tag capacity. The

system shall be able to provide location information for an applications peak tag blink density.

4.1.4 Location latency
