ISO 490:1993

Cinematography — Magnetic stripes and magnetic recording head gaps for sound record on 16 mm motion-picture film perforated along one edge (Type 1) — Positions and width dimensions

Specifies location and width of magnetic striping, location and width of gaps of magnetic heads, film projection speed, and longitudinal picture-sound displacement.

Cinématographie — Pistes magnétiques et entrefers de têtes magnétiques d'enregistrement pour l'enregistrement du son sur film cinématographique 16 mm perforé sur un bord (Type 1) — Emplacement et largeurs

General Information

• Status: Published
• Publication Date: 02-Jun-1993
• ICS: 37.060.20 - Motion picture films. Cartridges
• Technical Committee: ISO/TC 36 - Cinematography
• Drafting Committee: ISO/TC 36/WG 3 - Audio technology
• Current Stage: 9060 - Close of review
• Start Date: 04-Jun-2029

Relations

• Revises: ISO 490:1978 - Cinematography — Magnetic stripes and magnetic recording head gaps for sound record on 16 mm motion-picture film perforated along one edge (type 1) — Positions and width dimensions
• Effective Date: 15-Apr-2008

Standards Content (Sample)

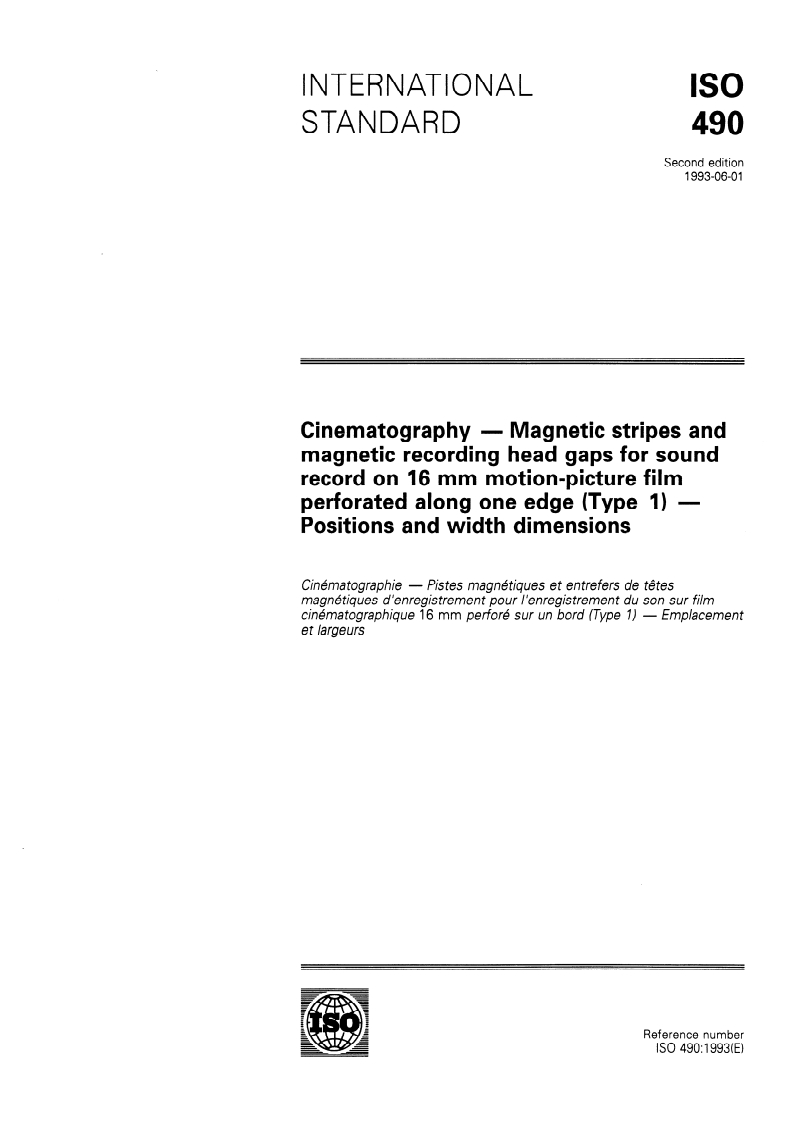

INTERNATIONAL
ISO
STANDARD
490
Second edition
1993-06-0 1
- Magnetit stripes and
Cinematography
magnetic recording head gaps for Sound
record on 16 mm motion-picture film
perforated along one edge (Type 1) -
Positions and width dimensions
Cin6ma tographie - Pistes magnetiques et en trefers de tetes
mag& tiques d ‘enregis tremen t pour I’enregis tremen t du son sur film
cinematographique 16 mm perfor6 sur un bord (Type 7) - Emplacement
et largeurs
Reference number
ISO 490: 1993(E)

---------------------- Page: 1 ----------------------
ISO 490:1993(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national Standards bodies (ISO member bodies). The work
of preparing International Standards is normally carried out through ISO
technical committees. Esch member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 490 was prepared by Technical Committee
lSO/TC 36, Cinematography.
This second edition cancels and replaces the first edition (ISO 490:1978),
of which it constitutes a technical revision.
0 ISO 1993
All rights reserved. No part of this publication may be reproduced or utilized in any form or
by any means, electronie or mechanical, including photocopying and microfilm, without per-
mission in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-l 211 Geneve 20 l Switzerland
Printed in Switzerland
ii

---------------------- Page: 2 ----------------------

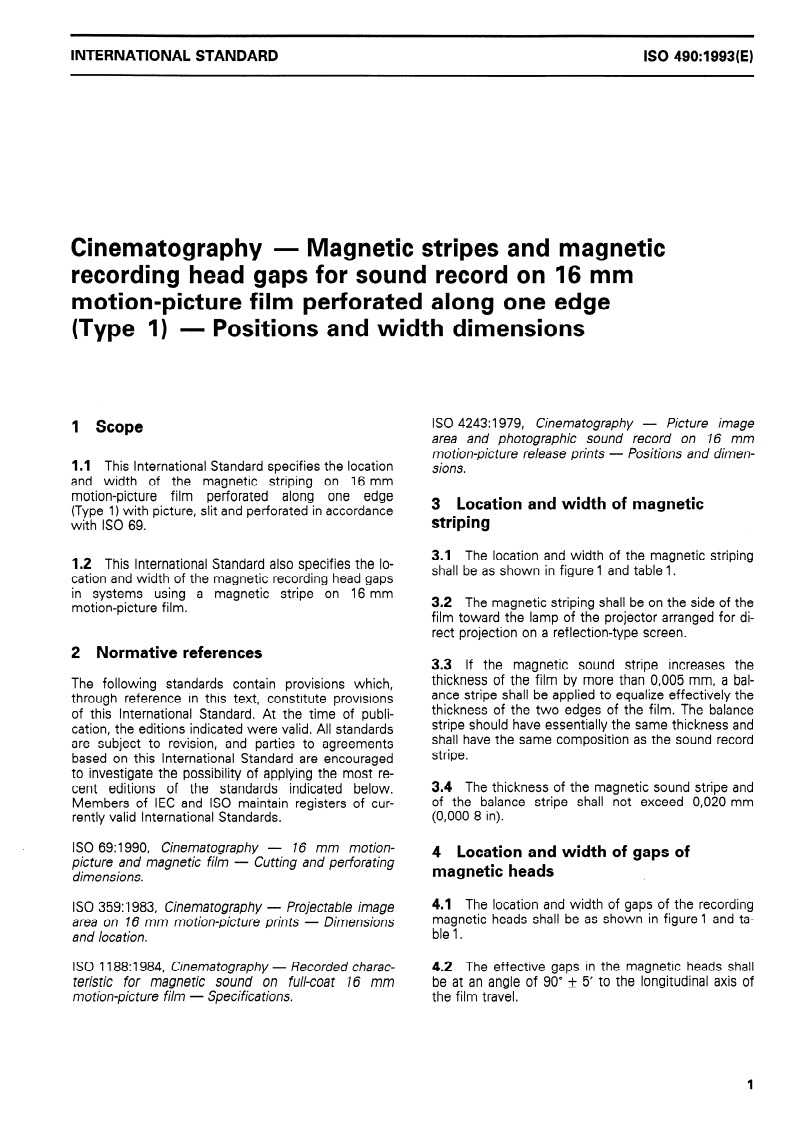

INTERNATIONAL STANDARD
ISO 490:1993(E)
Cinematography - Magnetit stripes and magnetic
recording head gaps for Sound record on 16 mm
motion-picture film perforated along one edge
- Positions and width dimensions
(Type 1)
ISO 4243:1979, Cinematography - Picture image
1 Scope
area and photographic Sound record on 16 mm
motion-picture release prints - Positions and dimen-
1.1 This International Standard specifies the location
sions.
and width of the magnetic striping on 16 mm
motion-picture film perforated along one edge
3 Location and width of magnetic
(Type 1) with picture, slit and perforated in accordance
striping
with ISO 69.
3.1 The location and width of the magnetic striping
1.2 This International Standard also specifies the lo-
shall be as shown in figure 1 and table 1.
cation and width of the magnetic recording head gaps
in Systems using a magnetic stripe on 16 mm
3.2 The magnetic striping shall be on the side of the
motion-picture film.
film toward the lamp of the projector arranged for di-
rect projection on a reflection-type Screen.
2 Normative references
3.3 If the magnetic Sound stripe increases the
thickness of the film by more than 0,005 mm, a bal-
The following Standards contain provisions which,
ante stripe shall be applied to equalize effectively the
through reference in this
...
