ISO 4978:2018

Steel sheet and strip for welded gas cylinders

This document specifies the characteristics of hot-rolled steel sheet and strip with a thickness up to 12 mm inclusive of the non-alloyed steels listed in Table 1, which are intended for welded gas cylinders in accordance with ISO 4706.

Produit en acier laminé à plat pour bouteilles à gaz soudées

General Information

• Status: Published
• Publication Date: 02-Aug-2018
• ICS: 77.140.30 - Steels for pressure purposes
• Technical Committee: ISO/TC 17/SC 10 - Steel for pressure purposes
• Drafting Committee: ISO/TC 17/SC 10 - Steel for pressure purposes
• Current Stage: 9060 - Close of review
• Completion Date: 04-Mar-2029

Relations

• Revises: ISO 4978:1983 - Flat rolled steel products for welded gas cylinders
• Effective Date: 13-Feb-2016

Overview

ISO 4978:2018 - Steel sheet and strip for welded gas cylinders defines the material and delivery requirements for hot-rolled steel sheet and strip (thickness up to 12 mm) intended for welded gas cylinders manufactured in accordance with ISO 4706. The standard sets out chemical composition, mechanical properties, grain size, weldability, surface condition, dimensions, inspection and testing requirements specific to non-alloyed steel grades (Table 1: P235 to P365).

Key topics and technical requirements

• Scope and materials: Hot-rolled steel sheet and strip for welded gas cylinders, thickness ≤ 12 mm. Grades and chemical limits are given in Table 1.
• Chemical composition: Heat analysis limits for C, Si, Mn, P, S and aluminium (Alsol ≥ 0.015 %). Microalloy additions (Nb, V, Ti) permitted within specified maxima; purchaser can require product analysis and a maximum carbon-equivalent value (CEV, optional up to 0.45 %).
• Mechanical properties: Yield strength, tensile strength, elongation and impact energy requirements are specified (transverse direction). Impact testing required for thickness > 6 mm with defined sub-sized specimens; average of three specimens must meet the specified energy, allowing one to be as low as 70% of the limit.
• Grain size: Ferritic grain size Index 6 or finer (ISO 643).
• Weldability: Designed to be weldable by common fusion welding processes; CEV option addresses weldability concerns.
• Surface and internal quality: Supply options include rolled or descaled/oiled surfaces; general quality requirements referenced to ISO 404.
• Delivery and testing: Delivery condition (hot-rolled, normalized, normalizing rolling) and inspection documents must be agreed at order. Tests include chemical analysis, tensile, impact, bend, grain size and non-metallic inclusion assessment (as per referenced ISO methods).
• Additional requirements: Options such as impact testing at −40 °C, maximum yield/tensile ratio (≤ 0.8), and bend test acceptance criteria can be specified by the purchaser.

Applications and users

ISO 4978:2018 is used by:

• Steel producers specifying hot-rolled sheet and strip for cylinder service
• Gas cylinder manufacturers (welded refillable cylinders) selecting material compliant with ISO 4706
• Welding engineers and fabricators assessing weldability and CEV limits
• Quality assurance, inspection and procurement teams defining acceptance tests and inspection documents
• Regulatory and certification bodies verifying material conformity for pressure equipment

Keywords: ISO 4978:2018, steel sheet and strip, welded gas cylinders, hot-rolled steel, chemical composition, mechanical properties, weldability, material specification.

Related standards

• ISO 4706 (refillable welded steel cylinders)
• ISO 404 (general technical delivery requirements)
• ISO 16160 (dimensional tolerances for hot-rolled sheet)
• ISO 148-1, ISO 643, ISO 4967, ISO 6892-1, ISO 10474 (test and inspection methods)

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 4978
Second edition
2018-08
Steel sheet and strip for welded gas
cylinders
Produit en acier laminé à plat pour bouteilles à gaz soudées
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Information to be supplied by the purchaser. 2
5 Manufacturing process . 2
5.1 Steelmaking . 2
5.2 Delivery condition . 2
6 Technical requirements . 3
6.1 Chemical composition . 3
6.2 Mechanical properties . 4
6.3 Grain size . 4
6.4 Weldability . 4
6.5 Surface condition and soundness . 4
6.6 Dimensions and tolerances . 5
6.7 Other requirements . 5
7 Inspection . 5
7.1 Types of inspection and inspection documents . 5
7.2 Test frequency . 6
7.3 Visual inspection . 6
8 Sampling . 6
9 Test methods . 7
9.1 Chemical analysis . 7
9.2 Tensile test . 7
9.3 Impact test . 7
9.4 Bend test . 7
9.5 Grain size . 7
9.6 Non-metallic inclusion . 7
9.7 Retests . 7
10 Marking . 7
Bibliography . 8

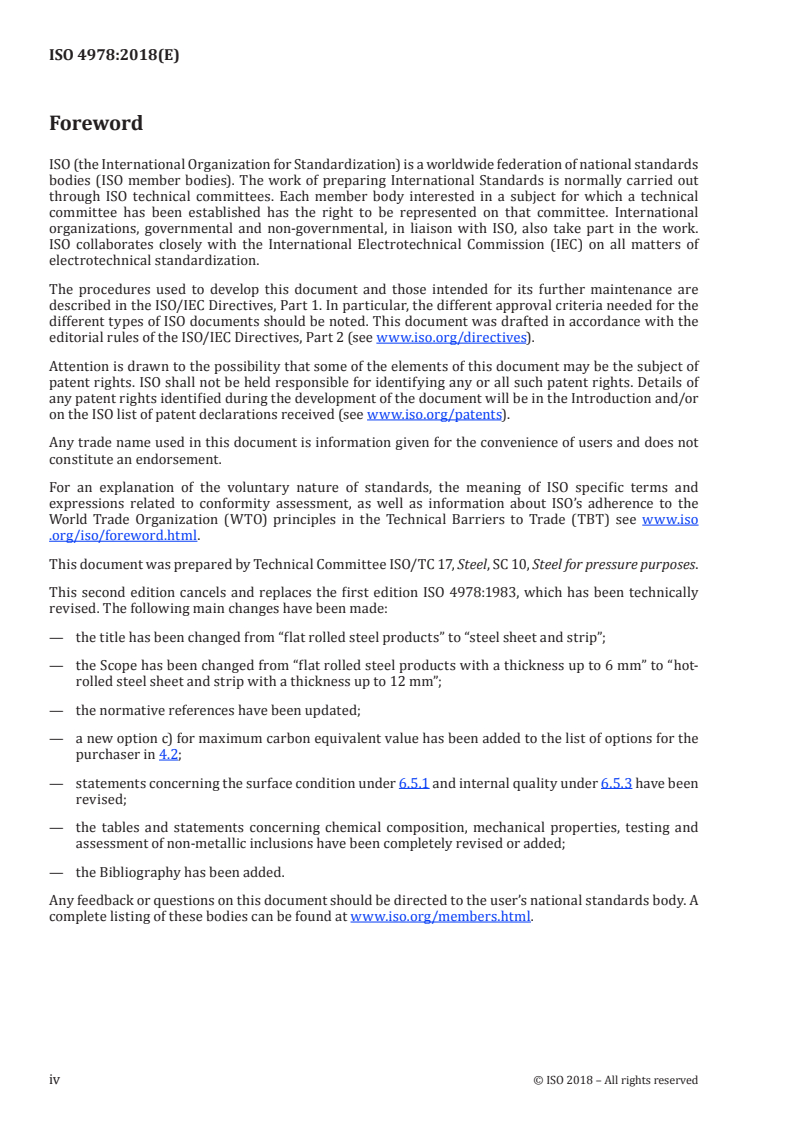

Foreword
