oSIST prEN ISO 10513:2016

Prevailing torque (all-metal) hexagon high nuts, with fine pitch thread - Product grades A and B (ISO/DIS 10513:2016)

2017-11-17: Project cancelled in ISO/CS (see dataservice on 2017-11-16).

Hohe Sechskantmuttern mit Klemmteil (Ganzmetallmuttern) mit Feingewinde - Produktklassen A und B (ISO/DIS 10513:2016)

Diese Internationale Norm legt Eigenschaften von hohen Sechskantmuttern mit Klemmteil (Ganzmetall-muttern), mit Feingewinde mit Nenndurchmessern von 8 mm bis 39 mm fest. Für die Gewindenenndurch-messer D ≤ 16 mm gilt Produktklasse A und für die Gewindenenndurchmesser D > 16 mm Produktklasse B.

Écrous hexagonaux hauts autofreinés (tout métal), à pas fin - Grades A et B (ISO/DIS 10513:2016)

Šestrobe zaščitne visoke matice z deformacijo (iz kovine) z drobnim metrskim navojem - Razreda izdelave A in B (ISO/DIS 10513:2016)

General Information

• Status: Not Published
• Public Enquiry End Date: 26-Jun-2016
• ICS: 21.040.10 - Metric screw threads
• ICS: 21.060.20 - Nuts
• Technical Committee: ISEL - Mechanical elements
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 15-Jan-2020
• Due Date: 20-Jan-2020
• Completion Date: 15-Jan-2020
• Ref Project: prEN ISO 10513 - Prevailing torque (all-metal) hexagon high nuts, with fine pitch thread - Product grades A and B (ISO/DIS 10513:2016)

Relations

• Revised: SIST EN ISO 10513:2013 - Prevailing torque type all-metal hexagon high nuts with metric fine pitch thread - Property classes 8, 10 and 12 (ISO 10513:2012)
• Effective Date: 18-Jan-2023

Overview

This document covers the draft international standard ISO/DIS 10513:2016 - Prevailing torque (all-metal) hexagon high nuts, with fine pitch thread (designation often shortened to PTAM). It specifies dimensions, functional properties and product grades for all-metal prevailing-torque hexagon high nuts with fine pitch metric threads, nominal diameters M8 to M39, and two product grades: A (D ≤ 16 mm) and B (D > 16 mm). Note: according to the provided scope metadata the project was cancelled in ISO/CS on 2017-11-17; the content below describes the draft technical requirements as circulated.

Key Topics and Requirements

• Product scope: All‑metal prevailing torque hexagon high nuts (PTAM) with fine pitch metric threads M8×1 through M39×3 (preferred and non-preferred thread tables are included).
• Dimensions & geometry: Detailed dimension tables and a figure define height, width across flats, thread allowances and prevailing‑torque element geometry (manufacturer may choose shape).
• Product grades: Grade A for nominal diameters ≤16 mm; Grade B for >16 mm.
• Materials & property classes:
  • Steel: property classes 8, 10, 12 (quenching and tempering requirements referenced to ISO 898-2; class 12 extended to whole diameter range in the draft).
  • Stainless steel: classes per ISO 3506-2 (examples in draft: A2‑70, A4‑70, A4‑80).
• Threads & tolerances: Metric fine pitch threads per ISO 262 / ISO 724 with tolerance class 6H for internal threads and ISO 965-2 for limits.
• Functional testing & acceptance: Prevailing torque and functional properties referenced to ISO 2320; acceptance inspection per ISO 3269.
• Surface finish & coatings: Electroplating (ISO 4042), zinc‑flake (ISO 10683), passivation for stainless steel (ISO 16048); surface discontinuities per ISO 6157-2.
• Designation example: PTAM hexagon high nut ISO 10513 – M12 × 1.5 – 8

Applications and Users

• Applications: Used where a secure threaded joint must resist rotation under vibration or thermal cycling - automotive, rail, heavy machinery, aerospace subassemblies, precision equipment using fine‑pitch threads.
• Who uses it:
  • Fastener manufacturers and product engineers specifying PTAM nuts.
  • Design and mechanical engineers selecting fasteners for vibration‑resistant joints.
  • Quality, inspection and procurement teams enforcing acceptance and coating requirements.
  • Test laboratories performing prevailing‑torque and mechanical property verification.

Related Standards

• ISO 2320 - Prevailing torque steel nuts (functional testing)
• ISO 898-2 - Mechanical properties of nuts (steel)
• ISO 3506-2 - Mechanical properties of stainless steel nuts
• ISO 4759-1 - Tolerances for fasteners (product grades)
• ISO 4042 / ISO 10683 / ISO 16048 - Coatings and passivation
• ISO 3269 - Acceptance inspection

Keywords: Prevailing torque, all-metal hexagon high nuts, fine pitch thread, PTAM, ISO 10513, product grade A, product grade B, metric threads, prevailing-torque nuts, fastener standards.

Standards Content (Sample)

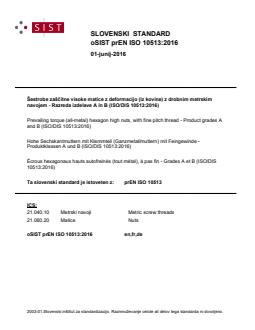

SLOVENSKI STANDARD
01-junij-2016
âHVWUREH]DãþLWQHYLVRNHPDWLFH]GHIRUPDFLMRL]NRYLQH]GUREQLPPHWUVNLP
QDYRMHP5D]UHGDL]GHODYH$LQ%,62',6
Prevailing torque (all-metal) hexagon high nuts, with fine pitch thread - Product grades A
and B (ISO/DIS 10513:2016)
Hohe Sechskantmuttern mit Klemmteil (Ganzmetallmuttern) mit Feingewinde -
Produktklassen A und B (ISO/DIS 10513:2016)
Écrous hexagonaux hauts autofreinés (tout métal), à pas fin - Grades A et B (ISO/DIS
10513:2016)
Ta slovenski standard je istoveten z: prEN ISO 10513
ICS:
21.040.10 Metrski navoji Metric screw threads
21.060.20 Matice Nuts
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

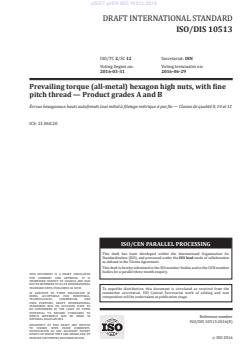

DRAFT INTERNATIONAL STANDARD
ISO/DIS 10513
ISO/TC 2/SC 12 Secretariat: DIN
Voting begins on: Voting terminates on:
2016-03-31 2016-06-29
Prevailing torque (all-metal) hexagon high nuts, with fine
pitch thread — Product grades A and B
Écrous hexagonaux hauts autofreinés tout métal à filetage métrique à pas fin — Classes de qualité 8, 10 et 12
ICS: 21.060.20
ISO/CEN PARALLEL PROCESSING
This draft has been developed within the International Organization for
Standardization (ISO), and processed under the ISO lead mode of collaboration
as defined in the Vienna Agreement.
This draft is hereby submitted to the ISO member bodies and to the CEN member
bodies for a parallel three month enquiry.
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
To expedite distribution, this document is circulated as received from the
IN ADDITION TO THEIR EVALUATION AS
committee secretariat. ISO Central Secretariat work of editing and text
BEING ACCEPTABLE FOR INDUSTRIAL,
composition will be undertaken at publication stage.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 10513:2016(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2016

ISO/DIS 10513:2016(E)
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

ISO/DIS 10513:2016(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national
standards bodies (ISO member bodies). The work of preparing International Standards is normally
carried out through ISO technical committees. Each member body interested in a subject for which a
technical committee has been established has the right to be represented on that committee.
International organizations, governmental and non-governmental, in liaison with ISO, also take part in
the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all
matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further ma intenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO's adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 2, Fasteners, Subcommittee SC 12, Fasteners
with metric internal thread.
This third edition cancels and replaces the second edition (ISO 10513:2012).
This standard differs from ISO 10513:2012 as follows:
— the Scope has been updated;
— the preferred and the non-preferred threads are given in two separate tables, and the threads
M181,5, M221,5, M27, M33 and M393 have been added;
— threads M10x1,25 and M20x2 have been moved to the preferred threads table;
— h have been amended for M12 (12,60 instead of 12,30) and M24 (24,00 instead of 23,90);
,max
— for steel nuts, the property class 12 has been extended to the whole diameter range;
— for steel nuts, quenching and tempering have been specified in accordance with ISO 898-2 as
mandatory or optional;
— the reference to ISO/TR 16224 for nut design has been added;
— stainless steel nuts have been added;
— "prevailing torque all-metal" has been replaced by the symbol "PTAM" in the designation.
ISO/DIS 10513:2016(E)
