SIST-TS CLC IEC/TS 63291-2:2025
(Main)High voltage direct current (HVDC) grid systems and connected converter stations - Guideline and parameter lists for functional specifications - Part 2: Parameter lists
High voltage direct current (HVDC) grid systems and connected converter stations - Guideline and parameter lists for functional specifications - Part 2: Parameter lists
From this edition, the CLC TS 50654-2 is the adoption (identical) of the IEC TS 63291-2 (not covered by a parallel procedure).
This document defines aspects on planning, specification, and execution of multi-vendor HVDC grid systems also referred to as HVDC grids. The terms "HVDC grid systems" or "HVDC grids" are used in this document to describe HVDC systems for power transmission having more than two HVDC stations connected to a common DC circuit. The DC circuit can be of radial or meshed topology or a combination thereof. In this document, the term "HVDC grids" is used.
While this document focuses on requirements specific for HVDC grids, some requirements are considered applicable to all HVDC systems in general, i.e., including point-to-point HVDC systems. Existing IEC (e.g., IEC TR 63363-1 [1]), Cigre or other relevant documents have been used for reference as far as possible.
Corresponding to electric power transmission applications, this document is applicable to high voltage systems, i.e., those having typically nominal DC voltages higher than 50 kV with respect to earth are considered in this document.
NOTE While the physical principles of DC networks are basically voltage independent, the technical options for designing equipment get much wider with lower DC voltage levels, e.g. in the case of converters or switchgear.
This document covers technical aspects of:
• coordination of HVDC grid and AC systems,
• HVDC grid characteristics,
• HVDC grid control,
• HVDC grid protection,
• AC/DC converter stations,
• HVDC grid installations, including DC switching stations and HVDC transmission lines,
• studies and associated models,
• testing.
Beyond the scope of this document, the following content is proposed for future work:
• DC/DC converter stations.
Hochspannungsgleichstrom-Netzsysteme und angeschlossene Umrichterstationen - Leitfaden und Parameterlisten für funktionale Spezifikationen - Teil 2: Parameter-Listen
Réseaux en courant continu à haute tension (CCHT) et postes de conversion connectés - Lignes directrices et listes de paramètres pour les spécifications fonctionnelles - Partie 2: Listes de paramètres
Sistemi visokonapetostnega enosmernega omrežja in priključene pretvorniške postaje - Smernice in seznam parametrov za funkcijsko specifikacijo - 2. del: Seznam parametrov
General Information
Relations
Standards Content (Sample)

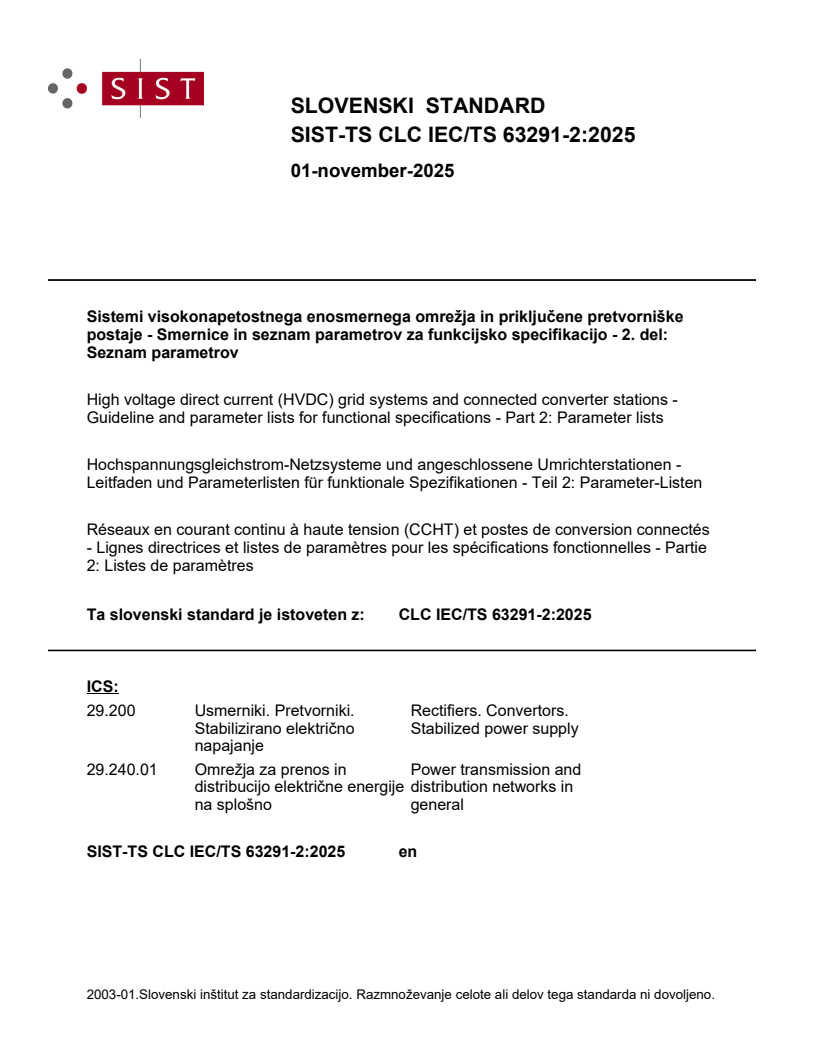

SLOVENSKI STANDARD
01-november-2025
Sistemi visokonapetostnega enosmernega omrežja in priključene pretvorniške
postaje - Smernice in seznam parametrov za funkcijsko specifikacijo - 2. del:
Seznam parametrov
High voltage direct current (HVDC) grid systems and connected converter stations -
Guideline and parameter lists for functional specifications - Part 2: Parameter lists
Hochspannungsgleichstrom-Netzsysteme und angeschlossene Umrichterstationen -
Leitfaden und Parameterlisten für funktionale Spezifikationen - Teil 2: Parameter-Listen
Réseaux en courant continu à haute tension (CCHT) et postes de conversion connectés
- Lignes directrices et listes de paramètres pour les spécifications fonctionnelles - Partie
2: Listes de paramètres
Ta slovenski standard je istoveten z: CLC IEC/TS 63291-2:2025
ICS:
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

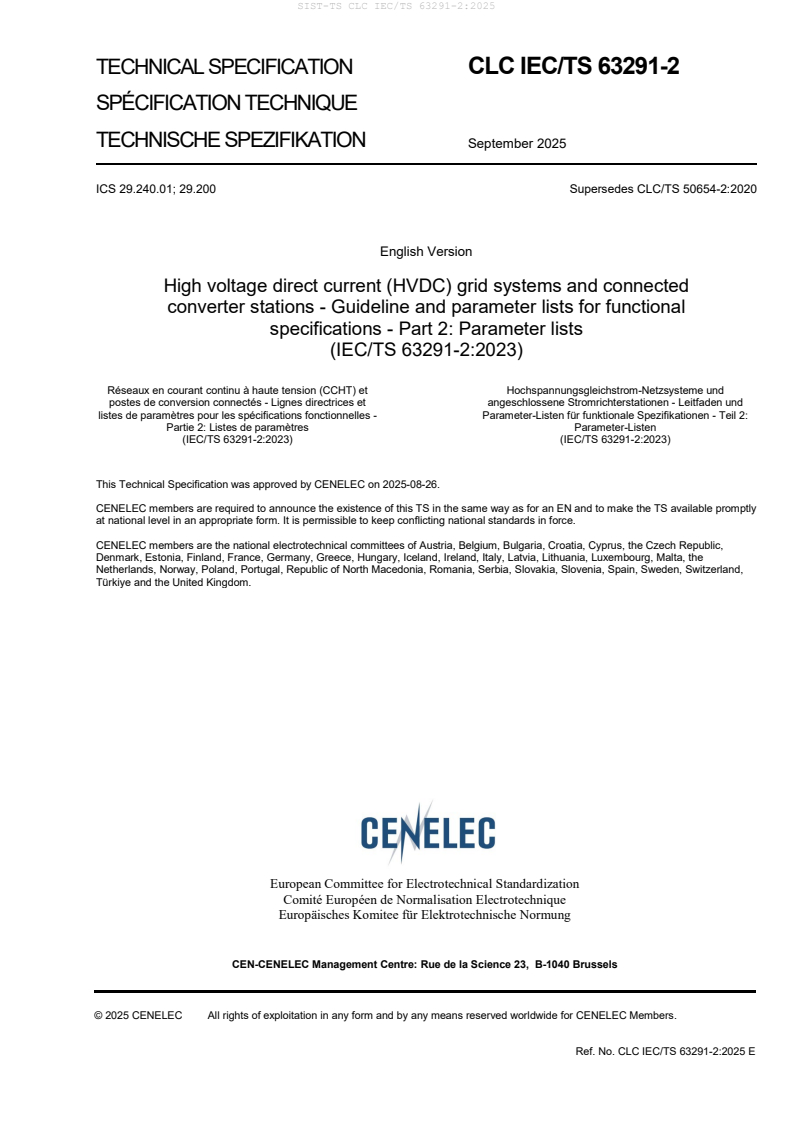

TECHNICAL SPECIFICATION CLC IEC/TS 63291-2
