SIST EN ISO 7040:2025
(Main)Fasteners - Prevailing torque hexagon nuts - Regular nuts (with non-metallic insert) (ISO 7040:2025)
Fasteners - Prevailing torque hexagon nuts - Regular nuts (with non-metallic insert) (ISO 7040:2025)
This document specifies the characteristics of prevailing torque hexagon regular nuts (with non‑metallic insert), in steel and stainless steel, with metric coarse pitch thread M3 to M39, and with product grades A and B.
NOTE These nuts are designed with an overall height equal to mmin (as specified in ISO 898-2 and ISO 4032 for style 1) plus the prevailing torque feature. The height of the prevailing torque feature (hmax – mmin) for the non-metallic insert is identical for regular, high and thin nuts for a given diameter.
Nuts with sizes D < M5 and design principles in accordance with style 1 are specified in Annex A.
If in certain cases other specifications are requested, property classes and stainless steel grades can be selected from ISO 898-2 or ISO 3506-2.
Verbindungselemente - Sechskantmuttern mit Klemmteil - Normalhohe Muttern (mit nichtmetallischem Einsatz) (ISO 7040:2025)
Dieses Dokument legt die Eigenschaften von normalhohen Sechskantmuttern mit Klemmteil (mit nichtmetallischem Einsatz) aus Stahl und nichtrostendem Stahl mit metrischen Regelgewinden von M3 bis M39, und in Produktklassen A und B fest.
ANMERKUNG Diese Muttern sind mit einer Gesamthöhe von mmin (wie in ISO 898 2 und ISO 4032 für Typ 1 festgelegt) plus Klemmteil gestaltet. Die Höhe des Klemmteils (hmax − mmin) für den nichtmetallischen Einsatz ist für normalhohe, hohe und niedrige Muttern bei einem bestimmten Durchmesser gleich.
Muttern mit Größen D < M5 und Gestaltungsgrundsätze nach Typ 1 sind in Anhang A festgelegt.
Falls in bestimmten Fällen andere Festlegungen benötigt werden, können Festigkeitsklassen und Stahlsorten nichtrostender Stähle ISO 898 2 oder ISO 3506 2 entnommen werden.
Fixations - Écrous hexagonaux autofreinés - Écrous normaux (à anneau non métallique) (ISO 7040:2025)
Le présent document spécifie les caractéristiques des écrous normaux hexagonaux autofreinés (à anneau non métallique), en acier et en acier inoxydable, à filetage métrique à pas gros M3 à M39, et de grades A et B.
NOTE Ces écrous sont conçus avec une hauteur totale égale à mmin (tel que spécifié dans l’ISO 898-2 et l’ISO 4032 pour le style 1) plus le dispositif d’autofreinage. La hauteur du dispositif d’autofreinage (hmax – mmin) pour intégrer l’anneau non métallique est identique pour les écrous normaux, hauts et bas d’un diamètre donné.
Les écrous de diamètres D < M5 et leurs principes de conception conformément au style 1 sont spécifiés en Annexe A.
Si dans certains cas d’autres spécifications sont requises, les classes de qualité et les grades d’acier inoxydable peuvent être choisis dans l’ISO 898-2 ou l’ISO 3506-2.
Vezni elementi - Šestrobe zaščitne matice - Navadne matice (z nekovinskim vložkom) (ISO 7040:2025)
General Information
Relations
Standards Content (Sample)

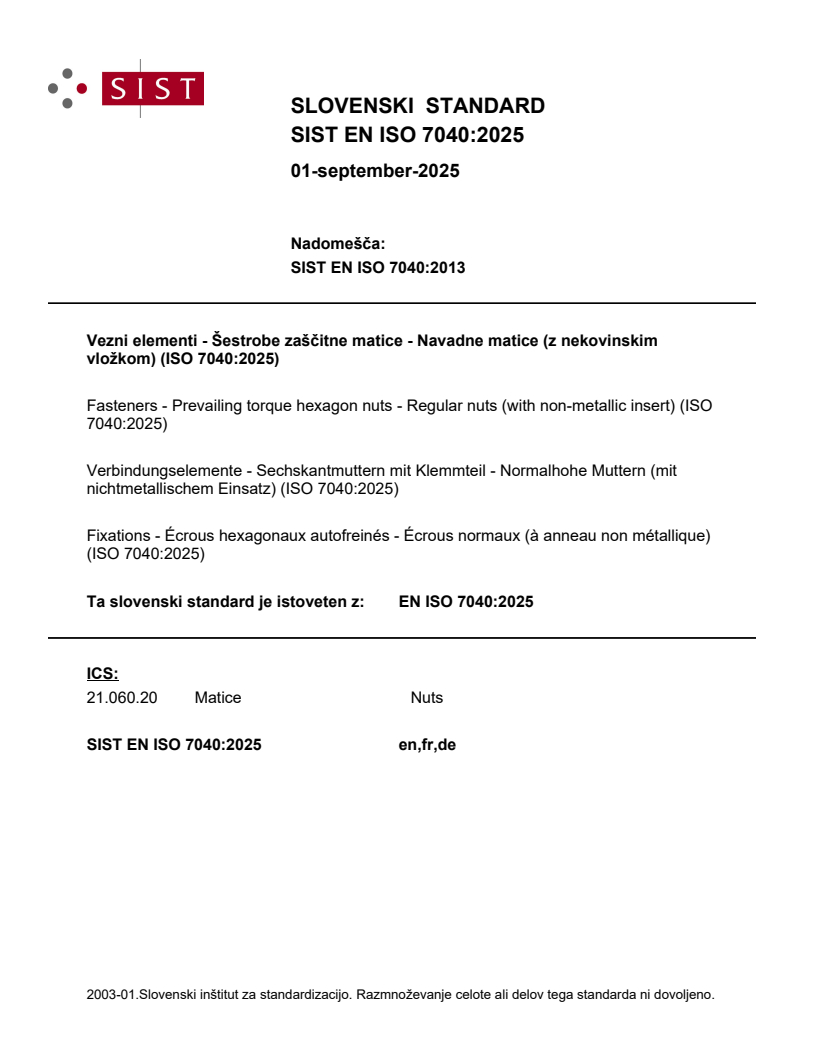

SLOVENSKI STANDARD
01-september-2025
Nadomešča:
SIST EN ISO 7040:2013
Vezni elementi - Šestrobe zaščitne matice - Navadne matice (z nekovinskim
vložkom) (ISO 7040:2025)
Fasteners - Prevailing torque hexagon nuts - Regular nuts (with non-metallic insert) (ISO
7040:2025)
Verbindungselemente - Sechskantmuttern mit Klemmteil - Normalhohe Muttern (mit
nichtmetallischem Einsatz) (ISO 7040:2025)
Fixations - Écrous hexagonaux autofreinés - Écrous normaux (à anneau non métallique)
(ISO 7040:2025)
Ta slovenski standard je istoveten z: EN ISO 7040:2025
ICS:
21.060.20 Matice Nuts
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 7040
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2025
EUROPÄISCHE NORM
ICS 21.060.20 Supersedes EN ISO 7040:2012
English Version
Fasteners - Prevailing torque hexagon nuts - Regular nuts
(with non-metallic insert) (ISO 7040:2025)
Fixations - Écrous hexagonaux autofreinés - Écrous Verbindungselemente - Sechskantmuttern mit
normaux (à anneau non métallique) (ISO 7040:2025) Klemmteil - Normalhohe Muttern (mit
nichtmetallischem Einsatz) (ISO 7040:2025)
This European Standard was approved by CEN on 20 June 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 7040:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
European foreword
This document (EN ISO 7040:2025) has been prepared by Technical Committee ISO/TC 2 " Fasteners "
in collaboration with Technical Committee CEN/TC 185 “Fasteners” the secretariat of which is held by
BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2025, and conflicting national standards
shall be withdrawn at the latest by December 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 7040:2012.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 7040:2025 has been approved by CEN as EN ISO 7040:2025 without any modification.
International
Standard
ISO 7040
Fourth edition
Fasteners — Prevailing torque
2025-06
hexagon nuts — Regular nuts (with
non-metallic insert)
Fixations — Écrous hexagonaux autofreinés — Écrous normaux
(à anneau non métallique)
Reference number
ISO 7040:2025(en) © ISO 2025
ISO 7040:2025(en)
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 7040:2025(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Dimensions . 2
5 Requirements and reference International Standards . 3
6 Marking and labelling . 5
6.1 Marking on product . .5
6.2 Labelling on package .5
7 Designation . 5
Annex A (normative) Regular nuts in steel and stainless steel with D < M5
designed in accordance with style 1 . 6
Bibliography . 9
iii
ISO 7040:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see https://www.iso.org/directives-and-policies.html).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 2, Fasteners, Subcommittee SC 12, Fasteners
with metric internal thread, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 185, Fasteners, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This fourth edition cancels and replaces the third edition (ISO 7040:2012) which has been technically
revised.
The main changes are as follows:
— the design principles of these nuts have been clarified in scope (see Note);
— for nuts with D < M5, appropriate nut design in accordance with ISO/TR 16224, style 1, has been added
in Annex A (historical nuts not conforming to ISO 898-2 because of their heigth m less than 0,8D have
min
been deleted);
— style, relevant property classes and related quenching and tempering conditions for steel nuts have been
specified in Clause 5 in accordance with ISO 898-2 (see Table 3);
— stainless steel nuts have been added in accordance with ISO 3506-2;
— M7, M18, M22, M27, M33 and M39 have been added;
— d has been specified with two decimal places;
a,max
— d for sizes D ≤ M5 has been changed from s – IT16 to s – IT15 in order to have a larger bearing
w,min min min
surface area and thus less contact pressure;
— h for M5 and M20 has been increased so that regular, high and thin nuts have an identical room for the
max
prevailing torque feature (h – m ) to accommodate the non-metallic insert; h has therefore been
max min min
increased in accordance with the specified tolerance (see Tables 1 and 2);
— specifications for marking and labelling have been added as Clause 6.
iv
ISO 7040:2025(en)
Any feedback or questions on this document should be directed to the user's national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
International Standard ISO 7040:2025(en)
Fasteners — Prevailing torque hexagon nuts — Regular nuts
(with non-metallic insert)
1 Scope
This document specifies the characteristics of prevailing torque hexagon regular nuts (with non-metallic
insert), in steel and stainless steel, with metric coarse pitch thread M3 to M39, and with product grades A and B.
NOTE These nuts are designed with an overall height equal to m (as specified in ISO 898-2 and ISO 4032
min
for style 1) plus the prevailing torque feature. The height of the prevailing torque feature (h – m ) for the non-
max min
metallic insert is identical for regular, high and thin nuts for a given diameter.
Nuts with sizes D < M5 and design principles in accordance with style 1 are specified in Annex A.
If in certain cases other specifications are requested, property classes and stainless steel grades can be
selected from ISO 898-2 or ISO 3506-2.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 225, Fasteners — Bolts, screws, studs and nuts — Symbols and descriptions of dimensions
ISO 898-2, Fasteners — Mechanical properties of fasteners made of carbon steel and alloy steel — Part 2: Nuts
with specified property classes
ISO 965-1, ISO general purpose metric screw threads — Tolerances — Part 1: Principles and basic data
ISO 1891-4, Fasteners — Vocabulary — Part 4: Control, inspection, delivery
...
