Visual assessment of furniture surfaces

To develop a standard or technical report describing a method to assess the surface damage after carrying out tests intended for furniture surfaces. This visual assessment will be used to evaluate the results from these tests and will be introduced in the appropriate standards by a reference to the new technical report or standard.

Visuelle Bewertung von Möbeloberflächen

Dieses Dokument legt visuelle Bewertungsverfahren für das Erscheinungsbild von Möbeloberflächen im Hinblick auf Oberflächendefekte sowie Farb  und Glanzabweichungen fest.
Es ist nicht auf konstruktive Merkmale oder geometrische Abmessungen, z. B. Parallelität von Kanten, anwendbar.
Diese Norm ist auf alle Möbeloberflächen mit Ausnahme von textilen Oberflächen und Lederoberflächen anwendbar.
Sie gilt für Wareneingangs  und Warenausgangsprüfungen sowie lokale Bewertungen.

Evaluation visuelle de la surface des meubles

Le présent document définit des modes opératoires d’évaluation visuelle de l’aspect des surfaces de meubles au regard des défauts de surface, des variations de couleur et des variations de brillance.
Elle ne s’applique pas aux caractéristiques de construction ou aux dimensions géométriques, comme le parallélisme des chants.
La présente Norme s’applique à toutes les surfaces des meubles à l’exception des surfaces textiles ou en cuir.
Elle s’applique aux inspections de réception et d’expédition de marchandises, ainsi qu’aux évaluations locales.

Vizualno ocenjevanje površine pohištva

Cilj je oblikovati standard ali tehnično poročilo, ki opisuje metodo za ocenjevanje poškodb površin po izvedbi preskusov, predvidenih za površine pohištva. Vizualno ocenjevanje se bo uporabljajo za vrednotenje rezultatov teh preskusov in bo predstavljeno v ustreznih standardih s sklicem na novo tehnično poročilo ali standard.

General Information

Status
Published
Public Enquiry End Date
04-Feb-2017
Publication Date
04-Sep-2019
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
14-Aug-2019
Due Date
19-Oct-2019
Completion Date
05-Sep-2019

Buy Standard

Standard
SIST EN 17214:2019 - BARVE na PDF-str 9,12
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 17214:2019
01-oktober-2019
Vizualno ocenjevanje površine pohištva
Visual assessment of furniture surfaces
Visuelle Bewertung von Möbeloberflächen
Evaluation visuelle de la surface des meubles
Ta slovenski standard je istoveten z: EN 17214:2019
ICS:
97.140 Pohištvo Furniture
SIST EN 17214:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17214:2019
---------------------- Page: 2 ----------------------
SIST EN 17214:2019
EN 17214
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 97.140
English Version
Visual assessment of furniture surfaces

Evaluation visuelle de la surface des meubles Visuelle Bewertung von Möbeloberflächen

This European Standard was approved by CEN on 26 May 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17214:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)

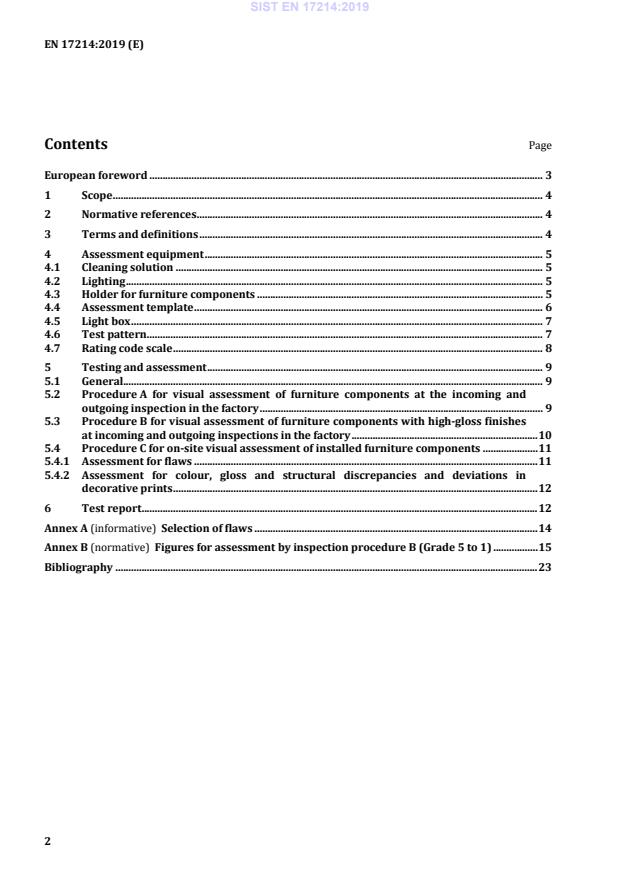

Contents Page

European foreword ...................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Assessment equipment ................................................................................................................................. 5

4.1 Cleaning solution ............................................................................................................................................ 5

4.2 Lighting ............................................................................................................................................................... 5

4.3 Holder for furniture components ............................................................................................................. 5

4.4 Assessment template ..................................................................................................................................... 6

4.5 Light box ............................................................................................................................................................. 7

4.6 Test pattern ....................................................................................................................................................... 7

4.7 Rating code scale ............................................................................................................................................. 8

5 Testing and assessment ................................................................................................................................ 9

5.1 General................................................................................................................................................................ 9

5.2 Procedure A for visual assessment of furniture components at the incoming and

outgoing inspection in the factory ............................................................................................................ 9

5.3 Procedure B for visual assessment of furniture components with high-gloss finishes

at incoming and outgoing inspections in the factory ....................................................................... 10

5.4 Procedure C for on-site visual assessment of installed furniture components ..................... 11

5.4.1 Assessment for flaws ................................................................................................................................... 11

5.4.2 Assessment for colour, gloss and structural discrepancies and deviations in

decorative prints ........................................................................................................................................... 12

6 Test report ....................................................................................................................................................... 12

Annex A (informative) Selection of flaws ............................................................................................................ 14

Annex B (normative) Figures for assessment by inspection procedure B (Grade 5 to 1) ................. 15

Bibliography ................................................................................................................................................................. 23

---------------------- Page: 4 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)
European foreword

This document (EN 17214:2019) has been prepared by Technical Committee CEN/TC 207 “Furniture”,

the secretariat of which is held by UNI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by January 2020, and conflicting national standards shall

be withdrawn at the latest by January 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)
1 Scope

This document defines visual assessment procedures for the appearance of furniture surfaces with

regard to surface defects and colour and gloss variations.

It is not applicable to constructive features or geometric dimensions, e.g. parallelism of edges.

This standard is applicable to all furniture surfaces except textile and leather surfaces.

It applies to the incoming and outgoing goods inspections, as well as local assessments.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN ISO 3668:2001, Paints and varnishes — Visual comparison of the colour of paints (ISO 3668:1998)

ISO 1065:1991, Non-ionic surface-active agents obtained from ethylene oxide and mixed non-ionic

surface-active agents — Determination of cloud point
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
normal position
position of the furniture item when used as intended
3.2
visual assessment
assessment of the furniture surface under specified conditions
3.3
overall impression

regularity in the arrangement of individual items of furniture that belong together and of their parts in

relation to one another, or of individual parts of an item of furniture, from a distance according to the

size of the furniture component
3.4
detailed impression

regularity of a surface of furniture items from a short distance (from 0,25 m to 1 m) according to the

intended use of the furniture
---------------------- Page: 6 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)
3.5
flaw

any kind of visible damage on furniture surfaces that stands out from its surroundings and impairs the

overall impression

Note 1 to entry: The flaw catches the attention of the viewer, thereby leading to its perception as disruptive.

EXAMPLE Scratches, occlusions.
3.6
furniture component
element subjected to visual inspection
3.7
assessed surface
part of the furniture component to be assessed
3.8
repeat
repeating, area-filling surface design element
EXAMPLE Wood decor, surface embossing.
3.9
observer

technician who carries out the assessment fulfilling the requirement specified in EN ISO 3668:2001

4 Assessment equipment
4.1 Cleaning solution
15 ml/l of the cleaner in water with the following cleaner composition:

a) 12,5 % (m/m) of a primary or polymeric sodium (C10 to C14) alkylaryl sulphonate

[CAS 25155-30-0];

b) 12,5 % (m/m) of a polyethoxylated primary or secondary (C8 to C16) alcohol derivative with 5 to

15 ethoxyl groups with a cloud point of 25 °C to 75 °C in 1 % (m/m) aqueous solution (the

determination of the cloud point is specified in ISO 1065:1991) [CAS 9005-67-];
c) 5,0 % (m/m) of ethanol (96 % aqueous solution);
d) 70 % (m/m) de-ionized or distilled water.

Instead of this described cleaning solution, a commercial cleaning solution recommended by the

manufacturer can be used. In this case, it shall be mentioned in the test report.

4.2 Lighting

Artificial light source with a colour temperature of (6 500 ± 200) K (CIE standard illuminants D65 light).

4.3 Holder for furniture components

Device for placing the object to be inspected at an angle of 30° ± 3° and in a manner ensuring that the

assessed surface is exposed to a light intensity of 1,000 lx to 2,000 lx (Figure 1), measured in the centre

of the holder in horizontal position.
---------------------- Page: 7 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)
Dimensions in millimetres
Figure 1 — Visual assessment principle for furniture components
4.4 Assessment template
Tool with defined areas [mm ], e.g. a transparent film with printed areas.
---------------------- Page: 8 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)

NOTE A suitable template is the “Size estimation chart”, product code 0109DIRTT, available from TAPPI,

15 Technology Parkway South, Suite 115, Peachtree Corners, Atlanta, GA 300922910, USA, tel. +1 770 446 1400,

fax +1 770 446 6947.
4.5 Light box
The light box provides a “daylight” by bulb or tube or LED (see Figure 2).
The light shall be even enough to ensure the absence of under illuminated zones.

The light behind the test pattern shall be without a black area within the light source.

The lightbox can be a negatoscope or other equipment with a diffuse and homogeneous light. The light

box with the test pattern shall send an image with a clear contrast on the mirror. The distinction of

image shall be without distorsion or dullness on a plane mirror.

NOTE Suitable devices are e.g. NBX1 negatoscope by ELLA LEGROS or Glossinspector by MHanser.

Figure 2 — Light box
4.6 Test pattern

The test pattern (see Figure 3) has empty squares (10,0 ± 0,2) mm side, separated by metal bars of

(2,0 ± 0,1) mm.
The overall dimension shall be at least of 15 columns and 20 lines of squares.

The test pattern shall stay plane on the light box or printed on the lightbox screen.

These are examples of suitable products available commercially. This information is given for the

convenience of users of this document and does not constitute an endorsement by CEN of this product.

---------------------- Page: 9 ----------------------
SIST EN 17214:2019
EN 17214:2019 (E)
Figure 3 — Test pattern
4.7 Rating code scale
The classification is based
...
