EN 301 419-2 V5.0.3 (1999-03)
European Standard (Telecommunications series)
Digital cellular telecommunications system (Phase 2+);
Attachment requirements for Global System for Mobile
communications (GSM);
High Speed Circuit Switched Data (HSCSD) Multislot
Mobile Stations;
Access
(GSM 13.34 version 5.0.3)
R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS

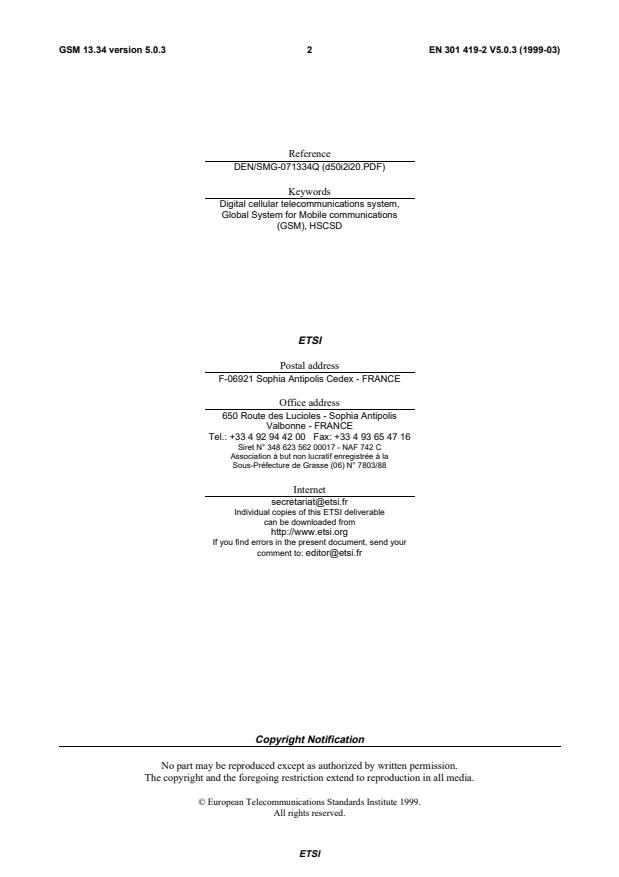

GSM 13.34 version 5.0.3 2 EN 301 419-2 V5.0.3 (1999-03)
Reference
DEN/SMG-071334Q (d50i2i20.PDF)
Keywords
Digital cellular telecommunications system,
Global System for Mobile communications
(GSM), HSCSD
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: [phone]  Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
[e-mail]
Individual copies of this ETSI deliverable
can be downloaded from
http://www.etsi.org
If you find errors in the present document, send your
comment to: [e-mail]
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1999.
All rights reserved.
ETSI
GSM 13.34 version 5.0.3 3 EN 301 419-2 V5.0.3 (1999-03)
Contents
Intellectual Property Rights.4
Foreword .4
1 Scope.5
2 Normative references .5
3 Abbreviations.6
4 General requirements .6
5 Requirements .6
Annex A (normative): The Requirement Table (RT) .13
A.1 Introduction to the RT.13
A.2 Format of the tables.13
A.3 References to EN 300 607-1 (GSM 11.10-1).14
A.4 Notations used in the RT.14
A.4.1 Status Notations . 14
A.4.2 Support Answer Notations. 14
A.5 The Requirement Tables .15
A.5.1 Static Requirements, RT A . 15
A.5.1.1 Types of Mobile Stations . 15
A.5.1.2 Mobile Station Features . 15
A.5.1.3 Teleservices. 15
A.5.1.4 Bearer Services . 16
A.5.1.5 Supplementary Services . 16
A.5.1.6 Bearer Capability Information. 16
A.5.1.7 Additional Information. 16
A.5.2 Dynamic Requirements, RT B . 16
Annex B (informative): Document history.19
History.20
ETSI
GSM 13.34 version 5.0.3 4 EN 301 419-2 V5.0.3 (1999-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect
of ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This Harmonised Standard has been produced by the Special Mobile Group (SMG) of the European
Telecommunications Standards Institute (ETSI).
This standard covers the High Speed Circuit Switched Data Multislot (HSCSD) requirements for terminal equipment for
the Global System for Mobile communications (GSM) mobile services.
This standard contains the procedures and requirements for the approval testing of GSM terminal equipment
implementing the HSCSD optional feature for access.
The requirements of TBR 19 [3] and/or TBR-31 [5], apply in addition to this standard, for HSCSD terminal equipment,
Access.
For each test, supplementary information is provided, giving a justification why this item has been selected for
regulatory testing, and a reference to the relevant article of the Terminal Directive [1].
This document is based on EN 300 607-1 (GSM 11.10-1 version 5.5.0) [2].
The contents of this EN may be subject to continuing work within SMG and may change following formal SMG
approval. Should SMG modify the contents of this EN it will then be re-submitted for formal approval procedures by
ETSI with an identifying change of release date and an increase in version number as follows:
Version 5.x.y
where:
5 GSM Phase 2+
x the second digit is incremented for all other types of changes, i.e. technical enhancements, corrections,
updates, etc.;
y the third digit is incremented when editorial only changes have been incorporated in the specification.
Proposed national transposition dates
Date of adoption of this EN: 19 March 1999
Date of latest announcement of this EN (doa): 30 June 1999
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 December 1999
Date of withdrawal of any conflicting National Standard (dow): 31 December 1999
ETSI
GSM 13.34 version 5.0.3 5 EN 301 419-2 V5.0.3 (1999-03)
1 Scope
This Harmonised Standard specifies the technical requirements to be met by terminal equipment capable of connecting
to a public telecommunications network and that support the GSM High Speed Circuit Switched Data Multislot
(HSCSD) feature. These requirements apply to terminals for Phase 2+ of the public land mobile radio service, operating
in the 900 MHz and 1800 MHz bands with a channel separation of 200 kHz, utilising constant envelope modulation and
carrying traffic channels according to the Time Division Multiple Access (TDMA) principle.
This standard specifies the terminal equipment HSCSD requirements for the GSM 900 and the DCS 1800 versions of
the Global System for Mobile communications (GSM).
This standard applies in addition to any regulatory requirements, eg. CTR 19/CTR 31, for HSCSD terminal equipment,
Access.
For each test purpose and its corresponding conformance requirement, a reference is given to the test method in
EN 300 607-1 (GSM 11.10-1) [2]. The requirements apply at the air interface and the Subscriber Identity Module -
Mobile Equipment interface for the access requirements, which may be stimulated to perform the tests by additional
equipment if necessary.
The measurement uncertainty is described in EN 300 607-1 (GSM 11.10-1) [2].
This standard covers the essential requirements of the Terminal Directive 98/13/EC [1] Articles 5d, 5e, 5f.
The Terminal Directive 98/13/EC [1] Articles 5a and 5b are covered by other directives, and, therefore, not by this
standard.
In this standard, there are no Electromagnetic Compatibility technical requirements in terms of the Terminal Directive
98/18/EC [1], Article 5c.
NOTE 1: Technical Requirements for EMC performance and testing of the equipment are covered by the relevant
standards applicable to the EMC Directive 89/336/EEC, annex A.
This standard specifies the HSCSD Terminal equipment additional requirements, Access.
EN 300 607-1 (GSM 11.10-1) [2] constitutes the conformance test suite for GSM. The verification of the conformance
requirements in this standard is based on the tests described in this reference. The set of requirements in EN 300 607-1
(GSM 11.10-1) [2] and the set of requirements in this standard need not be identical.
All the requirements in this standard are specific to mobile stations supporting HSCSD.
An active accessory is covered by this standard if it modifies the terminal performance in an aspect which affects
conformance to essential requirements.
NOTE 2: Only active devices are subject to this standard. Accessories may be tested with specific terminals, and
either approved for use with those terminals only, or may possibly be approved for use with a wider range
of terminals, depending on the nature and effect of the accessory.
2 Normative references
References may be made to:
a) specific versions of publications (identified by date of publication, edition number, version number, etc.), in
which case, subsequent revisions to the referenced document do not apply; or
b) all versions up to and including the identified version (identified by "up to and including" before the version
identity); or
c) all versions subsequent to and including the identified version (identified by "onwards" following the version
identity); or
d) publications without mention of a specific version, in which case the latest version applies.
ETSI
GSM 13.34 version 5.0.3 6 EN 301 419-2 V5.0.3 (1999-03)
A non-specific reference to an standard shall also be taken to refer to later versions published as an standard with the
same number.
[1] Directive 98/13/EC of the European Parliament and of the Council of 12 February 1998 relating to
telecommunications terminal equipment and satellite earth station equipment, including the mutual
recognition of their conformity.
[2] EN 300 607-1 (GSM 11.10-1 version 5.5.0): "Digital cellular telecommunications system
(Phase 2+); Mobile station conformity specifications".
[3] TBR 19: "European digital cellular telecommunications system; Attachment requirements for
Global System for Mobile communications (GSM) mobile stations; Access".
[4] GSM 01.04 (ETR 350): "Digital cellular telecommunication system (Phase 2+); Abbreviations and
acronyms"
[5] TBR 31: "European digital cellular telecommunications system (Phase2); Attachment requirements
for mobile stations in the DCS 1800 band and additional GSM 900 band; Access".
[6] TBR 20: "European digital cellular telecommunications system (Phase 20; Attachment
requirements for Global System for Mobile communications (GSM) mobile stations; Telephony".
[7] TBR 32: "European digital cellular telecommunications system (Phase2); Attachment requirements
for mobile stations in the DCS 1800 band and additional GSM 900 band; Telephony".
3 Abbreviations
For the purposes of this standard the following additional abbreviations apply:
HSCSD High Speed Circuit Switched Data
MO Mobile Originated
MT Mobile Terminated
T Transparent
NT Non Transparent
AIUR Air Interface User Rate
FNUR Fixed Network User Rate
Additional GSM related abbreviations can be found in GSM 01.04 (ETR 350) [4].
4 General requirements
HSCSD terminals shall conform to:
a) the requirements of TBR 19/TBR 31 according to the frequency band(s) implemented in the terminal; and
b) the requirements of clause 5 of this standard; and
c) the requirements in Annex A of this standard; and
d) if the terminal implements speech services, the requirements of TBR 20/TBR 32 according to the frequency
band(s) implemented in the terminal.
5 Requirements
The following table contains all requirements that are needed to meet the essential requirements as defined in the
Terminal Directive [1]. A justification according to article 5 of the Terminal Directive is given by stating the relevant
categories (c to f) together with a text supporting the justification.
ETSI
GSM 13.34 version 5.0.3 7 EN 301 419-2 V5.0.3 (1999-03)
The entries are defined as follows:
- "EN 300 607-1 Item" defines the item number of the conformance requirement and also the reference to EN 300
607-1 (GSM 11.10-1) [2]. This reference is a normative reference to a subclause of EN 300 607-1
(GSM 11.10-1) [2] containing the conformance requirement text, and references to the base standard.
- "Description" contains a short description of the requirement.
- "Justification" contains supplementary information to explain the justification of the requirement according to
article 5 of the Terminal Directive [1].
- "TD Cat" defines the category according to article 5 of the Terminal Directive [1].
- "Test Cat" defines whether the requirement is covered by a "special test situation" (e.g. a manufacturer's
declaration of some form). An "X" indicates a special test situation, whilst, a blank entry indicates conformity is
by the test referred to by this standard.
Table 1: Requirements and Justifications
EN 300 607-1 Description Justification TD Cat Test
Item Cat
13.6 Transmitter - Frequency error Non compliance in this area may cause e
and phase error in HSCSD interference to other spectrum users.
multislot configuration
13.7 Transmitter output power and Non compliance in this area may cause e
burst timing in HSCSD multislot interference to other spectrum users.
configurations
13.8 Transmitter - Output RF Non compliance in this area may cause e
spectrum in HSCSD multislot interference to other spectrum users.
configuration
Table 1 (continued): Requirements and Justifications
EN 300 607-1 Description Justification TD Cat Test
Item Cat
14.2.8 Receiver / Reference sensitivity - Non Compliance in this area may impair fX
full rate data channels in establishment and the maintaining of the
multislot configuration call.
Table 1 (continued): Requirements and Justifications
EN 300 607-1 Description Justification TD Cat Test
Item Cat
18.2 Temporary reception gaps in Non Compliance in this area may impair f
HSCSD multislot configurations the holding of the connection.
Table 1 (continued): Requirements and Justifications
EN 300 607-1 Description Justification TD Cat Test
Item Cat
21.5 Received signal measurements Non compliance in this area may lead to e, f
in HSCSD multislot configuration ignore excessive values of RXLEV, under
normal or extreme conditions.
ETSI
GSM 13.34 version 5.0.3 8 EN 301 419-2 V5.0.3 (1999-03)
Table 1 (continued): Requirements and Justifications
EN 300 607-1 Description Justification TD Cat Test
Item Cat
22.2 Transmit power control timing Spectrum efficiency. E
and confirmation in HSCSD
mutlislot configurations.
Table 1 (continued): Requirements and Justifications
EN 300 607-1 Description Justification TD Cat Test
Item Cat
26.13.1.1.1 Multislot signalling / RR / This test case verifies that the MS does f
Measurement / symmetric not report about cells which are suitable
from a radio propagation point of view but
which could not accommodate the MS for
other reasons. The measurement reports
that are sent by the MS are used by the
network to determine whether a handover
procedure should be performed and
towards which cell it can be performed
(Article 5f). For its measurements, the MS
has to follow the indications broadcasted
by the network in the SYSTEM
INFORMATION messages.
26.13.1.1.2 Multislot signalling / RR / This test case verifies that the MS does f
Measurement / asymmetric not report about cells which are suitable
from a radio propagation point of view but
which could not accommodate the MS for
other reasons. The measurement reports
that are sent by the MS are used by the
network to determine whether a handover
procedure should be performed and
towards which cell it can be performed
(Article 5f). For its measurements, the MS
has to follow the indications broadcasted
by the network in the SYSTEM
INFORMATION messages.
26.13.1.1.3 Multislot signalling / RR / This test guarantees the reliability of e, f
Measurement / asymmetric / measurement reports
Change of the reported
subchannel
26.13.1.2.1 Multislot signalling / RR / If the assignment procedure is not d, f
Dedicated assignment / correctly implemented by the MS,
successful case connections can not be established
(Article 5f). If the correct power level is not
applied this harms the network (Article
5d).
26.13.1.2.2 Multislot signalling / RR / If the assignment failure procedure is not f
Dedicated assignment / failure / correctly implemented by the MS, that MS
general case can not be able to re-establish the old link.
26.13.1.3.1 Multislot signalling / RR / If the handover procedure is not correctly f
Handover / successful / active implemented by the MS, it is impossible to
call / non-synchronized switch a call in progress from one cell to
another cell.
26.13.1.3.2 Multislot signalling / RR / If the handover procedure is not correctly f
Handover / successful / call implemented by the MS, it is impossible to
under establishment / non switch a call in progress from one cell to
synchronized / resource another cell.
upgrading
(continued)
ETSI
GSM 13.34 version 5.0.3 9 EN 301 419-2 V5.0.3 (1999-03)
Table 1 (continued): Requirements and Justifications
26.13.1.3.3 Multislot signalling / RR / If the handover procedure is not correctly f
Handover / successful / active implemented by the MS, it is impossible to
call / finely synchronized / switch a call in progress from one cel
...
