SLOVENSKI STANDARD
01-februar-2005
'LJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D3ULNOMXþLWYHQH]DKWHYH]D
JOREDOQLVLVWHPPRELOQLKNRPXQLNDFLM*60)UHNYHQþQLSDVRYL]DåHOH]QLFR5
*600RELOQHSRVWDMH'RVWRS*60UD]OLþLFDL]GDMD
Digital cellular telecommunications system (Phase 2+) (GSM); Attachment requirements
for Global System for Mobile communications (GSM); Railways Band (R-GSM); Mobile
Stations; Access (GSM 13.67 version 5.1.1 Release 1996)
Ta slovenski standard je istoveten z: EN 301 419-7 Version 5.1.1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETSI EN 301 419-7 V5.1.1 (2000-08)
European Standard (Telecommunications series)
Digital cellular telecommunications system (Phase 2+);
Attachment requirements for Global System
for Mobile communications (GSM);
Railways Band (R-GSM);
Mobile Stations;
Access
(GSM 13.67 version 5.1.1 Release 1996)
R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS

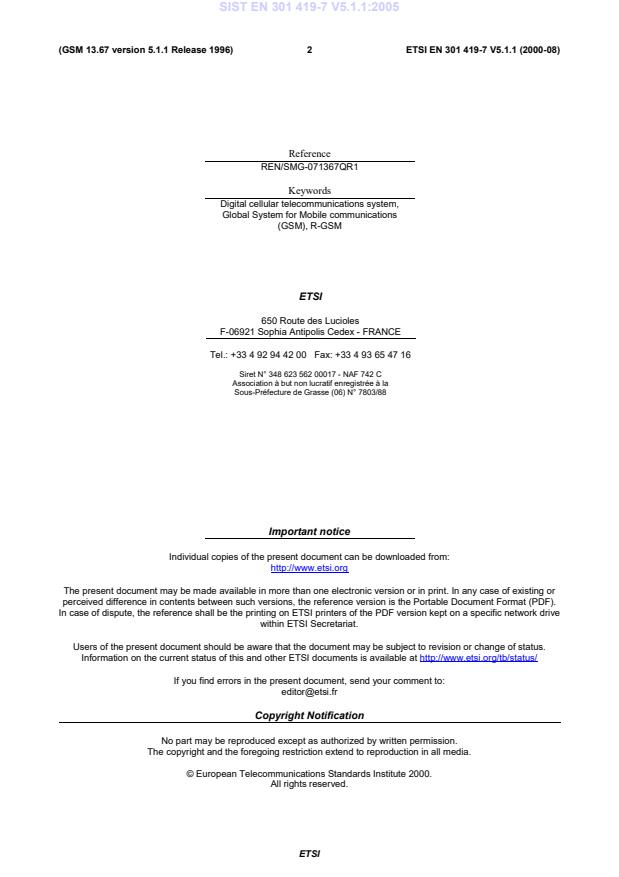

2 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
Reference
REN/SMG-071367QR1
Keywords
Digital cellular telecommunications system,
Global System for Mobile communications
(GSM), R-GSM
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.:[phone] Fax:[phone]
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at http://www.etsi.org/tb/status/
If you find errors in the present document, send your comment to:
[e-mail]
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2000.
All rights reserved.
ETSI
3 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
Contents
Intellectual Property Rights.4
Foreword.4
1 Scope .5
2 References .6
3 Abbreviations .6
4 General requirements .6
5 Requirements.7
Annex A (normative): The Requirement Table (RT) .11
A.1 Introduction to the RT .11
A.2 Format of the tables.11
A.3 References to EN 300 607-1 (GSM 11.10-1).12
A.4 Notations used in the RT.12
A.4.1 Status Notations.12
A.4.2 Support Answer Notations .12
A.5 The Requirement Tables .13
A.5.1 Static Requirements, RT A.13
A.5.1.1 Types of Mobile Stations.13
A.5.1.2 Mobile Station Features .13
A.5.1.3 Teleservices .13
A.5.1.4 Bearer Services .13
A.5.1.5 Supplementary Services.13
A.5.1.6 Bearer Capability Information .13
A.5.1.7 Additional Information .14
A.5.2 Dynamic Requirements, RT B .15
A.5.3 R_GSM RF Tests corresponding to P- and E-GSM.17
History .18
ETSI
4 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Special Mobile
Group (SMG).
The present document covers the requirements for GSM terminal equipment capable of operating in the frequency
bands allocated for use by private networks of the European railways (876 - 880 MHz and 921 - 925 MHz), hereafter
designated R-GSM terminals.
The present document contains the procedures and requirements for the approval testing of R-GSM terminals.
The requirements of TBR-19, Access apply in addition to the present document, for R-GSM terminals.
Equipments complying with these standards will carry the presumption of conformity with the essential requirements
referred to in Article 5 of the Directive 98/13 EC of the European Parliament and of the Council.
For each test, supplementary information is provided, giving a justification why this item has been selected for
regulatory testing, and a reference to the relevant article of the Terminal Directive [1].
The present document is based on EN 300 607-1 (GSM 11.10-) [2].
The contents of the present document may be subject to continuing work within SMG and may change following formal
SMG approval. Should SMG modify the contents of the present document it will then be re-submitted for formal
approval procedures by ETSI with an identifying change of release date and an increase in version number as follows:
Version 5.x.y
where:
5 GSM Phase 2+ Release 1996
x the second digit is incremented for changes of substance, i.e. technical enhancements, corrections, updates,
etc.;
y the third digit is incremented when editorial only changes have been incorporated in the specification.
National transposition dates
Date of adoption of this EN: 21 July 2000
Date of latest announcement of this EN (doa): 31 October 2000
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2001
Date of withdrawal of any conflicting National Standard (dow): 30 April 2001
ETSI
5 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
1 Scope
The present document specifies the technical requirements to be met by GSM terminal equipment capable of operating
in the frequency bands allocated for use by private networks of the European Railways (876 - 880 MHz and
921 - 925 MHz). The present document applies to R-GSM terminals for Phase 2+ of the public land mobile radio
service, operating in the European Railways R-band frequency in addition to the 900 MHz GSM band with a channel
separation of 200 kHz, utilising constant envelope modulation and carrying traffic channels according to the Time
Division Multiple Access (TDMA) principle.
The present document specifies the R-GSM terminal requirements for the European Railways version of the Global
System for Mobile communications (GSM).
For each test purpose and its corresponding conformance requirement, a reference is given to the test method in
EN 300 607-1 (GSM 11.10-1) [2]. The requirements apply at the air interface and the Subscriber Identity
Module - Mobile Equipment interface for the access requirements, which may be stimulated to perform the tests by
additional equipment if necessary.
The measurement uncertainty is described in EN 300 607-1 (GSM 11.10-1) [2].
The present document covers the telecommunication terminal equipment (TTE) essential requirements of the Terminal
Directive 98/13/EC [1] Articles 5d, 5e, 5f.
The Terminal Directive 98/13/EC [1] Articles 5a and 5b are covered by other directives, and, therefore, not by the
present document.
In the present document, there are no Electromagnetic Compatibility technical requirements in terms of the Terminal
Directive 98/13/EC [1], Article 5c.
NOTE 1: Technical Requirements for EMC performance and testing of the equipment are covered by the relevant
standards applicable to the EMC Directive 89/336/EEC, annex A.
The present document specifies the R-GSM terminals additional requirements, which will apply in addition to the
Harmonised Standards covering the operation of these terminals in the frequency bands allocated for public GSM
networks.
EN 300 607-1 (GSM 11.10-1) [2] constitutes the conformance test suite for GSM. The verification of the conformance
requirements in the present document is based on the tests described in this reference. The set of requirements in
EN 300 607-1 (GSM 11.10-1) [2] and the set of requirements in the present document need not be identical.
All the requirements in the present document are specific to mobile stations supporting R-GSM.
An active accessory is covered by the present document if it modifies the terminal performance in an aspect which
affects conformance to essential requirements.
NOTE 2: Only active devices are subject to the present document. Accessories may be tested with specific
terminals, and either approved for use with those terminals only, or may possibly be approved for use
with a wider range of terminals, depending on the nature and effect of the accessory.
For each test, supplementary information is provided, giving a justification why this item has been selected for
regulatory testing, and a reference to the relevant article of the Terminal Directive [1].
The present document is based on EN 300 607-1 (GSM 11.10-1) [2].
ETSI
6 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
• A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
• For this Release 1996 document, references to GSM documents are for Release 1996 versions (version 5.x.y).
[1] Directive 98/13/EC of the European Parliament and of the Council of 12 February 1998 relating to
telecommunications terminal equipment and satellite earth station equipment, including the mutual
recognition of their conformity.
[2] EN 300 607-1 (GSM 11.10-1): "Digital cellular telecommunications system (Phase 2+); Mobile
station conformity specifications".
[3] TBR 19: "European digital cellular telecommunications system; Attachment requirements for
Global System for Mobile communications (GSM) mobile stations; Access".
[4] GSM 01.04 (ETR 350): "Digital cellular telecommunication system (Phase 2+); Abbreviations and
acronyms".
[5] TBR 20: "European digital cellular telecommunications system (Phase 2); Attachment
requirements for Global System for Mobile communications (GSM) mobile stations; Telephony".
3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ASCI Advanced Speech Call Items
eMLPP enhanced Multi-Level Precedence and Pre-emption service
MO Mobile Originated
MT Mobile Terminated
R-GSM Railways Global System for Mobile communications
VBS Voice Broadcast Service
VGCS Voice Group Call Service
Additional GSM related abbreviations can be found in GSM 01.04 (ETR 350) [4].
4 General requirements
R-GSM Band terminals shall conform to:
a) the requirements of the GSM 900 requirements of TBR19; and
b) the requirements of clause 5 of the present document; and
c) the requirements in Annex A of the present document; and
d) if the terminal implements speech services, the requirements of TBR 20.
ETSI
7 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
5 Requirements
The following table contains all requirements that are needed to meet the essential requirements as defined in the
Terminal Directive [1]. A justification according to article 5 of the Terminal Directive is given by stating the relevant
categories (d to f) together with a text supporting the justification.
The entries are defined as follows:
- "EN 300 607-1 Item" defines the item number of the conformance requirement and also the reference to
EN 300 607-1 (GSM 11.10-1) [2]. This reference is a normative reference to a subclause of EN 300 607-1
(GSM 11.10-1) [2] containing the conformance requirement text, and references to the base standard.
- "Description" contains a short description of the requirement.
- "Justification" contains supplementary information to explain the justification of the requirement according to
article 5 of the Terminal Directive [1].
- "TD Cat" defines the category according to article 5 of the Terminal Directive [1].
- "Test Cat" is defined as follows:
- an "X" indicates a special test situation (e.g. a manufacturer's declaration of some sort);
- a blank entry indicates conformity is by the test referred to by this standard;
- an asterisk "*" indicates that, for a R-GSM MS the test in this standard shall be performed by using the
R-GSM test parameters and the test in TBR 19 does not need to be performed.
- a double asterisk "**" indicates that, for a R-GSM MS the test in this standard shall be performed and that
the corresponding test in TBR 19 does not need to be performed. The corresponding test cases can be found
in Table A.27: Cross reference R-GSM RF tests to P- and E-GSM.
ETSI
8 ETSI EN 301 419-7 V5.1.1 (2000-08)
(GSM 13.67 version 5.1.1 Release 1996)
Table 1: Requirements and Justifications
EN 300 607-1 Item Description Justification TD Cat Test
Cat
12.3.1 Conducted spurious emissions for Non compliance in this area may causee**
MS supporting the R-GSM interference to other spectrum users.
frequency band/ MS allocated a
channel
12.3.2 Conducted spurious emissions for Non compliance in this area may causee**
MS supporting the R-GSM interference to other spectrum users.
frequency band/ MS in idle mode
12.4.1 Radiated spurious emissions for Non compliance in this area may causee**
MS supporting the R-GSM interference to other spectrum users.
frequency band/ MS allocated a
channel
12.4.2 Radiated spurious emissions for Non compliance in this area may causee**
MS supporting the R-GSM interference to other spectrum users.
frequency band/ MS in idle mode
13.9 Transmitter - Output RF spectrum Non compliance in this area may causee**
for MS supporting the R-GSM interference to other spectrum users.
band.
14.2.9 Reference sensitivity - TCH/FS Non compliance in this area may degradef**
for MS supporting the R-GSM speech quality and may impair call
band maintenance.
14.7.3 Blocking and spurious response - Non compliance in this area may degradee**
speech channels for MS speech quality and may impair call
supporting the R-GSM band maintenance.
14.7.4 Blocking and spurious response - Non Compliance in this area may impairfX
control channels for MS establishment and the maintaining of the
supporting the R-GSM band call.
20.21.1 R-GSM cell selection An MS which does not select the correct e, f **
cell at switch on, may not camp onto the
optimum cell for establishing a connection
with the network, or may not offer service
at all.
20.21.2 R-GSM cell selection with varying An MS which incorrectly averages signal e, f **
signal strength values strength values during cell selection, may
not camp onto the optimum cell for
establishing a connection with the network.
20.21.3 R-GSM basic cell reselection An MS which reselects cells incorrectly, d, e, f **
may not camp onto the optimum cell for
establishing a connection with the network.
20.21.4 R-GSM cell reselection using An MS which reselects cells incorrectly, d, e, f **
TEMPORARY_OFFSET, may not camp onto the optimum cell for
CELL_RESELECT_OFFSET, establishing a connection with the network.
POWER_OFFSET and
PENALTY_TIME parameters
20.21.5 R-GSM cell reselection using An MS which reselects incorrectly, may not d, e, f **
parameters transmitted in the camp onto the optimum cell for
System Information type 2bis, establishing a connection with the network.
type 7 and type 8 messages
20.21.6 R-GSM cell reselection timing An MS which reselects cells incorrectly, d, e, f **
may not camp onto the optimum cell for
establishing a connection with the network.
20.21.7 R-GSM priority of cells An MS which reselects cells incorrectly, d, e, f **
may not camp onto the optimum cell for
establishing a connection with the network.
Too frequent reselections may cause
increased network signalling load at LA
boundaries, or missed paging messages.
20.21.8 R-GSM
...
