SIST

SIST EN IEC 61158-4-4:2024

(Main)

Industrial communication networks - Fieldbus specifications - Part 4-4: Data-link layer protocol specification - Type 4 elements (IEC 61158-4-4:2023)

Industrial communication networks - Fieldbus specifications - Part 4-4: Data-link layer protocol specification - Type 4 elements (IEC 61158-4-4:2023)

IEC 61158-4-4:2023 specifies
- procedures for the timely transfer of data and control information from one data-link user entity to a peer user entity, and among the data-link entities forming the distributed data-link service provider;
- the structure of the fieldbus DLPDUs used for the transfer of data and control information by the protocol of this document, and their representation as physical interface data units.

Industrielle Kommunikationsnetze - Feldbusse - Teil 4-4: Protokollspezifikation des Data-Link Layer (Sicherungsschicht) - Typ 4-Elemente (IEC 61158-4-4:2023)

Réseaux de communication industriels - Spécifications des bus de terrain - Partie 4-4: Spécification du protocole de la couche liaison de données - Eléments de type 4 (IEC 61158-4-4:2023)

L'IEC 61158-4-4:2023 spécifie:
-les procédures de transfert en temps voulu des données et des informations de commande d’une entité utilisateur de liaison de données à une entité utilisateur homologue, et parmi les entités de liaison de données formant le fournisseur de services de liaison de données distribué;
-la structure des DLPDU de bus de terrain utilisées pour le transfert de données et d’informations de commande par le protocole du présent document, et leur représentation en tant qu’unités de données d’interface physique.

Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 4-4. del: Specifikacija protokola na ravni podatkovnih povezav - Elementi tipa 4 (IEC 61158-4-4:2023)

Standard IEC 61158-4-4:2023 določa
– postopke za pravočasen prenos podatkov in informacij o nadzoru od ene entitete s podatkovno povezavo do entitete vrstnikov ter med entitetami s podatkovno povezavo, ki tvorijo ponudnika porazdeljenih opravil podatkovne povezave;
– strukturo podatkovnih enot protokola podatkovnih povezav za procesna vodila, ki se uporabljajo za prenos podatkov in informacij o nadzoru s protokolom tega standarda, in njihovo zastopanost v obliki podatkovnih enot fizičnega vmesnika.

General Information

Status
Published
Publication Date
11-Apr-2024
ICS
25.040.40 - Industrial process measurement and control
35.100.20 - Data link layer
35.110 - Networking
Technical Committee
MOV - Measuring equipment for electromagnetic quantities
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
04-Jul-2023
Due Date
08-Sep-2023
Completion Date
12-Apr-2024
Ref Project
EN IEC 61158-4-4:2023 - Industrial communication networks - Fieldbus specifications - Part 4-4: Data-link layer protocol specification - Type 4 elements

Relations

Replaces
SIST EN IEC 61158-4-4:2019 - Industrial communication networks - Fieldbus specifications - Part 4-4: Data-link layer protocol specification - Type 4 elements (IEC 61158-4-4:2019)
Effective Date
04-Apr-2023

Buy Standard

EN IEC 61158-4-4:2024EN IEC 61158-4-4:2024
PreviousNext
Standard
EN IEC 61158-4-4:2024
English language
49 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

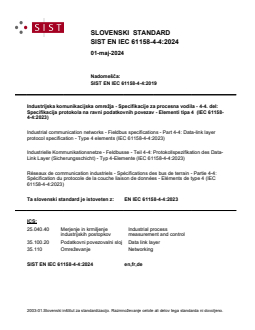

SLOVENSKI STANDARD
SIST EN IEC 61158-4-4:2024
01-maj-2024
Nadomešča:
SIST EN IEC 61158-4-4:2019
Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 4-4. del:
Specifikacija protokola na ravni podatkovnih povezav - Elementi tipa 4 (IEC 61158-
4-4:2023)
Industrial communication networks - Fieldbus specifications - Part 4-4: Data-link layer
protocol specification - Type 4 elements (IEC 61158-4-4:2023)
Industrielle Kommunikationsnetze - Feldbusse - Teil 4-4: Protokollspezifikation des Data-
Link Layer (Sicherungsschicht) - Typ 4-Elemente (IEC 61158-4-4:2023)
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 4-4:
Spécification du protocole de la couche liaison de données - Eléments de type 4 (IEC
61158-4-4:2023)
Ta slovenski standard je istoveten z: EN IEC 61158-4-4:2023
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.20 Podatkovni povezovalni sloj Data link layer
35.110 Omreževanje Networking
SIST EN IEC 61158-4-4:2024 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 61158-4-4:2024

---------------------- Page: 2 ----------------------
SIST EN IEC 61158-4-4:2024



EUROPEAN STANDARD EN IEC 61158-4-4

NORME EUROPÉENNE

EUROPÄISCHE NORM April 2023
ICS 25.040.40; 35.100.20; 35.110 Supersedes EN IEC 61158-4-4:2019
English Version
Industrial communication networks - Fieldbus specifications -
Part 4-4: Data-link layer protocol specification - Type 4 elements
(IEC 61158-4-4:2023)
Réseaux de communication industriels - Spécifications des Industrielle Kommunikationsnetze - Feldbusse - Teil 4-4:
bus de terrain - Partie 4-4: Spécification du protocole de la Protokollspezifikation des Data-Link Layer
couche liaison de données - Eléments de type 4 (Sicherungsschicht) - Typ 4-Elemente
(IEC 61158-4-4:2023) (IEC 61158-4-4:2023)
This European Standard was approved by CENELEC on 2023-04-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

 Ref. No. EN IEC 61158-4-4:2023 E

---------------------- Page: 3 ----------------------
SIST EN IEC 61158-4-4:2024
EN IEC 61158-4-4:2023 (E)

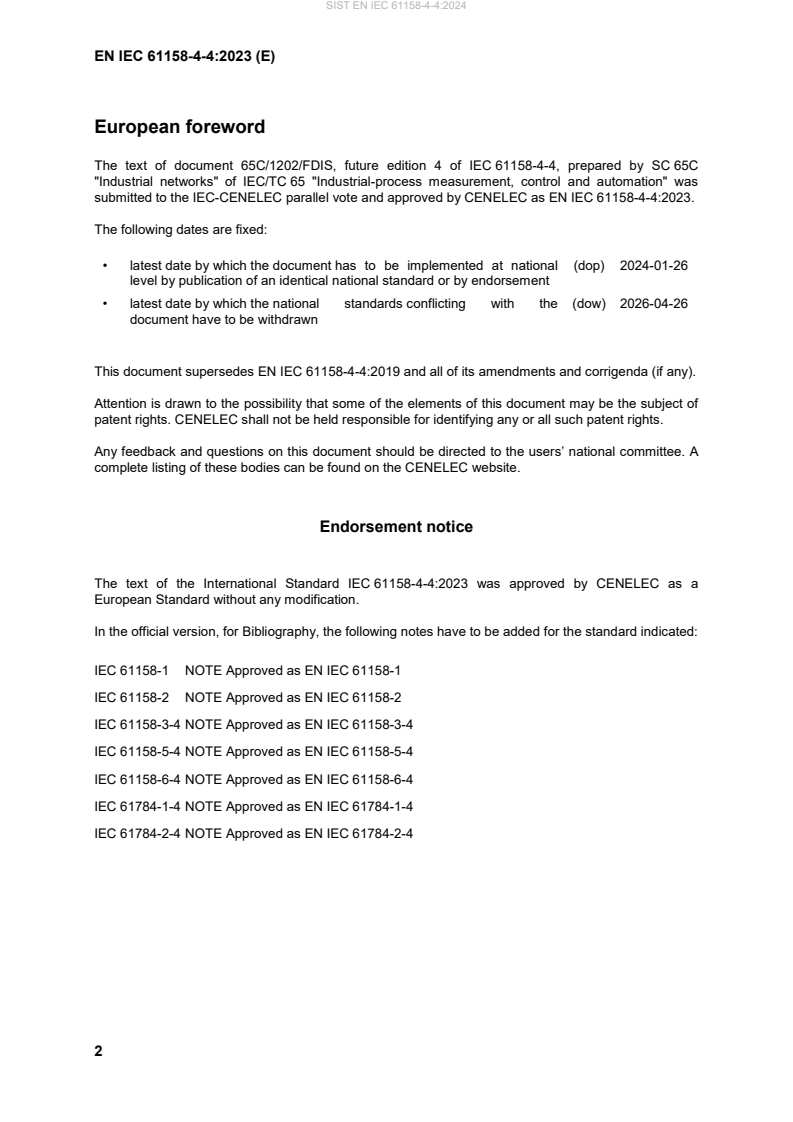

European foreword
The text of document 65C/1202/FDIS, future edition 4 of IEC 61158-4-4, prepared by SC 65C
"Industrial networks" of IEC/TC 65 "Industrial-process measurement, control and automation" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61158-4-4:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-01-26
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-04-26
document have to be withdrawn

This document supersedes EN IEC 61158-4-4:2019 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61158-4-4:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes
...
