SIST EN IEC 61300-2-18:2023

Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-18: Tests - Dry heat (IEC 61300-2-18:2023)

This part of IEC 61300 details a procedure to determine the suitability of a fibre optic interconnecting device, passive component, splices or closure to withstand the environmental condition of extended high temperature that occur during operation, storage and/or transport. The test is intended to indicate the performance of such devices when exposed to heat of constant temperature over a given period.
In general terms, this test provides a high temperature to induce potential failures due to softening and expansions.
This procedure does not assess the ability of a device to operate during temperature variations; in this case, IEC 61300-2-22 is used.

Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und Messverfahren - Teil 2-18: Prüfungen - Trockene Wärme (IEC 61300-2-18:2023)

Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes fondamentales d'essais et de mesures - Partie 2-18: Essais - Chaleur sèche (IEC 61300-2-18:2023)

IEC 61300-2-18:2023 est disponible sous forme de IEC 61300-2-18:2023 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.

IEC 61300-2-18:2023 décrit une procédure destinée à déterminer l'aptitude d’un dispositif d’interconnexion fibronique, d’un composant passif fibronique, des épissures ou d'un boîtier fibronique à supporter des conditions d’environnement à haute température prolongée présentes pendant le fonctionnement, le stockage et/ou le transport. L'essai est destiné à indiquer la performance de tels dispositifs lorsqu'ils sont exposés à une chaleur avec une température constante sur une période donnée. En termes généraux, cet essai fournit une température haute qui induit des défaillances potentielles du fait du ramollissement et de la dilatation. Cette procédure ne vise pas à évaluer l’aptitude d’un dispositif à fonctionner pendant les variations de température; dans ce cas, c’est l’IEC 61300-2-22 qui s’applique. Cette troisième édition annule et remplace la deuxième édition parue en 2005. Cette édition constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
- les termes et définitions ont été mis à jour conformément à l’IEC 61753-1:2018;
- les sévérités d’essais ont été mises à jour conformément à l'IEC 61753-1:2018;
- une simplification de la combinaison de la température et de la durée de l’exposition a été effectuée.

Optični spojni elementi in pasivne komponente - Osnovni preskusni in merilni postopki - 2-18. del: Preskusi - Suha vročina (IEC 61300-2-18:2023)

V tem delu standarda IEC 61300 je podrobno opisan postopek za ugotavljanje primernosti povezovalnih naprav z optičnimi vlakni, pasivne komponente, spojnic ali zapiranja za odpornost proti okoljskemu pogoju daljše izpostavljenosti visokim temperaturam, ki se pojavi med delovanjem, shranjevanjem in/ali transportom. Preskus je namenjen določanju učinkovitosti takih naprav, kadar so te v določenem obdobju izpostavljene stalni temperaturi.
Na splošno ta preskus zagotavlja visoko temperaturo za sproženje potencialnih okvar zaradi mehčanja in raztezanja.
Ta postopek ne ocenjuje zmožnosti naprave za delovanje pri temperaturnih spremembah; v tem primeru se uporablja standard IEC 61300-2-22.

General Information

• Status: Published
• Publication Date: 10-Apr-2023
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Mar-2023
• Due Date: 12-May-2023
• Completion Date: 11-Apr-2023
• Ref Project: EN IEC 61300-2-18:2023 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-18: Tests - Dry heat

Overview

SIST EN IEC 61300-2-18:2023 is the latest international standard published by CLC that specifies basic test and measurement procedures for fibre optic interconnecting devices and passive components. This standard focuses specifically on the dry heat test, designed to evaluate the ability of fibre optic devices, splices, and closures to withstand extended exposure to elevated temperatures typically encountered during operation, storage, or transport. By simulating constant high temperature conditions, this test helps identify potential heat-induced failures such as material softening or expansion.

As a critical component of fibre optic system reliability assurance, SIST EN IEC 61300-2-18:2023 replaces the 2005 edition with updated test severities and simplified procedures aligned with IEC 61753-1:2018 guidance. It plays a vital role in certifying fibre optic components for harsh environments.

Key Topics

• Scope and Purpose
  The standard defines a procedure to determine the performance stability and suitability of fibre optic components when subjected to constant high temperature environments over a specified duration. It excludes assessments under temperature variations, which are addressed separately by IEC 61300-2-22.

• Test Methodology
  The dry heat test requires placing the device under test (DUT) inside an environmental chamber capable of maintaining constant temperature with close tolerance. The test adheres to IEC 60068-2-2 Test Bb procedures for dry heat environmental simulation.

• Optical Monitoring
  During the test, optical parameters including attenuation and return loss may be continuously or periodically monitored using equipment complying with IEC 61300-3-3. This enables real-time detection of performance degradation attributable to heat stress.

• Apparatus Requirements

  • An environmental test chamber with proper air circulation to maintain uniform temperature without exposing the DUT to direct heating elements.
  • Optical measurement equipment that meets IEC standards for accuracy and precision in measuring attenuation and return loss.

• Test Sequence

  • Preconditioning and initial measurements ensure baseline data is collected before heat exposure.
  • The conditioning phase exposes DUTs to dry heat for the designated time and temperature.
  • Recovery and final measurement steps assess any residual effects or irreversible damage.

• Severity Levels
  Test severities, defined by combinations of temperature and exposure time, are updated to reflect modern performance standards. These enable tailored testing aligned with device specifications or application environments.

Applications

SIST EN IEC 61300-2-18:2023 is essential for manufacturers, testing laboratories, and quality assurance teams dealing with fibre optic components in telecommunications, data centers, industrial automation, aerospace, and other sectors where reliability in elevated temperature conditions is critical.

• Reliability Validation
  Manufacturers use dry heat testing to validate design robustness and guarantee long-term performance under harsh environmental conditions.

• Component Certification
  Compliance with this standard forms part of certification processes required by end-users and regulatory bodies for fibre optic interconnecting devices and passive components.

• Quality Control
  Routine testing during production batches helps detect early failures and maintain consistent product quality.

• Research & Development
  R&D teams leverage this test to optimize materials and construction methods for improved heat resistance.

Related Standards

This standard is part of the IEC 61300 series on Basic test and measurement procedures for fibre optic interconnecting devices and passive components:

• IEC 61300-1: General and guidance on basic tests and measurements
• IEC 61300-2-22: Tests under temperature variations (thermal cycling, temperature shock)
• IEC 61300-3-1: Visual examinations and measurements
• IEC 61300-3-3: Active monitoring of attenuation and return loss during tests
• IEC 61753-1:2018: Performance standards providing guidance on test severities and methodologies

Additionally, it references

• IEC 60068-2-2: Environmental testing standard for dry heat procedures, providing the foundational test chamber and environmental simulation requirements.

---

This standard is critical for ensuring the durability of fibre optic components exposed to prolonged heat, enabling dependable performance in demanding environmental conditions across global applications. Adherence to SIST EN IEC 61300-2-18:2023 supports enhanced product reliability, safety, and international market acceptance.

Standards Content (Sample)

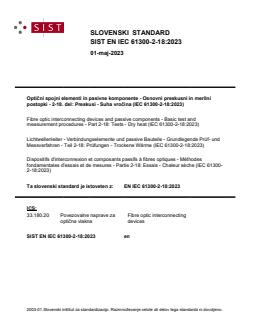

SLOVENSKI STANDARD
01-maj-2023
Optični spojni elementi in pasivne komponente - Osnovni preskusni in merilni
postopki - 2-18. del: Preskusi - Suha vročina (IEC 61300-2-18:2023)
Fibre optic interconnecting devices and passive components - Basic test and
measurement procedures - Part 2-18: Tests - Dry heat (IEC 61300-2-18:2023)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und
Messverfahren - Teil 2-18: Prüfungen - Trockene Wärme (IEC 61300-2-18:2023)
Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes
fondamentales d'essais et de mesures - Partie 2-18: Essais - Chaleur sèche (IEC 61300-
2-18:2023)
Ta slovenski standard je istoveten z: EN IEC 61300-2-18:2023
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61300-2-18

NORME EUROPÉENNE
EUROPÄISCHE NORM March 2023
ICS 33.180.20 Supersedes EN 61300-2-18:2005
English Version
Fibre optic interconnecting devices and passive components -
Basic test and measurement procedures - Part 2-18: Tests - Dry
heat
(IEC 61300-2-18:2023)
Dispositifs d'interconnexion et composants passifs Lichtwellenleiter - Verbindungselemente und passive
fibroniques - Procédures fondamentales d'essais et de Bauteile - Grundlegende Prüf- und Messverfahren - Teil 2-
mesures - Partie 2-18: Essais - Chaleur sèche 18: Prüfungen - Trockene Wärme
(IEC 61300-2-18:2023) (IEC 61300-2-18:2023)
This European Standard was approved by CENELEC on 2023-02-21. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61300-2-18:2023 E

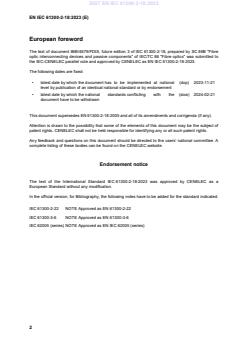

European foreword
The text of document 86B/4679/FDIS, future edition 3 of IEC 61300-2-18, prepared by SC 86B "Fibre
optic interconnecting devices and passive components" of IEC/TC 86 "Fibre optics" was submitted to
the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61300-2-18:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-11-21
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024-02-21
document have to be withdrawn
This document supersedes EN 61300-2-18:2005 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61300-2-18:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61300-2-22 NOTE Approved as EN 61300-2-22
IEC 61300-3-6 NOTE Approved as EN 61300-3-6
IEC 62005 (series) NOTE Approved as EN IEC 62005 (series)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-2 - Environmental testing - Part 2-2: Tests - EN 60068-2-2 -
Test B: Dry heat
IEC 61300-1 - Fibre optic interconnecting devices and EN IEC 61300-1 -
passive components - Basic test and
measurement procedures - Part 1: General
and guidance
IEC 61300-3-1 - Fibre optic interconnecting devices and EN 61300-3-1 -
passive components - Basic test and
measurement procedures - Part 3-1:
Examinations and measurements - Visual
examination
IEC 61300-3-3 - Fibre optic interconnecting devices and EN 61300-3-3 -
passive components - Basic test and
measurement procedures - Part 3-3:
Examinations and measurements - Active
monitoring of changes in attenuation and
return loss
IEC 61753-1 2018 Fibre optic interconnecting devices and EN IEC 61753-1 2018
passive components - Performance
standard - Part 1: General and guidance

IEC 61300-2-18 ®
Edition 3.0 2023-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Basic test and

measurement procedures –
Part 2-18: Tests – Dry heat
Dispositifs d’interconnexion et composants passifs fibroniques – Procédures

fondamentales d’essais et de mesures –

Partie 2-18: Essais – Chaleur sèche

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-6352-5

– 2 – IEC 61300-2-18:2023 © IEC 2023
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General description . 6
5 Apparatus . 6
5.1 Environmental test chamber . 6
5.2 Optical measurement equipment . 6
6 Procedure . 6
6.1 General . 6
6.2 Preconditioning . 6
6.3 Initial examinations and measurements . 6
6.4 Conditioning . 7
6.5 Recovery . 7
6.6 Final examinations and measurements . 7
7 Severity . 7
8 Details to be specified and reported. 8
Bibliography . 9

Table 1 – Recommended severities . 7

IEC 61300-2-18:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –

Part 2-18: Tests – Dry heat
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the wa
...
