SIST ETS 300 507 E4:2003

Digital cellular telecommunications system (Phase 2); Service accessibility (GSM 02.11)

The technical realization of service accessibility in terms of registration, handover, roaming and system selection is defined in the 03 series of GSM Specifications. The purpose of this ETS is to describe the service access procedures as presented to the user. Definitions and procedures are provided in this specification for international roaming, national roaming and regionally provided service. These are mandatory in relation to the technical realisation of the Mobile Station.

Digitalni celični telekomunikacijski sistem (faza 2) – Dostopnost storitev (GSM 02.11)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 507 ed.4 (1996-09) - Digital cellular telecommunications system (Phase 2) (GSM); Service accessibility (GSM 02.11)

Standards Content (Sample)

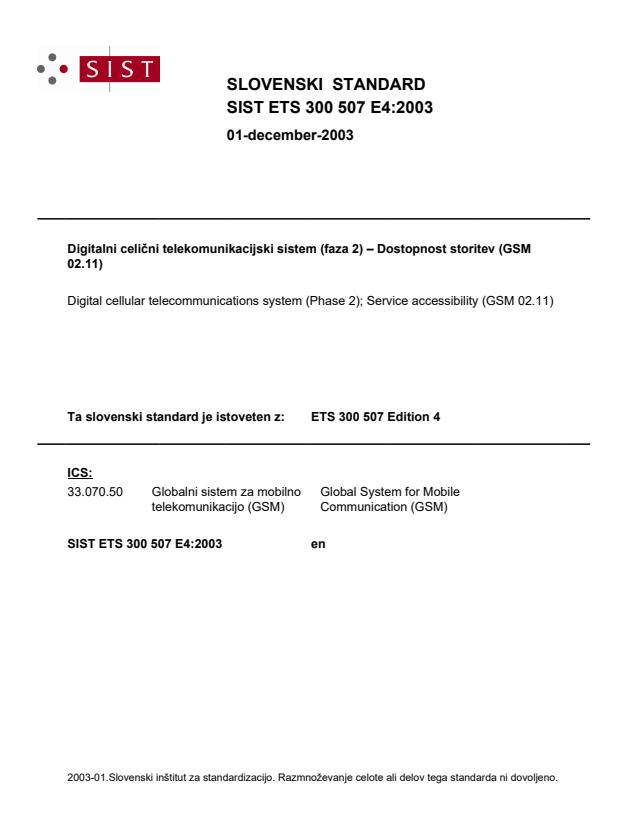

SLOVENSKI STANDARD
SIST ETS 300 507 E4:2003
01-december-2003
'LJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±'RVWRSQRVWVWRULWHY*60

Digital cellular telecommunications system (Phase 2); Service accessibility (GSM 02.11)
Ta slovenski standard je istoveten z: ETS 300 507 Edition 4
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
SIST ETS 300 507 E4:2003 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 507 E4:2003

---------------------- Page: 2 ----------------------

SIST ETS 300 507 E4:2003

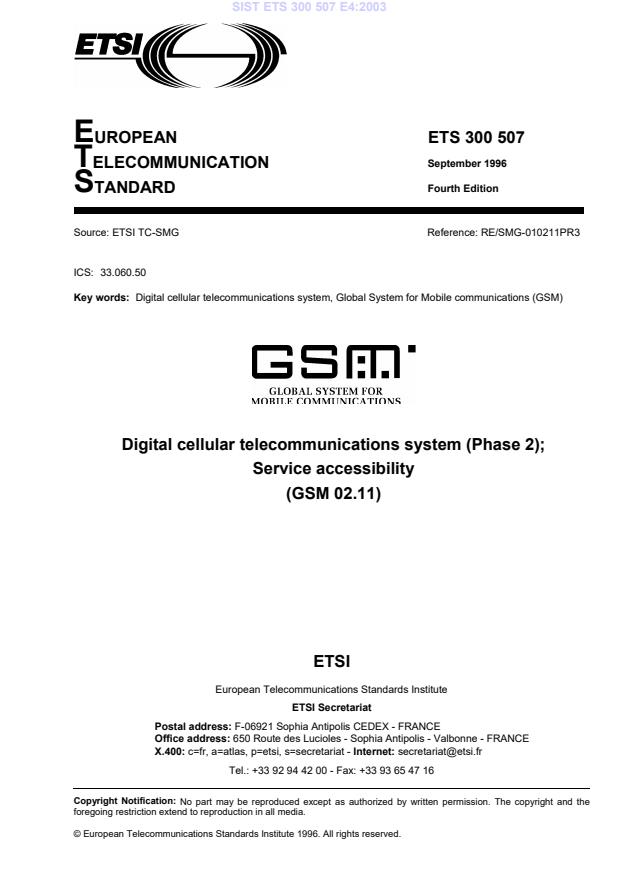

EUROPEAN ETS 300 507
TELECOMMUNICATION September 1996
STANDARD Fourth Edition
Source: ETSI TC-SMG Reference: RE/SMG-010211PR3
ICS: 33.060.50
Key words: Digital cellular telecommunications system, Global System for Mobile communications (GSM)
Digital cellular telecommunications system (Phase 2);
Service accessibility
(GSM 02.11)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1996. All rights reserved.

---------------------- Page: 3 ----------------------

SIST ETS 300 507 E4:2003
Page 2
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 507 E4:2003
Page 3
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
Contents
Foreword .5
1 Scope .7
1.1 Normative references .7
1.2 Definitions and abbreviations.9
2 Roaming.10
2.1 General requirements .10
2.2 International roaming .10
2.3 National roaming.10
3 Provisions for providing continuity of service .10
3.1 Location registration.10
3.2 Network selection.11
3.2.1 General.11
3.2.2 Procedures.11
3.2.2.1 General.11
3.2.2.2 At switch-on or recovery from lack of coverage.11
3.2.2.3 User reselection.12
3.2.2.4 Mobile Station reactions to indications of service
restriction from the network .13
3.2.2.4.1 "Permanent" PLMN restriction .13
3.2.2.4.2 "Partial" and "temporary" PLMN
restrictions .13
3.2.2.5 Timer for return to HPLMN .13
4 Access control.14
4.1 Purpose.14
4.2 Allocation .14
4.3 Operation .14
4.4 Emergency Calls.14
History.15

---------------------- Page: 5 ----------------------

SIST ETS 300 507 E4:2003
Page 4
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
Blank page

---------------------- Page: 6 ----------------------

SIST ETS 300 507 E4:2003
Page 5
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
Foreword
This European Telecommunication Standard (ETS) has been produced by the Special Mobile Group
(SMG) Technical Committee (TC) of the European Telecommunications Standards Institute (ETSI).
This ETS defines service access procedures presented to the user within the Digital cellular
telecommunications system (Phase 2) and corresponds to GSM Technical Specification (GSM-TS) 02.11
version 4.9.0.
The specification from which this ETS has been derived was originally based on CEPT documentation,
hence the presentation of this ETS may not be entirely in accordance with the ETSI rules.
Reference is made within this ETS to GSM-TSs (note).
Reference is also made within this ETS to GSM 03.xx. series. The specifications in the series can be
identified, with their full title, within the normative reference clause of this ETS by the first two digits of their
GSM reference number e.g. GSM 03.xx series, refers to GSM 03.01, GSM 03.02 etc.
NOTE: TC-SMG has produced documents which give the technical specifications for the
implementation of the Digital cellular telecommunications system. Historically, these
documents have been identified as GSM Technical Specifications (GSM-TSs). These
TSs may have subsequently become I-ETSs (Phase 1), or ETSs (Phase 2), whilst
others may become ETSI Technical Reports (ETRs). GSM-TSs are, for editorial
reasons, still referred to in GSM ETSs.
Proposed transposition dates
Date of latest announcement of this ETS (doa): 15 December 1996
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 15 June 1997
Date of withdrawal of any conflicting National Standard (dow): 15 June 1997

---------------------- Page: 7 ----------------------

SIST ETS 300 507 E4:2003
Page 6
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 507 E4:2003
Page 7
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
1 Scope
The technical realization of service accessibility in terms of registration, handover, roaming and system
selection is defined in the 03 series of GSM Specifications.
The purpose of this European Telecommunication Standard (ETS) is to describe the service access
procedures as presented to the user.
Definitions and procedures are provided in this specification for international roaming, national roaming
and regionally provided service. These are mandatory in relation to the technical realization of the Mobile
Station.
1.1 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references, the
latest edition of the publication referred to applies.
[1] GSM 01.04 (ETR 100): "Digital cellular telecommunication system (Phase 2);
Abbreviations and acronyms".
[2] GSM 02.07 (ETS 300 505): "Digital cellular telecommunication system
(Phase 2); Mobile Station (MS) features".
[3] GSM 03.01 (ETS 300 521): "Digital cellular telecommunication system
(Phase 2); Network functions".
[4] GSM 03.02 (ETS 300 522): "Digital cellular telecommunication system
(Phase 2); Network architecture".
[5] GSM 03.03 (ETS 300 523): "Digital cellular telecommunication system
(Phase 2); Numbering, addressing and identification".
[6] GSM 03.04 (ETS 300 524): "Digital cellular telecommunication system
(Phase 2); Signalling requirements relating to routeing of calls to mobile
subscribers".
[7] GSM 03.07 (ETS 300 525): "Digital cellular telecommunication system
(Phase 2); Restoration procedures".
[8] GSM 03.08 (ETS 300 526): "Digital cellular telecommunication system
(Phase 2); Organisation of subscriber data".
[9] GSM 03.09 (ETS 300 527): "Digital cellular telecommunication system
(Phase 2); Handover procedures".
[10] GSM 03.10 (ETS 300 528): "Digital cellular telecommunication system
(Phase 2); GSM Public Land Mobile Network (PLMN) connection types".
[11] GSM 03.11 (ETS 300 529): "Digital cellular telecommunication system
(Phase 2); Technical realization of supplementary services".
[12] GSM 03.12 (ETS 300 530): "Digital cellular telecommunication system
(Phase 2); Location registration procedures".
[13] GSM 03.13 (ETS 300 531): "Digital cellular telecommunication system
(Phase 2); Discontinuous Reception (DRX) in the GSM system".

---------------------- Page: 9 ----------------------

SIST ETS 300 507 E4:2003
Page 8
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
[14] GSM 03.14 (ETS 300 532): "Digital cellular telecommunication system
(Phase 2); Support of Dual Tone Multi-Frequency signalling (DTMF) via the
GSM system".
[15] GSM 03.15 (ETS 300 533): "Digital cellular telecommunication system
(Phase 2); Technical realization of operator determined barring".
[16] GSM 03.20 (ETS 300 534): "Digital cellular telecommunication system
(Phase 2); Security related network functions".
[17] GSM 03.22 (ETS 300 535): "Digital cellular telecommunication system
(Phase 2); Functions related to Mobile Station (MS) in idle mode".
[18] GSM 03.38 (ETS 300 628): "Digital cellular telecommunication system
(Phase 2); Alphabets and language-specific information".
[19] GSM 03.40 (ETS 300 536): "Digital cellular telecommunication system
(Phase 2); Technical realization of the Short Message Service (SMS) Point to
Point (PP)".
[20] GSM 03.41 (ETS 300 537): "Digital cellular telecommunication system
(Phase 2); Technical realization of Short Message Service Cell Broadcast
(SMSCB)".
[21] GSM 03.45 (ETS 300 538): "Digital cellular telecommunication system
(Phase 2); Technical realization of facsimile group 3 transparent".
[22] GSM 03.46 (ETS 300 539): "Digital cellular telecommunication system
(Phase 2); Technical realization of facsimile group 3 non-transparent".
[23] GSM 03.50 (ETS 300 540): "Digital cellular telecommunication system
(Phase 2); Transmission planning aspects of the speech service in the
GSM Public Land Mobile Network (PLMN) system".
[24] GSM 03.70 (ETS 300 541): "Digital cellular telecommunication system
(Phase 2); Routeing of calls to/from Public Data Networks (PDN)".
[25] GSM 03.81 (ETS 300 542): "Digital cellular telecommunication system
(Phase 2); Line identification supplementary services - Stage 2".
[26] GSM 03.82 (ETS 300 543): "Digital cellular telecommunication system
(Phase 2); Call Forwarding (CF) supplementary services - Stage 2".
[27] GSM 03.83 (ETS 300 544): "Digital cellular telecommunication system
(Phase 2); Call Waiting (CW) and Call Hold (HOLD) supplementary services -
Stage 2".
[28] GSM 03.84 (ETS 300 545): "Digital cellular telecommunication system
(Phase 2); MultiParty (MPTY) supplementary services - Stage 2".
[29] GSM 03.85 (ETS 300 546): "Digital cellular telecommunication system
(Phase 2); Closed User Group (CUG) supplementary services - Stage 2".
[30] GSM 03.86 (ETS 300 547): "Digital cellular telecommunication system
(Phase 2); Advice of Charge (AoC) supplementary services - Stage 2".
[31] GSM 03.88 (ETS 300 548): "Digital cellular telecommunication system
(Phase 2); Call Barring (CB) supplementary services - Stage 2".
[32] GSM 03.90 (ETS 300 549): "Digital cellular telecommunication system
(Phase 2); Unstructured supplementary services operation - Stage 2".

---------------------- Page: 10 ----------------------

SIST ETS 300 507 E4:2003
Page 9
ETS 300 507: September 1996 (GSM 02.11 version 4.9.0)
[33] GSM 04.08 (ETS 300 557): "Digital cellular telecommunication system
(Phase 2); Mobile radio interface layer 3 specification".
[34] GSM 11.11 (ETS 300 608): "Digital cellular telecommunication system
(Phase 2); Specification of the Subscriber Identity Module-Mobile Equipment
(SIM-ME) interface".
[35] CCITT Recommendation Q.1001: "General aspects of public land mobile
networks".
1.2 Definitions and abbreviations
In addition to those below, abbreviations used in this ETS are listed in GSM 01.04.
GSM PLMN
A Public Land Mobile Network (PLMN) is a network established and operated by an Administration
or RPOA for the specific purpose of providing land mobile communication services to the public. It
provides communication possibilities for mobile users. For communications between mobile and
fixed users, interworking with a fixed network is necessary.
A GSM PLMN is a PLMN which is in accordance with the GSM Specifications. A GSM PLMN may
provide service in one, or combinations, of the frequency bands in the GSM Specifications.
As a rule, a GSM PLMN is limited by the borders of a country. Depending on national regulations
there may be more than one GSM PLMN per country.
A relationship exists between each subscriber and his home GSM PLMN (HPLMN). If
communications are handled over another GSM PLMN, this PLMN is referred to as the visited
GSM PLMN (VPLMN).
GSM PLMN Area (GPA)
The GSM PLMN Area (GPA) is the geographical area in which a GSM PLMN provides
communication services according to the GSM specifications to mobile users. In the GPA, the
mobile user can set up calls to a user of a terminating network. The terminating network may be a
fixed network, the same GSM PLMN, another GSM PLMN or other types of PLMN.
Terminating network users can also set up calls to the GSM PLMN.
The GPA is allocated to a GSM PLMN. It is determined by the service and network provider in
accordance with any provisions laid down under national law. In general the GPA is restricted to
one country. It can also be determined differently, depending on the different telecommunication
services, or type of Mobile Station.
If there are several GSM PLMNs in one country, their GPAs may overlap. In border areas, the
GPAs of GSM PLMNs of different countries may overlap. Administrations will have to take
precautions to ensure that cross border coverage is minimized in adjacent countries unless
otherwise agreed.
NOTE: CCITT Recommendation Q.1001
...
