Aerospace series - Carbon, glass and aramid fibre preimpregnates - Determination of the resin and fibre content and the mass of fibre per unit area

This document specifies methods for determining the resin content, fibre content and mass of fibre per unit area of fibre preimpregnates for aerospace use.

Luft- und Raumfahrt - Carbon-, Glas- und Aramidfaser-Prepregs - Bestimmung des Harz- und Fasermasseanteils und der flächenbezogenen Fasermasse

(No Scope Available)

Série aérospatiale - Préimprégnés de fibres de carbone, de verre et d'aramide - Détermination des teneurs en résine et en fibres et de la masse surfacique de la fibre

Le présent document spécifie les méthodes de détermination de la teneur en résine et en fibres et de la masse surfacique de la fibre des préimprégnés pour les applications aérospatiales.

Aeronavtika - Predimpregnirana ogljikova, steklena in aramidna vlakna - Ugotavljanje deleža smole in vlaken ter masa vlaken na enoto površine

Ta dokument določa metode za ugotavljanje deleža smole in vlaken ter mase vlaken na enoto površine predimpregniranih vlaken, ki se uporabljajo v aeronavtiki.

General Information

Status
Published
Public Enquiry End Date
14-Jul-2021
Publication Date
14-Dec-2022
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
07-Dec-2022
Due Date
11-Feb-2023
Completion Date
15-Dec-2022

Relations

Buy Standard

Standard
SIST EN 2559:2023
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN 2559:2021
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 2559:2023
01-februar-2023
Nadomešča:
SIST EN 2559:2001
Aeronavtika - Predimpregnirana ogljikova, steklena in aramidna vlakna -
Ugotavljanje deleža smole in vlaken ter masa vlaken na enoto površine

Aerospace series - Carbon, glass and aramid fibre preimpregnates - Determination of

the resin and fibre content and the mass of fibre per unit area

Luft- und Raumfahrt - Carbon-, Glas- und Aramidfaser-Prepregs - Bestimmung des Harz-

und Fasermasseanteils und der flächenbezogenen Fasermasse
Série aérospatiale - Préimprégnés de fibres de carbone, de verre et d'aramide -

Détermination des teneurs en résine et en fibres et de la masse surfacique de la fibre

Ta slovenski standard je istoveten z: EN 2559:2022
ICS:
49.025.40 Guma in polimerni materiali Rubber and plastics
SIST EN 2559:2023 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 2559:2023
---------------------- Page: 2 ----------------------
SIST EN 2559:2023
EN 2559
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2022
EUROPÄISCHE NORM
ICS 49.025.40 Supersedes EN 2559:1997
English Version
Aerospace series - Carbon, glass and aramid fibre
preimpregnates - Determination of the resin and fibre
content and the mass of fibre per unit area

Série aérospatiale - Préimprégnés de fibres de carbone, Luft- und Raumfahrt - Carbon-, Glas- und Aramidfaser-

de verre et d'aramide - Détermination des teneurs en Prepregs - Bestimmung des Harz- und

résine et en fibres et de la masse surfacique de la fibre Fasermasseanteils und der flächenbezogenen

Fasermasse
This European Standard was approved by CEN on 1 August 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2559:2022 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 2559:2023
EN 2559:2022 (E)

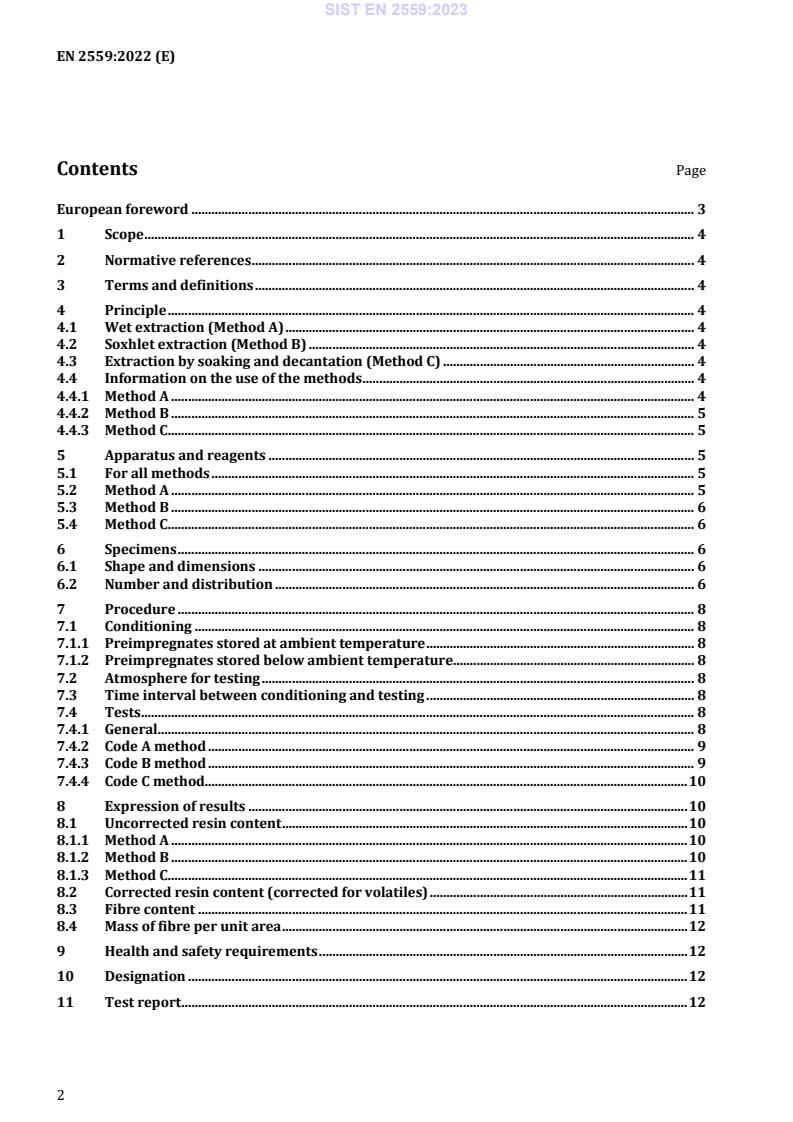

Contents Page

European foreword ...................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Principle ............................................................................................................................................................. 4

4.1 Wet extraction (Method A) .......................................................................................................................... 4

4.2 Soxhlet extraction (Method B) ................................................................................................................... 4

4.3 Extraction by soaking and decantation (Method C) ........................................................................... 4

4.4 Information on the use of the methods ................................................................................................... 4

4.4.1 Method A ............................................................................................................................................................ 4

4.4.2 Method B ............................................................................................................................................................ 5

4.4.3 Method C ............................................................................................................................................................. 5

5 Apparatus and reagents ............................................................................................................................... 5

5.1 For all methods ................................................................................................................................................ 5

5.2 Method A ............................................................................................................................................................ 5

5.3 Method B ............................................................................................................................................................ 6

5.4 Method C ............................................................................................................................................................. 6

6 Specimens .......................................................................................................................................................... 6

6.1 Shape and dimensions .................................................................................................................................. 6

6.2 Number and distribution ............................................................................................................................. 6

7 Procedure .......................................................................................................................................................... 8

7.1 Conditioning ..................................................................................................................................................... 8

7.1.1 Preimpregnates stored at ambient temperature ................................................................................ 8

7.1.2 Preimpregnates stored below ambient temperature ........................................................................ 8

7.2 Atmosphere for testing ................................................................................................................................. 8

7.3 Time interval between conditioning and testing ................................................................................ 8

7.4 Tests ..................................................................................................................................................................... 8

7.4.1 General................................................................................................................................................................ 8

7.4.2 Code A method ................................................................................................................................................. 9

7.4.3 Code B method ................................................................................................................................................. 9

7.4.4 Code C method................................................................................................................................................ 10

8 Expression of results ................................................................................................................................... 10

8.1 Uncorrected resin content ......................................................................................................................... 10

8.1.1 Method A .......................................................................................................................................................... 10

8.1.2 Method B .......................................................................................................................................................... 10

8.1.3 Method C ........................................................................................................................................................... 11

8.2 Corrected resin content (corrected for volatiles) ............................................................................. 11

8.3 Fibre content .................................................................................................................................................. 11

8.4 Mass of fibre per unit area ......................................................................................................................... 12

9 Health and safety requirements .............................................................................................................. 12

10 Designation ..................................................................................................................................................... 12

11 Test report ....................................................................................................................................................... 12

---------------------- Page: 4 ----------------------
SIST EN 2559:2023
EN 2559:2022 (E)
European foreword

This document (EN 2559:2022) has been prepared by the Aerospace and Defence Industries

Association of Europe — Standardization (ASD-STAN).

After enquiries and votes carried out in accordance with the rules of this Association, this document has

received the approval of the National Associations and the Official Services of the member countries of

ASD-STAN, prior to its presentation to CEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by May 2023, and conflicting national standards shall be

withdrawn at the latest by May 2023.
This document supersedes EN 2559:1997.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

Any feedback and questions on this document should be directed to the users’ national standards body.

A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 2559:2023
EN 2559:2022 (E)
1 Scope

This document specifies methods for determining the resin content, fibre content and mass of fibre per

unit area of fibre preimpregnates for aerospace use.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 2558, Aerospace series — Carbon fibre preimpregnates — Determination of the volatile content

EN 2743, Aerospace series — Fibre reinforced plastics — Standard procedures for conditioning prior to

testing unaged materials
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 Principle
4.1 Wet extraction (Method A)

Determination of the difference in mass by means of weighing to constant mass before and after

extraction of the resin by acid digestion. Use a solution of concentrated sulfuric acid and hydrogen

peroxide. Nitric or other suitable acids can be used depending on the matrix that is to be dissolved.

4.2 Soxhlet extraction (Method B)

Determination of the difference in mass by means of weighing to constant mass before and after

extraction of the resin with methyl-ethyl-ketone or other suitable solvent agreed between the user and

manufacturer.
4.3 Extraction by soaking and decantation (Method C)
Similar to 4.2 but faster. In case of dispute, 4.2 shall be applied.
4.4 Information on the use of the methods
4.4.1 Method A

If the preimpregnate contains only fibre and a resin which is completely “digestible”, the resin content

is equal to the loss on wet digestion.

The fibre used as a reinforcement may be coated with a resin size, which is normally removed during

wet digestion. The
...

SLOVENSKI STANDARD
oSIST prEN 2559:2021
01-julij-2021

Aeronavtika - Predimpregnirana oglena, steklena in aramidna vlakna - Ugotavljanje

deležev smole in vlakna in masa vlakna na enoto površine

Aerospace series - Carbon, glass and aramid fibre preimpregnates - Determination of

the resin and fibre content and the mass of fibre per unit area
Luft- und Raumfahrt - Kohlenstoffaser-Prepregs - Bestimmung des Harz- und
Fasermasseanteils und der flächenbezogenen Fasermasse

Série aérospatiale - Préimprégnés de fibres de carbone - Détermination des teneurs en

résine et en fibres et de la masse surfacique de la fibre
Ta slovenski standard je istoveten z: prEN 2559
ICS:
49.025.40 Guma in polimerni materiali Rubber and plastics
oSIST prEN 2559:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 2559:2021
---------------------- Page: 2 ----------------------
oSIST prEN 2559:2021
DRAFT
EUROPEAN STANDARD
prEN 2559
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2021
ICS 49.025.40 Will supersede EN 2559:1997
English Version
Aerospace series - Carbon, glass and aramid fibre
preimpregnates - Determination of the resin and fibre
content and the mass of fibre per unit area

Série aérospatiale - Préimprégnés de fibres de carbone Luft- und Raumfahrt - Kohlenstoffaser-Prepregs -

- Détermination des teneurs en résine et en fibres et de Bestimmung des Harz- und Fasermasseanteils und der

la masse surfacique de la fibre flächenbezogenen Fasermasse

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-

STAN.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 2559:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 2559:2021
prEN 2559:2021 (E)
Contents

European foreword ...................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Principle ............................................................................................................................................................. 4

4.1 Wet extraction (Method A) .......................................................................................................................... 4

4.2 Soxhlet extraction (Method B) ................................................................................................................... 4

4.3 Extraction by soaking and decantation (Method C) ........................................................................... 4

4.4 Information on the use of the methods ................................................................................................... 4

4.4.1 Method A ............................................................................................................................................................ 4

4.4.2 Method B ............................................................................................................................................................ 5

4.4.3 Method C ............................................................................................................................................................. 5

5 Apparatus and reagents ............................................................................................................................... 5

5.1 For all methods ................................................................................................................................................ 5

5.2 Method A ............................................................................................................................................................ 5

5.3 Method B ............................................................................................................................................................ 6

5.4 Method C ............................................................................................................................................................. 6

6 Specimens .......................................................................................................................................................... 6

6.1 Shape and dimensions .................................................................................................................................. 6

6.2 Number and distribution ............................................................................................................................. 6

7 Procedure .......................................................................................................................................................... 8

7.1 Conditioning ..................................................................................................................................................... 8

7.1.1 Preimpregnates stored at ambient temperature ................................................................................ 8

7.1.2 Preimpregnates stored below ambient temperature ........................................................................ 8

7.2 Atmosphere for testing ................................................................................................................................. 8

7.3 Time interval between conditioning and testing ................................................................................ 8

7.4 Tests ..................................................................................................................................................................... 9

7.4.1 Code A Method ................................................................................................................................................. 9

7.4.2 Code B method ................................................................................................................................................. 9

7.4.3 Code C method................................................................................................................................................ 10

8 Expression of results ................................................................................................................................... 10

8.1 Uncorrected resin content ......................................................................................................................... 10

8.1.1 Method A .......................................................................................................................................................... 10

8.1.2 Method B .......................................................................................................................................................... 11

8.1.3 Method C ........................................................................................................................................................... 11

8.2 Corrected resin content (corrected for volatiles) ............................................................................. 11

8.3 Fibre content .................................................................................................................................................. 12

8.4 Mass fibre per unit area .............................................................................................................................. 12

9 Health and safety requirements .............................................................................................................. 12

10 Designation ..................................................................................................................................................... 13

11 Test report ....................................................................................................................................................... 13

---------------------- Page: 4 ----------------------
oSIST prEN 2559:2021
prEN 2559:2021 (E)
European foreword

This document (prEN 2559:2021) has been prepared by the Aerospace and Defence Industries

Association of Europe — Standardization (ASD-STAN).

After enquiries and votes carried out in accordance with the rules of this Association, this document has

received the approval of the National Associations and the Official Services of the member countries of

ASD-STAN, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 2559:1997.
prEN 2559:2021 is a technical revision of EN 2559:1997.
---------------------- Page: 5 ----------------------
oSIST prEN 2559:2021
prEN 2559:2021 (E)
1 Scope

This document specifies methods for determining the resin content, fibre content and mass of fibre per

unit area of fibre preimpregnates for aerospace use.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 2558, Aerospace series - Carbon fibre preimpregnates - Determination of the volatile content

EN 2743, Aerospace series - Fibre reinforced plastics - Standard procedures for conditioning prior to

testing unaged materials
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
4 Principle
4.1 Wet extraction (Method A)

Determination of the difference in mass by means of weighing to constant mass before and after

extraction of the resin by acid digestion. Use a solution of concentrated sulfuric acid and hydrogen

peroxide. Nitric or other suitable acids can be used depending on the matrix that is to be dissolved.

4.2 Soxhlet extraction (Method B)

Determination of the difference in mass by means of weighing to constant mass before and after

extraction of the resin with methyl-ethyl-ketone or other suitable solvent agreed between the user and

manufacturer.
4.3 Extraction by soaking and decantation (Method C)
Similar to 4.2 but faster. In case of dispute, 4.2 shall be applied.
4.4 Information on the use of the methods
4.4.1 Method A

If the preimpregnate contains only fibre and a resin which is completely “digestible”, the resin content

is equal to the loss on wet digestion.

The fibre used as a reinforcement may be coated with a resin size, which is normally removed during

wet digestion. The size is therefore included in the resin content.

Where undissolved fillers are lost by filtering, they are thus included in the resin content.

NOTE There may be a partial loss of undissolved fillers, one part being counted with the resin and the rest being

counted with the fibres.
---------------------- Page: 6 ----------------------
oSIST prEN 2559:2021
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
