SIST EN 2240-023:2010

Aerospace series - Lamps, incandescent - Part 023: Lamp, code 316 - Product standard

This standard specifies the required characteristics for lamp, code 316, for aerospace applications.
It shall be used together with EN 2756.

Luft- und Raumfahrt - Glühlampen - Teil 023: Lampe, Kode 316 - Produktnorm

Diese Norm legt die Anforderungen von Lampen, Kode 316, zur Anwendung in der Luftfahrt fest.
Sie ist in Verbindung mit EN 2756 anzuwenden.

Série aérospatiale - Lampes à incandescence - Partie 023: Lampe, code 316 - Norme de produit

Aeronavtika - Žarnice - 023. del: Žarnica, kod 316 - Standard za proizvod

Ta standard opredeljuje zahtevane značilnosti za žarnico, kod 316, za aeronavtično uporabo. Uporablja se skupaj z EN 2756.

General Information

• Status: Published
• Publication Date: 16-Mar-2010
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 15-Mar-2010
• Due Date: 20-May-2010
• Completion Date: 17-Mar-2010
• Ref Project: EN 2240-023:2010 - Aerospace series - Lamps, incandescent - Part 023: Lamp, code 316 - Product standard

Overview

EN 2240-023:2010 is a CEN (ASD-STAN) product standard in the Aerospace series that specifies the required characteristics for lamp, code 316 - an incandescent lamp intended for aerospace applications. It is to be used together with EN 2756 (test methods) and refers to the EN 2240 family for technical specification, main characteristics and cap dimensions. This standard defines dimensions, electrical and photometric data, filament form and marking rules for consistent manufacturing, procurement and verification of lamp code 316.

Key topics and technical requirements

• Designation and identification
  • Example identity: EN2240-316; marking must include the international code number per EN 2240-002 when space permits.
• Electrical and photometric data
  • Nominal voltage: 6 V
  • Nominal current: 0.7 A
  • Nominal power: 4.2 W
  • Nominal luminous flux: 44 lm
  • Colour temperature: ≈ 2 400 K
• Life and endurance
  • Static with d.c.: 500 hours
  • Static with a.c.: 600 hours
  • Dynamic with d.c.: not specified (dash in table)
• Mechanical and optical
  • Filament form: C-2R (see EN 2240-002 for filament details)
  • Light centre length (LCL): 16 ± 2 mm
  • Bulb appearance: Clear
  • Cap type: BA9s/14 (refer to EN 2241 for dimensions)
  • Mass (for 1 000 lamps): 2.25 kg
• Test and verification
  • Test methods referenced in EN 2756 and technical specification in EN 2240-001.

Applications and who uses this standard

• Aerospace manufacturers and OEMs specifying cabin, cockpit or equipment lighting components.
• Component suppliers and lamp manufacturers producing aerospace incandescent lamps (lamp code 316) to meet standardized dimensions, electrical and photometric performance.
• Maintenance, repair and overhaul (MRO) organizations and technical procurement teams selecting replacement lamps that conform to CEN requirements.
• Test laboratories and certification bodies that perform acceptance and life testing as referenced by EN 2756.

Related standards

• EN 2240-001 - Technical specification for aerospace incandescent lamps
• EN 2240-002 - Main characteristics (codes and identity)
• EN 2241 - Lamp caps - Dimensions (BA9s/14)
• EN 2756 - Test methods for aerospace incandescent lamps

EN 2240-023:2010 ensures consistent performance and interchangeability of lamp code 316 across aerospace systems - useful for designers, suppliers and maintainers focused on safety, reliability and regulatory compliance.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Žarnice - 023. del: Žarnica, kod 316 - Standard za proizvodLuft- und Raumfahrt - Glühlampen - Teil 023: Lampe, Kode 316 - ProduktnormSérie aérospatiale - Lampes à incandescence - Partie 023: Lampe, code 316 - Norme de produitAerospace series - Lamps, incandescent - Part 023: Lamp, code 316 - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2240-023:2010SIST EN 2240-023:2010en01-maj-2010SIST EN 2240-023:2010SLOVENSKI
STANDARD

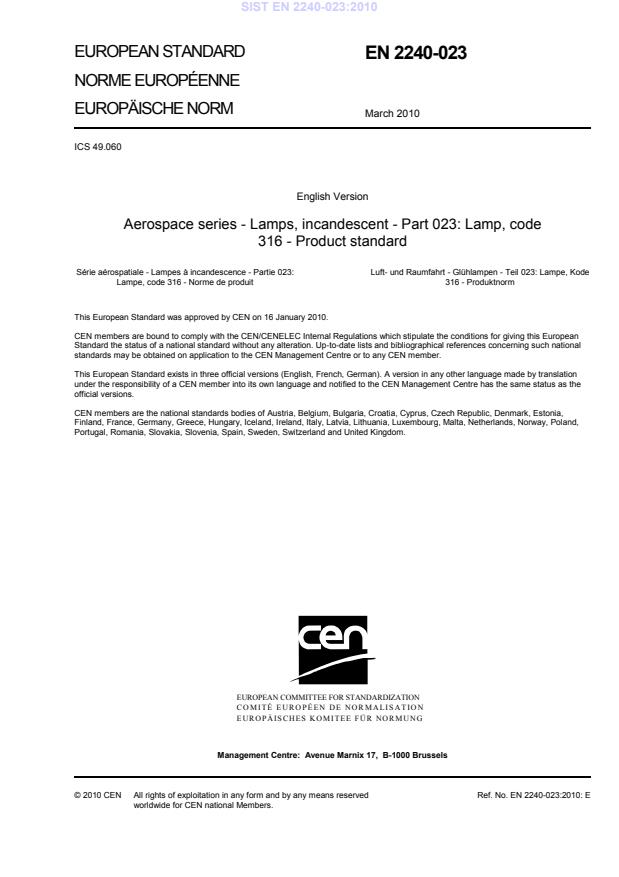

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2240-023
March 2010 ICS 49.060 English Version
Aerospace series - Lamps, incandescent -Part 023: Lamp, code 316 - Product standard
Série aérospatiale - Lampes à incandescence - Partie 023: Lampe, code 316 - Norme de produit
Luft- und Raumfahrt - Glühlampen - Teil 023: Lampe, Kode 316 - Produktnorm This European Standard was approved by CEN on 16 January 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2240-023:2010: ESIST EN 2240-023:2010
...
