SIST EN 300 607-1 V5.7.1:2005
(Main)Digital cellular telecommunications system (Phase 2+) (GSM); Mobile Station (MS) conformance specification; Part 1: Conformance specification (GSM 11.10-1 version 5.7.1)
- Abstract
SUBJECT CR for removal of checks on Classmark 1,2,3 in the PIXIT statements (Tdoc SMG7 350/98) CR on Introduction of cell change tests for VGCS/ VBS CR on UA frame with different information field CR to section 3.2.2 on Applicability of R-GSM RF tests CR to section 26.6.3.6 Measurement reporting 20s requirement in multi band environment CR to section 32.12.x Intra cell channel change from TCH/FS to a TCH/HS CR to section 34.3.3 Correction of the content of the Cell Broadcast message CR for Clarification on 34.2.1 TC testing of TC1M CR to section 26.1.2.2.1 EFR signalling/Handover/active call/successful case CR to section 32.11.x Intra cell channel change from TCH/HS to a TCH/FS CR to section 26.6.3.2 Measurement reporting 20s requirement in single band environment CR to section 3.2.2 Addition of ASCI cell change signalling tests Applicability CR to section 14.7 blocking and spurious response CR to section 26.11.2.2.3.3 Multiband BCCH / Intercell Handover CR to section 26.6.15 DCS HO Tests, NCD to include missing BCCH ARFCH
- Status
- Published
- Publication Date
- 31-Jan-2005
- Technical Committee
- RES - Radio equipment and systems
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Feb-2005
- Due Date
- 01-Feb-2005
- Completion Date
- 01-Feb-2005
- Mandate
- T-247
SIST EN 300 607-1 V5.7.1:2005 is the Slovenian adoption of ETSI EN 300 607-1 V5.7.1 for GSM Mobile Station conformance testing. It specifies how a Mobile Station (MS) is tested for radio behaviour, signalling behaviour and SIM/ME interface behaviour, so manufacturers and test labs can check whether an MS conforms to the GSM Phase 2+ specification.
What does SIST EN 300 607-1 V5.7.1:2005 specify?
SIST EN 300 607-1 V5.7.1:2005 specifies conformance tests for a GSM Mobile Station. The document is organized from scope, normative references, definitions and applicability, through test equipment and test methodology, to detailed test clauses for RF performance, mobility, signalling, multislot operation, VGCS/VBS and the SIM/ME interface.
The main body runs through clauses 1 to 27. The early clauses set the test framework, then the document moves into generic call set-up, radio performance, cell selection and reselection, layer 1 to layer 3 signalling, and finally SIM/ME interface testing.
What are the key requirements of SIST EN 300 607-1 V5.7.1:2005?
Test conditions and applicability
Clauses 3 to 6 define how the MS is described, when a test applies, what the test equipment must provide, and which radio conditions are used as references. In practice, this is the setup step: a lab needs the declared MS configuration, the right interfaces, and the correct test conditions before any pass/fail decision is meaningful.
Clause 3.2 separates applicability of the specification from applicability of individual tests and applicability to terminal equipment. That matters because not every case applies to every MS feature set.
Generic call set-up and general tests
Clause 10 gives generic call set-up procedures for mobile terminating and mobile originating speech and data calls, including multislot configurations. Clause 11 then checks general service support, non-support of selected services and features, IMEI security, and Bearer Capability coding.
For a reader, this is the base layer for many later tests. If call setup or basic feature handling is wrong, later radio or signalling tests can fail for the wrong reason.
Radio frequency performance
Clauses 12 to 14 cover transceiver, transmitter and receiver behaviour. They include spurious emissions, frequency and phase error, output RF spectrum, intermodulation attenuation, reference sensitivity, co-channel and adjacent channel rejection, intermodulation rejection, blocking and spurious response, AM suppression, and paging performance at high input levels.
These tests show whether the MS transmits a clean signal and can still receive control and traffic channels under interference. That is the core of radio conformance in the field.
Mobility, handover and cell behaviour
Clauses 15 to 22 cover timing advance, absolute delay, reception time tracking, access times during handover, temporary reception gaps, channel release after unrecoverable errors, cell selection and reselection, received signal measurements, and transmit power control timing and confirmation.
In practice, these clauses check that the MS can move between cells, report neighbours, track signal conditions, and keep service continuity. They are the tests most closely tied to roaming, mobility and real network behaviour.
Layer 1, 2 and 3 signalling
Clauses 24 to 26 test layer 1, layer 2 and layer 3 signalling functions. The detailed procedures cover radio resource management, mobility management and Circuit switched Call Control (CC), including channel request, paging, immediate assignment, measurement reporting, channel assignment, handover, frequency redefinition, ciphering mode setting, location updating, call establishment and release, call re-establishment, user to user signalling, structured procedures, E-GSM or R-GSM signalling, multiband signalling, Enhanced Full Rate (EFR) signalling, multislot signalling, and VGCS and VBS tests.
This is the main conformance core of the document. It shows whether the MS handles real network messages and state changes correctly, not just RF conditions.
SIM/ME interface
Clause 27 tests the SIM/ME interface, including identification by short IMSI or TMSI, forbidden PLMN handling, PLMN selector list updates, exchange protocol tests, answer to reset, command processing, directory characteristics and mechanical tests.
That matters because a conforming MS must work reliably with the SIM as well as over the air interface. Failures here can block registration, authentication or user access even if the radio part is correct.
What terms does SIST EN 300 607-1 V5.7.1:2005 define?
- Mobile Station (MS) - the device under test, meaning the GSM terminal whose conformance is being verified.
- Global System for Mobile Communication (GSM) - the digital cellular system addressed by the specification.
- Enhanced Full Rate (EFR) - a speech mode with dedicated signalling and handover tests in the document.
- Advice of Charge Charging (AoCC) - a service whose non-support is verified in the general tests.
- Fixed Dialling Number (FDN) - a feature whose non-support is checked in the general tests.
- Circuit switched Call Control (CC) - the call control procedures and state machine tested in clause 26.8.
- Mobility Management (MM) - the procedures for attach, identification, authentication and location updating.
- VGCS and VBS - group communication and broadcast service test families covered in clause 26.14.
Who uses SIST EN 300 607-1 V5.7.1:2005?
Manufacturers of GSM Mobile Stations use this standard to design and verify radio, signalling and SIM/ME behaviour. Conformance and certification laboratories use it to run formal test campaigns and document results.
It is also used by quality teams, approval bodies and procurement teams that need a clear test basis for handset, module and terminal acceptance. In practice, it supports development, verification and acceptance of MS implementations.
What does the SIST EN 300 607-1 V5.7.1:2005 document contain?
The document contains detailed test procedures, state-machine sequences, message contents and reference conditions for MS conformance testing. Clauses 25 and 26 provide structured procedures and layer 2/layer 3 test sequences, while clauses 12 to 14 and 20 to 22 cover RF and mobility measurements.
It also includes default contents of GSM 900 and DCS 1 800 layer 3 messages for radio resource tests. For implementers and test engineers, this is the working material used to build conformance test plans, lab scripts and verification checklists.
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 300 607-1 V5.7.1:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Digital cellular telecommunications system (Phase 2+) (GSM); Mobile Station (MS) conformance specification; Part 1: Conformance specification (GSM 11.10-1 version 5.7.1)". This standard covers: SUBJECT CR for removal of checks on Classmark 1,2,3 in the PIXIT statements (Tdoc SMG7 350/98) CR on Introduction of cell change tests for VGCS/ VBS CR on UA frame with different information field CR to section 3.2.2 on Applicability of R-GSM RF tests CR to section 26.6.3.6 Measurement reporting 20s requirement in multi band environment CR to section 32.12.x Intra cell channel change from TCH/FS to a TCH/HS CR to section 34.3.3 Correction of the content of the Cell Broadcast message CR for Clarification on 34.2.1 TC testing of TC1M CR to section 26.1.2.2.1 EFR signalling/Handover/active call/successful case CR to section 32.11.x Intra cell channel change from TCH/HS to a TCH/FS CR to section 26.6.3.2 Measurement reporting 20s requirement in single band environment CR to section 3.2.2 Addition of ASCI cell change signalling tests Applicability CR to section 14.7 blocking and spurious response CR to section 26.11.2.2.3.3 Multiband BCCH / Intercell Handover CR to section 26.6.15 DCS HO Tests, NCD to include missing BCCH ARFCH
SUBJECT CR for removal of checks on Classmark 1,2,3 in the PIXIT statements (Tdoc SMG7 350/98) CR on Introduction of cell change tests for VGCS/ VBS CR on UA frame with different information field CR to section 3.2.2 on Applicability of R-GSM RF tests CR to section 26.6.3.6 Measurement reporting 20s requirement in multi band environment CR to section 32.12.x Intra cell channel change from TCH/FS to a TCH/HS CR to section 34.3.3 Correction of the content of the Cell Broadcast message CR for Clarification on 34.2.1 TC testing of TC1M CR to section 26.1.2.2.1 EFR signalling/Handover/active call/successful case CR to section 32.11.x Intra cell channel change from TCH/HS to a TCH/FS CR to section 26.6.3.2 Measurement reporting 20s requirement in single band environment CR to section 3.2.2 Addition of ASCI cell change signalling tests Applicability CR to section 14.7 blocking and spurious response CR to section 26.11.2.2.3.3 Multiband BCCH / Intercell Handover CR to section 26.6.15 DCS HO Tests, NCD to include missing BCCH ARFCH
SIST EN 300 607-1 V5.7.1:2005 is classified under the following ICS (International Classification for Standards) categories: 33.070.50 - Global System for Mobile Communication (GSM). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 300 607-1 V5.7.1:2005 is associated with the following European legislation: Standardization Mandates: T-247. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST EN 300 607-1 V5.7.1:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital cellular telecommunications system (Phase 2+) (GSM); Mobile Station (MS) conformance specification; Part 1: Conformance specification (GSM 11.10-1 version 5.7.1)33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:EN 300 607-1 Version 5.7.1SIST EN 300 607-1 V5.7.1:2005en01-februar-2005SIST EN 300 607-1 V5.7.1:2005SLOVENSKI
STANDARD
European Telecommunications Standards InstituteEN 300 607-1 V5.7.1 (1999-04)European Standard (Telecommunications series)Digital cellular telecommunications system (Phase 2+);Mobile Station (MS) conformance specification;Part 1: Conformance specification(GSM 11.10-1 version 5.7.1)GLOBAL SYSTEM
FOR MOBILE COMMUNICATIONSRSIST EN 300 607-1 V5.7.1:2005

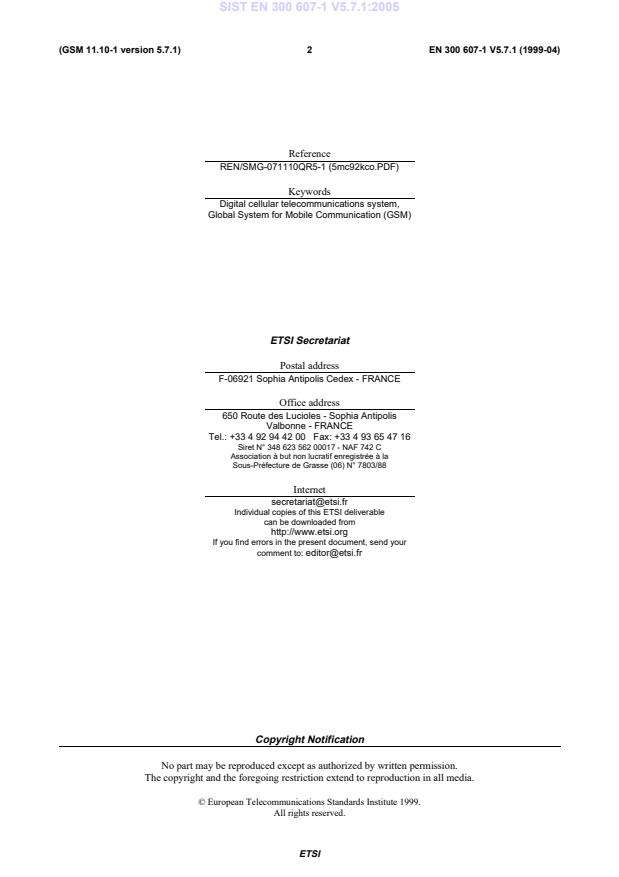

(GSM 11.10-1 version 5.7.1)2EN 300 607-1 V5.7.1 (1999-04)ETSIReferenceREN/SMG-071110QR5-1 (5mc92kco.PDF)KeywordsDigital cellular telecommunications system,Global System for Mobile Communication (GSM)ETSI SecretariatPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frIndividual copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgIf you find errors in the present document, send yourcomment to: editor@etsi.frCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.All rights reserved.SIST EN 300 607-1 V5.7.1:2005
(GSM 11.10-1 version 5.7.1)3EN 300 607-1 V5.7.1 (1999-04)ETSIContentsIntellectual Property Rights.26Foreword.261Scope.272Normative references.273Definitions, conventions, and applicability.343.1Mobile station definition and configurations.343.2Applicability.343.2.1Applicability of this specification.343.2.2Applicability of the individual tests.343.2.3Applicability to terminal equipment.613.3Definitions.633.4Conventions for mathematical notations.633.4.1Mathematical signs.633.4.2Powers to the base 10.633.5Conventions on electrical terms.633.5.1Radio Frequency (RF) input signal level.633.5.2Reference sensitivity level.643.5.3Power level of fading signal.643.6Terms on test conditions.643.6.1Radio test conditions.644Test Equipment.664.1Terms used to describe test equipment in this EN.664.2Functional requirements of test equipment.665Testing methodology in general (layers 1, 2, and 3).665.1Testing of optional functions and procedures.665.2Test interfaces and facilities.665.3Different protocol layers.675.4Information to be provided by the apparatus supplier.675.5Definitions of transmit and receive times.676Reference test methods.676.1General.676.2Choice of frequencies in the frequency hopping mode.686.3"Ideal" radio conditions.686.4Standard test signals.686.5Power (control) levels.687Implicit testing.698Measurement uncertainty.699Format of tests.6910Generic call set up procedures.6910.1Generic call set-up procedure for mobile terminating speech calls.6910.2Generic call set-up procedure for mobile originating speech calls.7510.3Generic call set-up procedure for mobile terminating data calls.7810.4Generic call set-up procedure for mobile originating data calls.8110.5Generic call set-up procedure for mobile terminating multislot configuration, minimum number oftimeslots allocated.8510.6Generic call set-up procedure for mobile originating multislot configuration, minimum number oftimeslots allocated.8811General tests.9211.1Verification of support and non-support of services (multiple numbering scheme or ISDN).92SIST EN 300 607-1 V5.7.1:2005
(GSM 11.10-1 version 5.7.1)4EN 300 607-1 V5.7.1 (1999-04)ETSI11.1.1Mobile Terminated (MT) calls.9211.1.2Mobile Originated (MO) calls.9311.2Verification of support of the single numbering scheme.9411.3Verification of non-support of services (Advice of Charge Charging (AoCC)).9511.4Verification of non-support of services (call hold).9711.5Verification of non-support of services (multiparty).9811.6Verification of non-support of feature (Fixed Dialling Number (FDN)).9811.7IMEI Security.9911.8Coding of the Bearer Capability information element.10011.8.1Network to MS Direction.10111.8.1.1BS 21 to 26 - Asynchronous Service.10111.8.1.1.1BS 21.10111.8.1.1.2BS 22.10511.8.1.1.3BS 24.10511.8.1.1.4BS 25.10511.8.1.1.5BS 26.10511.8.1.1.6BS 23.10511.8.1.2BS 31 to 34 - Synchronous Service.10611.8.1.2.1BS 32.10611.8.1.2.2BS 31.11011.8.1.2.3BS 33.11111.8.1.2.4BS 34.11111.8.1.3BS 61 - Alternate Speech / Data.11111.8.1.3.1Speech/Asynchronous Data, Transparent.11211.8.1.3.2Speech/Asynchronous Data, Non Transparent.11411.8.1.3.3Speech/Synchronous Data.11611.8.1.4BS 81 - Speech followed by Data.11711.8.1.4.1Speech followed by Asynchronous Data.11711.8.1.4.2Speech followed by Synchronous Data.11711.8.1.5TS 61 - Alternate Speech / Facsimile group 3.11711.8.1.5.1TS 61 - Alternate Speech / Facsimile group 3, Transparent.11811.8.1.5.2TS 61 - Alternate Speech / Facsimile group 3, Non-Transparent.11911.8.1.6TS 62 - Automatic Facsimile group 3.12011.8.2MS to SS direction.12011.8.2.1BS 21 to 26 - Asynchronous Service.12011.8.2.1.1BS 21.12111.8.2.1.2BS 22.12511.8.2.1.3BS 24.12511.8.2.1.4BS 25.12511.8.2.1.5BS 26.12511.8.2.1.6BS 23.12511.8.2.2BS 31 to 34 - Synchronous Service.12611.8.2.2.1BS 32.12611.8.2.2.2BS 31.13011.8.2.2.3BS 33.13111.8.2.2.4BS 34.13111.8.2.3BS 41 to 46 - PAD Access Asynchronous.13211.8.2.3.12) BS 41.13211.8.2.3.2BS 42.13411.8.2.3.3BS 44.13411.8.2.3.4BS 45.13411.8.2.3.5BS 46.13411.8.2.3.6BS 43.13411.8.2.4BS 51 to 53 - Packet Service Synchronous.13511.8.2.4.12) BS 51.13511.8.2.4.2BS 52.13511.8.2.4.3BS 53.13511.8.2.5BS 61 - Alternate Speech / Data.13611.8.2.5.1Speech/Asynchronous Data, Transparent.13611.8.2.5.2Speech/Asynchronous Data, Non Transparent.138SIST EN 300 607-1 V5.7.1:2005
(GSM 11.10-1 version 5.7.1)5EN 300 607-1 V5.7.1 (1999-04)ETSI11.8.2.5.3Speech/Synchronous Data.14011.8.2.6BS 81 - Speech followed by Data.14111.8.2.6.1Speech followed by Asynchronous Data.14111.8.2.6.2Speech followed by Synchronous Data.14111.8.2.7TS 61 - Alternate Speech / Facsimile group 3.14111.8.2.7.1TS 61 - Alternate Speech / Facsimile group 3, Transparent.14211.8.2.7.2TS 61 - Alternate Speech / Facsimile group 3, Non Transparent.14311.8.2.8TS 62 - Automatic Facsimile group 3.14411.8.2.9TS 11 and TS 12-
Speech.14411.8.2.9.1Support of only full/half rate speech version 1.14411.8.2.9.2Support of speech full rate version 2 (Enhanced Full Rate).14412Transceiver.14712.1Conducted spurious emissions.14712.1.1MS allocated a channel.14712.1.2MS in idle mode.14912.2Radiated spurious emissions.15012.2.1MS allocated a channel.15112.2.2MS in idle mode.15312.3Conducted spurious emissions for MS supporting the R-GSM frequency band.15412.3.1MS allocated a channel.15412.3.2MS in idle mode.15712.4Radiated spurious emissions for MS supporting the R-GSM frequency band.15812.4.1MS allocated a channel.15912.4.2MS in idle mode.16113Transmitter.16313.1Frequency error and phase error.16313.2Frequency error under multipath and interference conditions.16613.3Transmitter output power and burst timing.16813.4Output RF spectrum.17613.5Intermodulation attenuation.18213.6Frequency error and phase error in HSCSD multislot configurations.18413.7Transmitter output power and burst timing in HSCSD configurations.18813.8Output RF spectrum in HSCSD multislot configuration.19513.9Output RF spectrum for MS supporting the R-GSM band.20214Receiver.20814.1Bad frame indication.21414.1.1Bad frame indication - TCH/FS.21414.1.1.1Bad frame indication - TCH/FS - Random RF input.21414.1.1.2Bad frame indication - TCH/FS - Frequency hopping and downlink DTX.21614.1.2Bad frame indication - TCH/HS.21714.1.2.1Bad frame indication - TCH/HS - Random RF input.21714.1.2.2Bad frame indication - TCH/HS - Frequency hopping and downlink DTX.21814.1.3Bad frame indication - TCH/FS - Frequency hopping and downlink DTX - Phase 2 MS in a phase 1network.21914.1.4Bad frame indication - TCH/HS - Frequency hopping and downlink DTX - Phase 2 MS in a phase 1network.22114.2Reference sensitivity.22414.2.1Reference sensitivity - TCH/FS.22414.2.2Reference sensitivity - TCH/HS (Speech frames).22614.2.3Reference sensitivity - FACCH/F.22914.2.4Reference sensitivity - FACCH/H.23014.2.5Reference sensitivity - full rate data channels.23114.2.6Reference sensitivity - half rate data channels.23214.2.7Reference sensitivity - TCH/EFS.23314.2.8Reference sensitivity - full rate data channels in multislot configuration.23514.2.9Reference sensitivity - TCH/FS for MS supporting the R-GSM band.23714.3Usable receiver input level range.23914.4Co-channel rejection.240SIST EN 300 607-1 V5.7.1:2005
(GSM 11.10-1 version 5.7.1)6EN 300 607-1 V5.7.1 (1999-04)ETSI14.4.1Co-channel rejection - TCH/FS.24014.4.2Co-channel rejection - TCH/HS.24214.4.3Co-channel rejection - TCH/HS (SID frames).24414.4.4Co-channel rejection - FACCH/F.24614.4.5Co-channel rejection - FACCH/H.24714.4.6Co-channel rejection - TCH/EFS.24814.5Adjacent channel rejection.25014.5.1Adjacent channel rejection - speech channels.25014.5.2Adjacent channel rejection - control channels.25214.6Intermodulation rejection.25414.6.1Intermodulation rejection - speech channels.25414.6.2Intermodulation rejection - control channels.25614.7Blocking and spurious response.25714.7.1Blocking and spurious response - speech channels.25714.7.2Blocking and spurious response - control channels.26114.7.3Blocking and spurious response - speech channels for MS supporting the R-GSM band.26414.7.4Blocking and spurious response - control channels for MS supporting the R-GSM band.26714.8AM suppression.27014.8.1AM suppression - speech channels.27014.8.2AM suppression - control channels.27114.9Paging performance at high input levels.27315Timing advance and absolute delay.27416Reception time tracking speed.27617Access times during handover.27817.1Intra cell channel change.27817.2Inter cell handover.28018Temporary reception gaps.28318.1Temporary reception gaps, single slot.28318.2Temporary reception gaps in HSCSD multislot configurations.28419Channel release after unrecoverable errors.28719.1Channel release after unrecoverable errors -1.28719.2Channel release after unrecoverable errors - 2.28819.3Channel release after unrecoverable errors - 3.28920Cell selection and reselection.29120.1Cell selection.29220.2Cell selection with varying signal strength values.29420.3Basic cell reselection.29620.4Cell reselection using TEMPORARY_OFFSET, CELL_RESELECT_OFFSET, POWER_OFFSET andPENALTY_TIME parameters.29820.5Cell reselection using parameters transmitted in the System Information type 2bis, type 2ter, type 7 andtype 8 messages.30020.6Cell reselection timings.30220.7Priority of cells.30420.8Cell reselection when C1 (serving cell) < 0 for 5 seconds.30520.9Running average of the surrounding cell BCCH carrier signal levels.30620.10Running average of the serving cell BCCH carrier signal level.30820.11Updating the list of six strongest neighbour carriers and decoding the BCCH information of a newcarrier on the list.30920.12Decoding the BCCH information of the neighbour carriers on the list of six strongest neighbour carriers.31020.13Decoding the BSIC of the neighbour carriers on the list of six strongest neighbour carriers.31120.14Emergency calls.31220.15Cell reselection due to MS rejection "LA not allowed".31320.16Downlink signalling failure.31520.17Cell selection if no suitable cell found in 10 s.31620.18Cell reselection due to MS rejection "Roaming not allowed in this LA".31720.19Cell selection on release of SDCCH and TCH.31920.20Multiband cell selection and reselection.320SIST EN 300 607-1 V5.7.1:2005
(GSM 11.10-1 version 5.7.1)7EN 300 607-1 V5.7.1 (1999-04)ETSI20.20.1Multiband cell selection and reselection / Cell Selection.32020.20.2Multiband cell selection and reselection / Cell reselection.32220.21R-GSM cell selection and reselection.32420.21.1R-GSM cell selection.32520.21.2R-GMS cell selection with varying signal strength values.32720.21.3R-GSM basic cell reselection.32920.21.4R-GSM cell reselection using TEMPORARY_OFFSET, CELL_RESELECT_OFFSET,POWER_OFFSET and PENALTY_TIME parameters.33120.21.5R-GSM cell reselection using parameters transmitted in the System Information type 2bis, type 2ter,type 7 and type 8 messages.33320.21.6R-GSM cell reselection timings.33420.21.7R-GSM priority of cells.33620.21.8R-GSM cell reselection when C1 (serving cell) < 0 for 5 seconds.33820.21.9R-GSM running average of the surrounding cell BCCH carrier signal levels.33920.21.10R-GSM running average of the serving cell BCCH carrier signal level.34020.21.11Updating the list of six strongest neighbour carriers and decoding the BCCH information of a newcarrier on the list.34120.21.12R-GSM decoding the BCCH information of the neighbour carriers on the list of six strongestneighbour carriers.34220.21.13R-GSM decoding the BSIC of the neighbour carriers on the list of six strongest neighbour carriers.34320.21.14R-GSM emergency calls.34420.21.15R-GSM cell reselection due to MS rejection "LA not allowed".34620.21.16R-GSM downlink signalling failure.34720.21.17R-GSM cell selection if no suitable cell found in 10 s.34920.21.18R-GSM cell reselection due to MS rejection "Roaming not allowed in this LA".35020.21.19R-GSM cell selection on release of SDCCH and TCH.35121Received signal measurements.35321.1Signal strength.35321.2Signal strength selectivity.35621.3Signal quality under static conditions.35821.3.1Signal quality under static conditions - TCH/FS.35821.3.2Signal quality under static conditions - TCH/HS.36021.4Signal quality under TU50 propagation conditions.36221.5Received signal measurements in HSCSD multislot configuration.36422Transmit power control timing and confirmation.36922.1Transmit power control timing and confirmation, single slot.36922.2Transmit power control timing and confirmation in HSCSD multislot configurations.37123Single frequency reference.37324Tests of the layer 1 signalling functions.37325Tests of the layer 2 signalling functions.37425.1Introduction, objective and scope.37425.1.1General.37425.1.2Test configurations.37425.1.3Pre-conditions.37425.1.4Layer 2 test frames.37525.1.5Establishment of the dedicated physical resource.37525.1.6Release of the dedicated physical resource.37625.2Test sequences.37625.2.1Initialization.37725.2.1.1Initialization when contention resolution required.37725.2.1.1.1Normal initialization.37725.2.1.1.2Initialization failure.37825.2.1.1.2.1Loss of UA frame.37825.2.1.1.2.2UA frame with different information field.37925.2.1.1.2.3Information frame and supervisory frames in response to an SABM frame.38025.2.1.1.3Initialization denial.38125.2.1.1.4Total initialization failure.382SIST EN 300 607-1 V5.7.1:2005
(GSM 11.10-1 version 5.7.1)8EN 300 607-1 V5.7.1 (1999-04)ETSI25.2.1.2Initialization, contention resolution not required.38325.2.1.2.1Normal initialization without contention resolution.38325.2.1.2.2Initialization failure.38425.2.1.2.3Initialization denial.38525.2.1.2.4Total initialization failure.38625.2.2Normal information transfer.38725.2.2.1Sequence counting and I frame acknowledgements.38725.2.2.2Receipt of an I frame in the timer recovery state.39025.2.2.3Segmentation and concatenation.39225.2.3Normal layer 2 disconnection.39525.2.4Test of link failure.39625.2.4.1I frame loss (MS to SS).
...
