Iron ores - Determination of sulfur content - Part 2: Combustion/titration method

This document specifies a combustion/titration method for the determination of the sulfur content of
iron ores.
This method is applicable to sulfur contents between 0,002 % (mass fraction) and 0,25 % (mass
fraction) in natural iron ores, iron ore concentrates, and agglomerates, including sinter products. The
results are not affected by the presence of fluoride.

Minerais de fer - Dosage du soufre - Partie 2: Méthode par combustion et titration

Železove rude - Določevanje žvepla - 2. del: Metoda s sežiganjem/titracijo

Ta dokument določa metodo s sežiganjem/titracijo za določevanje vsebnosti žvepla v železovih rudah.
Ta metoda se uporablja za vsebnosti žvepla od 0,002 % (masni delež) do 0,25 % (masni delež) v naravnih železovih rudah, koncentratih železove rude in aglomeratih, vključno s sintranimi izdelki. Prisotnost fluorida ne vpliva na rezultate.

General Information

Status
Published
Publication Date
27-Mar-2017
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
20-Mar-2017
Due Date
25-May-2017
Completion Date
28-Mar-2017

RELATIONS

Buy Standard

Standard
ISO 4689-2:2017 - Iron ores -- Determination of sulfur content
English language
14 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
SIST ISO 4689-2:2017
English language
19 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

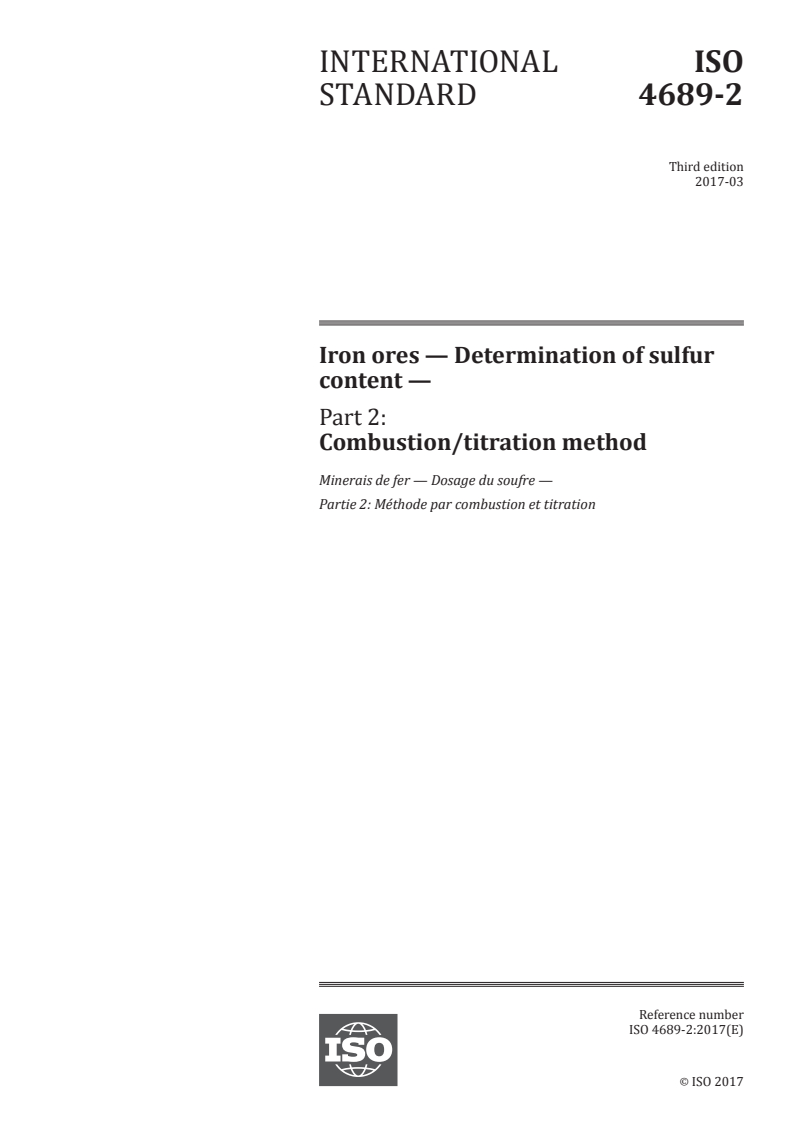

INTERNATIONAL ISO
STANDARD 4689-2
Third edition
2017-03
Iron ores — Determination of sulfur
content —
Part 2:
Combustion/titration method
Minerais de fer — Dosage du soufre —
Partie 2: Méthode par combustion et titration
Reference number
ISO 4689-2:2017(E)
ISO 2017
---------------------- Page: 1 ----------------------
ISO 4689-2:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 2 ----------------------

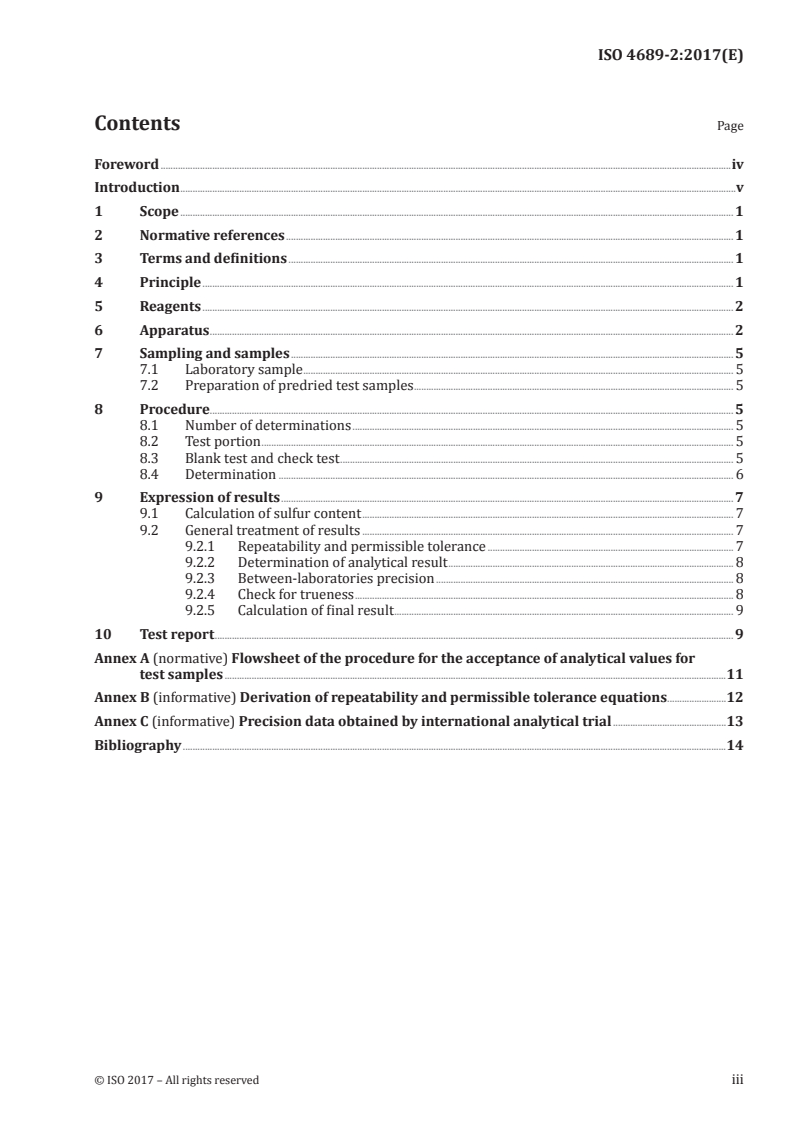

ISO 4689-2:2017(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 1

5 Reagents ........................................................................................................................................................................................................................ 2

6 Apparatus ..................................................................................................................................................................................................................... 2

7 Sampling and samples .................................................................................................................................................................................... 5

7.1 Laboratory sample ............................................................................................................................................................................... 5

7.2 Preparation of predried test samples .................................................................................................................................. 5

8 Procedure..................................................................................................................................................................................................................... 5

8.1 Number of determinations ........................................................................................................................................................... 5

8.2 Test portion ................................................................................................................................................................................................ 5

8.3 Blank test and check test ................................................................................................................................................................ 5

8.4 Determination ......................................................................................................................................................................................... 6

9 Expression of results ........................................................................................................................................................................................ 7

9.1 Calculation of sulfur content ....................................................................................................................................................... 7

9.2 General treatment of results ....................................................................................................................................................... 7

9.2.1 Repeatability and permissible tolerance .................................................................................................... 7

9.2.2 Determination of analytical result .................................................................................................................... 8

9.2.3 Between-laboratories precision ......................................................................................................................... 8

9.2.4 Check for trueness .......................................................................................................................................................... 8

9.2.5 Calculation of final result .......................................................................................................................................... 9

10 Test report ................................................................................................................................................................................................................... 9

Annex A (normative) Flowsheet of the procedure for the acceptance of analytical values for

test samples ............................................................................................................................................................................................................11

Annex B (informative) Derivation of repeatability and permissible tolerance equations ........................12

Annex C (informative) Precision data obtained by international analytical trial ..............................................13

Bibliography .............................................................................................................................................................................................................................14

© ISO 2017 – All rights reserved iii
---------------------- Page: 3 ----------------------

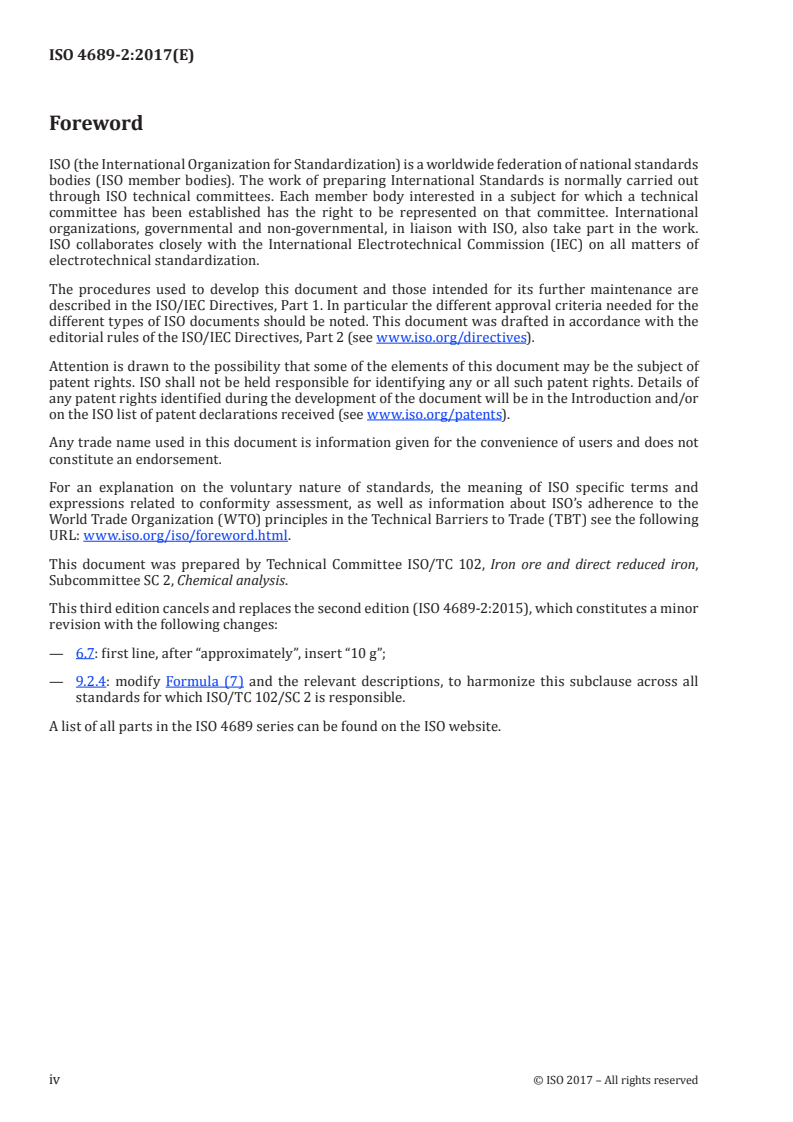

ISO 4689-2:2017(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO’s adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: w w w . i s o .org/ iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 102, Iron ore and direct reduced iron,

Subcommittee SC 2, Chemical analysis.

This third edition cancels and replaces the second edition (ISO 4689-2:2015), which constitutes a minor

revision with the following changes:
— 6.7: first line, after “approximately”, insert “10 g”;

— 9.2.4: modify Formula (7) and the relevant descriptions, to harmonize this subclause across all

standards for which ISO/TC 102/SC 2 is responsible.
A list of all parts in the ISO 4689 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 4689-2:2017(E)
Introduction

This document was originally published as ISO 4690:1986. Under a policy of rationalization of the

numbering system used in ISO/TC 102, it has been decided to re-designate this document as ISO 4689-2.

It was further decided to introduce a combustion/infrared method, numbered ISO 4689-3.

When next revised, ISO 4689:1986 will be re-designated as ISO 4689-1.
© ISO 2017 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 4689-2:2017(E)
Iron ores — Determination of sulfur content —
Part 2:
Combustion/titration method

WARNING — This document may involve hazardous materials, operations, and equipment. This

document does not purport to address all of the safety problems associated with its use. It is the

responsibility of the user of this document to establish appropriate health and safety practices

and determine the applicability of regulatory limitations prior to use.
1 Scope

This document specifies a combustion/titration method for the determination of the sulfur content of

iron ores.

This method is applicable to sulfur contents between 0,002 % (mass fraction) and 0,25 % (mass

fraction) in natural iron ores, iron ore concentrates, and agglomerates, including sinter products. The

results are not affected by the presence of fluoride.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 385, Laboratory glassware — Burettes
ISO 648, Laboratory glassware — Single-volume pipettes
ISO 1042, Laboratory glassware — One-mark volumetric flasks

ISO 2596, Iron ores — Determination of hygroscopic moisture in analytical samples — Gravimetric, Karl

Fischer and mass-loss methods
ISO 3082, Iron ores — Sampling and sample preparation procedures
ISO 7764, Iron ores — Preparation of predried test samples for chemical analysis

ISO Guide 35, Reference materials — General and statistical principles for certification

3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
4 Principle

The sample is mixed with tungsten(VI) oxide and heated at 1 200 °C in a resistance furnace, using

nitrogen as a carrier gas.
© ISO 2017 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 4689-2:2017(E)

The evolved sulfur dioxide is absorbed in dilute hydrochloric acid solution containing starch and

potassium iodide, and the solution is titrated continuously during evolution with a standard volumetric

solution of potassium iodate.
5 Reagents

During analysis, use only reagents of recognized analytical grade, and only distilled water or water of

equivalent purity.

5.1 Magnesium perchlorate, Mg(ClO ) , anhydrous, free flowing, particle size 0,5 mm to 2 mm.

4 2
5.2 Tungsten(VI) oxide, (WO ).
5.3 Tin(II) chloride, SnCl ·2H O, particle size 0,5 mm to 2 mm.
2 2
5.4 Sodium hydroxide coated silica, particle size 0,5 mm to 2 mm.
5.5 Hydrochloric acid, ρ, 1,16 g/ml to 1,19 g/ml, diluted 1 + 66.
5.6 Potassium iodide, KI, 3 % (mass fraction) solution.
5.7 Starch, 2 % (mass fraction) solution.

Make a suspension of 2,0 g of starch in 10 ml of water, add to 50 ml of boiling water and stir. Cool, dilute

to 100 ml and mix.
Prepare this solution immediately prior to use.
5.8 Potassium iodate, KIO , standard volumetric solution, 0,001 042 mol/l.
The potassium iodate should be previously dried for 2 h at 130 °C.

Weigh, to the nearest 0,000 2 g, 0,223 g of dried potassium iodate and dissolve in water. Cool, transfer

to a 1 l volumetric flask, dilute to volume and mix.
1 ml of this standard volumetric solution is equivalent to 0,10 mg of sulfur.
6 Apparatus

Ordinary laboratory apparatus, including one-mark pipettes and one-mark volumetric flasks complying

with the specifications of ISO 648 and ISO 1042 respectively, as well as the following. See Figure 1.

6.1 Nitrogen supply.

6.2 Drying tower, containing sodium hydroxide coated silica (5.4) and magnesium perchlorate (5.1).

6.3 Flowmeter, graduated from 0 to 1 l/min.

6.4 Resistance furnace, capable of maintaining a temperature of 1 200 °C ± 25 °C.

6.5 Refractory combustion tube, capable of withstanding a temperature of 1 200 °C ± 25 °C.

2 © ISO 2017 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 4689-2:2017(E)

6.6 Refractory combustion boat, with loose-fitting lid, or a suitable refractory combustion boat

capable of accommodating a porous cartridge, as shown in Figure 2 a) or b) respectively.

The following dimensions can be used as guidelines.
Combustion boat Cartridge
Length 80 mm Length 50 mm
Width 13 mm Internal diameter 15 mm
Depth 9 mm

6.7 Tin(II) chloride absorption tube, of narrow glass tubing containing approximately 10 g of solid

tin(II) chloride (5.3), suitably plugged with inert wool to prevent the reagent being blown into the

absorption vessel.

A U-tube is suitable. Where necessary, this is inserted in the train at the exit of the combustion tube at

point X in Figure 1.

If the sample is known or thought to contain chloride, e.g. in the form of sodium chloride, chlorapatite,

or scapolite, the chlorine formed during combustion of the sample should be removed by passing the gas

stream through solid tin(II) chloride in a suitable tube or vessel (6.7) prior to absorption and titration.

If numerous samples having chloride contents >1 (mass fraction) are to be analysed, it is advisable to

determine the absorption capacity of the tin(II) chloride in order to be able to judge the most suitable

interval for reagent replacement. In such cases, a larger absorption vessel may be preferred.

The tin(II) chloride absorption tube should also be fitted if the chloride content of the test sample is

unknown.
6.8 Cylinder, 100 ml, tall form, to hold the absorbing solution.
6.9 Bubbler, multi-hole, to reach to the bottom of the cylinder (6.8).
6.10 Burette, conforming to ISO 385, graduated in divisions of 0,05 ml.

For determination of low sulfur contents [<0,005 % (mass fraction)], alternative titration devices such

as a piston burette or a suitable micro-syringe capab
...

SLOVENSKI STANDARD
SIST ISO 4689-2:2017
01-maj-2017
1DGRPHãþD
SIST ISO 4689-2:2016
äHOH]RYHUXGH'RORþHYDQMHåYHSODGHO0HWRGDVVHåLJDQMHPWLWUDFLMR

Iron ores - Determination of sulfur content - Part 2: Combustion/titration method

Minerais de fer - Dosage du soufre - Partie 2: Méthode par combustion et titration

Ta slovenski standard je istoveten z: ISO 4689-2:2017
ICS:
73.060.10 Železove rude Iron ores
SIST ISO 4689-2:2017 en,fr

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST ISO 4689-2:2017
---------------------- Page: 2 ----------------------
SIST ISO 4689-2:2017
INTERNATIONAL ISO
STANDARD 4689-2
Third edition
2017-03
Iron ores — Determination of sulfur
content —
Part 2:
Combustion/titration method
Minerais de fer — Dosage du soufre —
Partie 2: Méthode par combustion et titration
Reference number
ISO 4689-2:2017(E)
ISO 2017
---------------------- Page: 3 ----------------------
SIST ISO 4689-2:2017
ISO 4689-2:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
SIST ISO 4689-2:2017
ISO 4689-2:2017(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 1

5 Reagents ........................................................................................................................................................................................................................ 2

6 Apparatus ..................................................................................................................................................................................................................... 2

7 Sampling and samples .................................................................................................................................................................................... 5

7.1 Laboratory sample ............................................................................................................................................................................... 5

7.2 Preparation of predried test samples .................................................................................................................................. 5

8 Procedure..................................................................................................................................................................................................................... 5

8.1 Number of determinations ........................................................................................................................................................... 5

8.2 Test portion ................................................................................................................................................................................................ 5

8.3 Blank test and check test ................................................................................................................................................................ 5

8.4 Determination ......................................................................................................................................................................................... 6

9 Expression of results ........................................................................................................................................................................................ 7

9.1 Calculation of sulfur content ....................................................................................................................................................... 7

9.2 General treatment of results ....................................................................................................................................................... 7

9.2.1 Repeatability and permissible tolerance .................................................................................................... 7

9.2.2 Determination of analytical result .................................................................................................................... 8

9.2.3 Between-laboratories precision ......................................................................................................................... 8

9.2.4 Check for trueness .......................................................................................................................................................... 8

9.2.5 Calculation of final result .......................................................................................................................................... 9

10 Test report ................................................................................................................................................................................................................... 9

Annex A (normative) Flowsheet of the procedure for the acceptance of analytical values for

test samples ............................................................................................................................................................................................................11

Annex B (informative) Derivation of repeatability and permissible tolerance equations ........................12

Annex C (informative) Precision data obtained by international analytical trial ..............................................13

Bibliography .............................................................................................................................................................................................................................14

© ISO 2017 – All rights reserved iii
---------------------- Page: 5 ----------------------
SIST ISO 4689-2:2017
ISO 4689-2:2017(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO’s adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: w w w . i s o .org/ iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 102, Iron ore and direct reduced iron,

Subcommittee SC 2, Chemical analysis.

This third edition cancels and replaces the second edition (ISO 4689-2:2015), which constitutes a minor

revision with the following changes:
— 6.7: first line, after “approximately”, insert “10 g”;

— 9.2.4: modify Formula (7) and the relevant descriptions, to harmonize this subclause across all

standards for which ISO/TC 102/SC 2 is responsible.
A list of all parts in the ISO 4689 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
---------------------- Page: 6 ----------------------
SIST ISO 4689-2:2017
ISO 4689-2:2017(E)
Introduction

This document was originally published as ISO 4690:1986. Under a policy of rationalization of the

numbering system used in ISO/TC 102, it has been decided to re-designate this document as ISO 4689-2.

It was further decided to introduce a combustion/infrared method, numbered ISO 4689-3.

When next revised, ISO 4689:1986 will be re-designated as ISO 4689-1.
© ISO 2017 – All rights reserved v
---------------------- Page: 7 ----------------------
SIST ISO 4689-2:2017
---------------------- Page: 8 ----------------------
SIST ISO 4689-2:2017
INTERNATIONAL STANDARD ISO 4689-2:2017(E)
Iron ores — Determination of sulfur content —
Part 2:
Combustion/titration method

WARNING — This document may involve hazardous materials, operations, and equipment. This

document does not purport to address all of the safety problems associated with its use. It is the

responsibility of the user of this document to establish appropriate health and safety practices

and determine the applicability of regulatory limitations prior to use.
1 Scope

This document specifies a combustion/titration method for the determination of the sulfur content of

iron ores.

This method is applicable to sulfur contents between 0,002 % (mass fraction) and 0,25 % (mass

fraction) in natural iron ores, iron ore concentrates, and agglomerates, including sinter products. The

results are not affected by the presence of fluoride.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 385, Laboratory glassware — Burettes
ISO 648, Laboratory glassware — Single-volume pipettes
ISO 1042, Laboratory glassware — One-mark volumetric flasks

ISO 2596, Iron ores — Determination of hygroscopic moisture in analytical samples — Gravimetric, Karl

Fischer and mass-loss methods
ISO 3082, Iron ores — Sampling and sample preparation procedures
ISO 7764, Iron ores — Preparation of predried test samples for chemical analysis

ISO Guide 35, Reference materials — General and statistical principles for certification

3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
4 Principle

The sample is mixed with tungsten(VI) oxide and heated at 1 200 °C in a resistance furnace, using

nitrogen as a carrier gas.
© ISO 2017 – All rights reserved 1
---------------------- Page: 9 ----------------------
SIST ISO 4689-2:2017
ISO 4689-2:2017(E)

The evolved sulfur dioxide is absorbed in dilute hydrochloric acid solution containing starch and

potassium iodide, and the solution is titrated continuously during evolution with a standard volumetric

solution of potassium iodate.
5 Reagents

During analysis, use only reagents of recognized analytical grade, and only distilled water or water of

equivalent purity.

5.1 Magnesium perchlorate, Mg(ClO ) , anhydrous, free flowing, particle size 0,5 mm to 2 mm.

4 2
5.2 Tungsten(VI) oxide, (WO ).
5.3 Tin(II) chloride, SnCl ·2H O, particle size 0,5 mm to 2 mm.
2 2
5.4 Sodium hydroxide coated silica, particle size 0,5 mm to 2 mm.
5.5 Hydrochloric acid, ρ, 1,16 g/ml to 1,19 g/ml, diluted 1 + 66.
5.6 Potassium iodide, KI, 3 % (mass fraction) solution.
5.7 Starch, 2 % (mass fraction) solution.

Make a suspension of 2,0 g of starch in 10 ml of water, add to 50 ml of boiling water and stir. Cool, dilute

to 100 ml and mix.
Prepare this solution immediately prior to use.
5.8 Potassium iodate, KIO , standard volumetric solution, 0,001 042 mol/l.
The potassium iodate should be previously dried for 2 h at 130 °C.

Weigh, to the nearest 0,000 2 g, 0,223 g of dried potassium iodate and dissolve in water. Cool, transfer

to a 1 l volumetric flask, dilute to volume and mix.
1 ml of this standard volumetric solution is equivalent to 0,10 mg of sulfur.
6 Apparatus

Ordinary laboratory apparatus, including one-mark pipettes and one-mark volumetric flasks complying

with the specifications of ISO 648 and ISO 1042 respectively, as well as the following. See Figure 1.

6.1 Nitrogen supply.

6.2 Drying tower, containing sodium hydroxide coated silica (5.4) and magnesium perchlorate (5.1).

6.3 Flowmeter, graduated from 0 to 1 l/min.

6.4 Resistance furnace, capable of maintaining a temperature of 1 200 °C ± 25 °C.

6.5 Refractory combustion tube, capable of withstanding a temperature of 1 200 °C ± 25 °C.

2 © ISO 2017 – All rights reserved
---------------------- Page: 10 ----------------------
SIST ISO 4689-2:2017
ISO 4689-2:2017(E)

6.6 Refractory combustion boat, with loose-fitting lid, or a suitable refractory combustion boat

capable of accommodating a porous cartridge, as shown in Figure 2 a) or b) respectively.

The following dimensions can be used as guidelines.
Combustion boat Cartridge
Length 80 mm Length 50 mm
Width 13 mm Internal diameter 15 mm
Depth 9 mm

6.7 Tin(II) chloride absorption tube, of narrow glass tubing containing approximately 10 g of solid

tin(II) chloride (5.3), suitably plugged with inert wool to prevent the reagent being blown into the

absorption vessel.

A U-tube is suitable. Where necessary, this is inserted in the train at the exit of the combustion tube at

point X in Figure 1.

If the sample is known or thought to contain chloride, e.g. in the form of sodium chloride, chlorapatite,

or scapolite, the chlorine formed during combustion of the sample should be removed by passing the gas

stream through solid tin(II) chloride in a suitable tube or vessel (6.7) prior to absorption and titration.

If numerous samples having chloride contents >1 (mass fraction) are to be analysed, it is advisable to

determine the absorption capacity of the tin(II) chloride in order to be able to judge the most suitable

interval for reagent replacement. In such cases, a larger absorption vessel may be preferred.

The tin(II) chloride absorption tube should also be fitt
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
