IEC 61558-1:2017 deals with safety aspects of transformers, reactors, power supply units and combinations thereof such as electrical, thermal and mechanical safety. This document covers the following independent or associated stationary or portable types of dry-type transformers, power supply units, including switch mode power supply units, reactors and combinations thereof in the field of safety. The windings can be encapsulated or non-encapsulated. They are not forming a part of the distribution network. This third edition cancels and replaces the second edition published in 2005 and Amendment 1:2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a. fully insulated winding wires (FIW), new tables and aging tests for FIW constructions,
b. overvoltage categories 1, 2, 3 and 4 for clearances and dielectric strength tests (new tables) are included,
c. development of new symbols for the different overvoltage categories,
d. symbol for maximum altitudes, if higher than 2 000 m,
e. symbol for plug in power supply units, if the pins are damaged (tumbling barrel test),
f. symbol for minimum temperature (even during the transportation),
g. alternative temperature measurement, simulated load and back to back method according to IEC 60076-11,
h. short circuit and overload protection, simulated load and back to back method according to IEC 60076-11,
i. adjustment of temperatures in Table 2 according to CENELEC Guide 29,
j. establishing partial discharge test above 750 V for FIW constructions,
k. requirements for toroidal core constructions, division for basic and for supplementary isolation,
l. modification of protection indexes for enclosures (IP-code),
m. dimensioning of rectangular cross section connectors for transformers,
n. repetition test, 80% of required dielectric strength test voltage of Table 14,a.
o. vibration test for vehicles and railway applications,
p. two Y1 Capacitors for working voltages above 250 V and not exceeding 500 V with overvoltage category 3.
It has the status of a group safety publication in accordance with IEC Guide 104.
Sicherheit von Transformatoren, Netzgeräten, Drosseln und entsprechenden Kombinationen - Teil 1: Allgemeine Anforderungen und Prüfungen
Sécurité des transformateurs, bobines d’inductance, blocs d’alimentation et des combinaisons de ces éléments - Partie 1: Exigences générales et essais
NEW!IEC 61558-1:2017 est disponible sous forme de IEC 61558-1:2017 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 61558-1:2017 traite des aspects relatifs à la sécurité des transformateurs, bobines d’inductance, blocs d’alimentation et des combinaisons de ces éléments, tels que la sécurité électrique, la sécurité thermique et la sécurité mécanique. Le présent document couvre les transformateurs de type sec, les blocs d’alimentation, y compris les blocs d’alimentation à découpage, les bobines d’inductance et les combinaisons de ces éléments, de type indépendant ou associé, fixe ou mobile, dans le domaine de la sécurité. Les enroulements peuvent être enrobés ou non enrobés. Ils ne constituent pas une partie du réseau de distribution. Cette troisième édition annule et remplace la deuxième édition parue en 2005 et l’Amendement 1:2009. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
a. fils de bobinage totalement isolés (FIW), nouveaux tableaux et essais de vieillissement pour les constructions avec fils FIW,
b. les catégories de surtensions 1, 2, 3 et 4 pour les distances d’isolement et les essais de rigidité diélectrique (nouveaux tableaux) sont incluses,
c. développement de nouveaux symboles pour les différentes catégories de surtensions,
d. symbole pour les altitudes maximales, si elles sont supérieures à 2 000 m,
e. symbole pour les blocs d’alimentation enfichables, si les broches sont endommagées (essai au tambour tournant),
f. symbole pour la température minimale (même durant le transport),
g. variante de mesure de la température, méthode de charge simulée et d’essai en opposition conformément à l’IEC 60076-11,
h. protection contre les courts-circuits et les surcharges, méthode de charge simulée et d’essai en opposition conformément à l’IEC 60076-11,
i. ajustement des températures dans le Tableau 2 conformément au Guide CENELEC 29,
j. établissement de l’essai de décharge partielle au-dessus de 750 V pour les constructions avec fils FIW,
k. exigences pour noyaux toroïdaux, division pour l’isolation principale et pour l’isolation supplémentaire,
l. modification des indices de protection pour les enveloppes (code IP),
m. dimensionnement des connecteurs de section rectangulaire pour transformateurs,
n. essai de répétition, 80 % de la tension d’essai de rigidité diélectrique requise dans le Tableau 14,
o. essai de vibrations pour les véhicules et les applications ferroviaires,
p. deux condensateurs Y1 pour des tensions locales supérieures à 250 V et ne dépassant pas 500 V avec la catégorie de surtension 3.
Elle a le statut d'une publication groupée de sécurité conformément au Guide IEC 104.
Varnost transformatorjev, reaktorjev, napajalnikov in kombinacij teh elementov - 1. del: Splošne zahteve in preskusi
General Information
- Status
- Published
- Publication Date
- 08-Aug-2019
- Technical Committee
- I96 - Imaginarni 96
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 12-Jul-2019
- Due Date
- 16-Sep-2019
- Completion Date
- 09-Aug-2019
Relations
- Effective Date
- 25-Jun-2019
- Effective Date
- 25-Jun-2019
- Effective Date
- 10-May-2016
- Effective Date
- 10-May-2016
Overview
SIST EN IEC 61558-1:2019 - Safety of transformers, reactors, power supply units and combinations thereof - Part 1: General requirements and tests is the third-edition, harmonized European version of IEC 61558-1 (edition 2017). It sets general safety requirements and test methods for stationary or portable dry‑type transformers, reactors, switch‑mode and other power supply units, and combinations thereof used for safety-related applications (windings may be encapsulated or non‑encapsulated). This edition replaces EN 61558-1:2005 and its amendment and is a group safety publication in accordance with IEC Guide 104. IEC 61558-1:2017 is also available as IEC 61558-1:2017 RLV (International Standard with redline changes).
Key topics and technical requirements
The standard covers electrical, thermal and mechanical safety and defines tests and markings to demonstrate compliance. Significant technical updates in this edition include:
- Fully Insulated Winding (FIW) provisions: new tables and aging/partial discharge tests for FIW constructions.
- Overvoltage categories (1–4) for clearances and dielectric strength with new symbols.
- Symbols for maximum altitude, minimum temperature (transport) and plug-in PSU pin-damage (tumbling barrel test).
- Alternative temperature measurement and simulated-load/back‑to‑back test methods per IEC 60076‑11.
- Requirements for short‑circuit and overload protection, and repetition dielectric tests (80% voltage).
- Toroidal core construction requirements and differentiation of basic vs supplementary insulation.
- IP-code modifications for enclosures and dimensioning rules for rectangular connectors.
- New mechanical/environmental tests such as vibration tests for vehicle and railway applications.
- Capacitor requirements: two Y1 capacitors for working voltages >250 V ≤500 V with overvoltage category 3.
Practical applications and users
Who uses this standard:
- Manufacturers of transformers, reactors, and power supply units (including SMPS) for design, testing and CE marking.
- Product safety and compliance engineers applying the Low Voltage Directive (LVD) in the EU.
- Test laboratories and conformity assessment bodies performing dielectric, temperature, partial discharge, and mechanical tests.
- System integrators, procurement and specification writers who need guaranteed safety performance for industrial, railway, vehicle and consumer equipment.
Practical value:
- Ensures robust protection against electric shock, fire and mechanical hazards.
- Provides harmonized test methods and symbols to support regulatory acceptance and market access.
- Guides selection of insulation systems, protection devices, enclosure ratings and environmental qualifications.
Related standards
Relevant cross‑references commonly used with SIST EN IEC 61558-1:2019 include IEC 60076-11 (dry‑type transformers), IEC 60664-1 (insulation coordination), IEC 60529 (IP code), and winding wire standards such as IEC 60317 and test methods in IEC 60851.
Keywords: SIST EN IEC 61558-1:2019, safety of transformers, power supply units, reactors, general requirements and tests, IEC 61558-1, FIW, overvoltage categories, partial discharge, IEC 60076-11.
Frequently Asked Questions
SIST EN IEC 61558-1:2019 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Safety of transformers, reactors, power supply units and combinations thereof - Part 1: General requirements and tests". This standard covers: <span style="color:red">NEW!</span>IEC 61558-1:2017 is available as <a href="https://webstore.iec.ch/publication/61569">IEC 61558-1:2017 RLV</a> which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 61558-1:2017 deals with safety aspects of transformers, reactors, power supply units and combinations thereof such as electrical, thermal and mechanical safety. This document covers the following independent or associated stationary or portable types of dry-type transformers, power supply units, including switch mode power supply units, reactors and combinations thereof in the field of safety. The windings can be encapsulated or non-encapsulated. They are not forming a part of the distribution network. This third edition cancels and replaces the second edition published in 2005 and Amendment 1:2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a. fully insulated winding wires (FIW), new tables and aging tests for FIW constructions, b. overvoltage categories 1, 2, 3 and 4 for clearances and dielectric strength tests (new tables) are included, c. development of new symbols for the different overvoltage categories, d. symbol for maximum altitudes, if higher than 2 000 m, e. symbol for plug in power supply units, if the pins are damaged (tumbling barrel test), f. symbol for minimum temperature (even during the transportation), g. alternative temperature measurement, simulated load and back to back method according to IEC 60076-11, h. short circuit and overload protection, simulated load and back to back method according to IEC 60076-11, i. adjustment of temperatures in Table 2 according to CENELEC Guide 29, j. establishing partial discharge test above 750 V for FIW constructions, k. requirements for toroidal core constructions, division for basic and for supplementary isolation, l. modification of protection indexes for enclosures (IP-code), m. dimensioning of rectangular cross section connectors for transformers, n. repetition test, 80% of required dielectric strength test voltage of Table 14,a. o. vibration test for vehicles and railway applications, p. two Y1 Capacitors for working voltages above 250 V and not exceeding 500 V with overvoltage category 3. It has the status of a group safety publication in accordance with IEC Guide 104.
<span style="color:red">NEW!</span>IEC 61558-1:2017 is available as <a href="https://webstore.iec.ch/publication/61569">IEC 61558-1:2017 RLV</a> which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 61558-1:2017 deals with safety aspects of transformers, reactors, power supply units and combinations thereof such as electrical, thermal and mechanical safety. This document covers the following independent or associated stationary or portable types of dry-type transformers, power supply units, including switch mode power supply units, reactors and combinations thereof in the field of safety. The windings can be encapsulated or non-encapsulated. They are not forming a part of the distribution network. This third edition cancels and replaces the second edition published in 2005 and Amendment 1:2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a. fully insulated winding wires (FIW), new tables and aging tests for FIW constructions, b. overvoltage categories 1, 2, 3 and 4 for clearances and dielectric strength tests (new tables) are included, c. development of new symbols for the different overvoltage categories, d. symbol for maximum altitudes, if higher than 2 000 m, e. symbol for plug in power supply units, if the pins are damaged (tumbling barrel test), f. symbol for minimum temperature (even during the transportation), g. alternative temperature measurement, simulated load and back to back method according to IEC 60076-11, h. short circuit and overload protection, simulated load and back to back method according to IEC 60076-11, i. adjustment of temperatures in Table 2 according to CENELEC Guide 29, j. establishing partial discharge test above 750 V for FIW constructions, k. requirements for toroidal core constructions, division for basic and for supplementary isolation, l. modification of protection indexes for enclosures (IP-code), m. dimensioning of rectangular cross section connectors for transformers, n. repetition test, 80% of required dielectric strength test voltage of Table 14,a. o. vibration test for vehicles and railway applications, p. two Y1 Capacitors for working voltages above 250 V and not exceeding 500 V with overvoltage category 3. It has the status of a group safety publication in accordance with IEC Guide 104.
SIST EN IEC 61558-1:2019 is classified under the following ICS (International Classification for Standards) categories: 29.180 - Transformers. Reactors. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 61558-1:2019 has the following relationships with other standards: It is inter standard links to SIST EN 61558-1:2006, SIST EN 61558-1:2006/A1:2009, SIST EN 61558-1:2006/A1:2009, SIST EN 61558-1:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN IEC 61558-1:2019 is associated with the following European legislation: EU Directives/Regulations: 2014/35/EU; Standardization Mandates: M/511. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN IEC 61558-1:2019 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2019
Nadomešča:
SIST EN 61558-1:2006
SIST EN 61558-1:2006/A1:2009
Varnost transformatorjev, reaktorjev, napajalnikov in kombinacij teh elementov - 1.
del: Splošne zahteve in preskusi
Safety of transformers, reactors, power supply units and combinations thereof - Part 1:
General requirements and tests
Ta slovenski standard je istoveten z: EN IEC 61558-1:2019
ICS:
29.180 Transformatorji. Dušilke Transformers. Reactors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 61558-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2019
ICS 29.180 Supersedes EN 61558-1:2005
English Version
Safety of transformers, reactors, power supply units and
combinations thereof - Part 1: General requirements and tests
(IEC 61558-1:2017)
Sécurité des transformateurs, bobines d'inductance, blocs Sicherheit von Transformatoren, Netzgeräten, Drosseln und
d'alimentation et des combinaisons de ces éléments - entsprechenden Kombinationen - Teil 1: Allgemeine
Partie 1: Exigences générales et essais Anforderungen und Prüfungen
(IEC 61558-1:2017) (IEC 61558-1:2017)
This European Standard was approved by CENELEC on 2017-11-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61558-1:2019 E

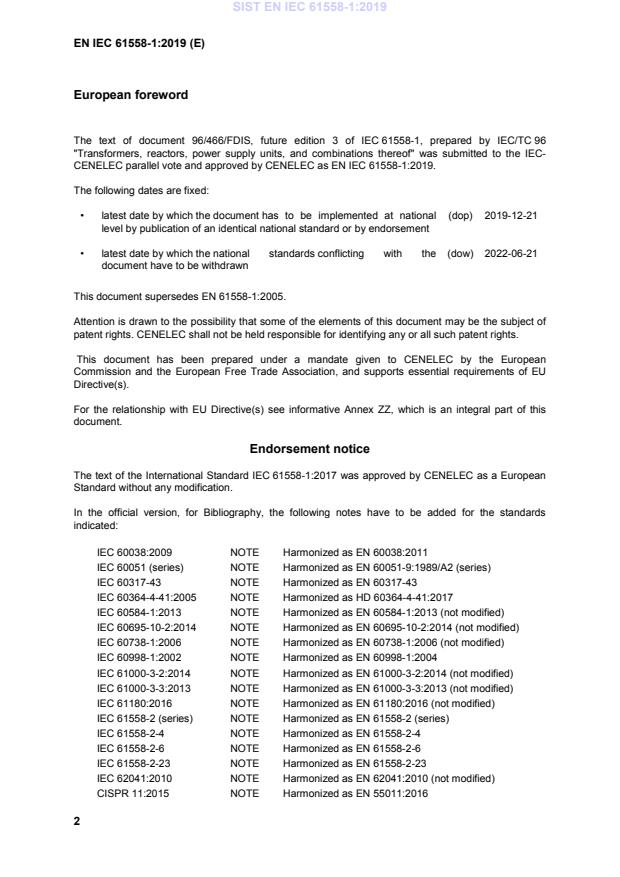

European foreword
