SIST EN 301 419-3:2001

• Abstract:

  This EN specifies the technical requirements to be met by terminal equipment capable of connecting to a public telecommunications network and that support the ASCI feature. These requirements apply to terminals for Phase 2+ of the public land mobile radio service, operating in the 900 MHz band with a channel separation of 200 kHz, utilising constant envelope modulation and carrying traffic channels according to the Time Division Multiple Access (TDMA) principle. This EN specifies the terminal equipment ASCI requirements for the GSM900 version of the Global System for Mobile communications (GSM). For each test purpose and its corresponding conformance requirement, a reference is given to the test method in EN 300 607-1 (GSM11.10-1)[2]. The requirements apply at the air interface and the Subscriber Identity Module - Mobile Equipment interface for the access requirements, which may be stimulated to perform the tests by additional equipment if necessary. The measurement uncertainty is described in EN 300 607-1 (GSM11.10-1)[2]. This EN covers the essential requirements of the Terminal Directive 91/263/EEC[1] Articles 4d, 4e, 4f. The Terminal Directive 91/263/EEC[1] Articles 4a and 4b are covered by other directives, and, therefore, not by this EN. In this EN, there are no Electromagnetic Compatibility technical requirements in terms of the Terminal Directive 91/263/EEC[1], Article 4c. NOTE 1:Technical Requirements for EMC performance and testing of the equipment are covered by the relevant standards applicable to the EMC Directive 89/336/EEC, annexA. This module specifies the ASCI Terminal equipment additional requirements. EN 300 607-1 (GSM11.10-1)[2] constitutes the conformance test suite for GSM. The verification of the conformance requirements in this EN is based on the tests described in this reference. The set of requirements in EN 300 607-1 (GSM11.10-1)[2] and the set of requirements in this EN need not be identical. All the requirements in this EN are specific

• Status: Published
• Publication Date: 31-Aug-2001
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Sep-2001
• Due Date: 01-Sep-2001
• Completion Date: 01-Sep-2001
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
• Directive:

  ---

  2005-01-1864 - Pravilnik o radijskih frekvencah, ki se smejo uporabljati brez odločbe o dodelitvi radijskih frekvenc
• Directive:

  ---

  2010-01-3290 - Pravilnik o železniškem telekomunikacijskem omrežju
• Directive:

  ---

  TRRTP124 - Splošni akt o načrtu uporabe radijskih frekvenc (NURF-4)
• Mandate: T-316
• Ref Project: ETSI EN 301 419-3 V5.0.2 (1999-11) - Digital cellular telecommunications system (Phase 2+); Attachment requirements for Global System for Mobilecommunications (GSM); Advanced Speech Call Items (ASCI); Mobile Stations; Access (GSM 13.68 version 5.0.2 Release 1996)

SIST EN 301 419-3:2001 is the Slovene adoption of ETSI EN 301 419-3 V5.0.2 for GSM Phase 2+ mobile stations that support Advanced Speech Call Items (ASCI). It specifies additional access requirements for terminal equipment connecting to a public telecommunications network, and it is written for manufacturers, suppliers, test laboratories, and approval bodies working with GSM-ASCI terminals.

What does SIST EN 301 419-3:2001 specify?

SIST EN 301 419-3:2001 specifies the ASCI access requirements for GSM 900 mobile stations using 200 kHz channel spacing, constant envelope modulation, and TDMA traffic channels. It applies to terminal equipment at the air interface and at the Subscriber Identity Module - Mobile Equipment interface, and it is used for approval testing of GSM-ASCI terminals.

The document links these requirements to the essential requirements of the Terminal Directive and states that EMC technical requirements are covered elsewhere. It also notes that active accessories are covered when they change terminal performance in a way that affects conformance.

Annex	What it covers
Annex A	Normative requirement table with static and dynamic proformas, support declarations, and test selection logic
Annex B	Informative document history

The main body is organized into scope, normative references, abbreviations, general requirements, and requirements. Clause 5 contains the requirement-to-test mapping, and Annex A turns the requirements into a proforma that manufacturers use to declare support and identify applicable tests.

What are the key requirements of SIST EN 301 419-3:2001?

SIST EN 301 419-3:2001 requires GSM-ASCI terminals to conform to TBR 19 and TBR 31, plus clause 5 and Annex A of this document. If the terminal implements speech services, it also has to meet TBR 20 and TBR 32. In practice, this means ASCI support is added on top of the relevant GSM access and telephony requirements.

Clause 5 ties each conformance item to a specific EN 300 607-1 item and gives a justification linked to the Terminal Directive. The table also shows the directive category and whether the item is covered by the normal test route or by a special test situation. For a reader, this is the key bridge between a feature claim and the test evidence needed for approval.

The requirements are verified against EN 300 607-1, which is the GSM conformance test suite named by the document. The document says the requirements in the two standards do not have to be identical, so the present standard selects the subset relevant to ASCI terminals.

Annex A is the practical control point for implementation and testing:

• Static requirements record what the manufacturer supports, such as the GSM 900 R-GSM band, VGCS, VBS, eMLPP, reduced NCH monitoring, and related additional information.
• Dynamic requirements identify the procedures that must be tested when the related feature is supported.
• The table logic uses status codes such as mandatory, optional, conditional, not applicable, and excluded.
• Support answers show whether the implementation claims each feature, which drives the later test selection.

The dynamic requirement table focuses on actual network interactions, including notification, paging, radio resource procedures, uplink access, leaving group modes, GCC/BCC procedures, error handling, structured procedures, cell change, and eMLPP service behavior. In practice, these are the situations that show whether an ASCI terminal can join, maintain, and leave group or broadcast services correctly.

What terms does SIST EN 301 419-3:2001 define?

ASCI means Advanced Speech Call Items, the GSM feature set addressed by this standard.

VGCS means Voice Group Call Service, a service for group voice communication.

VBS means Voice Broadcast Service, a one-way broadcast voice service.

eMLPP means enhanced Multi-Level Precedence and Pre-emption service, which supports prioritized call handling.

MO means Mobile Originated, referring to a call or service started by the mobile station.

MT means Mobile Terminated, referring to a call or service received by the mobile station.

R-GSM means Railway Global System for Mobile communications, the band option named in Annex A.

Who uses SIST EN 301 419-3:2001?

SIST EN 301 419-3:2001 is used by terminal manufacturers, module suppliers, conformity test laboratories, and approval authorities dealing with GSM mobile stations that support ASCI. It is also relevant to engineers and quality managers who must declare supported services, choose test cases, and check whether a terminal or active accessory affects conformance. In practice, it is the document used when preparing approval evidence for GSM-ASCI access behavior.

What changed in SIST EN 301 419-3:2001 from the previous edition?

The document history records earlier publication steps for version 5.0.0, 5.0.1, and 5.0.2. The change note for version 5.0.2 states that text and figures were updated for publication.

Which standards are used with SIST EN 301 419-3:2001?

SIST EN 301 419-3:2001 references EN 300 607-1 (GSM 11.10-1) as the GSM conformance test suite and as the source of the referenced test methods and measurement uncertainty. It also cites TBR 19 and TBR 31 for GSM 900 and DCS 1800 access requirements, and TBR 20 and TBR 32 when speech services are implemented. GSM 01.04 is referenced for additional GSM abbreviations.

What does the SIST EN 301 419-3:2001 document contain?

The document contains a clause-by-clause requirement set and a table-driven conformance structure. Table 1 in the main body gives each requirement, its EN 300 607-1 item reference, a short description, justification, directive category, and test category.

Annex A contains the requirement tables used for implementation declaration and test selection. These tables include static proformas for supported features and dynamic proformas for conformance claims, with conditional logic that shows when a test item becomes mandatory.

Annex A also gives the notation rules for status, support answers, prerequisites, and references between items. That makes the annex useful both for product documentation and for setting up an approval test plan.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital cellular telecommunications system (Phase 2+); Attachment requirements for Global System for Mobilecommunications (GSM); Advanced Speech Call Items (ASCI); Mobile Stations; Access (GSM 13.68 version 5.0.2 Release 1996)33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:EN 301 419-3 Version 5.0.236IST EN 301 419-3:2001en01-MXOLM-20013SIST EN 301 419-3:2001SLOVENSKI
STANDARD
FOR MOBILE COMMUNICATIONSRSIST EN 301 419-3:2001

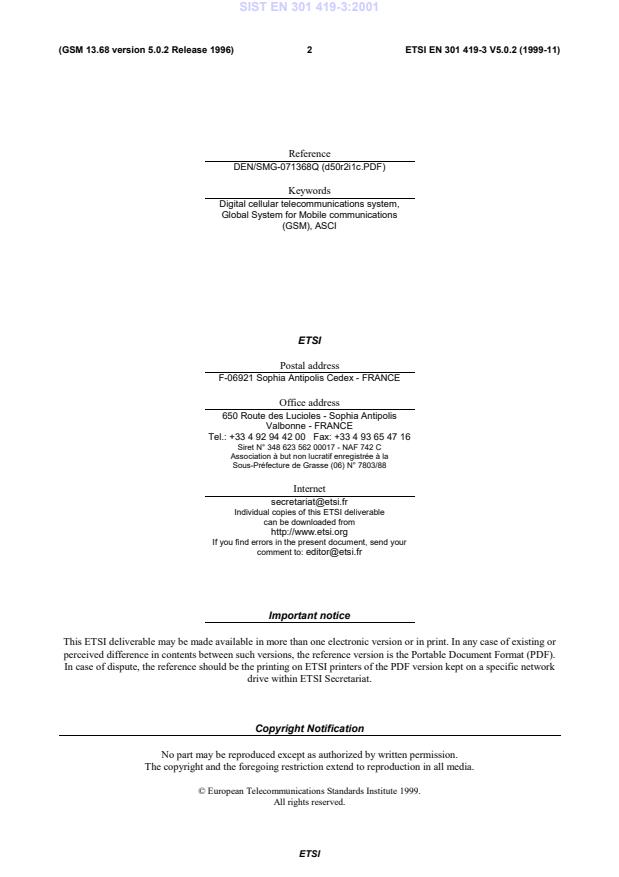

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)2(GSM 13.68 version 5.0.2 Release 1996)ReferenceDEN/SMG-071368Q (d50r2i1c.PDF)KeywordsDigital cellular telecommunications system,Global System for Mobile communications(GSM), ASCIETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/[e-mail] copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgIf you find errors in the present document, send yourcomment to: [e-mail] noticeThis ETSI deliverable may be made available in more than one electronic version or in print. In any case of existing orperceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).In case of dispute, the reference should be the printing on ETSI printers of the PDF version kept on a specific networkdrive within ETSI Secretariat.Copyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.All rights reserved.SIST EN 301 419-3:2001

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)3(GSM 13.68 version 5.0.2 Release 1996)ContentsIntellectual Property Rights.4Foreword.41Scope.52Normative references.63Abbreviations.64General requirements.75Requirements.7Annex A (normative):The Requirement Table (RT).12A.1Introduction to the RT.12A.2Format of the tables.12A.3References to EN 300 607-1 (GSM 11.10-1).13A.4Notations used in the RT.13A.4.1Status Notations.13A.4.2Support Answer Notations.13A.5The Requirement Tables.14A.5.1Static Requirements, RT A.14A.5.1.1Types of Mobile Stations.14A.5.1.2Mobile Station Features.14A.5.1.3Teleservices.14A.5.1.4Bearer Services.14A.5.1.5Supplementary Services.14A.5.1.6Bearer Capability Information.15A.5.1.7Additional Information.15A.5.2Dynamic Requirements, RT B.16Annex B (informative):Document history.18History.19SIST EN 301 419-3:2001

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)4(GSM 13.68 version 5.0.2 Release 1996)Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server(http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by the Special Mobile Group (SMG).The present document covers the requirements for Advanced Speech Call Items (ASCI) terminal equipment, hereafterdesignated GSM-ASCI terminals.The present document contains the procedures and requirements for the approval testing of GSM-ASCI terminals.The requirements of TBR 19 [3] and TBR 31 [4], Access apply in addition to the present document, for GSM-ASCIterminals.Equipment complying with these standards will carry the presumption of conformity with the essential requirementsreferred to in Article 5 of the Directive 98/13 EC of the European Parliament and of the Council.For each test, supplementary information is provided, giving a justification why this item has been selected forregulatory testing, and a reference to the relevant article of the Terminal Directive [1].The present document is based on EN 300 607-1 (GSM 11.10-) [2].The contents of the present document may be subject to continuing work within SMG and may change following formalSMG approval. Should SMG modify the contents of the present document it will then be re-submitted for formalapproval procedures by ETSI with an identifying change of release date and an increase in version number as follows:Version 5.x.ywhere:5GSM Phase 2+ Release 1996xthe second digit is incremented for changes of substance, i.e. technical enhancements, corrections, updates,etc.;ythe third digit is incremented when editorial only changes have been incorporated in the specification.
National transposition datesDate of adoption of this EN: 12 November 1999Date of latest announcement of this EN (doa): 29 February 2000Date of latest publication of new National Standardor endorsement of this EN (dop/e): 31 August 2000Date of withdrawal of any conflicting National Standard (dow): 31 August 2000SIST EN 301 419-3:2001

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)5(GSM 13.68 version 5.0.2 Release 1996)1ScopeThe present document specifies the Advanced Speech Call Items (ASCI) requirements for the Global System for MobileCommunication (GSM) terminal equipment with a channel separation of 200 kHz, utilising constant envelopemodulation and carrying traffic channels according to the Time Division Multiple Access (TDMA) principle.For each test purpose and its corresponding conformance requirement, a reference is given to the test method inEN 300 607-1 (GSM 11.10-1) [2]. The requirements apply at the air interface and the Subscriber Identity Module -Mobile Equipment interface for the access requirements, which may be stimulated to perform the tests by additionalequipment if necessary.The measurement uncertainty is described in EN 300 607-1 (GSM 11.10-1) [2].The present document covers the telecommunication terminal equipment (TTE) essential requirements of the TerminalDirective 98/13/EC [1] Articles 5d, 5e, 5f.The Terminal Directive 98/13/EC [1] Articles 5a and 5b are covered by other directives, and, therefore, not by thepresent document.In the present document, there are no Electromagnetic Compatibility technical requirements in terms of the TerminalDirective 98/13/EC [1], Article 5c.NOTE 1:Technical Requirements for EMC performance and testing of the equipment are covered by the relevantstandards applicable to the EMC Directive 89/336/EEC, annex A.The present document specifies the ASCI Terminals equipment additional requirements, which will apply in addition tothe Harmonised Standards covering the operation of these terminals in the frequency bands allocated for public GSMnetworks.EN 300 607-1 (GSM 11.10-1) [2] constitutes the conformance test suite for GSM. The verification of the conformancerequirements in the present document is based on the tests described in this reference. The set of requirements in EN 300607-1 (GSM 11.10-1) [2] and the set of requirements in the present document need not be identical.All the requirements in the present document are specific to mobile stations supporting ASCI.An active accessory is covered by the present document if it modifies the terminal performance in an aspect whichaffects conformance to essential requirements.NOTE 2:Only active devices are subject to the present document. Accessories may be tested with specificterminals, and either approved for use with those terminals only, or may possibly be approved for use witha wider range of terminals, depending on the nature and effect of the accessory.For each test, supplementary information is provided, giving a justification why this item has been selected forregulatory testing, and a reference to the relevant article of the Terminal Directive [1].The present document is based on EN 300 607-1 (GSM 11.10-1) [2].SIST EN 301 419-3:2001

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)6(GSM 13.68 version 5.0.2 Release 1996)2ReferencesThe following documents contain provisions which, through reference in this text, constitute provisions of the presentdocument.•References are either specific (identified by date of publication, edition number, version number, etc.) ornon-specific.•For a specific reference, subsequent revisions do not apply.•For a non-specific reference, the latest version applies.•A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.•For this Release 1996 document, references to GSM documents are for Release 1996 versions (version 5.x.y).[1]Directive 98/13/EC of the European Parliament and of the Council of 12 February 1998 relating totelecommunications terminal equipment and satellite earth station equipment, including the mutualrecognition of their conformity.[2]EN 300 607-1 (GSM 11.10-1): "Digital cellular telecommunications system (Phase 2+); Mobilestation conformity specifications".[3]TBR 19: "European digital cellular telecommunications system; Attachment requirements forGlobal System for Mobile communications (GSM) mobile stations; Access".[4]TBR 31: "Digital cellular telecommunications system (Phase 2); Attachment requirements formobile stations in the DCS 1800 band and additional GSM 900 band; Access".[5]GSM 01.04 (ETR 350): "Digital cellular telecommunication system (Phase 2+); Abbreviations andacronyms"[6]TBR 20: "European digital cellular telecommunications system (Phase 2; Attachment requirementsfor Global System for Mobile communications (GSM) mobile stations; Telephony".[7]TBR 32: "Digital cellular telecommunications system (Phase 2); Attachment requirements formobile stations in the DCS 1800 band and additional GSM 900 band; Telephony".3AbbreviationsFor the purposes of the present document the following additional abbreviations apply:ASCIAdvanced Speech Call ItemsR-GSMRailways Global System for Mobile communicationsMOMobile OriginatedMTMobile TerminatedVBSVoice Broadcast ServiceVGCSVoice Group Call ServiceeMLPPenhanced Multi-Level Precedence and Pre-emption serviceAdditional GSM related abbreviations can be found in GSM 01.04 (ETR 350) [4].SIST EN 301 419-3:2001

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)7(GSM 13.68 version 5.0.2 Release 1996)4General requirementsGSM-ASCI terminals shall conform to:a)the GSM 900 requirements of TBR 19;b)the DCS 1800 requirements of TBR 31;c)the requirements of clause 5 of the present document; andd)the requirements in Annex A of the present document; and if the terminal implements speech services,e)the GSM 900 requirements of TBR 20;f)the DCS 1800 requirements of TBR 32.5RequirementsThe following table contains all requirements that are needed to meet the essential requirements as defined in theTerminal Directive [1]. A justification according to article 5 of the Terminal Directive is given by stating the relevantcategories (d to f) together with a text supporting the justification.The entries are defined as follows:-"EN 300 607-1 Item" defines the item number of the conformance requirement and also the reference toEN 300 607-1 (GSM 11.10-1) [2]. This reference is a normative reference to a subclause of EN 300 607-1(GSM 11.10-1) [2] containing the conformance requirement text, and references to the base standard.-"Description" contains a short description of the requirement.-"Justification" contains supplementary information to explain the justification of the requirement according toarticle 5 of the Terminal Directive [1].-"TD Cat" defines the category according to article 5 of the Terminal Directive [1].-"Test Cat" defines whether the requirement is covered by a "special test situation" (e.g. a manufacturer'sdeclaration of some form). An "X" indicates a special test situation, whilst, a blank entry indicates conformity isby the test referred to by the present document.SIST EN 301 419-3:2001

ETSIETSI EN 301 419-3 V5.0.2 (1999-11)8(GSM 13.68 version 5.0.2 Release 1996)Table 1: Requirements and JustificationsEN 300 607-1ItemDescriptionJustificationTD CatTestCat26.14.1.1Notification/ notificationindicationCorrect implementation of thisprocedure in the MS is essential forbasic VGCS/VBS listening (f); Anyuplink transmission when listening willharm network functioning (d)d, f26.14.1.2Notification/ NCH positionIf the MS does not implement theprocedure correctly the MS may usewrong CCCH blocks (d), and the correctdownlink connection will not beestablished (f)d, f26.14.1.3Notification/ Reduced NCHmonitoringIf the MS does not implement theprocedure correctly the MS can lose aVGCS/VBS call.f26.14.1.4Notification/ limited serviceCorrect implementation of this procedureensures the MS in a not- allowed locationarea to receive a possible urgentVGCS/VBS call.f26.14.2.1Paging/ Paging indicationIf the procedure is not correctlyimplemented, CCCH functioning will bedisturbed (d) and the interworking with thenetwork will not be possible (f).d, f26.14.2.2Paging/ NotificationIf the MS does not implement theprocedure correctly the MS can lose anurgent VGCS/VBS call.f26.14.3.1RR Procedures/ frequencyredefinitionIf the MS does not implement correctlythis procedure, it can not interwork withthe network as soon as this procedure istriggered (f) the MS may also use wrongfrequencies (d).d, f26.14.3.2RR Procedures/ assignmentIf the assignment procedure is notcorrectly implemented by the MS, uplinkconnections can not be established (f). Ifthe correct power level is not applied itharms the network (d).d, f26.14.3.3RR Procedures/ handover /successful in group transmitmodeIf the handover procedure is not correctlyimplemented by the MS, it is impossible toswitch a VGCS/VBS talking in progressfrom one cell to another cell.f26.14.3.4RR Procedures/ handover/successful at group callestablishmentIf the handover procedure is not correctlyimplemented by the MS, it is impossible toswitch a VGCS/VBS talking in progressfrom one cell to another cell.f26.14.3.5RR Procedures/ handover /failureIf the handover failure procedure is not
...
