SIST EN 15316-4-2:2018

Energy performance of buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-2: Space heating generation systems, heat pump systems, Module M3-8-2, M8-8-2

The standard covers heat pumps for space heating, heat pump water heaters (HPWH) and heat pumps with combined space heating and domestic hot water production in alternate or simultaneous operation, where the same heat pump delivers the heat to cover the space heating and domestic hot water heat requirement.
The standard provides a calculation method under steady conditions that corresponds to one calculation step.
The results of this calculation are incorporated in larger building models and take in account the influence of the external conditions and building control that influence the energy requirements for heating supplied by the heat pump system.
The scope of this part is to standardise the:
-   required inputs;
-   calculation methods;
-   required outputs
for output thermal power generation for space heating and domestic hot water production of the following heat pump systems, including control:
-   electrically-driven vapour compression cycle (VCC) heat pumps;
-   combustion engine-driven vapour compression cycle heat pumps;
-   thermally-driven vapour absorption cycle (VAC) heat pumps,
using combinations of heat source and heat distribution listed in Table 1.
This standard does not cover sizing or inspection of heat pumps.
This standard deals with heat generators for heating or for combined domestic hot water and heating service. Generators for domestic hot water only are taken into account into module M8-8.
NOTE 1   Heat pumps generators for cooling systems are taken into account into module M4-8.
NOTE 2   Heat pumps generators for space heating using air (distribution) are taken into account in module M5-8.
Other generation systems such as boilers are covered in other sub modules of part M3-8.
This is the revision of EN 15316-4-2:2008. The revision covers the adaptation of the standard to hourly and monthly energy calculation.

Energetische Bewertung von Gebäuden - Verfahren zur Berechnung der Energieanforderungen und Nutzungsgrade der Anlagen - Teil 4-2: Wärmeerzeugung für die Raumheizung, Wärmepumpensysteme, Modul M3-8-2, M8-8-2

Diese Norm deckt Wärmepumpen für die Raumheizung, Wärmepumpenwarmwasserbereiter (HPWH) und Wärmepumpen für die kombinierte Nutzung zur Raumheizung und Trinkwassererwärmung im Alternativ- oder Simultanbetrieb, bei denen die zur Deckung des Bedarfs für die Raumheizung und die Trinkwassererwärmung erforderliche Wärme von ein und derselben Wärmepumpe geliefert wird, ab.
Diese Norm stellt ein Berechnungsverfahren für Beharrungsbedingungen zur Verfügung, das einem Berech-nungsschritt entspricht.
Die Ergebnisse dieser Berechnung werden in größere Gebäudemodelle einbezogen und tragen dem Einfluss der äußeren Bedingungen und der Gebäudeleittechnik Rechnung, soweit diese Einfluss auf die Energie-anforderungen des für Heizzwecke verwendeten Wärmepumpensystems haben.
Ziel des vorliegenden Teils ist die Normung der:
-   Notwendige Eingabedaten;
-   Berechnungsverfahren;
-   Notwendige Ausgabedaten,
die für die Erzeugung der für die Raumheizung und die Trinkwassererwärmung abzugebenden Wärme¬leistung durch die folgenden Wärmepumpensysteme, einschließlich Regelung, erforderlich sind:
-   elektrisch angetriebene Kompressions-Wärmepumpen (en: vapour compression cycle, VCC);
-   verbrennungsmotorisch angetriebene Kompressions-Wärmepumpen;
-   thermisch angetriebene Dampfabsorptions-Wärmepumpen (en: vapour absorption cyle, VAC);
mit den in Tabelle 1 aufgeführten Kombinationen von Wärmequelle und Wärmeverteilung.
Diese Norm gilt nicht für die Dimensionierung oder Inspektion von Wärmepumpen.
Diese Norm behandelt Wärmeerzeuger für die Raumheizung oder für die kombinierte Nutzung zur Raum¬heizung und Trinkwassererwärmung. Ausschließlich zur Trinkwassererwärmung dienende Erzeuger werden in Modul M8 8 behandelt.
ANMERKUNG 1   Wärmepumpenerzeuger für Kühlanlagen werden in Modul M4 8 behandelt.
ANMERKUNG 2   Wärmepumpenerzeuger für die Raumheizung unter Verwendung von Luft (Verteilung) werden in Modul M5 8 behandelt.
Andere Erzeugungssysteme, wie z. B. Kessel, werden in anderen Untermodulen von Teil M3 8 behandelt.
Das vorliegende Dokument stellt die überarbeitete Fassung von EN 15316 4 2:2008 dar. Im Rahmen dieser Überarbeitung wurde die Norm so angepasst, dass sie die auf Stunden und Monate bezogene Energie-berechnung ermöglicht.

Performance énergétique des bâtiments - Méthode de calcul des besoins énergétiques et des rendements des systèmes - Partie 4-2 : Systèmes de génération de chauffage des locaux, systèmes de pompes à chaleur Module M3-8-2, M8-8-2

La présente norme traite des pompes à chaleur pour le chauffage des locaux, des systèmes de chauffage de l’eau par pompe à chaleur et des pompes à chaleur utilisées à la fois pour le chauffage des locaux et la production d’eau chaude sanitaire en fonctionnement alterné ou simultané, où une seule et même pompe à chaleur fournit la chaleur nécessaire pour assurer les besoins en énergie calorifique pour le chauffage des locaux et la production d’eau chaude sanitaire.
La norme fournit une méthode de calcul dans des conditions stables qui correspondent à un pas de calcul.
Les résultats de ce calcul sont intégrés à de plus grands modèles de bâtiment et tiennent compte de l’influence des conditions extérieures et de la régulation du bâtiment sur les besoins énergétiques pour le chauffage satisfaits par le système de chauffage par pompe à chaleur.
L’objet de cette partie est de normaliser :
-   les données d’entrée requises ;
-   les méthodes de calcul ;
-   les données de sortie requises.
pour la génération de la puissance calorifique fournie pour le chauffage des locaux et la production d’eau chaude sanitaire des systèmes de chauffage par pompe à chaleur suivants, régulation comprise :
-   pompes à chaleur à compression de vapeur (VCC) à moteur électrique ;
-   pompes à chaleur à compression de vapeur à moteur à combustion ;
-   pompes à chaleur à absorption de vapeur (VAC) entraînées thermiquement,
à l’aide des combinaisons de source de chaleur et de vecteur de distribution de chaleur listées dans le Tableau 1.
La présente norme ne traite pas du dimensionnement ou du contrôle des pompes à chaleur.
La présente norme traite des générateurs de chaleur pour le chauffage ou pour les services combinés d’eau chaude sanitaire et de chauffage. Les générateurs pour l’eau chaude sanitaire ne sont pris en compte que dans le module M8-8.
NOTE 1   Les générateurs à pompe à chaleur pour les systèmes de refroidissement sont pris en compte dans le module M4-8.
NOTE 2   Les générateurs à pompe à chaleur pour le chauffage des locaux utilisant de l’air (distribution) sont pris en compte dans le module M5-8.
Les autres systèmes de génération tels que les chaudières sont traités dans d’autres sous-modules de la partie M3-8.
Le présent document est la révision de l’EN 15316-4-2:2008. La révision traite de l’adaptation de la norme au calcul horaire et mensuel de l’énergie.

Energijske lastnosti stavb - Metoda za izračun energijskih zahtev in učinkovitosti sistema - 4-2. del: Sistemi za pridobivanje toplote za ogrevanje, toplotne črpalke - Modula M3-8-2 in M8-8-2

Standard zajema toplotne črpalke za ogrevanje prostora, grelnike vode s toplotno črpalko (HPWH) in toplotne črpalke s kombinirano proizvodnjo gospodinjske tople vode in ogrevanjem prostora v izmeničnem ali hkratnem delovanju, kjer ista toplotna črpalka dovaja toploto in tako pokriva zahteve po ogrevanju prostora in gospodinjske tople vode.
Standard nudi računsko metodo pod stabilnimi pogoji, ki ustrezajo enemu koraku izračuna.
Rezultati tega izračuna so vdelani v modele večjih stavb in upoštevajo vpliv zunanjih pogojev in nadzor stavbe, ki vpliva na energijske zahteve za ogrevanje s pomočjo sistemov toplotnih črpalk.
Namen tega dela je standardizirati:
– zahtevane vhode;
– računske metode;
– zahtevane izhode
za izhode termoelektrarn, za ogrevanje prostora in gospodinjsko toplo vodo naslednjih sistemov toplotnih črpalk, vključno z nadzorom:
– toplotne črpalke s ciklusom stiskanja hlapov (VCC) z električnim pogonom;
– toplotne črpalke s ciklusom stiskanja hlapov s pomočjo motorja z notranjim izgorevanjem;
– toplotne črpalke s ciklusom absorpcije hlapov s pomočjo toplote
s kombinacijami toplotnih virov in razporeditve toplote, naštetimi v preglednici 1.
Ta standard ne zajema ugotavljanja velikosti ali nadzora toplotnih črpalk.
Ta standard se uporablja za generatorje toplote za ogrevanje ali za kombinirano storitev gospodinjske tople vode in ogrevanja. Generatorji za gospodinjsko toplo vodo so upoštevani samo v modulu M8-8.
OPOMBA 1 Generatorji toplotnih črpalk za sisteme za hlajenje so upoštevani v modulu M4-8.
OPOMBA 2 Generatorji toplotnih črpalk za ogrevanje prostora s pomočjo zraka (razporejanje) so upoštevani v modulu M5-8.
Drugi sistemi proizvodnje, kot so kotli, so zajeti v drugih podmodulih dela M3-8.
To je revizija standarda EN 15316-4-2:2008. Revizija zajema prilagajanje standarda urnim in mesečnim izračunom energije.

General Information

• Status: Published
• Public Enquiry End Date: 04-Jan-2015
• Publication Date: 17-Apr-2018
• ICS: 27.080 - Heat pumps
• ICS: 91.140.10 - Central heating systems
• Technical Committee: OGS - Heating for buildings
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 12-Dec-2017
• Due Date: 16-Feb-2018
• Completion Date: 18-Apr-2018
• Directive: 2010/31/EU - Directive 2010/31/eu of the European Parliament and of the Council of 19 May 2010 on the energy performance of buildings (recast)
• Directive: TRRTP126 - Tehnična smernica TSG-01-004:2010 - Učinkovita raba energije v stavbah
• Mandate: M/480 - Mandate to CEN, CENELEC and ETSI for the elaboration and adoption of standards for a methodology calculating the integrated energy performance of buildings and promoting the energy efficiency of buildings, in accordance with the terms set in the recast of the Directive on the energy performance buildings (2010/31/EU)
• Ref Project: EN 15316-4-2:2017 - Energy performance of buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-2: Space heating generation systems, heat pump systems, Module M3-8-2, M8-8-2

Relations

• Corrected By: SIST EN 15316-4-2:2018/AC:2018 - Energy performance of buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-2: Space heating generation systems, heat pump systems, Module M3-8-2, M8-8-2
• Effective Date: 08-Jun-2022
• Amended By: oSIST prEN 15316-4-2:2022 - Energy performance of buildings - Method for calculation of system energy requirements and system efficiencies - Part 4-2: Space heating generation systems, heat pump systems, Module M3-8-2, M8-8-2
• Effective Date: 24-Jul-2019

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 15316-4-2:2018
01-maj-2018
1DGRPHãþD
SIST EN 15316-4-2:2008
(QHUJLMVNHODVWQRVWLVWDYE0HWRGD]DL]UDþXQHQHUJLMVNLK]DKWHYLQXþLQNRYLWRVWL
VLVWHPDGHO6LVWHPL]DSULGRELYDQMHWRSORWH]DRJUHYDQMHWRSORWQHþUSDONH
0RGXOD0LQ0
Energy performance of buildings - Method for calculation of system energy requirements
and system efficiencies - Part 4-2: Space heating generation systems, heat pump
systems, Module M3-8-2, M8-8-2
Energetische Bewertung von Gebäuden - Verfahren zur Berechnung der
Energieanforderungen und Nutzungsgrade der Anlagen - Teil 4-2: Wärmeerzeugung für
die Raumheizung, Wärmepumpensysteme, Modul M3-8-2, M8-8-2
Performance énergétique des bâtiments - Méthode de calcul des besoins énergétiques
et des rendements des systèmes - Partie 4-2 : Systèmes de génération de chauffage
des locaux, systèmes de pompes à chaleur Module M3-8-2, M8-8-2
Ta slovenski standard je istoveten z: EN 15316-4-2:2017
ICS:
27.080 7RSORWQHþUSDONH Heat pumps
91.140.10 Sistemi centralnega Central heating systems
ogrevanja
SIST EN 15316-4-2:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 15316-4-2:2018

---------------------- Page: 2 ----------------------

SIST EN 15316-4-2:2018


EN 15316-4-2
EUROPEAN STANDARD

NORME EUROPÉENNE

April 2017
EUROPÄISCHE NORM
ICS 91.140.10 Supersedes EN 15316-4-2:2008
English Version

Energy performance of buildings - Method for calculation
of system energy requirements and system efficiencies -
Part 4-2: Space heating generation systems, heat pump
systems, Module M3-8-2, M8-8-2
Performance énergétique des bâtiments - Méthode de Energetische Bewertung von Gebäuden - Verfahren zur
calcul des besoins énergétiques et des rendements des Berechnung der Energieanforderungen und
systèmes - Partie 4-2 : Systèmes de génération de Nutzungsgrade der Anlagen - Teil 4-5: Fernwärme und
chauffage des locaux, systèmes de pompes à chaleur Fernkälte, Modul M3-8-5, M4-8-5, M8-8-5, M11-8-5
Module M3-8-2, M8-8-2
This European Standard was approved by CEN on 27 February 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.

This document consolidates EN 15316-4-2:2017 and the corrigendum EN 15316-4-2:2017/AC:2017.



EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15316-4-2:2017 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)

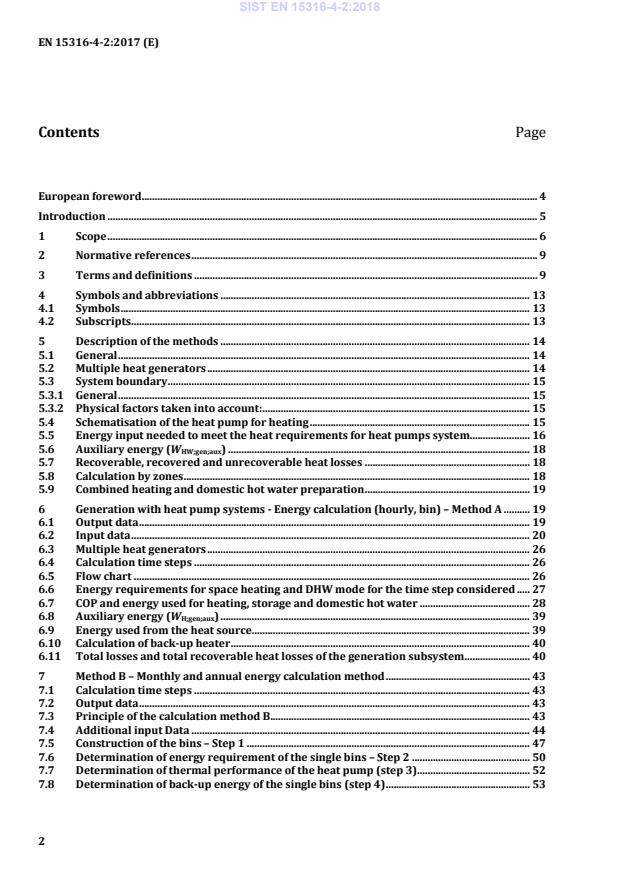

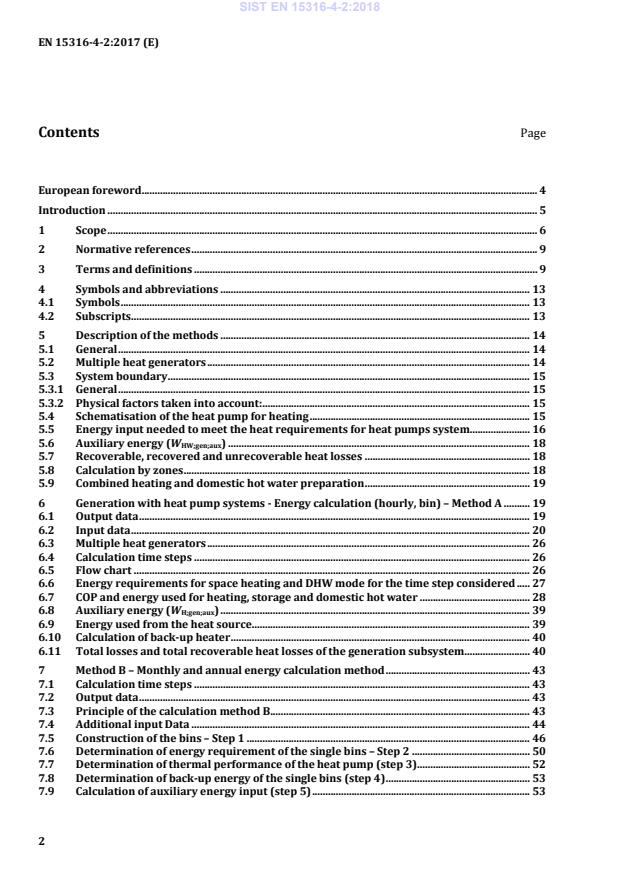

Contents Page

European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 9
3 Terms and definitions . 9
4 Symbols and abbreviations . 13
4.1 Symbols . 13
4.2 Subscripts . 13
5 Description of the methods . 14
5.1 General . 14
5.2 Multiple heat generators . 14
5.3 System boundary . 15
5.3.1 General . 15
5.3.2 Physical factors taken into account: . 15
5.4 Schematisation of the heat pump for heating . 15
5.5 Energy input needed to meet the heat requirements for heat pumps system. 16
5.6 Auxiliary energy (W ) . 18
HW;gen;aux
5.7 Recoverable, recovered and unrecoverable heat losses . 18
5.8 Calculation by zones . 18
5.9 Combined heating and domestic hot water preparation . 19
6 Generation with heat pump systems - Energy calculation (hourly, bin) – Method A . 19
6.1 Output data . 19
6.2 Input data . 20
6.3 Multiple heat generators . 26
6.4 Calculation time steps . 26
6.5 Flow chart . 26
6.6 Energy requirements for space heating and DHW mode for the time step considered . 27
6.7 COP and energy used for heating, storage and domestic hot water . 28
6.8 Auxiliary energy (W ) . 39
H;gen;aux
6.9 Energy used from the heat source. 39
6.10 Calculation of back-up heater . 40
6.11 Total losses and total recoverable heat losses of the generation subsystem. 40
7 Method B – Monthly and annual energy calculation method . 43
7.1 Calculation time steps . 43
7.2 Output data . 43
7.3 Principle of the calculation method B. 43
7.4 Additional input Data . 44
7.5 Construction of the bins – Step 1 . 47
7.6 Determination of energy requirement of the single bins – Step 2 . 50
7.7 Determination of thermal performance of the heat pump (step 3) . 52
7.8 Determination of back-up energy of the single bins (step 4) . 53
2

---------------------- Page: 4 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
7.9 Calculation of auxiliary energy input (step 5). 53
7.10 Calculation of recoverable generation subsystem losses (step 6) . 53
7.11 Calculation of the energy from the heat source (step 7) . 54
7.12 Calculation of the total driving energy input to cover the requirements (step 8) . 54
8 Quality control . 54
8.1 Hourly, bin or monthly method . 54
8.2 Main sources of errors . 55
9 Compliance check . 55
Annex A (normative) Template for input data . 56
A.1 Heat pump description data . 56
A.2 System design data . 60
A.3 Operating conditions . 62
Annex B (informative) Default values . 64
B.1 Heat pump description data . 64
B.2 System design data . 68
B.3 - Operating conditions . 70
Annex C (informative) Tables of COP and energy at full load . 72
C.1 General . 72
C.2 Air – Water electrically driven heat pumps . 72
C.3 COP and energy for exhaust air/ water electrically driven heat pump . 73
C.4 COP and energy for water or brine/ water electrically driven heat pump . 74
C.5 Air/water combustion-engine driven heat pumps . 75
Annex D (normative) Adaptation of the COP to different conditions of temperature
conditions . 77
D.1 Principle . 77
D.2 Application to electrically-driven heat pump . 78

D.3 Application to thermally-driven heat pumps . 78
D.4 Correction of COP with adaptation to the operational temperature spread . 79
D.5 Tests results form EN 14825 . 83
D.6 Input data for the calculation of COP and capacity at operating conditions . 83
Bibliography . 85


3

---------------------- Page: 5 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
European foreword
This document (EN 15316-4-2:2017) has been prepared by Technical Committee CEN/TC 228 “Heating
systems and water based cooling systems in buildings”, the secretariat of which is held by DIN.
This document supersedes EN 15316-4-2:2008.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2017, and conflicting national standards shall
be withdrawn at the latest by October 2017.
The revision keeps the main principles of the calculation unchanged but the structure of the document
was changed. Informative content was removed to the accompanying technical report CEN/TR 15316-
6-2. The provisions cover also other energy carriers than heat now. The values may be altered in a
national annex.
Calculation methods to determine energy source indicators like the renewable energy ratio have been
added.
The main changes compared to EN 15316-4-2:2008 are:
a) type of heat pumps are now limited to hot water production at the output of the condenser;
b) informative content was removed to the accompanying technical report CEN/TR 15316-6-2;
c) calculation for performance of the heat pumps at different conditions is based on interpolation
provisions;
d) input data for energy performance of the heat pumps are based on part load and/or full load
information;
e) Annex A contains a template for the data and parameters used in the standards and Annex B a set of
default values.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes the corrigendum EN 15316-4-2:2017/AC:2017 which corrects Table D.3.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
4

---------------------- Page: 6 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Introduction
This European Standard is part of a series of standards aiming at international harmonization of the
methodology for the assessment of the energy performance of buildings, called “set of EPB standards”.
All EPB standards follow specific rules to ensure overall consistency, unambiguity and transparency.
All EPB standards provide a certain flexibility with regard to the methods, the required input data and
references to other EPB standards, by the introduction of a normative template in Annex A and Annex B
with informative default choices.
EPB standards deal with energy performance calculation and other related aspects (like system sizing)
to provide the building services considered in the EPBD.
CEN/TC 228 deals with heating systems in buildings. Subjects covered by CEN/TC 228 are:
— energy performance calculation for heating systems;
— inspection of heating systems;
— design of heating systems;
— installation and commissioning of heating systems.
This standard specifies to take into account the energy performance of heat pump systems used for
domestic or heating purpose.
For the correct use of this standard, Annex A is to be used to specify the choices with the required input
data. Default values are presented in Annex B. In case the standard is used in the context of national or
regional legal requirements, mandatory choices may be given at national or regional level for such
specific applications, in particular for the application within the context of EU Directives transposed
into national legal requirements. These choices can be made available as National Annex or as separate
(e.g. legal) document. It is expected, if the default values and choices in Annex A are not followed due to
national regulations, policy or traditions, that:
— either the national standardization body will consider the possibility to add or include a National
Annex in agreement with the template of Annex A.
— or the national or regional authorities will, in the building regulations, reference the standard and
prepare data sheets containing the national or regional choices and values, in agreement with the
template of Annex A.
This updated standard covers hourly, monthly, annual time-steps and temperatures classes (bin
method).
5

---------------------- Page: 7 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
1 Scope
This European Standard covers heat pumps for space heating, heat pump water heaters (HPWH) and
heat pumps with combined space heating and domestic hot water production in alternate or
simultaneous operation, where the same heat pump delivers the heat to cover the space heating and
domestic hot water heat requirement.
The standard provides a calculation method under steady conditions that corresponds to one
calculation step.
The results of this calculation are incorporated in larger building models and take in account the
influence of the external conditions and building control that influence the energy requirements for
heating supplied by the heat pump system.
The scope of this part is to standardize the:
— required inputs;
— calculation methods;
— required outputs
Generation for space heating and domestic hot water production of the following heat pump systems,
including control of:
— electrically-driven vapour compression cycle (VCC) heat pumps;
— combustion engine-driven vapour compression cycle heat pumps;
— thermally-driven vapour absorption cycle (VAC) heat pumps,
using combinations of heat source and heat distribution listed in Table 1.
Table 1 — Heating sources and energy distribution
Source Distribution
Outdoor air
Exhaust-air Water
Indirect ground source with brine
Indirect ground source with water
Direct ground source (Direct expansion
(DX)
Surface water
Ground water
This standard does not cover sizing or inspection of heat pumps.
This standard deals with heat generators for heating or for combined domestic hot water and heating
service. Generators for domestic hot water only are taken into account into module M8-8.
NOTE 1 Heat pumps for cooling systems are taken into account into module M4–8.
NOTE 2 Heat pumps for space heating using air (distribution) are taken into account in module M5–8.
6

---------------------- Page: 8 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Other generation systems such as boilers are covered in other sub modules of part M3-8.
This is the revision of EN 15316-4-2:2008. The revision covers the adaptation of the standard to hourly
and monthly energy calculation.
Table 2 shows the relative position of this standard within the set of EPB standards in the context of the
modular structure as set out in EN ISO 52000-1.
NOTE 3 In CEN ISO/TR 52000-2 the same table can be found, with, for each module, the numbers of the
relevant EPB standards and accompanying technical reports that are published or in preparation.
NOTE 4 The modules represent EPB standards, although one EPB standard may cover more than one module
and one module may be covered by more than one EPB standard, for instance a simplified and a detailed method
respectively. See also Clause 2 and Tables A.1 and B.1.
7

---------------------- Page: 9 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Table 2 — Position of this standard, within the modular structure of the set of EPB standards

Building
Overarching Technical Building Systems
(as such)

sub
 M1 sub1 M2 sub1  M3 M4 M5 M6 M7 M8 M9 M10 M11
1
1 General  1 General 1 General 15316–1     15316–1
Common terms
and definitions; Building Energy
2  2 2 Needs      12831–3 ?
symbols, units and Needs
subscripts
(Free) Indoor
Maximum Load and
3 Applications  3 Conditions 3 12831–1     12831–3
Power
without Systems
Ways to Express Ways to Express Ways to Express
4 Energy  4 Energy 4 Energy 15316–1     15316–1
Performance Performance Performance
Building
Functions and Heat Transfer by Emission and
5  5 5 15316–2 15316–2
Building Transmission control
Boundaries
Building
Heat Transfer by
Occupancy and Distribution and
6  6 Infiltration and 6 15316–3 15316–3    15316–3
Operating control
Ventilation
Conditions
Aggregation of
Energy Services Internal 15316–5
7  7 7 Storage and control 15316–5
and Energy Heat Gains 15316–4-3
Carriers
Building
8  8 Solar Heat Gains 8 Generation
Partitioning
     8–1 Combustion boilers 15316–4-1     15316–4-1
     8–2 Heat pumps 15316–4-2     15316–4-2
Thermal solar 15316–
     8–3 15316–4-3     15316–4-3
Photovoltaics 4-3
On-site 15316–
     8–4 15316–4-4     15316–4-4
cogeneration 4-4
District heating and 15316–
     8–5 15316–4-5 15316–4-5
cooling 4-5
Direct electrical
     8–6 15316–4-6     15316–4-6
heater
15316–
     8–7 Wind turbines
4-7
Radiant heating,
     8–8 15316–4-8
stoves
Building Load dispatching
Calculated Energy
9  9 Dynamics 9 and operating
Performance
(thermal mass) conditions
Measured
Measured Energy Measured Energy
10 Energy 10 10 15378–3     15378–3
Performance Performance
Performance

11 Inspection 11 Inspection 11 Inspection 15378–1     15378–1

Ways to Express
12 12 – 12 BMS
Indoor Comfort
External
13 Environment
Conditions
Economic 1545
14
Calculation 9–1
NOTE The shaded modules are not applicable
8
Descriptions
Descriptions
Descriptions
Heating
Cooling
Ventilation
Humidification
Dehumidification
Domestic Hot
water
Lighting
Building
automation and
control
Electricity
production

---------------------- Page: 10 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 12309-4, Gas-fired sorption appliances for heating and/or cooling with a net heat input not exceeding
70 kW - Part 4: Test methods
EN 12309-6, Gas-fired sorption appliances for heating and/or cooling with a net heat input not exceeding
70 kW - Part 6: Calculation of seasonal performances
EN 15316-3, Energy performance of buildings - Method for calculation of system energy requirements and
system efficiencies - Part 3: Space distribution systems (DHW, heating and cooling), Module M3-6, M4-6,
M8-6
EN 15316-4-1, Heating systems in buildings - Method for calculation of system energy requirements and
system efficiencies - Part 4-1: Space heating generation systems, combustion systems (boilers)
EN 14511 (all parts), Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling
EN 14825, Air conditioners, liquid chilling packages and heat pumps, with electrically driven compressors,
for space heating and cooling - Testing and rating at part load conditions and calculation of seasonal
performance
EN 16147, Heat pumps with electrically driven compressors - Testing, performance rating and
requirements for marking of domestic hot water units
EN ISO 15927-6, Hygrothermal performance of buildings - Calculation and presentation of climatic data -
Part 6: Accumulated temperature differences (degree-days) (ISO 15927-6)
EN ISO 52000-1:2017, Energy performance of buildings - Overarching EPB assessment - Part 1: General
framework and procedures (ISO 52000-1:2017)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 7345:1995,
EN ISO 52000-1:2017 and the following definitions apply.
3.1
alternate operation
production of heat energy for the space heating and domestic hot water system by a heat generator
with combined service by switching the heat generator either to the domestic hot water operation or
the space heating operation
3.2
application rating conditions
mandatory rated conditions within the operating range of the unit that are published by the
manufacturer or supplier
3.3
auxiliary energy
electrical energy used by technical building systems for heating, cooling, ventilation and/or domestic
water to support energy transformation to satisfy energy needs
9

---------------------- Page: 11 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Note 1 to entry: This includes energy for fans, pumps, electronics, etc. Electrical energy input to a ventilation
system for air transport and heat recovery is not considered as auxiliary energy, but as energy use for ventilation.
Note 2 to entry: The driving energy input for electrically-driven heat pumps in the system boundary of the COP
and an electrical back-up heater is not entitled auxiliary energy.
3.4
back-up heater
heater to supply heat not covered by the heat pump system itself
Note 1 to entry: If the back-up heater is an electrical heater, the system is calculated according to this standard,
if it is external system, this standard gives the demand of missing heat not supplied by the heat pump as output
data.
3.5
bin hours
sum of all hours occurring at a given temperature for a specific location equal
Note 1 to entry: In EN 14825, the number is rounded to a whole number and is derived from representative
weather data over the 1982–1999 period.
10

---------------------- Page: 12 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
3.6
bivalent temperature
lowest temperature at which the heat pump heating power and the building heat load are equal
Note 1 to entry: Below this point, the unit may still deliver capacity, but additional back up heating is necessary
to fulfill the full heating load.
Note 2 to entry: According to the definition bivalent temperature is not fixed at the heating load depends on
temperature and internal gains; but bivalent temperature is mainly consider a fixed by the control system to
operate additional back-up heater.
3.7
bin
statistical temperature class (sometimes a class interval) for the outdoor air temperature, with the class
limits expressed in a temperature unit
3.8
coefficient of performance COP
ratio of the heating capacity to the effective power input of the unit
3.9
combustion engine heat pump
compressed vapour heat pump driven by a combustion engine.
3.10
cut-out period
...

SLOVENSKI STANDARD
SIST EN 15316-4-2:2018
01-maj-2018
1DGRPHãþD
SIST EN 15316-4-2:2008
(QHUJLMVNHODVWQRVWLVWDYE0HWRGD]DL]UDþXQHQHUJLMVNLK]DKWHYLQXþLQNRYLWRVWL
VLVWHPDGHO6LVWHPL]DSULGRELYDQMHWRSORWH]DRJUHYDQMHWRSORWQHþUSDONH
0RGXOD0LQ0
Energy performance of buildings - Method for calculation of system energy requirements
and system efficiencies - Part 4-2: Space heating generation systems, heat pump
systems, Module M3-8-2, M8-8-2
Energetische Bewertung von Gebäuden - Verfahren zur Berechnung der
Energieanforderungen und Nutzungsgrade der Anlagen - Teil 4-2: Wärmeerzeugung für
die Raumheizung, Wärmepumpensysteme, Modul M3-8-2, M8-8-2
Performance énergétique des bâtiments - Méthode de calcul des besoins énergétiques
et des rendements des systèmes - Partie 4-2 : Systèmes de génération de chauffage
des locaux, systèmes de pompes à chaleur Module M3-8-2, M8-8-2
Ta slovenski standard je istoveten z: EN 15316-4-2:2017
ICS:
27.080 7RSORWQHþUSDONH Heat pumps
91.140.10 Sistemi centralnega Central heating systems
ogrevanja
SIST EN 15316-4-2:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 15316-4-2:2018

---------------------- Page: 2 ----------------------

SIST EN 15316-4-2:2018


EN 15316-4-2
EUROPEAN STANDARD

NORME EUROPÉENNE

April 2017
EUROPÄISCHE NORM
ICS 91.140.10 Supersedes EN 15316-4-2:2008
English Version

Energy performance of buildings - Method for calculation
of system energy requirements and system efficiencies -
Part 4-2: Space heating generation systems, heat pump
systems, Module M3-8-2, M8-8-2
Performance énergétique des bâtiments - Méthode de Energetische Bewertung von Gebäuden - Verfahren zur
calcul des besoins énergétiques et des rendements des Berechnung der Energieanforderungen und
systèmes - Partie 4-2 : Systèmes de génération de Nutzungsgrade der Anlagen - Teil 4-2:
chauffage des locaux, systèmes de pompes à chaleur Wärmeerzeugung für die Raumheizung,
Module M3-8-2, M8-8-2 Wärmepumpensysteme, Modul M3-8-2, M8-8-2
This European Standard was approved by CEN on 27 February 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15316-4-2:2017 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Contents Page

European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 9
3 Terms and definitions . 9
4 Symbols and abbreviations . 13
4.1 Symbols . 13
4.2 Subscripts . 13
5 Description of the methods . 14
5.1 General . 14
5.2 Multiple heat generators . 14
5.3 System boundary . 15
5.3.1 General . 15
5.3.2 Physical factors taken into account: . 15
5.4 Schematisation of the heat pump for heating . 15
5.5 Energy input needed to meet the heat requirements for heat pumps system. 16
5.6 Auxiliary energy (W ) . 18
HW;gen;aux
5.7 Recoverable, recovered and unrecoverable heat losses . 18
5.8 Calculation by zones . 18
5.9 Combined heating and domestic hot water preparation . 19
6 Generation with heat pump systems - Energy calculation (hourly, bin) – Method A . 19
6.1 Output data . 19
6.2 Input data . 20
6.3 Multiple heat generators . 26
6.4 Calculation time steps . 26
6.5 Flow chart . 26
6.6 Energy requirements for space heating and DHW mode for the time step considered . 27
6.7 COP and energy used for heating, storage and domestic hot water . 28
6.8 Auxiliary energy (W ) . 39
H;gen;aux
6.9 Energy used from the heat source. 39
6.10 Calculation of back-up heater . 40
6.11 Total losses and total recoverable heat losses of the generation subsystem. 40
7 Method B – Monthly and annual energy calculation method . 43
7.1 Calculation time steps . 43
7.2 Output data . 43
7.3 Principle of the calculation method B. 43
7.4 Additional input Data . 44
7.5 Construction of the bins – Step 1 . 46
7.6 Determination of energy requirement of the single bins – Step 2 . 50
7.7 Determination of thermal performance of the heat pump (step 3) . 52
7.8 Determination of back-up energy of the single bins (step 4) . 53
7.9 Calculation of auxiliary energy input (step 5) . 53
2

---------------------- Page: 4 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
7.10 Calculation of recoverable generation subsystem losses (step 6) . 53
7.11 Calculation of the energy from the heat source (step 7) . 54
7.12 Calculation of the total driving energy input to cover the requirements (step 8) . 54
8 Quality control . 54
8.1 Hourly, bin or monthly method . 54
8.2 Main sources of errors . 55
9 Compliance check . 55
Annex A (normative) Template for input data . 56
A.1 Heat pump description data . 56
A.2 System design data . 60
A.3 Operating conditions . 62
Annex B (informative) Default values . 64
B.1 Heat pump description data . 64
B.2 System design data . 68
B.3 - Operating conditions . 70
Annex C (informative) Tables of COP and energy at full load . 72
C.1 General . 72
C.2 Air – Water electrically driven heat pumps . 72
C.3 COP and energy for exhaust air/ water electrically driven heat pump . 73
C.4 COP and energy for water or brine/ water electrically driven heat pump . 74
C.5 Air/water combustion-engine driven heat pumps . 75
Annex D (normative) Adaptation of the COP to different conditions of temperature
conditions . 77
D.1 Principle . 77
D.2 Application to electrically-driven heat pump . 78
D.3 Application to thermally-driven heat pumps . 78

D.4 Correction of COP with adaptation to the operational temperature spread . 79
D.5 Tests results form EN 14825 . 82
D.6 Input data for the calculation of COP and capacity at operating conditions . 82
Bibliography . 84


3

---------------------- Page: 5 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
European foreword
This document (EN 15316-4-2:2017) has been prepared by Technical Committee CEN/TC 228 “Heating
systems and water based cooling systems in buildings”, the secretariat of which is held by DIN.
This document supersedes EN 15316-4-2:2008.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2017, and conflicting national standards shall
be withdrawn at the latest by October 2017.
The revision keeps the main principles of the calculation unchanged but the structure of the document
was changed. Informative content was removed to the accompanying technical report CEN/TR 15316-
6-2. The provisions cover also other energy carriers than heat now. The values may be altered in a
national annex.
Calculation methods to determine energy source indicators like the renewable energy ratio have been
added.
The main changes compared to EN 15316-4-2:2008 are:
a) type of heat pumps are now limited to hot water production at the output of the condenser;
b) informative content was removed to the accompanying technical report CEN/TR 15316-6-2;
c) calculation for performance of the heat pumps at different conditions is based on interpolation
provisions;
d) input data for energy performance of the heat pumps are based on part load and/or full load
information;
e) Annex A contains a template for the data and parameters used in the standards and Annex B a set of
default values.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
4

---------------------- Page: 6 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Introduction
This European Standard is part of a series of standards aiming at international harmonization of the
methodology for the assessment of the energy performance of buildings, called “set of EPB standards”.
All EPB standards follow specific rules to ensure overall consistency, unambiguity and transparency.
All EPB standards provide a certain flexibility with regard to the methods, the required input data and
references to other EPB standards, by the introduction of a normative template in Annex A and Annex B
with informative default choices.
EPB standards deal with energy performance calculation and other related aspects (like system sizing)
to provide the building services considered in the EPBD.
CEN/TC 228 deals with heating systems in buildings. Subjects covered by CEN/TC 228 are:
— energy performance calculation for heating systems;
— inspection of heating systems;
— design of heating systems;
— installation and commissioning of heating systems.
This standard specifies to take into account the energy performance of heat pump systems used for
domestic or heating purpose.
For the correct use of this standard, Annex A is to be used to specify the choices with the required input
data. Default values are presented in Annex B. In case the standard is used in the context of national or
regional legal requirements, mandatory choices may be given at national or regional level for such
specific applications, in particular for the application within the context of EU Directives transposed
into national legal requirements. These choices can be made available as National Annex or as separate
(e.g. legal) document. It is expected, if the default values and choices in Annex A are not followed due to
national regulations, policy or traditions, that:
— either the national standardization body will consider the possibility to add or include a National
Annex in agreement with the template of Annex A.
— or the national or regional authorities will, in the building regulations, reference the standard and
prepare data sheets containing the national or regional choices and values, in agreement with the
template of Annex A.
This updated standard covers hourly, monthly, annual time-steps and temperatures classes (bin
method).
5

---------------------- Page: 7 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
1 Scope
This European Standard covers heat pumps for space heating, heat pump water heaters (HPWH) and
heat pumps with combined space heating and domestic hot water production in alternate or
simultaneous operation, where the same heat pump delivers the heat to cover the space heating and
domestic hot water heat requirement.
The standard provides a calculation method under steady conditions that corresponds to one
calculation step.
The results of this calculation are incorporated in larger building models and take in account the
influence of the external conditions and building control that influence the energy requirements for
heating supplied by the heat pump system.
The scope of this part is to standardize the:
— required inputs;
— calculation methods;
— required outputs
Generation for space heating and domestic hot water production of the following heat pump systems,
including control of:
— electrically-driven vapour compression cycle (VCC) heat pumps;
— combustion engine-driven vapour compression cycle heat pumps;
— thermally-driven vapour absorption cycle (VAC) heat pumps,
using combinations of heat source and heat distribution listed in Table 1.
Table 1 — Heating sources and energy distribution
Source Distribution
Outdoor air
Exhaust-air Water
Indirect ground source with brine
Indirect ground source with water
Direct ground source (Direct expansion
(DX)
Surface water
Ground water
This standard does not cover sizing or inspection of heat pumps.
This standard deals with heat generators for heating or for combined domestic hot water and heating
service. Generators for domestic hot water only are taken into account into module M8-8.
NOTE 1 Heat pumps for cooling systems are taken into account into module M4–8.
NOTE 2 Heat pumps for space heating using air (distribution) are taken into account in module M5–8.
6

---------------------- Page: 8 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Other generation systems such as boilers are covered in other sub modules of part M3-8.
This is the revision of EN 15316-4-2:2008. The revision covers the adaptation of the standard to hourly
and monthly energy calculation.
Table 2 shows the relative position of this standard within the set of EPB standards in the context of the
modular structure as set out in EN ISO 52000-1.
NOTE 3 In CEN ISO/TR 52000-2 the same table can be found, with, for each module, the numbers of the
relevant EPB standards and accompanying technical reports that are published or in preparation.
NOTE 4 The modules represent EPB standards, although one EPB standard may cover more than one module
and one module may be covered by more than one EPB standard, for instance a simplified and a detailed method
respectively. See also Clause 2 and Tables A.1 and B.1.
7

---------------------- Page: 9 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Table 2 — Position of this standard, within the modular structure of the set of EPB standards

Building
Overarching Technical Building Systems
(as such)

sub
 M1 sub1 M2 sub1  M3 M4 M5 M6 M7 M8 M9 M10 M11
1
1 General  1 General 1 General 15316–1     15316–1
Common terms
and definitions; Building Energy
2  2 2 Needs      12831–3 ?
symbols, units and Needs
subscripts
(Free) Indoor
Maximum Load and
3 Applications  3 Conditions 3 12831–1     12831–3
Power
without Systems
Ways to Express Ways to Express Ways to Express
4 Energy  4 Energy 4 Energy 15316–1     15316–1
Performance Performance Performance
Building
Functions and Heat Transfer by Emission and
5  5 5 15316–2 15316–2
Building Transmission control
Boundaries
Building
Heat Transfer by
Occupancy and Distribution and
6  6 Infiltration and 6 15316–3 15316–3    15316–3
Operating control
Ventilation
Conditions
Aggregation of
Energy Services Internal 15316–5
7  7 7 Storage and control 15316–5
and Energy Heat Gains 15316–4-3
Carriers
Building
8  8 Solar Heat Gains 8 Generation
Partitioning
     8–1 Combustion boilers 15316–4-1     15316–4-1
     8–2 Heat pumps 15316–4-2     15316–4-2
Thermal solar 15316–
     8–3 15316–4-3     15316–4-3
Photovoltaics 4-3
On-site 15316–
     8–4 15316–4-4     15316–4-4
cogeneration 4-4
District heating and 15316–
     8–5 15316–4-5 15316–4-5
cooling 4-5
Direct electrical
     8–6 15316–4-6     15316–4-6
heater
15316–
     8–7 Wind turbines
4-7
Radiant heating,
     8–8 15316–4-8
stoves
Building Load dispatching
Calculated Energy
9  9 Dynamics 9 and operating
Performance
(thermal mass) conditions
Measured
Measured Energy Measured Energy
10 Energy 10 10 15378–3     15378–3
Performance Performance
Performance

11 Inspection 11 Inspection 11 Inspection 15378–1     15378–1

Ways to Express
12 12 – 12 BMS
Indoor Comfort
External
13 Environment
Conditions
Economic 1545
14
Calculation 9–1
NOTE The shaded modules are not applicable
8
Descriptions
Descriptions
Descriptions
Heating
Cooling
Ventilation
Humidification
Dehumidification
Domestic Hot
water
Lighting
Building
automation and
control
Electricity
production

---------------------- Page: 10 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 12309-4, Gas-fired sorption appliances for heating and/or cooling with a net heat input not exceeding
70 kW - Part 4: Test methods
EN 12309-6, Gas-fired sorption appliances for heating and/or cooling with a net heat input not exceeding
70 kW - Part 6: Calculation of seasonal performances
EN 15316-3, Energy performance of buildings - Method for calculation of system energy requirements and
system efficiencies - Part 3: Space distribution systems (DHW, heating and cooling), Module M3-6, M4-6,
M8-6
EN 15316-4-1, Heating systems in buildings - Method for calculation of system energy requirements and
system efficiencies - Part 4-1: Space heating generation systems, combustion systems (boilers)
EN 14511 (all parts), Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling
EN 14825, Air conditioners, liquid chilling packages and heat pumps, with electrically driven compressors,
for space heating and cooling - Testing and rating at part load conditions and calculation of seasonal
performance
EN 16147, Heat pumps with electrically driven compressors - Testing, performance rating and
requirements for marking of domestic hot water units
EN ISO 15927-6, Hygrothermal performance of buildings - Calculation and presentation of climatic data -
Part 6: Accumulated temperature differences (degree-days) (ISO 15927-6)
EN ISO 52000-1:2017, Energy performance of buildings - Overarching EPB assessment - Part 1: General
framework and procedures (ISO 52000-1:2017)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 7345:1995,
EN ISO 52000-1:2017 and the following definitions apply.
3.1
alternate operation
production of heat energy for the space heating and domestic hot water system by a heat generator
with combined service by switching the heat generator either to the domestic hot water operation or
the space heating operation
3.2
application rating conditions
mandatory rated conditions within the operating range of the unit that are published by the
manufacturer or supplier
3.3
auxiliary energy
electrical energy used by technical building systems for heating, cooling, ventilation and/or domestic
water to support energy transformation to satisfy energy needs
9

---------------------- Page: 11 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
Note 1 to entry: This includes energy for fans, pumps, electronics, etc. Electrical energy input to a ventilation
system for air transport and heat recovery is not considered as auxiliary energy, but as energy use for ventilation.
Note 2 to entry: The driving energy input for electrically-driven heat pumps in the system boundary of the COP
and an electrical back-up heater is not entitled auxiliary energy.
3.4
back-up heater
heater to supply heat not covered by the heat pump system itself
Note 1 to entry: If the back-up heater is an electrical heater, the system is calculated according to this standard,
if it is external system, this standard gives the demand of missing heat not supplied by the heat pump as output
data.
3.5
bin hours
sum of all hours occurring at a given temperature for a specific location equal
Note 1 to entry: In EN 14825, the number is rounded to a whole number and is derived from representative
weather data over the 1982–1999 period.
10

---------------------- Page: 12 ----------------------

SIST EN 15316-4-2:2018
EN 15316-4-2:2017 (E)
3.6
bivalent temperature
lowest temperature at which the heat pump heating power and the building heat load are equal
Note 1 to entry: Below this point, the unit may still deliver capacity, but additional back up heating is necessary
to fulfill the full heating load.
Note 2 to entry: According to the definition bivalent temperature is not fixed at the heating load depends on
temperature and internal gains; but bivalent temperature is mainly consider a fixed by the control system to
operate additional back-up heater.
3.7
bin
statistical temperature class (sometimes a class interval) for the outdoor air temperature, with the class
limits expressed in a temperature unit
3.8
coefficient of performance COP
ratio of the heating capacity to the effective power input of the unit
3.9
combustion engine heat pump
compressed vapour heat pump driven by a combustion engine.
3.10
cut-out period
time period in which the electricity supply to the heat pump is interrupt by the supplying utility
3.11
effective power input
average power input of the unit within the defined int
...

SLOVENSKI STANDARD
oSIST prEN 15316-4-2:2014
01-december-2014
2JUHYDOQLVLVWHPLYVWDYEDK0HWRGD]DSUHUDþXQHQHUJLMVNLK]DKWHYLQ
XþLQNRYLWRVWLVLVWHPDGHO6LVWHPL]DRJUHYDQMHSURVWRUDWRSORWQLþUSDOQL
VLVWHPL
Heating systems and water based cooling systems in buildings - Method for calculation
of system energy requirements and system efficiencies - Part 4-2: Space heating
generation systems, heat pump systems
Heizungsanlagen und wasserbasierte Kühlanlagen in Gebäuden - Verfahren zur
Berechnung der Energieanforderungen und Nutzungsgrade der Anlagen - Teil 4-2:
Wärmeerzeugung für die Raumheizung, Wärmepumpensysteme
Systèmes de chauffage et systèmes de refroidissement à eau dans les bâtiments -
Méthode de calcul des besoins énergétiques et des rendements des systèmes - Partie 4-
2: Systèmes de génération de chauffage des locaux, systèmes de pompes à chaleur
Ta slovenski standard je istoveten z: prEN 15316-4-2
ICS:
27.080 7RSORWQHþUSDONH Heat pumps
91.140.10 Sistemi centralnega Central heating systems
ogrevanja
oSIST prEN 15316-4-2:2014 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 15316-4-2:2014

---------------------- Page: 2 ----------------------
oSIST prEN 15316-4-2:2014

EUROPEAN STANDARD
DRAFT
prEN 15316-4-2
NORME EUROPÉENNE

EUROPÄISCHE NORM

October 2014
ICS 91.140.10 Will supersede EN 15316-4-2:2008
English Version
Heating systems and water based cooling systems in buildings -
Method for calculation of system energy requirements and
system efficiencies - Part 4-2: Space heating generation
systems, heat pump systems
Systèmes de chauffage et systèmes de refroidissement à Heizungsanlagen und wasserbasierte Kühlanlagen in
eau dans les bâtiments - Méthode de calcul des besoins Gebäuden - Verfahren zur Berechnung der
énergétiques et des rendements des systèmes - Partie 4-2: Energieanforderungen und Nutzungsgrade der Anlagen -
Systèmes de génération de chauffage des locaux, Teil 4-2: Wärmeerzeugung für die Raumheizung,
systèmes de pompes à chaleur Wärmepumpensysteme
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 228.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15316-4-2:2014 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
Contents
Page
Foreword .4
Introduction .5
1 Scope .7
2 Normative references .8
3 Terms and definitions .8
4 Symbols and abbreviations . 10
4.1 Symbols . 10
4.2 Subscripts . 10
5 Description of the methods . 11
5.1 General . 11
5.2 Output data of the method . 11
5.3 Multiple heat generators . 12
5.4 System boundary . 13
5.5 Schematisation of the heat pump for heating . 14
5.6 Energy input needed to meet the heat requirements for heat pumps system . 16
5.7 Auxiliary energy (W ) . 17
HW,gen,aux
5.8 Recoverable, recovered and unrecoverable heat losses . 17
5.9 Calculation by zones . 17
6 Generation with heat pump systems – Energy calculation (hourly, bin) . 18
6.1 Calculation time steps . 18
6.2 Input data . 19
6.2.1 General . 19
6.2.2 Product data . 20
6.2.3 Operating conditions . 21
6.2.4 Calculation parameters . 22
6.2.5 Constants and physical data . 22
6.3 Energy requirements for space heating and DHW mode . 22
6.3.1 Domestic hot water mode (DHW) . 22
6.3.2 Space heating mode (SH) . 22
6.3.3 Combined Domestic hot water and space heating mode (DHW + SH) . 23
6.3.4 Storage for heating, domestic hot water . 23
6.4 Flow chart . 23
6.5 COP for heating and domestic hot water at full load . 26
6.5.1 General . 26
6.5.2 Calculation of COP and energy input at full load . 26
6.5.3 Calculation of COP and energy input at part load for compressor heat pumps (for heating

and storage) . 31
6.5.4 Absorption/Adsorption heat pumps . 35
6.6 Auxiliary energy (W ) . 35
HW;gen;aux
6.7 Energy used from the input source . 35
6.8 Calculation of back-up heater . 35
6.8.1 Electrical back-up heater . 36
6.8.2 Fuel back-up heater . 36
6.9 Total losses and total recoverable heat losses of the generation subsystem . 36
6.9.1 Recoverable heat losses from auxiliary consumption . 36
6.9.2 Total generation subsystem losses . 37
6.9.3 Recoverable heat losses due to generation subsystem envelope losses . 37
6.9.4 Total recoverable heat losses of the generation subsystem . 38
2

---------------------- Page: 4 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
6.9.5 Ambient heat used by the generation subsystem . 38
6.9.6 Renewable (or recovered) energy used by the heat pump . 38
7 Method B – Monthly method . 38
7.1 Calculation time steps . 38
7.2 Output data . 39
7.3 Calculation time steps . 39
7.4 Applicable control system for heating . 39
7.5 Input data for heating . 40
7.6 Energy calculation for one time step (month) . 40
8 Quality control . 41
8.1 Hourly, bin or monthly method . 41
8.2 Main sources of errors . 41
9 Compliance check . 41
Annex A (informative) Input data . 42
A.1 Heat pump description data . 42
A.1.1 Heat pump type and use . 42
A.1.2 Heat pump technical data . 43
A.1.3 Operation at part load . 44
A.2 System design data . 44
A.2.1 Localisation . 44
A.2.2 Control information data . 45
A.2.3 System design data . 45
Annex B (informative) Tables for COP and energy at full load . 46
B.1 Air – Water electrically driven heat pumps . 46
B.2 COP and energy for air / recycled air electrically driven heat pumps . 47
B.3 Air/water combustion-engine driven heat pumps . 48
Annex C (normative) Adaptation of weighting factors . 49
C.1 Flowchart . 49
C.2 Calculation of weighting factors . 49
C.2.1 Input data. 49
C.2.2 Calculation of COP and power at part load conditions . 49
C.2.3 Comparison with tests results . 49
C.2.4 Adjustement of the corresponding weighting factor . 49
Bibliography . 50


3

---------------------- Page: 5 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
Foreword
This document (prEN 15316-4-2:2014) has been prepared by Technical Committee CEN/TC 228 “Heating
systems and water based cooling systems in buildings”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 15316-4-2:2008.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
4

---------------------- Page: 6 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
Introduction
1)
This standard is part of a package developed to support EPBD implementation, hereafter called “EPB
standards”.
EPB standards deal with energy performance calculation and other related aspects (like system sizing) to
provide the building services considered in the EPBD.
CEN/TC 228 deals with heating systems in buildings. Subjects covered by CEN/TC 228 are:
 energy performance calculation for heating systems;
 inspection of heating systems;
 design of heating systems;
 installation and commissioning of heating systems.
This standard specifies to take into account the energy performance of heat pump systems used for domestic
or heating purpose.
This updated standard covers hourly and monthly time-step.
Figure 1 shows the relative position of this standard within the EPB standards.

1) Directive 2010/31/EU of the European Parliament and of the Council of 19 May 2010 on the energy performance of
buildings (recast)

5

---------------------- Page: 7 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)

Building
Overarching Technical Building Systems
(as such)


sub M1
M1 sub1 M2 sub1 M3 M4 M5 M6 M7 M8 M9 M11
1  0
1 General 1 General 1 General 15316-1     15316-1
Common terms
and definitions; Building Energy
2 2 2 Needs      12831-3 ?
symbols, units Needs
and subscripts
(Free) Indoor
Maximum Load and
3 Applications 3 Conditions without 3 12831-1     12831-3
Power
Systems
Ways to Ways to Express
Ways to Express
4 Express Energy 4 Energy 4 15316-1     15316-1
Energy Performance
Performance Performance
Building
Functions and Heat Transfer by
5 5 5 Emission & control 15316-2 15316-2
Building Transmission
Boundaries
Building
Heat Transfer by
Occupancy and
6 6 Infiltration and 6 Distribution & control 15316-3 15316-3    15316-3
Operating
Ventilation
Conditions
Aggregation of
Energy Internal 15316-5
7 7 7 Storage & control 15316-5
Services and Heat Gains 15316-4-3
Energy Carriers
Building
8 8 Solar Heat Gains 8 Generation
Partitioning
   8-1 Combustion boilers 15316-4-1   15316-4-1
   8-2 Heat pumps 15316-4-2 15316-4-2  15316-4-2
Thermal solar
   8-3 15316-4-3   15316-4-3  15316-4-3
Photovoltaics
   8-4 On-site cogeneration 15316-4-4   15316-4-4  15316-4-4
District heating and
   8-5 15316-4-5 15316-4-5    15316-4-5
cooling
Direct electrical
   8-6 15316-4-6   15316-4-6
heater
   8-7 Wind turbines     15316-4-7
Radiant heating,
   8-8 15316-4-8
stoves
Calculated Load dispatching
Building Dynamics
9 Energy 9 9 and operating
(thermal mass)
Performance conditions
Measured
Measured Energy Measured Energy
10 Energy 10 10 15378-3     15378-3
Performance Performance
Performance

11 Inspection 11 Inspection 11 Inspection 15378-1     15378-1
Ways to
12 Express Indoor 12 -- 12 BMS
Comfort
External
13 Environment

Conditions
Economic
14 15459-1
Calculation
Figure 1 — Position of EN 15316-4-2 within the modular structure
6
Descriptions
Descriptions
Descriptions
Heating
Cooling
Ventilation
Humidification
Dehumidification
Domestic Hot water
Lighting
Building automation
& control
Electricity
production

---------------------- Page: 8 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
1 Scope
The standard covers heat pumps for space heating, heat pump water heaters (HPWH) and heat pumps with
combined space heating and domestic hot water production in alternate or simultaneous operation, where the
same heat pump delivers the heat to cover the space heating and domestic hot water heat requirement.
The standard provides a calculation method under steady conditions that corresponds to one calculation step.
The results of this calculation are incorporated in larger building models and take in account the influence of
the external conditions and building control that influence the energy requirements for heating supplied by the
heat pump system.
The scope of this part is to standardise the:
 required inputs;
 calculation methods;
 required outputs
for output thermal power generation for space heating and domestic hot water production of the following heat
pump systems, including control:
 electrically-driven vapour compression cycle (VCC) heat pumps;
 combustion engine-driven vapour compression cycle heat pumps;
 thermally-driven vapour absorption cycle (VAC) heat pumps,
using combinations of heat source and heat distribution listed in Table 1.
Table 1 — Heating sources and energy distribution
Source Distribution
Outdoor air Air
Exhaust-air Water
Indirect ground source with brine distribution Direct condensation/evaporation of the refrigerant in
the appliance
Indirect ground source with water distribution
Direct ground source (Direct expansion (DX)
Surface water
Ground water
This standard does not cover sizing or inspection of heat pumps.
This standard deals with heat generators for heating or for combined domestic hot water and heating service.
Generators for domestic hot water only are taken into account into module M8-8.
NOTE 1 Heat pumps generators for cooling systems are taken into account into module M4-8.
NOTE 2 Heat pumps generators for space heating using air (distribution) are taken into account in module M5-8.
Other generation systems such as boilers are covered in other sub modules of part M3-8.
7

---------------------- Page: 9 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
This is the revision of EN 15316-4-2:2008. The revision covers the adaptation of the standard to hourly and
monthly energy calculation.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
prEN 15603:2013, Energy performance of buildings — Overall energy use and definition of energy ratings.
EN 15316-1, Heating systems and water based cooling systems in buildings — Method for calculation of
system energy requirements and system efficiencies — Part 1: General and Energy performance expression
EN 15450, Heating systems in buildings — Design of heat pump heating systems
EN 12309-2, Gas-fired absorption and adsorption air-conditioning and/or heat pump appliances with a net
heat input not exceeding 70 kW — Part 2: Rational use of energy
EN 14511 (all parts), Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling
EN 14825, Air conditioners, liquid chilling packages and heat pumps, with electrically driven compressors, for
space heating and cooling — Testing and rating at part load conditions and calculation of seasonal
performance
EN 15879-1, Testing and rating of direct exchange ground coupled heat pumps with electrically driven
compressors for space heating and/or cooling — Part 1: Direct exchange-to-water heat pumps
EN 16147, Heat pumps with electrically driven compressors — Testing and requirements for marking for
domestic hot water units
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 7345:1995, prEN 15603:2013
and the following specific definitions apply.
3.1
alternate operation
production of heat energy for the space heating and domestic hot water system by a heat generator with
combined service by switching the heat generator either to the domestic hot water operation or the space
heating operation
3.2
application rating conditions
mandatory rated conditions within the operating range of the unit that are published by the manufacturer or
supplier
3.3
auxiliary energy
electrical energy used by technical building systems for heating, cooling, ventilation and/or domestic water to
support energy transformation to satisfy energy needs
Note 1 to entry: This includes energy for fans, pumps, electronics, etc. Electrical energy input to the a ventilation
system for air transport and heat recovery is not considered as auxiliary energy, but as energy use for ventilation (C.4.18).
Note 2 to entry: The driving energy input for electrically-driven heat pumps in the system boundary of the COP and an
electrical back-up heater is not entitled auxiliary energy.
8

---------------------- Page: 10 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
3.4
bivalent (balance point) temperature
temperature at which the heat pump heating power and the building heat load are equal
3.5
bin
a statistical temperature class (sometimes a class interval) for the outdoor air temperature, with the class
limits expressed in a temperature unit
3.6
coefficient of performance COP
ratio of the heating capacity to the effective power input of the unit
3.7
cut-out period
time period in which the electricity supply to the heat pump is interrupt by the supplying utility
3.8
effective power input
average power input of the unit within the defined interval of time obtained from:
 the power input for operation of the compressor or burner and any power input for defrosting;
 the power input for all control and safety devices of the unit; and
 the proportional power input of the conveying devices (e.g. fans, pumps) for ensuring the transport of the
heat transfer media inside the unit
3.9
electrically-driven heat pump
in the frame of this standard, electrically-driven heat pumps denote vapour compression cycle heat pumps,
which incorporate a compressor that is driven by an electric motor
3.10
combined heat pump
heat generator, which supplies energy to two different systems, e.g. the space heating system and the
domestic hot water system in alternate or simultaneous combined operation
3.11
heat pump
unitary or split-type assemblies designed as a unit to transfer heat. It includes a vapour compression
refrigeration system or a refrigerant/sorbent pair to transfer heat from the source by means of electrical or
thermal energy at a high temperature to the heat sink
3.12
heat transfer medium
any medium (water, air, etc.) used for the transfer of the heat without change of state. It can be:
 the fluid cooled by the evaporator;
 the fluid heated by the condenser
3.13
heating power P
HW;gen;out
heat flow rate given off by the unit to the heat transfer medium per unit of time for heating, or domestic hot
water of combination of these
Note 1 to entry: If heat is removed from the indoor heat exchanger for defrosting, it is taken into account.
9

---------------------- Page: 11 ----------------------
oSIST prEN 15316-4-2:2014
prEN 15316-4-2:2014 (E)
3.14
operation temperature limit (TOL)
temperature at which heat pump operation is stopped and the total heat requirements are covered by a
back-up heater
3.15
operating range
range indicated by the manufacturer and limited by the upper and lower limits of use (e.g. temperatures, air
humidity, voltage) within which the unit is deemed to be fit for use and has the characteristics published by the
manufacturer
3.16
part load operation
operation state of the heat pump system where the actual load requirement is below the actual output capacity
of the device
3.17
part load ratio
the ratio between the generated heat during the calculation period and the maximum possible output from the
heat generator during the hourly calculation period or bin temperature
Note 1 to entry: Part load ratio is not used for monthly method.
3.18
primary pump
pump mounted in the circuit containing the generator and hydraulic decoupling, e.g. a heating buffer storage
in parallel configuration or a hydronic distributor
3.19
produced heat
heat produced by the heat pump system to cover the energy requirement of the distribution subsystem and
the generation subsystem heat losses for space heating and/or domestic hot water
3.20
set-point temperature of a conditioned zone
Indoor (minimum intended) temperature, as fixed by the control system in heating mode
3.21
simultaneous operation during the heating period
simultaneous production of heat energy for the space heating and domestic hot water use by a combined heat
pump
3.22
back-up heater
heater to supply heat not covered by the heat pump system itself.
Note 1 to entry: If the back-up heater is an electrical heater, the system is calculated according to this standard, if it is
external system, this standard gives the demand of missing heat not supplied by the heat pump as output data.
4 Symbols and abbreviations
4.1 Symbols
For the purposes of this document, the symbols given in prEN 15603:2013 apply.
4.2 Subscripts
For the purposes of this document, the subscripts given in prEN
...
