SIST EN 2240-004:2010

Aerospace series - Lamps, incandescent - Part 004: Lamp, code 47 - Product standard

This standard specifies the required characteristics for lamp, code 47, for aerospace applications.
It shall be used together with EN 2756.

Luft- und Raumfahrt - Glühlampen - Teil 004: Lampe, Kode 47 - Produktnorm

Diese Norm legt die geforderten Eigenschaften von Lampen, Kode 47, zur Anwendung in der Luftfahrt fest.
Sie ist gemeinsam mit EN 2756 zu verwenden.

Série aérospatiale - Lampes à incandescence - Partie 004: Lampe, code 47 - Norme de produit

Aeronavtika - Žarnice - 004. del: Žarnica, kod 47 - Standard za proizvod

Ta standard opredeljuje zahtevane značilnosti  za žarnico, koda 47, za aeronavtično uporabo. Uporablja se skupaj EN 2756.

General Information

• Status: Published
• Publication Date: 24-Jan-2010
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 22-Jan-2010
• Due Date: 29-Mar-2010
• Completion Date: 25-Jan-2010
• Ref Project: EN 2240-004:2010 - Aerospace series - Lamps, incandescent - Part 004: Lamp, code 47 - Product standard

Overview

EN 2240-004:2010 - "Aerospace series - Lamps, incandescent - Part 004: Lamp, code 47 - Product standard" is a CEN (ASD‑STAN) product standard that specifies the required characteristics for lamp, code 47 used in aerospace applications. It is intended to be used together with EN 2756 (test methods) and references the EN 2240 series for technical specification, main characteristics and cap dimensions.

Key topics and requirements

• Scope: Defines required characteristics for lamp code 47 for aerospace use; dimensions are given in millimetres.
• Electrical / photometric data (from the product table):
  • Nominal voltage: 6.3 V
  • Nominal current: 0.15 A
  • Nominal power: 0.945 W
  • Nominal luminous flux: 6.5 lm
  • Colour temperature: 2200 K
• Life: Static with d.c. 1 000 h; Static with a.c. 1 350 h (dynamic with d.c. not specified).
• Mechanical / optical details: Filament form C-2R; bulb appearance clear; Light Centre Length (LCL) and full dimensional data are specified in Figure 1 and Table 1 of the standard.
• Cap:BA9s/14 (see EN 2241 for detailed cap dimensions).
• Mass: Given as 2.25 kg per 1 000 lamps (packing mass reference).
• Designation and marking: Prescribes designation format (example: LAMP, INCANDESCENT - EN2240-47) and marking requirements - lamp and packaging must carry the international code number per EN 2240-002.
• Testing: Use EN 2756 test methods and EN 2240-001 (technical specification) for full assessment.

Applications and practical use

• Standard applies to aerospace lighting components where consistent, qualified incandescent lamps are required (instrument panels, indicator lights, legacy systems).
• Useful for:
  • Aerospace manufacturers specifying replacement parts.
  • Maintenance, repair and overhaul (MRO) teams selecting approved lamps.
  • Procurement and quality assurance to verify conformance with aerospace product standards.
  • Test and certification laboratories performing verification according to EN 2756.

Who should use it

• Aerospace OEMs, avionics suppliers, MRO organizations, procurement officers, design engineers, and compliance/test labs that handle incandescent lamp specification, qualification and replacement in aircraft systems.

Related standards

• EN 2240-001 - Technical specification (use together)
• EN 2240-002 - Main characteristics (code/identification and marking)
• EN 2241 - Lamp caps - Dimensions
• EN 2756 - Lamps, incandescent - Test methods

Keywords: EN 2240-004, lamp code 47, aerospace incandescent lamps, BA9s/14 cap, 6.3 V lamp, aerospace lighting standards, EN 2756.

Standards Content (Sample)

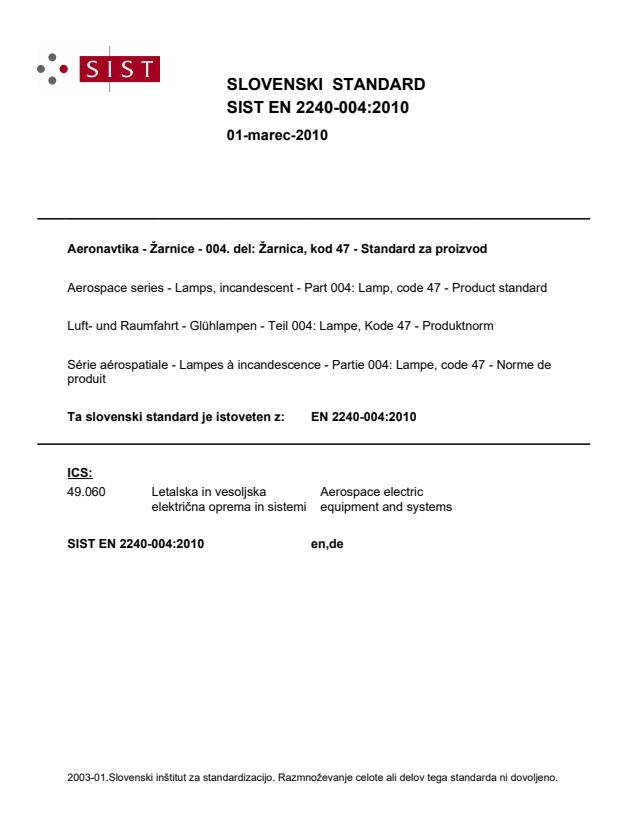

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Žarnice - 004. del: Žarnica, kod 47 - Standard za proizvodLuft- und Raumfahrt - Glühlampen - Teil 004: Lampe, Kode 47 - ProduktnormSérie aérospatiale - Lampes à incandescence - Partie 004: Lampe, code 47 - Norme de produitAerospace series - Lamps, incandescent - Part 004: Lamp, code 47 - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2240-004:2010SIST EN 2240-004:2010en,de01-marec-2010SIST EN 2240-004:2010SLOVENSKI
STANDARD

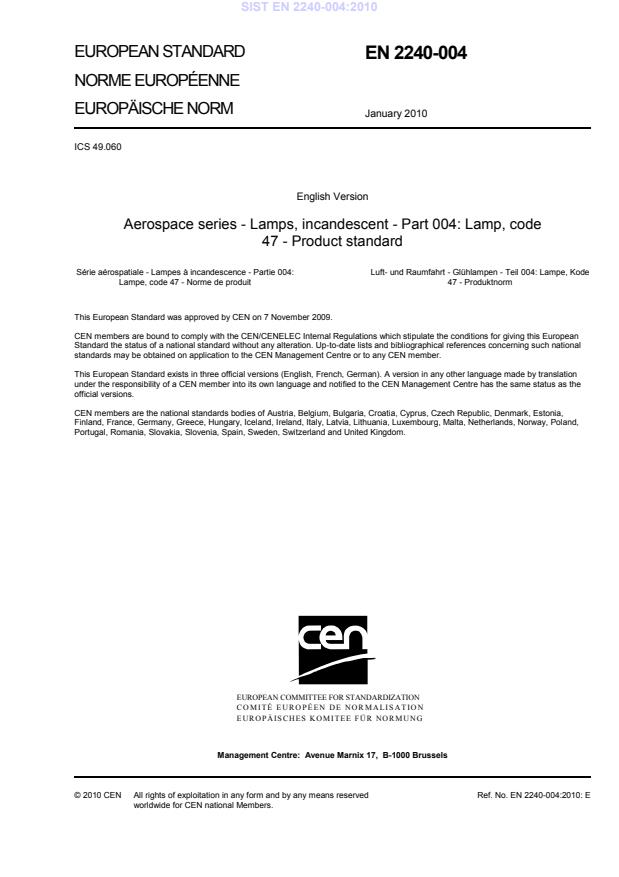

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2240-004
January 2010 ICS 49.060 English Version
Aerospace series - Lamps, incandescent -Part 004: Lamp, code 47 - Product standard
Série aérospatiale - Lampes à incandescence - Partie004: Lampe, code 47 - Norme de produit
Luft- und Raumfahrt - Glühlampen - Teil 004: Lampe, Kode 47 - Produktnorm This European Standard was approved by CEN on 7 November 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2240-004:2010: ESIST EN 2240-004:2010
...
