SIST ETS 300 501 E1:2003

European digital cellular telecommunications system (Phase 2); Bearer Services (BS) supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.02)

....

Evropski digitalni celični telekomunikacijski sistem (faza 2) – Nosilne storitve (BS), ki jih podpira javno kopensko mobilno omrežje (PLMN) sistema GSM (GSM 02.02)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 501 ed.1 (1994-09) - European digital cellular telecommunications system (Phase 2); Bearer Services (BS) supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.02)

Standards Content (Sample)

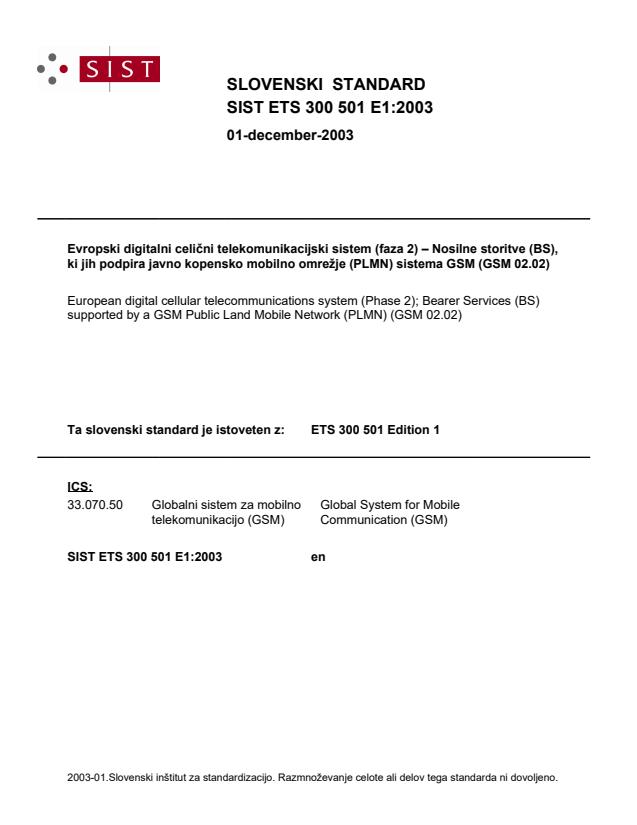

SLOVENSKI STANDARD
SIST ETS 300 501 E1:2003
01-december-2003
(YURSVNLGLJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±1RVLOQHVWRULWYH%6
NLMLKSRGSLUDMDYQRNRSHQVNRPRELOQRRPUHåMH3/01VLVWHPD*60*60
European digital cellular telecommunications system (Phase 2); Bearer Services (BS)
supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.02)
Ta slovenski standard je istoveten z: ETS 300 501 Edition 1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
SIST ETS 300 501 E1:2003 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 501 E1:2003

---------------------- Page: 2 ----------------------

SIST ETS 300 501 E1:2003

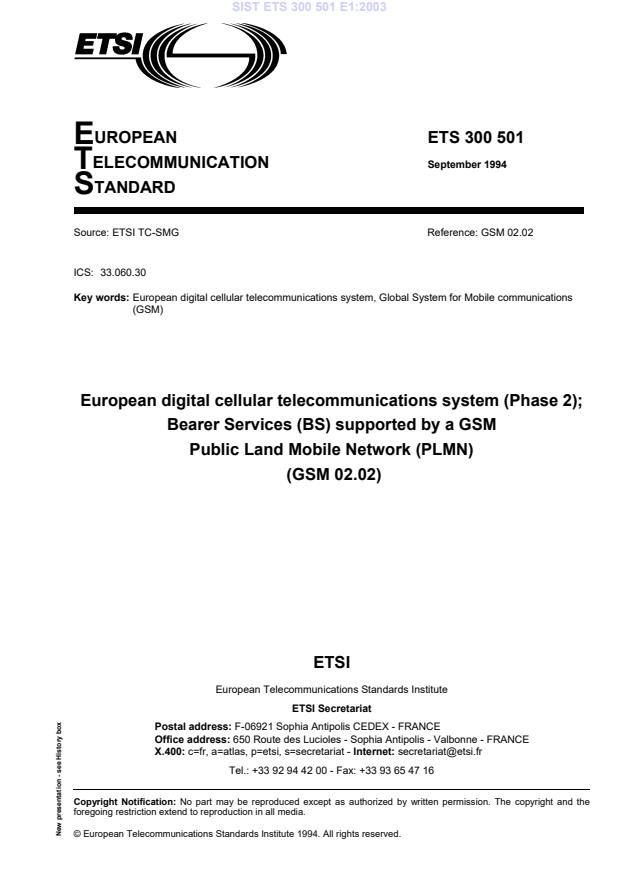

EUROPEAN ETS 300 501
TELECOMMUNICATION September 1994
STANDARD
Source: ETSI TC-SMG Reference: GSM 02.02
ICS: 33.060.30
European digital cellular telecommunications system, Global System for Mobile communications
Key words:
(GSM)
European digital cellular telecommunications system (Phase 2);
Bearer Services (BS) supported by a GSM
Public Land Mobile Network (PLMN)
(GSM 02.02)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - [e-mail]
X.400: Internet:
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1994. All rights reserved.
New presentation - see History box

---------------------- Page: 3 ----------------------

SIST ETS 300 501 E1:2003
Page 2
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 501 E1:2003
Page 3
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
Contents
Foreword .5
0 General.7
0.1 Scope.7
0.2 Normative references .7
0.3 Definitions and abbreviations.8
1 Framework for defining bearer services.8
2 Bearer service categories.10
3 Bearer services .11
History.13

---------------------- Page: 5 ----------------------

SIST ETS 300 501 E1:2003
Page 4
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
Blank page

---------------------- Page: 6 ----------------------

SIST ETS 300 501 E1:2003
Page 5
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
Foreword
This European Telecommunication Standard (ETS) has been produced by the Special Mobile Group
(SMG) Technical Committee (TC) of the European Telecommunications Standards Institute (ETSI).
This ETS defines the Bearer Services (BS) supported by a PLMN within the European digital cellular
telecommunications system (Phase 2) and corresponds to GSM Technical Specification (GSM-TS) 02.02
version 4.2.2.
The specification from which this ETS has been derived was originally based on CEPT documentation,
hence the presentation of this ETS may not be entirely in accordance with the ETSI/PNE rules.
Reference is made within this ETS to GSM-TSs (NOTE).
Reference is also made within this ETS to GSM xx.xx. series. The specifications in the series can be
identified, with their full title, within the normative reference Clause of this ETS by the first two digits of
their GSM reference number e.g. GSM 09.xx series, refers to GSM 09.01, GSM 09.02 etc.
NOTE: TC-SMG has produced documents which give the technical specifications for the
implementation of the European digital cellular telecommunications system.
Historically, these documents have been identified as GSM Technical Specifications
(GSM-TSs). These TSs may have subsequently become I-ETSs (Phase 1), or ETSs
(Phase 2), whilst others may become ETSI Technical Reports (ETRs). GSM-TSs are,
for editorial reasons, still referred to in GSM ETSs.

---------------------- Page: 7 ----------------------

SIST ETS 300 501 E1:2003
Page 6
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 501 E1:2003
Page 7
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
0 General
0.1 Scope
The purpose of this specification is to define a set of bearer services to be provided to GSM PLMN
subscribers by a GSM PLMN itself and in connection with other networks. This specification should also
be used as a reference for defining the corresponding required mobile network capabilities which are
specified by means of the "GSM PLMN connection type" concept, defined in GSM 03.10.
The recommended provision of the bearer services is under the control of the GSM MoU and is out of the
scope of ETSI/TC/SMG.
Bearer services not included in this specification that require modifications to the GSM signalling
specifications should not be introduced unilaterally by a mobile network operator.
0.2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references, the
latest edition of the publication referred to applies.
[1] GSM 01.04 (ETR 100): "European digital cellular telecommunication system
(Phase 2); Definitions, abbreviations and acronyms".
[2] GSM 02.01 (ETS 300 500): "European digital cellular telecommunication system
(Phase 2); Principles of telecommunication services supported by a GSM Public
Land Mobile Network (PLMN)".
[3] GSM 02.04 (ETS 300 503): "European digital cellular telecommunication system
(Phase 2); General on supplementary service".
[4] GSM 03.10 (ETS 300 528): "European digital cellular telecommunication system
(Phase 2); GSM Public Land Mobile Network (PLMN) connection types".
[5] GSM 04.02 (ETS 300 551): "European digital cellular telecommunication system
(Phase 2); GSM Public Land Mobile Network (PLMN) access reference
configuration".
[6] GSM 07.01 (ETS 300 582): "European digital cellular telecommunication system
(Phase 2); General on Terminal Adaptation Functions (TAF) for Mobile Stations
(MS)".
[7] GSM 07.02 (ETS 300 583): "European digital cellular telecommunication system
(Phase 2); Terminal Adaptation Functions (TAF) for services using
asynchronous bearer capabilities".
[8] GSM 07.03 (ETS 300 584): "European digital cellular telecommunication system
(Phase 2); Terminal Adaptation Functions (TAF) for services using synchronous
bearer capabilities".
[9] GSM 07.05 (ETS 300 585): "European digital cellular telecommunication system
(Phase 2); Use of Data Terminal Equipment (DTE)/Data Circuit terminating
Equipment (DCE) interface for Short Message Service (SMS) and Cell
Broadcast Service (CBS)".
[10] GSM 07.06 (ETS 300 586): "European digital cellular telecommunication system
(Phase 2); Use of the V series Data Terminal Equipment/Data Circuit
terminating Equipment (DTE/DCE) interface at the Mobile Station (MS) for
mobile termination (MT) configuration".

---------------------- Page: 9 ----------------------

SIST ETS 300 501 E1:2003
Page 8
ETS 300 501:1994 (GSM 02.02 version 4.2.2)
[11] GSM 09.02 (ETS 300 599): "European digital cellular telecommunication system
(Phase 2); Mobile Application Part (MAP) specification".
[12] GSM 09.03 (ETS 300 600): "European digital cellular telecommunication system
(Phase 2); Signalling requirements on interworking between the Intergrated
Services Digital Network (ISDN) or Public Switched Telephone Network (PSTN)
and the Public Land Mobile Network (PLMN)".
[13] GSM 09.04 (ETS 300 601): "European digital cellular telecommunication system
(Phase 2); Interworking between the Public Land Mobile Network (PLMN) and
the Circuit Switched Public Data Network (CSPDN)".
[14] GSM 09.05 (ETS 300 602): "European digital cellular telecommunication system
(Phase 2); Interworking between the Public Land Mobile Network (PLMN) and
the Packet Switched Public Data Network (PSPDN) for Packet
Assembly/Disassembly facility (PAD) access".
[15] GSM 09.06 (ETS 300 603): "European digital cellular telecommunication system
(Phase 2); Interworking between a Public L
...
