SIST EN 2240-089:2011

Aerospace series - Lamps, incandescent - Part 089: Lamp, code A7512-24 - Product standard

This European Standard specifies the required characteristics for lamp, code A7512-24, for aerospace applications.
It shall be used together with EN 2756.

Luft- und Raumfahrt - Glühlampen - Teil 089: Lampe, Kode A7512-24 - Produktnorm

Diese Norm legt die Anforderungen an Glühlampen mit dem Kode A7512-24 zur Anwendung in der Luftfahrt fest. Sie sollte in Verbindung mit EN 2756 angewendet werden.

Série aérospatiale - Lampes à incandescence - Partie 089 : Lampe, code A7512-24 - Norme de produit

La présente Norme Européenne spécifie les caractéristiques requises pour une lampe, code A7512-24, utilisée à bord des aéronefs.
Elle doit être utilisée conjointement avec l'EN 2756.

Aeronavtika - Žarnice - 089. del: Žarnica, kod A7512-24 - Standard za izdelek

Ta evropski standard opredeljuje zahtevane lastnosti za žarnico, kod A7512-24, za uporabo v aeronavtiki. Uporabljal naj bi se skupaj z EN 2756.

General Information

• Status: Published
• Publication Date: 12-Sep-2011
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 30-Aug-2011
• Due Date: 04-Nov-2011
• Completion Date: 13-Sep-2011
• Ref Project: EN 2240-089:2011 - Aerospace series - Lamps, incandescent - Part 089: Lamp, code A7512-24 - Product standard

Overview

SIST EN 2240-089:2011 is a European Standard that specifies the required characteristics for an incandescent lamp, identified by code A7512-24, designed specifically for aerospace applications. Developed by the Aerospace and Defence Industries Association of Europe (ASD-STAN) and approved by the European Committee for Standardization (CEN), this standard ensures precise technical requirements and consistent quality for aerospace incandescent lamps. The standard must be used in conjunction with EN 2756, which covers test methods for aerospace incandescent lamps.

This product standard focuses on essential aspects such as lamp dimensions, electrical performance, luminous intensity, lifespan, filament form, and marking, ensuring compatibility and reliability in critical aerospace electrical systems.

Key Topics

• Scope and Application
  SIST EN 2240-089:2011 applies exclusively to the lamp with code A7512-24 for aerospace use. It complements other standards under the EN 2240 series, particularly EN 2756 for testing.

• Dimensions and Physical Characteristics
  The lamp’s dimensions are specified in millimetres, with exact tolerances to ensure fit and function in aerospace equipment. Key features include:

  • Light Centre Length (LCL): 29.4 ± 1 mm
  • Mass (for 1000 lamps): 10 kg
  • Silvered bulb appearance for optimized light emission

• Electrical and Optical Specifications
  The lamp operates at a nominal voltage of 28 V, with a nominal current of 0.93 A and power consumption of 26 W. Its luminous performance is characterized by:

  • Luminous intensity of 200 cd in primary direction (C1) and 25 cd in secondary direction (C2)
  • Colour temperature of approximately 2760 K
  • Static life span: 300 hours with DC, 400 hours with AC
  • Dynamic life span: 150 hours with DC

• Filament and Cap Type
  The filament has a specific form defined in EN 2240-002 (CC - 6), and the cap type is BAY15s/19, standardized under EN 2241.

• Marking and Identification
  Both the lamp and its packaging must be clearly marked with the international code number according to EN 2240-002, facilitating traceability and compliance.

Applications

This standard is crucial for manufacturers, suppliers, and quality inspectors involved in aerospace lighting components. Applications include:

• Aircraft lighting systems
  Ensures safe and reliable incandescent lamps suitable for cockpit, cabin, and external aircraft lighting.

• Aerospace equipment manufacturers
  Facilitate compatibility and standardization across aerospace electric equipment.

• Maintenance and replacement parts
  Provide clear specifications for sourcing certified replacement lamps in aerospace maintenance operations.

• Quality assurance and certification
  Support compliance with rigorous aerospace safety and performance standards by defining test methods and product requirements.

Related Standards

To ensure comprehensive adherence and compatibility, SIST EN 2240-089:2011 is used alongside several related standards from the EN 2240 series:

• EN 2756 – Aerospace series - Lamps, incandescent: Test methods
• EN 2240-001 – Aerospace series - Lamps, incandescent: Technical specification
• EN 2240-002 – Aerospace series - Lamps, incandescent: Main characteristics
• EN 2241 – Aerospace series - Lamp caps: Dimensions

These interconnected standards provide a full framework covering lamp design, testing, identification, and performance criteria essential for aerospace incandescent lamps.

---

Keywords: SIST EN 2240-089:2011, aerospace incandescent lamp, lamp code A7512-24, aerospace lighting standard, aircraft lamps, aerospace electrical components, incandescent lamp standard, EN 2756, lamp marking, lamp specifications, aerospace series lamps

Standards Content (Sample)

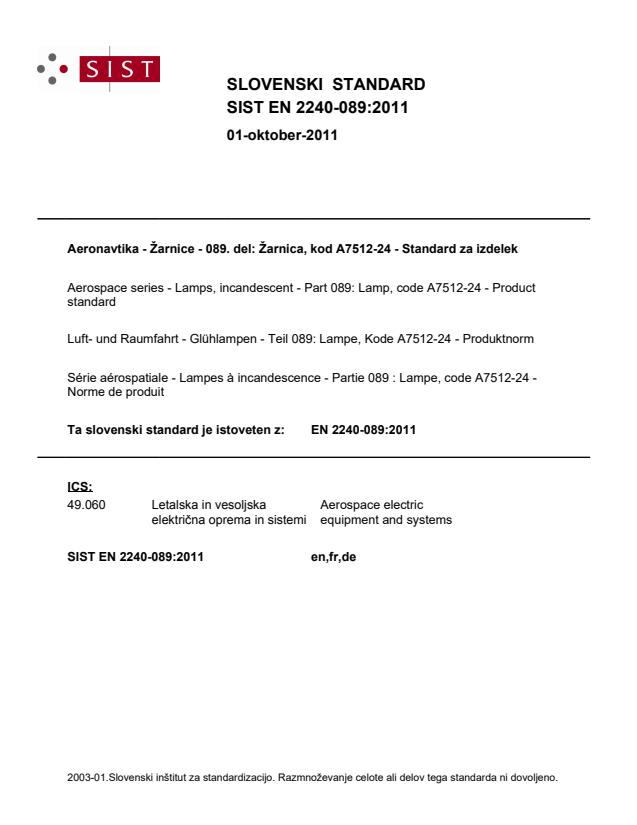

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Žarnice - 089. del: Žarnica, kod A7512-24 - Standard za izdelekLuft- und Raumfahrt - Glühlampen - Teil 089: Lampe, Kode A7512-24 - ProduktnormSérie aérospatiale - Lampes à incandescence - Partie 089 : Lampe, code A7512-24 - Norme de produitAerospace series - Lamps, incandescent - Part 089: Lamp, code A7512-24 - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2240-089:2011SIST EN 2240-089:2011en,fr,de01-oktober-2011SIST EN 2240-089:2011SLOVENSKI
STANDARD

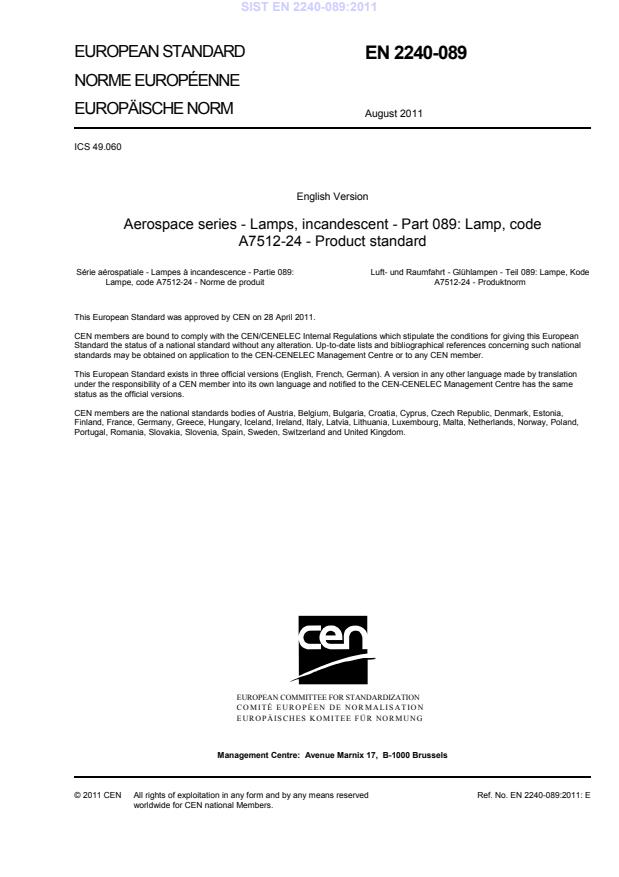

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2240-089
August 2011 ICS 49.060 English Version
Aerospace series - Lamps, incandescent -Part 089: Lamp, code A7512-24 - Product standard
Série aérospatiale - Lampes à incandescence - Partie 089: Lampe, code A7512-24 - Norme de produit
Luft- und Raumfahrt - Glühlampen - Teil 089: Lampe, Kode A7512-24 - Produktnorm This European Standard was approved by CEN on 28 April 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2240-089:2011: ESIST EN 2240-089:2011

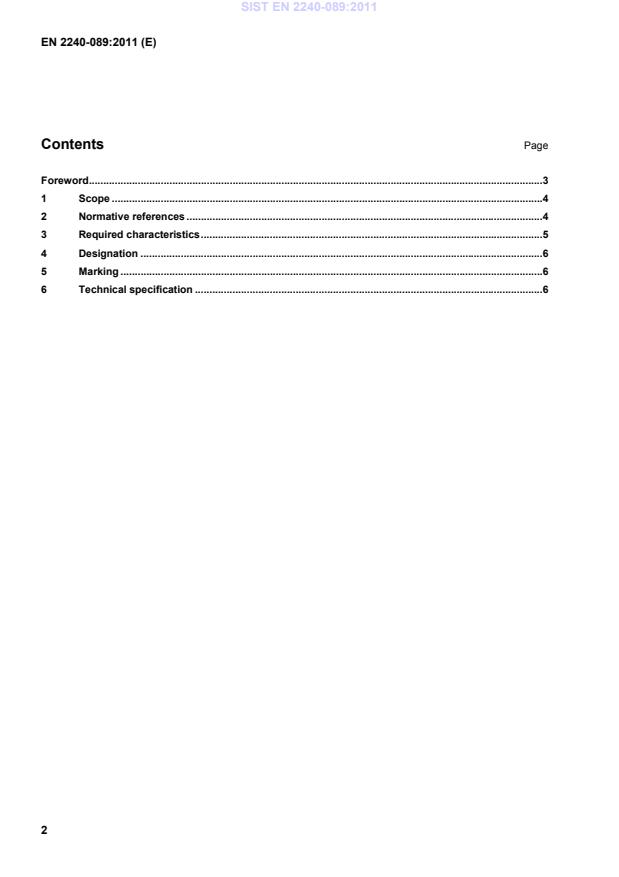

Contents Page Foreword . 3 1 Scope . 4 2 Normative references . 4 3 Required characteristics . 5 4 Designation . 6 5 Marking . 6 6 Technical specification . 6
...
