Indoor air - Part 8: Determination of local mean ages of air in buildings for characterizing ventilation conditions

This part of ISO 16000 describes the use of single tracer gas for determining the local mean age of air as an indicator of ventilation conditions in a building. The procedures include concentration decay and homogeneous constant emission. The described methods are intended for air quality studies and can be used for
a) checking whether the building ventilation requirements are met,
b) estimating the adequacy of ventilation in buildings with indoor air quality problems, and
c) characterizing the strength and distribution of indoor emission sources.
In principle, the methods can be applied to all indoor spaces, regardless of the type of ventilation used and the state of mixing of air between zones. The prevailing ventilation conditions need not be disturbed by the measurement. This part of ISO 16000 does not address the details of the analytical methods for tracer gases. The availability of such analysis services should be checked before planning actual field measurements.

Air intérieur - Partie 8: Détermination des âges moyens locaux de l'air dans des bâtiments pour caractériser les conditions de ventilation

L'ISO 16000-8:2007 d�crit l'utilisation d'un seul gaz traceur en vue de d�terminer l'�ge local moyen de l'air comme indicateur des conditions de ventilation � l'int�rieur d'un b�timent. Les proc�dures sp�cifi�es incluent la d�croissance de la concentration et l'�mission homog�ne constante.
Les m�thodes d�crites sont con�ues pour les �tudes sur la qualit� de l'air et peuvent �tre utilis�es pour v�rifier la conformit� aux exigences en mati�re de ventilation des b�timents, �valuer l'ad�quation de la ventilation dans des b�timents ayant des probl�mes de qualit� de l'air int�rieur; et caract�riser l'intensit� et la r�partition des sources internes d'�mission.
En principe, ces m�thodes sont applicables pour tous les espaces int�rieurs, quel que soit le type de ventilation utilis� et l'�tat du m�lange de l'air interzones. Il n'est pas n�cessaire de perturber les conditions de ventilation dominantes pour les besoins du mesurage.
L'ISO 16000-8:2007 ne d�taille pas les m�thodes d'analyse des gaz traceurs.

Notranji zrak - 8. del: Določevanje lokalne srednje starosti zraka v stavbah za karakterizacijo prezračevalnih pogojev

Ta del standarda ISO 16000 opisuje uporabo posameznega sledilnega plina za določevanje lokalne srednje starosti zraka kot kazalnika prezračevalnih pogojev v stavbi. Postopki zajemajo razgradnjo koncentracije in homogeno konstantno emisijo. Opisane metode so namenjene za študije kakovosti zraka in jih je mogoče uporabljati za
a) preverjanje izpolnjevanja zahtev glede prezračevanja stavb,
b) ocenjevanje ustreznosti prezračevanja v stavbah s težavami s kakovostjo notranjega zraka in
c) karakterizacijo moči in razporeditve notranjih virov emisij.
Metode je načeloma mogoče uporabiti za vse notranje prostore, ne glede na vrsto uporabljenega prezračevanja in stanje mešanja zraka med območji. Ni nujno, da merjenje vpliva na prevladujoče prezračevalne pogoje. Ta del standarda ISO 16000 ne obravnava podrobnosti analiznih metod za sledilne pline. Razpoložljivost takih analiznih storitev naj bi se preverila pred načrtovanjem dejanskih terenskih meritev.

General Information

Status
Published
Public Enquiry End Date
19-Feb-2013
Publication Date
17-Mar-2013
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
08-Mar-2013
Due Date
13-May-2013
Completion Date
18-Mar-2013

Buy Standard

Standard
ISO 16000-8:2007 - Indoor air
English language
41 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
SIST ISO 16000-8:2013
English language
47 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Standard
ISO 16000-8:2007 - Air intérieur
French language
43 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 16000-8
First edition
2007-06-15
Corrected version
2007-10-15
Indoor air —
Part 8:
Determination of local mean ages of air
in buildings for characterizing ventilation
conditions
Air intérieur —
Partie 8: Détermination des âges moyens locaux de l'air dans des
bâtiments pour caractériser les conditions de ventilation
Reference number
ISO 16000-8:2007(E)
ISO 2007
---------------------- Page: 1 ----------------------
ISO 16000-8:2007(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO 2007

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 16000-8:2007(E)
Contents Page

Foreword............................................................................................................................................................ iv

Introduction ....................................................................................................................................................... vi

1 Scope ..................................................................................................................................................... 1

2 Normative references ........................................................................................................................... 1

3 Terms and definitions........................................................................................................................... 1

4 Principles of tracer gas measurements for determining of ventilation conditions ....................... 2

4.1 General principles................................................................................................................................. 2

4.2 Selected tracer gas methods............................................................................................................... 3

5 Measurement planning......................................................................................................................... 3

5.1 General................................................................................................................................................... 3

5.2 Identification of the ventilated system ............................................................................................... 4

5.3 Identification of zones.......................................................................................................................... 4

5.4 Choice of measurement method......................................................................................................... 4

5.5 Determination of measurement points............................................................................................... 5

6 Tracer gases and equipment for determining ventilation conditions ............................................. 6

6.1 Choice of tracer gas ............................................................................................................................. 6

6.2 Tracer gas concentration standard..................................................................................................... 6

6.3 Equipment for feeding the tracer gas................................................................................................. 6

6.4 Sampling the tracer gas ....................................................................................................................... 7

6.5 Determination of tracer gas concentration ........................................................................................ 8

7 Measurement methods......................................................................................................................... 8

7.1 Decay method ....................................................................................................................................... 8

7.2 Active homogeneous emission method........................................................................................... 10

7.3 Passive homogeneous emission method ........................................................................................ 11

8 Application of results ......................................................................................................................... 12

9 Test report ........................................................................................................................................... 12

Annex A (informative) Explanation of some terms and definitions ............................................................ 13

Annex B (informative) General requirements of tracer gases, background contents and methods

of detection of the most important ones.......................................................................................... 14

Annex C (informative) Estimation of uncertainty of measured local mean ages of air............................. 17

Annex D (informative) Examples of measurement procedure, calculation and estimation of

uncertainty........................................................................................................................................... 20

Annex E (informative) Air quality relevance of local mean age of air and expression of results............ 37

Bibliography ..................................................................................................................................................... 41

© ISO 2007 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 16000-8:2007(E)

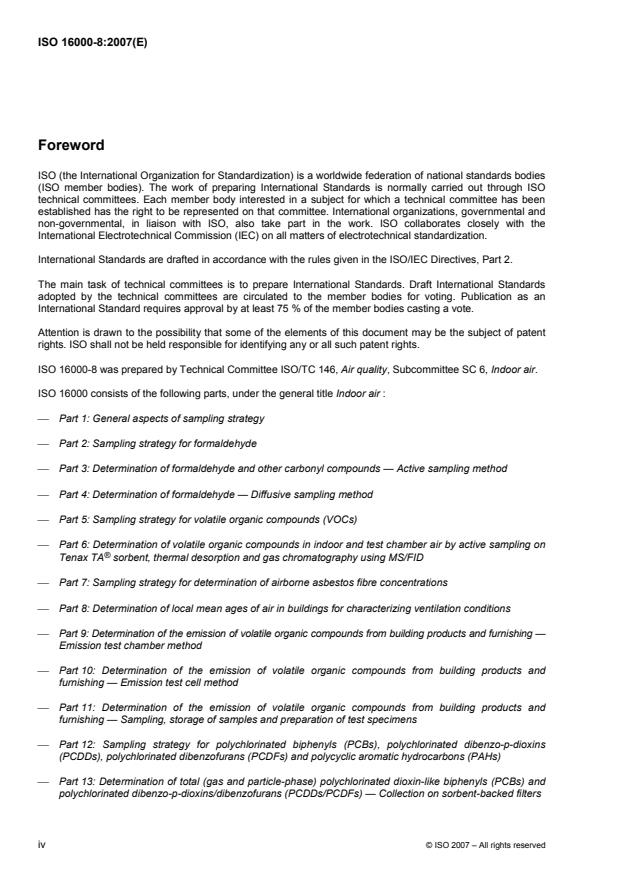

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 16000-8 was prepared by Technical Committee ISO/TC 146, Air quality, Subcommittee SC 6, Indoor air.

ISO 16000 consists of the following parts, under the general title Indoor air :
⎯ Part 1: General aspects of sampling strategy
⎯ Part 2: Sampling strategy for formaldehyde

⎯ Part 3: Determination of formaldehyde and other carbonyl compounds — Active sampling method

⎯ Part 4: Determination of formaldehyde — Diffusive sampling method
⎯ Part 5: Sampling strategy for volatile organic compounds (VOCs)

⎯ Part 6: Determination of volatile organic compounds in indoor and test chamber air by active sampling on

Tenax TA sorbent, thermal desorption and gas chromatography using MS/FID

⎯ Part 7: Sampling strategy for determination of airborne asbestos fibre concentrations

⎯ Part 8: Determination of local mean ages of air in buildings for characterizing ventilation conditions

⎯ Part 9: Determination of the emission of volatile organic compounds from building products and furnishing —

Emission test chamber method

⎯ Part 10: Determination of the emission of volatile organic compounds from building products and

furnishing — Emission test cell method

⎯ Part 11: Determination of the emission of volatile organic compounds from building products and

furnishing — Sampling, storage of samples and preparation of test specimens

⎯ Part 12: Sampling strategy for polychlorinated biphenyls (PCBs), polychlorinated dibenzo-p-dioxins

(PCDDs), polychlorinated dibenzofurans (PCDFs) and polycyclic aromatic hydrocarbons (PAHs)

⎯ Part 13: Determination of total (gas and particle-phase) polychlorinated dioxin-like biphenyls (PCBs) and

polychlorinated dibenzo-p-dioxins/dibenzofurans (PCDDs/PCDFs) — Collection on sorbent-backed filters

iv © ISO 2007 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 16000-8:2007(E)

⎯ Part 14: Determination of total (gas and particle-phase) polychlorinated dioxin-like biphenyls (PCBs) and

polychlorinated dibenzo-p-dioxins/dibenzofurans (PCDDs/PCDFs) — Extraction, clean-up and analysis by

high-resolution gas chromatography/mass spectrometry
⎯ Part 15: Sampling strategy for nitrogen dioxide (NO )
⎯ Part 16: Detection and enumeration of moulds — Sampling by filtration
⎯ Part 17: Detection and enumeration of moulds — Culture-based method

⎯ Part 23: Performance test for evaluating the reduction of formaldehyde concentrations by sorptive

building materials
The following parts are under preparation:
⎯ Part 18: Detection and enumeration of moulds — Sampling of moulds by impaction

⎯ Part 24: Performance test for evaluating the reduction of the concentrations of volatile organic

compounds and carbonyl compounds (except formaldehyde) by sorptive building materials

⎯ Part 25: Determination of the emission of semi-volatile organic compounds by building products —

Micro-chamber method

Furthermore, the two International Standards, ISO 16017-1 on pumped sampling and ISO 16017-2 on

diffusive sampling, focus on volatile organic compound (VOC) measurements.

This corrected version of ISO 16000-8:2007 incorporates the following corrections:

⎯ Equation (D.2) (and the line of text immediately preceding this equation), Equation (D.5) and

Equation (D.11) have been corrected.

⎯ In Clause 2, the reference to the ISO/IEC Guide 98 was changed and footnote 1) was added.

⎯ In 7.1.5, 7.2.5, 7.3.4, C.1.1 and D.1, the reference to ISO/IEC Guide 98:1995 was changed to GUM:1995.

⎯ In B.3, footnote 1) was renumbered as footnote 2).
© ISO 2007 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO 16000-8:2007(E)
Introduction

An adequate air change is of fundamental importance for indoor air quality. Proper ventilation of all buildings is

necessary for the health and comfort of the occupants as well as to protect against damage (e.g. due to

excessive atmospheric humidity). However, the present-day use of tightly sealed windows, for example in

residential and office buildings, can lead to insufficient ventilation. This situation in turn may lead to an

increase in the concentration of substances emitted indoors. Manual ventilation by the occupants or the use of

mechanical ventilation systems is thus required. However, excessive ventilation can lead to discomfort and

increased energy consumption.

Building regulations make provision for ventilation to control moisture and other pollutants. Measurements of

the ventilation conditions allow confirmation of whether these requirements are met in practice. Knowledge of

the ventilation conditions is important in order to be able to analyse the possible causes of poor indoor air

quality. Thus, ideally, sampling and analysis of contaminants indoors should be accompanied by ventilation

measurement, making it possible to estimate the strengths of contaminant sources.

This part of ISO 16000 describes the use of single tracer gas for determining the age of air in a building which

is naturally or mechanically ventilated. The age of air is an important factor in assessing the adequacy of

ventilation. The concept local mean age of air (and its inverse the local effective air change rate) is used for

assessing the ventilation conditions in the building. The mean age of air in a building zone indicates the

average time the air in a zone has spent in the building accumulating contaminants. It is closely connected to

the time it takes to exchange the air within a zone. The concentration of a contaminant released from

continuous indoor sources increases with the length of time the air has spent indoors. The lower the age of air

in a space, the lower the concentration. Normally, the ventilation air is supplied at selected parts of the

building envelope, and seeks its way to the different building spaces. Thus, before the ventilation air reaches a

specific room, a significant portion of the air may have spent time in other rooms, accumulating contaminants.

Therefore, the local mean age of air, which describes how long the air in a particular space has spent indoors,

needs to be considered in relation to air quality.

The purpose of this part of ISO 16000 is to describe the use of ventilation measurement techniques suitable

for air quality studies. For this purpose, the ventilation rate and the air distribution patterns in the building

should be measured for representative conditions of interest.

ISO 12569 describes the use of tracer gas dilution for determining the air change rate in a single zone. The

procedures for tracer gas dilution include concentration decay, constant injection and constant concentration.

ISO 12569 should be used when studying the thermal performance of buildings.

In the case where a zone exchanges air only with the outside (i.e. has no inflow of air from other parts of the

building), the tracer gas concentration within the zone can be characterized with a single value, and the

ventilation conditions are constant over the measurement period; this part of ISO 16000 and ISO 12569

should, in theory, provide identical results. The methods described in this part of ISO 16000 can, however, be

used beyond these conditions, for example in spaces with several zones, which may exchange air with each

other, and in cases where the ventilation conditions vary during the measurement period.

vi © ISO 2007 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 16000-8:2007(E)
Indoor air —
Part 8:
Determination of local mean ages of air in buildings
for characterizing ventilation conditions
1 Scope

This part of ISO 16000 describes the use of single tracer gas for determining the local mean age of air as an

indicator of ventilation conditions in a building. The procedures include concentration decay and

homogeneous constant emission.
The described methods are intended for air quality studies and can be used for
a) checking whether the building ventilation requirements are met,

b) estimating the adequacy of ventilation in buildings with indoor air quality problems, and

c) characterizing the strength and distribution of indoor emission sources.

In principle, the methods can be applied to all indoor spaces, regardless of the type of ventilation used and the

state of mixing of air between zones. The prevailing ventilation conditions need not be disturbed by the

measurement.

This part of ISO 16000 does not address the details of the analytical methods for tracer gases. The availability

of such analysis services should be checked before planning actual field measurements.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 12569, Thermal performance of buildings — Determination of air change in buildings — Tracer gas

dilution method

Guide to the expression of uncertainty in measurement (GUM), BIPM, IEC, IFCC, ISO, IUPAC, IUPAP, OIML,

1993
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 12569 and the following apply.

1) Corrected and reprinted in 1995. To be republished as ISO/IEC Guide 98-3.
© ISO 2007 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO 16000-8:2007(E)
3.1
homogeneous emission

strategy to inject tracer gas in such a way that the injection rate per unit volume is equal in all parts of

ventilated system
3.2
local mean age of air

ventilation parameter, which describes the length of time the air at a specific location has on average spent

within the building
NOTE See A.1 for a further explanation of this term.
3.3
ventilated system

the building space, which can exchange air directly or indirectly with the space of interest

NOTE At the border of the ventilated system, there is no other inflow of air than outdoor air.

3.4
zone

space within the building where air mixing is sufficient to create an essentially uniform concentration of a

tracer gas released anywhere within that space

NOTE 1 To be considered a zone, the space should not exhibit concentration differences larger than 20 % of the mean.

NOTE 2 A zone can be part of a room, an entire room or even include several rooms.

3.5
zone mean age of air

ventilation parameter, which describes the length of time the air in a zone has on average spent within the

building

NOTE In the case of complete mixing within a zone, this is equal to the local mean age of air at any point within the

zone.

4 Principles of tracer gas measurements for determining of ventilation conditions

4.1 General principles

Tracer gas techniques for measuring ventilation rely on the possibility of differentiating between air that is

already within a space of interest and new air coming into that space. This means that it shall be able either to

mark the air already in the space and follow how the marked air is replaced by new ventilation air or,

alternatively, to mark the incoming air and measure how this marked ventilation air is distributed through the

space.

It should be observed that air flowing into a specified zone from other zones that have a lower or higher

concentration of tracer gas would influence the result of the measurement. Therefore, it is important to keep to

the prescribed boundary conditions that are different for different tracer gas methods.

If the ventilation condition is to be determined in a zone, which has no inflow of air from other parts of the

building (single isolated zone), it is not necessary to inject tracer gas or mark the air in other parts of the

building in order to obtain correct results. However, if the zone can exchange air with other parts of the

building, which is usually the case, special strategies for tracer gas injection in those connected zones shall be

followed in order to avoid ambiguous results. It should also be noted that the closing of doors to a room does

not necessarily lead to zero inflow of air from other parts of the building. Such means of restricting a normally

occurring airflow will also change the ventilation of a room from that which would otherwise prevail.

2 © ISO 2007 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 16000-8:2007(E)
4.2 Selected tracer gas methods
4.2.1 General

This part of ISO 16000 describes the strategies for tracer gas injection and measurement in spaces that

cannot be regarded as single isolated zones. ISO 12569 presents the tracer gas dilution methods for spaces

that can be characterized as a single zone. If the ventilation conditions are constant over the measurement

period, and the space of interest can be regarded as a single isolated zone, the methods presented in this part

of ISO 16000 and ISO 12569 are, in theory, identical. Under these conditions, the local mean age of air would

be the same as the inverse of the air change rate determined using ISO 12569.
4.2.2 Decay method

The principle of the decay method is to mark the air in the ventilated system with tracer gas and determine the

rate at which the marked air is replaced with unmarked air.

The zone to be measured and all other zones in the building with which the zone of interest can exchange air

directly or indirectly shall be marked with a common initial tracer gas concentration. Such a strategy will

prevent air coming from other parts of the building from being regarded as “clean ventilation air” to a greater

extent than its actual delivered ventilation power.

The concentration history is recorded as a function of time. The local mean age of air is obtained from the

quotient of the integral of the concentration versus time and the initial concentration.

The decay method can generally be used without problems up to air change rate n = 10 h .

4.2.3 Active homogeneous emission method

In the active homogeneous emission method, tracer gas is fed at measured constant rates into the zones by a

suitable adjustable flow injection device. The injection rates shall be proportional to the zone volumes. The

steady state tracer gas concentration of room air is measured using a suitable gas analyser. The local mean

age of air is obtained from the quotient of the steady state concentration and the injection rate per unit volume.

The zone to be measured and all other zones in the building with which the pertinent zone can exchange air

directly or indirectly shall be equipped with constant homogenous emission of tracer gas.

4.2.4 Passive homogeneous emission method

In the passive homogeneous emission method, tracer gas is emitted at known constant rates into the zones

using diffusion sources. The emission rates shall be proportional to the zone volumes. The steady state tracer

gas concentration of room air is measured by collecting an integrating sample in a sorbent tube (actively using

an air sampling pump or passively using diffusion sampling) and analysing this sample afterwards in an

especially equipped laboratory. The local mean age of air is obtained from the quotient of the steady state

concentration and the emission rate per unit volume.

The zone to be measured and all other zones in the building with which the zone of interest can exchange air

directly or indirectly shall be equipped with constant homogenous emission of tracer gas.

The use of this method requires a special analysis service able to analyse the sample from the sorbent tube in

order to determine the amount of the tracer gas in the sample.
5 Measurement planning
5.1 General

Before measurement of the local mean ages of air in a building space, the purpose of the measurement shall

be clearly defined. Also, knowledge of the type of building and the particular characteristics of that part of the

© ISO 2007 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO 16000-8:2007(E)

building that is to be investigated are essential for the choice of tracer gas technique and the detailed planning

of the test.

The ventilation rate and the air distribution patterns in the building should be measured at representative

conditions of interest. These conditions should not be disturbed by the measurement, unless it is the purpose

of experiment to test the effect of different conditions, of for example door opening, window opening, etc.

The homogenous emission method using sampling on adsorbent tubes is especially suitable for determining

the ventilation conditions in the context of air quality studies. Depending on the requirement, short-term

(pumped sampling of a few litres of air) or long-term measurements (passive sampling during days to several

weeks) can be carried out. In the investigation of indoor air quality (IAQ) problems, the ventilation

measurements usually accompany the actual measurement of pollutant. An advantage of this measurement

method is the possibility to simultaneously determine the local mean ages of air and the pollutant

concentration.

In determination of “air change” (“airflow rate” or “air change rate”), for example using the methods described

in ISO 12569, only the total airflow rate to the ventilated system is of concern. Such measurements are

therefore restricted to buildings or other enclosures that can be treated as a single zone. In those methods, it

shall therefore be ensured that there is complete mixing of air between all spaces within the ventilated system

during the measurement.
5.2 Identification of the ventilated system

In planning the test, the “ventilated system” to which the space of interest belongs shall first be identified,

because all spaces within the ventilated system shall be tagged with tracer gas. The ventilated system is

defined as the building space, which can exchange air directly or indirectly with the space of interest. At the

border of the ventilated system, there shall not be any inflow of air other than outdoor air. Thus, a part of a

building should only be considered a ventilated system if it has negligible inflow of air from other parts of the

building (for example via doorways, air leakage or return air ducts). The location of pollutant sources should

also be taken into account to ensure that polluted air is not misinterpreted as outdoor air. In practice, this

means, for example that

⎯ for a single family house, all rooms including the cellar (unless there is an airtight door) should be

included in the ventilated system, and

⎯ for a flat in an apartment building, all rooms in the studied apartment (and in some cases also the

staircase) should be included in the ventilated system.
5.3 Identification of zones

A zone is a space within the ventilated system where it can be assumed that the air mixing is sufficient to

ensure a uniform concentration of air tracer gas. Within the ventilated system, there may be several spaces

that can be regarded as zones. All such zones should be identified and their volumes measured. The zone-

volumes are needed in order to calculate the amount of tracer gas to be injected in the different zones. Small

closed spaces with only extract air (e.g. bathrooms), or without any supply of outdoor air (e.g. closets) do not

need any tracer gas injection. The volume of small closed spaces, which may receive some supply of outside

air should be added to the volume of any connected zone. Large rooms and long corridors may be subdivided

into two or more zones.
5.4 Choice of measurement method
5.4.1 General

The choice of the measurement method depends on the type and size of the building, the intended

measurement time, the purpose of the measurement, and the availability of equipment and analysis service.

4 © ISO 2007 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 16000-8:2007(E)
5.4.2 Type of building

5.4.2.1 Simple buildings (e.g. small to moderate-sized dwellings that can be characterized with one

to four zones)

When the number of zones is small, it is relatively easy to achieve an initial homogeneous tracer gas

concentration within the whole ventilated system. For short-term measurements, the decay method is

therefore best suited.

5.4.2.2 Complex buildings (e.g. office buildings and other structures in which the ventilated system

comprises several zones)

In this case, it may be very difficult to achieve the necessary condition for the decay method of equal initial

tracer gas concentration in all zones. The homogeneous emission method may therefore be better suited than

the decay method in this case.
5.4.3 Measurement period
5.4.3.1 Short-term conditions of interest

The decay method is the most practical method to monitor short-term ventilation conditions in simple buildings,

while the passive homogeneous emission method with pumped sampling is better suited for complex buildings.

5.4.3.2 Long-term time variation of interest

Though repeated use of the decay method is feasible in buildings with few zones, the most appropriate choice

for long-term measurement in all types of buildings is the homogeneous emission method. The purpose may

be to monitor the change of ventilation conditions as a function of time, for example in order to investigate the

effect of weather conditions or to test the effect of different ventilation strategies. This requires active air

sampling using continuous monitoring of tracer gas concentration or repeated sampling using syringes, bags,

evacuated gas tubes or pumped collec
...
