SIST EN 300 392-12-13 V1.2.1:2012 is the Slovenian adoption of the ETSI European Standard for Terrestrial Trunked Radio (TETRA) Voice plus Data (V+D) supplementary services stage 3 for Call Completion to Busy Subscriber (CCBS). It specifies the network protocols, PDU coding, state behavior and signaling procedures that let a calling user request completion of a failed call when the busy destination later becomes free. The document is written for Mobile Station (MS) implementations, Switching and Management Infrastructure (SwMI) behavior, and interworking in TETRA V+D networks.
What does SIST EN 300 392-12-13 V1.2.1:2012 specify?
SIST EN 300 392-12-13 V1.2.1:2012 specifies the stage 3 description of SS-CCBS for TETRA V+D. In practice, that means it defines how the service is signaled between the served user MS and the network, and how the originating, terminating and group-controlling SwMI elements behave.
The scope applies to Voice plus Data individual calls and group calls. It is not applicable to Packet Mode of Operation or to DMO, and it excludes Man-Machine Interface (MMI) and charging principles.
The document is organized into:
- scope and references
- definitions and abbreviations
- service description over the TNSS-SAP
- signaling protocol support
- state definitions and signaling procedures
- interworking with public ISDN
- interactions with other supplementary services and ANFs
- timers
- Annex A SDL representation of procedures
- Annex B bibliography
- Annex C change requests
| Annex | What it covers |
|---|---|
| Annex A | SDL representation of the originating SwMI, terminating SwMI, group controlling SwMI and CCBS User A MS behavior |
| Annex B | Bibliography |
| Annex C | Change requests since edition 1 |
What are the key requirements of SIST EN 300 392-12-13 V1.2.1:2012?
SIST EN 300 392-12-13 V1.2.1:2012 defines CCBS as a service where User A MS can ask the network to watch a busy user B and recall User A MS when user B is free. The practical point is that the standard fixes both the signaling exchange and the network state handling needed to complete the original call later without starting over.
Service behavior and service access
Clause 4 states that SS-CCBS is applicable to all basic circuit mode services defined in EN 300 392-2. At the TNSS-SAP, the served user MS can use primitives such as REQUEST, RECALL, CANCEL, LIST-CCBS, FAILED, CALL-INFORMATION-RETENTION, CALL-INFORMATION-RELEASE and USER-B-FREE. This matters because MS software needs to expose the right service primitives to the standardized part of the terminal, even if the user interface is vendor-specific.
Call information retention
Clause 4 and clause 5 define a call information retention procedure. The originating SwMI retains the TETRA Call Identifier, basic call information, call priority, addresses and the list of invoked supplementary services, and starts retention timer T4. This is the mechanism that lets the network reconnect the later CCBS call to the original failed call, so implementers must preserve the right call context for the duration of the service.
Invocation, recall and completion
Clause 5 describes the CCBS invocation and recall flow. User A MS sends a CCBS REQUEST, the originating SwMI monitors user B through the terminating SwMI, assigns a CCBSI (CCBS Identifier) and returns a REQUEST ACK. When user B becomes free, the originating SwMI sends a RECALL to User A MS, and User A MS can accept with RECALL-ACCEPTED to trigger call setup. In practice, this is the core end-to-end behavior the network and terminal must implement.
Busy handling, suspension and cancellation
Clause 5 includes the cases where User A MS is busy or user B becomes busy again. The standard defines USER-B-FREE indications, CCBS SUSPEND and RESUME procedures, user-initiated CANCEL, and network-initiated cancellation with CANCEL ACK and CANCELLED indications. This matters because CCBS can remain valid while one side is busy, but the service must also be removable cleanly when the user cancels or timers expire.
Lists of pending CCBS requests
Clause 5 defines LIST requests and LIST ACK responses. The list can report the number of pending CCBS requests, the CCBSI values, or detailed entries including called party identity and basic service. This is useful for terminals and management tools that need to show or audit outstanding callbacks rather than just waiting for a recall.
PDU and information element coding
Clause 5.2 defines the PDUs and the coding of information elements such as Basic Service Information, Called party type identifier, Calling party type identifier, Cancellation Cause, Cancellation Result, CCBS-PDU type, Reject Cause, Request Maintained, Retain Capability and TETRA Call Identifier. The standard also defines the CCBSI value ranges and special values for canceling one request or all requests. This is the part a protocol implementation must follow exactly, because interoperability depends on the same coding on both sides.
State machines, interworking and mobility
Clause 5.3 defines states for User A MS, originating SwMI, group controlling SwMI, terminating SwMI and User B. Clause 5.5 covers interworking with public ISDN, and clause 5.6 covers interactions with SS-CLIR, SS-CFU, SS-CFB, SS-CFNR, SS-LSC, SS-CAD, SS-AS, SS-PC and ANF-ISIMM. Clause 5.6.12 also defines migration-related profile information for User A MS and User B. In practice, this tells implementers how CCBS behaves across network boundaries and during mobility.
Timer control
Clause 5.7 defines timer T5 for LIST requests and says it runs between 20 seconds and 60 seconds. Other timers used by the procedures include T1, T2, T3, T4 and T6, with their behavior defined in the procedures and migration information. Timers are important because many failures, releases and retries in CCBS are driven by timer expiry rather than by explicit user action.
What terms does SIST EN 300 392-12-13 V1.2.1:2012 define?
- Additional Network Feature (ANF) - A network capability provided by the SwMI beyond the basic service, but not directly to the user.
- Switching and Management Infrastructure (SwMI) - The TETRA network equipment excluding subscriber terminals.
- Mobile Station (MS) - The subscriber terminal used by the calling or connected user.
- User A MS - The specific user MS that originated the call and requested CCBS.
- User B - The user who was initially addressed in the original call setup.
- CCBSI - The CCBS Identifier used to reference a specific CCBS invocation and its retained call information.
- recall timer - The user A response waiting timer that limits how long the network waits for User A MS to accept the CCBS recall.
- retention timer - The originating call information timer that limits how long retained call information is kept after the failed call.
Who uses SIST EN 300 392-12-13 V1.2.1:2012?
SIST EN 300 392-12-13 V1.2.1:2012 is used by TETRA network vendors, terminal vendors, system integrators and conformance engineers who implement or test CCBS behavior. It is also relevant to operators and quality teams that need to verify how a network stores call information, signals recalls, handles busy conditions and interacts with other supplementary services.
In practice, the document supports:
- MS protocol implementation
- SwMI call control and supplementary service logic
- gateway and interworking design
- protocol conformance and interoperability testing
- mobility handling for CCBS-related profile transfer
What changed in SIST EN 300 392-12-13 V1.2.1:2012 from the previous edition?
Annex C states that this document includes change requests since edition 1. The listed changes include correction of the CALL-INFORMATION-RELEASE PDU type and editorial modifications.
Which standards are used with SIST EN 300 392-12-13 V1.2.1:2012?
The normative references define the surrounding TETRA and signaling framework that CCBS relies on:
- ETSI EN 300 392-1 - general network design for TETRA V+D
- ETSI EN 300 392-2 - air interface and basic call procedures used by the CCBS signaling flow
- ETSI EN 300 392-3-1 - general ISI design
- ETSI EN 300 392-3-2 - ANF-ISIIC, used for individual-call interworking behavior
- ETSI EN 300 392-3-3 - ANF-ISIGC, used for group-call interworking behavior
- ETSI EN 300 392-3-5 - ANF-ISIMM, used for mobility management interactions
- ETSI EN 300 392-9 - general requirements for supplementary services
- ETSI ETS 300 392-10-13 - stage 1 description of CCBS
- ITU-T Recommendation X.217 - ACSE service definition
- ITU-T Recommendation X.219 - remote operations model, notation and service definition
- ITU-T Recommendation X.229 - remote operations protocol specification
The informative references provide background and related service models:
- ITU-T Recommendation I.130 - stage-based service characterization method
- ITU-T Recommendation Z.100 - SDL notation used in Annex A
- ECMA 185 - call completion supplementary service model
- ITU-T Recommendation I.221 - common service characteristics, including busy conditions
- ECMA-186 - QSIG call completion supplementary services
What does the SIST EN 300 392-12-13 V1.2.1:2012 document contain?
The document contains the SS-CCBS service description, the TNSS-SAP primitive set, and the protocol rules for PDUs such as REQUEST, MONITOR, RECALL, CANCEL, LIST and their acknowledgements. It also contains coding definitions for information elements, including basic service information, call identifiers, reject causes, cancellation causes and list formats.
It further provides state definitions for the served user, originating network, terminating network and group call cases, plus the operational procedures for normal and exceptional behavior. Annex A gives SDL diagrams for the originating SwMI, terminating SwMI, group controlling SwMI and CCBS User A MS, which are useful for implementation design and protocol verification. Annex C records the documented change requests that led to this edition.
Buy Documents
en_3003921213v010200o - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 12: Supplementary services stage 3; Sub-part 13: Call Completion to Busy Subscriber (CCBS)
en_3003921213v010201p - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 12: Supplementary services stage 3; Sub-part 13: Call Completion to Busy Subscriber (CCBS)
Get Certified
Connect with accredited certification bodies for this standard
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
LNE (Laboratoire National de Métrologie et d'Essais)
French national laboratory for metrology and testing.
Sponsored listings
Frequently Asked Questions
SIST EN 300 392-12-13 V1.2.1:2012 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Terrestrial Trunked Radio (TETRA) - Voice plus Data (V+D) - Part 12: Supplementary services stage 3 - Sub-part 13: Call Completion to Busy Subscriber (CCBS)". This standard covers: REN/TETRA-03213
REN/TETRA-03213
SIST EN 300 392-12-13 V1.2.1:2012 is classified under the following ICS (International Classification for Standards) categories: 33.070.10 - Terrestrial Trunked Radio (TETRA). The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 300 392-12-13 V1.2.1:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

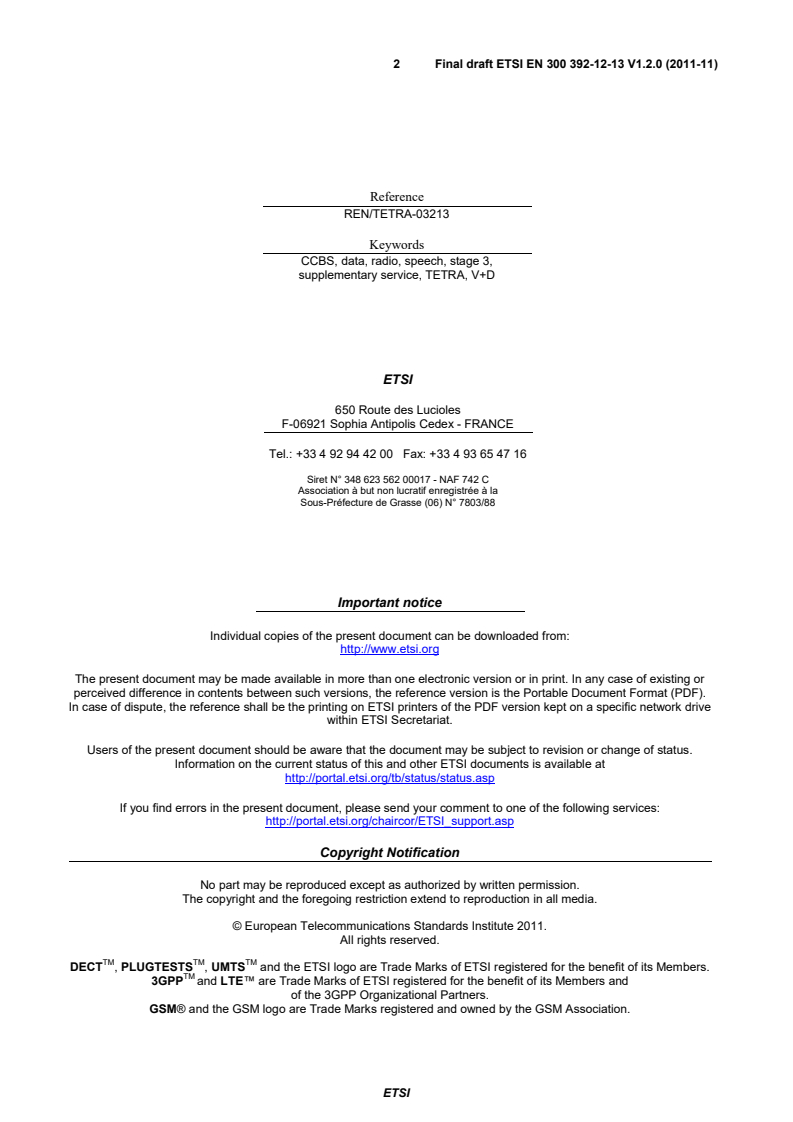

Final draft ETSI EN 300 392-12-13 V1.2.0 (2011-11)
