SIST EN 15333-1:2008
Respiratory equipment - Open-circuit umbilical supplied compressed gas diving apparatus - Part 1: Demand apparatus
Respiratory equipment - Open-circuit umbilical supplied compressed gas diving apparatus - Part 1: Demand apparatus
This European Standard specifies minimum requirements for demand surface supplied and demand surface oriented diving apparatus to ensure a minimum level of safe operation of the apparatus. It applies to the following: - depths between 0 m and 50 m for apparatus using air, oxygen or oxygen in nitrogen mixtures; - depths between 0 m and 60 m for apparatus using oxygen, oxygen and helium or oxygen, nitrogen and helium gas mixtures; - water temperatures between 4 °C and 34 °C or outside these temperatures as specified by the manufacturer. The requirements of this European Standard are intended to take account of the interaction between the wearer, the apparatus, and where possible the environment in which the apparatus is likely to be used. This European Standard does not cover saturation diving systems, mini bell systems or apparatus used for oxygen decompression only.
Atemgeräte - Schlauchversorgte Leichttauchgeräte mit Druckgas - Teil 1: Lungenautomatisch gesteuerte Geräte
Diese Europäische Norm legt Mindestanforderungen für schlauchversorgte, lungenautomatisch gesteuerte Leichttauchgeräte mit Druckluft fest, um ein Mindestmaß an Sicherheit für den Betrieb des Gerätes sicher¬zustellen. Sie gilt für Folgendes:
Tiefen zwischen 0 m und 50 m für Geräte mit Luft, Sauerstoff oder Sauerstoff/Stickstoff-Gemischen;
Tiefen zwischen 0 m und 60 m für Geräte mit Sauerstoff, Sauerstoff/Helium-Gemischen oder Sauerstoff/Stickstoff/Helium-Gemischen;
Wassertemperaturen zwischen 4 °C und 34 °C oder außerhalb dieser Temperaturen, wie vom Hersteller festgelegt.
Die Anforderungen dieser Europäischen Norm sind dafür vorgesehen, die Interaktion zwischen Gerätträger, Gerät und, wo möglich, der Umgebung, in der das Gerät wahrscheinlich benutzt werden soll, zu berück¬sichtigen.
Diese Europäische Norm gilt nicht für Sättigungstauchsysteme, Taucherglockensysteme und Geräte, die nur zur Sauerstoffdekompression benutzt werden.
Equipements respiratoires - Appareil de plongée en narguilé à gaz comprimé et à circuit ouvert - Partie 1: Appareil à la demande
La présente norme européenne spécifie les exigences minimales qui s’appliquent aux appareils autonomes de plongée à la demande et aux appareils de plongée à la demande alimentés à partir de la surface, dans le but de garantir un niveau minimal de sécurité en fonctionnement de l’appareil. Elle s’applique :
à des profondeurs situées entre 0 m et 50 m pour les appareils utilisant de l’air, de l’oxygène ou de l’oxygène dans les mélanges à base d’azote ;
à des profondeurs situées entre 0 m et 60 m pour les appareils utilisant de l’oxygène, de l’oxygène et de l’hélium ou des mélanges d’oxygène, d’azote et d’hélium ;
à des températures d’eau comprises entre 4 °C et 34 °C ou en dehors de cette plage de températures comme spécifié par le fabricant.
Les exigences de la présente norme européenne sont conçues pour tenir compte de l’interaction entre l’utilisateur, l’appareil, et, dans la mesure du possible, l’environnement dans lequel l’appareil est susceptible d’être utilisé.
La présente norme européenne ne couvre pas les systèmes de plongée en saturation, ni les systèmes de mini-ceinture, ni les appareils utilisés uniquement pour la décompression à l’oxygène.
Oprema za dihanje - Potapljaški dihalni aparat z odprtim krogom in sredinskim dovodom stisnjenega plina - 1. del: Zahteve za aparat
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema za dihanje - Potapljaški dihalni aparat z odprtim krogom in sredinskim dovodom stisnjenega plina - 1. del: Zahteve za aparatAtemgeräte - Schlauchversorgte Leichttauchgeräte mit Druckgas - Teil 1: Lungenautomatisch gesteuerte GeräteEquipements respiratoires - Appareil de plongée en narguilé à gaz comprimé et à circuit ouvert - Partie 1: Appareil à la demandeRespiratory equipment - Open-circuit umbilical supplied compressed gas diving apparatus - Part 1: Demand apparatus13.340.30Varovalne dihalne napraveRespiratory protective devicesICS:Ta slovenski standard je istoveten z:EN 15333-1:2008SIST EN 15333-1:2008en,de01-maj-2008SIST EN 15333-1:2008SLOVENSKI
STANDARD
SIST EN 15333-1:2008
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15333-1January 2008ICS 11.040.10 English VersionRespiratory equipment - Open-circuit umbilical suppliedcompressed gas diving apparatus - Part 1: Demand apparatusEquipements respiratoires - Appareil de plongée ennarguilé à gaz comprimé et à circuit ouvert - Partie 1:Appareil à la demandeAtemgeräte - Schlauchversorgte Leichttauchgeräte mitDruckgas - Teil 1: Lungenautomatisch gesteuerte GeräteThis European Standard was approved by CEN on 3 November 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15333-1:2008: ESIST EN 15333-1:2008

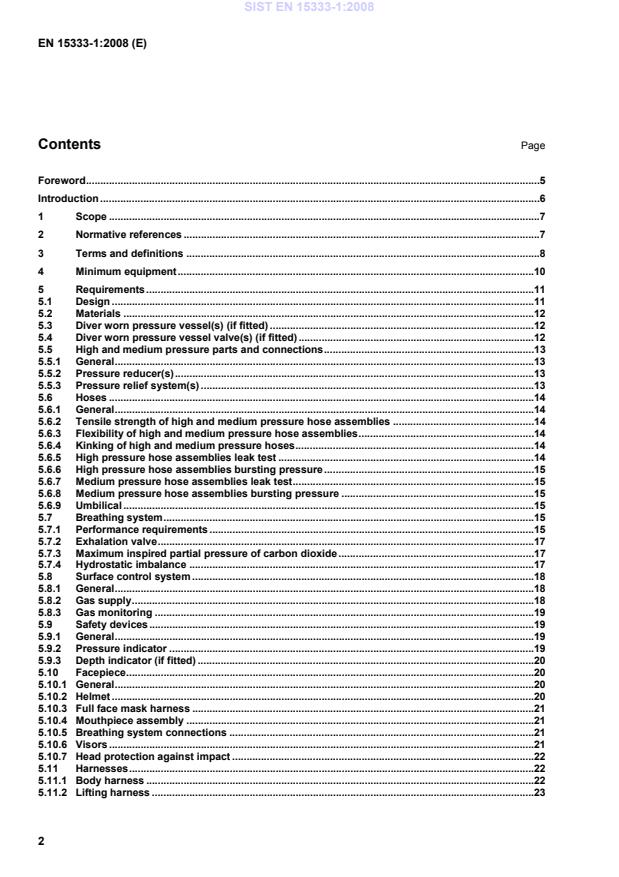

EN 15333-1:2008 (E) 2 Contents Page Foreword.5 Introduction.6 1 Scope.7 2 Normative references.7 3 Terms and definitions.8 4 Minimum equipment.10 5 Requirements.11 5.1 Design.11 5.2 Materials.12 5.3 Diver worn pressure vessel(s) (if fitted).12 5.4 Diver worn pressure vessel valve(s) (if fitted).12 5.5 High and medium pressure parts and connections.13 5.5.1 General.13 5.5.2 Pressure reducer(s).13 5.5.3 Pressure relief system(s).13 5.6 Hoses.14 5.6.1 General.14 5.6.2 Tensile strength of high and medium pressure hose assemblies.14 5.6.3 Flexibility of high and medium pressure hose assemblies.14 5.6.4 Kinking of high and medium pressure hoses.14 5.6.5 High pressure hose assemblies leak test.14 5.6.6 High pressure hose assemblies bursting pressure.15 5.6.7 Medium pressure hose assemblies leak test.15 5.6.8 Medium pressure hose assemblies bursting pressure.15 5.6.9 Umbilical.15 5.7 Breathing system.15 5.7.1 Performance requirements.15 5.7.2 Exhalation valve.17 5.7.3 Maximum inspired partial pressure of carbon dioxide.17 5.7.4 Hydrostatic imbalance.17 5.8 Surface control system.18 5.8.1 General.18 5.8.2 Gas supply.18 5.8.3 Gas monitoring.19 5.9 Safety devices.19 5.9.1 General.19 5.9.2 Pressure indicator.19 5.9.3 Depth indicator (if fitted).20 5.10 Facepiece.20 5.10.1 General.20 5.10.2 Helmet.20 5.10.3 Full face mask harness.21 5.10.4 Mouthpiece assembly.21 5.10.5 Breathing system connections.21 5.10.6 Visors.21 5.10.7 Head protection against impact.22 5.11 Harnesses.22 5.11.1 Body harness.22 5.11.2 Lifting harness.23 SIST EN 15333-1:2008
EN 15333-1:2008 (E) 3 5.12 Auxiliary gas supply system (bail out).23 5.13 Resistance to temperature.23 5.13.1 Storage.23 5.13.2 Leakage.23 5.14 Connectors.23 5.15 Cleaning and disinfecting.23 5.16 Pressure resistance of casings and monitors.24 5.17 Oxygen compatibility.24 5.18 Functional safety of electronical systems.24 5.19 Voice communications.24 5.19.1 General.24 5.19.2 Communication recording.24 5.20 Noise.24 5.21 Practical performance.25 6 Testing.25 6.1 General.25 6.1.1 Procedure.25 6.1.2 Nominal values and tolerances.27 6.1.3 Test equipment and test procedures.27 6.2 Visual Inspection.27 6.3 Pressure test of high and medium pressure parts.27 6.4 Hoses and umbilical assemblies.27 6.4.1 General.27 6.4.2 Tensile force of high and medium pressure hose assemblies.28 6.4.3 Flexibility of high and medium pressure hoses.28 6.4.4 Kinking of high and medium pressure hoses.28 6.4.5 Leak test of high and medium pressure hose assemblies.28 6.4.6 Umbilical buoyancy.28 6.4.7 Umbilical life line.28 6.5 Breathing system.28 6.5.1 Configuration.28 6.5.2 General test conditions.28 6.5.3 Breathing performance.29 6.5.4 Upstream demand valve.29 6.5.5 Downstream demand valve.29 6.5.6 Volume weighted average inspired carbon dioxide.29 6.5.7 Exhalation valve.29 6.5.8 Hydrostatic imbalance.30 6.6 Safety devices.30 6.6.1 Pressure indicator.30 6.6.2 Depth indicator(s).30 6.6.3 Pressure relief system(s).30 6.6.4 Oxygen monitor.30 6.7 Facepiece.30 6.7.1 Mechanical strength of the connections between the facepiece and the connector.30 6.7.2 Full face mask harness.31 6.7.3 Impact resistance of the visor(s).31 6.7.4 Head protection.31 6.7.5 Noise assessment.31 6.7.6 Communications modified rhyme test.32 6.7.7 Field of vision.32 6.8 Lifting harness.33 6.9 Sea water resistance.33 6.10 Resistance to temperature.33 6.10.1 Testing at – 20 °C and 50 °C.33 6.10.2 Testing after storage at - 30 °C and + 70 °C.33 6.10.3 Cold water testing.33 6.11 Cleaning and disinfection.34 6.12 Oxygen pressure surge test.34 SIST EN 15333-1:2008
EN 15333-1:2008 (E) 4 6.13 Practical performance.35 6.13.1 General.35 6.13.2 Test subjects.35 6.13.3 Basic testing.35 6.13.4 Functional testing when diving.36 6.13.5 Report.36 6.14 Pressure vessel valve.36 6.15 Mouthpiece.37 6.16 Casings and monitors.37 7 Marking.37 8 Information supplied by manufacturer.37 Annex A (informative)
Artificial sea water.53 Annex B (informative)
A typical Modified Rhyme Test word list.54 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 89/686/EEC (PPE).55 Bibliography.57
SIST EN 15333-1:2008
EN 15333-1:2008 (E) 5 Foreword This document (EN 15333-1:2008) has been prepared by Technical Committee CEN/TC 79 “Respiratory protective devices”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by July 2008, and conflicting national standards shall be withdrawn at the latest by July 2008. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 15333-1:2008
EN 15333-1:2008 (E) 6 Introduction A given open-circuit umbilical supplied compressed gas diving apparatus can only be approved when the apparatus or apparatus sub-assemblies satisfy the requirements of the tests specified in this European Standard, and practical performance tests have been carried out successfully on complete apparatus where specified in this European Standard. The production of this European Standard has identified varying methods of surface supply and has separated them into two parts; equipment that supplies demand type facepieces and equipment that supplies free flow type facepieces. SIST EN 15333-1:2008
EN 15333-1:2008 (E) 7 1 Scope This European Standard specifies minimum requirements for demand surface supplied and demand surface oriented diving apparatus to ensure a minimum level of safe operation of the apparatus. It applies to the following: depths between 0 m and 50 m for apparatus using air, oxygen or oxygen in nitrogen mixtures; depths between 0 m and 60 m for apparatus using oxygen, oxygen and helium or oxygen, nitrogen and helium gas mixtures; water temperatures between 4 °C and 34 °C or outside these temperatures as specified by the manufacturer. The requirements of this European Standard are intended to take account of the interaction between the wearer, the apparatus, and where possible the environment in which the apparatus is likely to be used. This European Standard does not cover saturation diving systems, mini bell systems or apparatus used for oxygen decompression only. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 132:1998, Respiratory protective devices — Definitions of terms and pictograms EN 134:1998, Respiratory protective devices — Nomenclature of components EN 144-1, Respiratory protective devices - Gas cylinder valves — Part 1: Thread connections for insert connector EN 144-3, Respiratory protective devices — Gas cylinder valves — Part 3: Outlet connections for diving gases Nitrox and oxygen EN 397, Industrial safety helmets EN 812 Industrial bump caps EN 12021, Respiratory protective devices — Compressed air for breathing apparatus EN 14593-1:2005, Respiratory protective devices — Compressed air line breathing apparatus with demand valve — Part 1: Apparatus with a full face mask — Requirements, testing marking EN ISO 12209-1, Gas cylinders - Outlet connections for gas cylinder valves for compressed breathable air - Part 1: Yoke type connections (ISO 12209-1:2000) EN ISO 12209-2, Gas cylinders - Outlet connections for gas cylinder valves for compressed breathable air - Part 2: Threaded connections (ISO 12209-2:2000) EN ISO 12209-3, Gas cylinders - Outlet connections for gas cylinder valves for compressed breathable air - Part 3: Adaptor for 230 bar valves (ISO 12209-3:2000) EN 61508-1, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 1: General requirements (IEC 61508-1:1998 + Corrigendum 1999) SIST EN 15333-1:2008
EN 15333-1:2008 (E) 8 EN 61508-2, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 2: Requirements for electrical/electronic/programmable electronic safety- related systems (IEC 61508-2:2000) EN 61508-3, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 3: Software requirements (IEC 61508-3:1998 + Corrigendum 1999) EN 61508-4, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 4: Definitions and abbreviations (IEC 61508-4:1998 + Corrigendum 1999) EN 61508-5, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 5: Examples of methods for the determination of safety integrity levels (IEC 61508-5:1998 + Corrigendum 1999) EN 61508-6, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 6: Guidelines on the application of IEC 61508-2 and IEC 61508-3 (IEC 61508-6:2000) EN 61508-7, Functional safety of electrical/electronic/programmable electronic safety-related systems - Part 7: Overview of techniques and measures (IEC 61508-7:2000) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 132:1998 and the nomenclature given in EN 134:1998 apply together with the following: 3.1
auxiliary gas supply system (bail out) auxiliary and independent gas supply or breathing apparatus for use in case of a failure of the umbilical supply 3.2
body harness component of the system to attach the breathing apparatus, umbilical and any pressure vessels to the body of the diver 3.3
breathing frequency number of breathing cycles per minute 3.4
displaced (tidal) volume volume of respirable gas displaced by a breathing simulator during one half cycle (inhalation or exhalation) measured in litres 3.5
full face mask facepiece covering mouth, nose, eyes and chin which may be fitted with either a mouthpiece or an inner mask 3.6
helmet facepiece covering the whole head, which may be fitted with either a mouthpiece or an inner mask 3.7
high pressure any pressure greater than medium pressure SIST EN 15333-1:2008
EN 15333-1:2008 (E) 9 3.8
hydrostatic imbalance difference at both end exhalation no flow and end inhalation no flow between the pressure within the facepiece (see Figure 1) and that at the reference point, which could be either the suprasternal notch or the lung centroid of the diver (see Figure 2) 3.9
life line component of the system which connects the diver to the surface and may be used to help a diver in distress 3.10
lifting harness component of the system attached to the diver for lifting the diver from the water 3.11
low pressure pressure within the facepiece, i.e. approximately ambient pressure 3.12
medium pressure internal pressure between a pressure reducer and a demand valve NOTE This is sometimes referred to as intermediate pressure. 3.13
neck connector device that provides a sealed connection between the helmet and a wearers drysuit. It is normally worn with some form of retaining device that prevents the helmet from floating off the wearers head 3.14
neckdam device that connects to the helmet and seals at the wearers neck. It is normally worn with some form of retaining device that prevents the helmet from floating off the wearers head 3.15
pressure volume diagram diagram generated during one breathing cycle by plotting the respiratory pressure against the displaced volume (see Figure 1) 3.16
rated working pressure maximum allowable pressure for which the apparatus is designed 3.17
respiratory minute volume (RMV) product of the tidal volume and breathing frequency measured in litres per minute 3.18
respiratory pressure differential pressure at the mouth relative to the no flow pressures at the mouth at the end of inhalation and exhalation (see Figure 1) 3.19
surface control system system that controls the supply from (a) gas source(s) to the diver(s) via the umbilical. It may also have a separate independent controlled supply for a stand by diver SIST EN 15333-1:2008
EN 15333-1:2008 (E) 10 3.20
surface supplied diving apparatus (demand) diving apparatus that has gas supplied from the
...
