SIST EN 300 392-10-6 V1.4.1:2006

• Abstract:

  Addition of SS-CAD and SS-PPC interaction options.

• Status: Published
• Publication Date: 31-Oct-2006
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Nov-2006
• Due Date: 01-Nov-2006
• Completion Date: 01-Nov-2006
• Mandate: T-172-1A
• Ref Project: ETSI EN 300 392-10-6 V1.4.1 (2006-08) - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 6: Call Authorized by Dispatcher (CAD)

SIST EN 300 392-10-6 V1.4.1:2006 is the Slovenian adoption of the ETSI standard for Terrestrial Trunked Radio (TETRA) Voice plus Data supplementary service Call Authorized by Dispatcher (SS-CAD). It defines the stage 1 service description for how dispatcher approval is requested and applied before certain TETRA calls proceed, including the interaction options with SS-PPC. The document is for people who need to understand when calls are intercepted, authorized, diverted, or rejected in a TETRA network.

What does SIST EN 300 392-10-6 V1.4.1:2006 specify?

SIST EN 300 392-10-6 V1.4.1:2006 specifies the user-level service behavior of SS-CAD for TETRA. It covers the service description, the normal and exceptional procedures, the interactions with other supplementary services, and interworking considerations. Charging principles and human interface details are outside its scope.

The document is organized into clauses for scope, references, definitions and abbreviations, and the SS-CAD stage 1 specification. It ends with an informative annex listing change requests.

Annex	What it covers
Annex A	Informative change requests

What are the key requirements of SIST EN 300 392-10-6 V1.4.1:2006?

SS-CAD is a dispatcher-controlled authorization service. Clause 4 states that predefined TETRA calls shall not proceed until a dispatcher has verified and approved them, which matters in practice because the call setup can pause while the authorization decision is made.

The service applies to all TETRA speech and circuit mode data services. That means the same dispatcher-approval logic can be used across speech and data calls, not only one traffic type.

Provision is done by prior arrangement with the service provider, and the service may be withdrawn by the provider. Clause 4.2.1 also defines the main implementation options: restricted basic service, restricted destination address, restricted source address, and restricted area. In practice, the authorized user has to identify which users, addresses, services, or areas are to be controlled and provide the dispatcher address for approval.

Before an SS-CAD definition is completed, the restricted users have to be verified against the authorized user’s jurisdiction. The service provider then returns acceptance or rejection. This matters because an SS-CAD profile is not just entered - it is checked before it becomes active.

Interrogation is supported on a per-number basis through the SwMI. The response may report the restricted user, whether the service is active or inactive, the applicable basic services, destination addresses, source addresses, and restricted area. An optional capability lets the restricted user interrogate its own SS-CAD restrictions, which is useful for confirming what is currently controlled.

For invocation and operation, the infrastructure checks the calling or called address, the area, and the basic service request. If authorization is needed, the call may be suspended and sent to the dispatcher, or diverted directly to the dispatcher. If the dispatcher rejects the request, the call is disconnected and the restricted user is informed that authority was not granted.

SS-CAD has defined relationships with other supplementary services. It does not interact with many of them, but it overrides SS-BOC and SS-BIC. Clause 4.3.21 also gives three SS-CAD and SS-PPC interaction options, ranging from SS-PPC taking precedence to no interaction or profile-based behavior. This is important for operators because priority behavior has to match the local service policy.

SS-CAD is also available across the intersystem interface. If a restricted user roams to a visited SwMI, the call request may still be routed back to the home TETRA system for dispatcher authorization.

What terms does SIST EN 300 392-10-6 V1.4.1:2006 define?

• Call Authorized by Dispatcher (SS-CAD) - A supplementary service in which a dispatcher verifies and approves a call request before the call can proceed.
• Authorized user - The user who can define SS-CAD and can also activate, deactivate, and interrogate it.
• Dispatcher - The user to whom the authorization request is sent.
• Restricted user - The user whose calls must be authorized by a dispatcher before proceeding; this may be the calling user A, the called user B, or both.
• Switching and Management Infrastructure (SwMI) - The TETRA network infrastructure that supports service handling and interrogation.
• Specification and Description Language (SDL) - The language used for the overall behavioral model shown for SS-CAD.
• Voice Plus Data (V+D) - The TETRA service family covered by the multipart deliverable.

Who uses SIST EN 300 392-10-6 V1.4.1:2006?

TETRA network operators use SIST EN 300 392-10-6 V1.4.1:2006 to define when dispatcher approval is required and how the call control behavior should work. Service providers use it when provisioning, withdrawing, and checking SS-CAD subscriptions.

It is also relevant to system integrators, equipment vendors, and network planners implementing TETRA supplementary services. Quality and operations teams use it to confirm how restricted users, dispatcher approval, roaming calls, and service interactions are supposed to behave.

What changed in SIST EN 300 392-10-6 V1.4.1:2006 from the previous edition?

The document history shows V1.4.1 published in August 2006 after V1.4.0 in March 2006. Annex A lists change requests for alignment with stage 3 and editorial corrections, and a change request for SS-PPC interaction.

Which standards are used with SIST EN 300 392-10-6 V1.4.1:2006?

• ITU-T Recommendation Z.100 - Provides the SDL notation used for the overall SS-CAD behavior model.
• ITU-T Recommendation I.210 - Provides the principles for describing telecommunication services and the stage-based method used for supplementary services.

What does the SIST EN 300 392-10-6 V1.4.1:2006 document contain?

Clause 4 contains the service rules in procedural form, including provision, activation, interrogation, invocation, exceptional outcomes, and service interactions. The document uses implementation-option tables to relate source, destination, basic service, and area conditions to authorization behavior.

It also includes a table for whether the caller receives interception information, and a table for SS-CAD and SS-PPC interaction options. Figure 1 gives an overall SDL model of the network behavior, showing the request, interception, authorization, rejection, and release flow. That makes the document useful for design reviews, implementation work, and service behavior checking.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.&$'Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 6: Call Authorized by Dispatcher (CAD)33.070.10Prizemni snopovni radio (TETRA)Terrestrial Trunked Radio (TETRA)ICS:Ta slovenski standard je istoveten z:EN 300 392-10-6 Version 1.4.1SIST EN 300 392-10-6 V1.4.1:2006en01-november-2006SIST EN 300 392-10-6 V1.4.1:2006SLOVENSKI
STANDARD

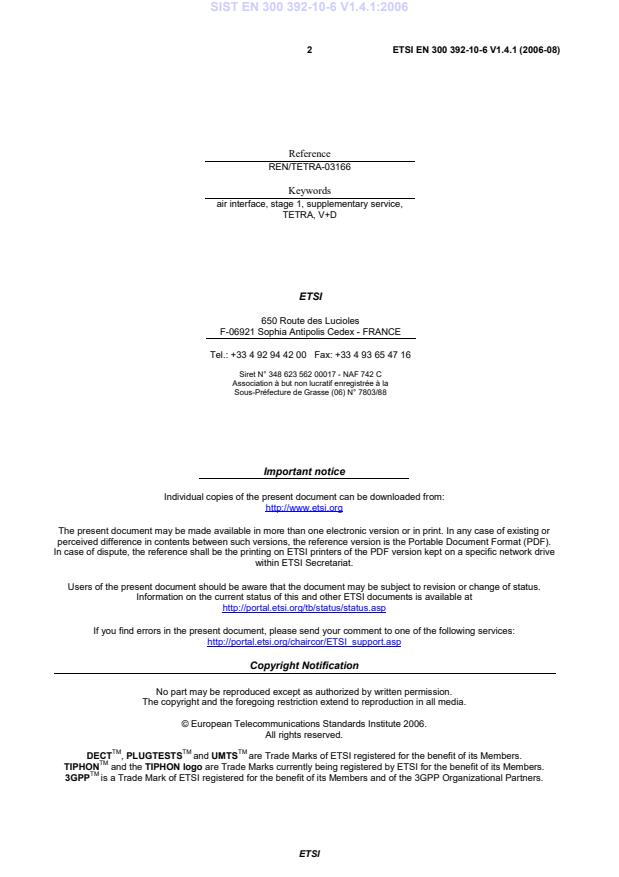

ETSI ETSI EN 300 392-10-6 V1.4.1 (2006-08) 2
Reference REN/TETRA-03166 Keywords air interface, stage 1, supplementary service, TETRA, V+D ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2006. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 300 392-10-6 V1.4.1:2006

ETSI ETSI EN 300 392-10-6 V1.4.1 (2006-08) 3
Contents Intellectual Property Rights.5 Foreword.5 Introduction.6 1 Scope.7 2 References.7 3 Definitions and abbreviations.7 3.1 Definitions.7 3.2 Abbreviations.8 3.2.1 General abbreviations.8 3.2.2 Supplementary service abbreviations.8 4 Supplementary Service Call Authorized by Dispatcher (SS-CAD) stage 1 specification.9 4.1 Description.9 4.1.1 General description.9 4.1.2 Qualifications on applicability to telecommunication services.9 4.2 Procedures.9 4.2.1 Provision and withdrawal.9 4.2.1.1 Restricted basic service.10 4.2.1.2 Restricted destination address.10 4.2.1.3 Restricted source address.10 4.2.1.4 Restricted area.10 4.2.1.5 Verification and acceptance.11 4.2.2 Normal procedures.11 4.2.2.1 Activation, deactivation, definition, registration, interrogation, and cancellation.11 4.2.2.1.1 Activation and deactivation.11 4.2.2.1.2 Definition.11 4.2.2.1.3 Registration.11 4.2.2.1.4 Interrogation.11 4.2.2.2 Invocation and operation.11 4.2.2.2.1 Outgoing calls.11 4.2.2.2.2 Incoming calls.12 4.2.2.2.3 Restricted basic service.12 4.2.2.2.4 Restricted area.12 4.2.2.3 Cancellation.12 4.2.3 Exceptional procedures.12 4.2.3.1 Activation, deactivation, definition, registration, interrogation, and cancellation.12 4.2.3.1.1 Activation.12 4.2.3.1.2 Deactivation.13 4.2.3.1.3 Definition.13 4.2.3.1.4 Registration.13 4.2.3.1.5 Interrogation.13 4.2.3.2 Cancellation.13 4.2.3.3 Invocation and operation.14 4.3 Interactions with supplementary services.14 4.3.1 Calling Line Identification Presentation (SS-CLIP).14 4.3.2 Connected Line identification Presentation (SS-COLP).14 4.3.3 Calling/Connected Line Identification Restriction (SS-CLIR).14 4.3.4 Call Report (SS-CR).14 4.3.5 Talking Party Identification (SS-TPI).14 4.3.6 Call Forwarding Unconditional (SS-CFU).14 4.3.7 Call Forwarding on Busy (SS-CFB).14 4.3.8 Call Forwarding on No Reply (SS-CFNRy).14 4.3.9 Call Forwarding on Not Reachable (SS-CFNRc).14 4.3.10 List Search Call (SS-LSC).14 SIST EN 300 392-10-6 V1.4.1:2006

ETSI ETSI EN 300 392-10-6 V1.4.1 (2006-08) 4
4.3.11 Call Authorized by Dispatcher (SS-CAD).14 4.3.12 Short Number Addressing (SS-SNA).15 4.3.13 Area Selection (SS-AS).15 4.3.14 Access Priority (SS-AP).15 4.3.15 Priority Call (SS-PC).15 4.3.16 Call Waiting (SS-CW).15 4.3.17 Call Hold (SS-HOLD).15 4.3.18 Call Completion to Busy Subscriber (SS-CCBS).15 4.3.19 Late Entry (SS-LE).15 4.3.20 (Void).16 4.3.21 Pre-emptive Priority Call (SS-PPC).16 4.3.22 Include Call (SS-IC).16 4.3.23 (Void).16 4.3.24 Barring of Outgoing Calls (SS-BOC).16 4.3.25 Barring of Incoming Calls (SS-BIC).16 4.3.26 Discreet Listening (SS-DL).16 4.3.27 Ambience Listening (SS-AL).16 4.3.28 Dynamic Group Number Assignment (SS-DGNA).16 4.3.29 Call Completion on No Reply (SS-CCNR).16 4.3.30 Call Retention (SS-CRT).17 4.4 Interworking considerations.17 4.5 Overall SDL.17 Annex A (informative): Change Requests.19 History.20
ETSI ETSI EN 300 392-10-6 V1.4.1 (2006-08) 5
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Terrestrial Trunked Radio (TETRA). The present document is part 10, sub-part 6 of a multipart deliverable covering the Voice plus Data (V+D), as identified below: EN 300 392-1: "General network design"; EN 300 392-2: "Air Interface (AI)"; EN 300 392-3: "Interworking at the Inter-System Interface (ISI)"; ETS 300 392-4: "Gateways basic operation"; EN 300 392-5: "Peripheral Equipment Interface (PEI)"; EN 300 392-7: "Security"; EN 300 392-9: "General requirements for supplementary services"; EN 300 392-10: "Supplementary services stage 1"; EN 300 392-10-1: "Call Identification (CI)"; ETS 300 392-10-2: "Call report"; ETS 300 392-10-3: "Talking Party Identification (TPI)"; EN 300 392-10-4: "Call Forwarding (CF)"; ETS 300 392-10-5: "List Search Call (LSC)"; EN 300 392-10-6: "Call Authorized by Dispatcher (CAD)"; ETS 300 392-10-7: "Short number addressing"; EN 300 392-10-8: "Area Selection (AS)"; ETS 300 392-10-9: "Access priority"; EN 300 392-10-10: "Priority Call (PC)"; EN 300 392-10-11: "Call Waiting (CW)"; EN 300 392-10-12: "Call Hold (HOLD)"; ETS 300 392-10-13: "Call completion to busy subscriber"; EN 300 392-10-14: "Late Entry (LE)"; SIST EN 300 392-10-6 V1.4.1:2006

ETSI ETSI EN 300 392-10-6 V1.4.1 (2006-08) 6
ETS 300 392-10-15: "Transfer of control"; EN 300 392-10-16: "Pre-emptive Priority Call (PPC)"; EN 300 392-10-17: "Include Call (IC)"; EN 300 392-10-18: "Barring of Outgoing Calls (BOC)"; EN 300 392-10-19: "Barring of Incoming Calls (BIC)"; ETS 300 392-10-20: "Discreet Listening (DL)"; EN 300 392-10-21: "Ambience Listening (AL)"; EN 300 392-10-22: "Dynamic Group Number Assignment (DGNA)"; ETS 300 392-10-23: "Call completion on no reply"; ETS 300 392-10-24: "Call Retention (CRT)"; EN 300 392-11: "Supplementary services stage 2"; EN 300 392-12: "Supplementary services stage 3"; ETS 300 392-13: "SDL model of the Air Interface (AI)"; ETS 300 392-14: "Protocol Implementation Conformance Statement (PICS) proforma specification"; TS 100 392-15: "TETRA frequency bands, duplex spacings and channel numbering"; TS 100 392-16: "Network Performance Metrics"; TR 100 392-17: "TETRA V+D and DMO specifications"; TS 100 392-18: "Air interface optimized applications". NOTE: Part 10, sub-part 15 (Transfer of control), part 13 (SDL) and part 14 (PICS) of this multi-part deliverable are in status "historical" and are not maintained.
National transposition dates Date of adoption of this EN: 28 July 2006 Date of latest announcement of this EN (doa): 31 October 2006 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 April 2007 Date of withdrawal of any conflicting National Standard (dow): 30 April 2007
Introduction Supplementary services specifications are produced in three stages, according to the method described in ITU-T Recommendation I.210 [2]. The present document contains the stage 1 specification of SS-CAD. The stage 1 descriptions specify the supplementary services as seen by users of networks. The Call Authorized by Dispatcher service is specific to TETRA. SIST EN 300 392-10-6 V1.4.1:2006

ETSI ETSI EN 300 392-10-6 V1.4.1 (2006-08) 7
1 Scope The present document defines the stage 1 specifications of the Supplementary Service Call Authorized by Dispatcher (SS-CAD) for the Terrestrial Trunked Radio (TETRA) system. Stage 1 is an overall service description from the users point of view but does not deal with the details of the human interface itself. The present document specifies the service description of the supplementary service and the procedures to be expected with successful and unsuccessful outcomes. In addition, the present document specifies the interactions with other TETRA supplementary services and interworking considerations. Charging principles are outside the scope of the present document. The SS-CAD ensures that predefined TETRA calls do not proceed without first being authorized by a dispatcher. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. [1] ITU-T Recommendation Z.100: "Specification and Description Language (SDL)". [2] ITU-T Recommendation I.210: "Principles of telecommunication services supported by an ISDN and the means to describe them". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the follow
...
