SIST EN 50378-3-1:2007
(Main)Passive components to be used in optical fibre communication systems - Product specifications -- Part 3-1: Type: 100/200 GHz DWDM module terminated on IEC 60793-2-50 category B1.1 and B1.3 single mode fibre
Passive components to be used in optical fibre communication systems - Product specifications -- Part 3-1: Type: 100/200 GHz DWDM module terminated on IEC 60793-2-50 category B1.1 and B1.3 single mode fibre
This specification contains the initial, start of life dimensional, optical, mechanical and environmental requirements a unconnectorised or connectorised 100/200 GHz DWDM module has to fulfill in order to be characterised as an EN standard product.
Passive Bauteile für Lichtwellenleiter-Datenübertragungssysteme - Produktnormen -- Teil 3-1: Bauart 100/200 GHz-DWDM-Modul zum Anschluss an Einmodenfasern der Typen B1.1 und B1.3 nach IEC 60793-2-50
Composants passifs destinés à être utilisés dans les systèmes de communication par fibres optiques - Spécifications de produit -- Partie 3-1: Type: module DWDM 100/200 GHz câblé sur fibre unimodale des catégories B1.1 et B1.3 de la CEI 60793-2-50
La présente spécification contient les exigences initiales, dimensionnelles, de début de vie, optiques, mécaniques et environnementales auxquelles un module DWDM 100/200 GHz non connectorisé ou connectorisé doit satisfaire afin d'être classé comme produit dépendant d’une norme produit EN.
Pasivne komponente za optične komunikacijske sisteme – Specifikacija izdelka – 3-1. del: Tip: Modul 100/200 GHz DWDM, zaključen na enorodnem vlaknu IEC 60793-2-50 kategorij B1.1 in B1.3
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Passive components to be used in optical fibre communication systems - Product specifications -- Part 3-1: Type: 100/200 GHz DWDM module terminated on IEC 60793-2-50 category B1.1 and B1.3 single mode fibreComposants passifs destinés a etre utilisés dans les systemes de communication par fibres optiques - Spécifications de produit -- Partie 3-1: Type: module DWDM 100/200 GHz câblé sur fibre unimodale des catégories B1.1 et B1.3 de la CEI 60793-2-50Passive Bauteile für Lichtwellenleiter-Datenübertragungssysteme - Produktnormen -- Teil 3-1: Bauart 100/200 GHz-DWDM-Modul zum Anschluss an Einmodenfasern der Typen B1.1 und B1.3 nach IEC 60793-2-50Ta slovenski standard je istoveten z:EN 50378-3-1:2007SIST EN 50378-3-1:2007en,fr33.180.20Fibre optic interconnecting devicesICS:SLOVENSKI
STANDARDSIST EN 50378-3-1:200701-november-2007

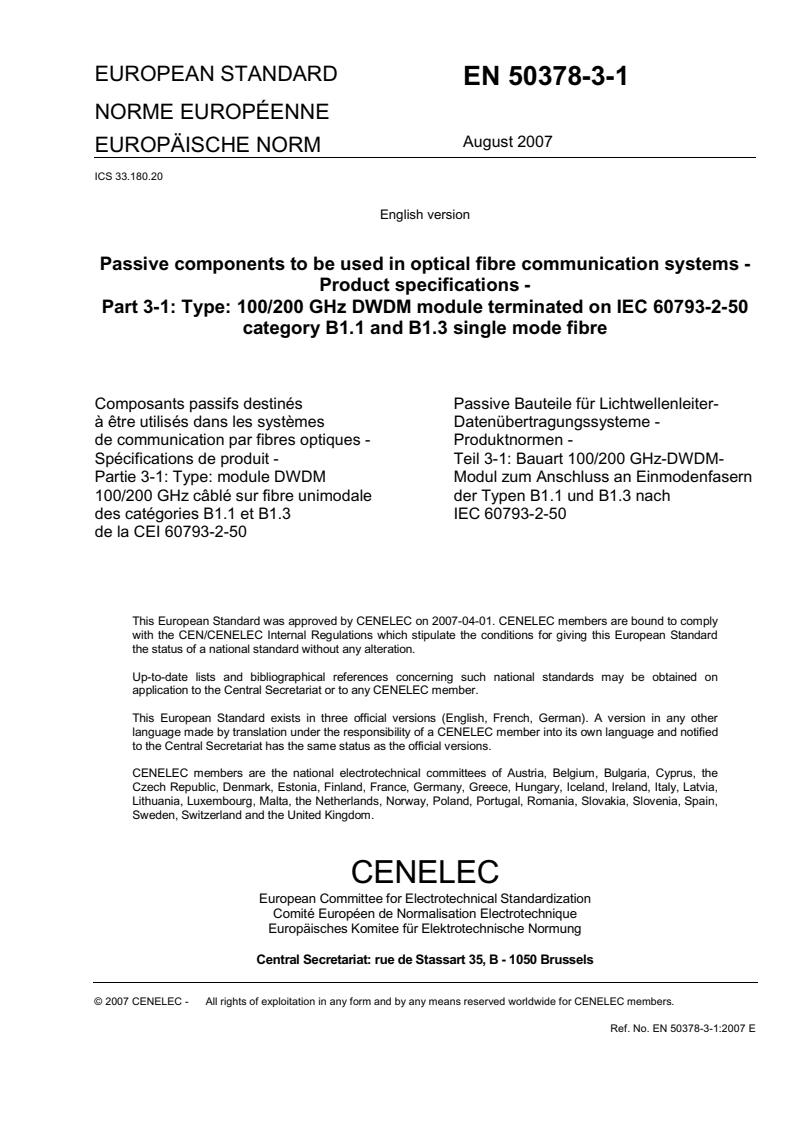

EUROPEAN STANDARD EN 50378-3-1 NORME EUROPÉENNE
EUROPÄISCHE NORM August 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50378-3-1:2007 E
ICS 33.180.20
English version
Passive components to be used in optical fibre communication systems -
Product specifications -
Part 3-1: Type: 100/200 GHz DWDM module terminated on IEC 60793-2-50 category B1.1 and B1.3 single mode fibre
Composants passifs destinés
à être utilisés dans les systèmes
de communication par fibres optiques -
Spécifications de produit -
Partie 3-1: Type: module DWDM
100/200 GHz câblé sur fibre unimodale des catégories B1.1 et B1.3
de la CEI 60793-2-50
Passive Bauteile für Lichtwellenleiter-Datenübertragungssysteme -
Produktnormen -
Teil 3-1: Bauart 100/200 GHz-DWDM-Modul zum Anschluss an Einmodenfasernder Typen B1.1 und B1.3 nach
IEC 60793-2-50
This European Standard was approved by CENELEC on 2007-04-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
This European Standard was prepared by the Technical Committee CENELEC TC 86BXA, Fibre optic interconnect, passive and connectorised components.
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by CENELEC as EN 50378-3-1 on 2007-04-01.
The following dates were fixed:
- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2008-04-01
- latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2010-04-01
__________
- 3 - EN 50378-3-1:2007
Passive components to be used in optical fibre communication systems - Product specifications Part 3-1: Type: 100/200 GHz DWDM module terminated on IEC 60793-2-50 category B1.1 and B1.3 single mode fibre Description
Performance Application: For use in controlled environment EN 61753-1 Category C
Attenuation Grade
Grade S Grade P
Mux/Demux:
100 GHz / 200 GHz n x 0,5 + 0,8 dB n x 0,5 + 0,5 dB n = number of channels Isolation
Adjacent channels NonAdj. channels Mux :
Demux: 100 GHz
200 GHz
100 GHz
200 GHz 10 dB
12 dB
25 dB
30 dB
10 dB
12 dB
30 dB
35 dB
Return Loss:
Type:
100 / 200 GHz
DWDM
module
Configuration:
pigtailed module
Fibre Category:
EN 60793-2-50
Type B1.1 and B1.3
Cable Type:
900 µm buffered fibre
Grade 3 ≥ 35 dB
Related documents:
EN 50377 series Connector sets and interconnect components to be used in optical fibre communication systems - Product specifications EN 60794-2 Optical fibre cables - Part 2: Indoor cables - Sectional specification
(IEC 60794-2) EN 61300 series Fibre optic interconnecting devices and passive components - Basic test and measurement procedures (IEC 61300 series) EN 61753-1 Fibre optic interconnecting devices and passive components performance standard - Part 1: General and guidance for performance standard
(IEC 61753-1) IEC/PAS 62074-1 Fibre Optic WDM devices - Part 1: Generic specification ETSI ES 201 791 Transmission and Multiplexing (TM) - Dense Wavelength Division Multiplexing devices - Common requirements and conformance testing ETSI EN 300 019-1-4 Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 1-4: Classification of environmental conditions - Stationary use at non-weatherprotected locations ITU Recommendation G 671 Transmission characteristics of optical components and subsystems
Outline and maximum dimensions
9,5COMMON90120Up to 8 Outputscommon0.9mm buffered fiber
- 5 - EN 50378-3-1:2007 Contents Foreword.2 Contents.5 1 Scope.6 1.1 Product definition.6 1.2 Interchangeability.6 1.3 Operating environment.6 1.4 Reliability.6 1.5 Quality assurance.6 2 Normative references.6 3 Description.7 3.1 General.7 3.2 Cable fixing structure.7 3.3 Materials.7 3.4 Dimensions.7 3.5 Marking.7 4 Variants.8 4.1 DWDM module variants.8 5 Dimensional requirements.9 6 Tests.9 6.1 Sample definition and size.9 6.2 Test and measurement methods.10 6.3 Test sequence.10 6.4 Pass/fail criteria.10 7 Test report.10 8 Product qualification requirements.11 8.1 Dimensional requirements.11 8.2 Optical performance requirements.11 8.3 Mechanical performance requirements.14 8.4 Environmental Performance Requirements.15 Figure 1 - Dimensions of a DWDM module.9 Table 1 - DWDM module variants.8 Table 2 - Optical performance requirements.11 Table 3 - Mechanical performance requirements.14 Table 4 - Environmental performance requirements.15 Annex A (informative) - Sample size and product sourcin,g requirements.17 Annex B (informaive) - ITU-grid table.18 Bibliography.19
1.3 Operating environment The tests selected combined with the severities and durations are representative of a controlled environment typically, but not limited to, that defined as in EN 61753-051-3 and IEC Category C. 1.4 Reliability Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with this specification does not guarantee the reliability of the product. This should be predicted using a recognised reliability assessment programme. 1.5 Quality assurance Compliance with this specification does not guarantee the manufacturing consistency of the product. This should be maintained using a recognised quality assurance programme. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
EN 50377 series
Connector sets and interconnect components to be used in optical fibre communication systems - Product specifications EN 61300 series
Fibre optic interconnecting devices and passive components - Basic test and measurement procedures (IEC 61300 series) EN 61753-051-3
Fibre optic interconnecting devices and passive components performance standard - Part 051-3: Single-mode fibre, plug-style fixed attenuators for category U - Uncontrolled environment
(IEC 61753-051-3) ITU Recommendation G 671
Transmission characteristics of optical components and subsystems
- 7 - EN 50378-3-1:2007 3 Description 3.1 General The DWDM module, is a passive component providing a transition between 1 buffered fibre and N individual buffered fibre cables (N = 4,8). The product maybe unconnectorised or connectorised. When the product is connectorised the connectors shall be selected from the EN 50377 series. 3.2 Cable fixing structure
No cable fixing element is foreseen as the module is terminated on buffered fibres. The module is to be secured against high accidental pulling forces. 3.3 Materials
The material of the module housing shall be left to the discretion of the manufacturer. For plastic materials preferred materials shall have Low Smoke Zero Halogen characteristics. 3.4 Dimensions
Outline dimensions and other dimensions necessary to ensure interchangeability or which affect performance, are specified here. All other dimensions are left to the discretion of the ma
...
