ASTM F1733-24
(Specification)Standard Specification for Butt Heat Fusion Polyamide(PA) Plastic Fitting for Polyamide(PA) Plastic Pipe and Tubing
Standard Specification for Butt Heat Fusion Polyamide(PA) Plastic Fitting for Polyamide(PA) Plastic Pipe and Tubing
ABSTRACT
This specification covers polyamide (PA) butt fusion fittings for use with polyamide pipe (IPS and ISO) and tubing (CTS). This specification covers butt fusion fittings intended for use with polyamide pipe and tubing. Fittings covered by this specification are normally molded. Fittings may be machined from extruded or molded stock. Conditioning, dimensions and tolerances, short-term rupture strength, sustained pressure test, and minimum hydrostatic burst pressure test shall be performed to conform with the requirements specified.
SCOPE
1.1 This specification covers polyamide (PA) butt fusion fittings for use with polyamide pipe (IPS and Metric) and tubing (CTS). Included are requirements for materials, workmanship, dimensions, marking, sustained pressure, and burst pressure.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

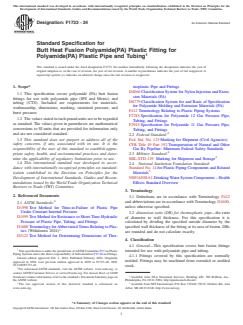

Designation: F1733 − 24 An American National Standard
Standard Specification for
Butt Heat Fusion Polyamide(PA) Plastic Fitting for
1
Polyamide(PA) Plastic Pipe and Tubing
This standard is issued under the fixed designation F1733; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* moplastic Pipe and Fittings
D4066 Classification System for Nylon Injection and Extru-
1.1 This specification covers polyamide (PA) butt fusion
sion Materials (PA)
fittings for use with polyamide pipe (IPS and Metric) and
D6779 Classification System for and Basis of Specification
tubing (CTS). Included are requirements for materials,
for Polyamide Molding and Extrusion Materials (PA)
workmanship, dimensions, marking, sustained pressure, and
F412 Terminology Relating to Plastic Piping Systems
burst pressure.
F2785 Specification for Polyamide 12 Gas Pressure Pipe,
1.2 The values stated in inch-pound units are to be regarded
Tubing, and Fittings
as standard. The values given in parentheses are mathematical
F2945 Specification for Polyamide 11 Gas Pressure Pipe,
conversions to SI units that are provided for information only
Tubing, and Fittings
and are not considered standard. 4
2.2 Federal Standard:
1.3 This standard does not purport to address all of the Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
safety concerns, if any, associated with its use. It is the
CFR Title 49 Part 192 Transportation of Natural and Other
responsibility of the user of this standard to establish appro- Gas By Pipeline: Minimum Federal Safety Standards
4
priate safety, health, and environmental practices and deter-
2.3 Military Standard:
4
mine the applicability of regulatory limitations prior to use. MIL-STD-129 Marking for Shipment and Storage
1.4 This international standard was developed in accor-
2.4 National Sanitation Foundation Standard:
dance with internationally recognized principles on standard- Standard No. 14 for Plastic Piping Components and Related
5
ization established in the Decision on Principles for the
Materials
Development of International Standards, Guides and Recom- NSF/ANSI 61 Drinking Water System Components – Health
mendations issued by the World Trade Organization Technical
Effects Standard Overview
Barriers to Trade (TBT) Committee.
3. Terminology
2. Referenced Documents
3.1 Definitions are in accordance with Terminology F412
2
and abbreviations are in accordance with Terminology D1600,
2.1 ASTM Standards:
unless otherwise specified.
D1598 Test Method for Time-to-Failure of Plastic Pipe
Under Constant Internal Pressure
3.2 dimension ratio (DR) for thermoplastic pipe—the ratio
D1599 Test Method for Resistance to Short-Time Hydraulic
of diameter to wall thickness. For this specification it is
Pressure of Plastic Pipe, Tubing, and Fittings
calculated by dividing the specified outside diameter by the
D1600 Terminology for Abbreviated Terms Relating to Plas-
specified wall thickness of the fitting at its area of fusion. DRs
3
tics (Withdrawn 2024)
are rounded and do not calculate exactly.
D2122 Test Method for Determining Dimensions of Ther-
4. Classification
4.1 General—This specification covers butt fusion fittings
1
This specification is under the jurisdiction of ASTM Committee F17 on Plastic
intended for use with polyamide pipe and tubing.
Piping Systems and is the direct responsibility of Subcommittee F17.10 on Fittings.
4.1.1 Fittings covered by this specification are normally
Current edition approved Feb. 1, 2024. Published February 2024. Originally
molded. Fittings may be machined from extruded or molded
approved in 1996. Last previous edition approved in 2020 as F1733–20. DOI:
10.1520/F1733-24.
stock.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
4
Standards volume information, refer to the standard’s Document Summary page on Available from DLA Document Services, Building 4/D, 700 Robbins Ave.,
the ASTM website. Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
3
5
The last approved version of this historical standard is referenced on Available from NSF International, P.O. Box 130140, 789 N. Dixboro Rd., Ann
www.astm.org. Arbor, MI 48113-0140, http://www.nsf.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
------------
...

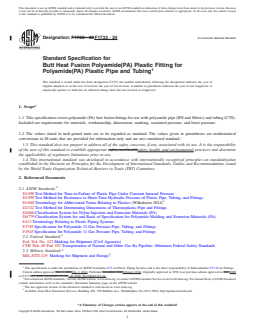

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F1733 − 20 F1733 − 24 An American National Standard
Standard Specification for
Butt Heat Fusion Polyamide(PA) Plastic Fitting for
1
Polyamide(PA) Plastic Pipe and Tubing
This standard is issued under the fixed designation F1733; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers polyamide (PA) butt fusion fittings for use with polyamide pipe (IPS and Metric) and tubing (CTS).
Included are requirements for materials, workmanship, dimensions, marking, sustained pressure, and burst pressure.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and healthsafety, health, and environmental practices and determine
the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D1598 Test Method for Time-to-Failure of Plastic Pipe Under Constant Internal Pressure
D1599 Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings
3
D1600 Terminology for Abbreviated Terms Relating to Plastics (Withdrawn 2024)
D2122 Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
D4066 Classification System for Nylon Injection and Extrusion Materials (PA)
D6779 Classification System for and Basis of Specification for Polyamide Molding and Extrusion Materials (PA)
F412 Terminology Relating to Plastic Piping Systems
F2785 Specification for Polyamide 12 Gas Pressure Pipe, Tubing, and Fittings
F2945 Specification for Polyamide 11 Gas Pressure Pipe, Tubing, and Fittings
4
2.2 Federal Standard:
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
CFR Title 49 Part 192 Transportation of Natural and Other Gas By Pipeline: Minimum Federal Safety Standards
4
2.3 Military Standard:
4
MIL-STD-129 Marking for Shipment and Storage
1
This specification is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.10 on Fittings.
Current edition approved Nov. 1, 2020Feb. 1, 2024. Published November 2020February 2024. Originally approved in 1996. Last previous edition approved in 20132020
as F1733–13. DOI: 10.1520/F1733-20.–20. DOI: 10.1520/F1733-24.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
4
Available from DLA Document Services, Building 4/D, 700 Robbins Ave., Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
F1733 − 24
2.4 National Sanitation Foundation Standard:
5
Standard No. 14 for Plastic Piping Components and Related Materials
NSF/ANSI 61 Drinking Water System Components – Health Effects Standard Overview
3. Terminology
3.1 Definitions are in accordance with Terminology F412 and abbreviations are in accordance with Terminology D1600, unless
otherwise specified.
3.2 dimension ratio (DR) for thermoplastic pipe—the ratio of diameter to wall thickness. For this specification it is calculated by
dividing the specified outside diameter by the specified wall thickness of the fitting at its area of fusion. DRs are rounded and do
not calculate exactly.
4. Classification
4.1 General—This specification covers butt fusion fittings intended for use with polyamide pipe and tubi
...
