ASTM F1369-93a

Standard Specification for Heaters, Convection, Steam and Hot Water (Withdrawn 2002)

SCOPE
1.1 This specification covers steam and hot water convection heaters with cabinets for use in heating spaces on commercial and naval ships.
1.2 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are for information only.
1.3 The following precautionary caveat pertains only to the tests portion, Section 12, of this specification: This standard does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

• Status: Withdrawn
• Publication Date: 31-Dec-1992
• Withdrawal Date: 31-May-2002
• ICS: 91.140.10 - Central heating systems
• Technical Committee: F25 - Ships and Marine Technology
• Drafting Committee: F25.11 - Machinery and Piping Systems

Standards Content (Sample)

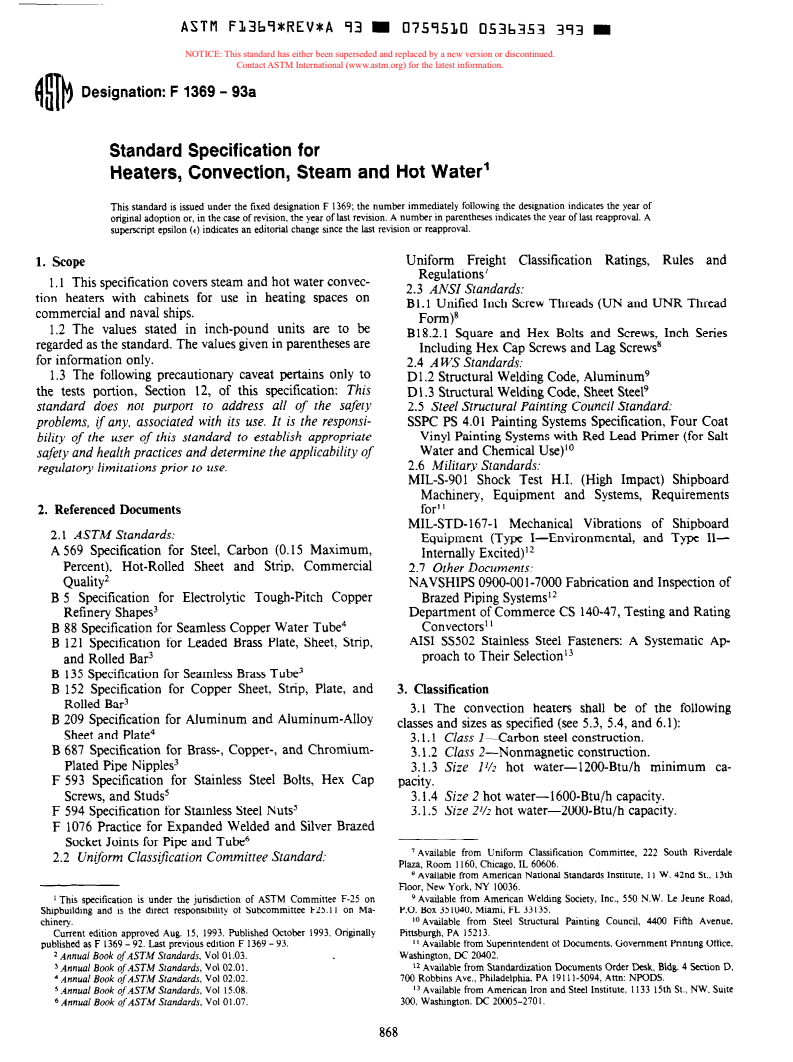

ASTM FL3b=l*REV*A 93 - 0759530 053b353 393 W
Designation: F 1369 - 93a
GTb
Standard Specification for
Heaters, Convection, Steam and Hot Water’
This standard is issued under the fixed designation F 1369; the number immediately following the designation indicates the year of
original adoption or, in the case of revision. the year of last revision, A number in parentheses indicates the year of last reapproval. A
superscript epsilon (1) indicates an editorial change since the last revision or reapproval.
Uniform Freight Classification Ratings, Rules and
1. Scope
Regulations’
1.1 This specification covers steam and hot water convec-
2.3 ANSI Standards:
tion heaters with cabinets for use in heating spaces on
Bl. 1 Unified Inch Screw Threads (UN and UNR Thread
commercial and naval ships.
F~rrn)~
1.2 The values stated in inch-pound units are to be
B18.2.1 Square and Hex Bolts and Screws, Inch Series
regarded as the standard. The values given in parentheses are
Including Hex Cap Screws and Lag Screws’
for information only.
2.4 A WS Standards:
1.3 The following precautionary caveat pertains only to
D 1.2 Structural Welding Code, Aluminum9
the tests portion, Section 12, of this specification: This D 1.3 Structural Welding Code, Sheet Steel’)
standard does not purport to address all of the safety 2.5 Steel Structural Painting Council Standard:
problems, if any, associated with its use. It is the responsi- SSPC PS 4.01 Painting Systems Specification, Four Coat
Vinyl Painting Systems with Red Lead Primer (for Salt
bility of the user of this standard to establish appropriate
Water and Chemical Use)‘O
safety and health practices and determine the applicability of
2.6 Milirar), Standards:
regulatory limitations prior tu use.
MIL-S-901 Shock Test H.I. (High Impact) Shipboard
Machinery, Equipment and Systems, Requirements
2. Referenced Documents for’ ’
MIL-STD- 167-l Mechanical Vibrations of Shipboard
2.1 ASTM Standards:
Equipment (Type I-Environmental, and Type II-
A 569 Specification for Steel, Carbon (0.15 Maximum,
Internally Excited)12
Percent), Hot-Rolled Sheet and Strip, Commercial
2.7 Other Documents:
Quality2
NAVSHIPS 0900-00 l-7000 Fabrication and Inspection of
B 5 Specification for Electrolytic Tough-Pitch Copper Brazed Piping SystemsI
Refinery Shapes3 Department of Commerce CS 140-47, Testing and Rating
Convectors’ ’
B 88 Specification for Seamless Copper Water Tube4
AISI SS502 Stainless Steel Fasteners: A Systematic Ap
B 121 Specification for Leaded Brass Plate, Sheet, Strip,
preach to Their Selection’3
and Rolled Bar3
B 135 Specification for Seamless Brass Tube3
B 152 Specification for Copper Sheet, Strip, Plate, and 3. Classification
Rolled Bar3
3.1 The convection heaters shall be of the following
B 209 Specification for Aluminum and Aluminum-Alloy
classes and sizes as specified (see 5.3, 5.4, and 6.1):
Sheet and Plate4
3.1.1 Class I-Carbon steel construction.
B 687 Specification for Brass-, Copper-, and Chromium-
3.1.2 Class 2-Nonmagnetic construction.
Plated Pipe Nipples3
3.1.3 Size lV2 hot water-l 200-Btu/h minimum ca-
F 593 Specification for Stainless Steel Bolts, Hex Cap
pacity.
Screws, and Studs5 3.1.4 Size 2 hot water- 1600-Btu/h capacity.
3.1.5 Size 2V2 hot water-2000-Btu/h capacity.
F 594 Specification for Stainless Steel Nuts5
F 1076 Practice for Expanded Welded and Silver Brazed
Socket Joints for Pipe and Tube6
‘Available from Uniform Classification Committee, 222 South Riverdale
2.2 Uniform Classification Committee Standard:
Plaza, Room 1160, Chicago. IL 60606.
* Available from American National Standards Institute, 11 W. 42nd St. 13th
Floor, New York, NY 10036.
9 Available from American Welding Society, Inc., 550 N.W. Le Jeune Road,
t This specification is under the jurisdtction of ASTM Committee F-25 on
Shipbuilding and is the direct responsibility of Subcommittee F25.11 on Ma- P.O. Etox 35 1040, Miami, FL 33 135.
chinery. 10 Available from Steel Structural Painting Council, 4400 Fifth Avenue,
Current edition approved Aug. 15, 1993. Published October 1993. Originally Pittsburgh. PA 15213.
I r Available from Superintendent of Documents. Government Printing Office,
published as F 1369 - 92. Last previous edition F 1369 - 93.
Washington, DC 20402.
2 Annual Book ofASTM Srandards, Vol 01.03.
3 Annual Book ofAST.44 Srandards, Vol 02.01. 12 Available from Standardization Documents Order Desk, Bldg. 4 Section D.
700 Robbins Ave., Philadelphia. PA 19 11 l-5094, Attn: NPODS.
4 Annual Book of ASTM Standards, Vol 02.02.
5 Annual Book o~ASTM Standards, Vol 15.08. ‘3 Available from American Iron and Steel Institute, I1 33 15th St., NW. Suite
6 Annual Book of ASTM Standards, Vol 01.07. 300, Washington. DC 20005-2701.
868

---------------------- Page: 1 ----------------------
ASTM FLZlb=ltREV*A 93 W 0759510 0536354 22T -
3.1.6 Size 3% hot water-3200-Btu/h capacity. (82°C) forced hot-water mean temperature.
3.1.7 Siz
...
