ASTM C1153-23
(Practice)Standard Practice for Location of Wet Insulation in Roofing Systems Using Infrared Imaging
Standard Practice for Location of Wet Insulation in Roofing Systems Using Infrared Imaging
SIGNIFICANCE AND USE
4.1 This practice is used to outline the minimum necessary elements and conditions to obtain an accurate determination of the location of wet insulation in roofing systems using infrared imaging.
4.2 This practice is not meant to be an instructional document or to provide all the knowledge and background necessary to provide an accurate analysis. For further information, see ANSI-ASHRAE Standard 101 and ISO/DP 6781.3E.
4.3 This practice does not provide methods to determine the cause of moisture or its point of entry. It does not address the suitability of any particular system to function capably as waterproofing.
SCOPE
1.1 This practice applies to techniques that employ infrared imaging at night to determine the location of wet insulation in roofing systems that have insulation above the deck in contact with the waterproofing. This practice includes ground-based and aerial inspections. (Warning—Extreme caution shall be taken when accessing or walking on roof surfaces and when operating aircraft at low altitudes, especially at night.) (Warning—It is a good safety practice for at least two people to be present on the roof surface at all times when ground-based inspections are being conducted.)

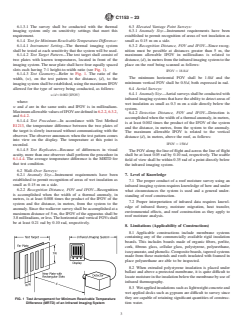

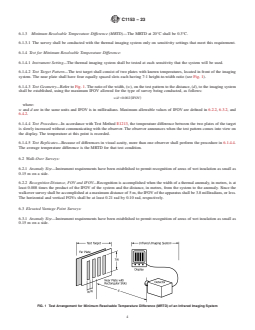

1.2 This practice addresses criteria for infrared equipment such as minimum resolvable temperature difference, spectral range, instantaneous field of view, and field of view.
1.3 This practice addresses meteorological conditions under which infrared inspections shall be performed.
1.4 This practice addresses the effect of roof construction, material differences, and roof conditions on infrared inspections.
1.5 This practice addresses operating procedures, operator qualifications, and operating practices.
1.6 This practice also addresses verification of infrared data using invasive test methods.
1.7 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in 1.1.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

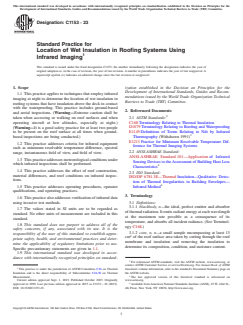

Designation: C1153 − 23
Standard Practice for
Location of Wet Insulation in Roofing Systems Using
1
Infrared Imaging
This standard is issued under the fixed designation C1153; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
1.1 This practice applies to techniques that employ infrared
mendations issued by the World Trade Organization Technical
imaging at night to determine the location of wet insulation in
Barriers to Trade (TBT) Committee.
roofing systems that have insulation above the deck in contact
with the waterproofing. This practice includes ground-based
2. Referenced Documents
and aerial inspections. (Warning—Extreme caution shall be
2
2.1 ASTM Standards:
taken when accessing or walking on roof surfaces and when
operating aircraft at low altitudes, especially at night.) C168 Terminology Relating to Thermal Insulation
D1079 Terminology Relating to Roofing and Waterproofing
(Warning—It is a good safety practice for at least two people
to be present on the roof surface at all times when ground- E1149 Definitions of Terms Relating to Ndt by Infrared
3
Thermography (Withdrawn 1991)
based inspections are being conducted.)
E1213 Practice for Minimum Resolvable Temperature Dif-
1.2 This practice addresses criteria for infrared equipment
ference for Thermal Imaging Systems
such as minimum resolvable temperature difference, spectral
2.2 ANSI-ASHRAE Standard:
range, instantaneous field of view, and field of view.
ANSI-ASHRAE Standard 101—Application of Infrared
1.3 This practice addresses meteorological conditions under
Sensing Devices to the Assessment of Building Heat Loss
which infrared inspections shall be performed.
4
Characteristics
1.4 This practice addresses the effect of roof construction,
2.3 ISO Standard:
material differences, and roof conditions on infrared inspec-
ISO/DP 6781.3E—Thermal Insulation—Qualitative Detec-
tions.
tion of Thermal Irregularities in Building Envelopes—
4
1.5 This practice addresses operating procedures, operator
Infrared Method
qualifications, and operating practices.
3. Terminology
1.6 This practice also addresses verification of infrared data
using invasive test methods. 3.1 Definitions:
3.1.1 blackbody, n—the ideal, perfect emitter and absorber
1.7 The values stated in SI units are to be regarded as
of thermal radiation. It emits radiant energy at each wavelength
standard. No other units of measurement are included in this
at the maximum rate possible as a consequence of its
standard.
temperature, and absorbs all incident radiance. (See Terminol-
1.8 This standard does not purport to address all of the
ogy C168.)
safety concerns, if any, associated with its use. It is the
3.1.2 core, n, n—a small sample encompassing at least 13
responsibility of the user of this standard to establish appro-
2
cm of the roof surface area taken by cutting through the roof
priate safety, health, and environmental practices and deter-
membrane and insulation and removing the insulation to
mine the applicability of regulatory limitations prior to use.
determine its composition, condition, and moisture content.
Specific precautionary statements are given in 1.1.
1.9 This international standard was developed in accor-
dance with internationally recognized principles on standard-
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
1
This practice is under the jurisdiction of ASTM Committee C16 on Thermal Standards volume information, refer to the standard’s Document Summary page on
Insulation and is the direct responsibility of Subcommittee C16.30 on Thermal the ASTM website.
3
Measurement. The last approved version of this historical standard is referenced on
Current edition approved Sept. 1, 2023. Published October 2023. Originally www.astm.org.
4
approved in 1990. Last previous edition approved in 2015 as C1153 – 10 (2015). Available from American National Standards Institute (ANSI), 25 W. 43rd St.,
DOI: 10.1520/C1153-23. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

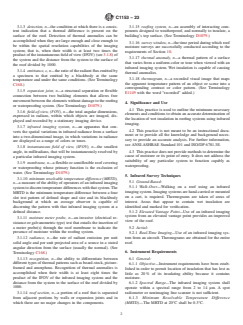

C1153 − 23
3.1.3 detection, n—the condition at which there is a consis- 3.1.15 r
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

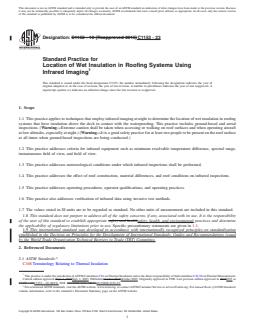

Designation: C1153 − 10 (Reapproved 2015) C1153 − 23
Standard Practice for
Location of Wet Insulation in Roofing Systems Using
1
Infrared Imaging
This standard is issued under the fixed designation C1153; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice applies to techniques that employ infrared imaging at night to determine the location of wet insulation in roofing
systems that have insulation above the deck in contact with the waterproofing. This practice includes ground-based and aerial
inspections. (Warning—Extreme caution shall be taken when accessing or walking on roof surfaces and when operating aircraft
at low altitudes, especially at night.) (Warning—It is a good safety practice for at least two people to be present on the roof surface
at all times when ground-based inspections are being conducted.)
1.2 This practice addresses criteria for infrared equipment such as minimum resolvable temperature difference, spectral range,
instantaneous field of view, and field of view.
1.3 This practice addresses meteorological conditions under which infrared inspections shall be performed.
1.4 This practice addresses the effect of roof construction, material differences, and roof conditions on infrared inspections.
1.5 This practice addresses operating procedures, operator qualifications, and operating practices.
1.6 This practice also addresses verification of infrared data using invasive test methods.
1.7 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and healthsafety, health, and environmental practices and determine
the applicability of regulatory limitations prior to use. Specific precautionary statements are given in 1.1.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C168 Terminology Relating to Thermal Insulation
1
This practice is under the jurisdiction of ASTM Committee C16 on Thermal Insulation and is the direct responsibility of Subcommittee C16.30 on Thermal Measurement.
Current edition approved Sept. 1, 2015Sept. 1, 2023. Published October 2015October 2023. Originally approved in 1990. Last previous edition approved in 20102015 as
C1153 – 10.C1153 – 10 (2015). DOI: 10.1520/C1153-10R15.10.1520/C1153-23.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

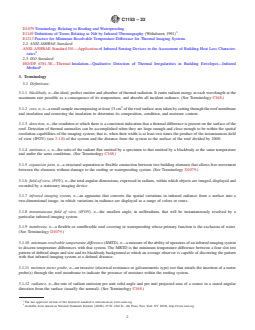

C1153 − 23
D1079 Terminology Relating to Roofing and Waterproofing
3
E1149 Definitions of Terms Relating to Ndt by Infrared Thermography (Withdrawn 1991)
E1213 Practice for Minimum Resolvable Temperature Difference for Thermal Imaging Systems
2.2 ANSI-ASHRAE Standard:
ANSI-ASHRAE Standard 101—Application of Infrared Sensing Devices to the Assessment of Building Heat Loss Character-
4
istics
2.3 ISO Standard:
ISO/DP 6781.3E—Thermal Insulation—Qualitative Detection of Thermal Irregularities in Building Envelopes—Infrared
4
Method
3. Terminology
3.1 Definitions:
3.1.1 blackbody, n—the ideal, perfect emitter and absorber of thermal radiation. It emits radiant energy at each wavelength at the
maximum rate possible as a consequence of its temperature, and absorbs all incident radiance. (See Terminology C168.)
2
3.1.2 core, n, n—a small sample encompassing at least 13 cm of the roof surface area taken by cutting through the roof membrane
and insulation and removing the insulation to determine its composition, condition, and moisture content.
3.1.3 detection, n—the condition at which there is a consistent indication th
...
