ASTM D4704-13
(Test Method)Standard Test Method for Tearing Strength, Tongue Tear of Leather
Standard Test Method for Tearing Strength, Tongue Tear of Leather
SIGNIFICANCE AND USE
4.1 Knowledge of the strength of the sample can be a determining factor for the end use of the product.
SCOPE
1.1 This test method is intended for determining the tearing strength of leather by measuring the force required to tear a specimen cut perpendicular to the surface. This test method does not apply to wet blue.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
General Information
Relations
Buy Standard
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

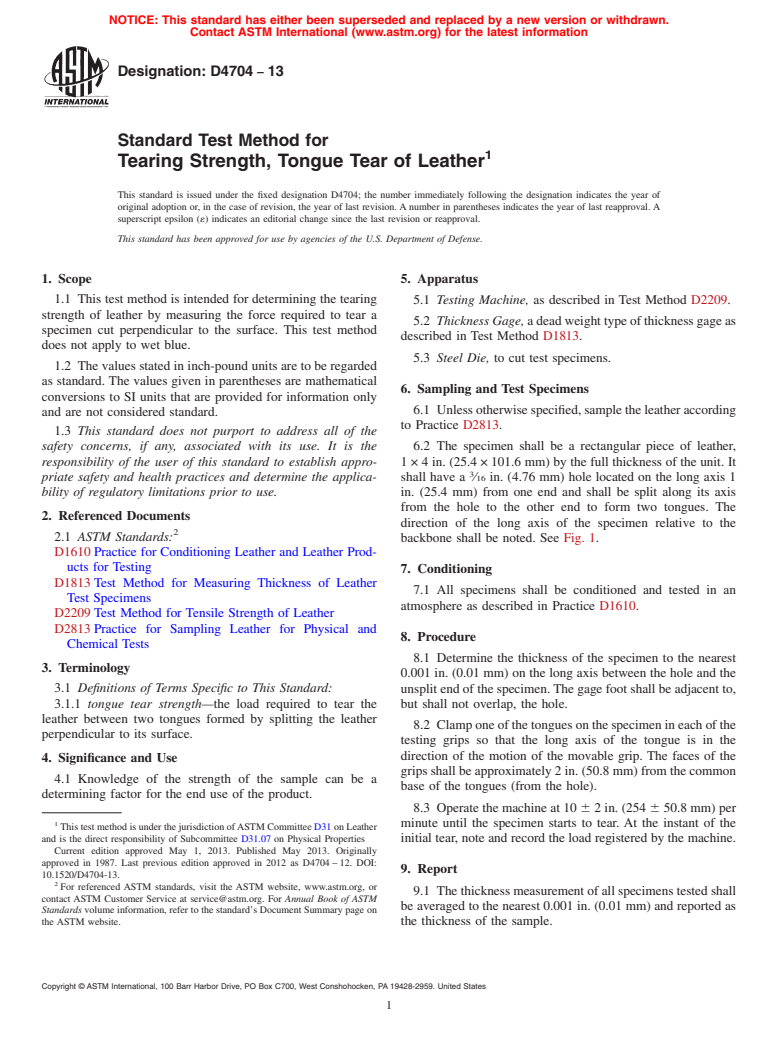

Designation: D4704 − 13
Standard Test Method for
1
Tearing Strength, Tongue Tear of Leather
This standard is issued under the fixed designation D4704; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope 5. Apparatus
1.1 This test method is intended for determining the tearing
5.1 Testing Machine, as described in Test Method D2209.
strength of leather by measuring the force required to tear a
5.2 Thickness Gage,adeadweighttypeofthicknessgageas
specimen cut perpendicular to the surface. This test method
described in Test Method D1813.
does not apply to wet blue.
5.3 Steel Die, to cut test specimens.
1.2 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are mathematical
6. Sampling and Test Specimens
conversions to SI units that are provided for information only
6.1 Unlessotherwisespecified,sampletheleatheraccording
and are not considered standard.
to Practice D2813.
1.3 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the 6.2 The specimen shall be a rectangular piece of leather,
responsibility of the user of this standard to establish appro- 1 × 4 in. (25.4 × 101.6 mm) by the full thickness of the unit. It
3
priate safety and health practices and determine the applica- shall have a ⁄16 in. (4.76 mm) hole located on the long axis 1
bility of regulatory limitations prior to use. in. (25.4 mm) from one end and shall be split along its axis
from the hole to the other end to form two tongues. The
2. Referenced Documents
direction of the long axis of the specimen relative to the
2
2.1 ASTM Standards:
backbone shall be noted. See Fig. 1.
D1610 Practice for Conditioning Leather and Leather Prod-
ucts for Testing
7. Conditioning
D1813 Test Method for Measuring Thickness of Leather
7.1 All specimens shall be conditioned and tested in an
Test Specimens
atmosphere as described in Practice D1610.
D2209 Test Method for Tensile Strength of Leather
D2813 Practice for Sampling Leather for Physical and
8. Procedure
Chemical Tests
8.1 Determine the thickness of the specimen to the nearest
3. Terminology
0.001 in. (0.01 mm) on the long axis between the hole and the
3.1 Definitions of Terms Specific to This Standard:
unsplit end of the specimen.The gage foot shall be adjacent to,
3.1.1 tongue tear strength—the load required to tear the but shall not overlap, the hole.
leather between two tongues formed by splitting the leather
8.2 Clamponeofthetonguesonthespecimenineachofthe
perpendicular to its surface.
testing grips so that the long axis of the tongue is in the
direction of the motion of the movable grip. The faces of the
4. Significance and Use
grips shall be approximately 2 in. (50.8 mm) from the common
4.1 Knowledge of the strength of the sample can be a
base of the tongues (from the hole).
determining factor for the end use of the product.
8.3 Operate the machine at 10 6 2 in. (254 6 50.8 mm) per
1 minu
...

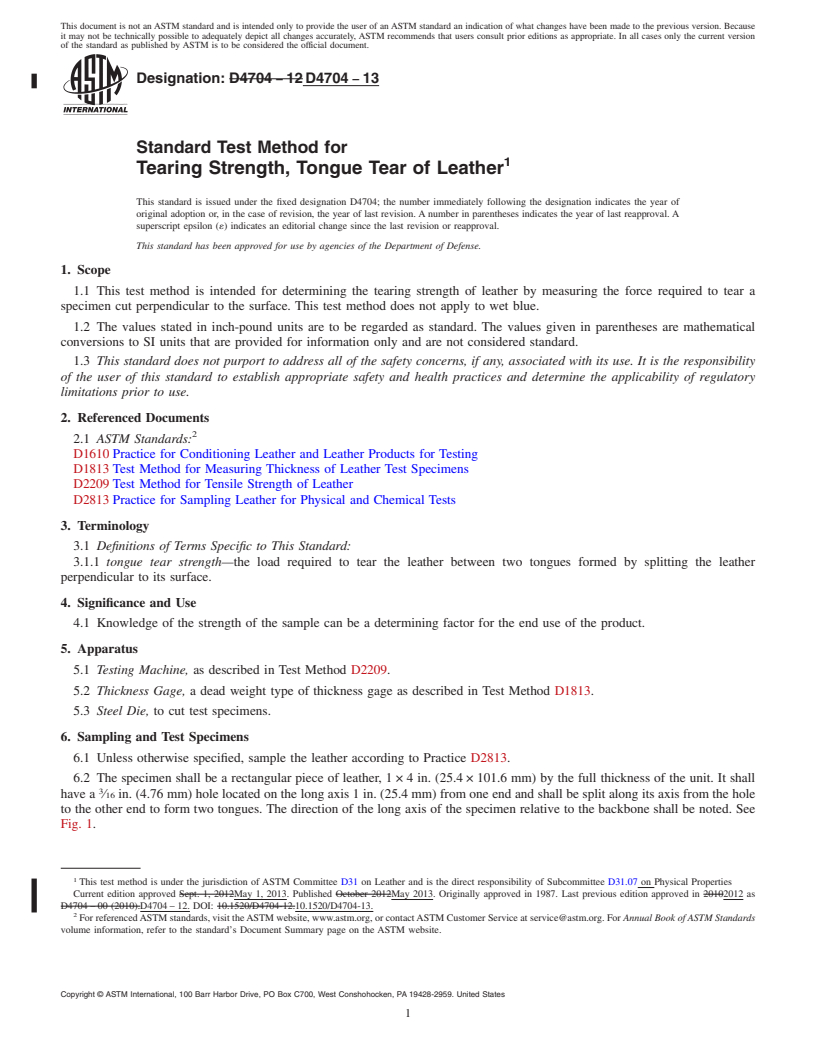

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D4704 − 12 D4704 − 13
Standard Test Method for
1
Tearing Strength, Tongue Tear of Leather
This standard is issued under the fixed designation D4704; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope
1.1 This test method is intended for determining the tearing strength of leather by measuring the force required to tear a
specimen cut perpendicular to the surface. This test method does not apply to wet blue.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
D1610 Practice for Conditioning Leather and Leather Products for Testing
D1813 Test Method for Measuring Thickness of Leather Test Specimens
D2209 Test Method for Tensile Strength of Leather
D2813 Practice for Sampling Leather for Physical and Chemical Tests
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 tongue tear strength—the load required to tear the leather between two tongues formed by splitting the leather
perpendicular to its surface.
4. Significance and Use
4.1 Knowledge of the strength of the sample can be a determining factor for the end use of the product.
5. Apparatus
5.1 Testing Machine, as described in Test Method D2209.
5.2 Thickness Gage, a dead weight type of thickness gage as described in Test Method D1813.
5.3 Steel Die, to cut test specimens.
6. Sampling and Test Specimens
6.1 Unless otherwise specified, sample the leather according to Practice D2813.
6.2 The specimen shall be a rectangular piece of leather, 1 × 4 in. (25.4 × 101.6 mm) by the full thickness of the unit. It shall
3
have a ⁄16 in. (4.76 mm) hole located on the long axis 1 in. (25.4 mm) from one end and shall be split along its axis from the hole
to the other end to form two tongues. The direction of the long axis of the specimen relative to the backbone shall be noted. See
Fig. 1.
1
This test method is under the jurisdiction of ASTM Committee D31 on Leather and is the direct responsibility of Subcommittee D31.07 on Physical Properties
Current edition approved Sept. 1, 2012May 1, 2013. Published October 2012May 2013. Originally approved in 1987. Last previous edition approved in 20102012 as
D4704 – 00 (2010).D4704 – 12. DOI: 10.1520/D4704-12.10.1520/D4704-13.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM Inte
...
