ASTM C1043-24
(Practice)Standard Practice for Guarded-Hot-Plate Design Using Circular Line-Heat Sources
Standard Practice for Guarded-Hot-Plate Design Using Circular Line-Heat Sources
SIGNIFICANCE AND USE
4.1 This practice describes the design of a guarded hot plate with circular line-heat sources and provides guidance in determining the mean temperature of the meter plate. It provides information and calculation procedures for: (1) control of edge heat loss or gain (Annex A1); (2) location and installation of line-heat sources (Annex A2); (3) design of the gap between the meter and guard plates (Appendix X1); and (4) location of heater leads for the meter plate (Appendix X2).
4.2 A circular guarded hot plate with one or more line-heat sources is amenable to mathematical analysis so that the mean surface temperature is calculated from the measured power input and the measured temperature(s) at one or more known locations. Further, a circular plate geometry simplifies the mathematical analysis of errors resulting from heat gains or losses at the edges of the specimens (see Refs (15, 16)).
4.3 The line-heat source(s) is (are) placed in the meter plate at a prescribed radius (radii) such that the temperature at the outer edge of the meter plate is equal to the mean surface temperature over the meter area. Thus, the determination of the mean temperature of the meter plate is accomplished with a small number of temperature sensors placed near the gap.
4.4 A guarded hot plate with one or more line-heat sources will have a radial temperature variation, with the maximum temperature differences being quite small compared to the average temperature drop across the specimens. Provided guarding is adequate, only the mean surface temperature of the meter plate enters into calculations of thermal transmission properties.
4.5 Care shall be taken to design a circular line-heat-source guarded hot plate so that the electric-current leads to each heater either do not significantly alter the temperature distributions in the meter and guard plates or else affect these temperature distributions in a known way so that appropriate corrections are applied.
4.6 The use of one o...
SCOPE
1.1 This practice covers the design of a circular line-heat-source guarded hot plate for use in accordance with Test Method C177.
Note 1: Test Method C177 describes the guarded-hot-plate apparatus and the application of such equipment for determining thermal transmission properties of flat-slab specimens. In principle, the test method includes apparatus designed with guarded hot plates having either distributed- or line-heat sources.
1.2 The guarded hot plate with circular line-heat sources is a design in which the meter and guard plates are circular plates having a relatively small number of heaters, each embedded along a circular path at a fixed radius. In operation, the heat from each line-heat source flows radially into the plate and is transmitted axially through the test specimens.
1.3 The meter and guard plates are fabricated from a continuous piece of thermally conductive material. The plates are made sufficiently thick that, for typical specimen thermal conductances, the radial and axial temperature variations in the guarded hot plate are quite small. By proper location of the line-heat source(s), the temperature at the edge of the meter plate is made equal to the mean temperature of the meter plate, thus facilitating temperature measurements and thermal guarding.
1.4 The line-heat-source guarded hot plate has been used successfully over a mean temperature range from − 10 to + 65°C, with circular metal plates and a single line-heat source in the meter plate. The chronological development of the design for circular line-heat-source guarded hot plates having a single line-heat source in the meter plate is given in Refs (1-9).2
1.5 For high-temperature applications, the line-heat-source guarded hot plate has been used successfully over a mean temperature from 7 to 160°C, with circular metal plates and multiple line-heat sources in the meter plate. The chronological development for circular line-heat-...
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

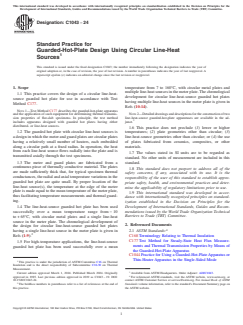

Designation: C1043 − 24
Standard Practice for
Guarded-Hot-Plate Design Using Circular Line-Heat
1
Sources
This standard is issued under the fixed designation C1043; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope temperature from 7 to 160°C, with circular metal plates and
multiple line-heat sources in the meter plate. The chronological
1.1 This practice covers the design of a circular line-heat-
development for circular line-heat-source guarded hot plates
source guarded hot plate for use in accordance with Test
having multiple line-heat sources in the meter plate is given in
Method C177.
Refs (10-14).
NOTE 1—Test Method C177 describes the guarded-hot-plate apparatus
NOTE 2—Detailed drawings and descriptions for the construction of two
and the application of such equipment for determining thermal transmis-
line-heat-source guarded-hot-plate apparatuses are available in the ad-
sion properties of flat-slab specimens. In principle, the test method
3
junct.
includes apparatus designed with guarded hot plates having either
distributed- or line-heat sources.
1.6 This practice does not preclude (1) lower or higher
1.2 The guarded hot plate with circular line-heat sources is temperatures; (2) plate geometries other than circular; (3)
a design in which the meter and guard plates are circular plates line-heat-source geometries other than circular; or (4) the use
having a relatively small number of heaters, each embedded of plates fabricated from ceramics, composites, or other
along a circular path at a fixed radius. In operation, the heat materials.
from each line-heat source flows radially into the plate and is
1.7 The values stated in SI units are to be regarded as
transmitted axially through the test specimens.
standard. No other units of measurement are included in this
1.3 The meter and guard plates are fabricated from a standard.
continuous piece of thermally conductive material. The plates
1.8 This standard does not purport to address all of the
are made sufficiently thick that, for typical specimen thermal
safety concerns, if any, associated with its use. It is the
conductances, the radial and axial temperature variations in the
responsibility of the user of this standard to establish appro-
guarded hot plate are quite small. By proper location of the
priate safety, health, and environmental practices and deter-
line-heat source(s), the temperature at the edge of the meter
mine the applicability of regulatory limitations prior to use.
plate is made equal to the mean temperature of the meter plate,
1.9 This international standard was developed in accor-
thus facilitating temperature measurements and thermal guard-
dance with internationally recognized principles on standard-
ing.
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
1.4 The line-heat-source guarded hot plate has been used
mendations issued by the World Trade Organization Technical
successfully over a mean temperature range from − 10
Barriers to Trade (TBT) Committee.
to + 65°C, with circular metal plates and a single line-heat
source in the meter plate. The chronological development of
2. Referenced Documents
the design for circular line-heat-source guarded hot plates
4
having a single line-heat source in the meter plate is given in
2.1 ASTM Standards:
2
Refs (1-9).
C168 Terminology Relating to Thermal Insulation
C177 Test Method for Steady-State Heat Flux Measure-
1.5 For high-temperature applications, the line-heat-source
ments and Thermal Transmission Properties by Means of
guarded hot plate has been used successfully over a mean
the Guarded-Hot-Plate Apparatus
C1044 Practice for Using a Guarded-Hot-Plate Apparatus or
Thin-Heater Apparatus in the Single-Sided Mode
1
This practice is under the jurisdiction of ASTM Committee C16 on Thermal
Insulation and is the direct responsibility of Subcommittee C16.30 on Thermal
Measurement.
3
Current edition approved March 1, 2024. Published March 2024. Originally Available from ASTM Headquarters. Order Adjunct: ADJC1043.
4
approved in 1985. Last previous edition approved in 2019 as C1043 – 19. DOI: For referenced ASTM standards, visit the ASTM website, www.astm.org, or
10.1520/C1043-24. contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
2
The boldface numbers in parentheses refer to a list of references at the end of Standards volume information, ref
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
