ASTM F939-19

(Practice)

Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings

Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings

ABSTRACT
This practice establishes procedures for the selection of release torque values for Alpine ski/boot/binding systems. The recommended release torque is chosen based on skier type, age, and other factors such as adjustments for normal, discretionary, and release/retention settings. Also discussed are methods of selecting skier type, determining skier code, and determining release torque value. Procedures discussed in this practice may be used by ski binding manufacturers in their instructions for installation and use and by ski shops for making adjustments on already mounted ski bindings. However, this practice does not cover nonmechanical bindings or bindings used with boots that reach more than halfway up the lower leg.
SCOPE
1.1 This practice provides procedures for the selection of release torque values for Alpine ski/boot/bindings systems. These procedures may be used by ski binding manufacturers in their instructions for installation and use and by ski shops for the adjustment of already mounted ski bindings.
1.2 This practice is applicable to releasable Alpine ski/boot/binding systems.
1.3 Release torque values selected using this practice may not be appropriate for circumstances in which:
1.3.1 The skier carries an object that significantly increases the skier's effective body weight,
1.3.2 The skier grasps or in some manner controls an object such as a sled, or
1.3.3 The skier encounters exceptional snow or terrain conditions not commonly found on developed ski slopes.
1.4 This practice may be inappropriate for non-mechanical bindings or bindings used with boots that reach more than half way up the lower leg.
1.5 Release torque values outside the recommendations of this practice may increase the risk of injury to the skier. However, skiers who are informed of this potential risk may request such settings and have them provided, subject to any guidelines and limitations specified by the binding manufacturer.
1.6 These values refer to recommended release torque for initial adjustment of a ski binding and subsequent readjustment of the binding during routine maintenance or following a suspected malfunction. However, these values are not intended to apply to the condition of the equipment at any time after it is put into use.
1.6.1 For information concerning applicable tolerances to be used for the adjustment and inspection of releasable Alpine ski bindings in retail operations consult Practice F1063; for rental applications consult Practice F1064.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Dec-2018
ICS
97.220.20 - Winter sports equipment
Technical Committee
F27 - Snow and Water Sports
Drafting Committee
F27.10 - Binding Test Procedures
Current Stage
Ref Project

Relations

Replaces
ASTM F939-18 - Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings
Effective Date
01-Jan-2019
Refers
ASTM F1063-09(2014) - Standard Practice for Functional Inspections and Adjustments of Alpine Ski/Binding/Boot Systems
Effective Date
01-Jul-2014
Referred By
ASTM F1063-22 - Standard Practice for Functional Inspections and Adjustments of Alpine Ski/Binding/Boot Systems
Effective Date
01-Jan-2019
Referred By
ASTM F1061-08(2020) - Standard Specification for Ski Binding Test Devices
Effective Date
01-Jan-2019
Referred By
ASTM F1064-21 - Standard Practice for Sampling and Inspection of Complete and Incomplete Alpine Ski/Binding/Boot Systems in Rental Applications
Effective Date
01-Jan-2019

Buy Standard

ASTM F939-19 - Standard Practice for Selection of Release Torque Values for Alpine Ski BindingsASTM F939-19 - Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings
PreviousNext
Standard
ASTM F939-19 - Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM F939-19 - Standard Practice for Selection of Release Torque Values for Alpine Ski BindingsREDLINE ASTM F939-19 - Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings
PreviousNext
Standard
REDLINE ASTM F939-19 - Standard Practice for Selection of Release Torque Values for Alpine Ski Bindings
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

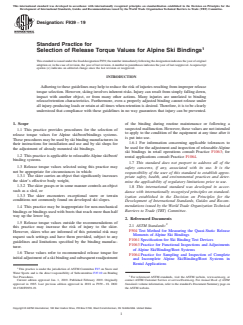

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F939 − 19
Standard Practice for
1
Selection of Release Torque Values for Alpine Ski Bindings
ThisstandardisissuedunderthefixeddesignationF939;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoptionor,inthecaseofrevision,theyearoflastrevision.Anumberinparenthesesindicatestheyearoflastreapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
Adheringtotheseguidelinesmayhelptoreducetheriskofinjuriesresultingfromimproperrelease
torque selection. However, skiing involves inherent risks. Injury can result from simply falling down,
impact with another object, or from many other actions. Many injuries are unrelated to binding
release/retention characteristics. Furthermore, even a properly adjusted binding cannot release under
all injury-producing loads or retain at all times when retention is desired.Therefore, it is to be clearly
understood that compliance with these guidelines in no way guarantees that injury can be prevented.
1. Scope of the binding during routine maintenance or following a
suspectedmalfunction.However,thesevaluesarenotintended
1.1 This practice provides procedures for the selection of
to apply to the condition of the equipment at any time after it
release torque values for Alpine ski/boot/bindings systems.
is put into use.
Theseproceduresmaybeusedbyskibindingmanufacturersin
1.6.1 For information concerning applicable tolerances to
their instructions for installation and use and by ski shops for
be used for the adjustment and inspection of releasableAlpine
the adjustment of already mounted ski bindings.
ski bindings in retail operations consult Practice F1063; for
1.2 ThispracticeisapplicabletoreleasableAlpineski/boot/
rental applications consult Practice F1064.
binding systems.
1.7 This standard does not purport to address all of the
1.3 Release torque values selected using this practice may
safety concerns, if any, associated with its use. It is the
not be appropriate for circumstances in which:
responsibility of the user of this standard to establish appro-
1.3.1 The skier carries an object that significantly increases
priate safety, health, and environmental practices and deter-
the skier’s effective body weight,
mine the applicability of regulatory limitations prior to use.
1.3.2 Theskier graspsor insomemanner controlsanobject
1.8 This international standard was developed in accor-
such as a sled, or
dance with internationally recognized principles on standard-
1.3.3 The skier encounters exceptional snow or terrain
ization established in the Decision on Principles for the
conditions not commonly found on developed ski slopes.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
1.4 This practice may be inappropriate for non-mechanical
Barriers to Trade (TBT) Committee.
bindings or bindings used with boots that reach more than half
way up the lower leg.
2. Referenced Documents
1.5 Release torque values outside the recommendations of
2
2.1 ASTM Standards:
this practice may increase the risk of injury to the skier.
F504Test Method for Measuring the Quasi-Static Release
However, skiers who are informed of this potential risk may
Moments of Alpine Ski Bindings
request such settings and have them provided, subject to any
F1061Specification for Ski Binding Test Devices
guidelines and limitations specified by the binding manufac-
F1063Practice for Functional Inspections and Adjustments
turer.
of Alpine Ski/Binding/Boot Systems
1.6 These values refer to recommended release torque for
F1064Practice for Sampling and Inspection of Complete
initialadjustmentofaskibindingandsubsequentreadjustment
and Incomplete Alpine Ski/Binding/Boot Systems in
Rental Applications
1
This practice is under the jurisdiction ofASTM Committee F27 on Snow and
Water Sports and is the direct responsibility of Subcommittee F27.10 on Binding
2
Test Procedures. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Jan. 1, 2019. Published February 2019. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1985. Last previous edition approved in 2018 as F939–18. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/F0939-19. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

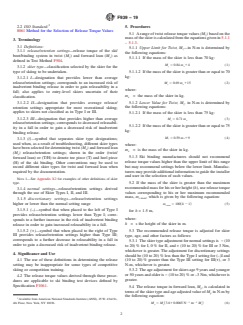

F939 − 19
3
2.2 ISO Standard: 5. Procedures
8061Method for the Selection of Release Torque Values
5.1 Arange of twist release t
...

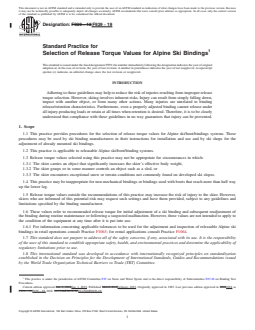

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F939 − 18 F939 − 19
Standard Practice for
1
Selection of Release Torque Values for Alpine Ski Bindings
This standard is issued under the fixed designation F939; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
Adhering to these guidelines may help to reduce the risk of injuries resulting from improper release
torque selection. However, skiing involves inherent risks. Injury can result from simply falling down,
impact with another object, or from many other actions. Many injuries are unrelated to binding
release/retention characteristics. Furthermore, even a properly adjusted binding cannot release under
all injury-producing loads or retain at all times when retention is desired. Therefore, it is to be clearly
understood that compliance with these guidelines in no way guarantees that injury can be prevented.
1. Scope
1.1 This practice provides procedures for the selection of release torque values for Alpine ski/boot/bindings systems. These
procedures may be used by ski binding manufacturers in their instructions for installation and use and by ski shops for the
adjustment of already mounted ski bindings.
1.2 This practice is applicable to releasable Alpine ski/boot/binding systems.
1.3 Release torque values selected using this practice may not be appropriate for circumstances in which:
1.3.1 The skier carries an object that significantly increases the skier’s effective body weight,
1.3.2 The skier grasps or in some manner controls an object such as a sled, or
1.3.3 The skier encounters exceptional snow or terrain conditions not commonly found on developed ski slopes.
1.4 This practice may be inappropriate for non-mechanical bindings or bindings used with boots that reach more than half way
up the lower leg.
1.5 Release torque values outside the recommendations of this practice may increase the risk of injury to the skier. However,
skiers who are informed of this potential risk may request such settings and have them provided, subject to any guidelines and
limitations specified by the binding manufacturer.
1.6 These values refer to recommended release torque for initial adjustment of a ski binding and subsequent readjustment of
the binding during routine maintenance or following a suspected malfunction. However, these values are not intended to apply to
the condition of the equipment at any time after it is put into use.
1.6.1 For information concerning applicable tolerances to be used for the adjustment and inspection of releasable Alpine ski
bindings in retail operations consult Practice F1063; for rental applications consult Practice F1064.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
1
This practice is under the jurisdiction of ASTM Committee F27 on Snow and Water Sports and is the direct responsibility of Subcommittee F27.10 on Binding Test
Procedures.
Current edition approved Jan. 1, 2018Jan. 1, 2019. Published March 2018February 2019. Originally approved in 1985. Last previous edition approved in 20122018 as
F939 – 12.F939 – 18. DOI: 10.1520/F0939-18.10.1520/F0939-19.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

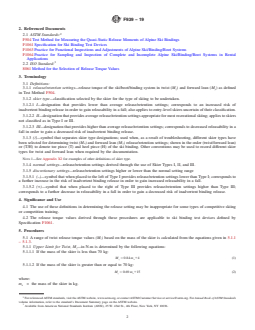

F939 − 19
2. Referenced Documents
2
2.1 ASTM Standards:
F504 Test Method for Measuring the Quasi-Static Release Moments of Alpine Ski Bindings
F1061 Specification for Ski Binding Test Devices
F1063 Practice for Functional Inspections and Adjustments of Alpine Ski/Binding/Boot Systems
F1064 Practice for Sampling and Inspection of Complete and Incomplete Alpine Ski/Binding/Boot Systems in Rental
Applications
3
2.2 ISO Standard:
8061 Method for the Selection of Release Torque Values
3. Terminolog
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM F3237-23(Terminology)
Standard Terminology Relating to Snow Sport Freestyle Terrain Park Jumps

SIGNIFICANCE AND USE
2.1 A standard terminology is needed to allow freestyle terrain park designers, builders, ski resorts, accident investigators, and scientists to use a common language in describing freestyle terrain park jumps and related parameters for a jumper using the feature.
2.2 Angles are taken with respect to horizontal, with positive values indicating an increase in elevation and negative values indicating a decrease in elevation along the path of travel for a terrain park participant using the jump.
SCOPE
1.1 This terminology covers the terms required to describe a cross sectional profile of a snow sport freestyle terrain park jump and related parameters for a jumper using the feature and does not cover any other terrain park feature.
1.2 The terms are presented in a sequence considered to be the most logical with definitions presented later calling upon those presented earlier. This terminology standard does not require the use of any specific units; Imperial units (feet, seconds, degrees) or metric units (meters, seconds, degrees) can be used.
1.3 The depictions used in this standard are intended to aid in understanding the definitions and are not intended to depict or describe how any particular terrain park jump or its component features should be designed, built or maintained. Some terrain park jumps may use different configurations or combinations of features, or they may not incorporate all of the features depicted or defined in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with the use of snow sport terrain park features. Snow sports and the use of terrain park features involve inherent risks, and a terrain park feature that complies with all applicable standards or guidelines cannot eliminate all risks associated with terrain park features. Therefore, it is to be clearly understood that compliance with these applicable standards or guidelines in no way guarantees that injury can be prevented.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM F3557-22(Practice)
Standard Practice for Field Measurements of Snow Sport Freestyle Terrain Jumps

SIGNIFICANCE AND USE
5.1 This practice serves the purpose of measuring snow sports freestyle terrain jump features and may be used as a method for recreating jumps in the field or two-dimensional jump profiles of existing jumps.
SCOPE
1.1 This practice is intended to standardize field measurements of existing snow sport freestyle terrain park jumps. It does not cover other types of terrain park features or asymmetric jumps.
1.2 This practice is for measuring jumps that are used in public access snow sport freestyle terrain parks discussed in Terminology F3237.
1.3 For features with multiple takeoffs, each takeoff should be considered as an independent jump and measured according to this practice.
1.4 The depictions and terrain features used in this standard are intended to aid understanding the definitions and methods and are not intended to depict or describe how any particular terrain park jump or its component features should be designed, built or maintained. Some terrain park features may use components that are not depicted or described in this standard, or they may use different configurations or combinations of components, or they may not incorporate all of the components depicted or defined in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with the use of snow sport terrain park features. Snow sports and the use of terrain park features involve inherent risks, and a terrain park feature that complies with all applicable standards or guidelines cannot eliminate all risks associated with terrain park features. Therefore, it is to be clearly understood that compliance with these applicable standards or guidelines in no way guarantees that injury can be prevented.
1.6 Units—The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM F1063-22(Practice)
Standard Practice for Functional Inspections and Adjustments of Alpine Ski/Binding/Boot Systems

SIGNIFICANCE AND USE
4.1 The purpose of this practice is to aid in providing the end user with an appropriately functioning ski/binding/boot system with appropriate release/retention values.
4.2 The definitions and ranges defined in this practice do not necessarily apply to procedures incorporating an inspection interval or schedule, in which such procedures are specified by the binding manufacturer. This practice is not intended to be a method for evaluating equipment design.
SCOPE
1.1 This practice provides procedures for inspection and adjustment of alpine ski/binding/boot systems, including ski binding systems designated as multi-norm bindings and those compatible with “improved walking soles.”
1.2 This practice should be followed for all ski/binding/boot systems, whether newly mounted or previously mounted, when work is performed on the system that may affect its release function, unless otherwise specified by the binding manufacturer in non-rental applications.
1.3 This standard is not applicable to ski/binding/boot rental systems, including incomplete systems, except when a customer intends to use his or her own skis/bindings with the shop’s boots (as provided in Subsection 7.3 of Practice F1064). For more information on ski/binding/boot rental shop practices, for both complete and incomplete systems, consult Practice F1064.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM F504-05(2022)(Test Method)
Standard Test Method for Measuring the Quasi-Static Release Moments of Alpine Ski Bindings

SIGNIFICANCE AND USE
5.1 This test method involves simulation in the laboratory of potential injury-producing loads that can occur in skiing, without implying the frequency or the magnitude of the danger. This test method does not include the simulation of all or part of a skier, and care must be taken not to confuse the values of moments measured by the test shaft with the loads subjected to the tibia of a skier under the same conditions.
SCOPE
1.1 This test method covers a procedure for the measurement of release moments of ski bindings under conditions where inertia loadings of the ski binding system are not significant.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    13 pages
    English language
    sale 15% off
ASTM
ASTM F1064-21(Practice)
Standard Practice for Sampling and Inspection of Complete and Incomplete Alpine Ski/Binding/Boot Systems in Rental Applications

SIGNIFICANCE AND USE
5.1 The purpose of this practice is to aid in providing the end user with an appropriate functioning ski/binding/boot system and associated release/retention characteristics by providing the rental facility with an ongoing program for monitoring the appropriateness of functional characteristics of the system. It is assumed that these procedures are integrated into the maintenance and operating procedures specified by the equipment manufacturers (for example, in manufacturer-provided technical manuals). This practice is not intended to create additional or redundant requirements for the rental facility. However, this practice should be the basis for the development of rental procedures if the equipment manufacturer’s maintenance and operating procedures do not specifically state that they are in compliance with this practice. This practice will aid the rental facility in providing the end user with a system that provides appropriate release/retention characteristics.
5.2 This practice is applicable to rental facilities that use releasable alpine ski bindings. It is not intended as a method for evaluating equipment designs or types, such as alpine touring equipment. Mixing components of different system types (for example, using an alpine touring boot in an alpine binding) is discouraged.
SCOPE
1.1 This practice establishes a uniform method for the sampling and inspection of complete and incomplete Alpine ski/binding/boot systems used in rental operations. This practice is appropriate for use in rental applications in which all or part of the functional components of the system are supplied by the rental facility.
1.2 This practice should be followed by any facility that rents complete or incomplete Alpine ski/binding/boot systems to an end user.
1.3 This practice is not intended for use with other ski boot or bindings systems, such as alpine touring or pin/tech systems. Use of ski boots or ski bindings that do not meet the requirements for alpine ski equipment can cause unexpected release and retention characteristics.
1.4 This standard does not apply to a ski/binding/boot system that is rented to one individual for the majority of a season and not returned to the rental inventory until the end of the season (often referred to as a seasonal rental); such systems will follow the practice provided in Practice F1063.
Note 1: Refer to Practice F1063 for equivalent procedures and tolerances for retail systems.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    11 pages
    English language
    sale 15% off
  • Standard
    11 pages
    English language
    sale 15% off
ASTM
ASTM F472-11(2021)(Terminology)
Standard Terminology for Geometry of Alpine Skis

SIGNIFICANCE AND USE
2.1 A standard set of definitions is needed to allow manufacturers, consumers, retailers, and scientists to use a common language in describing Alpine skis.
SCOPE
1.1 This terminology covers the terms required to describe the geometry of Alpine skis and does not cover special purpose skis.
1.2 The terms are presented in a sequence considered to be the most logical, with definitions presented later calling upon those presented earlier.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    2 pages
    English language
    sale 15% off
ASTM
ASTM F1107-04(2021)(Terminology)
Standard Terminology Relating to Snowboarding

SIGNIFICANCE AND USE
2.1 A standard set of definitions is needed to allow producers, dealers, users, consumers, general interest individuals, and consultants to use a common language for describing snowboards, snowboard bindings, and snowboard boots.
SCOPE
1.1 This terminology covers terms used to describe the geometry and common hardware used on snowboards (skis), snowboard bindings, and snowboard boots.
1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM F1722-15(2021)(Test Method)
Standard Test Method for Determining Mass and Moment of Inertia of Alpine Skis

SIGNIFICANCE AND USE
4.1 This test method provides a means for determining the mass and moment of inertia of adult Alpine skis. It is not intended to evaluate data with regard to the quality of the ski.
SCOPE
1.1 This test method covers test measurement methods for mass and moment of inertia of adult Alpine skis.2
1.2 No limitation to ski size is proposed. This test method is applicable to all adult Alpine skis.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM F1061-08(2020)(Specification)
Standard Specification for Ski Binding Test Devices

ABSTRACT
This specification covers requirements for devices used to determine the release moments of ski equipment in retail sales and rental facilities; it is applicable to the manufacture, repair, and calibration of such devices. Classification: Type I-a device capable of indicating both positive and negative release moments (Mz); Type IA-a device type I with specified limits of linear displacement or angular deflection; Type IB-a type I device limited in use to a specified binding or group of bindings; Type II-a device capable of indicating both positive and negative release moments (My); Type IIA-a type II device with specified limits of linear displacement or angular deflection; Type IIB-a type II device limited in use to a specified binding or group of bindings; and Type III-a device other than type I or type II with specified capability. The test device shall be of a design such that when tested will meet the requirements prescribed. If the device is designed to indicate force, and a distance measurement is required to calculate the moment, the magnitude of the smallest increment of the distance measurement shall not be greater than 5 % of the shortest measurement anticipated.
SCOPE
1.1 This specification covers requirements for devices used to determine the release moments of ski equipment in retail sales and rental facilities.
1.2 This specification is applicable to the manufacture, repair, and calibration of such devices.
1.3 This specification is to be used with Test Method F1062.
1.4 The values expressed in newton metres, newtons, and centimetres are to be regarded as the standard.
1.5 The values expressed in units of torque may be converted to the appropriate force values when devices that indicate force are used.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    3 pages
    English language
    sale 15% off
ASTM
ASTM F498-19(Test Method)
Standard Test Method for Center Spring Constant and Spring Constant Balance of Alpine Skis

ABSTRACT
This test method covers the determination of center spring constant, forebody spring constant, and afterbody spring constant of Alpine skis. In addition, it covers a method for determination of the spring constant balance. The apparatuses shall be center spring constant equipment and forebody and afterbody spring constant equipment.
SCOPE
1.1 This test method covers the determination of center spring constant, forebody spring constant, and afterbody spring constant of Alpine skis. In addition, it covers a method for determination of the spring constant balance.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
